Harman Kardon AVR330 Technical Manual

Download
Page 1
AVR330 Audio/VideoReceiver
SERVICE MANUAL
Power for the Digital Revolution
™
®
Page 2
TECHNICAL SPECIFICATIONS
Technical Specifications
Stereo Mode Continuous Average Power (FTC)
65 Watts per channel, 20Hz–20kHz, @ < 0.07% THD, both channels driven into 8 ohms
5/7 Channel Surround Modes Power Per Individual Channel
Front L&R channels: 50 Watts per channel, @ < 0.07% THD, 20Hz–20kHz into 8 ohms
Center channel: 50 Watts, @ < 0.07% THD, 20Hz–20kHz into 8 ohms
Surround (L & R Side, L & R Back) channels: 50 Watts per channel, @ < 0.07% THD, 20Hz–20kHz into 8 ohms
Input Sensitivity/Impedance
Linear (High Level) 200mV/47kohms
Signal-to-Noise Ratio (IHF-A) 95dB
Surround System Adjacent Channel Separation
Analog Decoding 40dB (Pro Logic, etc.) Dolby Digital (AC-3) 55dB DTS 55dB
Frequency Response
@ 1W (+0dB, –3dB) 10Hz–100kHz
High Instantaneous Current Capability (HCC) ±30 Amps
Transient Intermodulation Distortion (TIM) Unmeasurable
Rise Time 16 µsec
Slew Rate 40V/µsec**
FM Tuner Section
Frequency Range 87.5–108MHz Usable Sensitivity IHF 1.3 µV/13.2dBf Signal-to-Noise Ratio Mono/Stereo: 70/68dB (DIN) Distortion Mono/Stereo: 0.2/0.3% Stereo Separation 40dB @ 1kHz Selectivity ±400kHz: 70dB Image Rejection 80dB IF Rejection 90dB
AM Tuner Section
Frequency Range 522–1611kHz Signal-to-Noise Ratio 45dB Usable Sensitivity Loop: 500µV Distortion 1kHz, 50% Mod: 0.8% Selectivity ±10kHz: 30dB
Video Section
Video Format PAL/NTSC Input Level/Impedance 1Vp-p/75 ohms Output Level/Impedance 1Vp-p/75 ohms Video Frequency Response (Composite and S-Video) 10Hz–8MHz (-3dB) Video Frequency Response (Component) 10Hz-50MHz (-3dB)
General
Power Requirement AC 220-240V/ 50Hz Power Consumption 118W idle, 890W maximum
(7 channels driven)
Dimensions (Max)
Width 440mm Height 165mm Depth 382mm Weight 14.0 kg
Depth measurement includes knobs, buttons and terminal connections. Height measurement includes feet and chassis. All features and specifications are subject to change without notice.
Harman Kardon is a registered trademark, and Power for the digital revolution is a trademark, of Harman International Industries, Inc.
is a trademark of Harman International Industries, Inc.
(Patent No.5,386,478).
*Manufactured under license from Dolby Laboratories. “Dolby,”“Pro Logic,” “Pro Logic II” and the Double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works. ©1992–1999 Dolby Laboratories,Inc. All rights reserved.
DTS and DTS Surround, DTS-ES and DTS Neo:6 are trademarks of Digital Theater Systems, Inc.
UltraStereo is a trademark of UltraStereo Corp.
VMAx is a trademark of Harman International Industries, Inc.,and is an implementation of Cooper Bauck Transaural Stereo under patent license.
Logic 7 is a registered trademark of Harman International Industries, Incorporated.
Crystal is a registered trademark of Cirrus Logic Corp.
**Without input anti slewing and output isolation networks.
TM
Page 3
DISASSEMBLY
14
1) REMOVAL OF TOP COVER
3) PRINCIPAL PARTS LOACTION
TUNER
MODULE
VIDEO PCB
2) REMOVAL OF FRONT PANEL
TRANS FORMER
FRONT PCB
INPUT PCB
MAIN PCB
Page 4
X
Page 5
AVR330/230 PACKING
Pos Part number 1st part name 2nd part name
CPG1A732P BOX , OUT CARTON HARTAVR330/230 REMOCON ASS'Y HARTZONE2 REMOCON ASS'Y CPP1A081Z BAG,POLY SET CPS4A564 PAD , SNOW L CPS4A565 PAD , SNOW R CPB1061Y BAG , POLY CQE1A180Z BOOKLET , IMFORMATIONS CQX1A862X MANUAL , INSTRUCTION CQX1A866Y MANUAL , SETUP CSA1A018Z FM 1 POLE ANT CSA3A012Z AM LOOP ANTENNA ASS'Y HABAAAM1.5V BATTERY HABAAAM1.5VHK BATTERY
CQXAVR330/230 INSTRUCTION MANUAL ASS'Y
AVR330/230 MECH
Pos Part number 1st part name 2nd part name
CNVKSTM9014MS17 TUNER MODULE(EUR) CKC1B145S46 CABINET , TOP na FRONT PANEL ASS'Y CGW1A366RDYH43 PANEL , FRONT KBC1A147MBZC22 KNOB , MOMS KBT1A903MMZC22 KNOB , POWER KBT1A904MBZC22 KNOB , SET KBT1A905MBYC22 KNOB , FUNCTION KBN1A174MBC22 KNOB , ROTARY CBT1A819K128 KNOB , DELAY KGB1A111X BADGE , HARMAN/KARDON CMH1A214 HOLDER , VOLUME CGL1A222 INDICATOR , VOLUME KGX1A338MBC22 CAP , VOLUME CMZ1A090 SHEET , VOLUME CGU1A318Z ORNAMENT , VOLUME CGU1A317X WINDOW , FIP CGL1A221 INDICATOR , POWER CMH1A215 HOLDER , LED CMX1A148 INSULATOR , FUBCTION CMX1A149 INSULATOR , SET CMZ1A088 FILTER , FIP CUA1A229 CHASSIS , BOTTOM HDMKD1206PTS3 MOTOR , FAN(60X60X25MM)
BN72 CWZAVR230BN72 WIRE ASS'Y
CLZ9Z028Z FERRITE CORE(21.2X6.4X12.7) CQB1A549Z LABEL , ATTENTION
1/1
1/2
Page 6
AVR330/230 MECH
Pos Part number 1st part name 2nd part name
CQB1A551Z LABEL , BAR CODE CHE170 HOLDER , PCB CHG1A104 CUSHION , EVA CHG1A157 CUSHION , RUBBER CJA2B043ZA CORD , POWER(EUR) CKF5A254Y PANEL , REAR CKL1A069H43 FOOT CMC1A200 PLATE , SHIELD CLZ9W003Z FERRITE , RING CMD1A443 BRACKET , SIDE CMK1A010 BRACKET , PCB CMD1A487 BRACKET , TRANS CMD1A506 BRACKET , FAN KHE36-3 CLAMPER , WIRE KHG1A050 RUBBER , CUSHION KHR1A028 BUSHING , AC CORD KHR301 CLAMPER KHR301 CLAMPER CTB3+8JFC SCREW CTB4+6FFC SCREW CHD1A012Z SCREW , SPECIAL CHD1A023 SCREW , TRANS CHD1A036FZ SCREW , SPECIAL CHD2A012 SCREW , TR CTB3+10G SCREW CTB3+16GFZ SCREW CTWS3+10G SCREW
2/2
Page 7
AVR330/230 FRONT
Pos Part number 1st part name 2nd part name
COP11578F FRONT PCB ASS'Y
C701 HCBS1H390JT CAP , CERAMIC 39PF 50V J C702 HCBS1H390JT CAP , CERAMIC 39PF 50V J C703 HCBS1H821KBT CAP , CERAMIC 820PF 50V K C704 HCEA1VH100T CAP , ELECT 10UF 35V C705 HCBS1H102KBT CAP , CERAMIC 1000PF 50V B C706 HCBS1H561KBT CAP , CERAMIC C708 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C709 HCEA1CH101T CAP , ELECT 100UF 16V C710 HCEA1HH2R2T CAP , ELECT 2.2UF 50V C711 HCBS1H102KBT CAP , CERAMIC 1000PF 50V B C712 HCEA1HH1R0T CAP , ELECT 1UF 50V C713 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C714 HCBS1H151KBT CAP , CERAMIC 150PF 50V K C715 HCEA1HH4R7T CAP , ELECT 4.7UF 50V C716 HCEA1CH331T CAP , ELECT C717 HCBS1H221KBT CAP , CERAMIC 220PF 50V K C718 HCBS1H221KBT CAP , CERAMIC 220PF 50V K C719 HCBS1H181KBT CAP , CERAMIC 180PF 50V K C720 HCBS1H181KBT CAP , CERAMIC 180PF 50V K C721 HCBS1H181KBT CAP , CERAMIC 180PF 50V K C722 HCEA1CH101T CAP , ELECT 100UF 16V C723 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C724 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C725 CCKT1H473ZF CAP , CERAMIC 0.047UF 50V ZF C726 HCEA0JH102T CAP , ELECT 1000UF 6.3V C727 HCBS1H221KBT CAP , CERAMIC 220PF 50V K C728 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C729 CCKT1H473ZF CAP , CERAMIC 0.047UF 50V ZF C730 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C731 HCEA1HH100T CAP , ELECT 10UF 50V C732 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C733 HCEA1EH470T CAP , ELECT 47UF 25V C735 HCEA1VH100T CAP , ELECT 10UF 35V C736 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C737 HCBS1H180JT CAP , CERAMIC C738 HCBS1H180JT CAP , CERAMIC C770 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C771 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C773 HCEA1VH100T CAP , ELECT 10UF 35V C774 HCEA1VH100T CAP , ELECT 10UF 35V C775 HCBS1H151KBT CAP , CERAMIC 150PF 50V K C776 HCBS1H151KBT CAP , CERAMIC 150PF 50V K C777 HCEA1VH100T CAP , ELECT 10UF 35V C778 HCEA1VH100T CAP , ELECT 10UF 35V
1/10
Page 8
AVR330/230 FRONT
Pos Part number 1st part name 2nd part name
C779 HCEA1CKS470T CAP, ELECT C780 HCEA1CKS470T CAP, ELECT C781 HCEA1CKS100T CAP , ELECT C782 HCEA1CKS100T CAP , ELECT C785 HCBS1H470JT CAP , CERAMIC 47PF 50V J C786 HCBS1H470JT CAP , CERAMIC 47PF 50V J C787 HCEA1CKS100T CAP , ELECT C788 HCEA1CKS100T CAP , ELECT C789 HCEA1CKS100T CAP , ELECT C790 HCEA1CKS100T CAP , ELECT C791 HCEA1CKS470T CAP, ELECT C792 HCEA1CKS470T CAP, ELECT C793 KCFE1J183JBT CAP , FILM 0.018UF 63V J C794 KCFE1J183JBT CAP , FILM 0.018UF 63V J C795 KCFE1J823JBT CAP , FILM 0.082UF 63V J C796 KCFE1J823JBT CAP , FILM 0.082UF 63V J C797 KCFE1J332JBT CAP , FILM 0.0033UF 63V J C798 KCFE1J332JBT CAP , FILM 0.0033UF 63V J C799 KCFE1J183JBT CAP , FILM 0.018UF 63V J C800 KCFE1J183JBT CAP , FILM 0.018UF 63V J C805 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C806 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C807 CCKT1H104ZF CAP , CERAMIC 50V 0.1UF C808 CCKT1H181KB CAP , CERAMIC 180PF 50V KB C809 HCEA1AH471T CAP , ELECT 470UF 10V C810 HCEA1CH101T CAP , ELECT 100UF 16V C811 HCEA1CH101T CAP , ELECT 100UF 16V C812 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C813 HCEA1HH4R7T CAP , ELECT 4.7UF 50V C814 HCEA1HH4R7T CAP , ELECT 4.7UF 50V C815 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C816 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C850 HCBS1H471KBT CAP , CERAMIC C851 HCBS1H471KBT CAP , CERAMIC C852 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C855 HCBS1H101KBT CAP , CERAMIC 100PF 50V K C856 HCBS1H101KBT CAP , CERAMIC 100PF 50V K C857 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C858 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C859 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C860 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C861 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C862 HCBS1H101KBT CAP , CERAMIC 100PF 50V K C863 HCBS1H101KBT CAP , CERAMIC 100PF 50V K C864 HCEA1VH100T CAP , ELECT 10UF 35V C865 CCKT1H473ZF CAP , CERAMIC 0.047UF 50V ZF
2/10
Page 9
AVR330/230 FRONT
Pos Part number 1st part name 2nd part name
C866 HCEA1CKS100T CAP , ELECT C867 HCEA1CKS100T CAP , ELECT C868 HCEA1CKS470T CAP, ELECT C869 HCEA1CKS470T CAP, ELECT C870 HCBS1H681KBT CAP , CERAMIC C871 HCBS1H681KBT CAP , CERAMIC C872 HCEA1CH331T CAP , ELECT C873 HCEA1CH331T CAP , ELECT C874 HCBS1H101KBT CAP , CERAMIC 100PF 50V K C875 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z C876 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z C877 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z C878 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z C880 HCEA1AH221T CAP , ELECT C882 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C886 HCEA0JH102T CAP , ELECT 1000UF 6.3V C889 HCBS1H220JT CAP , CERAMIC C890 HCBS1H220JT CAP , CERAMIC C891 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C892 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C893 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C894 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C895 HCEA1AH471T CAP , ELECT 470UF 10V C896 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C897 HCEA1AH471T CAP , ELECT 470UF 10V C900 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C902 HCEA1HH2R2T CAP , ELECT 2.2UF 50V D724 HVD1SS133MT DIODE 1SS133T-77 D725 HVD1SS133MT DIODE 1SS133T-77 D726 HVD1SS133MT DIODE 1SS133T-77 D727 HVD1SS133MT DIODE 1SS133T-77 D728 HVD1SS133MT DIODE 1SS133T-77 D729 HVD1SS133MT DIODE 1SS133T-77 D730 HVD1SS133MT DIODE 1SS133T-77 D761 HVD1SS133MT DIODE 1SS133T-77 D774 HVD1SS133MT DIODE 1SS133T-77 D775 HVD1SS133MT DIODE 1SS133T-77 D776 KVD1N4003ST DIODE 1N4003 D777 HVD1SS133MT DIODE 1SS133T-77 D778 KVD1N4003ST DIODE 1N4003 D779 HVD1SS133MT DIODE 1SS133T-77 D783 HVD1SS133MT DIODE 1SS133T-77 D784 HVD1SS133MT DIODE 1SS133T-77 D785 HVD1SS133MT DIODE 1SS133T-77 D786 HVDMTZJ5.6BT DIODE , ZENER D787 HVDMTZJ5.6BT DIODE , ZENER
3/10
Page 10
AVR330/230 FRONT
Pos Part number 1st part name 2nd part name
D788 HVDMTZJ5.6BT DIODE , ZENER D789 HVDMTZJ5.6BT DIODE , ZENER IC87 HVIRE5VL28CATZ IC , RESET L702 HLQ02C100KT COIL , AXAIL Q701 HVTKRC107MT T.R KRC107M Q702 HVTKRC107MT T.R KRC107M Q703 HVTKRC107MT T.R KRC107M Q704 HVTKRC107MT T.R KRC107M Q705 HVTKRC107MT T.R KRC107M Q706 HVTKRC107MT T.R KRC107M Q722 HVTKRA107MT T.R KRA107M Q723 HVTKRC107MT T.R KRC107M Q724 HVTKRC107MT T.R KRC107M Q725 HVTKRC107MT T.R KRC107M Q726 HVTKRC107MT T.R KRC107M Q727 HVTKRC107MT T.R KRC107M Q728 HVTKRC107MT T.R KRC107M Q729 HVTKRC107MT T.R KRC107M Q731 KVTKSA1175YT T.R KSA1175Y Q732 HVTKRC107MT T.R KRC107M Q733 KVTKSC2785YT T.R KSC2785Y Q734 HVTKTC2874BT T.R , MUTE KTC2874B Q735 HVTKTC2874BT T.R , MUTE KTC2874B Q736 HVTKTC2874BT T.R , MUTE KTC2874B Q737 HVTKTC2874BT T.R , MUTE KTC2874B Q738 HVTKRC107MT T.R KRC107M Q739 HVTKTA1271YT T.R KTA1271Y Q740 HVTKRC107MT T.R KRC107M Q741 HVTKRC107MT T.R KRC107M Q743 HVTKRA107MT T.R KRA107M R701 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R702 CRD20TJ1R0T RES , CARBON 1 OHM 1/5W J R704 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R705 CRD20TJ820T RES , CARBON 82 OHM 1/5W J R706 CRD20TJ820T RES , CARBON 82 OHM 1/5W J R707 CRD20TJ820T RES , CARBON 82 OHM 1/5W J R708 CRD20TJ820T RES , CARBON 82 OHM 1/5W J R709 CRD20TJ470T RES , CARBON 47 OHM 1/5W J R710 CRD20TJ470T RES , CARBON 47 OHM 1/5W J R711 CRD20TJ470T RES , CARBON 47 OHM 1/5W J R712 CRD20TJ470T RES , CARBON 47 OHM 1/5W J R713 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R714 CRD20TJ470T RES , CARBON 47 OHM 1/5W J R715 CRD20TJ470T RES , CARBON 47 OHM 1/5W J R716 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R717 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
4/10
Page 11
AVR330/230 FRONT
Pos Part number 1st part name 2nd part name
R718 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R719 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R720 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R721 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R723 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R724 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R725 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R726 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R727 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R728 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R729 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R730 CRD20TJ112T RES,CABON R731 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R732 CRD20TJ202T RES , CARBON R733 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J R734 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R735 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R736 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J R737 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R738 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R739 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R740 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R741 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R742 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R743 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R744 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R745 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R746 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R747 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R750 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R751 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R752 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R753 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R754 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R755 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R756 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J R757 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R758 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R759 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R760 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R761 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R762 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J R763 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R764 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R765 CRD20TJ752T RES , CARBON 7.5K OHM 1/5W J R766 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
5/10
Page 12
AVR330/230 FRONT
6/10
Pos Part number 1st part name 2nd part name
R767 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R768 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R769 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J R770 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R771 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R772 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R773 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R774 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R775 CRD20TJ470T RES , CARBON 47 OHM 1/5W J R776 CRD20TJ470T RES , CARBON 47 OHM 1/5W J R777 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R808 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R809 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R810 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R811 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R813 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R814 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R820 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R821 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R822 CRD20TJ471T RES , CARBON 470 OHM 1/5W J R824 CRD20TJ820T RES , CARBON 82 OHM 1/5W J R825 CRD20TJ181T RES , CARBON 180 OHM 1/5W J R826 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R827 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R829 CRD20TJ184T RES , CARBON R830 CRD20TJ184T RES , CARBON R831 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R832 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R833 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R834 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R835 CRD20TJ184T RES , CARBON R836 CRD20TJ184T RES , CARBON R837 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R838 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R839 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R840 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R841 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R842 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R843 CRD20TJ105T RES , CARBON 1M OHM 1/5W J R844 CRD20TJ105T RES , CARBON 1M OHM 1/5W J R845 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R846 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R847 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R848 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R849 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R850 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
Page 13
AVR330/230 FRONT
7/10
Pos Part number 1st part name 2nd part name
R851 CRD20TJ392T RES , CARBON R852 CRD20TJ392T RES , CARBON R853 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R854 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R855 CRD20TJ681T RES , CARBON 680 OHM 1/5W J R856 CRD20TJ681T RES , CARBON 680 OHM 1/5W J R857 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R858 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R864 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J R865 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R866 CRD20TJ272T RES , CARBON 2.7K OHM 1/5W J R868 CRD20TJ1R0T RES , CARBON 1 OHM 1/5W J R869 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R871 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R872 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R873 CRD20TJ471T RES , CARBON 470 OHM 1/5W J R874 CRD20TJ471T RES , CARBON 470 OHM 1/5W J R875 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R876 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R877 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R878 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R881 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R882 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R883 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R884 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R885 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R886 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R887 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R888 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R889 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R890 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R891 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R892 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R893 CRD20TJ333T RES , CARBON 33K OHM 1/5W J R895 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R896 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R897 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R898 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R899 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R900 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R901 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R902 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R903 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R904 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R905 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R906 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
Page 14
AVR330/230 FRONT
Pos Part number 1st part name 2nd part name
R907 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R908 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R909 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R910 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R911 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R912 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R913 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R914 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R915 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R917 CRD20TJ123T RES , CARBON 12K OHM 1/5W J R918 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R919 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J S701 HST1A020ZT SW , TACT S702 HST1A020ZT SW , TACT S703 HST1A020ZT SW , TACT S704 HST1A020ZT SW , TACT S705 HST1A020ZT SW , TACT S706 HST1A020ZT SW , TACT S707 HST1A020ZT SW , TACT S708 HST1A020ZT SW , TACT S709 HST1A020ZT SW , TACT S710 HST1A020ZT SW , TACT S711 HST1A020ZT SW , TACT S712 HST1A020ZT SW , TACT S713 HST1A020ZT SW , TACT S714 HST1A020ZT SW , TACT S715 HST1A020ZT SW , TACT S716 HST1A020ZT SW , TACT S717 HST1A020ZT SW , TACT S718 HST1A020ZT SW , TACT S719 HST1A020ZT SW , TACT S720 HST1A020ZT SW , TACT
C8ESM800 FLUX H2K31161 SOLDER , WIRE SN60/PH40 H2K50301 SOLDER , BAR S63S-W3.0 K2K4110 SOLDER , ALMIT SM:60% K4FH300 TAPE , PROTECTIVE
K4FM073 TAPE , BOTH SIDE 3M #4920 BAT1 HABGP40BVH3A3H BATTERY , RECHARGEABLE GP40BBVH3A3H BK71 CMD1A209 BRACKET , FLT A4-92-1739 BK72 CMD1A209 BRACKET , FLT A4-92-1739 BK73 CMD1A387 BRACKET , PCB BK74 CMD1A209 BRACKET , FLT A4-92-1739 BN10 CWZAVR230BN10 WIRE ASS'Y (SHIELD) BN15 CWB2B906150EN WIRE ASS'Y BN16 CWZAVR2550BN16 WIRE ASS'Y (SHIELD)
8/10
Page 15
AVR330/230 FRONT
9/10
Pos Part number 1st part name 2nd part name
BN18 CWZAVR125BN18 WIRE ASS'Y (SHIELD) BN41 CWZAVR130BN41 WIRE ASS'Y (SHIELD) BN80 CWB2B911420EW WIRE ASS'Y BN81 CWB2B908250BM WIRE , ASS'Y BN84 CWB2B905080EN WIRE ASS'Y BN85 CWB2B902090EN WIRE ASS'Y BN87 CWZAVR2550BN87 WIRE ASS'Y (SHIELD) BN88 CWB2B904070EN WIRE ASS'Y BN89 CWB2B905080EN WIRE ASS'Y BN90 CWB2B902090EN WIRE ASS'Y BN94 KJP13GB99ZM CONNECTOR MOLEX35237-1310 BN95 KJP08GB99ZM CONNECTOR , HOUSING MOLEX35237-0810 CN10 KJP04GB46ZM WAFER MOLEX 53015 CN11 KJP15GA98ZM WAFER MOLEX35336-1510 CN12 KJP15GA98ZM WAFER MOLEX35336-1510 CN15 KJP06GA19ZM WAFER MOLEX53014-0610 CN16 KJP08GB46ZM WAFER CN72 KJP32GA161ZY WAFER YD200 SERIES CN79 KJP05GA19ZM WAFER MOLEX53014-0510 CN82 KJP06HA37ZM WAFER MOLEX42140-2206 CN84 KJP05GA19ZM WAFER MOLEX53014-0510 CN85 KJP02GA19ZM WAFER CN86 KJP02GA89ZM WAFER MOLEX35328-02 CN87 KJP06GA19ZM WAFER MOLEX53014-0610 CN88 KJP04GA19ZM WAFER CN89 KJP05GA19ZM WAFER MOLEX53014-0510 CN90 KJP02GA19ZM WAFER CN91 KJP06HA37ZM WAFER MOLEX42140-2206 C853 KCKDKS472ME CAP , CERAMIC(X1/Y2/SC) 0.0047UF/2.5KV D702 CVD52CSBBCEAB2 BLUE L.E.D D703 CVD52CSBBCEAB2 BLUE L.E.D D704 CVD52CSBBCEAB2 BLUE L.E.D D706 CVD52CSBBCEAB2 BLUE L.E.D D707 CVD52CSBBCEAB2 BLUE L.E.D D723 CVD50BOGDWGA L.E.D , 2 COLOR FIP1 HFLHCA18ML01 F.I.P IC71 BVISAA6579TV1 I.C , RDS FILTER TW SAA6579T/V1 IC72 BVIMB90F482APFG-2 IC , FLASH U-COM control FUJITSU IC73 HRVRPM6938H4 SENSOR , REMOTE RPM6938-H4 IC74 HVIS3F84BB-2 I.C , FLASH U-COM display S3F84BB IC75 HVI74ACT04MTR I.C , HEX IC76 HVITC74HCU04AFN IC , INVERTER TC74HCU04AFN IC80 HVIHCF4053M013T I.C IC81 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC82 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC83 HVI74ACT04MTR I.C , HEX
Page 16
AVR330/230 FRONT
10/10
Pos Part number 1st part name 2nd part name
IC84 HVI74ACT04MTR I.C , HEX IC85 HVIRH5VT18C I.C , RESET IC86 HVINJM4556AL I.C NJM4556AL IC88 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC89 HVIHCF4053M013T I.C JK81 CJJ4M041Y JACK , BOARD (COAX) JK82 HJSTORX179L MODULE , OPTICAL(RX) TORX179L JK83 CJJ2E026Z JACK , HEADPHONE(SILVER PLATE) JK85 CJJ9M003Z JACK , S-VIDEO JK86 CJJ4S023Y JACK , BOARD JW82 CWZAVR2550JW82 WIRE , ASS'Y JW84 CWE8202110RV WIRE, ASS'Y JW85 CWE8202070AA WIRE ASS'Y SW01 CSH1A008ZV SW , PUSH (MOMS) VR71 CVV2X05M104Z RES , VARIABLE(BALANCE) RK14128030214Y VR72 CVV2X07C104Z RES , VARIABLE(TONE) RK14128030214C VR73 CVV2X07C104Z RES , VARIABLE(TONE) RK14128030214C VR74 HSR2A029Z VR , ENCODER X701 HOX05000E160C CRYSTAL X702 HOX04332E200C CRYSTAL X703 HOX10000E220C CRYSTAL
Page 17
AVR330/230 MAIN
Pos Part number 1st part name 2nd part name
COP11579F MAIN PCB ASS'Y
C501 HCEA1VH100T CAP , ELECT 10UF 35V C502 HCEA1VH100T CAP , ELECT 10UF 35V C503 HCEA1VH100T CAP , ELECT 10UF 35V C504 HCEA1VH100T CAP , ELECT 10UF 35V C505 HCEA1VH100T CAP , ELECT 10UF 35V C506 CCKT1H331KB CAP , CERAMIC 330PF 50V KB C507 CCKT1H331KB CAP , CERAMIC 330PF 50V KB C508 CCKT1H331KB CAP , CERAMIC 330PF 50V KB C509 CCKT1H331KB CAP , CERAMIC 330PF 50V KB C510 CCKT1H331KB CAP , CERAMIC 330PF 50V KB C561 HCEA1CH101T CAP , ELECT 100UF 16V C562 HCEA1CH101T CAP , ELECT 100UF 16V C563 HCEA1CH101T CAP , ELECT 100UF 16V C564 HCEA1CH101T CAP , ELECT 100UF 16V C565 HCEA1CH101T CAP , ELECT 100UF 16V C566 HCEA1CH101T CAP , ELECT 100UF 16V C567 HCEA1CH101T CAP , ELECT 100UF 16V C568 HCEA1CH101T CAP , ELECT 100UF 16V C569 HCEA1CH101T CAP , ELECT 100UF 16V C570 HCEA1CH101T CAP , ELECT 100UF 16V C571 HCBS1H681KBT CAP , CERAMIC C572 HCBS1H681KBT CAP , CERAMIC C573 HCBS1H681KBT CAP , CERAMIC C574 HCBS1H681KBT CAP , CERAMIC C575 HCBS1H681KBT CAP , CERAMIC C601 CCCT1H120JC CAP , CERAMIC 12PF 50V JC C602 CCCT1H120JC CAP , CERAMIC 12PF 50V JC C603 CCCT1H120JC CAP , CERAMIC 12PF 50V JC C604 CCCT1H120JC CAP , CERAMIC 12PF 50V JC C605 CCCT1H120JC CAP , CERAMIC 12PF 50V JC C606 CCCT1H330JC CAP , CERAMIC 33PF 50V JC C607 CCCT1H330JC CAP , CERAMIC 33PF 50V JC C608 CCCT1H330JC CAP , CERAMIC 33PF 50V JC C609 CCCT1H330JC CAP , CERAMIC 33PF 50V JC C610 CCCT1H330JC CAP , CERAMIC 33PF 50V JC C681 HCEA1HH100T CAP , ELECT 10UF 50V C682 HCEA1HH100T CAP , ELECT 10UF 50V C683 HCEA1HH100T CAP , ELECT 10UF 50V C684 HCEA1HH100T CAP , ELECT 10UF 50V C685 HCEA1HH100T CAP , ELECT 10UF 50V C721 CCKT1H221KB CAP , MYLAR 220PF 50V KB C722 CCKT1H221KB CAP , MYLAR 220PF 50V KB C723 CCKT1H221KB CAP , MYLAR 220PF 50V KB C724 CCKT1H221KB CAP , MYLAR 220PF 50V KB
1/16
Page 18
AVR330/230 MAIN
Pos Part number 1st part name 2nd part name
C725 CCKT1H221KB CAP , MYLAR 220PF 50V KB C726 CCKT1H221KB CAP , MYLAR 220PF 50V KB C727 CCKT1H221KB CAP , MYLAR 220PF 50V KB C728 CCKT1H221KB CAP , MYLAR 220PF 50V KB C801 HCEA1HH100T CAP , ELECT 10UF 50V C802 HCEA1HH100T CAP , ELECT 10UF 50V C803 CCCT1H330JC CAP , CERAMIC 33PF 50V JC C804 CCCT1H330JC CAP , CERAMIC 33PF 50V JC C805 CCCT1H120JC CAP , CERAMIC 12PF 50V JC C806 CCCT1H120JC CAP , CERAMIC 12PF 50V JC C811 HCEA1CH101T CAP , ELECT 100UF 16V C812 HCEA1CH101T CAP , ELECT 100UF 16V C813 HCEA1CH101T CAP , ELECT 100UF 16V C814 HCEA1CH101T CAP , ELECT 100UF 16V C815 CCKT1H331KB CAP , CERAMIC 330PF 50V KB C816 CCKT1H331KB CAP , CERAMIC 330PF 50V KB C817 HCEA1VH100T CAP , ELECT 10UF 35V C818 HCEA1VKS100T CAP , ELECT 10UF 35V C819 HCBS1H681KBT CAP , CERAMIC C820 HCBS1H681KBT CAP , CERAMIC C900 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C901 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C903 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C905 CCKT1H223ZF CAP , CERAMIC 0.022UF 50V ZF C907 HCEA1CH101T CAP , ELECT 100UF 16V C908 CCKT1H223ZF CAP , CERAMIC 0.022UF 50V ZF C910 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C911 HCEA1CH471T CAP , ELECT C912 HCEA1CH221T CAP , ELECT C913 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V ZF C914 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C917 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C918 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C919 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C923 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C924 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C925 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C932 HCEA1CH101T CAP , ELECT 100UF 16V C933 HCEA1CH221T CAP , ELECT C934 CCKT1H223ZF CAP , CERAMIC 0.022UF 50V ZF C939 HCEA1HH4R7T CAP , ELECT 4.7UF 50V C940 HCEA1AH471T CAP , ELECT 470UF 10V C950 HCEA1CH101T CAP , ELECT 100UF 16V C955 HCBS1H101KBT CAP , CERAMIC 100PF 50V K C971 HCQI1H562JZT CAP , MYLAR 5600PF 50V J C972 HCQI1H562JZT CAP , MYLAR 5600PF 50V J
2/16
Page 19
AVR330/230 MAIN
Pos Part number 1st part name 2nd part name
C973 HCQI1H562JZT CAP , MYLAR 5600PF 50V J C974 HCQI1H562JZT CAP , MYLAR 5600PF 50V J C975 HCQI1H562JZT CAP , MYLAR 5600PF 50V J C980 HCQI1H562JZT CAP , MYLAR 5600PF 50V J C981 HCQI1H562JZT CAP , MYLAR 5600PF 50V J C989 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C990 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C991 HCEA1HH1R0T CAP , ELECT 1UF 50V C992 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C993 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C994 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C995 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C996 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C997 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C999 CCKT1H223ZF CAP , CERAMIC 0.022UF 50V ZF C999 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z D501 HVD1SS133MT DIODE 1SS133T-77 D502 HVD1SS133MT DIODE 1SS133T-77 D503 HVD1SS133MT DIODE 1SS133T-77 D504 HVD1SS133MT DIODE 1SS133T-77 D505 HVD1SS133MT DIODE 1SS133T-77 D581 HVD1SS133MT DIODE 1SS133T-77 D582 HVD1SS133MT DIODE 1SS133T-77 D583 HVD1SS133MT DIODE 1SS133T-77 D584 HVD1SS133MT DIODE 1SS133T-77 D585 HVD1SS133MT DIODE 1SS133T-77 D601 HVD1SS133MT DIODE 1SS133T-77 D801 HVD1SS133MT DIODE 1SS133T-77 D802 HVD1SS133MT DIODE 1SS133T-77 D803 HVD1SS133MT DIODE 1SS133T-77 D804 HVD1SS133MT DIODE 1SS133T-77 D901 KVD1N4003ST DIODE 1N4003 D902 HVD1SS133MT DIODE 1SS133T-77 D911 HVD1SS133MT DIODE 1SS133T-77 D912 HVD1SS133MT DIODE 1SS133T-77 D914 HVD1SS133MT DIODE 1SS133T-77 D917 HVD1SS133MT DIODE 1SS133T-77 D951 HVD1SS133MT DIODE 1SS133T-77 D952 HVD1SS133MT DIODE 1SS133T-77 D953 HVD1SS133MT DIODE 1SS133T-77 D954 KVD1N4003SRT DIODE TW 1N4003 D955 KVD1N4003SRT DIODE TW 1N4003 D961 KVD1N4003ST DIODE 1N4003 D962 KVD1N4003ST DIODE 1N4003 D963 KVD1N4003ST DIODE 1N4003 D964 HVD1SS133MT DIODE 1SS133T-77
3/16
Page 20
AVR330/230 MAIN
Pos Part number 1st part name 2nd part name
D965 HVD1SS133MT DIODE 1SS133T-77 D966 HVD1SS133MT DIODE 1SS133T-77 D967 HVD1SS133MT DIODE 1SS133T-77 D968 HVD1SS133MT DIODE 1SS133T-77 D969 HVD1SS133MT DIODE 1SS133T-77 D971 HVD1SS133MT DIODE 1SS133T-77 D972 HVD1SS133MT DIODE 1SS133T-77 D973 HVD1SS133MT DIODE 1SS133T-77 D974 HVD1SS133MT DIODE 1SS133T-77 D975 HVD1SS133MT DIODE 1SS133T-77 D976 HVD1SS133MT DIODE 1SS133T-77 Q501 HVTKTA1268GRT T.R KTA1268GR Q502 HVTKTA1268GRT T.R KTA1268GR Q503 HVTKTA1268GRT T.R KTA1268GR Q504 HVTKTA1268GRT T.R KTA1268GR Q505 HVTKTA1268GRT T.R KTA1268GR Q511 HVTKTC3200GRT T.R KTC3200GR Q512 HVTKTC3200GRT T.R KTC3200GR Q513 HVTKTC3200GRT T.R KTC3200GR Q514 HVTKTC3200GRT T.R KTC3200GR Q515 HVTKTC3200GRT T.R KTC3200GR Q516 HVTKTC3200GRT T.R KTC3200GR Q517 HVTKTC3200GRT T.R KTC3200GR Q518 HVTKTC3200GRT T.R KTC3200GR Q519 HVTKTC3200GRT T.R KTC3200GR Q520 HVTKTC3200GRT T.R KTC3200GR Q541 HVTKTC3198YT T.R Q542 HVTKTC3198YT T.R Q543 HVTKTC3198YT T.R Q544 HVTKTC3198YT T.R Q545 HVTKTC3198YT T.R Q556 HVTKTC3200GRT T.R KTC3200GR Q557 HVTKTC3200GRT T.R KTC3200GR Q558 HVTKTC3200GRT T.R KTC3200GR Q559 HVTKTC3200GRT T.R KTC3200GR Q560 HVTKTC3200GRT T.R KTC3200GR Q561 HVTKTC3200GRT T.R KTC3200GR Q562 HVTKTC3200GRT T.R KTC3200GR Q563 HVTKTC3200GRT T.R KTC3200GR Q564 HVTKTC3200GRT T.R KTC3200GR Q565 HVTKTC3200GRT T.R KTC3200GR Q601 HVTKTA1268GRT T.R KTA1268GR Q602 HVTKTA1268GRT T.R KTA1268GR Q603 HVTKTA1268GRT T.R KTA1268GR Q604 HVTKTA1268GRT T.R KTA1268GR Q605 HVTKTA1268GRT T.R KTA1268GR
4/16
Page 21
AVR330/230 MAIN
Pos Part number 1st part name 2nd part name
Q681 KVTKSC2785YT T.R KSC2785Y Q682 KVTKSC2785YT T.R KSC2785Y Q683 KVTKSC2785YT T.R KSC2785Y Q684 KVTKSC2785YT T.R KSC2785Y Q685 KVTKSC2785YT T.R KSC2785Y Q701 HVTKTC2874BT T.R , MUTE KTC2874B Q702 HVTKTC2874BT T.R , MUTE KTC2874B Q703 HVTKTC2874BT T.R , MUTE KTC2874B Q704 HVTKTC2874BT T.R , MUTE KTC2874B Q705 HVTKTC2874BT T.R , MUTE KTC2874B Q706 HVTKTC2874BT T.R , MUTE KTC2874B Q707 HVTKTC2874BT T.R , MUTE KTC2874B Q708 HVTKTC2874BT T.R , MUTE KTC2874B Q801 KVTKSC2785YT T.R KSC2785Y Q802 KVTKSC2785YT T.R KSC2785Y Q812 HVTKTA1268GRT T.R KTA1268GR Q813 HVTKTC3200GRT T.R KTC3200GR Q814 HVTKTA1268GRT T.R KTA1268GR Q815 HVTKTC3200GRT T.R KTC3200GR Q816 HVTKTA1268GRT T.R KTA1268GR Q817 HVTKTA1268GRT T.R KTA1268GR Q818 HVTKTC3200GRT T.R KTC3200GR Q819 HVTKTC3200GRT T.R KTC3200GR Q820 HVTKTC3200GRT T.R KTC3200GR Q821 HVTKTC3200GRT T.R KTC3200GR Q822 HVTKTC3200GRT T.R KTC3200GR Q823 HVTKTC3200GRT T.R KTC3200GR Q824 HVTKTC3198YT T.R Q825 HVTKTC3198YT T.R Q826 HVTKTC2874BT T.R , MUTE KTC2874B Q827 HVTKTC2874BT T.R , MUTE KTC2874B Q901 KVTKSC2785YT T.R KSC2785Y Q902 HVTKRA107MT T.R KRA107M Q903 HVTKRA107MT T.R KRA107M Q904 HVTKRC107MT T.R KRC107M Q911 HVTKTA1271YT T.R KTA1271Y Q912 HVTKTA1271YT T.R KTA1271Y Q913 HVTKTA1271YT T.R KTA1271Y Q914 HVTKTA1271YT T.R KTA1271Y Q915 KVTKSC2785YT T.R KSC2785Y Q916 KVTKSC2785YT T.R KSC2785Y Q917 KVTKSC2785YT T.R KSC2785Y Q918 KVTKSC2785YT T.R KSC2785Y Q938 HVTKRA107MT T.R KRA107M Q939 HVTKRA107MT T.R KRA107M Q942 KVTKSC2785YT T.R KSC2785Y
5/16
Page 22
AVR330/230 MAIN
Pos Part number 1st part name 2nd part name
Q943 KVTKSC2785YT T.R KSC2785Y Q951 HVTKRC107MT T.R KRC107M Q952 HVTKRA107MT T.R KRA107M Q960 HVTKRC107MT T.R KRC107M Q961 HVTKTA1024YT T.R Q969 HVTKTC2874BT T.R , MUTE KTC2874B Q970 HVTKTC2874BT T.R , MUTE KTC2874B Q971 HVTKTC2874BT T.R , MUTE KTC2874B Q972 HVTKTC2874BT T.R , MUTE KTC2874B Q973 HVTKTC2874BT T.R , MUTE KTC2874B Q991 HVTKRC107MT T.R KRC107M Q992 HVTKRA107MT T.R KRA107M Q993 HVTKRA107MT T.R KRA107M Q994 HVTKRC107MT T.R KRC107M Q995 HVTKRA107MT T.R KRA107M R501 CRD20TJ433T RES , CARBON 43K OHM 1/5W J R502 CRD20TJ433T RES , CARBON 43K OHM 1/5W J R503 CRD20TJ433T RES , CARBON 43K OHM 1/5W J R504 CRD20TJ433T RES , CARBON 43K OHM 1/5W J R505 CRD20TJ433T RES , CARBON 43K OHM 1/5W J R506 CRD20TJ333T RES , CARBON 33K OHM 1/5W J R507 CRD20TJ333T RES , CARBON 33K OHM 1/5W J R508 CRD20TJ333T RES , CARBON 33K OHM 1/5W J R509 CRD20TJ333T RES , CARBON 33K OHM 1/5W J R510 CRD20TJ333T RES , CARBON 33K OHM 1/5W J R511 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R512 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R513 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R514 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R515 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R516 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R517 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R518 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R519 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R520 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R521 CRD20TJ471T RES , CARBON 470 OHM 1/5W J R522 CRD20TJ471T RES , CARBON 470 OHM 1/5W J R523 CRD20TJ471T RES , CARBON 470 OHM 1/5W J R524 CRD20TJ471T RES , CARBON 470 OHM 1/5W J R525 CRD20TJ471T RES , CARBON 470 OHM 1/5W J R531 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R532 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R533 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R534 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R535 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R536 CRD20TJ221T RES , CARBON 220 OHM 1/5W J
6/16
Page 23
AVR330/230 MAIN
Pos Part number 1st part name 2nd part name
R537 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R538 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R539 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R540 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R541 CRD20TJ271T RES , CARBON 270 OHM 1/5W J R542 CRD20TJ271T RES , CARBON 270 OHM 1/5W J R543 CRD20TJ271T RES , CARBON 270 OHM 1/5W J R544 CRD20TJ271T RES , CARBON 270 OHM 1/5W J R545 CRD20TJ271T RES , CARBON 270 OHM 1/5W J R556 CRD20TJ273T RES , CARBON 27K OHM 1/5W J R557 CRD20TJ273T RES , CARBON 27K OHM 1/5W J R558 CRD20TJ273T RES , CARBON 27K OHM 1/5W J R559 CRD20TJ273T RES , CARBON 27K OHM 1/5W J R560 CRD20TJ273T RES , CARBON 27K OHM 1/5W J R561 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R562 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R563 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R564 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R565 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R566 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R567 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R568 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R569 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R570 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R571 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R572 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R573 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R574 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R575 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R576 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R577 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R578 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R579 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R580 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R581 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R582 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R583 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R584 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R585 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R586 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R587 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R588 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R589 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R590 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R591 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R592 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
7/16
Page 24
AVR330/230 MAIN
Pos Part number 1st part name 2nd part name
R593 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R594 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R595 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R596 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R597 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R598 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R599 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R600 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R601 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R602 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R603 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R604 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R605 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R606 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R607 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R608 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R609 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R610 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R611 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R612 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R631 KRD25FJ180T RES , CARBON R632 KRD25FJ180T RES , CARBON R633 KRD25FJ180T RES , CARBON R634 KRD25FJ180T RES , CARBON R635 KRD25FJ180T RES , CARBON R636 KRD25FJ180T RES , CARBON R637 KRD25FJ180T RES , CARBON R638 KRD25FJ180T RES , CARBON R639 KRD25FJ180T RES , CARBON R640 KRD25FJ180T RES , CARBON R646 KRD25FJ3R3T RES , CARBON R647 KRD25FJ3R3T RES , CARBON R648 KRD25FJ3R3T RES , CARBON R649 KRD25FJ3R3T RES , CARBON R650 KRD25FJ3R3T RES , CARBON R651 KRD25FJ3R3T RES , CARBON R652 KRD25FJ3R3T RES , CARBON R653 KRD25FJ3R3T RES , CARBON R654 KRD25FJ3R3T RES , CARBON R655 KRD25FJ3R3T RES , CARBON R666 CRD25TJ470T RES , CARBON R667 CRD25TJ470T RES , CARBON R668 CRD25TJ470T RES , CARBON R669 CRD25TJ470T RES , CARBON R670 CRD25TJ470T RES , CARBON R671 CRD20TJ911T RES , CARBON 910 OHM 1/5W J
8/16
Page 25
AVR330/230 MAIN
9/16
Pos Part number 1st part name 2nd part name
R672 CRD20TJ911T RES , CARBON 910 OHM 1/5W J R673 CRD20TJ911T RES , CARBON 910 OHM 1/5W J R674 CRD20TJ911T RES , CARBON 910 OHM 1/5W J R675 CRD20TJ911T RES , CARBON 910 OHM 1/5W J R676 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R677 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R678 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R679 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R680 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R681 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R682 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R683 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R684 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R685 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R686 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R687 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R688 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R689 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R690 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R696 CRD25TJ470T RES , CARBON R697 CRD25TJ470T RES , CARBON R698 CRD25TJ470T RES , CARBON R699 CRD25TJ470T RES , CARBON R700 CRD25TJ470T RES , CARBON R701 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R702 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R703 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R704 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R705 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R706 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R707 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R708 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R711 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R712 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R713 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R714 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R715 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R716 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R717 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R718 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R721 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R722 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R723 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R724 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R725 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R726 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
Page 26
AVR330/230 MAIN
10/16
Pos Part number 1st part name 2nd part name
R727 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R728 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R771 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R772 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R773 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R774 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R775 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R776 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R777 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R781 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R782 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R783 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R784 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R785 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R786 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R787 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R801 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R802 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R803 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R804 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R805 CRD20TJ911T RES , CARBON 910 OHM 1/5W J R807 CRD20TJ911T RES , CARBON 910 OHM 1/5W J R808 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R809 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R812 CRD25TJ470T RES , CARBON R813 CRD25TJ470T RES , CARBON R814 CRD25TJ470T RES , CARBON R815 CRD25TJ470T RES , CARBON R817 KRD25FJ3R3T RES , CARBON R818 KRD25FJ3R3T RES , CARBON R819 KRD25FJ3R3T RES , CARBON R820 KRD25FJ3R3T RES , CARBON R821 KRD25FJ180T RES , CARBON R822 KRD25FJ180T RES , CARBON R823 KRD25FJ180T RES , CARBON R824 KRD25FJ180T RES , CARBON R830 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R831 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R832 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R833 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R834 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R835 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R836 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R837 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R838 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R839 CRD20TJ561T RES , CARBON 560 OHM 1/5W J
Page 27
AVR330/230 MAIN
11/16
Pos Part number 1st part name 2nd part name
R840 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R841 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R842 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R843 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R844 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R845 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R848 CRD20TJ273T RES , CARBON 27K OHM 1/5W J R849 CRD20TJ273T RES , CARBON 27K OHM 1/5W J R850 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R851 CRD20TJ182T RES , CARBON 1.8K OHM 1/5W J R852 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R853 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R854 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R855 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R856 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R857 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R858 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R859 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R860 CRD20TJ271T RES , CARBON 270 OHM 1/5W J R861 CRD20TJ271T RES , CARBON 270 OHM 1/5W J R862 CRD20TJ333T RES , CARBON 33K OHM 1/5W J R863 CRD20TJ333T RES , CARBON 33K OHM 1/5W J R864 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R865 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R866 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R867 CRD25TJ472T RES , CARBON R868 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R869 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R870 CRD20TJ433T RES , CARBON 43K OHM 1/5W J R871 CRD20TJ433T RES , CARBON 43K OHM 1/5W J R872 CRD20TJ471T RES , CARBON 470 OHM 1/5W J R873 CRD20TJ471T RES , CARBON 470 OHM 1/5W J R900 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R901 CRD25TJ393T RES , CARBON R902 CRD25TJ393T RES , CARBON R903 CRD25TJ393T RES , CARBON R906 CRD25TJ393T RES , CARBON R907 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R908 CRD20TJ105T RES , CARBON 1M OHM 1/5W J R909 CRD20TJ682T RES , CARBON 6.8K OHM 1/5W J R910 CRD20TJ105T RES , CARBON 1M OHM 1/5W J R911 CRD25TJ680T RES , CARBON 68 OHM 1/4W J R915 CRD20TJ470T RES , CARBON 47 OHM 1/5W J R916 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R917 CRD25TJ393T RES , CARBON R918 CRD25TJ393T RES , CARBON
Page 28
AVR330/230 MAIN
12/16
Pos Part number 1st part name 2nd part name
R919 CRD25TJ393T RES , CARBON R920 CRD25TJ393T RES , CARBON R921 KRD25FJ180T RES , CARBON R922 CRD25TJ470T RES , CARBON R924 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R925 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R926 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R927 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R928 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R929 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R930 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R931 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R932 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R933 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R934 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R935 CRD20TJ154T RES , CARBON R936 CRD20TJ184T RES , CARBON R937 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R938 CRD20TJ271T RES , CARBON 270 OHM 1/5W J R939 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R940 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R941 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R942 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R943 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R944 CRD25TJ223T RES , CARBON 22K OHM 1/4W J R945 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R946 CRD25TJ223T RES , CARBON 22K OHM 1/4W J R947 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R948 CRD20TJ271T RES , CARBON 270 OHM 1/5W J R949 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R950 CRD20TJ273T RES , CARBON 27K OHM 1/5W J R951 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R952 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R953 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R954 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R955 CRD20TJ203T RES , CARBON R956 CRD20TJ394T RES , CARBON R957 CRD20TJ153T RES , CARBON 15K OHM 1/5W J R958 CRD20TJ563T RES , CARBON 56K OHM 1/5W J R959 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R960 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R961 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R962 CRD20TJ273T RES , CARBON 27K OHM 1/5W J R963 CRD20TJ105T RES , CARBON 1M OHM 1/5W J R964 CRD20TJ105T RES , CARBON 1M OHM 1/5W J R966 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J
Page 29
AVR330/230 MAIN
13/16
Pos Part number 1st part name 2nd part name
R969 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R970 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R971 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R972 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R973 CRD20TJ472T RES , CARBON 4.7K OHM 1/5W J R974 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R975 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R976 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R977 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R978 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R979 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R980 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R981 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R982 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R983 CRD20TJ473T RES , CARBON 47K OHM 1/5W J R986 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R987 CRD20TJ561T RES , CARBON 560 OHM 1/5W J R988 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R989 CRD20TJ333T RES , CARBON 33K OHM 1/5W J R991 CRD20TJ822T RES , CARBON 8.2K OHM 1/5W J R992 CRD20TJ562T RES , CARBON 5.6K OHM 1/5W J R998 CRD20TJ103T RES , CARBON 10K OHM 1/5W J
CMD1A387 BRACKET , PCB
CMYAVR330CC HEAT SINK ASS'Y
CHD1A012Z SCREW , SPECIAL
CHD1A036FZ SCREW , SPECIAL
CMD1A398 BRACKET , PCB
CMD1A417 BRACKET , PCB
CMD1A488 BRACKET , FAN
CMY1A205 HEAT SINK
CTB3+8J SCREW
CTW3+10J SCREW
CTW3+12J SCREW
HDMKD1206PTS3 MOTOR , FAN(60X60X25MM) KD1206PTS3
K8AYG6260 COMPOUND , SILICONE Q652 BVT2SB1647-OKM T.R , POWER 2SB1647 Q653 BVT2SB1647-OKM T.R , POWER 2SB1647 Q654 BVT2SB1647-OKM T.R , POWER 2SB1647 Q655 BVT2SB1647-OKM T.R , POWER 2SB1647 Q657 BVT2SD2560-OKM T.R , POWER 2SD2560 Q658 BVT2SD2560-OKM T.R , POWER 2SD2560 Q659 BVT2SD2560-OKM T.R , POWER 2SD2560 Q660 BVT2SD2560-OKM T.R , POWER 2SD2560 Q661 BVT2SB1647-OKM T.R , POWER 2SB1647 Q670 BVT2SD2560-OKM T.R , POWER 2SD2560 Q803 BVT2SD2560-OKM T.R , POWER 2SD2560
Page 30
AVR330/230 MAIN
14/16
Pos Part number 1st part name 2nd part name
Q804 BVT2SB1647-OKM T.R , POWER 2SB1647 Q805 BVT2SD2560-OKM T.R , POWER 2SD2560 Q807 BVT2SB1647-OKM T.R , POWER 2SB1647
CTW3+8J SCREW BN19 CWB3FE03250UP WIRE ASS'Y BN20 CWB3FB43280UP WIRE ASS'Y BN79 CWZAVR230BN79 WIRE ASS'Y (SHIELD) BN81 CWB1C902050EN WIRE ASS'Y BN82 CWB1C902050EN WIRE ASS'Y BN83 CWB1C902050EN WIRE ASS'Y BN84 CWB1C902050EN WIRE ASS'Y BN85 CWB1C902050EN WIRE ASS'Y BN86 CWB1C902050EN WIRE ASS'Y BN87 CWB1C902050EN WIRE ASS'Y BN88 CWB2B904070EN WIRE ASS'Y BN98 BJP08GA130ZK WAFER CN61 KJP02GA01ZM WAFER MOLEX 5267-02A CN62 KJP02GA01ZM WAFER MOLEX 5267-02A CN63 KJP02GA01ZM WAFER MOLEX 5267-02A CN64 KJP02GA01ZM WAFER MOLEX 5267-02A CN65 KJP02GA01ZM WAFER MOLEX 5267-02A CN66 KJP02GA01ZM WAFER MOLEX 5267-02A CN67 KJP02GA01ZM WAFER MOLEX 5267-02A CN80 KJP11GA19ZM WAFER MOLEX-53014 CN88 KJP02GA19ZM WAFER CN89 KJP02GA01ZM WAFER MOLEX 5267-02A CN91 KJP03GA89ZM WAFER MOLEX35328-0310 CN92 KJP02GA01ZM WAFER MOLEX 5267-02A CN94 KJP13GA98ZM WAFER MOLEX35336-1310 CN95 KJP08GA98ZM WAFER MOLEX35336-0810 C631 CCEA1JH471E CAP , ELECT C632 CCEA1JH471E CAP , ELECT C633 CCEA1JH471E CAP , ELECT C634 CCEA1JH471E CAP , ELECT C635 CCEA1JH471E CAP , ELECT C636 CCEA1JH471E CAP , ELECT C637 CCEA1JH471E CAP , ELECT C638 CCEA1JH471E CAP , ELECT C639 CCEA1JH471E CAP , ELECT C640 CCEA1JH471E CAP , ELECT C807 CCEA1JH471E CAP , ELECT C808 CCEA1JH471E CAP , ELECT C809 CCEA1JH471E CAP , ELECT C810 CCEA1JH471E CAP , ELECT C902 CCET50VKL4822NK CAP , ELECT 8200UF/50V C904 KCKDKS472ME CAP , CERAMIC(X1/Y2/SC) 0.0047UF/2.5KV
Page 31
AVR330/230 MAIN
Pos Part number 1st part name 2nd part name
C906 HCEA1EH102E CAP , ELECT 1000UF 25V C909 CCET50VKL4822NK CAP , ELECT 8200UF/50V C915 CCET50VKL4103NK CAP , ELECT 10000UF/50V C916 CCET50VKL4103NK CAP , ELECT 10000UF/50V ET01 CNE75 PLATE , EARTH ET02 CMD1A387 BRACKET , PCB ET03 CNE75 PLATE , EARTH ET04 CMD1A387 BRACKET , PCB ET05 CMD1A387 BRACKET , PCB IC94 HVIMC7805C I.C, REGULATOR KA7805-ABTU IC95 BVIKP1010B IC, PHOTO COUPLER IC96 BVIKP1010B IC, PHOTO COUPLER JK91 CJJ5R006Z TERMINAL , SPEAKER JK92 CJJ5Q012Z TERMINAL , SPEAKER JK94 CJJ2D008Z JACK , STEREO JK95 CJJ2D008Z JACK , STEREO JK96 CJJ2D008Z JACK , STEREO JK97 CJJ4P041W JACK IN/OUT JK98 CJJ4P042W JACK IN/OUT JW90 CWEE212120VV WIRE ASS'Y JW91 CWE8212180VV WIRE ASS'Y JW93 CWE7202110AA WIRE ASS'Y JW98 CWE7202110AA WIRE ASS'Y JW99 CWE8202150AA WIRE ASS'Y L501 CLEY0R5KAK COIL , SPEAKER 0.5UH K L502 CLEY0R5KAK COIL , SPEAKER 0.5UH K L503 CLEY0R5KAK COIL , SPEAKER 0.5UH K L504 CLEY0R5KAK COIL , SPEAKER 0.5UH K L505 CLEY0R5KAK COIL , SPEAKER 0.5UH K L506 CLEY0R5KAK COIL , SPEAKER 0.5UH K L507 CLEY0R5KAK COIL , SPEAKER 0.5UH K Q858 HVT2SA1360O T.R 2SA1360O Q871 HVT2SA1360O T.R 2SA1360O Q872 HVT2SA1360O T.R 2SA1360O Q874 HVT2SA1360O T.R 2SA1360O Q875 HVT2SA1360O T.R 2SA1360O Q876 HVT2SA1360O T.R 2SA1360O Q877 HVT2SA1360O T.R 2SA1360O Q881 HVT2SC3423O T.R 2SC3423O Q882 HVT2SC3423O T.R 2SC3423O Q883 HVT2SC3423O T.R 2SC3423O Q884 HVT2SC3423O T.R 2SC3423O Q885 HVT2SC3423O T.R 2SC3423O Q886 HVT2SC3423O T.R 2SC3423O Q887 HVT2SC3423O T.R 2SC3423O RY94 HSL1A008ZE RELAY SDT-S-112DMR
15/16
Page 32
AVR330/230 MAIN
16/16
Pos Part number 1st part name 2nd part name
R656 CRF5EKR27HX2 RES , CEMENT 0.27OHM(*2) ,5W R657 CRF5EKR27HX2 RES , CEMENT 0.27OHM(*2) ,5W R658 CRF5EKR27HX2 RES , CEMENT 0.27OHM(*2) ,5W R659 CRF5EKR27HX2 RES , CEMENT 0.27OHM(*2) ,5W R660 CRF5EKR27HX2 RES , CEMENT 0.27OHM(*2) ,5W R810 CRF5EKR27HX2 RES , CEMENT 0.27OHM(*2) ,5W R811 CRF5EKR27HX2 RES , CEMENT 0.27OHM(*2) ,5W R905 CRG1ANJ100H RES , METAL OXIDE FILM R923 CRD25TJ220T RES , CARBON R990 CRG1ANJ100H RES , METAL OXIDE FILM R993 CRG1ANJ100H RES , METAL OXIDE FILM R994 CRG1ANJ100H RES , METAL OXIDE FILM R995 CRG1ANJ100H RES , METAL OXIDE FILM R996 CRG1ANJ100H RES , METAL OXIDE FILM R997 CRG1ANJ100H RES , METAL OXIDE FILM R999 CRG1ANJ100H RES , METAL OXIDE FILM TH91 KRTP42T7D330B THERMAL SENSOR , POSISTOR P42T7D330BW20 T902 CLT5J033ZE TRANS , SUB
Page 33
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
COP11580F INPUT PCB ASS'Y
C105 HCUS1H223KC CAP , CHIP C106 HCUS1H223KC CAP , CHIP C201 HCUS1H221JA CAP , CHIP C202 HCUS1H221JA CAP , CHIP C203 HCUS1H221JA CAP , CHIP C204 HCUS1H221JA CAP , CHIP C205 HCUS1H221JA CAP , CHIP C206 HCUS1H221JA CAP , CHIP C207 HCUS1H221JA CAP , CHIP C208 HCUS1H221JA CAP , CHIP C209 HCUS1H221JA CAP , CHIP C210 HCUS1H221JA CAP , CHIP C211 HCUS1H221JA CAP , CHIP C212 HCUS1H221JA CAP , CHIP C213 HCUS1H221JA CAP , CHIP C214 HCUS1H221JA CAP , CHIP C215 HCUS1H221JA CAP , CHIP C216 HCUS1H221JA CAP , CHIP C217 HCUS1H221JA CAP , CHIP C218 HCUS1H221JA CAP , CHIP C219 HCUS1H221JA CAP , CHIP C220 HCUS1H221JA CAP , CHIP C221 HCUS1H221JA CAP , CHIP C222 HCUS1H221JA CAP , CHIP C223 HCUS1H221JA CAP , CHIP C224 HCUS1H221JA CAP , CHIP C225 HCUS1H221JA CAP , CHIP C226 HCUS1H221JA CAP , CHIP C233 HCUS1H181JA CAP , CHIP C234 HCUS1H471JA CAP , CHIP C235 HCUS1H223KC CAP , CHIP C236 HCUS1H223KC CAP , CHIP C241 HCUS1H181JA CAP , CHIP C242 HCUS1H471JA CAP , CHIP C253 HCUS1H181JA CAP , CHIP C254 HCUS1H471JA CAP , CHIP C255 HCUS1H223KC CAP , CHIP C256 HCUS1H223KC CAP , CHIP C270 HCUS1H181JA CAP , CHIP C271 HCUS1H471JA CAP , CHIP C291 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C292 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C293 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C294 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE
1/14
Page 34
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
C295 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C296 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C297 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C298 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C317 HCUS1H223KC CAP , CHIP C318 HCUS1H223KC CAP , CHIP C319 HCUS1H223KC CAP , CHIP C320 HCUS1H223KC CAP , CHIP C321 HCUS1H561JA CAP , CHIP C322 HCUS1H561JA CAP , CHIP C323 HCUS1H561JA CAP , CHIP C324 HCUS1H561JA CAP , CHIP C325 HCUS1H561JA CAP , CHIP C326 HCUS1H561JA CAP , CHIP C327 HCUS1H561JA CAP , CHIP C328 HCUS1H561JA CAP , CHIP C329 HCUS1H561JA CAP , CHIP C330 HCUS1H561JA CAP , CHIP C331 HCUS1H561JA CAP , CHIP C332 HCUS1H561JA CAP , CHIP C333 HCUS1H561JA CAP , CHIP C334 HCUS1H561JA CAP , CHIP C335 HCUS1H561JA CAP , CHIP C336 HCUS1H561JA CAP , CHIP C337 HCUS1H223KC CAP , CHIP C338 HCUS1H223KC CAP , CHIP C339 HCUS1H223KC CAP , CHIP C340 HCUS1H223KC CAP , CHIP C371 HCUS1H221JA CAP , CHIP C372 HCUS1H221JA CAP , CHIP C373 HCUS1H221JA CAP , CHIP C374 HCUS1H221JA CAP , CHIP C375 HCUS1H223KC CAP , CHIP C376 HCUS1H223KC CAP , CHIP C378 HCUS1H223KC CAP , CHIP C379 HCUS1H223KC CAP , CHIP C381 HCUS1H561JA CAP , CHIP C382 HCUS1H223KC CAP , CHIP C383 HCUS1H223KC CAP , CHIP C411 HCUS1H223KC CAP , CHIP C412 HCUS1H223KC CAP , CHIP C413 HCUS1H223KC CAP , CHIP C414 HCUS1H223KC CAP , CHIP C415 HCUS1H223KC CAP , CHIP C416 HCUS1H223KC CAP , CHIP C417 HCUS1H223KC CAP , CHIP
2/14
Page 35
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
C418 HCUS1H223KC CAP , CHIP C419 HCUS1H223KC CAP , CHIP C420 HCUS1H223KC CAP , CHIP C423 HCUS1H151JA CAP , CHIP , 150PF JA 1608 SIZE C424 HCUS1H151JA CAP , CHIP , 150PF JA 1608 SIZE C425 HCUS1H151JA CAP , CHIP , 150PF JA 1608 SIZE C427 HCUS1H151JA CAP , CHIP , 150PF JA 1608 SIZE C428 HCUS1H151JA CAP , CHIP , 150PF JA 1608 SIZE C429 HCUS1H151JA CAP , CHIP , 150PF JA 1608 SIZE C430 HCUS1H151JA CAP , CHIP , 150PF JA 1608 SIZE C471 HCUS1H181JA CAP , CHIP C472 HCUS1H181JA CAP , CHIP C473 HCUS1H181JA CAP , CHIP C474 HCUS1H181JA CAP , CHIP C475 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C721 HCUS1H270JA CAP , CHIP , 27PF JA 1608 SIZE C722 HCUS1H270JA CAP , CHIP , 27PF JA 1608 SIZE C723 HCUS1H270JA CAP , CHIP , 27PF JA 1608 SIZE C724 HCUS1H270JA CAP , CHIP , 27PF JA 1608 SIZE C726 HCUS1H473ZF CAP , CHIP C727 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C729 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C730 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C731 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C733 HCUS1H223KC CAP , CHIP C734 HCUS1H101JA CAP , CHIP C735 HCUS1H101JA CAP , CHIP C736 HCUS1H101JA CAP , CHIP C737 HCUS1H101JA CAP , CHIP C738 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C739 HCUS1H330JA CAP , CHIP C740 HCUS1H330JA CAP , CHIP C742 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C743 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C744 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C746 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C747 HCUS1H223KC CAP , CHIP C748 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C750 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C751 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C753 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C755 HCUS1H223KC CAP , CHIP C756 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C758 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C760 HCUS1H471JA CAP , CHIP C761 HCUS1H103KC CAP , CHIP
3/14
Page 36
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
C762 HCUS1H120JA CAP , CHIP C763 HCUS1H120JA CAP , CHIP C764 HCUS1H102KC CAP , CHIP C765 HCUS1H101JA CAP , CHIP C766 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C767 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C769 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C771 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C773 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C774 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C775 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C777 HCUS1H473ZF CAP , CHIP C779 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C780 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C783 HCUS1H473ZF CAP , CHIP C784 HCUS1E104ZF CAP , CHIP , 0.1UF ZF 1608 SIZE C787 HCUS1H473ZF CAP , CHIP D703 HVDRB160L60TE25 DIODE , SCHOTTKEY BARRIER HK RB160L-60TE25 IC13 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC21 HVITC9163AF I.C , FUNCTION TC9163AF IC22 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC23 HVITC9164AF I.C , FUNCTION TC9164AF IC24 HVITC9163AF I.C , FUNCTION TC9163AF IC25 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC26 HVITC9162AF I.C , FUNCTION TC9162AF IC31 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC32 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC33 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC34 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC35 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC36 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC37 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC40 HVITC9459F I.C , VOLUME IC41 HVITC9459F I.C , VOLUME IC42 HVITC9459F I.C , VOLUME IC43 HVITC9459F I.C , VOLUME IC44 HVITC9459F I.C , VOLUME IC45 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC46 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC47 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC48 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC49 HVINJM2068MDTE1 I.C , OP AMP NJM2068MD-TE1 IC72 HVITC74HCU04AFN IC , INVERTER TC74HCU04AFN IC73 HVIAK4114VQ IC , DIR IC74 HVIAK4358VQ I.C , DAC(8CH) IC75 HVICS493263-CLG I.C , DSP HK CS493263-CLG
4/14
Page 37
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
IC76 HVIAK5381VT I.C , ADC R101 HRJ10DJ562T RES , CHIP R102 HRJ10DJ562T RES , CHIP R103 HRJ10DJ682T RES , CHIP 1608 SIZE R104 HRJ10DJ682T RES , CHIP 1608 SIZE R105 HRJ10DJ151T RES , CHIP R106 HRJ10DJ151T RES , CHIP R107 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R108 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R201 HRJ10DJ471T RES , CHIP R202 HRJ10DJ471T RES , CHIP R203 HRJ10DJ471T RES , CHIP R204 HRJ10DJ471T RES , CHIP R205 HRJ10DJ471T RES , CHIP R206 HRJ10DJ471T RES , CHIP R207 HRJ10DJ471T RES , CHIP R208 HRJ10DJ471T RES , CHIP R209 HRJ10DJ471T RES , CHIP R210 HRJ10DJ471T RES , CHIP R211 HRJ10DJ471T RES , CHIP R212 HRJ10DJ471T RES , CHIP R213 HRJ10DJ471T RES , CHIP R214 HRJ10DJ471T RES , CHIP R215 HRJ10DJ471T RES , CHIP R216 HRJ10DJ471T RES , CHIP R217 HRJ10DJ471T RES , CHIP R218 HRJ10DJ471T RES , CHIP R219 HRJ10DJ471T RES , CHIP R220 HRJ10DJ471T RES , CHIP R221 HRJ10DJ471T RES , CHIP R222 HRJ10DJ471T RES , CHIP R223 HRJ10DJ471T RES , CHIP R224 HRJ10DJ272T RES , CHIP R225 HRJ10DJ471T RES , CHIP R226 HRJ10DJ471T RES , CHIP R227 HRJ10DJ474T RES , CHIP 1608 SIZE R228 HRJ10DJ474T RES , CHIP 1608 SIZE R229 HRJ10DJ474T RES , CHIP 1608 SIZE R230 HRJ10DJ474T RES , CHIP 1608 SIZE R231 HRJ10DJ474T RES , CHIP 1608 SIZE R232 HRJ10DJ474T RES , CHIP 1608 SIZE R233 HRJ10DJ474T RES , CHIP 1608 SIZE R234 HRJ10DJ474T RES , CHIP 1608 SIZE R235 HRJ10DJ474T RES , CHIP 1608 SIZE R236 HRJ10DJ474T RES , CHIP 1608 SIZE R237 HRJ10DJ474T RES , CHIP 1608 SIZE
5/14
Page 38
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
R238 HRJ10DJ474T RES , CHIP 1608 SIZE R239 HRJ10DJ474T RES , CHIP 1608 SIZE R240 HRJ10DJ474T RES , CHIP 1608 SIZE R241 HRJ10DJ474T RES , CHIP 1608 SIZE R242 HRJ10DJ474T RES , CHIP 1608 SIZE R243 HRJ10DJ474T RES , CHIP 1608 SIZE R244 HRJ10DJ474T RES , CHIP 1608 SIZE R245 HRJ10DJ474T RES , CHIP 1608 SIZE R246 HRJ10DJ474T RES , CHIP 1608 SIZE R247 HRJ10DJ474T RES , CHIP 1608 SIZE R248 HRJ10DJ474T RES , CHIP 1608 SIZE R249 HRJ10DJ474T RES , CHIP 1608 SIZE R250 HRJ10DJ103T RES , CHIP R251 HRJ10DJ474T RES , CHIP 1608 SIZE R252 HRJ10DJ474T RES , CHIP 1608 SIZE R253 HRJ10DJ184T RES , CHIP 1608 SIZE R254 HRJ10DJ184T RES , CHIP 1608 SIZE R255 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R256 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R257 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R258 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R259 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R261 HRJ10DJ104T RES , CHIP R262 HRJ10DJ104T RES , CHIP R263 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R264 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R265 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R267 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R268 HRJ10DJ184T RES , CHIP 1608 SIZE R269 HRJ10DJ184T RES , CHIP 1608 SIZE R270 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R271 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R272 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R273 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R274 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R275 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R276 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R277 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R278 HRJ10DJ104T RES , CHIP R279 HRJ10DJ104T RES , CHIP R280 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R281 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R283 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R284 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R285 HRJ10DJ184T RES , CHIP 1608 SIZE R286 HRJ10DJ184T RES , CHIP 1608 SIZE
6/14
Page 39
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
R287 HRJ10DJ184T RES , CHIP 1608 SIZE R288 HRJ10DJ184T RES , CHIP 1608 SIZE R289 HRJ10DJ184T RES , CHIP 1608 SIZE R290 HRJ10DJ184T RES , CHIP 1608 SIZE R291 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R292 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R293 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R301 HRJ10DJ332T RES , CHIP R302 HRJ10DJ332T RES , CHIP R303 HRJ10DJ332T RES , CHIP R304 HRJ10DJ332T RES , CHIP R305 HRJ10DJ332T RES , CHIP R306 HRJ10DJ332T RES , CHIP R307 HRJ10DJ332T RES , CHIP R308 HRJ10DJ332T RES , CHIP R309 HRJ10DJ332T RES , CHIP R310 HRJ10DJ332T RES , CHIP R311 HRJ10DJ332T RES , CHIP R312 HRJ10DJ332T RES , CHIP R313 HRJ10DJ332T RES , CHIP R314 HRJ10DJ332T RES , CHIP R315 HRJ10DJ332T RES , CHIP R316 HRJ10DJ332T RES , CHIP R317 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R318 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R319 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R320 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R321 HRJ10DJ562T RES , CHIP R322 HRJ10DJ562T RES , CHIP R323 HRJ10DJ562T RES , CHIP R324 HRJ10DJ562T RES , CHIP R325 HRJ10DJ562T RES , CHIP R326 HRJ10DJ562T RES , CHIP R327 HRJ10DJ223T RES , CHIP 1608 SIZE R328 HRJ10DJ223T RES , CHIP 1608 SIZE R329 HRJ10DJ562T RES , CHIP R330 HRJ10DJ562T RES , CHIP R331 HRJ10DJ562T RES , CHIP R332 HRJ10DJ562T RES , CHIP R333 HRJ10DJ562T RES , CHIP R334 HRJ10DJ562T RES , CHIP R335 HRJ10DJ562T RES , CHIP R336 HRJ10DJ562T RES , CHIP R337 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R338 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R339 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE
7/14
Page 40
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
R340 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R341 HRJ10DJ122T RES , CHIP R342 HRJ10DJ122T RES , CHIP R343 HRJ10DJ122T RES , CHIP R344 HRJ10DJ122T RES , CHIP R345 HRJ10DJ122T RES , CHIP R346 HRJ10DJ122T RES , CHIP R347 HRJ10DJ122T RES , CHIP R348 HRJ10DJ122T RES , CHIP R349 HRJ10DJ122T RES , CHIP R350 HRJ10DJ122T RES , CHIP R351 HRJ10DJ122T RES , CHIP R352 HRJ10DJ122T RES , CHIP R353 HRJ10DJ122T RES , CHIP R354 HRJ10DJ122T RES , CHIP R355 HRJ10DJ122T RES , CHIP R356 HRJ10DJ122T RES , CHIP R361 HRJ10DJ104T RES , CHIP R362 HRJ10DJ104T RES , CHIP R363 HRJ10DJ104T RES , CHIP R364 HRJ10DJ104T RES , CHIP R365 HRJ10DJ104T RES , CHIP R366 HRJ10DJ104T RES , CHIP R367 HRJ10DJ104T RES , CHIP R368 HRJ10DJ104T RES , CHIP R371 HRJ10DJ332T RES , CHIP R372 HRJ10DJ332T RES , CHIP R373 HRJ10DJ332T RES , CHIP R374 HRJ10DJ332T RES , CHIP R375 HRJ10DJ332T RES , CHIP R376 HRJ10DJ332T RES , CHIP R377 HRJ10DJ332T RES , CHIP R378 HRJ10DJ332T RES , CHIP R379 HRJ10DJ332T RES , CHIP R380 HRJ10DJ332T RES , CHIP R381 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R382 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R383 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R384 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R385 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R386 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R389 HRJ10DJ332T RES , CHIP R390 HRJ10DJ332T RES , CHIP R391 HRJ10DJ105T RES , CHIP (1/10W) 1608 SIZE R392 HRJ10DJ105T RES , CHIP (1/10W) 1608 SIZE R393 HRJ10DJ332T RES , CHIP
8/14
Page 41
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
R394 HRJ10DJ153T RES , CHIP R395 HRJ10DJ153T RES , CHIP R396 HRJ10DJ332T RES , CHIP R397 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R398 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R401 HRJ10DJ184T RES , CHIP 1608 SIZE R402 HRJ10DJ184T RES , CHIP 1608 SIZE R403 HRJ10DJ184T RES , CHIP 1608 SIZE R404 HRJ10DJ184T RES , CHIP 1608 SIZE R405 HRJ10DJ184T RES , CHIP 1608 SIZE R406 HRJ10DJ184T RES , CHIP 1608 SIZE R407 HRJ10DJ184T RES , CHIP 1608 SIZE R408 HRJ10DJ184T RES , CHIP 1608 SIZE R409 HRJ10DJ184T RES , CHIP 1608 SIZE R410 HRJ10DJ184T RES , CHIP 1608 SIZE R413 HRJ10DJ562T RES , CHIP R414 HRJ10DJ562T RES , CHIP R415 HRJ10DJ562T RES , CHIP R416 HRJ10DJ103T RES , CHIP R417 HRJ10DJ562T RES , CHIP R418 HRJ10DJ562T RES , CHIP R419 HRJ10DJ562T RES , CHIP R420 HRJ10DJ562T RES , CHIP R423 HRJ10DJ122T RES , CHIP R424 HRJ10DJ122T RES , CHIP R425 HRJ10DJ102T RES , CHIP (1/10W) , 1K OHM J 1608 SIZE R426 HRJ10DJ102T RES , CHIP (1/10W) , 1K OHM J 1608 SIZE R427 HRJ10DJ102T RES , CHIP (1/10W) , 1K OHM J 1608 SIZE R428 HRJ10DJ102T RES , CHIP (1/10W) , 1K OHM J 1608 SIZE R429 HRJ10DJ102T RES , CHIP (1/10W) , 1K OHM J 1608 SIZE R430 HRJ10DJ102T RES , CHIP (1/10W) , 1K OHM J 1608 SIZE R431 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R432 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R433 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R434 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R435 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R436 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R437 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R438 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R439 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R440 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R451 HRJ10DJ184T RES , CHIP 1608 SIZE R452 HRJ10DJ184T RES , CHIP 1608 SIZE R453 HRJ10DJ184T RES , CHIP 1608 SIZE R454 HRJ10DJ184T RES , CHIP 1608 SIZE R455 HRJ10DJ184T RES , CHIP 1608 SIZE
9/14
Page 42
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
R456 HRJ10DJ184T RES , CHIP 1608 SIZE R457 HRJ10DJ184T RES , CHIP 1608 SIZE R458 HRJ10DJ184T RES , CHIP 1608 SIZE R459 HRJ10DJ184T RES , CHIP 1608 SIZE R460 HRJ10DJ184T RES , CHIP 1608 SIZE R461 HRJ10DJ104T RES , CHIP R462 HRJ10DJ104T RES , CHIP R463 HRJ10DJ471T RES , CHIP R464 HRJ10DJ471T RES , CHIP R465 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R466 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R471 HRJ10DJ272T RES , CHIP R472 HRJ10DJ272T RES , CHIP R473 HRJ10DJ272T RES , CHIP R474 HRJ10DJ272T RES , CHIP R475 HRJ10DJ4R7T RES , CHIP 1608 SIZE R491 HRJ10DJ4R7T RES , CHIP 1608 SIZE R492 HRJ10DJ4R7T RES , CHIP 1608 SIZE R493 HRJ10DJ4R7T RES , CHIP 1608 SIZE R494 HRJ10DJ4R7T RES , CHIP 1608 SIZE R495 HRJ10DJ4R7T RES , CHIP 1608 SIZE R496 HRJ10DJ4R7T RES , CHIP 1608 SIZE R497 HRJ10DJ4R7T RES , CHIP 1608 SIZE R498 HRJ10DJ4R7T RES , CHIP 1608 SIZE R721 HRJ10DJ104T RES , CHIP R722 HRJ10DJ104T RES , CHIP R723 HRJ10DJ104T RES , CHIP R724 HRJ10DJ104T RES , CHIP R725 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R726 HRJ10DJ1R0T RES , CHIP R727 HRJ10DJ1R0T RES , CHIP R728 HRJ10DJ1R0T RES , CHIP R729 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R730 HRJ10DJ1R0T RES , CHIP R731 HRJ10DJ1R0T RES , CHIP R732 HRJ10DJ183T RES , CHIP R733 HRJ10DJ4R7T RES , CHIP 1608 SIZE R734 HRJ10DJ330T RES , CHIP (1/10W) , 33 OHM J 1608 SIZE R735 HRJ10DJ105T RES , CHIP (1/10W) 1608 SIZE R736 HRJ10DJ121T RES , CHIP (1/10W) 1608 SIZE R737 HRJ10DJ4R7T RES , CHIP 1608 SIZE R738 HRJ10DJ1R0T RES , CHIP R739 HRJ10DJ2R7T RES , CHIP R740 HRJ10DJ330T RES , CHIP (1/10W) , 33 OHM J 1608 SIZE R741 HRJ10DJ330T RES , CHIP (1/10W) , 33 OHM J 1608 SIZE R742 HRJ10DJ330T RES , CHIP (1/10W) , 33 OHM J 1608 SIZE
10/14
Page 43
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
R743 HRJ10DJ330T RES , CHIP (1/10W) , 33 OHM J 1608 SIZE R744 HRJ10DJ330T RES , CHIP (1/10W) , 33 OHM J 1608 SIZE R745 HRJ10DJ330T RES , CHIP (1/10W) , 33 OHM J 1608 SIZE R746 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R747 HRJ10DJ472T RES , CHIP (1/10W) ,4.7K OHM J 1608 SIZE R748 HRJ10DJ103T RES , CHIP R749 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R750 HRJ10DJ332T RES , CHIP R751 HRJ10DJ332T RES , CHIP R752 HRJ10DJ102T RES , CHIP (1/10W) , 1K OHM J 1608 SIZE R753 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R754 HRJ10DJ103T RES , CHIP R755 HRJ10DJ103T RES , CHIP R756 HRJ10DJ103T RES , CHIP R757 HRJ10DJ103T RES , CHIP R758 HRJ10DJ103T RES , CHIP R759 HRJ10DJ103T RES , CHIP R760 HRJ10DJ103T RES , CHIP R761 HRJ10DJ103T RES , CHIP R762 HRJ10DJ103T RES , CHIP R763 HRJ10DJ333T RES , CHIP R764 HRJ10DJ330T RES , CHIP (1/10W) , 33 OHM J 1608 SIZE R765 HRJ10DJ332T RES , CHIP R766 HRJ10DJ103T RES , CHIP R767 HRJ10DJ332T RES , CHIP R768 HRJ10DJ330T RES , CHIP (1/10W) , 33 OHM J 1608 SIZE R769 HRJ10DJ101T RES , CHIP (1/10W) , 100 OHM J 1608 SIZE R770 HRJ10DJ103T RES , CHIP R771 HRJ10DJ4R7T RES , CHIP 1608 SIZE R772 HRJ10DJ182T RES , CHIP R773 HRJ10DJ8R2T RES , CHIP R774 HRJ10DJ471T RES , CHIP R780 HRJ10DJ330T RES , CHIP (1/10W) , 33 OHM J 1608 SIZE C101 HCEA1VH100T CAP , ELECT 10UF 35V C102 HCEA1VH100T CAP , ELECT 10UF 35V C103 HCEA1VH100T CAP , ELECT 10UF 35V C104 HCEA1VH100T CAP , ELECT 10UF 35V C231 HCEA1CH101T CAP , ELECT 100UF 16V C232 HCEA1CH101T CAP , ELECT 100UF 16V C237 HCEA1CH101T CAP , ELECT 100UF 16V C238 HCEA1CH101T CAP , ELECT 100UF 16V C239 HCEA1VH100T CAP , ELECT 10UF 35V C240 HCEA1VH100T CAP , ELECT 10UF 35V C244 HCEA1VH100T CAP , ELECT 10UF 35V C245 HCEA1VH100T CAP , ELECT 10UF 35V C251 HCEA1CH101T CAP , ELECT 100UF 16V
11/14
Page 44
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
C252 HCEA1CH101T CAP , ELECT 100UF 16V C261 HCEA1CH101T CAP , ELECT 100UF 16V C262 HCEA1CH101T CAP , ELECT 100UF 16V C263 HCEA1VH100T CAP , ELECT 10UF 35V C264 HCEA1VH100T CAP , ELECT 10UF 35V C265 HCEA1VH100T CAP , ELECT 10UF 35V C267 HCEA1VH100T CAP , ELECT 10UF 35V C268 HCEA1VH100T CAP , ELECT 10UF 35V C269 HCEA1VH100T CAP , ELECT 10UF 35V C301 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C302 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C303 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C304 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C305 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C306 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C307 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C308 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C309 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C310 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C311 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C312 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C313 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C314 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C315 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C316 HCQI1H332JZT CAP , MYLAR 3300PF 50V J C341 HCEA1VH100T CAP , ELECT 10UF 35V C342 HCEA1VH100T CAP , ELECT 10UF 35V C343 HCEA1VH100T CAP , ELECT 10UF 35V C344 HCEA1VH100T CAP , ELECT 10UF 35V C345 HCEA1VH100T CAP , ELECT 10UF 35V C346 HCEA1VH100T CAP , ELECT 10UF 35V C347 HCEA1VH100T CAP , ELECT 10UF 35V C348 HCEA1VH100T CAP , ELECT 10UF 35V C349 HCEA1HH1R0T CAP , ELECT 1UF 50V C401 HCEA1VKS100T CAP , ELECT 10UF 35V C402 HCEA1VH100T CAP , ELECT 10UF 35V C403 HCEA1VH100T CAP , ELECT 10UF 35V C404 HCEA1VH100T CAP , ELECT 10UF 35V C405 HCEA1VH100T CAP , ELECT 10UF 35V C406 HCEA1VH100T CAP , ELECT 10UF 35V C407 HCEA1VH100T CAP , ELECT 10UF 35V C408 HCEA1VH100T CAP , ELECT 10UF 35V C409 HCEA1VH100T CAP , ELECT 10UF 35V C410 HCEA1VH100T CAP , ELECT 10UF 35V C426 HCQI1H182JZT CAP , MYLAR 1800PF 50V J C431 HCEA1CH101T CAP , ELECT 100UF 16V
12/14
Page 45
AVR330/230 INPUT
Pos Part number 1st part name 2nd part name
C432 HCEA1CH101T CAP , ELECT 100UF 16V C433 HCEA1CH101T CAP , ELECT 100UF 16V C434 HCEA1CH101T CAP , ELECT 100UF 16V C435 HCEA1CH101T CAP , ELECT 100UF 16V C436 HCEA1CH101T CAP , ELECT 100UF 16V C437 HCEA1CH101T CAP , ELECT 100UF 16V C438 HCEA1CH101T CAP , ELECT 100UF 16V C439 HCEA1CH101T CAP , ELECT 100UF 16V C440 HCEA1CH101T CAP , ELECT 100UF 16V C451 HCEA1VH100T CAP , ELECT 10UF 35V C452 HCEA1VH100T CAP , ELECT 10UF 35V C453 HCEA1VH100T CAP , ELECT 10UF 35V C454 HCEA1VH100T CAP , ELECT 10UF 35V C455 HCEA1VH100T CAP , ELECT 10UF 35V C456 HCEA1VH100T CAP , ELECT 10UF 35V C457 HCEA1VH100T CAP , ELECT 10UF 35V C458 HCEA1VH100T CAP , ELECT 10UF 35V C459 HCEA1VH100T CAP , ELECT 10UF 35V C460 HCEA1VH100T CAP , ELECT 10UF 35V C725 HCEA1CH101T CAP , ELECT 100UF 16V C728 HCEA1EH470T CAP , ELECT 47UF 25V C732 HCEA1CH101T CAP , ELECT 100UF 16V C741 HCEA1CH101T CAP , ELECT 100UF 16V C745 HCEA1CH101T CAP , ELECT 100UF 16V C749 HCEA1CH101T CAP , ELECT 100UF 16V C752 HCEA1CH101T CAP , ELECT 100UF 16V C754 HCEA1VH100T CAP , ELECT 10UF 35V C757 HCEA1HH2R2T CAP , ELECT 2.2UF 50V C759 HCEA1VH100T CAP , ELECT 10UF 35V C768 HCEA1HH2R2T CAP , ELECT 2.2UF 50V C770 HCEA1EH470T CAP , ELECT 47UF 25V C772 HCEA1EH470T CAP , ELECT 47UF 25V C776 HCEA1CH101T CAP , ELECT 100UF 16V C778 HCEA0JH102T CAP , ELECT 1000UF 6.3V C781 HCEA1CH101T CAP , ELECT 100UF 16V C782 HCEA1AH471T CAP , ELECT 470UF 10V C785 HCEA1CH101T CAP , ELECT 100UF 16V C786 HCEA1AH471T CAP , ELECT 470UF 10V D201 HVD1SS133MT DIODE 1SS133T-77 D202 HVD1SS133MT DIODE 1SS133T-77 D203 HVD1SS133MT DIODE 1SS133T-77 D204 HVD1SS133MT DIODE 1SS133T-77 D205 HVD1SS133MT DIODE 1SS133T-77 D206 HVD1SS133MT DIODE 1SS133T-77 D207 HVD1SS133MT DIODE 1SS133T-77 D208 HVD1SS133MT DIODE 1SS133T-77
13/14
Page 46
AVR330/230 INPUT
14/14
Pos Part number 1st part name 2nd part name
D209 HVD1SS133MT DIODE 1SS133T-77 D210 HVD1SS133MT DIODE 1SS133T-77 D211 HVD1SS133MT DIODE 1SS133T-77 D212 HVD1SS133MT DIODE 1SS133T-77 D213 HVD1SS133MT DIODE 1SS133T-77 D214 HVD1SS133MT DIODE 1SS133T-77 D215 HVD1SS133MT DIODE 1SS133T-77 D216 HVD1SS133MT DIODE 1SS133T-77 D475 HVD1SS133MT DIODE 1SS133T-77 D701 HVDMTZJ4.7BT DIODE , ZENER 4.7V 1/2W D702 HVDMTZJ3.3BT DIODE , ZENER 3.3V 1/2W J101 C3A206 WIRE , COPPER SN95/PB5 , 0.6 J102 C3A206 WIRE , COPPER SN95/PB5 , 0.6 L703 KLQ100J405T COIL, PEAKING(RADIAL) 10UH J 4X5 Q201 HVTKTD1302T T.R KTD1302 Q202 HVTKTC2874BT T.R , MUTE KTC2874B Q203 HVTKTC2874BT T.R , MUTE KTC2874B Q204 HVTKRA107MT T.R KRA107M Q451 HVTKTC2874BT T.R , MUTE KTC2874B Q452 HVTKTC2874BT T.R , MUTE KTC2874B Q701 HVTKSC2316YT T.R KSC2316Y Q702 HVTKSC2316YT T.R KSC2316Y BN11 KJP15GB99ZM WAFER 35237(15PIN) BN12 KJP15GB99ZM WAFER 35237(15PIN) CN13 CJP13GA115ZY WAFER , CARD CABLE CN15 CJP13GA115ZY WAFER , CARD CABLE CN16 CJP15GA115ZY WAFER , CARD CABLE CN17 KJP12GB142ZP PIN HEADER 2110 - DR12 - G CN18 KJP05GA19ZM WAFER MOLEX53014-0510 CN72 KJP32GA161ZY WAFER YD200 SERIES JK11 CJJ4R019W TERMINAL , IN/OUT JK12 CJJ4P014W JACK , IN/OUT JK13 CJJ4P014W JACK , IN/OUT JK14 CJJ4R019W TERMINAL , IN/OUT JK15 CJJ4R037W JACK , BOARD JK16 CJJ4N034Z JACK , IN/OUT JW21 CWE7202090AA WIRE ASS'Y L701 KLZ9H001Z BEAD , CORE L702 KLZ9H001Z BEAD , CORE L704 KLZ9H001Z BEAD , CORE L705 KLZ9H001Z BEAD , CORE R781 CRG2ANJ150H RES , METAL OXIDE FILM 15 OHM 2W J R782 CRG2ANJ330H RES , METAL OXIDE FILM 33 OHM 2W J X701 HOX12288E220TF CRYSTAL(HC-49/S,ATS) 12.288MHZ 22PF
Page 47
AVR330/230 VIDEO
Pos Part number 1st part name 2nd part name
COP11581F VIDEO PCB ASS'Y
C107 CCKT1H103ZF CAP , CERAMIC 0.01UF 50V ZF C108 CCKT1H103ZF CAP , CERAMIC 0.01UF 50V ZF C109 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V ZF C110 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V ZF C111 CCKT1H103ZF CAP , CERAMIC 0.01UF 50V ZF C112 CCKT1H103ZF CAP , CERAMIC 0.01UF 50V ZF C117 HCEA1HH4R7T CAP , ELECT 4.7UF 50V C118 CCKT1H103ZF CAP , CERAMIC 0.01UF 50V ZF C119 HCEA1HH470T CAP , ELECT 47UF 50V C120 HCEA1HH470T CAP , ELECT 47UF 50V C121 CCKT1H103ZF CAP , CERAMIC 0.01UF 50V ZF C402 CCKT1H101KB CAP , CERAMIC 100PF 50V KB C404 CCKT1H101KB CAP , CERAMIC 100PF 50V KB C407 CCKT1H101KB CAP , CERAMIC 100PF 50V KB C409 CCKT1H101KB CAP , CERAMIC 100PF 50V KB C410 CCKT1H101KB CAP , CERAMIC 100PF 50V KB C411 HCBS1H101KBT CAP , CERAMIC 100PF 50V K C412 HCBS1H101KBT CAP , CERAMIC 100PF 50V K C413 HCBS1H151KBT CAP , CERAMIC 150PF 50V K C414 HCBS1H151KBT CAP , CERAMIC 150PF 50V K C416 HCEA1CH101T CAP , ELECT 100UF 16V C417 HCEA1CH101T CAP , ELECT 100UF 16V C418 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C420 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C421 HCEA1CH101T CAP , ELECT 100UF 16V C422 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C423 HCEA1CH101T CAP , ELECT 100UF 16V C427 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C428 HCEA1CH101T CAP , ELECT 100UF 16V C429 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C430 HCEA1CH101T CAP , ELECT 100UF 16V C436 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C437 HCEA1CH101T CAP , ELECT 100UF 16V C438 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C439 HCEA1CH101T CAP , ELECT 100UF 16V C442 HCBS1H103ZFT CAP , CERAMIC 0.01UF 50V Z C443 HCEA1VKS100T CAP , ELECT 10UF 35V C444 HCEA1VKS100T CAP , ELECT 10UF 35V C445 HCBS1H103ZFT CAP , CERAMIC 0.01UF 50V Z C446 HCEA1VH100T CAP , ELECT 10UF 35V C447 HCEA1VH100T CAP , ELECT 10UF 35V C448 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C449 HCEA1CH101T CAP , ELECT 100UF 16V C450 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z
1/8
Page 48
AVR330/230 VIDEO
Pos Part number 1st part name 2nd part name
C451 HCEA1CH101T CAP , ELECT 100UF 16V C452 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C453 HCEA1CH101T CAP , ELECT 100UF 16V C454 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C455 HCEA1CH101T CAP , ELECT 100UF 16V C456 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C457 HCEA1CH101T CAP , ELECT 100UF 16V C458 HCEA1CH101T CAP , ELECT 100UF 16V C459 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C460 CCKT1H272KB CAP , CERAMIC 2700PF 50V KB C461 HCEA1CH101T CAP , ELECT 100UF 16V C462 HCEA1CH101T CAP , ELECT 100UF 16V C463 HCBS1H473ZFT CAP , CERAMIC 0.047UF 50V Z C498 HCBS1H101KBT CAP , CERAMIC 100PF 50V K C499 HCBS1H101KBT CAP , CERAMIC 100PF 50V K C501 HCBS1H270JT CAP , CERAMIC C502 HCBS1H270JT CAP , CERAMIC C503 HCBS1H181KBT CAP , CERAMIC 180PF 50V K C504 HCEA1HHR47T CAP , ELECT C505 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C506 HCEA1AH471T CAP , ELECT 470UF 10V C507 HCBS1H270JT CAP , CERAMIC C508 HCBS1H270JT CAP , CERAMIC C509 HCEA1HH1R0T CAP , ELECT 1UF 50V C510 HCEA1HH1R0T CAP , ELECT 1UF 50V C511 HCQI1H682JZT CAP , MYLAR 6800PF 50V J C512 HCEA1HH1R0T CAP , ELECT 1UF 50V C513 HCBS1H560JT CAP , CERAMIC 56PF 50V J C514 HCBS1H220JT CAP , CERAMIC C515 HCEA1AH471T CAP , ELECT 470UF 10V C517 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C518 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C519 HCEA1CH101T CAP , ELECT 100UF 16V C520 HCEA0JH102T CAP , ELECT 1000UF 6.3V C521 HCBS1H330JT CAP , CERAMIC C522 HCBS1H330JT CAP , CERAMIC C561 CCCT1H010CC CAP , CERAMIC 1PF 50V CC C562 CCCT1H010CC CAP , CERAMIC 1PF 50V CC C568 HCBS1H104ZFT CAP , CERAMIC 0.1UF 50V Z C601 HCBS1H390JT CAP , CERAMIC 39PF 50V J C602 HCBS1H390JT CAP , CERAMIC 39PF 50V J C603 HCBS1H390JT CAP , CERAMIC 39PF 50V J C604 HCBS1H390JT CAP , CERAMIC 39PF 50V J C605 HCBS1H390JT CAP , CERAMIC 39PF 50V J C606 HCBS1H390JT CAP , CERAMIC 39PF 50V J C607 HCBS1H390JT CAP , CERAMIC 39PF 50V J
2/8
Page 49
AVR330/230 VIDEO
Pos Part number 1st part name 2nd part name
C608 HCBS1H390JT CAP , CERAMIC 39PF 50V J C609 HCBS1H390JT CAP , CERAMIC 39PF 50V J C610 CCKT1H223ZF CAP , CERAMIC 0.022UF 50V ZF C611 HCEA1CH101T CAP , ELECT 100UF 16V C612 CCKT1H223ZF CAP , CERAMIC 0.022UF 50V ZF C613 HCEA1CH101T CAP , ELECT 100UF 16V C614 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C615 HCEA1CH101T CAP , ELECT 100UF 16V C616 HCBS1H223ZFT CAP , CERAMIC 0.022UF 50V Z C617 HCEA1CH101T CAP , ELECT 100UF 16V C701 HCEA1AH471T CAP , ELECT 470UF 10V C702 HCEA1AH471T CAP , ELECT 470UF 10V C703 CCKT1H181KB CAP , CERAMIC 180PF 50V KB C704 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V ZF C705 CCKT1H181KB CAP , CERAMIC 180PF 50V KB C706 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V ZF C707 CCKT1H101KB CAP , CERAMIC 100PF 50V KB C708 HCEA1CKS101T CAP , ELECT C709 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V ZF C710 CCCT1H270JC CAP , CERAMIC 22PF 50V JC C711 HCEA1CH101T CAP , ELECT 100UF 16V C712 CCKT1H473ZF CAP , CERAMIC 0.047UF 50V ZF C713 CCCT1H270JC CAP , CERAMIC 22PF 50V JC C921 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J C922 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J C923 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J C924 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J C925 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J C926 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J C927 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J C928 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J C931 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C932 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C933 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C934 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J D401 HVD1SS133MT DIODE 1SS133T-77 D402 HVD1SS133MT DIODE 1SS133T-77 D403 HVD1SS133MT DIODE 1SS133T-77 D404 HVD1SS133MT DIODE 1SS133T-77 D405 HVD1SS133MT DIODE 1SS133T-77 L501 HLQ02C101JT COIL , AXAIL 100UH,J L502 KLQ5R6G405T COIL , PEAKING(RADIAL) L503 KLQ220J405T COIL, PEAKING(RADIAL) 22UH J 4X5 Q104 HVTKSC2316YT T.R KSC2316Y Q402 HVTKSA733CYT T.R Q403 HVTKRA107MT T.R KRA107M
3/8
Page 50
AVR330/230 VIDEO
Pos Part number 1st part name 2nd part name
Q404 HVTKRC107MT T.R KRC107M Q405 HVTKSA733CYT T.R Q406 HVTKRA107MT T.R KRA107M Q407 HVTKRC107MT T.R KRC107M Q408 HVTKRC107MT T.R KRC107M Q409 HVTKRA104MT T.R KRA104M Q410 HVTKTD1302T T.R KTD1302 Q411 HVTKTD1302T T.R KTD1302 Q412 HVTKRA104MT T.R KRA104M Q501 KVTKSC2785YT T.R KSC2785Y Q502 KVTKSA1175YT T.R KSA1175Y Q568 HVTKTC2874BT T.R , MUTE KTC2874B Q569 HVTKRC107MT T.R KRC107M Q601 HVTKRC107MT T.R KRC107M Q602 HVTKRC107MT T.R KRC107M Q603 HVTKRC107MT T.R KRC107M R401 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R402 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R403 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R404 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R405 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R406 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R407 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R408 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R409 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R410 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R411 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R412 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R413 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R414 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R415 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R416 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R417 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R418 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R419 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R420 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R421 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R422 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R423 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R424 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R425 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R426 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R427 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R428 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R430 CRD20TJ1R8T RES , CARBON 1.8 OHM 1/5W J R431 CRD20TJ102T RES , CARBON 1K OHM 1/5W J
4/8
Page 51
AVR330/230 VIDEO
Pos Part number 1st part name 2nd part name
R432 CRD20TJ1R0T RES , CARBON 1 OHM 1/5W J R433 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R434 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R435 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R436 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R437 CRD25TJ102T RES , CARBON R438 CRD25TJ1R0T RES , CARBON R439 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R440 CRD20TJ1R8T RES , CARBON 1.8 OHM 1/5W J R441 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R442 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R443 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R444 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R445 CRD20TJ1R0T RES , CARBON 1 OHM 1/5W J R446 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R447 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R448 CRD20TJ1R8T RES , CARBON 1.8 OHM 1/5W J R449 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R450 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R451 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R452 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R453 CRD20TJ332T RES , CARBON 3.3K OHM 1/5W J R454 CRD25TJ562T RES , CARBON 5.6K OHM 1/4W J R455 CRD20TJ105T RES , CARBON 1M OHM 1/5W J R456 CRD20TJ680T RES , CARBON 68 OHM 1/5W J R457 CRD20TJ333T RES , CARBON 33K OHM 1/5W J R458 CRD20TJ123T RES , CARBON 12K OHM 1/5W J R459 CRD20TJ680T RES , CARBON 68 OHM 1/5W J R460 CRD20TJ333T RES , CARBON 33K OHM 1/5W J R461 CRD20TJ123T RES , CARBON 12K OHM 1/5W J R462 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R463 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R464 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R465 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R466 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R467 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R468 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R469 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R470 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R471 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R472 CRD20TJ151T RES , CARBON 150 OHM 1/5W J R473 CRD20TJ181T RES , CARBON 180 OHM 1/5W J R474 CRD20TJ1R8T RES , CARBON 1.8 OHM 1/5W J R475 CRD20TJ1R0T RES , CARBON 1 OHM 1/5W J R476 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R478 CRD20TJ223T RES , CARBON 22K OHM 1/5W J
5/8
Page 52
AVR330/230 VIDEO
Pos Part number 1st part name 2nd part name
R479 CRD20TJ181T RES , CARBON 180 OHM 1/5W J R480 CRD25TJ223T RES , CARBON 22K OHM 1/4W J R501 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R502 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R503 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R504 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R505 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R506 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R507 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R508 CRD20TJ682T RES , CARBON 6.8K OHM 1/5W J R509 CRD20TJ152T RES , CARBON 1.5K OHM 1/5W J R510 CRD20TJ393T RES , CARBON R511 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R512 CRD20TJ102T RES , CARBON 1K OHM 1/5W J R513 CRD20TJ822T RES , CARBON 8.2K OHM 1/5W J R514 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R516 CRD20TJ221T RES , CARBON 220 OHM 1/5W J R517 CRD20TJ273T RES , CARBON 27K OHM 1/5W J R561 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R563 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R564 CRD20TJ222T RES , CARBON 2.2K OHM 1/5W J R565 CRD20TJ123T RES , CARBON 12K OHM 1/5W J R566 CRD20TJ123T RES , CARBON 12K OHM 1/5W J R567 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R568 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R569 CRD20TJ223T RES , CARBON 22K OHM 1/5W J R570 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R601 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R602 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R603 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R604 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R605 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R606 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R607 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R608 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R609 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R610 CRD20TJ1R0T RES , CARBON 1 OHM 1/5W J R611 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R612 CRD20TJ1R8T RES , CARBON 1.8 OHM 1/5W J R613 CRD20TJ4R7T RES , CARBON R614 CRD20TJ4R7T RES , CARBON R615 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R701 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R702 CRD20TJ1R0T RES , CARBON 1 OHM 1/5W J R703 CRD20TJ103T RES , CARBON 10K OHM 1/5W J R704 CRD20TJ1R0T RES , CARBON 1 OHM 1/5W J
6/8
Page 53
AVR330/230 VIDEO
Pos Part number 1st part name 2nd part name
R705 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R706 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R707 CRD20TJ750T RES , CARBON 75 OHM 1/5W J R708 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R709 CRD20TJ111T RES , CARBON 110 OHM 1/5W J R710 CRD20TJ1R0T RES , CARBON 1 OHM 1/5W J R711 CRD20TJ1R0T RES , CARBON 1 OHM 1/5W J R712 CRD20TJ101T RES , CARBON 100 OHM 1/5W J R713 CRD20TJ104T RES , CARBON 100K OHM 1/5W J R714 CRD20TJ104T RES , CARBON 100K OHM 1/5W J
CMC1A213 PLATE , SHIELD AVR230 BK61 CMD1A387 BRACKET , PCB BK62 CMD1A387 BRACKET , PCB BN14 CWB4F232450PU WIRE ASS'Y BN17 KJP12GB143ZP DIP SOCKET 3011 - DR12 - G BN61 CWB2B906120EN WIRE ASS'Y BN91 CWB4FE53130PU WIRE ASS'Y BN96 CWB1C908150BM WIRE ASS'Y CN13 KJP05GA01ZM WAFER MOLEX 5267-05A CN19 KJP03GA90ZM WAFER MOLEX35313-0310 CN20 KJP04GA90ZM WAFER MOLEX35313-0310 CN21 KJP02GA89ZM WAFER MOLEX35328-02 CN41 KJP06GA19ZM WAFER MOLEX53014-0610 CN43 CJP13GA115ZY WAFER , CARD CABLE CN61 KJP06GA19ZM WAFER MOLEX53014-0610 CN81 KJP08GA01ZM WAFER MOLEX 5267-08A CN84 KJP02KA060ZY WAFER 7.92MM(YUNHO) C122 HCEA1JH101E CAP , ELECT 100UF 63V C124 BCQE2E104KDE CAP , LINE ACROSS 0.1UF 250V KD C523 HCEA0JH102T CAP , ELECT 1000UF 6.3V IC41 HVINJM2296M I.C , VIDEO SW NJM2296M IC42 HVINJM2296M I.C , VIDEO SW NJM2296M IC43 HVINJM2296M I.C , VIDEO SW NJM2296M IC44 HVIHCF4053M013T I.C IC45 HVIHCF4053M013T I.C IC46 HVINJM2581MTE1 I.C IC47 HVINJM2137MTE1 I.C IC48 CVIL7805CPNA I.C ASS'Y
HVIL7805CP I.C, REGULATOR IC49 CVIL7905CPNA I.C ASS'Y
HVIL7905CP I.C, REGULATOR IC51 HVILC74763M I.C , OSD IC52 HVI74ACT04MTR I.C , HEX IC61 HVIHCF4053M013T I.C IC62 HVINJM2581MTE1 I.C IC71 HVITC74HCU04AFN IC , INVERTER TC74HCU04AFN
7/8
Page 54
AVR330/230 VIDEO
Pos Part number 1st part name 2nd part name
JK41 CJJ9N001Z JACK , S-VIDEO (2P/H) JK42 CJJ9N001Z JACK , S-VIDEO (2P/H) JK43 CJJ9S001Z JACK , S-VIDEO (3P/H) JK48 CJJ4N043Z JACK , BOARD JK49 CJJ4N043Z JACK , BOARD JK50 CJJ4S010Z JACK , BOARD JK61 CJJ4L004Z JACK (Y/PB/PR) JK71 HJSTORX179L MODULE , OPTICAL(RX) TORX179L JK72 HJSTORX179L MODULE , OPTICAL(RX) TORX179L JK73 CJJ4S022Z JACK , BOARD JK74 HJSTOTX179L MODULE , OPTICAL(TX) TOTX179L JW11 CWEP202110VV WIRE R481 CRG2ANJ150H RES , METAL OXIDE FILM 15 OHM 2W J X501 HOX17734E220C CRYSTAL X502 HOX14318E220C CRYSTAL
8/8
Page 55
AVR330/230 BIAS
Pos Part number 1st part name 2nd part name
COP11651C BIAS T.R PCB ASS'Y
Q851 HVTKTD600KGR T.R , BIAS KTD600KGR Q852 HVTKTD600KGR T.R , BIAS KTD600KGR Q853 HVTKTD600KGR T.R , BIAS KTD600KGR Q854 HVTKTD600KGR T.R , BIAS KTD600KGR Q855 HVTKTD600KGR T.R , BIAS KTD600KGR Q856 HVTKTD600KGR T.R , BIAS KTD600KGR Q857 HVTKTD600KGR T.R , BIAS KTD600KGR C851 HCEA1HH100T CAP , ELECT 10UF 50V C852 HCEA1HH100T CAP , ELECT 10UF 50V C853 HCEA1HH100T CAP , ELECT 10UF 50V C854 HCEA1HH100T CAP , ELECT 10UF 50V C855 HCEA1HH100T CAP , ELECT 10UF 50V C856 HCEA1HH100T CAP , ELECT 10UF 50V C857 HCEA1HH100T CAP , ELECT 10UF 50V VR81 HVN1RA221B01T RES , SEMI FIXED(220 OHM) RH0615C100221 VR82 HVN1RA221B01T RES , SEMI FIXED(220 OHM) RH0615C100221 VR83 HVN1RA221B01T RES , SEMI FIXED(220 OHM) RH0615C100221 VR84 HVN1RA221B01T RES , SEMI FIXED(220 OHM) RH0615C100221 VR85 HVN1RA221B01T RES , SEMI FIXED(220 OHM) RH0615C100221 VR86 HVN1RA221B01T RES , SEMI FIXED(220 OHM) RH0615C100221 VR87 HVN1RA221B01T RES , SEMI FIXED(220 OHM) RH0615C100221 R874 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R875 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R876 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R877 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R878 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R879 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R880 CRD20TJ331T RES , CARBON 330 OHM 1/5W J R882 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J R883 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J R884 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J R885 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J R886 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J R887 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J R888 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J CN81 KJP02GB46ZM WAFER CN82 KJP02GB46ZM WAFER CN83 KJP02GB46ZM WAFER CN84 KJP02GB46ZM WAFER CN85 KJP02GB46ZM WAFER CN86 KJP02GB46ZM WAFER CN87 KJP02GB46ZM WAFER
1/1
Page 56
AVR330/230 Regulator PCB
Pos Part number 1st part name 2nd part name
CUP116551-1 IC REGULATOR PCB ASS'Y R912 CRD20TJ153T RES , CARBON 15K OHM 1/5W J R913 CRD20TJ153T RES , CARBON 15K OHM 1/5W J R914 CRD20TJ103T RES , CARBON 10K OHM 1/5W J IC91 HVIL7815CP I.C, REGULATOR IC92 HVIL7915CP I.C, REGULATOR IC93 HVIL7805CP I.C, REGULATOR D903 KVD1N4003SRT DIODE TW 1N4003 D904 KVD1N4003ST DIODE 1N4003 D905 KVD1N4003ST DIODE 1N4003 D906 KVD1N4003ST DIODE 1N4003 D907 KVD1N4003ST DIODE 1N4003 D915 HVD1SS133MT DIODE 1SS133T-77 D916 HVD1SS133MT DIODE 1SS133T-77 CN96 KJP08GA01ZM WAFER MOLEX 5267-08A CN98 BJP08GB131ZK WAFER C922 HCEA1EH101T CAP , ELECT 100UF 25V C923 HCEA1EH101T CAP , ELECT 100UF 25V C924 HCEA1EH101T CAP , ELECT 100UF 25V C926 CCKT1H223ZF CAP , CERAMIC 0.022UF 50V ZF C927 CCKT1H223ZF CAP , CERAMIC 0.022UF 50V ZF C928 CCEA1CH472E CAP , ELECT C931 HCEA1HH4R7T CAP , ELECT 4.7UF 50V
AVR330/230 Power supply CUP11581-6
Pos Part number 1st part name 2nd part name
C124 BCQE2E104KDE CAP , LINE ACROSS 0.1UF 250V KD F901 KBA2D2500TLET FUSE F902 KBA2D2500TLET FUSE OL91 KJJ7A025Z OUTLET , EUR(2P) A3-04-D007-2P F907 KBA2C4000TLEZ FUSE F907 KJCFC5S HOLDER , FUSE CN21 KJP02GA89ZM WAFER MOLEX35328-02 BN91 CWB4FE53130PU WIRE ASS'Y
1/1
1/1
Page 57
AVR330/230 Power supply CUP11581-5
Pos Part number 1st part name 2nd part name
C107 CCKT1H103ZF CAP , CERAMIC 0.01UF 50V ZF C108 CCKT1H103ZF CAP , CERAMIC 0.01UF 50V ZF C109 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V ZF C110 CCFT1H104ZF CAP , SEMICONDUCTOR 0.1UF 50V ZF C111 CCKT1H103ZF CAP , CERAMIC 0.01UF 50V ZF C112 CCKT1H103ZF CAP , CERAMIC 0.01UF 50V ZF C117 HCEA1HH4R7T CAP , ELECT 4.7UF 50V C118 CCKT1H103ZF CAP , CERAMIC 0.01UF 50V ZF C119 HCEA1HH470T CAP , ELECT 47UF 50V C120 HCEA1HH470T CAP , ELECT 47UF 50V C121 CCKT1H103ZF CAP , CERAMIC 0.01UF 50V ZF C122 HCEA1JH101E CAP , ELECT 100UF 63V CN13 KJP05GA01ZM WAFER MOLEX 5267-05A CN81 KJP08GA01ZM WAFER MOLEX 5267-08A BN96 CWB1C908150BM WIRE ASS'Y SW91 KST1A010Z SW , TACT CN reset R101 KRQ1AJR47H RES , FUSE 0.47 OHM 1W J R104 KRQ1AJR47H RES , FUSE 0.47 OHM 1W J R105 KRQ1AJR47H RES , FUSE 0.47 OHM 1W J R106 KRQ1AJR47H RES , FUSE 0.47 OHM 1W J R107 KRQ1AJR47H RES , FUSE 0.47 OHM 1W J R108 CRD20TJ4R7T RES , CARBON R109 CRD20TJ100T RES , CARBON 10 OHM 1/5W J R110 CRD20TJ4R7T RES , CARBON R112 CRD20TJ122T RES , CARBON 1.2K OHM 1/5W J R113 CRD20TJ473T RES , CARBON 47K OHM 1/5W J D101 HVDMTZJ15BT DIODE , ZENER 15V 1/2W D102 HVDMTZJ27BT DIODE , ZENER D104 KVD1N4003ST DIODE 1N4003 D105 KVD1N4003ST DIODE 1N4003 D106 KVD1N4003ST DIODE 1N4003 D107 KVD1N4003ST DIODE 1N4003 D108 KVD1N4003ST DIODE 1N4003 D109 HVDMTZ12BT DIODE , ZENER(20MM) 12V 1/2W D111 HVDMTZJ12BT DIODE , ZENER 12V 1/2W Q104 HVTKSC2316YT T.R KSC2316Y
1/1
Page 58
AVR330/230 Power supply CUP11581-4
Pos Part number 1st part name 2nd part name
C921 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J C922 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J C923 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J C924 HCQI1H104JZT CAP , MYLAR 0.1UF 50V J C925 CCKT1H223ZF CAP , CERAMIC 0.022UF 50V ZF C925 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J C926 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J C927 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J C928 HCQI1H103JZT CAP , MYLAR 0.01UF 50V J C929 CCEA1EH332F CAP , ELECT C930 CCEA1EH222E CAP. ELECT. 2200UF 25V C931 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C932 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C933 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J C934 HCQI1H473JZT CAP , MYLAR 0.047UF 50V J D991 CVDKBU804FMA BRIDGE DIODE ASS'Y KBU804F D992 CVDKBU804FMA BRIDGE DIODE ASS'Y KBU804F F903 KBA2C6300TLEZ FUSE F903 KJCFC5S HOLDER , FUSE F904 KBA2C6300TLEZ FUSE F904 KJCFC5S HOLDER , FUSE F905 KBA2C4000TLEZ FUSE F905 KJCFC5S HOLDER , FUSE F906 KBA2C4000TLEZ FUSE F906 KJCFC5S HOLDER , FUSE CN19 KJP03GA90ZM WAFER MOLEX35313-0310 CN20 KJP04GA90ZM WAFER MOLEX35313-0310
AVR330/230 Power supply
Pos Part number 1st part name 2nd part name
T901 CLT5W011ZE TRANS , POWER
1/1
1/1
Page 59
AMPLIFIER SECTION BIAS ADJUSTMENT
Measurement condition
. No input signal or volume position is minimum.
Standard value.
. Ideal current = 48mA ( ± 5%) . Ideal DC Voltage = 25.92mV ( ± 5%)
CUP11651X (BIAS PCB)
...... ......
VR87
CN81
VR86
CN82
VR82
CN86
VR81
DC VOLTMETER..............Connect to CN81,CN82,CN83,CN84,CN85,CN86,CN87
NO. Channel Adjust for
1 Front Left 25.92mV (±5%) 2 Front Right 25.92mV (±5%)
3 Center
4 Surround Left
5 Surround Right
6 7
Surround Back Left
Surround Back Right
25.92mV (±5%)
25.92mV (±5%)
25.92mV (±5%)
25.92mV (±5%)
25.92mV (±5%)
Adjustment
VR82(ONLY AVR230/330)
VR81(ONLY AVR330)
CN87
VR83 VR84 VR85 VR86
VR87
Page 60
Page 61
FRONT BOARD
Page 62
BOTTOM VIEW
INPUT 
Page 63
TOP VIEW
INPUT 
Page 64
MAIN BOARD (AMP)
Page 65

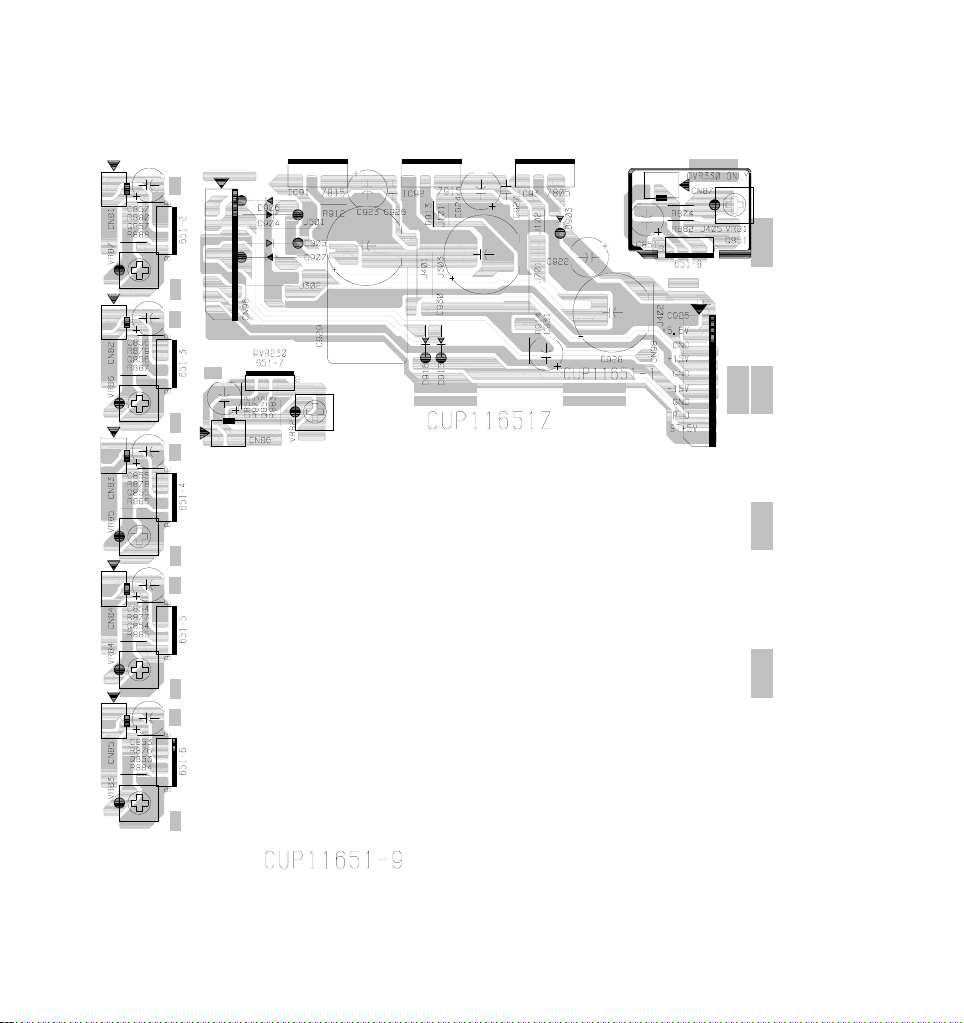

MAIN BOARD (BIAS & REGULATOR)
Page 66
Page 67
Page 68
Page 69
Page 70
Page 71
Page 72
507
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
