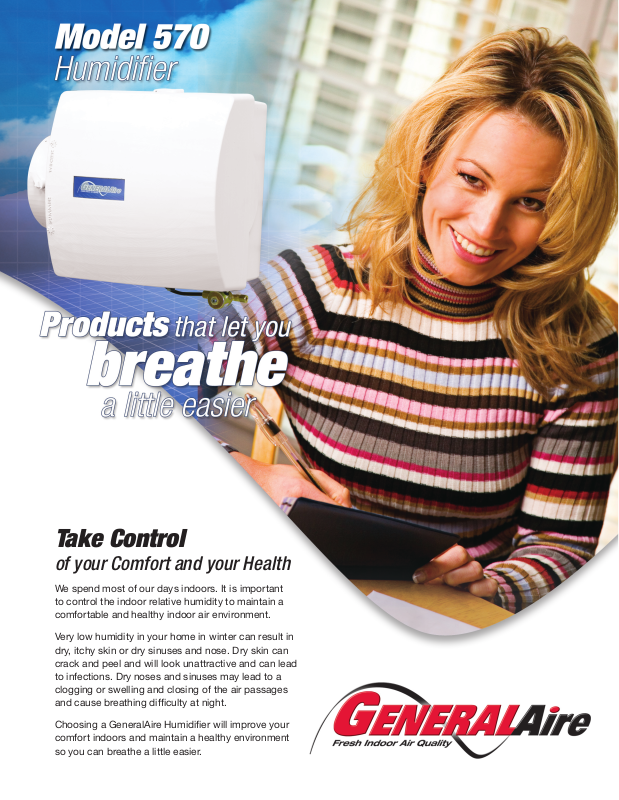

Take Control
of your Comfort and your Health
We spend most of our days indoors. It is important
to control the indoor relative humidity to maintain a
comfortable and healthy indoor air environment.
Very low humidity in your home in winter can result in
dry, itchy skin or dry sinuses and nose. Dry skin can
crack and peel and will look unattractive and can lead
to infections. Dry noses and sinuses may lead to a
clogging or swelling and closing of the air passages
and cause breathing difculty at night.
Choosing a GeneralAire Humidier will improve your
comfort indoors and maintain a healthy environment
so you can breathe a little easier.
Air quality is only a concern
outdoors, isn’t it?
Not true! The air inside your home can
be even more of a concern to your health
and comfort, especially in the winter.
When cold, dry air enters your home and is warmed to room
temperature, the relative humidity in the average house can drop to
as little as 5%. Compare that to the average 25% relative humidity
of the Sahara Desert and you can understand why the air inside
your home can seriously affect your health and comfort. Since
various studies have estimated that most people spend as much as
90% of their time at home indoors, there’s reason to be concerned
about indoor air quality.
How does humidity AFFECT my comfort?
Since the air in your home is always trying to reach its saturation
point, it will absorb water wherever it’s found. at means it is
stealing moisture from the bodies of you and your children, your
pets, your furniture and even your house plants. By giving up
moisture to the air, your skin, throat and nasal passages dry out and
crack, leading to various physical discomforts. at’s why many
doctors recommend humidifiers for allergy and asthma sufferers.
Research has shown that 30% – 60% relative humidity is ideal.
Outside this range, bacteria, fungi, viruses and mites thrive and
multiply. As these creatures increase in number, so does your risk of
being adversely affected.
Are there any other BENEFITS to properly
conditioned air?
Yes, it can help you save energy! Warm, humid summer air feels
hotter than it actually is because of the moisture it contains. at
same principle applies to your home in the winter. By keeping the
relative humidity inside your home at an ideal level, you can turn
your thermostat down a few degrees and still feel comfortable.
Dialing down your thermostat just three degrees can reduce your
heating bill by as much as 5%.
Model 570
Elite Series Humidifier
• M3 Manual Humidistat is included.
• Bypass humidifier mounts easily on the
warm or return plenum and delivers
12 GPD.
• Evaporator pad replacement number
GA10.
• A portion of the heated air from the
furnace passes through a watersoaked pad where it absorbs additional moisture and then returns
for distribution throughout your home.
• Water is metered into a patented kinetic trough and dispersed
uniformly across the pad. Unevaporated water drains from the
bottom of the unit to eliminate mineral build-up.
Specifications
Unit Size
11-7/8" wide x 13-3/8" high
x 9-1/2" deep
Plenum Opening
8-3/4" wide x 9.5" high
Bypass Duct
6" diameter
Humidity requirements in GPD based on
house size and type of construction
Type of
Construction
Tight
Average
Loose
Humidity based on a 70˚F-35% relative humidity indoor conditions
Model No. GPD* Loose Average Tight
570 12 1303 1846 2856
*NOTE: Figures are based on an 8ft. ceiling height. GPD shown is a 120˚ plenum temperature. Square footage may
be adjusted for other plenum temperatures.
570EHD 0606 EGD
500 1000 1500 2000 2500 3000
2.1 4.2 6.4 8.5 10.6 12.7
3.3 6.5 9.8 13.1 16.3 19.6
4.6 9.2 13.8 18.4 23.0 27.6
Size of house (sq. ft.)*
*Based on 8ft. ceiling height
