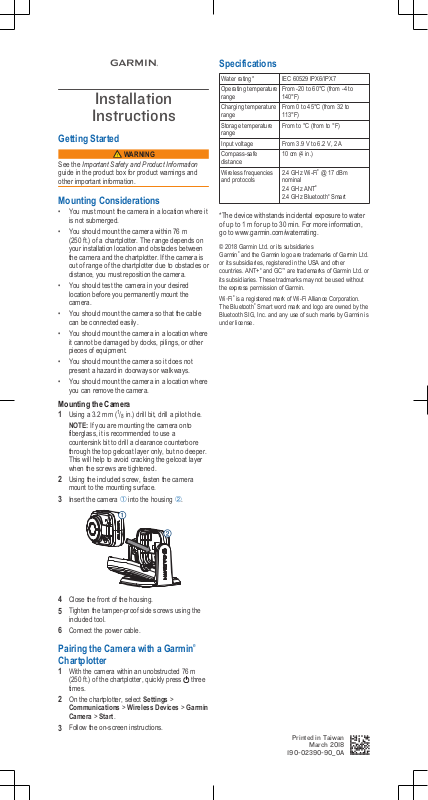

Garmin 03341 User Manual

Installation

Instructions

Getting Started

WARNING

See the Important Safety and Product Information
guide in the product box for product warnings and
other important information.

Mounting Considerations

•

You must mount the camera in a location where it
is not submerged.

• You should mount the camera within 76 m
(250 ft.) of a chartplotter. The range depends on
your installation location and obstacles between
the camera and the chartplotter. If the camera is
out of range of the chartplotter due to obstacles or
distance, you must reposition the camera.

• You should test the camera in your desired
location before you permanently mount the
camera.

• You should mount the camera so that the cable
can be connected easily.

• You should mount the camera in a location where
it cannot be damaged by docks, pilings, or other
pieces of equipment.

• You should mount the camera so it does not
present a hazard in doorways or walkways.

• You should mount the camera in a location where
you can remove the camera.

Mounting the Camera

1

Using a 3.2 mm (1/8 in.) drill bit, drill a pilot hole.
NOTE: If you are mounting the camera onto

fiberglass, it is recommended to use a
countersink bit to drill a clearance counterbore
through the top gelcoat layer only, but no deeper.
This will help to avoid cracking the gelcoat layer
when the screws are tightened.

2

Using the included screw, fasten the camera
mount to the mounting surface.

3

Insert the camera À into the housing Á.

4

Close the front of the housing.

5

Tighten the tamper-proof side screws using the
included tool.

6

Connect the power cable.

Pairing the Camera with a Garmin

®

Chartplotter

1

With the camera within an unobstructed 76 m
(250 ft.) of the chartplotter, quickly press three
times.

2

On the chartplotter, select Settings >
Communications > Wireless Devices > Garmin
Camera

> Start.

3

Follow the on-screen instructions.

Specifications

Water rating* IEC 60529 IPX6/IPX7

Operating temperature
range

From -20 to 60°C (from -4 to
140°F)

Charging temperature
range

From 0 to 45°C (from 32 to
113°F)

Storage temperature
range

From to °C (from to °F)

Input voltage From 3.9 V to 6.2 V, 2 A

Compass-safe
distance

10 cm (4 in.)

Wireless frequencies
and protocols

2.4 GHz Wi‑Fi® @ 17 dBm
nominal

2.4 GHz ANT

®

2.4 GHz

Bluetooth® Smart

*The device withstands incidental exposure to water
of up to 1 m for up to 30 min. For more information,
go to www.garmin.com/waterrating

.

© 2018 Garmin Ltd. or its subsidiaries
Garmin® and the Garmin logo are trademarks of Garmin Ltd.
or its subsidiaries, registered in the USA and other
countries. ANT+® and GC™ are trademarks of Garmin Ltd. or
its subsidiaries. These tradmarks may not be used without
the express permission of Garmin.

Wi‑Fi® is a registered mark of Wi-Fi Alliance Corporation.
The Bluetooth® Smart word mark and logo are owned by the
Bluetooth SIG, Inc. and any use of such marks by Garmin is
under license.

Printed in Taiwan

March 2018

190-02390-90_0A

support.garmin.com
