REFRIGERATOR
use & care
Introduction .......................................................2
Important Safety information.....................3
Features (Frigidaire) ......................................5
Features (Frigidaire Gallery/Professional) ... 7
Installation .........................................................8
Door Removal .................................................10
Door Handle Installation (some models) .. 13
Water Supply Connection .......................... 16
Frigidaire.com USA 1-800-374-4432 Frigidaire.ca Canada 1-800-265-8352
Ice Maker .......................................................... 18
Controls and Settings .................................19
Storage Features .......................................... 22
Normal Operating Sounds ........................ 24
Filter replacement ........................................25
Care and Cleaning .......................................26
Troubleshooting .......................................... 28
Limited Warranty ......................................... 29
A13110304 (October 2019)
Page 2
2
INTRODUCTION
Welcome to our
Thank you for bringing Frigidaire into
your home! We see your purchase as the
beginning of a long relationship together.
This manual is your resource for the use
and care of your product. Please read
it before using your appliance. Keep it
handy for quick reference. If something
doesn’t seem right, the troubleshooting
section will help you with common issues.
FAQs, helpful tips and videos, cleaning
products, and kitchen and home accessories
are available at www.frigidaire.com.
We are here for you! Visit our website,
chat with an agent, or call us if you need
help. We may be able to help you avoid
a service visit. If you do need service, we
can get that started for you.
Let’s make it ocial! Be sure to register
your product.
Keep your product info here so it’s easy
to find.
Model Number ____________________
Serial Number ____________________
Purchase Date ____________________
family
Installation Checklist
Doors
Handles are secure and tight
(some models)
Refrigerator door seals completely
to cabinet on all sides
Freezer door is level from side to
side across the top
Leveling
Refrigerator is level side-to-side and
tilted ¼" (6 mm) front-to-back
Cabinet is set solid on all corners
Anti-tip bracket set in front (both sides)
Electrical Power
House power turned on
Refrigerator plugged in
Ice Maker (some models)
House water supply connected
to refrigerator
No water leaks present at all
connections - recheck in 24 hours
Ice maker is turned ON
Final Checks
Shipping material removed
Refrigerator and freezer tempera-
tures set to recommended setting
Crisper humidity controls set
Registration card sent in
FPO
Serial location
Serial Plate
Serial Number Location
Page 3
IMPORTANT SAFETY INFORMATION
3
WARNING
Please read all instructions before using
this appliance.
Safety Definitions
This is the safety alert symbol. It is
used to alert of potential personal injury
hazards. Obey all safety messages that
follow this symbol to avoid possible injury
or death.
DANGER
DANGER indicates an imminently hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
IMPORTANT
IMPORTANT indicates installation, operation or maintenance information which
is important but not hazard-related.
DANGER
DANGER Risk of fire or explosion.
Flammable refrigerant used. Do not use
mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.
DANGER Risk of fire or explosion.
Flammable refrigerant used. To be repaired only by trained service personnel. Do not puncture refrigerant tubing.
CAUTION
CAUTION Risk of fire or explosion.
Flammable refrigerant used. Consult
repair manual/owner’s guide before
attempting to service this product. All
safety precautions must be followed.
CAUTION Risk of fire or explosion.
Dispose of property in accordance with
federal or local regulations. Flammable
refrigerant used.
CAUTION Risk of fire or explosion
due to puncture of refrigerant tubing.
Follow handling instructions carefully.
Flammable refrigerant used.
WARNING
WARNING! CALIFORNIA RESIDENTS
Cancer and Reproductive Harm
www.P65Warnings.ca.gov
Child Safety
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.
Destroy or recycle the carton, plastic
bags, and any exterior wrapping material
immediately after you unpack the
refrigerator. Children should NEVER use
these items to play. Cartons covered with
rugs, bedspreads, plastic sheets or stretch
wrap may become airtight chambers, and
can quickly cause suocation.
Safety Instructions
• DO NOT store or use gasoline, or
other flammable liquids in the vicinity
of this or any other appliance. Read
product labels for warnings regarding
flammability and other hazards.
• DO NOT operate the refrigerator in
the presence of explosive fumes.
• Avoid contact with any moving parts
of automatic ice maker.
• Remove all staples from the carton.
Staples can cause severe cuts, and also
destroy finishes if they come in contact
with other appliances or furniture.
Page 4
4
Grounding type wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
IMPORTANT SAFETY INFORMATION
Proper Disposal of your Appliance
Risk of child entrapment
Child entrapment and suocation are not
problems of the past. Junked or abandoned appliances are still dangerous –
even if they will sit for “just a few days”. If
you are getting rid of your old unit, please
follow the instructions below to help prevent accidents.
We strongly encourage responsible appliance recycling/disposal methods. Check
with your utility company or visit www.
energystar.gov/recycle for more informa-
tion on recycling your old appliance.
Before you throw
away your old unit:
• Remove doors.
• Leave shelves in
place so children
may not easily
climb inside.
• Have refrigerant removed by a qualified service technician.
WARNING
Follow these guidelines to ensure
safety mechanisms in this appliance will
operate properly.
• Unplug the appliance before cleaning and before replacing the AC LED
light bulb to avoid electrical shock.
Use only a 5-watt or less AC LED
light bulb.
• Performance may be aected if the
voltage varies by 10% or more. Operating the refrigerator with insucient
power can damage the compressor.
Such damage is not covered under
your warranty.
• Do not plug the unit into an electrical
outlet controlled by a wall switch or
pull cord to prevent the unit from
being turned o accidentally.
IMPORTANT
Turning the Refrigerator controls to
“OFF” will disable your refrigerator’s
cooling system, but does not disconnect
the power to the light bulb and other
electrical components. To turn o power
to your refrigerator you must unplug the
power cord from the electrical outlet.
Electrical information
• Plug the unit into its own dedicated 115 Volt, 60 Hz., 15 Amp, AC
only electrical outlet. The power
cord of the appliance is equipped
with a 3-prong grounding plug for
your protection against electrical
shock hazards. Plug it directly into a
properly grounded 3-prong receptacle. You must install the receptacle in accordance with local codes
and ordinances. Consult a qualified
electrician. Avoid connecting the unit
to a Ground Fault Interrupter (GFI)
circuit. Do not use an extension cord
or adapter plug.
• If the power cord is damaged, an
authorized service technician should
replace it to prevent any risk.
• Never unplug the refrigerator by pulling on the power cord. Always grip
the plug firmly, and pull it straight
out from the receptacle to prevent
damaging the power cord.
IMPORTANT
CFC/HCFC Disposal
Your old refrigerator may have a cooling
system that used CFCs or HCFCs (chlorofluorocarbons or hydrochlorofluorocarbons). CFCs and HCFCs are believed
to harm stratospheric ozone if released
to the atmosphere. Other refrigerants
may also cause harm to the environment
if released to the atmosphere.
If you are throwing away your old refrigerator, make sure the refrigerant is removed for proper disposal by a qualified
technician. If you intentionally release
refrigerant, you may be subject to fines
and imprisonment under provisions of
environmental legislation.
Page 5
FEATURES (FRIGIDAIRE)
5
*Features may vary according to model
I
H
G
F
E
D
C
B
A
A Crisper Drawers
B Crisper Cover
C Deli Drawer*
D Full Shelves
E Refrigerator Control
J
J
F Freezer Shelf
G Ice Bucket*
H Freezer Control
I Ice Maker*
J Fixed Door Bins
IMPORTANT
Accessories are available for your appliance and may be purchased at
Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in
Canada) or from an authorized seller.
Page 6
6
FEATURES (FRIGIDAIRE)
*Features may vary according to model
I
H
G
F
E
D
C
B
A
A Crisper Drawers
B Crisper Cover
C Deli Drawer*
D Full Shelves
E Refrigerator Control
J
J
F Freezer Shelf
G Ice Bucket*
H Freezer Control
I Ice Maker*
J Fixed Door Bins
IMPORTANT
Accessories are available for your appliance and may be purchased at
Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in
Canada) or from an authorized seller.
Page 7
FEATURES (FRIGIDAIRE GALLERY/PROFESSIONAL)
*Features may vary according to model
J
7
I
H
G
Recommended
Air
Replace
Temp
Filter
Coldest
F
Cold
Hold to Reset
E
D
B
C
A
A Crisper Drawers
B Crisper Cover
C Auto Humidity Control Membrane
D Full Width Deli Drawer
E Full Shelves
F Refrigerator Control
K
L
G Freezer Shelf
H Ice Bucket*
I Freezer Control
J Ice Maker*
K Fixed Door Bins
L Adjustable Door Bins
IMPORTANT
Accessories are available for your appliance and may be purchased at
Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in
Canada) or from an authorized seller.
Page 8
8
INSTALLATION
This Use & Care Guide provides general
operating instructions for your model.
Use the appliance only as instructed in
this Use & Care Guide. Before starting the
unit, follow these important first steps.
IMPORTANT
Cleaning your Refrigerator
Remove tape and glue residue from
surfaces before turning the refrigerator on. Rub a small amount of liquid
dish soap over the adhesive with your
fingers. Rinse with warm water and dry
with a soft cloth.
Do not use sharp instruments, rubbing
alcohol, flammable fluids, or abrasive
cleaners to remove tape or glue. These
products can damage the surface of
your refrigerator.
After you remove all of the package materials, clean the inside of your refrigerator before using it. See the CARE AND
CLEANING section in this manual.
IMPORTANT
Moving your Refrigerator
Your refrigerator is heavy. When moving
the refrigerator for cleaning or service,
raise the anti-tip bracket (see “Setting
the Anti-tip Brackets”). Also be sure to
cover the floor with cardboard or hardboard to avoid floor damage. Always
pull the refrigerator straight out when
moving it. Do not wiggle or “walk” the
refrigerator when trying to move it as
you could damage the floor.
Location
• Choose a place that is near a grounded electrical outlet. Do Not use an
extension cord or an adapter plug.
• If possible, place the refrigerator out of
direct sunlight and away from the range,
dishwasher or other heat sources.
• The refrigerator must be installed on
a floor that is level and strong enough
to support a fully loaded refrigerator.
• Consider water supply availability for
models equipped with an automatic ice maker. If you do not hook up
water to the refrigerator, remember
to turn the ice maker o.
CAUTION
Do not install the refrigerator where the
temperature will drop below 50°F (10°C)
or rise above 110°F (43°C). The compressor will not be able to maintain proper
temperatures inside the refrigerator.
Do not block the toe grille on the lower
front of your refrigerator. Sucient air
circulation is essential for the proper
operation of your refrigerator.
CAUTION
Do not block the lower front of your
refrigerator. Sucient air circulation is
essential for the proper operation of
your refrigerator.
Installation
Installation clearances
• Allow the following clearances for ease
of installation, proper air circulation, and
plumbing and electrical connections:
Sides & Top ⅜"
Back 1"
NOTE
If your refrigerator is placed with the
door hinge side against a wall, you may
have to allow additional space for the
handle so the door can be opened wider.
Guidelines for final positioning of
your refrigerator:
• All 4 corners of the cabinet must rest
firmly on the floor.
• The cabinet should be level at the
front and rear.
• The sides should tilt ¼" (6 mm) from
front to back (to ensure that doors
close and seal properly).
• Doors should align with each other
and be level.
Page 9

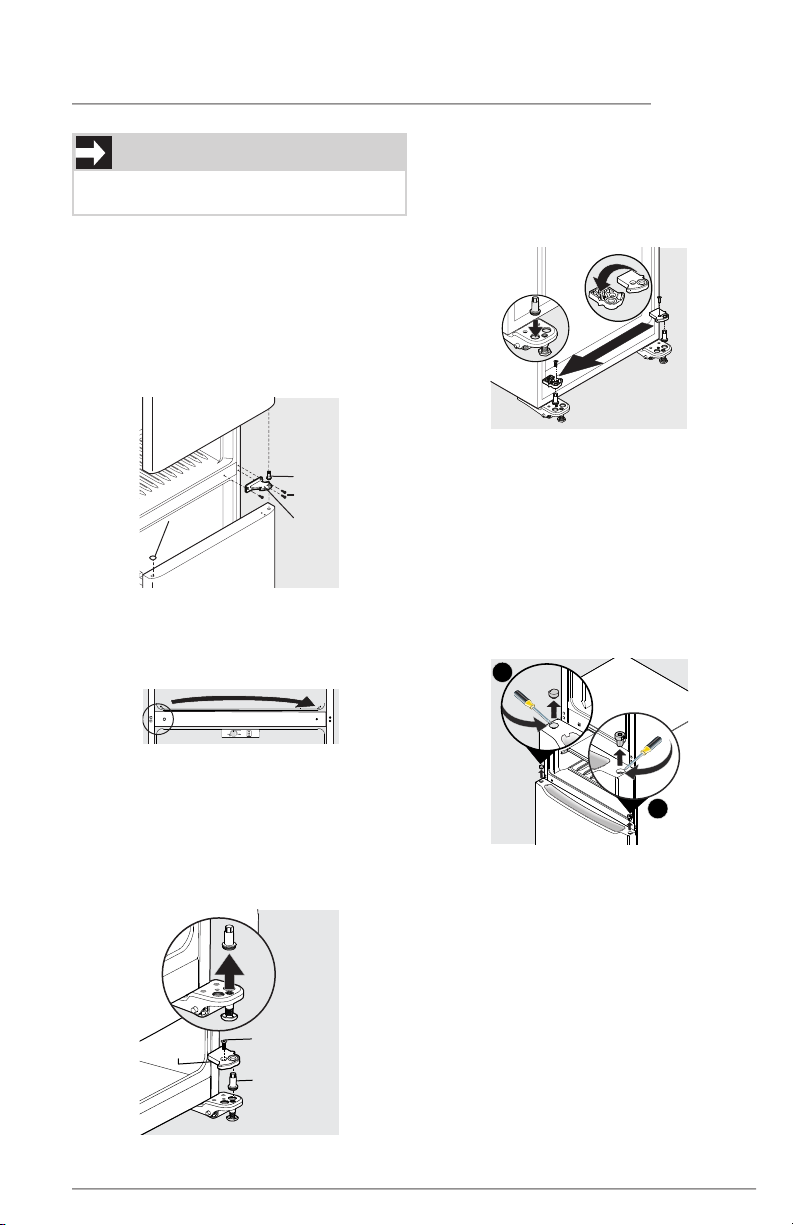

Setting the Anti-tip Brackets
The anti-tip brackets are located on the
lower front corners of the cabinet. Lower
the anti-tip brackets on each side clockwise until they contact the floor. Do not
raise the cabinet.
Lower
Anti-Tip Bracket
AVERTISSEMENT
The anti-tip bracket must
be installed according to
the instructions in your
Use & Care Manual. Failure
to do so will result in injury.
INSTALLATION
9
Page 10
10

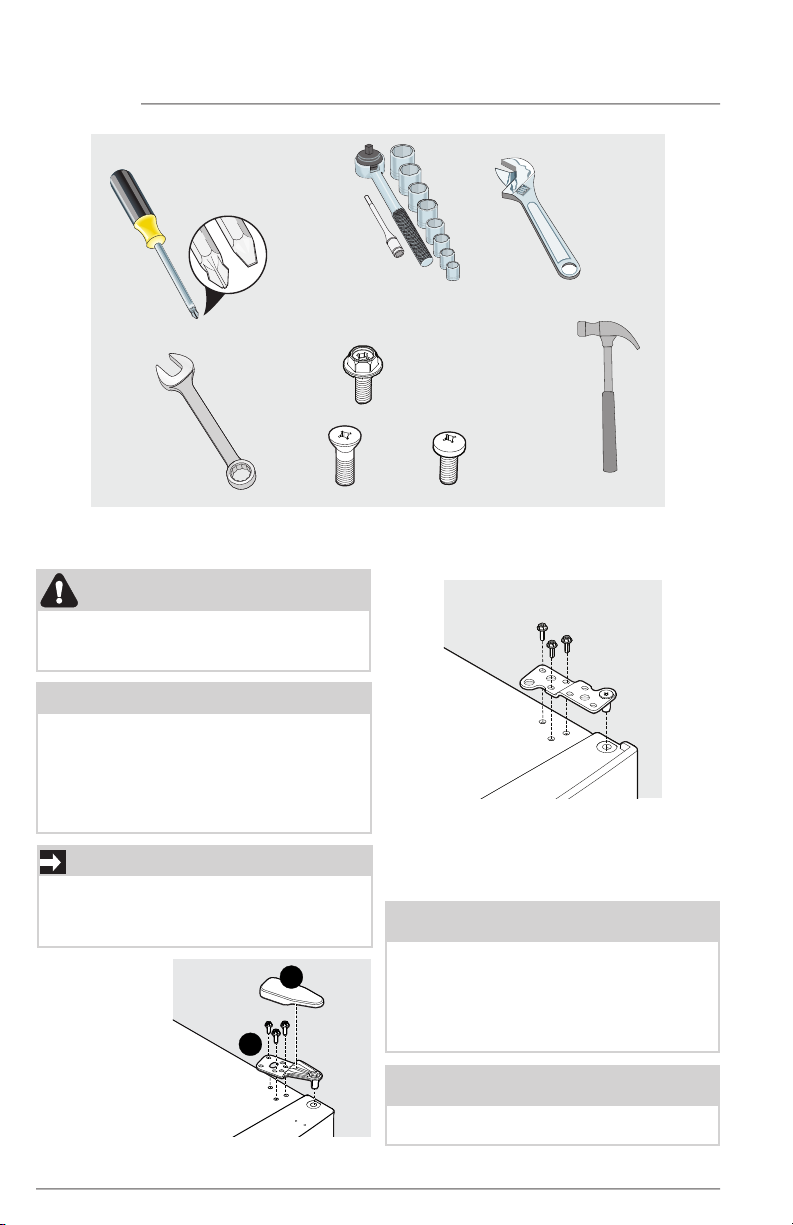

Tools Necessary:
DOOR REMOVAL
Phillips™
Head and
Flat Head
Screwdriver
or
5/16"
(8mm)
Fixed
Wrench
Door Removal/Reversal
(some models)
CAUTION
Be sure the doors are set aside in a
secure position where they cannot fall
and cause personal injury.
NOTE
The direction in which your refrigerator doors open (door swing) can be
reversed, from left to right or right to
left, by moving the door hinges from
one side to the other. Reversing the
door swing should be performed by a
qualified person.
IMPORTANT
Before you begin, turn the refrigerator temperature control to OFF and remove the
electrical power cord from the wall outlet.
Remove any food from door shelves.
1. Unplug
your refrigerator.
2. Remove the
top hinge
cover (some
models--see
Figure 1A).
For models
without the
hinge cover,
go to step 3.
B
Figure 1
Wrench Set
Center
Hinge
A
Socket
or
Adjustable
Wrench
Top Hinge
Screw
MSX16
Quadrex
Pan Head
Quadrex
MSX12
3. Using a 5/16 in. socket, loosen the
3 screws from the top hinge (see
Figure 2).
4. Carefully open the freezer door. Lift
the loosened the top hinge and lift
the door o of center hinge pin. Set
the door aside.
NOTE
* We do not recommend to using an
electric tool to unscrew and screw parts
because it may damage the screw threads
or cause screw heads to be stripped o.
However, if you have an electric tool with
torque control, the torque cannot be larger than 6 N·m (53 in.lb).
NOTE
Keep the screws so they can be used
on the opposite side.
Hammer
Figure 2
Page 11
DOOR REMOVAL
11
IMPORTANT
Place the door on a padded surface to
avoid damage.
5. Unscrew the center hinge pin using
an adjustable wrench and set it
aside (see Figure 3).
6. Open the refrigerator door and lift
the door o of the bottom hinge pin.
Set the door aside.
7. Remove the 3 center hinge screws
using a Phillips screwdriver and set
the center hinge aside (see Figure 3).
Hinge
Pin
Screws
Hinge
Hole
Plug
Figure 3
8. Remove the 3 pan head screws on
the opposite side of the center hinge
(Figure 4) and install them in the holes
where the center hinge was attached.
Center
Hinge
12. Install the bottom hinge pin in the
left-hand hole of the left-hand lower
hinge (see Figure 6).
13. Flip the door stopper. Reinstall the
door stopper on top of the bottom
hinge with the screw (see Figure 6).
Figure 6
Door Bearing Reversal For
Freezer and Refrigerator Doors
1. With a flathead screwdriver, pry out
the center hinge bearing from the
top of the refrigerator door (see
Figure 7A).
2. With a flathead screwdriver, pry out
the center hinge bearing plug from
the opposite side of the refrigerator
door (see Figure 7B).
B
Figure 4
9. Remove both lower hinge covers.
10. Remove the screw from the door
stopper with a Phillips screwdriver
(see Figure 5).
11. Unscrew the bottom hinge pin from
the right-hand position using an adjustable wrench (see Figure 5).
Figure 5
Door
Stopper
Screw
Bottom Hinge
Pin
Door
Stopper
A
Figure 7
3. Install the hinge bearing on the
opposite side by tapping it with a
hammer until it is flush with the end
cap. Repeat the process for the plug.
4. Reverse the door handle (see
DOOR HANDLE INSTALLATION
section if applicable).
5. Flip the refrigerator door over and
remove the screw from the door
closer using a Phillips screwdriver
and set it aside (see Figure 8A).
6. Pry out the hinge bearing from the
door with a straight screwdriver (see
Figure 8B).
Page 12
12
DOOR REMOVAL
7. Install the bottom hinge bearing on
the opposite side of the door (see
Figure 8C).
8. Flip the door closer over and install
on the opposite side of the door
(see Figure 8C).
1
1
B
Door Bottom
Figure 8
2
Figure 9
2
Door Closer
C
A
9. Repeat steps 1-8 for the freezer door.

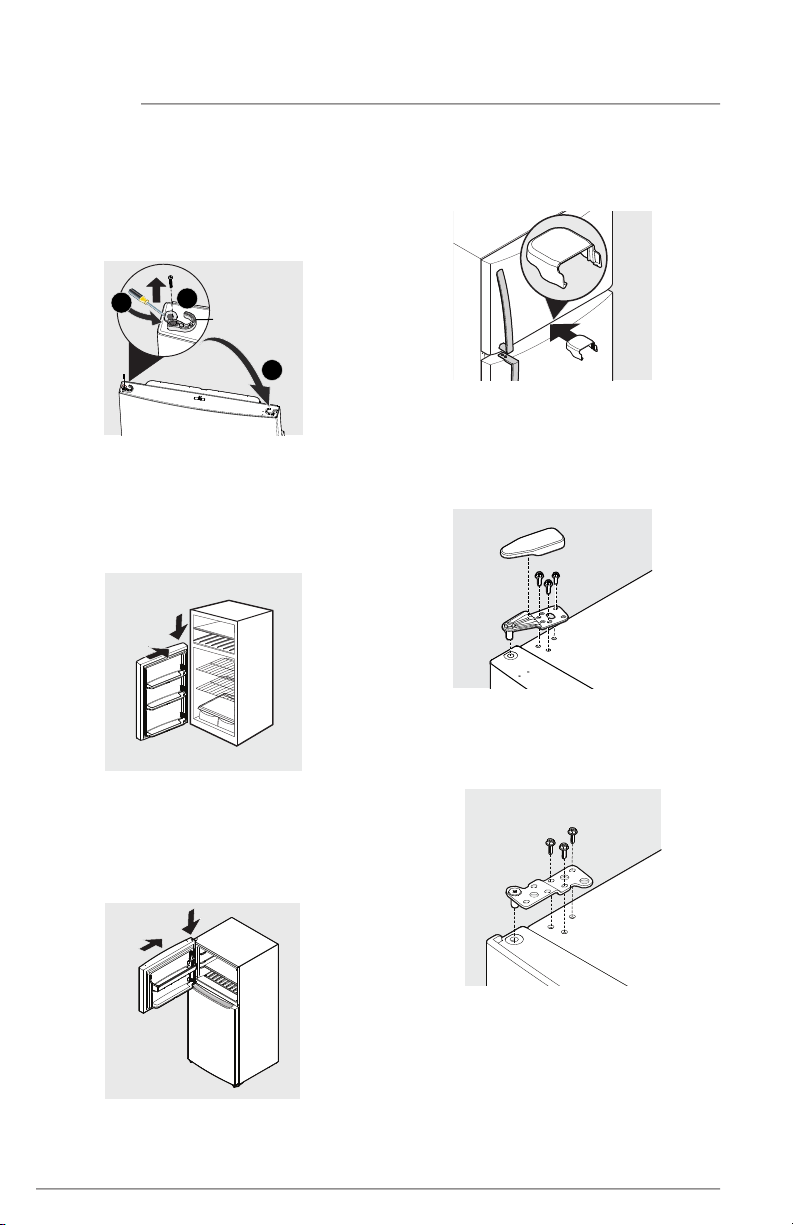

10. Lower the refrigerator door in the
opened position on the bottom
hinge pin and close the door (see
Figure 9).
11. Screw in and tighten the center hinge
pin using an adjustable wrench.
12. Lower the freezer door in the opened
position over the center hinge pin
and close the door (see Figure 10).
Place the lower hinge cover between
the freezer door and refrigerator
door to keep it level while attaching
the top hinge (see Figure 11).
Figure 11
13. Attach the top hinge using a 5/16 in.
socket, and then place the top hinge
cover (some models) on the unit
(see Figure 12).
Figure 12
14. For models without the hinge cover,
flip the hinge cover over and attach it
using a 5/16 in. socket (see Figure 13).
Figure 10
Figure 13
15. Replace the lower hinge covers.
Page 13
DOOR HANDLE INSTALLATION (SOME MODELS)
13

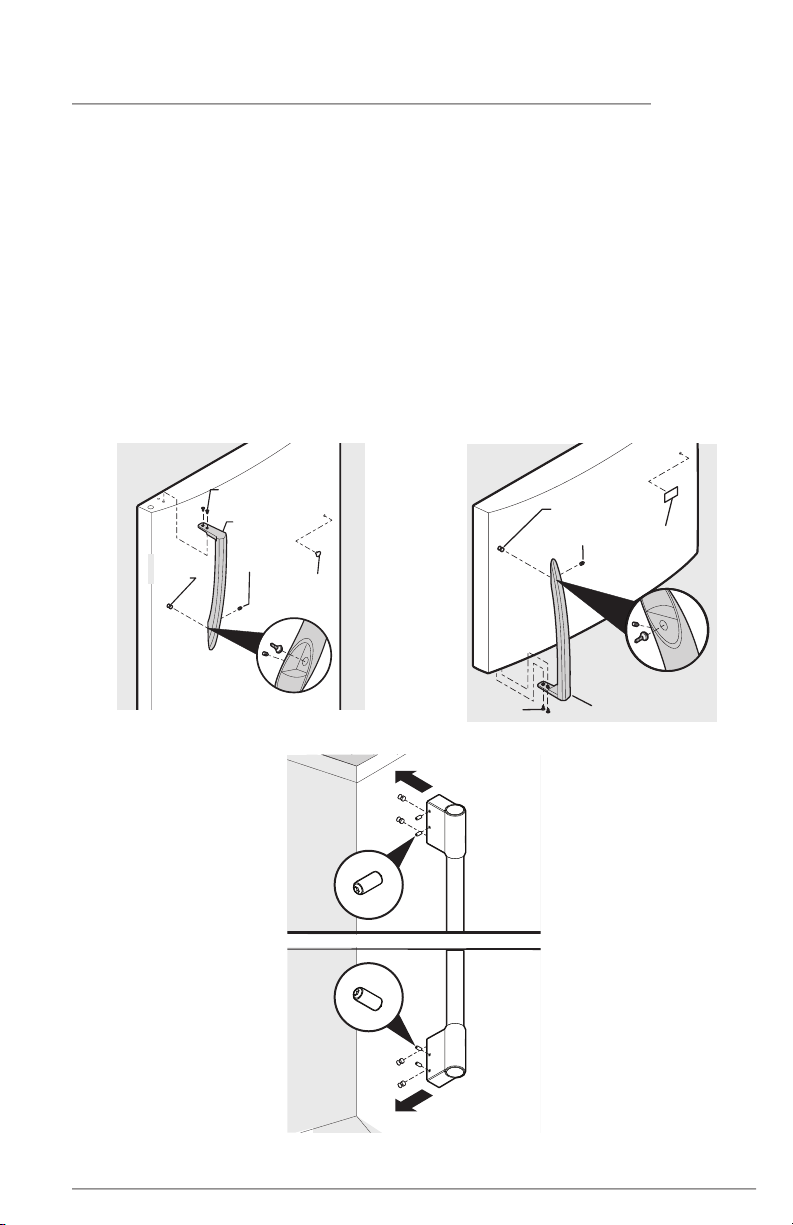

To attach the metal refrigerator handle
(Stainless steel, Black Stainless steel,
Stainless Steel EZCare):
1. Place the rounded part of the handle
onto the shoulder screw on the face
of the door and align the 2 holes in
top of handle with the 2 holes in top
of the door. Do not tighten the set
screw yet.
2. Install the 2 screws into the top of
the handle.
3. Tighten the set screw on the rounded
part of the handle until the handle
is flush with the door; then tighten
another ½ turn.
Screw
Handle
Set
Shoulder
Screw
Screw
Button
Plug
Rounded Doors
To attach the metal freezer handle
(Stainless steel, Black Stainless steel,
Stainless Steel EZCare):
1. Place the rounded part of the handle
onto the shoulder screw on the face
of the door and align the 2 holes in
bottom of handle with the 2 holes in
bottom of door. Do not tighten the
set screw yet.
2. Install the 2 screws into the bottom
of the handle.
3. Tighten the set screw on the
rounded part of the handle until the
handle is flush with the door; then
tighten another ½ turn.
Shoulder
Screw
Set Screw
Screw
Nameplate
Handle
Flat Doors
Page 14
14
DOOR HANDLE INSTALLATION (SOME MODE LS)
CAUTION
Do not use an electric screwdriver to attach the handles; overtightening the handles
may crack them. Use a handheld screwdriver only.

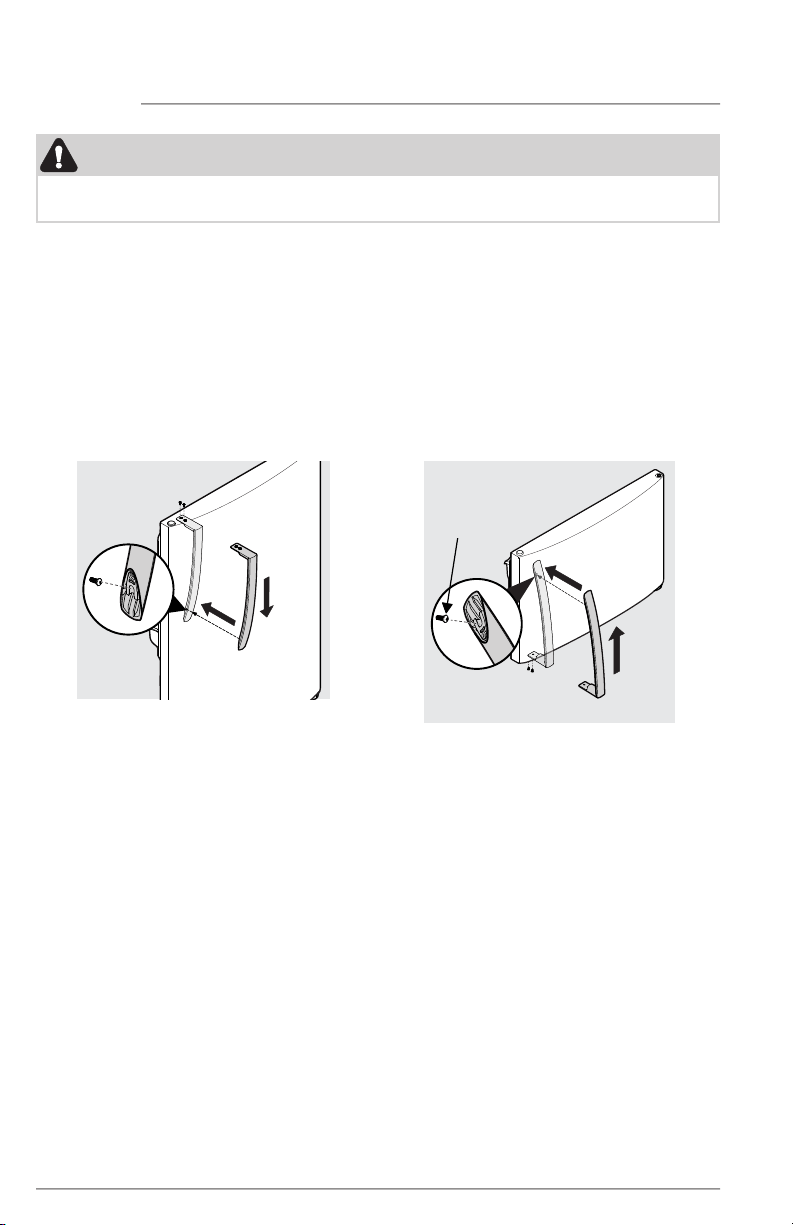

To attach the plastic refrigerator handle
(Smooth white/black):
1. With the door open, place the
end of the handle on the dove tail
mounting screw and pull it down to
secure it in place.
2. Align the handle base with the holes
in top of the door.
3. Install screws packaged with
the handle.
Screws
Handle Base
Handle
To attach the plastic freezer handle
(Smooth white/black):
1. With the door open, place the
end of the handle on the dove tail
mounting screw and push it up to
secure it in place.
2. Align the handle base with holes in
the bottom of the door.
3. Install screws packaged with
the handle.
Mounting Screw
Handle
Screws
Handle Base
Page 15
DOOR HANDLE INSTALLATION (SOME MODE LS)
15

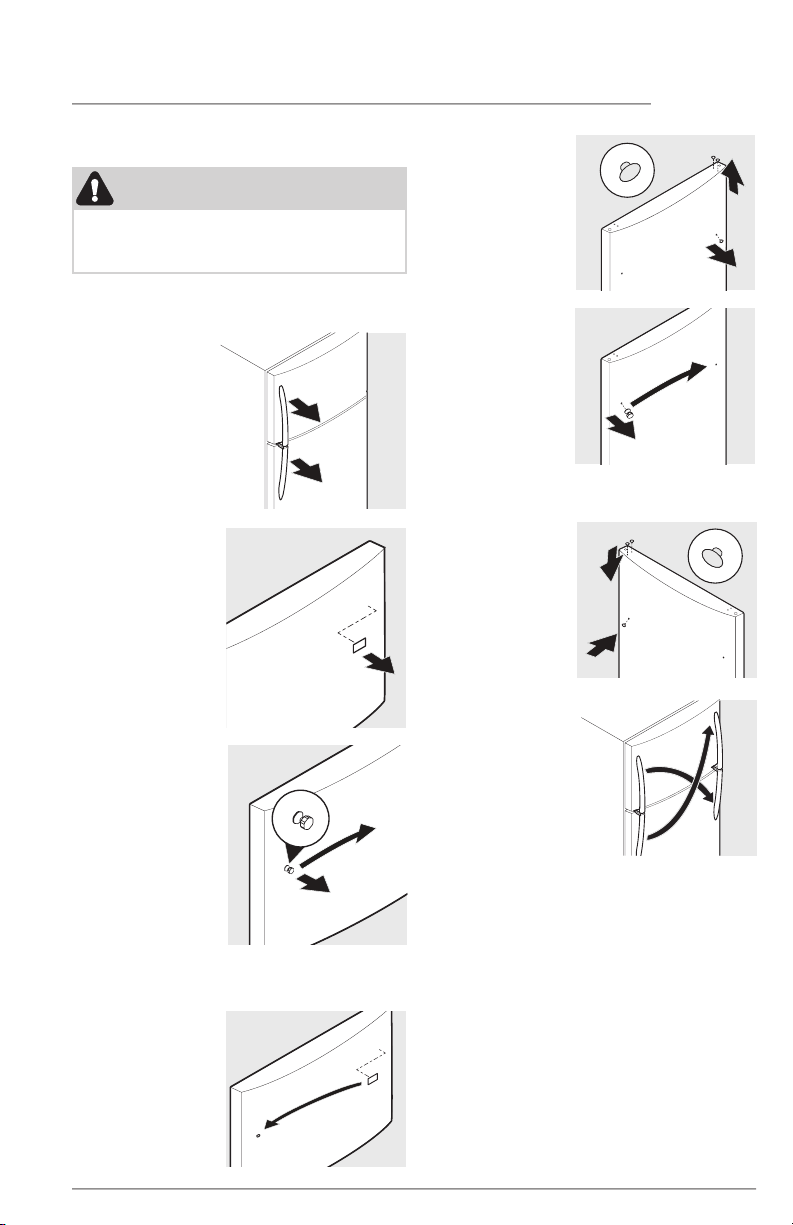

To reverse the door handles:
CAUTION
Be sure the doors are set aside in a
secure position where they cannot fall
and cause personal injury.
The handles may be easier to reverse
while the doors are o.
1. Unscrew
and remove
the handles
2. Remove
the name
plate on the
freezer door.
3. Remove the
shoulder
screw on
the opposite
side of the
freezer door
and install
the shoulder
screw where
the name
plate was
removed
using an adjustable wrench or
Phillips head screwdriver.
4. Install the
name plate
on the
opposite
side of the
freezer door.
5. Remove the
button plugs
from the
front and
top of the
refrigerator
door.
6. Remove the
shoulder
screw on
the left side,
and install
the shoulder
screw on
the opposite
side of the
door using an adjustable wrench or
Phillips head screwdriver.
7. Install the
button
plugs on the
opposite side
of the front
and top of the
refrigerator
door
8. Reverse and
attach the
freezer and
refrigerator
handles as
shown.
Page 16
16

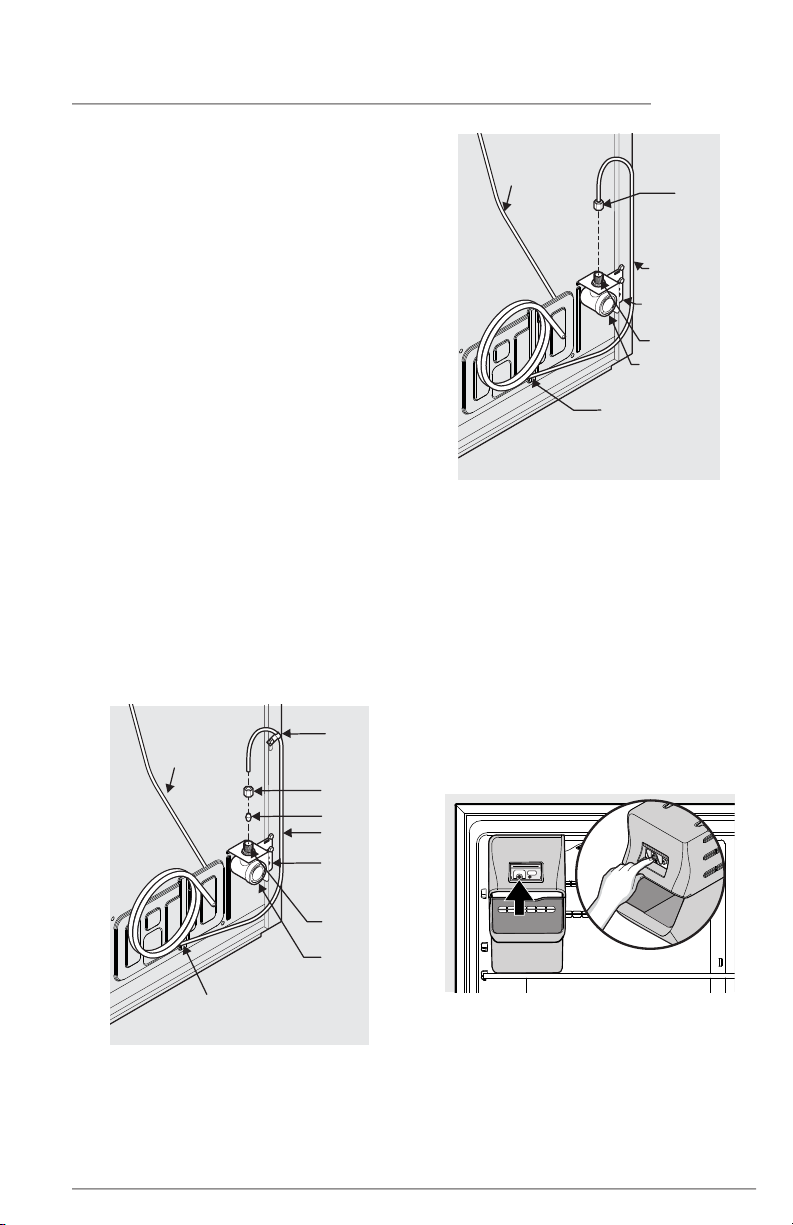

WATER SUPPLY CONNECTION
Ice Maker Models Only
NOTE
Automatic ice makers are optional accessories that you may install in most models
at any time. Visit www.frigidaire.com for
information about Ice Maker Kit 117000.
WARNING
To avoid electric shock, which can cause
death or severe personal injury, disconnect the refrigerator from electrical
power before connecting a water supply
line to the refrigerator.
CAUTION
To Avoid Property Damage:
• Use stainless steel braided tubing
for the water supply line. Do not
use water supply tubing made of
¼ in. plastic. Plastic tubing greatly
increases the potential for water
leaks, and the manufacturer will not
be responsible for any damage if you
use plastic tubing for the supply line.
• DO NOT install water supply tubing
in areas where temperatures fall
below freezing.
• Chemicals from a malfunctioning
softener can damage the ice maker.
If the ice maker is connected to soft
water, ensure that the softener is
maintained and working properly.
IMPORTANT
Ensure that your water supply line connections comply with all local plumbing codes.
Before Installing The Water Supply Line,
You Will Need:
• Basic Tools: adjustable wrench, flat-blade
screwdriver, and Phillips screwdriver
• Access to a household cold water line
with water pressure between 30 and
100 psi.
• A water supply line made of stainless
steel tubing. To determine the length
of tubing needed, measure the distance from the ice maker inlet valve
at the back of the refrigerator to your
cold water pipe, so the refrigerator
can be moved out for cleaning.
• A shuto valve to connect the water
supply line to your household water
system. DO NOT use a self-piercing
type shuto valve.
• Do not reuse compression fitting or
use thread seal tape.
NOTE
Check with your local building authority
for recommendations on water lines and
associated materials prior to installing
your new refrigerator. Depending on
your local/state building codes, Frigidaire recommends for homes with existing valves its Smart Choice® water line
kit 5304437642 (with a 6 ft. Stainless
Steel Water Line) and for homes without
an existing valve, Frigidaire recommends its Smart Choice® water line kit
5304493869 (with a 6’ Polyline Waterline). Please refer to www.frigidaire.com
for more information.
Page 17
moving refrigerator out for cleaning.)
service
mode
moving refrigerator out for cleaning.)
WATER SUPPLY CONNECTION
17
To Connect the Water Supply Line To the
Ice Maker Inlet Valve
1. Disconnect the refrigerator from the
electrical power source.
2. Place the end of water supply line
into a sink or bucket. Turn ON the
water supply and flush the supply
line until the water is clear. Turn OFF
the water supply at the shuto valve.
3. Remove the plastic cap from the water valve inlet and discard the cap.
4. If you use copper tubing, slide brass
compression nut, and then the ferrule (sleeve) onto the water supply
line. Push the water supply line into
the water valve inlet as far as it will
go (¼" / 6.4 mm). Slide the ferrule
(sleeve) into valve inlet and finger
tighten the compression nut onto
the valve. Tighten another ½ turn
with a wrench; DO NOT overtighten.
See below.
If you use braided flexible stainless steel tubing, the nut is already
assembled on the tubing. Slide the
nut onto the valve inlet and finger
tighten the nut onto valve. Tighten
another ½ turn with a wrench; DO
NOT overtighten. See below.
Plastic Water
Tubing to Ice
Maker Fill Tube
from household water supply
(Include enough tubing in loop to allow
Units with copper tubing
Clamp
Brass
Compression
Nut
Ferrule
Sleeve
Copper
Line
Water
Valve
Bracket
Water
Valve Inlet
Water
Copper water line
Valve
Plastic Water
Tubing to Ice
Maker Fill Tube
Brass
Compression
Nut
Water Line
Water Valve
Bracket
Valve Inlet
Water Valve
6 ft minimum (1.8 m)
braided flexible stainless steel
water line from household water supply
(Include enough tubing in to allow
Units with braided flexible
stainless steel tubing
5. With the steel clamp and screw,
secure the water supply line (copper
tubing only) to the rear panel of
refrigerator as shown.
6. Coil the excess water supply line
(copper tubing only), about 2½
turns, behind the refrigerator as
shown and arrange the coils so they
do not vibrate or wear against any
other surface.
7. To turn the ice maker on, press the
ice maker’s On/O power switch so
the LED is illuminated.
8. Turn ON the water supply at the
shuto valve and tighten any connections that leak.
9. Reconnect the refrigerator to the
electrical power source.
Page 18
18
ICE MAKER
NOTE
Automatic ice makers are optional accessories that you may install in most models
at any time. Visit www.frigidaire.com for
information about Ice Maker Kit 117000.
If your refrigerator has an automatic ice
maker, it will produce minimal ice during
the first 24 hours of operation. Air in new
plumbing lines may cause the ice maker to
cycle 2 or 3 times before making a full tray
of ice. With no usage, it will take approximately 1 to 2 days to fill the ice container.
New plumbing connections may cause
the first production of ice cubes to be
discolored or have an odd flavor. Discard
ice made during the first 24 hours.
IMPORTANT
The ice maker is shipped in the On position. To ensure proper function for your
ice maker, hook up the water supply
immediately or turn the ice maker O. If
the ice maker is on and the water supply
is not connected, the water valve will
make a loud chattering noise.
Turning your Ice Maker On
After completely connecting the
plumbing, you must open the water
supply valve. Place the ice container
under the ice maker, pushing it as far back
as possible. Press the ice maker’s On/O
button.
ICE PRODUCTION: WHAT
TO EXPECT
The ice maker will produce 2 to 2.5
pounds of ice every 24 hours depending
on usage conditions. Ice is produced at a
rate of 10 cubes every 100 to 160 minutes.
CAUTION
Do Not place the ice container in
your dishwasher.
Turning your Ice Maker O
To stop the ice maker, press the ice
maker’s On/O button. The ice maker
regulates the ice production and stops
making ice when full and starts again
when ice is low in the ice container.
Page 19

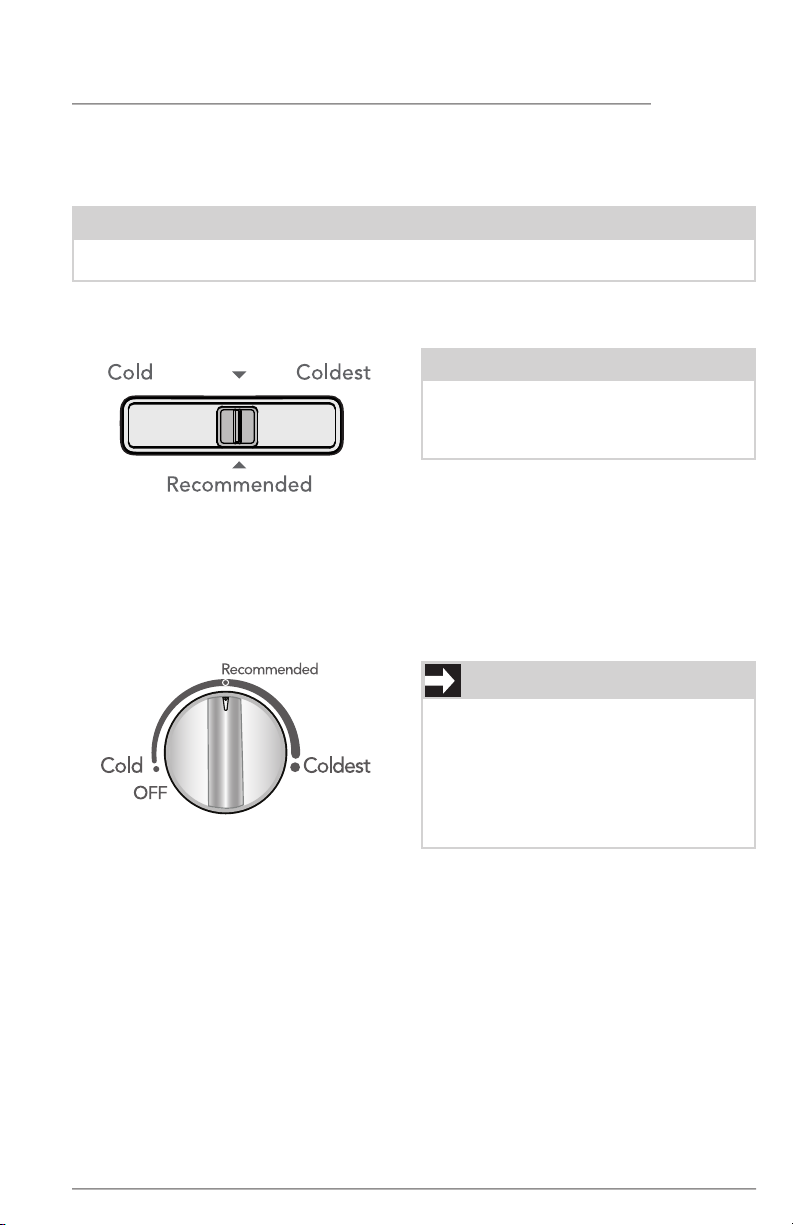

CONTROLS AND SETTINGS
19
Cool Down Period
To ensure safe food storage, allow the refrigerator to operate with the doors closed
for at least 8 hours before loading it with food.
NOTE
When first turning the refrigerator on, adjust the control to Recommended. After 24
hours, adjust the controls as needed.
Freezer Control
All Models
NOTE
If your unit is in a garage or area where
the temperature is below 50° F, adjust
the freezer control to the coldest setting
to improve performance.
Refrigerator Controls
Frigidaire
IMPORTANT
Adjusting the refrigerator temperature
control to OFF turns o the compressor
and prevents the refrigerator from cooling, but does not disconnect the power
to the light bulb and other electrical
components. To turn o power to your
refrigerator, you must unplug the power
cord from the wall outlet.
Temperature Adjustment
Adjust the temperature gradually: adjust the knob in small increments, allowing the
temperature to stabilize.
• For colder temperatures, adjust the control toward Coldest.
• For warmer temperatures, adjust the control toward Cold.
Adjusting the refrigerator control will change temperatures in both compartments. The
freezer control can be left at the factory preset (*Recommended) or adjusted as desired.
To maintain temperature, a fan circulates air in the refrigerator and freezer
compartments. For good circulation, do not block cold air vents with food items.
Page 20
20
Frigidaire Gallery and Professional

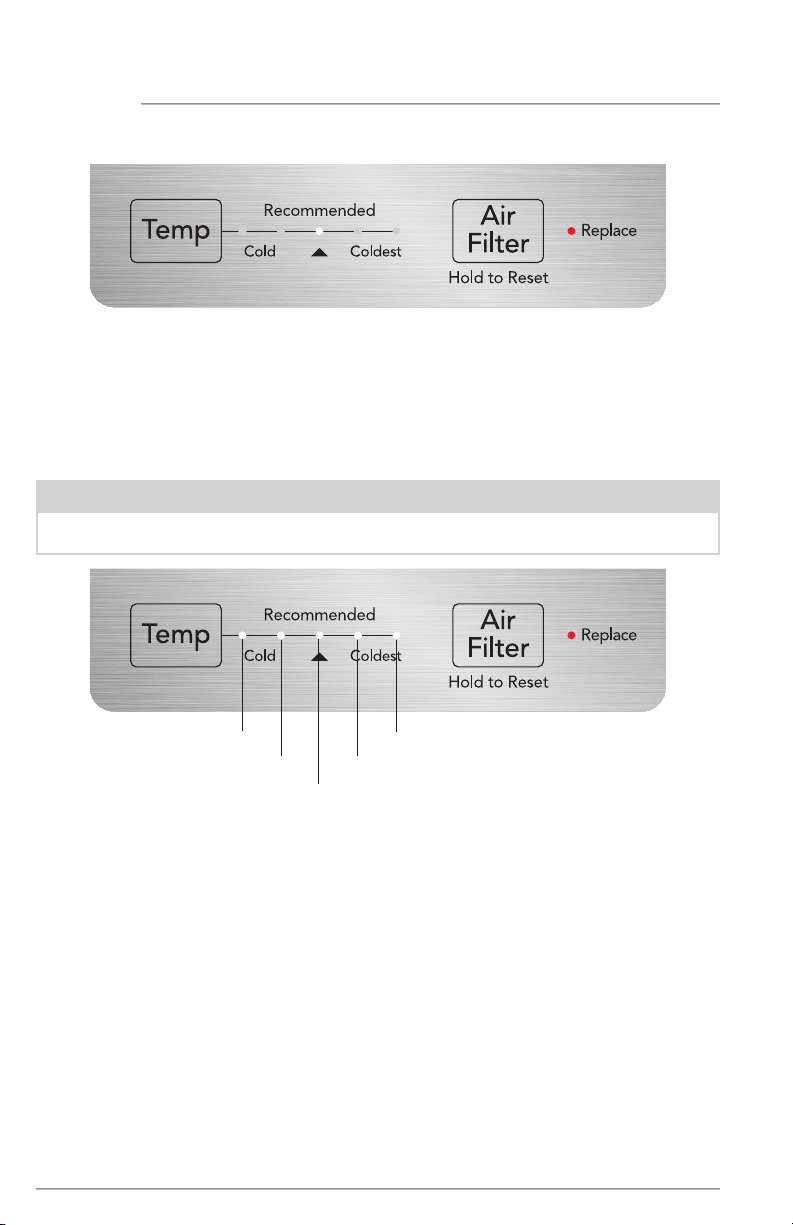

Temperature Adjustment
Adjust the temperature gradually: adjust in small increments, allowing the
temperature to stabilize.
• For colder temperatures, press the Temp button to change the temperature
setting toward Coldest.
• For warmer temperatures, press the Temp button to change the temperature
setting toward Cold.
Pressing the Temp button will scroll through the 5 temperature settings toward the
coldest setting, and then loop back to the least coldest setting.
CONTROLS AND SETTINGS
NOTE
Cold
Colder 1
Recommended
Adjusting the refrigerator control will change temperature in both compartments. The
freezer control can be left at the factory preset (*Recommended) or adjusted as desired.
To maintain temperatures, a fan circulates air in the refrigerator and freezer
compartments. For good circulation, do not block cold air vents with food items.
Coldest
Colder 2
Air Filter
The filter status light on the control panel will prompt you to replace the filter after 6
months. After replacing the air filter, the air filter status on the control panel should be
reset. To reset, Press and hold for 3 seconds.
Door Alarm
If the door is left open for 5 or more minutes, the door alarm will sound. Clear the
alarm by closing the door or by pressing any button.
Page 21

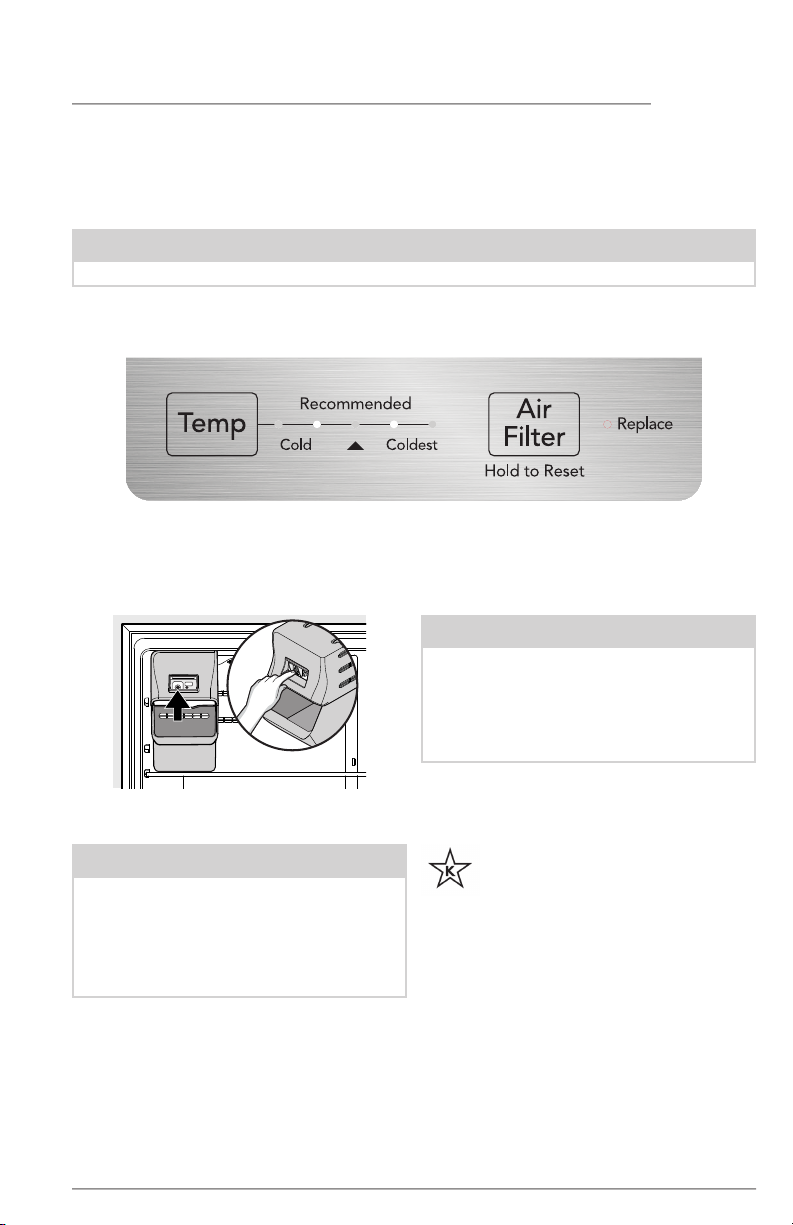

CONTROLS AND SETTINGS
service
mode
21
Sabbath Mode (Frigidaire Gallery/Professional)
The Sabbath Mode is a feature that disables portions of the refrigerator and its
controls in accordance with observance of the weekly Sabbath and religious holidays
within the Orthodox Jewish community.
NOTE
The temperature setting is not aected by the Sabbath Mode.
To enter Sabbath Mode
1. Press and hold the Temp and Air Filter buttons for 5 seconds.
One LED on each side of Recommended setting will be lit while the unit is in
Sabbath mode.
2. Press the ice maker’s On/O power switch to turn the ice maker o. The LED
will not be illuminated.
NOTE
Although you have entered the Sabbath Mode, the ice maker will complete
the cycle it had already initiated. The
ice cube compartment will remain cold
and you can make new ice cubes with
standard trays.
To exit Sabbath Mode, reverse the steps above.
NOTE
While in Sabbath Mode, neither the
lights not the control panel will work
until Sabbath Mode is deactivated.
The refrigerator stays in Sabbath Mode
after power failure recovery. Deactivate
It with the buttons on the control panel.
For further assistance, guidelines
for proper use and a complete
list of models with the Sabbath
feature, please visit www.star-k.org.
Page 22
22
STORAGE FEATURES
Door Storage
Door bins, shelves, and racks conveniently
store jars, bottles, and cans. You can
quickly select frequently used items.
Door Bin
Door bins can accommodate gallon-sized
plastic drink containers and economy-sized jars and containers.
To remove the door bin:
1. Lift up on the bin
2. Pull it straight out.
To install the door bin:
1. Push the bin back and down into the
locking tabs.
2. The bin sides will lock into the tabs.
Door Bin
Shelf Adjustment
The shelves are easy to adjust to suit
individual needs. Before adjusting the
shelves, remove all food.
To adjust shelves, slide the shelf by
moving it forward and lifting it upward.
To replace shelves, insert the rear of
the shelf into any pair of shelf rails and
carefully push the shelf back into position,
making sure the shelf clips (A) go in the
notch in the liner.
A
Glass Shelf
A
Wire Shelf
CAUTION
When reinstalling the shelf, ensure the
shelf clip is attached to the liner and
holds it in place.
CAUTION
Do not clean glass shelves or covers
with warm water when they are cold.
Shelves and covers may break if exposed to sudden temperature changes
or impact, such as bumping. Tempered
glass is designed to shatter into many

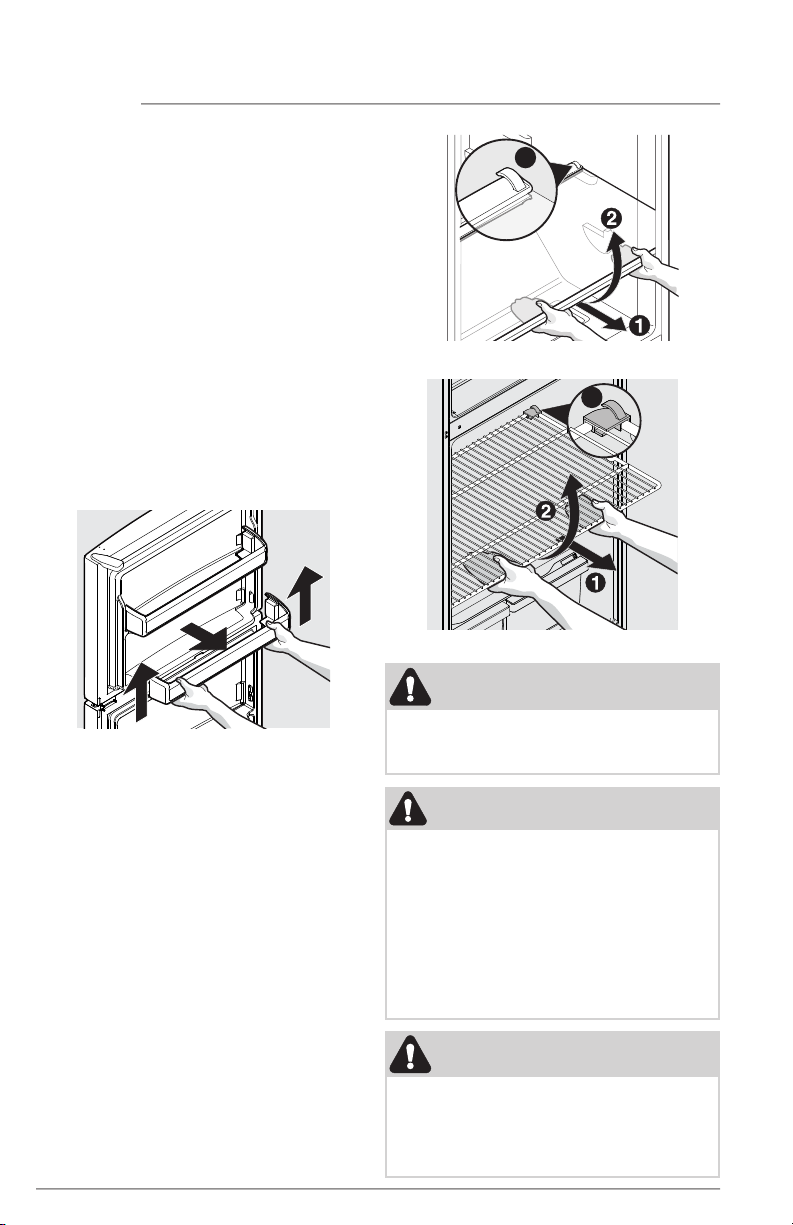

small, pebble-size pieces. This is normal. Glass shelves and covers are heavy.
Use both hands when removing them
to avoid dropping.
CAUTION
To avoid personal injury or property
damage, handle tempered glass shelves
carefully. Shelves may break suddenly
if nicked, scratched, or exposed to sudden temperature change.
Page 23
STORAGE FEATURES
Crisper Humidity Control
(some models)
The crisper humidity control, present
on the crisper drawers of some models,
allows you to adjust the humidity within
the crisper. This can extend the life of fresh
vegetables that keep best in high humidity.
NOTE
Leafy vegetables keep best when stored
with the Humidity Control set on High
Humidity, or in a drawer without a Humidity Control. This keeps incoming air
to a minimum and maintains maximum
moisture content. Store non-leafy vegetables and fruits still in their skins at the
low humidity setting.
23
Remove the auto humidity cover
NOTE
We do not recommend replacing the
auto-humidity membrane unless it
becomes damaged or ruined. If the
membrane becomes soiled, it can be
washed with soap and water. Ensure
the membrane is dry before replacing it
in the cover and back in the unit.

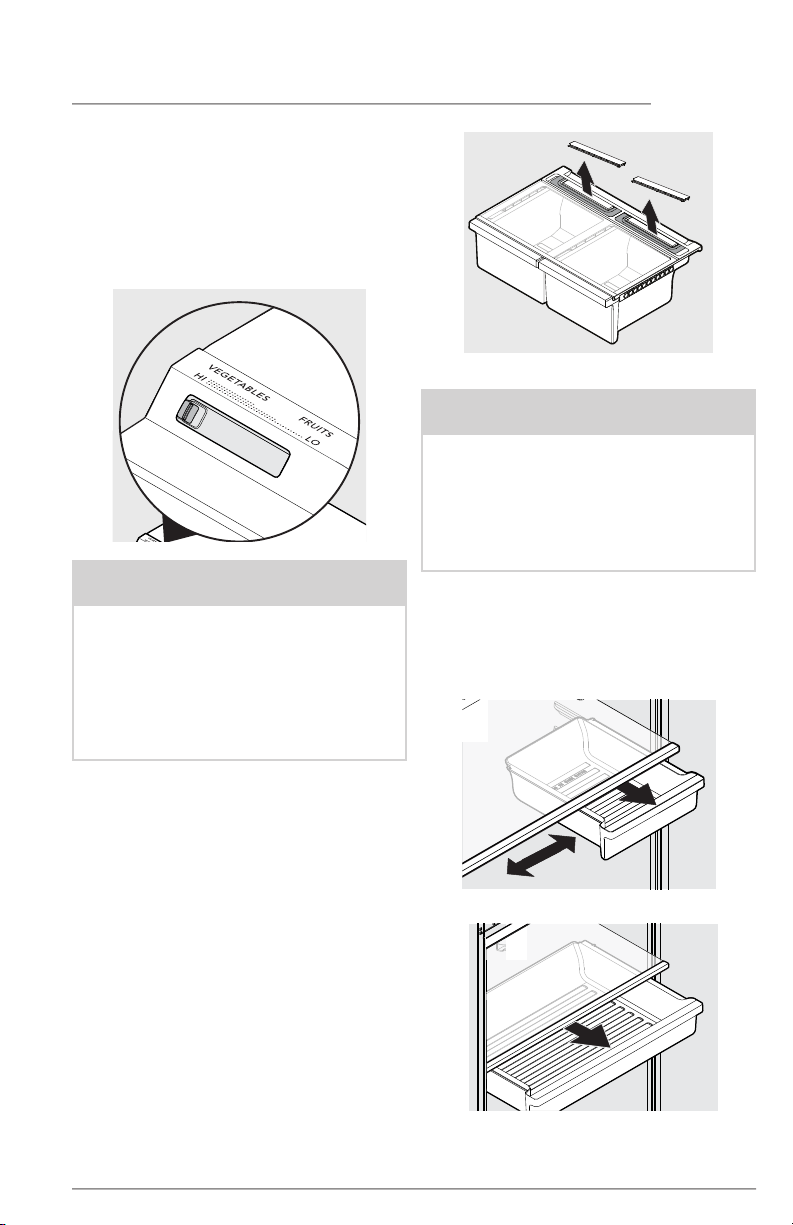

Deli Drawer (some models)
Use the deli drawer for storage of luncheon meats, spreads, cheeses, and other
deli items. Please be sure to support the
glass when removing the drawer.
Auto-Humidity Control
(some models)
Some crispers have an auto-humidity
control at the rear of each crisper under
the humidity control cover.
To remove the auto humidity control
for cleaning:
1. Reach to the back of the humidity
control cover.
2. Pull up on the cover.
3. Pull the cover toward the back of
the cabinet and remove.
4. Clean the humidity control with hot
soapy water.
5. Replace the clean humidity control
cover by reversing the steps above.
Repeat for both crispers.
Half Width Deli Drawer
Full Width Deli Drawer
Page 24
24
NORMAL OPERATING SOUNDS
Understanding the sounds you
may hear
Your new, high-eciency refrigerator
may introduce unfamiliar sounds. These
sounds normally indicate your refrigerator
is operating correctly. Some surfaces on
floors, walls, and kitchen cabinets may
make these sounds more noticeable.
NOTE
Rigid foam insulation is very energy
ecient but is not a sound insulator.
Following is a list of major components
in your refrigerator and the sounds they
can cause:

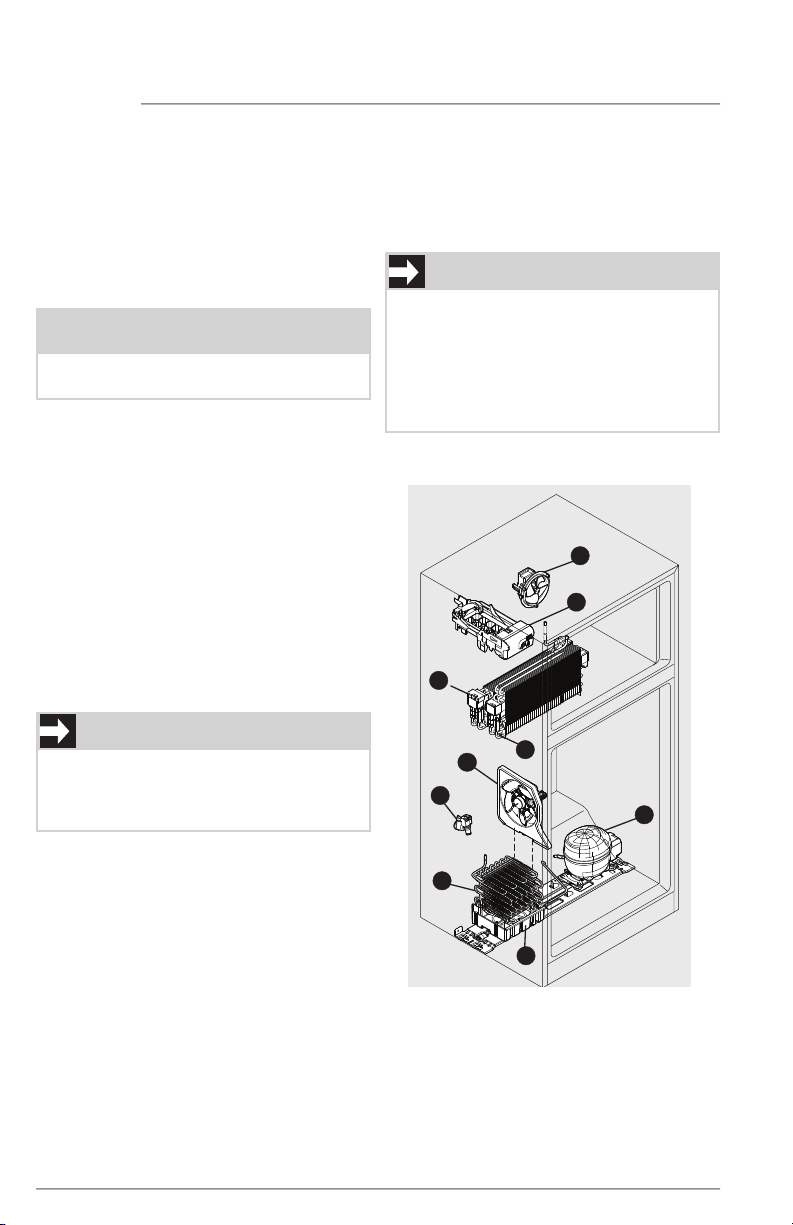

A Evaporator Refrigerant through the
evaporator may create a boiling or
gurgling sound.
B Evaporator fan You may hear
air being forced through the
refrigerator by the evaporator fan.
C Defrost heater During defrost
cycles, water dripping onto the
defrost heater may cause a hissing
or sizzling sound. After defrosting, a
popping sound may occur.
H Drain pan (not removable) You may
hear water dripping into the drain
pan during the defrost cycle.
I Condenser The condenser may create
minimal sounds from forced air.
IMPORTANT
Ice Maker models only:
If the ice maker is not connected to the
household water supply, you may hear
a loud chattering noise. Turn o the ice
maker by pressing the green ON/ OFF
power switch (green LED light will turn
o) until you install the water supply line.
B
D
A
IMPORTANT
During the automatic defrost cycle, you
may notice a red glow in the vents on the
back wall of your freezer compartment.
This is normal during the defrost cycle.
D Automatic ice maker When ice has
been produced, you will hear ice
cubes falling into the ice bin.
E Condenser fan You may hear air
being forced through the condenser.
F Compressor Modern, high-eciency
compressors run much faster than in
the past. The compressor may have a
high-pitched hum or pulsating sound.
G Water valve If your refrigerator is
equipped with an automatic ice
maker, you will hear a buzzing sound
as the water valve opens to fill the
ice maker during each cycle.
C
E
G
I
H
F
Page 25

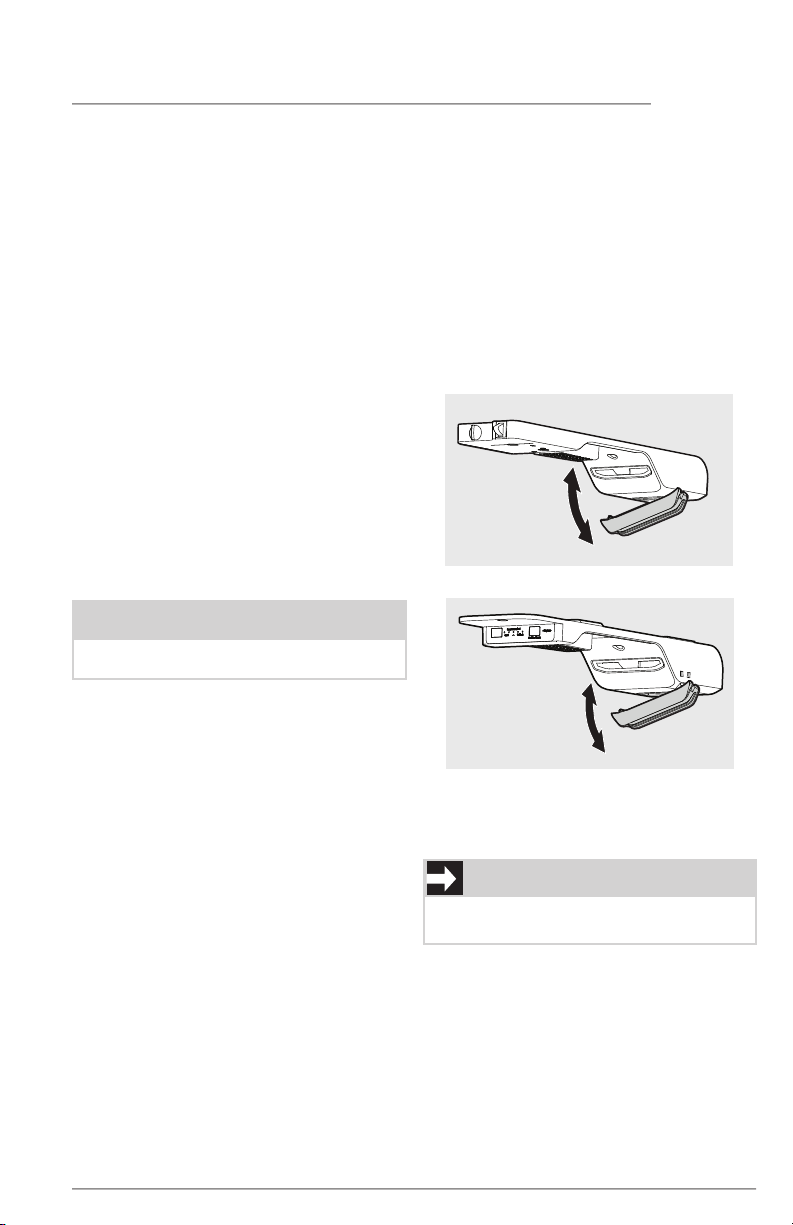

FILTER REPLACEMENT
25
PureAir Ultra II™ Air Filter
Keep your refrigerator fresh with our
PureAir Ultra II™ air filter’s active carbon
technology that absorbs and captures
undesirable odors more eectively than
baking soda. To ensure optimal filtering of
refrigerator odors, change the filter every
6 months.
The air filter is located in the top center of
the fresh food compartment.
For models with the filter housing already
installed, you may purchase a PureAir
Ultra II™ replacement filter (PAULTRA2)
at www.frigidaire.com.
For models that are air filter ready,
you will need to purchase a starter kit
(BRPAULTRA2KIT) at www.frigidaire.com.
The kit includes:
• 1 Filter Housing
• 1 Air filter (PAULTRA2)
NOTE
We recommend you always use genuine
Frigidaire replacement filters only.
The air filter is located in the top center of
the fresh food compartment.
Replacing the PureAir Ultra II™
Air Filter
1. Unpack the new filter and snap it
into the filter housing*. The open
face (black carbon media) of the
filter should be installed facing
outward in the cover.
2. Place the air filter housing in the
refrigerator by snapping it into the
back section of the control housing
as shown.
Air Filter Ready Starter Kit
Air
Temp
Filter
Already Installed Air Filter Housing
*Some features of the filter housing may vary.
IMPORTANT
For optimal performance, change the
filter every 6 months.
Page 26
26
CARE AND CLEANING
Protecting your investment
Keeping your refrigerator clean maintains
appearance and prevents odor build-up.
Wipe up any spills immediately and clean
the freezer and refrigerator compartments
at least twice a year. When cleaning, take
the following precautions:
• Never use CHLORIDE or cleaners with
bleach to clean stainless steel.
• Do not wash any removable parts in
a dishwasher.
• Always unplug the electrical power cord
from the wall outlet before cleaning.
• Remove adhesive labels by hand. Do
not use razor blades or other sharp
instruments which can scratch the
appliance surface.
• Do not remove the serial plate.
Do not use abrasive cleaners such as window sprays, scouring cleansers, brushes,
flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers
containing petroleum products on plastic
parts, interior doors, gaskets or cabinet
liners. Do not use paper towels, metallic
scouring pads, or other abrasive cleaning
materials or strong alkaline solutions.
NOTE
If you set your temperature controls
to turn o cooling, power to lights and
other electrical components will continue until you unplug the power cord from
the wall outlet.
CAUTION
Pull the refrigerator straight out to
move it. Shifting it from side to side may
damage flooring. Be careful not to
move the refrigerator beyond the
plumbing connections.
IMPORTANT
If you store or move your refrigerator in
freezing temperatures, be sure to completely drain the water supply system.
Failure to do so could result in water
leaks when the refrigerator is put back
into service. Contact a service representative to perform this operation.
Page 27
CARE AND CLEANING
Care and Cleaning Tips
Part What To Use Tips and Precautions
Interior
& Door
Liners
Door
Gaskets
Drawers &
Bins
Glass
Shelves
Exterior &
Handles
Exterior &
Handles
(Stainless
Steel
Models
Only)
Air Filter
Replacing
Light
Bulbs
• Soap and water
• Baking soda
and water
• Soap and water Wipe gaskets with a clean soft cloth.
• Soap and water Use a soft cloth to clean drawer runners
• Soap and water
• Glass cleaner
• Mild liquid sprays
• Soap and water
• Non Abrasive
Glass Cleaner
• Soap and water
• Stainless Steel
Cleaners
• Order Air Filter
Housing Kit
BRPAULTRA2KIT,
which includes a
PureAir Ultra IITM
air filter at www.
frigidaire.com
• Unplug appliance
• Wear gloves
• Remove light cover
• Replace old bulb
• Replace light cover
• Plug in the appliance
Use 2 tbsp of baking soda in 1 qt of warm
water. Be sure to wring excess water out
of sponge or cloth before cleaning around
controls, light bulb or any electrical part.
and tracks.
Allow glass to warm to room temperature
before immersing in warm water.
Do not use commercial household cleaners
containing ammonia, bleach or alcohol to
clean handles. Use a soft cloth to clean smooth
handles. DO NOT use a dry cloth to clean
smooth doors.
Never use CHLORIDE or cleaners with bleach
to clean stainless steel.
Clean stainless steel front and handles with
non-abrasive soapy water and a dishcloth.
Rinse with clean water and a soft cloth. Use
a non-abrasive stainless steel cleaner. These
cleaners can be purchased at most home
improvement or major department stores.
Always follow manufacturer’s instructions.
Do not use household cleaners containing
ammonia or bleach.
NOTE: Always clean, wipe and dry with the
grain to prevent scratching. Wash the rest of
the cabinet with warm water and mild liquid
detergent. Rinse well, and wipe dry with a
clean soft cloth.
Our PureAir Ultra IITM air filter’s active carbon
technology absorbs and captures undesirable
odors more eectively than baking soda.
CAUTION: Wear gloves when replacing the AC
LED light bulbs to avoid getting cut. Use same
wattage when replacing bulb.
CAUTION: Use only a 5-watt or less AC LED
light bulb.
27
Page 28
28
Let us help you troubleshoot your concern! This section will help you with common
issues. If you need us, visit our website, chat with an agent, or call us. We may be able
to help you avoid a service visit. If you do need service, we can get that started for you!
1-800-374-4432 (United States)
TROUBLESHOOTING
Frigidaire.com
1-800-265-8352 (Canada)
Frigidaire.ca
Common Occurences
Refrigerator does not run. • Ensure the plug is tightly pushed into an
Freezer temperature is colder
than preferred. Refrigerator
temperature is satisfactory.
Refrigerator temperature is
too cold. Freezer temperature
is satisfactory.
Freezer temperature is
warmer than preferred.
Refrigerator temperature
is satisfactory.
Refrigerator temperature
is too warm. Freezer
temperature is satisfactory.
Refrigerator is noisy
or vibrates.
Odors in the refrigerator. • The interior needs to be cleaned.
Cabinet light is not working. • Replace with only a 5-watt or less AC LED light bulb.
Automatic ice maker is not
working (some models)
electrical outlet.
• Check/replace the fuse with a 15-amp time-delay
fuse. Reset the circuit breaker.
• The refrigerator control is turned to OFF.
• Refrigerator may be in defrost cycle. Wait 20
minutes and check again.
• Set the auxiliary freezer control to a warmer
setting until the freezer temperature is satisfactory.
Allow 24 hours for the temperature to stabilize.
• Set the refrigerator control to a warmer setting.
Allow 24 hours for the temperature to stabilize. Then
check the freezer temperature and adjust as needed.
• Set the auxiliary freezer control to a colder setting
until the freezer temperature is satisfactory. Allow
24 hours for the temperature to stabilize.
• Set the refrigerator control to a colder setting. Allow
24 hours for temperature to stabilize. Then check
refrigerator temperature and adjust as needed.
• The cabinet is not level.
• Floor is weak.
• See the NORMAL OPERATING SOUNDS section.
• Foods that produce odors should be covered or
wrapped.
• Ensure the plug is tightly pushed into an
electrical outlet.
• The light switch may be stuck. Push in the light
switch, located on the refrigerator side wall, to release.
• Ensure the ice maker is on (green light).
• The ice maker should produce 2 to 2.5 pounds of
ice in a 24 hour period.
• Ensure the water supply is turned on.
• The water pressure may be too low.
• The freezer may not be cold enough.
Page 29
LIMITED WARRANTY
Your appliance is covered by a one year limited warranty. For one year from your original date of
purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that
prove to be defective in materials or workmanship when such appliance is installed, used and
maintained in accordance with the provided instructions.
Exclusions
This warranty does not cover the following:
1. Products with original serial numbers that have been removed, altered or cannot be
readily determined.
2. Product that has been transferred from its original owner to another party or removed
outside the USA or Canada.
3. Rust on the interior or exterior of the unit.
4. Products purchased “as-is” are not covered by this warranty.
5. Food loss due to any refrigerator or freezer failures.
6. Products used in a commercial setting.
7. Service calls which do not involve malfunction or defects in materials or workmanship, or
for appliances not in ordinary household use or used other than in accordance with the
provided instructions.
8. Service calls to correct the installation of your appliance or to instruct you how to use
your appliance.
9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards,
shelves, etc., which are not a part of the appliance when it is shipped from the factory.
10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other
consumables, or knobs, handles, or other cosmetic parts.
11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls,
tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the
state of Alaska.
12. Damages to the finish of appliance or home incurred during installation, including but not
limited to floors, cabinets, walls, etc.
13. Damages caused by: services performed by unauthorized service companies; use of parts
other than genuine Electrolux parts or parts obtained from persons other than authorized
service companies; or external causes such as abuse, misuse, inadequate power supply,
accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR OR REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED
WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT
LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL
DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY
BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND
PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS
OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the
warranty period should service be required. If service is performed, it is in your best interest
to obtain and keep all receipts. Service under this warranty must be obtained by contacting
Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by
Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada,
your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or
add to any obligations under this warranty. Obligations for service and parts under this warranty must
be performed by Electrolux or an authorized service company. Product features or specifications as
described or illustrated are subject to change without notice.
USA
1-800-374-4432
Frigidaire
10200 David Taylor Drive
Charlotte, NC 28262
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada
29
Canada
1.800.265.8352
L5V 3E4
Page 30
welcome
home
Our home is your home. Visit us if you
need help with any of these things:
owner support
accessories
service
registration
(See your regristration card
for more information.)
Frigidaire.com
1-800-374-4432
Frigidaire.ca
1-800-265-8352
Loading...
