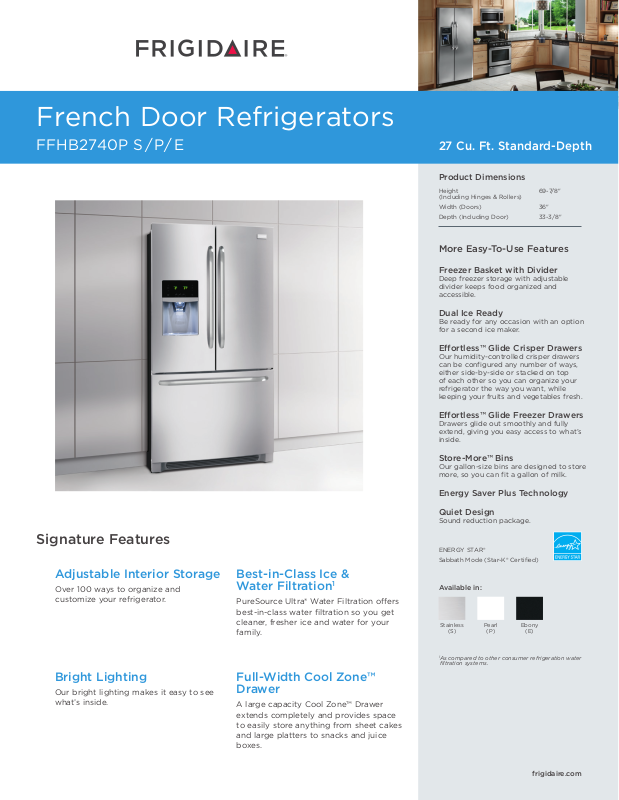

French Door Refrigerators
FFHB2740P S / P/ E
Signature Features
Adjustable Interior Storage
Over 100 ways to organize and customize your refrigerator.
Best-in-Class Ice &
Water Filtration1
PureSource Ultra® Water Filtration offers best-in-class water filtration so you get cleaner, fresher ice and water for your family.
Bright Lighting
Our bright lighting makes it easy to see what’s inside.
Full-Width Cool Zone™ Drawer
A large capacity Cool Zone™ Drawer extends completely and provides space to easily store anything from sheet cakes and large platters to snacks and juice boxes.
27 Cu. Ft. Standard-Depth
Product Dimensions
Height |
69-7/8" |
(Including Hinges & Rollers) |
|
Width (Doors) |
36" |
Depth (Including Door) |
33-3/8" |
|
|
More Easy-To-Use Features
Freezer Basket with Divider
Deep freezer storage with adjustable divider keeps food organized and accessible.
Dual Ice Ready
Be ready for any occasion with an option for a second ice maker.
Effortless™ Glide Crisper Drawers
Our humidity-controlled crisper drawers can be configured any number of ways, either side-by-side or stacked on top of each other so you can organize your refrigerator the way you want, while
keeping your fruits and vegetables fresh.
Effortless™ Glide Freezer Drawers
Drawers glide out smoothly and fully extend, giving you easy access to what’s inside.
Store-More™ Bins
Our gallon-size bins are designed to store more, so you can fit a gallon of milk.
Energy Saver Plus Technology
Quiet Design
Sound reduction package.
ENERGY STAR®
Sabbath Mode (Star-K® Certified)
Available in:
|
|
|
Stainless |
Pearl |
Ebony |
(S) |
(P) |
(E) |
1As compared to other consumer refrigeration water filtration systems.
frigidaire.com
Features |
|
|
Door Design |
Soft-Arc Doors |
|
Door Handle Design |
Stainless Steel (S), |
|
|
Color-Coordinated (P / E) |
|
Cabinet Finish |
Grey (S), |
|
|
Color-Coordinated (P / E) |
|
Door Stops / Door Closers |
Yes / Yes |
|
Door Hinge Covers |
Hidden |
|
Rollers – Front / Rear |
Adjustable / Yes |
|
Energy Saver Plus Technology |
Yes |
|
Water Filter Location |
Top-Right Fresh |
|
|
Food Section |
|
Sound Package |
Quiet Pack |
|
Dispenser |
|
|
Controls |
Ready-Select® |
|
Dispenser Design |
Flush, Single-Paddle |
|
Number of Dispenser Buttons |
11 |
|
Crushed Ice / Cube Ice / Chilled Water |
Yes / Yes / Yes |
|
Ice Option / Freeze Option |
|
|
Display On / Off Option |
Yes |
|
Lock / Light |
Yes / Yes |
|
Temp / Door Ajar / Power Failure Alerts |
|
|
Water Filter Change Indicator Light |
Yes |
|
Air Filter Change Indicator Light |
|
|
Refrigerator Features |
|
|
Lighting |
Bright |
|
Water Filter Type |
PureSource Ultra® |
|
Air Filter Type |
|
|
Quarter-Width Fixed Shelves |
|
|
Half-Width Fixed Shelves |
|
|
Quarter-Width Sliding Shelves |
1 SpillSafe® |
|
Half-Width Sliding Shelves |
3 SpillSafe® |
|
Cantilever Shelves |
Yes |
|
Store-More™ Full-Width Drawer |
1 Cool Zone™ |
|
Hanging Wine Rack / Can Dispenser |
|
|
Crisper Drawer / Humidity Controls |
2 Clear / 2 |
|
Dairy Compartment |
1 Clear |
|
Store-More™ Fixed Door Bins |
|
|
2-Liter Fixed Door Bins |
1 Clear |
|
Gallon Adjustable Door Bins |
2 Clear |
|
2-Liter Adjustable Door Bins |
|
|
Dispenser Bin |
1 Clear |
|
Non-Slip Bin Liner / Bottle Retainers |
No / 1 |
|
Freezer Features |
|
|
Self-Closing Pull-Out Drawer |
Yes |
|
|
|
|
Sliding Full-Width Freezer Baskets |
2 Effortless™ Glide |
|
Basket Dividers |
1 (Bottom Basket) |
|
Lighting |
Yes |
|
Certifications |
|
|
Sabbath Mode (Star-K® Certified) |
Yes |
|
ENERGY STAR® |
Yes |
|
Specifications |
|
|
Total Capacity (Cu. Ft.) |
27.19 |
|
Refrigerator Capacity (Cu. Ft.) |
18.48 |
|
Freezer Capacity (Cu. Ft.) |
8.71 |
|
Power Supply Connection Location |
Right Bottom Rear |
|
Water Inlet Connection Location |
Left Bottom Rear |
|
Voltage Rating |
120V / 60Hz / 15 or 20A |
|
Connected Load (kW rating) |
1.02 |
|
@ 120 Volts1 |
|
|
Amps @ 120 Volts |
8.5 |
|
Minimum Circuit Required (Amps) |
15 |
|
Shipping Weight (Approx.) |
365 Lbs. |
|
|
|
|
1For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate ground wire. Appliance must be grounded for safe operation.

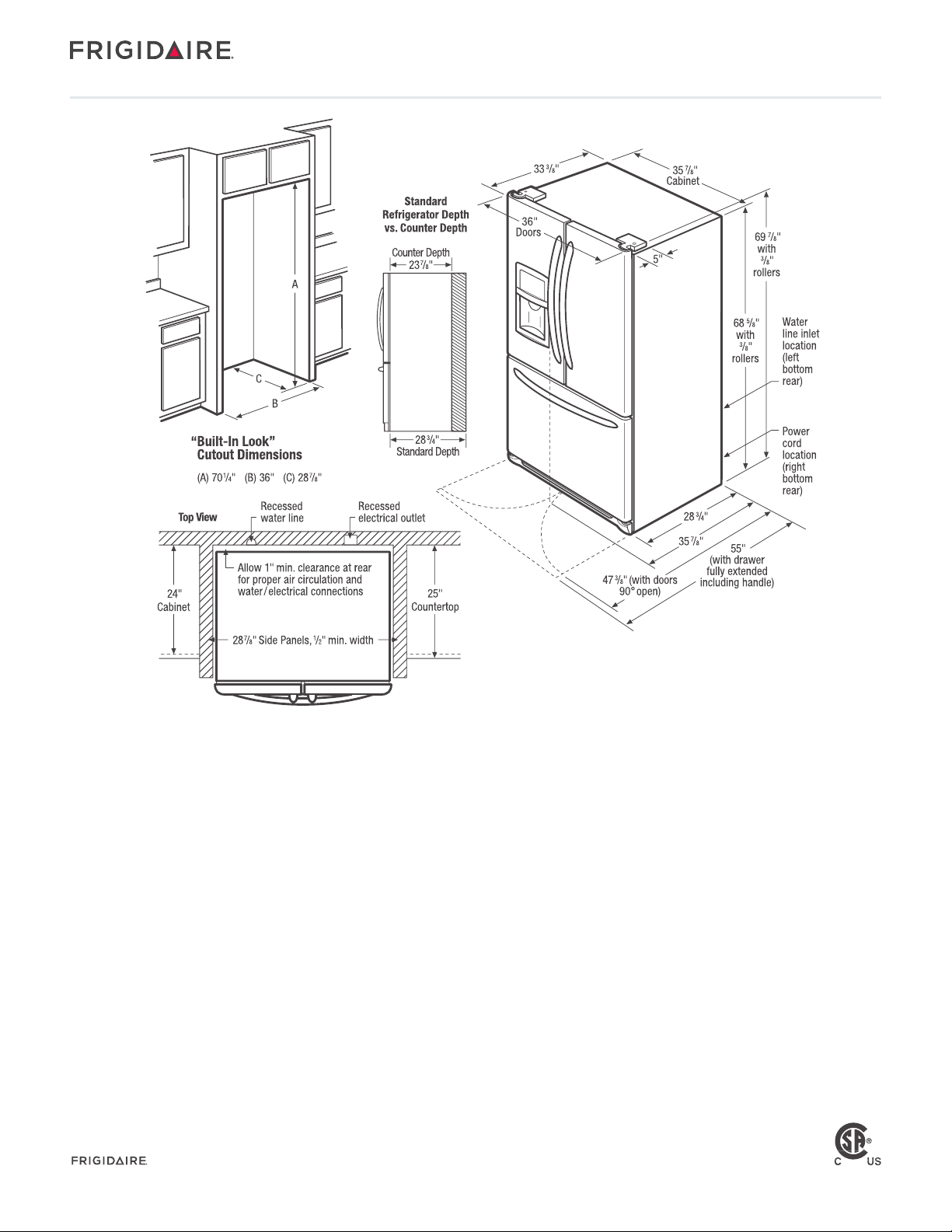

French Door Refrigerators
FFHB2740P S/P/E 27 Cu. Ft. Standard-Depth
C
Standard |
A |
Refrigerator Depth |
|
vs. Counter Depth |
|
Counter Depth |
|
237/8" |
|
|
|
B |
|
283/4" |
|
|
|
Standard Depth |
|
|
|
Top View |
Recessed |
Recessed |
|
water line |
electrical outlet |
||
|
Allow 1" min. clearance at rear |
|
|
|
for proper air circulation and |
|
|
24" |
water / electrical connections |
25" |
|
Cabinet |
|
|
Countertop |
287/8" Side Panels, 1/2" min. width
NOTE: For planning purposes only. Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at frigidaire.com.
Product Dimensions |
|
A - Height (Incl. Hinges & Rollers) |
69-7/8" |
B - Cabinet Width / Door Width |
35-7/8" / 36" |
C - Depth (Incl. Door) |
33-3/8" |
Depth with Door Open 90˚ |
47-3/8" |
Depth with Drawer Fully Extended (Incl. Handle) |
55" |
Accessories information available on the web at frigidaire.com
USA • 10200 David Taylor Drive • Charlotte, NC 28262 • 1-800-FRIGIDAIRE • frigidaire.com |
Specifications |
|
CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • frigidaire.ca |
||
subject to change. |
FFHB2740P 10/14 |
© 2014 Electrolux Home Products, Inc. |
