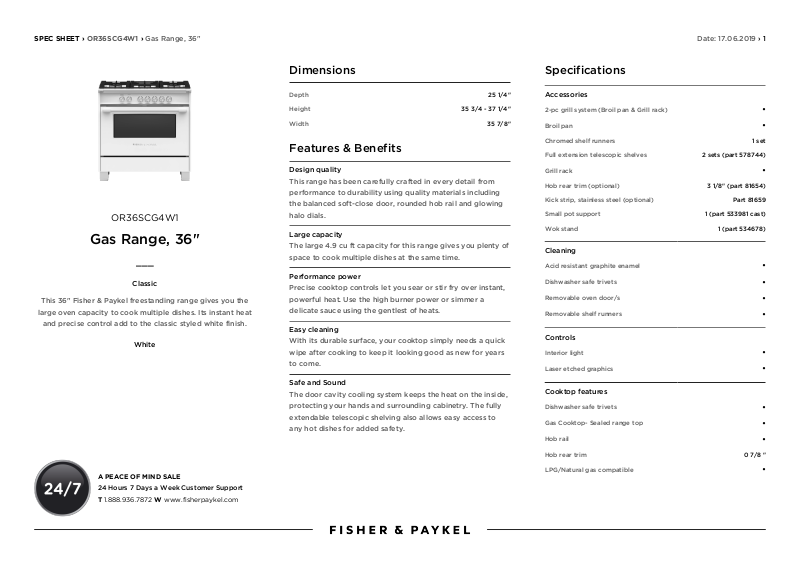

SPEC SHEET › OR36SCG4W1 › Gas Range, 36" Date: 17.06.2019 › 1
OR36SCG4W1
Gas Range, 36"
___
Classic
This 36" Fisher & Paykel freestanding range gives you the
large oven capacity to cook multiple dishes. Its instant heat
and precise control add to the classic styled white finish.
White
A PEACE OF MIND SALE
24 Hours 7 Days a Week Customer Support
T 1.888.936.7872 W www.fisherpaykel.com
Dimensions
Depth 25 1/4"
Height 35 3/4 - 37 1/4"
Width 35 7/8"
Features & Benefits
Design quality
This range has been carefully crafted in every detail from
performance to durability using quality materials including
the balanced soft-close door, rounded hob rail and glowing
halo dials.
Large capacity
The large 4.9 cu ft capacity for this range gives you plenty of
space to cook multiple dishes at the same time.
Performance power
Precise cooktop controls let you sear or stir fry over instant,
powerful heat. Use the high burner power or simmer a
delicate sauce using the gentlest of heats.
Easy cleaning
With its durable surface, your cooktop simply needs a quick
wipe after cooking to keep it looking good as new for years
to come.
Safe and Sound
The door cavity cooling system keeps the heat on the inside,
protecting your hands and surrounding cabinetry. The fully
extendable telescopic shelving also allows easy access to
any hot dishes for added safety.
Specifications
Accessories
2-pc grill system (Broil pan & Grill rack)
Broil pan
Chromed shelf runners 1 set
Full extension telescopic shelves 2 sets (part 578744)
Grill rack
Hob rear trim (optional) 3 1/8" (part 81654)
Kick strip, stainless steel (optional) Part 81659
Small pot support 1 (part 533981 cast)
Wok stand 1 (part 534678)
Cleaning
Acid resistant graphite enamel
Dishwasher safe trivets
Removable oven door/s
Removable shelf runners
Controls
Interior light
Laser etched graphics
Cooktop features
Dishwasher safe trivets
Gas Cooktop- Sealed range top
Hob rail
Hob rear trim 0 7/8 "
LPG/Natural gas compatible
•
•
•
•
•
•
•
•
•
•
•
•
•
SPEC SHEET › OR36SCG4W1 › Gas Range, 36" Date: 17.06.2019 › 2
Cooktop performance
Dual wok burner inner / outer (LPG) 1000 - 18000 BTU
Dual wok burner inner / outer (natural
gas)
Max burner power 18000 BTU
Number of burners 5
Semi-rapid burner (LPG) x2 1500 - 8000 BTU
Semi-rapid burner (natural gas) x2 1500 - 8000 BTU
Total cooktop power 62000 BTU
Triple ring wok burner (LPG) x2 6100 - 14000 BTU
Triple ring wok burner (natural gas) x2 6100 - 14000 BTU
1000 - 18000 BTU
Details
UPC Code 822843813032
Gas requirements
Supply Pressure (LPG) 11" W.C.P
Supply Pressure (natural gas) 4" W.C.P
Installation cutout dimensions
Depth 25 1/4 "
Width 36 "
Oven features
Concealed element
Convection
Electronic ignition
Full extension telescopic sliding shelves 2 sets (part 578744)
Internal light
Soft open/close door
Storage drawer
4 x 25W halogen (2 side &
2 top)
Oven functions
Bake
Convection bake
Maxi Broil
Number of Functions 3
•
•
•
SKU 81303
The product dimensions and specifications in this page apply to the specific product
and model. Under our policy of continuous improvement, these dimensions and
specifications may change at any time. You should therefore check with Fisher &
Paykel’s Customer Care Centre to ensure this page correctly describes the model
currently available. © Fisher & Paykel Appliances Ltd 2019
Oven performance
Bake 17000 BTU
Broil 13000 BTU
CoolTouch door Quadruple glazed
Shelf positions 7
Total oven capacity 4.9 cu ft
Other product downloads available at fisherpaykel.com
www.fisherpaykel.com
Power requirements
AMP draw 1 A
Supply frequency 60 Hz
Supply voltage 120 V
Safety
Advanced cooling system
Anti-tilt bracket
Auto re-ignition system
Balanced oven door
•
•
•
CoolTouch door
Full extension telescopic sliding shelves
Non-tip shelves
Spill containment 5/8 gallon
•
•
•
•
•
•
•
Style And Series
•
Product Style Classic
•
