EPSON XP-342 User Manual [nl]

User's Guide

NPD5449-00 EN

User's Guide

Copyright

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Seiko Epson Corporation. No patent liability is assumed with respect to the use of the information contained herein. Neither is any liability assumed for damages resulting from the use of the information herein. information contained herein is designed only for use with this Epson product. Epson is not responsible for any use of this information as applied to other products.

Neither Seiko Epson Corporation nor its aliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of accident, misuse, or abuse of this product or unauthorized modications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation's operating and maintenance instructions.

Seiko Epson Corporation and its aliates shall not be liable for any damages or problems arising from the use of any options or any consumable products other than those designated as Original Epson Products or Epson Approved Products by Seiko Epson Corporation.

e

Seiko Epson Corporation shall not be held liable for any damage resulting from electromagnetic interference that occurs from the use of any interface cables other than those designated as Epson Approved Products by Seiko Epson Corporation.

contents of this manual and the

e

specications

of this product are subject to change without notice.

User's Guide

Trademarks

❏ EPSON® is a registered trademark, and EPSON EXCEED YOUR VISION or EXCEED YOUR VISION is a

trademark of Seiko Epson Corporation.

❏ PRINT Image Matching™ and the PRINT Image Matching logo are trademarks of Seiko Epson Corporation.

❏ Epson Scan 2 soware is based in part on the work of the Independent JPEG Group.

❏

libti

Permission to use, copy, modify, distribute, and sell this soware and its documentation for any purpose is hereby granted without fee, provided that (i) the above copyright notices and this permission notice appear in all copies of the soware and related documentation, and (ii) the names of Sam Leer and Silicon Graphics may not be used in any advertising or publicity relating to the soware without the specic, prior written permission of Sam Leer and Silicon Graphics.

THE SOFTWARE IS PROVIDED "AS-IS" AND WITHOUT WARRANTY OF ANY KIND, EXPRESS, IMPLIED OR OTHERWISE, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL SAM LEFFLER OR SILICON GRAPHICS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT OR CONSEQUENTIAL DAMAGES OF ANY KIND, OR ANY DAMAGES WHATSOEVER RESULTING FROM LOSS OF USE, DATA OR PROFITS, WHETHER OR NOT ADVISED OF THE POSSIBILITY OF DAMAGE, AND ON ANY THEORY OF LIABILITY, ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF THIS SOFTWARE.

Leer

❏ SDXC Logo is a trademark of SD-3C, LLC.

❏ Microso®, Windows®, and Windows Vista® are registered trademarks of Microso Corporation.

❏ Apple, Macintosh, Mac OS, OS X, Bonjour, Safari, iPad, iPhone, iPod touch, and iTunes are trademarks of Apple

Inc., registered in the U.S. and other countries. AirPrint and the AirPrint logo are trademarks of Apple Inc.

❏ Google Cloud Print™, Chrome™, Chrome OS™, and Android™ are trademarks of Google Inc.

❏ Adobe and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the

United States and/or other countries.

❏ Intel

❏ General Notice: Other product names used herein are for identication purposes only and may be trademarks

is a registered trademark of Intel Corporation.

of their respective owners. Epson disclaims any and all rights in those marks.

User's Guide

Contents

Trademarks

About This Manual

Introduction of Manuals..................... 8

Marks and Symbols.........................8

Descriptions Used in this Manual...............9

Operating System References..................9

Important Instructions

Safety Instructions.........................10

Printer Advisories and Warnings.............. 11

Advisories and Warnings for Setting Up/

Using the Printer........................11

Advisories and Warnings for Using the

Printer with a Wireless Connection...........12

Advisories and Warnings for Using Memory

Cards................................ 12

Advisories and Warnings for Using the LCD

Screen................................12

Protecting Your Personal Information...........12

Printer Basics

Part Names and Functions...................13

Control Panel............................ 15

Buttons...............................15

Guide to the LCD Screen..................15

Checking the Network Status Using Network

Icon................................. 25

Printing a Network Connection Report........26

Printing a Network Status Sheet.............29

Replacing or Adding New Access Points.........30

Changing the Connection Method to a Computer. . 30

Disabling Wi-Fi from the Control Panel..........32

Disconnecting Wi-Fi Direct (Simple AP)

connection from the Control Panel.............32

Restoring the Network Settings from the

Control Panel............................ 32

Loading Paper

Paper Handling Precautions..................33

Available Paper and Capacities................34

List of Paper Types.......................35

Loading Paper in the Rear Paper Feed...........35

Placing Originals

Placing Originals on the Scanner Glass. . . . . . . . . . 39

How to Place Various Originals................40

Placing Originals for 2-Up Layout............40

Placing a Double-Page Spread for 2-Up Layout. . 40

Placing Multiple Photos for Scanning.........41

Inserting a Memory Card

Supported Memory Cards................... 42

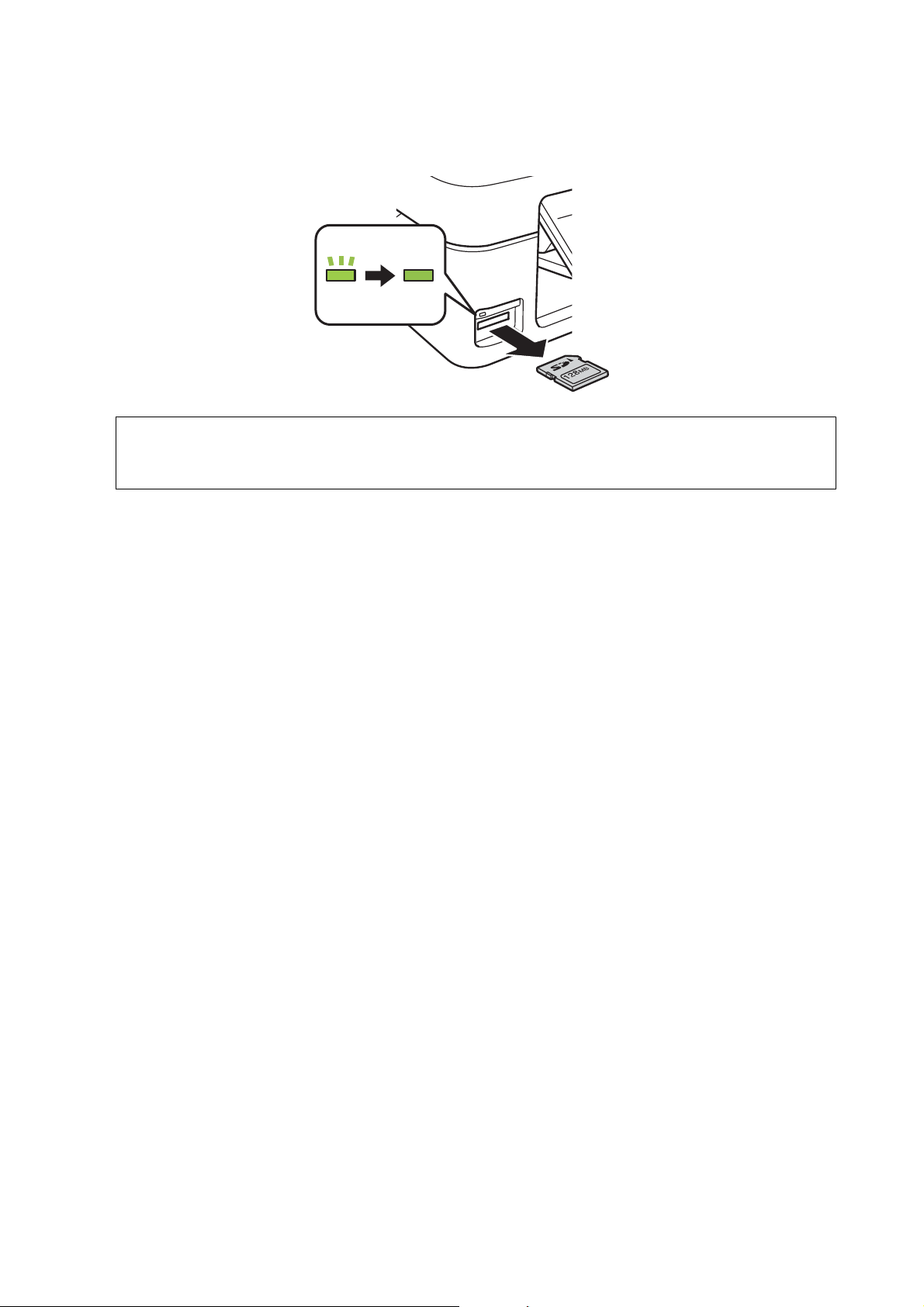

Inserting and Removing a Memory Card.........42

Network Settings

Network Connection Types.................. 19

Wi-Fi Connection....................... 19

Wi-Fi Direct (Simple AP) Connection.........19

Connecting to a Computer...................20

Connecting to a Smart Device................ 22

Making Wi-Fi Settings from the Control Panel. . . . .22

Making Wi-Fi Settings Manually.............22

Making Wi-Fi Settings by Push Button Setup. . . . 23

Making Wi-Fi Settings by PIN Code Setup

(WPS)................................24

Making Wi-Fi Direct (Simple AP)

Connection Settings......................25

Checking the Network Connection Status........25

Printing

Printing from the Control Panel...............44

Printing Photos by Selecting from a Memory

Card.................................44

Printing Lined Paper, Calendars, and

Original Writing Paper....................45

DPOF Printing......................... 46

Menu Options for Print Photos Mode.........46

Printing from a Computer...................46

Printing Basics - Windows.................46

Printing Basics - Mac OS X.................48

Printing on 2-Sides (for Windows only). . . . . . . . 50

Printing Several Pages on One Sheet..........51

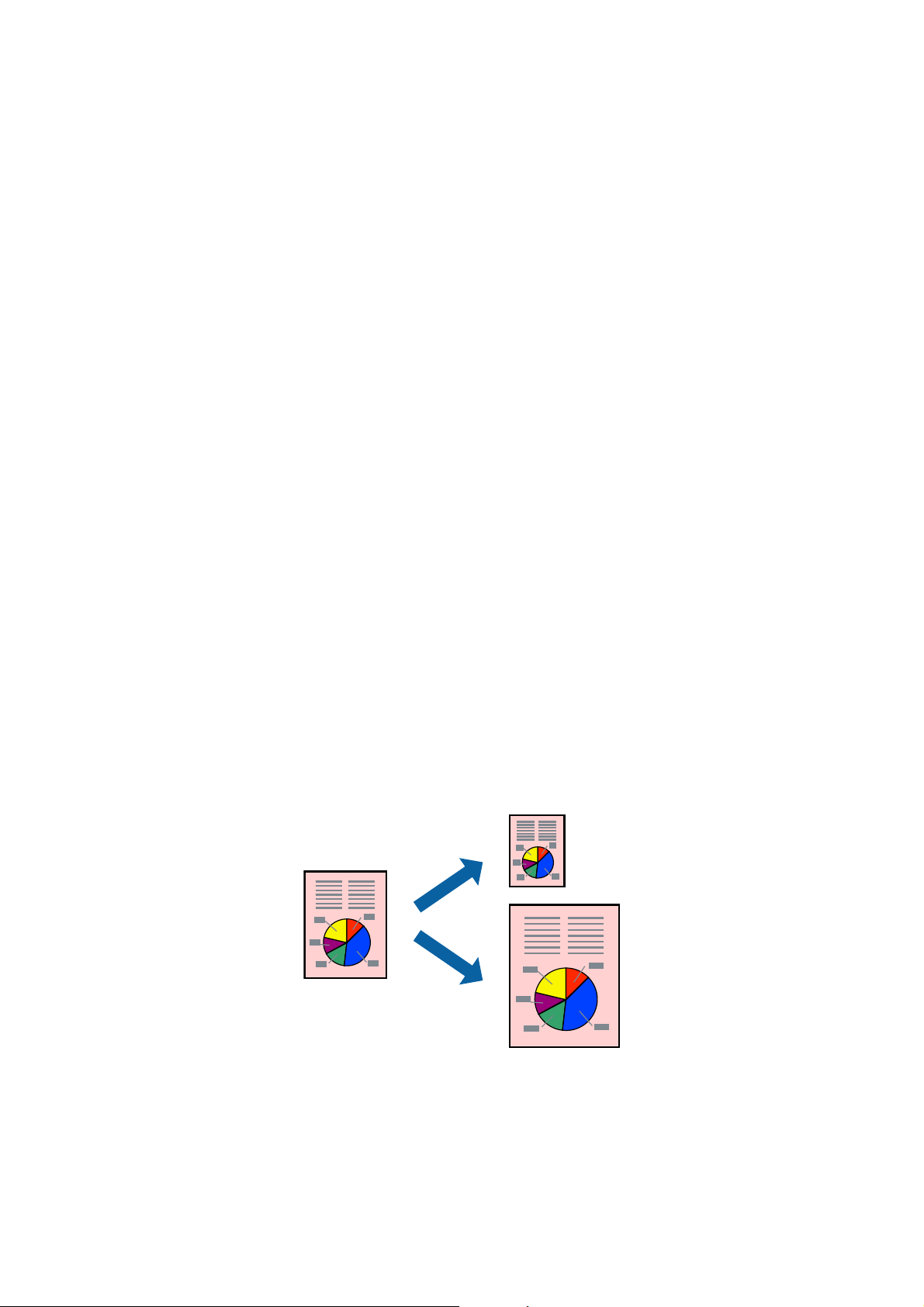

Printing to Fit the Paper Size................52

User's Guide

Contents

Printing Multiple Files Together (for

Windows Only).........................54

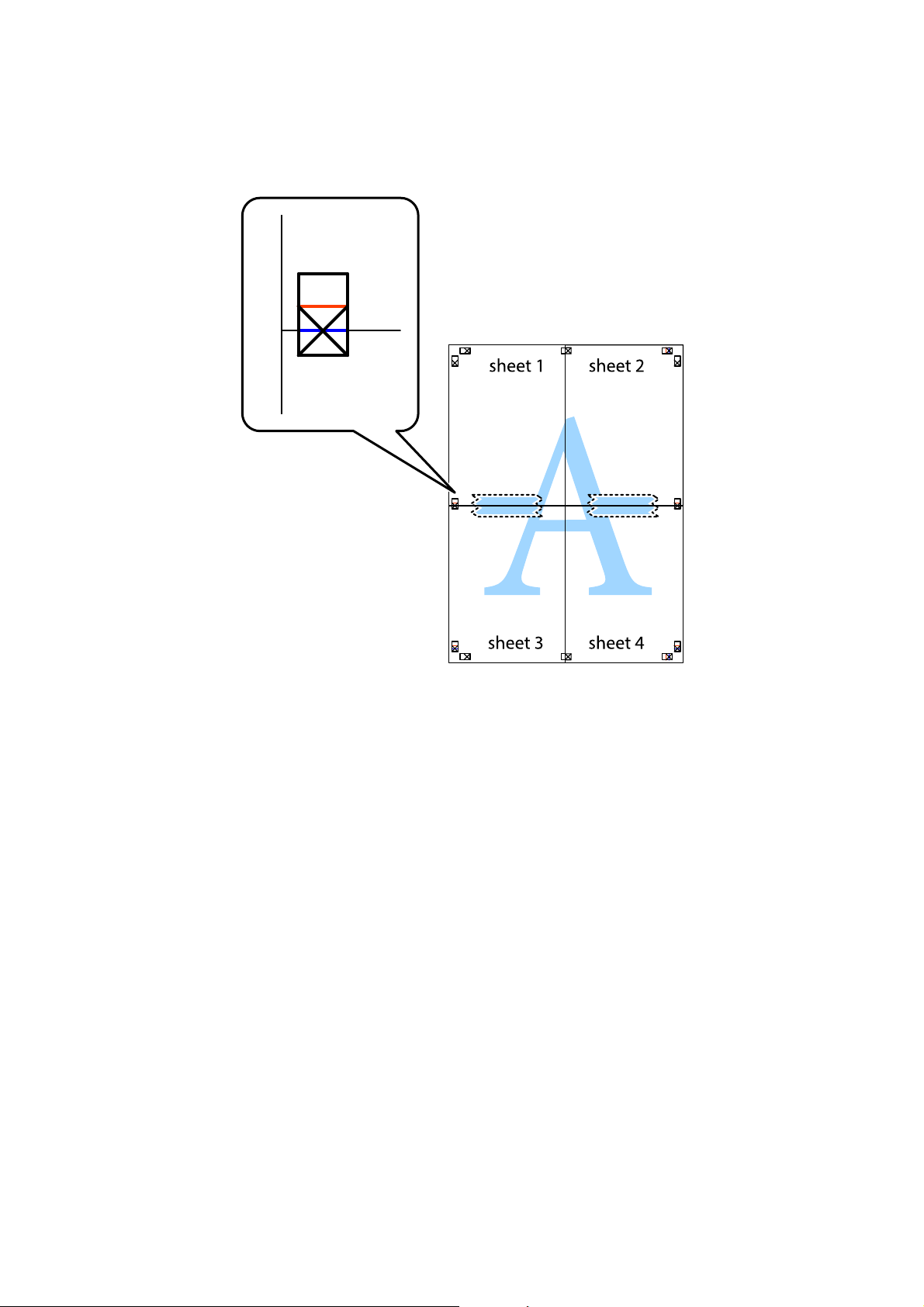

Printing One Image on Multiple Sheets to

Create a Poster (for Windows Only)..........55

Printing Using Advanced Features........... 61

Printing Photos Using Epson Easy Photo Print. . 63

Printing from Smart Devices................. 64

Using Epson iPrint.......................64

Using AirPrint..........................66

Canceling Printing.........................66

Canceling Printing - Printer Button...........66

Canceling Printing - Windows.............. 67

Canceling Printing - Mac OS X..............67

Copying

Menu Options for Copy Mode................ 68

Scanning

Scanning Using the Control Panel..............71

Scanning to a Computer...................71

Scanning to a Computer (WSD).............72

Scanning from a Computer...................74

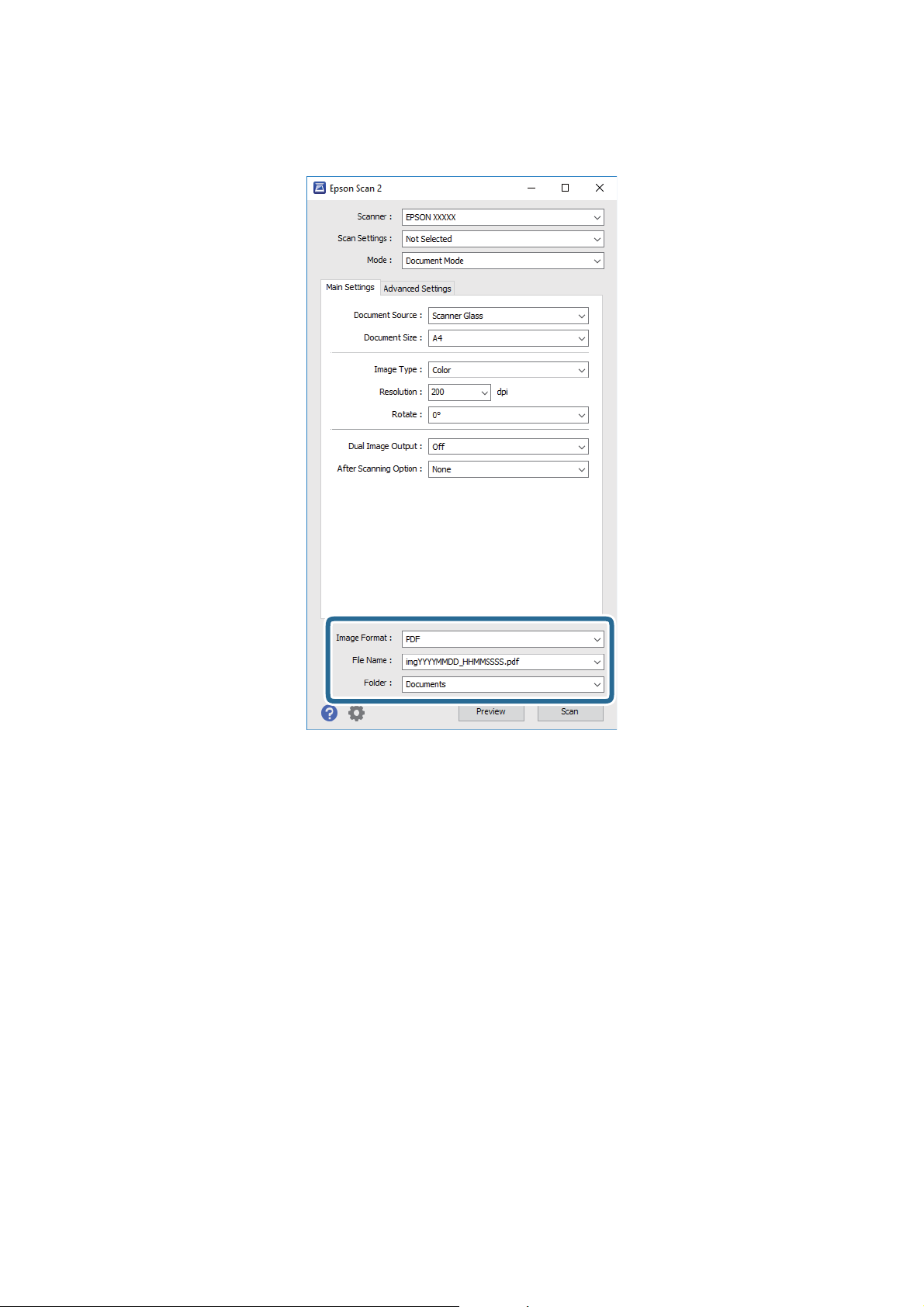

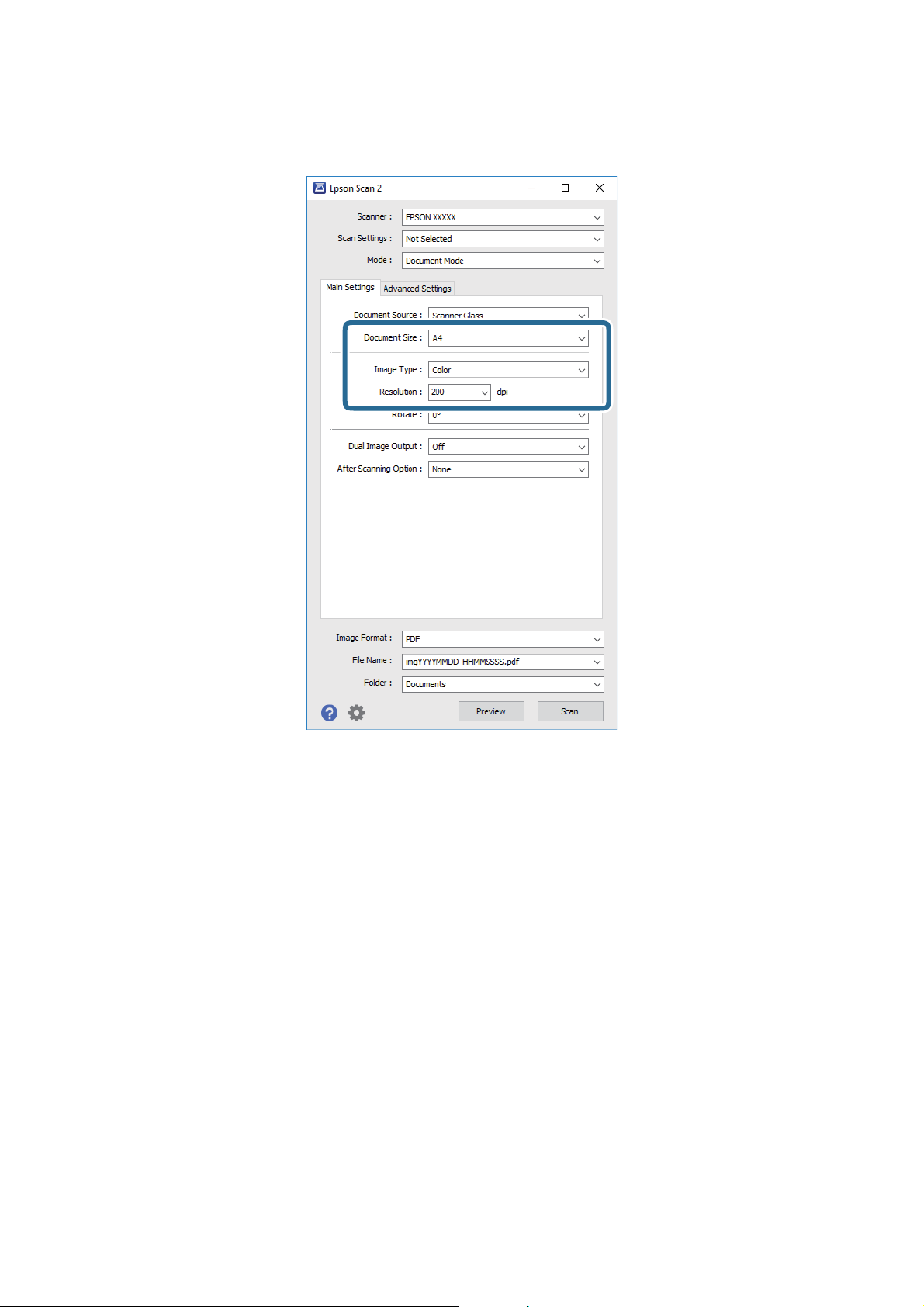

Scanning Using Epson Scan 2...............74

Scanning from Smart Devices.................80

Installing Epson iPrint....................80

Scanning Using Epson iPrint............... 80

Checking and Cleaning the Print Head -

Windows..............................94

Checking and Cleaning the Print Head -

Mac OS X.............................94

Aligning the Print Head.....................94

Aligning the Print Head - Control Panel.......95

Aligning the Print Head - Windows...........95

Aligning the Print Head - Mac OS X..........96

Cleaning the Paper Path.....................96

Cleaning the Scanner Glass...................97

Saving Power.............................97

Saving Power - Control Panel...............97

Saving Power - Windows.................. 98

Saving Power - Mac OS X..................98

Menu Options for Setup Mode

Menu Options for Ink Levels................. 99

Menu Options for Maintenance............... 99

Menu Options for Printer Setup.............. 100

Menu Options for Network Settings........... 100

Menu Options for Epson Connect Services......101

Menu Options for Google Cloud Print Services. . . 102

Menu Options for File Sharing...............102

Menu Options for Firmware Update...........103

Menu Options for Restore Default Settings...... 103

Replacing Ink Cartridges

Checking the Ink Levels.....................82

Checking the Ink Levels - Control Panel. . . . . . . 82

Checking the Ink Levels - Windows...........82

Checking the Ink Levels - Mac OS X..........82

Ink Cartridge Codes........................82

Ink Cartridge Handling Precautions............83

Replacing Ink Cartridges.................... 85

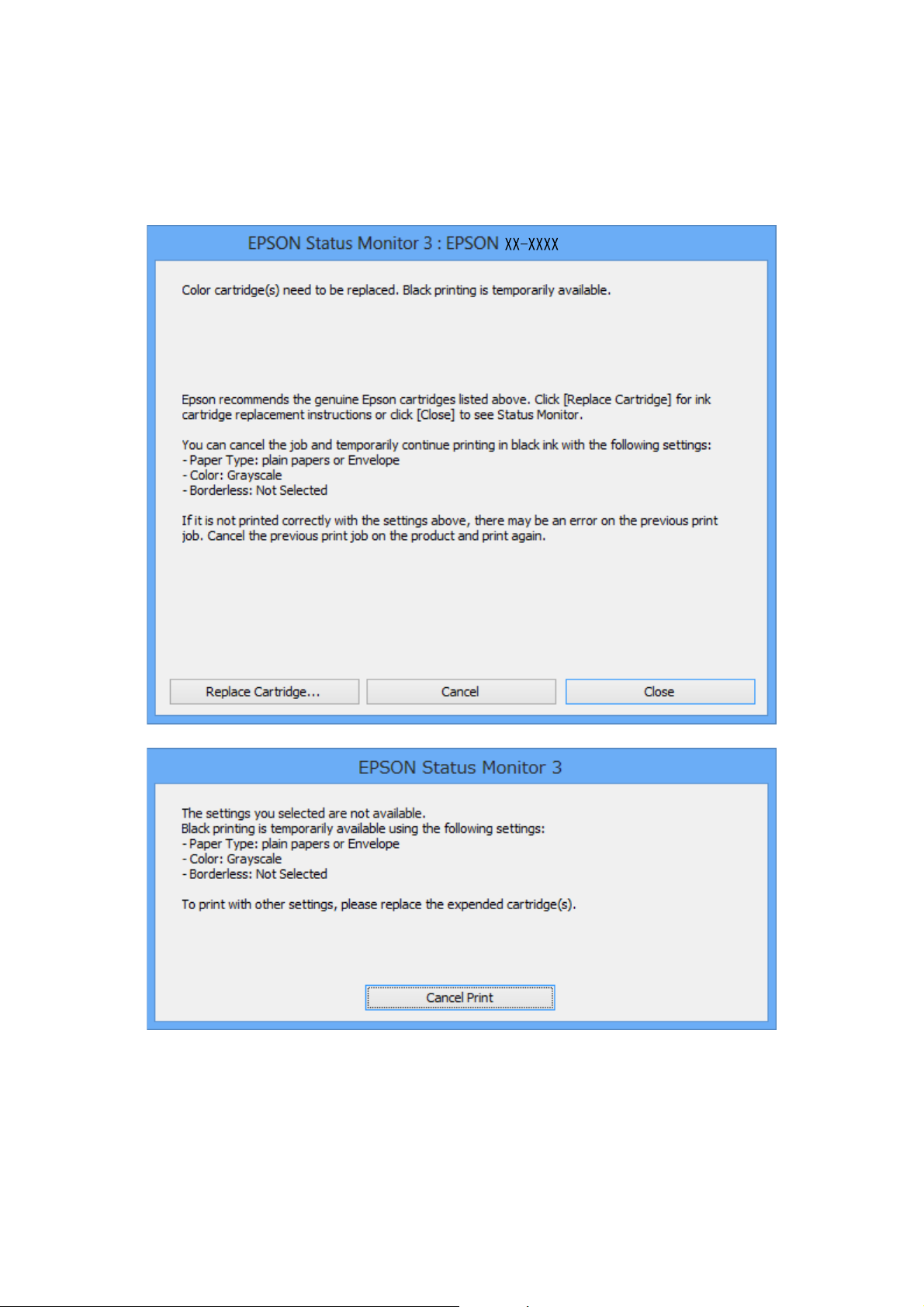

Temporarily Printing with Black Ink............88

Temporarily Printing with Black Ink - Windows. 90 Temporarily Printing with Black Ink -

Mac OS X.............................91

Conserving Black Ink when the Black Ink Is

Low (for Windows Only)....................92

Maintaining the Printer

Checking and Cleaning the Print Head..........93

Checking and Cleaning the Print Head -

Control Panel.......................... 93

Network Service and Software Information

Epson Connect Service.....................104

Web Cong.............................104

Running Web Cong on a Web Browser. . . . . . 105

Running Web Cong on Windows.......... 105

Running Web Cong on Mac OS X..........105

Windows Printer Driver....................106

Guide to Windows Printer Driver...........107

Making Operation Settings for the Windows

Printer Driver......................... 109

Mac OS X Printer Driver................... 109

Guide to Mac OS X Printer Driver...........110

Making Operation Settings for the Mac OS X

Printer Driver......................... 111

Epson Scan 2 (Scanner Driver)...............112

Epson Event Manager......................112

Epson Easy Photo Print....................113

E-Web Print (for Windows Only)............. 113

Easy Photo Scan..........................114

User's Guide

Contents

EPSON Soware Updater...................114

Uninstalling Applications...................115

Uninstalling Applications - Windows.........115

Uninstalling Applications - Mac OS X........116

Installing Applications.....................116

Updating Applications and Firmware.......... 117

Updating the Printer's Firmware using the

Control Panel..........................117

Solving Problems

Checking the Printer Status..................119

Checking Error Codes on the LCD Screen. . . . .119

Checking the Printer Status - Windows.......120

Checking Printer Status - Mac OS X......... 120

Removing Jammed Paper...................121

Removing Jammed Paper from the Rear

Paper Feed. . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Removing Jammed Paper from the Output Tray 121 Removing Jammed Paper from Inside the

Printer...............................122

Paper Does Not Feed Correctly. . . . . . . . . . . . . . . 123

Paper Jams............................123

Paper Feeds at a Slant....................123

Several Sheets of Paper are Fed at a Time. . . . . . 124

No Paper Feeds........................124

Paper Out Error Occurs..................124

Power and Control Panel Problems............124

Power Does Not Turn On.................124

Power Does Not Turn O.................124

LCD Screen Gets Dark...................124

Cannot Print from a Computer...............124

When You Cannot Make Network Settings......125

Cannot Connect from Devices Even ough

Network Settings are No Problem...........125

Checking the SSID Connected to the Printer. . . 127

Checking the SSID for the Computer.........127

Suddenly the Printer Cannot Print over a

Network Connection......................128

Suddenly the Printer Cannot Print Using a USB

Connection.............................129

Cannot Print from an iPhone or iPad.......... 129

Printing is Paused........................ 129

Printout Problems........................129

Printout is Scued or Color is Missing........129

Banding or Unexpected Colors Appear.......130

Colored Banding Appears at Intervals of

Approximately 2.5 cm....................130

Blurry Prints, Vertical Banding, or

Misalignment..........................131

Print Quality is Poor.....................131

Paper Is Smeared or Scued...............132

Printed Photos are Sticky.................132

Images or Photos are Printed in Unexpected

Colors...............................133

Colors Dier from What You See on the

Display..............................133

Cannot Print Without Margins.............133

Edges of the Image are Cropped During

Borderless Printing......................133

Position, Size, or Margins of the Printout

e

Are Incorrect..........................134

Printed Characters Are Incorrect or Garbled. . . 134

e Printed Image Is Inverted..............134

Mosaic-Like Patterns in the Prints...........134

Uneven Colors, Smears, Dots, or Straight

Lines Appear in the Copied Image...........135

Moiré (Cross-Hatch) Patterns Appear in the

Copied Image......................... 135

An Image of the Reverse Side of the Original

Appears in the Copied Image..............135

e Printout Problem Could Not be Cleared. . . 135

Other Printing Problems................... 136

Printing Is Too Slow.....................136

Printing Slows Down Dramatically During

Continuous Printing.....................136

Cannot Cancel Printing from a Computer

Running Mac OS X v10.6.8................136

Cannot Start Scanning.....................137

Cannot Start Scanning when Using the

Control Panel..........................137

Scanned Image Problems...................138

Uneven Colors, Dirt, Spots, and so on Appear

when Scanning from the Scanner Glass.......138

e Image Quality Is Rough...............138

Oset Appears in the Background of Images. . . 138

Text is Blurred.........................138

Moiré Patterns (Web-Like Shadows) Appear. . . 139 Cannot Scan the Correct Area on the

Scanner Glass..........................139

Cannot Preview in umbnail............. 139

Text is Not Recognized Correctly when

Saving as a Searchable PDF................140

Cannot Solve Problems in the Scanned Image. . 140

Other Scanning Problems...................141

Scanning Is Too Slow....................141

Scanning Stops when Scanning to PDF/

Multi-TIFF........................... 141

Other Problems..........................141

User's Guide

Contents

Slight Electric Shock when Touching the

Printer...............................141

Operation Sounds Are Loud...............141

Cannot Save the Data to a Memory Card......142

Application Is Blocked by a Firewall (for

Windows Only)........................142

"?" Is Displayed on the Photo Selection Screen. . 142

Appendix

Technical Specications....................143

Printer Specications....................143

Scanner Specications...................144

Interface Specications...................144

Network Function List...................144

Wi-Fi Specications.....................146

Security Protocol.......................146

Supported ird Party Services.............146

External Storage Device Specications........147

Dimensions...........................148

Electrical Specications..................148

Environmental Specications..............148

System Requirements....................149

Regulatory Information....................149

Standards and Approvals................. 149

Restrictions on Copying..................149

Transporting the Printer....................150

Accessing a Memory Card From a Computer. . . . . 152

Where to Get Help........................153

Technical Support Web Site................153

Contacting Epson Support................153

User's Guide

About This Manual

Introduction of Manuals

e following manuals are supplied with your Epson printer. As well as the manuals, see the help included in the various Epson soware applications.

❏ Start Here (paper manual)

Provides you with information on setting up the printer, installing the problems, and so on.

❏ User's Guide (digital manual)

manual. Provides overall information and instructions on using the printer, on network settings when

is using the printer on a network, and on solving problems.

soware,

using the printer, solving

You can obtain the latest versions of the above manuals with the following methods.

❏ Paper manual

Visit the Epson Europe support website at http://www.epson.eu/Support, or the Epson worldwide support website at http://support.epson.net/.

❏ Digital manual

Start EPSON Soware Updater on your computer. EPSON Soware Updater checks for available updates of Epson

soware

Related Information

& “EPSON Soware Updater” on page 114

applications and the digital manuals, and allows you to download the latest ones.

Marks and Symbols

Caution:

Instructions that must be followed carefully to avoid bodily injury.

Important:

Instructions that must be observed to avoid damage to your equipment.

Note:

Provides complementary and reference information.

Related Information

Links to related sections.

User's Guide

About This Manual

Descriptions Used in this Manual

❏ Screenshots of the printer driver and the Epson Scan 2 (scanner driver) screens are from Windows 10 or Mac

OS X v10.11.x. e content displayed on the screens varies depending on the model and situation.

❏ Illustrations of the printer used in this manual are examples only. Although there may be slight dierences

depending on the model, the method of operation is the same.

❏ Some of the menu items on the LCD screen vary depending on the model and settings.

Operating System References

Windows

In this manual, terms such as "Windows 10", "Windows 8.1", "Windows 8", "Windows 7", "Windows Vista", and "Windows XP" refer to the following operating systems. Additionally, "Windows" is used to refer to all versions.

❏ Microso

❏

Microso

❏ Microso

❏

Microso

❏ Microso

Mac OS X

In this manual, "Mac OS X v10.11.x" refers to OS X El Capitan, "Mac OS X v10.10.x" refers to OS X Yosemite, "Mac OS X v10.9.x" refers to OS X Mavericks, and "Mac OS X v10.8.x" refers to OS X Mountain Lion. Additionally, "Mac OS X" is used to refer to "Mac OS X v10.11.x", "Mac OS X v10.10.x", "Mac OS X v10.9.x", "Mac OS X v10.8.x", "Mac OS X v10.7.x", and "Mac OS X v10.6.8".

Wi n d o w s® 10 operating system

Wi n d o w s® 8.1 operating system

Wi n d o w s® 8 operating system

Wi n d o w s® 7 operating system

Wi n d o w s Vis ta® operating system

Wi n d o w s® XP operating system

Wi n d o w s® XP Professional x64 Edition operating system

User's Guide

Important Instructions

Safety Instructions

Read and follow these instructions to ensure safe use of this printer. Make sure you keep this manual for future reference. Also, be sure to follow all warnings and instructions marked on the printer.

❏ Some of the symbols used on your printer are to ensure safety and proper use of the printer. Visit the following

Web site to learn the meaning of the symbols.

http://support.epson.net/symbols

❏ Use only the power cord supplied with the printer and do not use the cord with any other equipment. Use of

other cords with this printer or the use of the supplied power cord with other equipment may result in re or electric shock.

❏ Be sure your AC power cord meets the relevant local safety standard.

❏ Never disassemble, modify, or attempt to repair the power cord, plug, printer unit, scanner unit, or options by

yourself, except as specically explained in the printer's manuals.

❏ Unplug the printer and refer servicing to qualied service personnel under the following conditions:

e power cord or plug is damaged; liquid has entered the printer; the printer has been dropped or the casing damaged; the printer does not operate normally or exhibits a distinct change in performance. Do not adjust controls that are not covered by the operating instructions.

❏ Place the printer near a wall outlet where the plug can be easily unplugged.

❏ Do not place or store the printer outdoors, near excessive dirt or dust, water, heat sources, or in locations

subject to shocks, vibrations, high temperature or humidity.

❏ Take care not to spill liquid on the printer and not to handle the printer with wet hands.

❏ Keep the printer at least 22 cm away from cardiac pacemakers. Radio waves from this printer may adversely

aect the operation of cardiac pacemakers.

❏ If the LCD screen is damaged, contact your dealer. If the liquid crystal solution gets on your hands, wash them

thoroughly with soap and water. If the liquid crystal solution gets into your eyes, ush them immediately with water. If discomfort or vision problems remain aer a thorough ushing, see a doctor immediately.

❏ Be careful when you handle used ink cartridges, as there may be some ink around the ink supply port.

❏ If ink gets on your skin, wash the area thoroughly with soap and water.

❏ If ink gets into your eyes, ush them immediately with water. If discomfort or vision problems continue aer

a thorough ushing, see a doctor immediately.

❏ If ink gets into your mouth, see a doctor right away.

❏ Do not disassemble the ink cartridge; otherwise ink may get into your eyes or on your skin.

❏ Do not shake ink cartridges too vigorously and do not drop them. Also, be careful not to squeeze them or tear

their labels. Doing so may cause ink leakage.

❏ Keep ink cartridges out of the reach of children.

User's Guide

Important Instructions

Printer Advisories and Warnings

Read and follow these instructions to avoid damaging the printer or your property. Make sure you keep this manual for future reference.

Advisories and Warnings for Setting Up/Using the Printer

❏ Do not block or cover the vents and openings in the printer.

❏ Use only the type of power source indicated on the printer's label.

❏ Avoid using outlets on the same circuit as photocopiers or air control systems that regularly switch on and o.

❏ Avoid electrical outlets controlled by wall switches or automatic timers.

❏ Keep the entire computer system away from potential sources of electromagnetic interference, such as

loudspeakers or the base units of cordless telephones.

❏ e power-supply cords should be placed to avoid abrasions, cuts, fraying, crimping, and kinking. Do not place

objects on top of the power-supply cords and do not allow the power-supply cords to be stepped on or run over. Be particularly careful to keep all the power-supply cords straight at the ends and the points where they enter and leave the transformer.

❏ If you use an extension cord with the printer, make sure that the total ampere rating of the devices plugged into

the extension cord does not exceed the cord's ampere rating. Also, make sure that the total ampere rating of all devices plugged into the wall outlet does not exceed the wall outlet's ampere rating.

❏ If you plan to use the printer in Germany, the building installation must be protected by a 10 or 16 amp circuit

breaker to provide adequate short-circuit protection and over-current protection for the printer.

❏ When connecting the printer to a computer or other device with a cable, ensure the correct orientation of the

connectors. Each connector has only one correct orientation. Inserting a connector in the wrong orientation may damage both devices connected by the cable.

❏ Place the printer on a at, stable surface that extends beyond the base of the printer in all directions. e printer

will not operate properly if it is tilted at an angle.

❏ When storing or transporting the printer, avoid tilting it, placing it vertically, or turning it upside down;

otherwise ink may leak.

❏ Allow space above the printer so that you can fully raise the document cover.

❏ Leave enough space in front of the printer for the paper to be fully ejected.

❏ Avoid places subject to rapid changes in temperature and humidity. Also, keep the printer away from direct

sunlight, strong light, or heat sources.

❏ Do not insert objects through the slots in the printer.

❏ Do not put your hand inside the printer during printing.

❏ Do not touch the white at cable inside the printer.

❏ Do not use aerosol products that contain

❏ Do not move the print head by hand; otherwise, you may damage the printer.

❏ Be careful not to trap your ngers when closing the scanner unit.

❏ Do not press too hard on the scanner glass when placing the originals.

❏ Always turn the printer o using the

until the

light stops ashing.

ammable

button. Do not unplug the printer or turn o the power at the outlet

gases inside or around the printer. Doing so may cause

re.

User's Guide

Important Instructions

❏ Before transporting the printer, make sure that the print head is in the home (far right) position and the ink

cartridges are in place.

❏ If you are not going to use the printer for a long period, be sure to unplug the power cord from the electrical

outlet.

Advisories and Warnings for Using the Printer with a Wireless Connection

❏ Radio waves from this printer may negatively aect the operation of medical electronic equipment, causing

them to malfunction. When using this printer inside medical facilities or near medical equipment, follow directions from the authorized personnel representing the medical facilities, and follow all posted warnings and directions on the medical equipment.

❏ Radio waves from this printer may negatively aect the operation of automatically controlled devices such as

automatic doors or automatically controlled devices, follow all posted warnings and directions on these devices.

alarms, and could lead to accidents due to malfunction. When using this printer near

re

Advisories and Warnings for Using Memory Cards

❏ Do not remove a memory card or turn o the printer while the memory card light is ashing.

❏ e methods for using memory cards vary according to card type. Be sure to refer to the manual packaged with

your memory card for details.

❏ Use only memory cards compatible with the printer.

Related Information

& “Supported Memory Card Specications” on page 147

Advisories and Warnings for Using the LCD Screen

❏

LCD screen may contain a few small bright or dark spots, and because of its features it may have an uneven

e brightness. ese are normal and do not indicate that it is damaged in any way.

❏ Only use a dry, so cloth for cleaning. Do not use liquid or chemical cleaners.

❏ e exterior cover of the LCD screen could break if it receives a heavy impact. Contact your dealer if the

screen's surface chips or cracks, and do not touch or attempt to remove the broken pieces.

Protecting Your Personal Information

When you give the printer to someone else or dispose of it, erase all the personal information stored in the printer's memory by selecting Setup > Restore Default Settings > All Settings on the control panel.

User's Guide

Printer Basics

Part Names and Functions

Edge guide Feeds the paper straight into the printer. Slide to the edges of the paper.

Rear paper feed Loads paper.

Paper support Supports loaded paper.

Feeder guard Prevents foreign substance from entering the printer. Usually keep this guard

closed.

Output tray Holds the ejected paper. Before printing, raise the stopper to prevent the

ejected paper from falling o the tray.

Control panel Operates the printer.

User's Guide

Memory card slot Insert a memory card.

Ink cartridge holder Install the ink cartridges. Ink is ejected from the print head nozzles underneath.

Printer Basics

Document cover Blocks external light while scanning.

Scanner glass Place the originals.

Scanner unit Scans placed originals. Open when replacing ink cartridges or removing

jammed paper inside the printer.

AC inlet Connects the power cord.

USB port Connects a USB cable.

User's Guide

Printer Basics

Control Panel

You can change the angle of the control panel.

To lower the control panel, squeeze the lever on the back of the panel as shown below.

Buttons

u d l r

Turns the printer on or o.

Do not turn o while the power light is ashing (while the printer is operating or processing data).

Unplug the power cord when the power light is o.

Displays the home screen.

OK Use the u d l r buttons to select a menu, and press the OK button to run the selected menu.

Stops the current operation or returns to the previous screen.

Starts an operation such as printing or copying.

Guide to the LCD Screen

Menus and messages are displayed on the LCD screen. Select a menu or setting by pressing the u d l r buttons.

User's Guide

Printer Basics

Guide to the Home Screen

e following icons and menus are displayed on the home screen.

Icons that show the network status are displayed.

Indicates a problem with the printer's wireless (Wi-Fi) network connection, or that the printer is searching for a wireless (Wi-Fi) network connection.

Indicates that the printer is connected to a wireless (Wi-Fi) network.

The number of bars indicates the signal strength of the connection. The more bars there are, the stronger the connection.

Indicates that a wireless (Wi-Fi) network is disabled, or that the printer is processing a wireless network connection.

Indicates that Wi-Fi Direct is enabled.

Indicates that Wi-Fi Direct is disabled.

When l and r are displayed, you can scroll right or left by pressing the l or r button.

Function icons and names are displayed as mode icons.

Copy

Print Photos

Scan

Personal Stationery

Enters Copy mode that allows you to copy a document.

Enters Print Photos mode that allows you to print photos on your memory card.

Enters Scan mode that allows you to scan a document or a photo.

Enters Personal Stationery mode that allows you to print original items, such as ruled paper and calendars, using the photos on your memory card.

Quiet Mode

Setup

Wi-Fi Setup Displays menus that allow you to set up the printer for use on a wireless network. This is a

Available buttons are displayed. In this example, you can proceed to the selected menu by pressing the OK button.

Displays Quiet Mode setting that allows you to reduce the noise the printer makes. However, enabling this may reduce print speed. Depending on the paper type and print quality settings you selected, there may be no dierence in the printer's noise level.

This is a shortcut to the following menu.

Setup > Printer Setup > Quiet Mode

Enters Setup mode that allows you to make maintenance, printer setup, and network settings.

shortcut to the following menu.

Setup > Network Settings > Wi-Fi Setup

User's Guide

Printer Basics

Entering Characters

To enter characters and symbols for network settings from the control panel, use the u, d, l, and r buttons.

Press the to the next input position. When you have nished entering characters, press the OK button.

displayed screen varies depending on the setting items. e following is the screen for entering the password

e for your Wi-Fi network.

or d button to select the character you want to enter, and then press the r button to move the cursor

Icons Descriptions

Switches the character type.

ABC: Uppercase characters

abc: Lowercase characters

123: Numbers and symbols

u d

OK Enters the selected characters.

Selects the character to be entered.

Moves the cursor to the right.

Deletes a character to the left (backspace).

Returns to the previous screen.

Entering the Practice String "13By"

1. Press the button twice to switch the character type to 123.

User's Guide

2. Press the u button twice to select "1".

3. Press the

button once to move the cursor, and then press the u button four times to select "3".

Printer Basics

4. Press the r button once to move the cursor, and then press the button to switch the character type to

ABC. Press the

5. Press the r button once to move the cursor, and then press the button to switch the character type to abc.

Press the

button twice to select "B".

button twice to select "y".

6. Press the OK button.

User's Guide

Network Settings

Network Connection Types

Wi-Fi Connection

Connect the printer and the computer or smart device to the access point. is is the typical connection method for home or oce networks where computers are connected by Wi-Fi through the access point.

Related Information

& “Connecting to a Computer” on page 20 & “Connecting to a Smart Device” on page 22 & “Making Wi-Fi Settings from the Control Panel” on page 22

Wi-Fi Direct (Simple AP) Connection

Use this connection method when you are not using Wi-Fi at home or at the oce, or when you want to connect the printer and the computer or smart device directly. In this mode, the printer acts as an access point and you can connect up to four devices to the printer without having to use a standard access point. However, devices directly connected to the printer cannot communicate with each other through the printer.

User's Guide

Network Settings

Note:

Wi-Fi Direct (Simple AP) connection is a connection method designed to replace Ad Hoc mode.

e printer can be connected by Wi-Fi and Wi-Fi Direct (Simple AP) connection simultaneously. However, if you start a network connection in Wi-Fi Direct (Simple AP) connection when the printer is connected by Wi-Fi, the Wi-Fi is temporarily disconnected.

Related Information

& “Making Wi-Fi Direct (Simple AP) Connection Settings” on page 25

Connecting to a Computer

We recommend using the installer to connect the printer to a computer. You can run the installer using one of the following methods.

❏ Setting up from the website

Access the following website, and then enter the product name.

http://epson.sn

Go to Setup, and then click Download in the download and connect part. Click or double-click the downloaded

❏ Setting up using the soware disc (only for the models that come with a soware disc and users with computers

with disc drives.)

Insert the soware disc into the computer, and then follow the on-screen instructions.

to run the installer. Follow the on-screen instructions.

le

Selecting the Connection Methods

Follow the on-screen instructions until the following screen is displayed, and then select the connection method of the printer to the computer.

User's Guide

❏ Wi n d o w s

Select the connection type and then click Next.

Network Settings

❏ Mac OS X

Select the connection type.

User's Guide

Network Settings

Follow the on-screen instructions. e necessary soware is installed.

Connecting to a Smart Device

You can use the printer from a smart device when you connect the printer to the same Wi-Fi network (SSID) as the smart device. To use the printer from a smart device, set up from the following website. Access to the website from the smart device that you want to connect to the printer.

http://epson.sn > Setup

Note:

If you want to connect a computer and a smart device to the printer at the same time, we recommend connecting the computer

rst.

Making Wi-Fi Settings from the Control Panel

You can make network settings from the printer's control panel. Aer connecting the printer to the network, connect to the printer from the device that you want to use (computer, smart phone, tablet, and so on.)

Related Information

& “Making Wi-Fi Settings Manually” on page 22 & “Making Wi-Fi Settings by Push Button Setup” on page 23 & “Making Wi-Fi Settings by PIN Code Setup (WPS)” on page 24 & “Making Wi-Fi Direct (Simple AP) Connection Settings” on page 25

Making Wi-Fi Settings Manually

You can manually set up the information necessary to connect to an access point from the printer's control panel. To set up manually, you need the SSID and password for an access point.

Note:

If you are using an access point with its default settings, the SSID and password are on the label. If you do not know the SSID and password, contact the person who set up the access point, or see the documentation provided with the access point.

1. Select Wi - F i S etup on the home screen, and then press the OK button.

Select Wi-Fi (Recommended), and then press the OK button.

3. Press the OK button.

4. Select Wi-Fi Setup Wizard, and then press the OK button.

User's Guide

Network Settings

5. Select the SSID for the access point from printer's control panel, and then press the OK button.

Note:

❏ If the SSID you want to connect to is not displayed on the printer's control panel, select Search Again to update the

list. If it is still not displayed, select Other SSIDs, and then enter the SSID directly.

❏ If you do not know the SSID, check if it is written on the label of the access point. If you are using the access point

with its default settings, use the SSID written on the label.

6. Enter the password, and then press the OK button.

Select whether or not you print a network connection report aer nishing the settings.

Note:

❏ e password is case-sensitive.

❏ If you do not know the password, check if it is written on the label of the access point. If you are using the access point

with its default settings, use the password written on the label. e password may also be called a "Key", a "Passphrase", and so on.

❏ If you do not know the password for the access point, see the documentation provided with the access point, or

contact the person who set it up.

❏ If you fail to connect, load paper, and then press the

Related Information

“Entering Characters” on page 17

“Checking the Network Connection Status” on page 25

“When You Cannot Make Network Settings” on page 125

button to print a network connection report.

Making Wi-Fi Settings by Push Button Setup

You can automatically set up a Wi-Fi network by pressing a button on the access point. If the following conditions are met, you can set up by using this method.

❏ e access point is compatible with WPS (Wi-Fi Protected Setup).

❏

current Wi-Fi connection was established by pressing a button on the access point.

e

Note:

If you cannot nd the button or you are setting up using the soware, see the documentation provided with the access point.

1. Select Wi - F i S etup on the home screen, and then press the OK button.

2. Select Wi-Fi (Recommended), and then press the OK button.

3. Press the OK button.

Select Push Button Setup (WPS), and then press the OK button.

User's Guide

Network Settings

5. Hold down the [WPS] button on the access point until the security light ashes.

If you do not know where the [WPS] button is, or there are no buttons on the access point, see the documentation provided with your access point for details.

6. Press the OK button on the printer's control panel. Follow the on-screen instruction

Note:

If connection fails, restart the access point, move it closer to the printer, and try again. If it still does not work, print a network connection report and check the solution.

Related Information

& “Checking the Network Connection Status” on page 25 & “When You Cannot Make Network Settings” on page 125

hereaer.

Making Wi-Fi Settings by PIN Code Setup (WPS)

You can connect to an access point by using a PIN code. You can use this method to set up if an access point is capable of WPS (Wi-Fi Protected Setup). Use a computer to enter a PIN code into the access point.

1. Select Setup on the home screen, and then press the OK button.

Select Network Settings and then press the OK button.

3. Select Wi - F i S etup on the home screen and then press the OK button.

4. Select PIN Code (WPS) and then press the OK button.

5. Use your computer to enter the PIN code (an eight digit number) displayed on the printer's control panel into the access point within two minutes.

Note:

See the documentation provided with your access point for details on entering a PIN code.

6. Press the OK button.

Setup is complete when the setup completion message is displayed.

Note:

If connection fails, restart the access point, move it closer to the printer, and try again. If it still does not work, print a connection report and check the solution.

User's Guide

Network Settings

Related Information

& “Checking the Network Connection Status” on page 25 & “When You Cannot Make Network Settings” on page 125

Making Wi-Fi Direct (Simple AP) Connection Settings

is method allows you to connect the printer directly to computer or smart devices without an access point. e printer acts as an access point.

Important:

When you connect from a computer or smart device to the printer using the Wi-Fi Direct (Simple AP) connection, the printer is connected to the same Wi-Fi network (SSID) as the computer or smart device and the communication is established between them. Since the computer or smart device is automatically connected to the other connectable Wi-Fi network if the printer is turned o, it is not connected to the previous Wi-Fi network again if the printer is turned on. Connect to the printer's SSID for Wi-Fi Direct (Simple AP) connection from the computer or smart device again. If you do not want to connect every time you turn the printer on or o, we recommend using Wi-Fi network by connecting the printer to an access point.

Select Wi-Fi S e tu p on the home screen, and then press the OK button.

2. Select Wi - F i D irec t , and then press the OK button.

3. Press the OK button.

Press the OK button to start the setup.

5. Press the OK button.

6. Check the SSID and password displayed on the printer's control panel. On the network connection screen of the computer or smart device, select the SSID shown on the printer's control panel to connect.

7. Enter the password displayed on the printer's control panel on the computer or smart device.

Aer the connection is established, press the OK button on the printer's control panel.

9. Press the OK button.

Related Information

& “Checking the Network Connection Status” on page 25 & “When You Cannot Make Network Settings” on page 125

Checking the Network Connection Status

Checking the Network Status Using Network Icon

You can check the network connection status using the network icon on the printer's home screen. e icon changes depending on the connection type and strength of the radio wave.

User's Guide

Network Settings

Related Information

& “Guide to the Home Screen” on page 16

Printing a Network Connection Report

You can print a network connection report to check the status between the printer and the access point.

1. Load papers.

2. Select Setup on the home screen, and then press the OK button.

3. Select Network Settings > Connection Check.

connection check starts.

e

4. Press the

button to print the network connection report.

If an error has occurred, check the network connection report, and then follow the printed solutions.

Related Information

& “Messages and Solutions on the Network Connection Report” on page 26

Messages and Solutions on the Network Connection Report

Check the messages and error codes on the network connection report, and then follow the solutions.

User's Guide

Network Settings

a. Error code

b. Messages on the Network Environment

a. Error code

Code Solution

E-1 ❏ Make sure that the Ethernet cable is connected to the printer, a hub, or other network devices.

❏ Make sure that the hub or other network devices are turned on.

E-2

E-3

E-7

E-5 Make sure the access point's security type is set to one of the following. If it is not, change the security type on

❏ Make sure that the access point is turned on.

❏ Check that the computer or other devices are connected correctly to the access point.

❏ Place the printer close to the access point. Remove any obstacles between them.

❏ If you have entered the SSID manually, check if it is correct. Check the SSID from the Network Status part on

the network connection report.

❏ To establish a network using push button setup, check that the access point supports WPS. If it does not

support WPS, you cannot establish a network using push button setup.

❏ Check that only ASCII characters (alphanumeric characters and symbols) are used for the SSID. The printer

cannot display an SSID which contains any characters other than ASCII characters.

❏ Check the SSID and password before connecting to the access point. If you are using an access point with its

default settings, the SSID and password are on the label. If you do not know the SSID and password, contact the person who set up the access point, or see the documentation provided with the access point.

❏ When you want to connect to an SSID generated using the tethering function on a smart device, check the

SSID and password in the documentation provided with the smart device.

❏ If the Wi-Fi connection is suddenly disconnected, check the following. If any of these are applicable, reset the

network settings using the installer. You can run it from the following website.

http://epson.sn > Setup

❏ Another smart device was added to the network using push button setup.

❏ The Wi-Fi network was set up using any method other than push button setup.

the access point, and then reset the printer's network settings.

❏ WEP-64 bit (40 bit)

❏ WEP-128 bit (104 bit)

❏ WPA PSK (TKIP/AES)

❏ WPA2 PSK (TKIP/AES)

❏ WPA (TKIP/AES)

❏ WPA2 (TKIP/AES)

* : WPA PSK is also known as WPA Personal. WPA2 PSK is also known as WPA2 Personal.

E-6 ❏ Check if the MAC address ltering is disabled. If it is enabled, register the printer's MAC address so that it is

not ltered. See the documentation provided with the access point for details. You can check the printer's MAC address from the Network Status part on the network connection report.

❏ If the access point's shared authentication is enabled on the WEP security method, make sure the

authentication key and index are correct.

E-8 ❏ Enable DHCP on the access point when the printer's Obtain IP Address is set to Auto.

❏ If the printer's Obtain IP Address is set to Manual, the IP address you manually set is out of range (for

example: 0.0.0.0) and it is disabled. Set a valid IP address from printer's control panel or Web Cong.

User's Guide

Code Solution

E-9 Check the following.

❏ Devices are turned on.

❏ You can access the Internet and other computers or network devices on the same network from the devices

you want to connect to the printer.

If it still does not work after checking the above, reset the network settings using the installer. You can run it from the following website.

http://epson.sn > Setup

E-10 Check the following.

❏ Other devices on the network are turned on.

❏ Network addresses (IP address, subnet mask, and default gateway) are correct if you have set the printer's

Obtain IP Address to Manual.

Reset the network address if these are incorrect. You can check the IP address, subnet mask, and default gateway from the Network Status part on the network connection report.

When DHCP is enabled, change the printer's Obtain IP Address to Auto. If you want to set the IP address manually, check the printer's IP address from the Network Status part on the network connection report, and then select Manual on the network settings screen. Set the subnet mask to [255.255.255.0].

Network Settings

E-11 Check the following.

❏ The default gateway address is correct when you set the printer's TCP/IP Setup to Manual.

❏ The device that is set as the default gateway is turned on.

Set the correct default gateway address. You can check the default gateway address from the Network Status part on the network connection report.

E-12 Check the following.

❏ Other devices on the network are turned on.

❏ The network addresses (IP address, subnet mask, and default gateway) are correct if you are entering them

manually.

❏ The network addresses for other devices (subnet mask and default gateway) are the same.

❏ The IP address does not conict with other devices.

If it still does not work after checking the above, try the following.

❏ Make network settings on the computer that is on the same network as the printer using the installer. You

can run it from the following website.

http://epson.sn > Setup

❏ You can register several passwords on an access point that uses the WEP security type. If several passwords

are registered, check if the

registered password is set on the printer.

rst

User's Guide

Code Solution

E-13 Check the following.

❏ Network devices such as an access point, hub, and router are turned on.

❏ The TCP/IP Setup for network devices has not been set up manually. (If the printer's TCP/IP Setup is set

automatically while the TCP/IP Setup for other network devices is performed manually, the printer's network may dier from the network for other devices.)

If it still does not work after checking the above, try the following.

❏ Make network settings on the computer that is on the same network as the printer using the installer. You

can run it from the following website.

http://epson.sn > Setup

❏ You can register several passwords on an access point that uses the WEP security type. If several passwords

are registered, check if the rst registered password is set on the printer.

b. Messages on the Network Environment

Network Settings

Message Solution

*Multiple network names (SSID) that match your entered network name (SSID) have been detected. Conrm network name (SSID).

The Wi-Fi environment needs to be improved. Turn the wireless router o and then turn it on. If the connection does not improve, see the documentation for the wireless router.

*No more devices can be connected. Disconnect one of the connected devices if you want to add another one.

The same SSID may be set on several access points. Check the settings on the access points, and change the SSID.

After moving the printer closer to the access point and removing any obstacles between them, turn the access point on. If it still does not connect, see the documentation supplied with the access point.

You can simultaneously connect up to four computers and smart devices in Wi-Fi Direct (Simple AP) connection. To add another computer or smart device, disconnect one of the connected devices rst.

Related Information

& “Connecting to a Computer” on page 20 & “Web Cong” on page 104 & “When You Cannot Make Network Settings” on page 125

Printing a Network Status Sheet

You can check the detailed network information by printing it.

1. Load papers.

2. Select Setup on the home screen.

3. Select Network Settings > Print Status Sheet.

4. Press the

network status sheet is printed.

e

button.

User's Guide

Network Settings

Replacing or Adding New Access Points

If the SSID changes due to the replacement of an access point, or an access point is added and a new network environment is established, re-set the Wi-Fi settings.

Related Information

& “Changing the Connection Method to a Computer” on page 30

Changing the Connection Method to a Computer

Using the installer and re-set up in a dierent connection method.

❏ Setting up from the website

Access the following website, and then enter the product name.

http://epson.sn

Go to Setup, and then click Download in the download and connect part. Click or double-click the downloaded le to run the installer. Follow the on-screen instructions.

❏ Setting up using the soware disc (only for the models that come with a soware disc and users with computers

with disc drives.)

Insert the soware disc into the computer, and then follow the on-screen instructions.

Selecting Change the Connection Methods

Follow the on-screen instructions until the following screen is displayed.

User's Guide

Network Settings

❏ Wi n d o w s

Select Change or re-set the connection method on the Select

Soware

Installation screen, and then click Next.

❏ Mac OS X

Select how you want to connect the printer to your computer.

User's Guide

Network Settings

Disabling Wi-Fi from the Control Panel

When Wi-Fi is disabled, the Wi-Fi connection is disconnected.

1. Select Setup on the home screen.

2. Select Network Settings.

3. Select Wi - F i S etup.

4. Select Disable Wi-Fi.

5. Check the message, and then select Ye s .

Disconnecting Wi-Fi Direct (Simple AP) connection from the Control Panel

Note:

When Wi-Fi Direct (Simple AP) connection disabled, all computers and smart devices connected to the printer in Wi-Fi Direct (Simple AP) connection are disconnected. If you want to disconnect a specic device, disconnect from the device instead of the printer.

1. Select Setup on the home screen.

2. Select Network Settings.

Select Wi-Fi S e tu p.

4. Select Wi - F i D irec t S etup.

5. Select Disable Wi-Fi Direct.

6. Check the message, and then select Ye s .

Restoring the Network Settings from the Control Panel

You can restore all network settings to their defaults.

1. Select Setup on the home screen.

2. Select Restore Default Settings > Network Settings.

3. Check the message, and then select Ye s .

User's Guide

Loading Paper

Paper Handling Precautions

❏ Read the instruction sheets supplied with the paper.

❏ Fan and align the edges of the paper before loading. Do not fan or curl photo paper. Doing so may damage the

printable side.

❏ If the paper is curled, atten it or curl it slightly in the opposite direction before loading. Printing on curled

paper may cause paper jams and smears on the printout.

❏ Do not use paper that is wavy, torn, cut, folded, damp, too thick, too thin, or paper that has stickers stuck to it.

Using these types of paper causes paper jams and smears on the printout.

❏ Fan and align the edges of the envelopes before loading. When the stacked envelopes are

press them down to atten them before loading.

pued

up with air,

❏ Do not use envelopes that are curled or folded. Using these envelopes causes paper jams and smears on the

printout.

❏ Do not use envelopes with adhesive surfaces on the aps or window envelopes.

❏ Avoid using envelopes that are too thin, as they may curl during printing.

Related Information

& “Printer Specications” on page 143

User's Guide

Loading Paper

Available Paper and Capacities

Epson recommends using genuine Epson paper to ensure high-quality printouts.

Genuine Epson Paper

Media Name Size Loading

Capacity (Sheets)

Epson Bright White Ink Jet Paper

Epson Ultra Glossy Photo Paper

Epson Premium Glossy Photo Paper

Epson Premium Semigloss Photo Paper

Epson Photo Paper Glossy A4, 13×18 cm (5×7 in.),

Epson Matte PaperHeavyweight

Epson Photo Quality Ink Jet Paper

* For manual 2-sided printing, you can load up to 30 sheets for paper with one side already printed.

A4, 13×18 cm (5×7 in.), 10×15 cm (4×6 in.)

A4, 13×18 cm (5×7 in.), 16:9 wide size (102×181 mm), 10×15 cm (4×6 in.)

A4, 10×15 cm (4×6 in.) 20 – ✓

10×15 cm (4×6 in.)

A4 20 – ✓

A4 80 – –

20 – ✓

Manual 2Sided Printing

✓ –

Borderless Printing

Note:

e availability of paper varies by location. For the latest information on paper available in your area, contact Epson support.

Commercially Available Paper

Media Name Size Loading Capacity

(Sheets)

Plain paper

Envelope

*1 The loading capacity for pre-punched paper is one sheet.

*2 Only printing from computer is available.

Letter*2, A4, B5*2, A5*2, A6

Legal

User Dened

Envelope #10, Envelope DL, Envelope C6

Up to the line indicated by the triangle symbol on

the edge guide.

10 – –

Manual 2-Sided Printing

✓ –

Borderless Printing

User's Guide

Loading Paper

*3 For manual 2-sided printing, you can load up to 30 sheets for paper with one side already printed.

Related Information

& “Technical Support Web Site” on page 153

List of Paper Types

To obtain optimum printing results, select the paper type that suits the paper.

Media Name Media Type

Control Panel

Epson Bright White Ink Jet Paper

Epson Ultra Glossy Photo Paper

Epson Premium Glossy Photo Paper

Epson Premium Semigloss Photo Pa-

per

Epson Photo Paper Glossy

Epson Matte Paper-Heavyweight

Epson Photo Quality Ink Jet Paper

Plain paper

Envelope Envelope Envelope

*1 These paper types are compatible with Exif Print and PRINT Image Matching when printed by the printer driver. For more

information, see the documentation that came with the Exif Print or PRINT Image Matching compatible digital camera.

*2 For smart devices, these media types can be selected when printing using Epson iPrint.

plain papers plain papers

Ultra Glossy Epson Ultra Glossy

Prem. Glossy Epson Premium Glossy

Prem. Semigloss Epson Premium Semigloss

Glossy Photo Paper Glossy

Matte Epson Matte

plain papers plain papers

Printer Driver, Smart device

Loading Paper in the Rear Paper Feed

1. Open the feeder guard, extend the paper support, and then tilt it backwards.

User's Guide

Loading Paper

2. Slide the edge guide to the le.

Load paper vertically along the right side of the rear paper feed with the printable side facing up.

Important:

Do not load more than the maximum number of sheets specied for the paper. For plain paper, do not load above the line indicated by the triangle symbol on the edge guide.

❏ Envelopes

User's Guide

Loading Paper

❏ Pre-punched paper

Note:

❏ Load a single sheet of paper without binding holes at the top or the bottom.

❏ Adjust the print position of your le to avoid printing over the holes.

4. Slide the edge guide to the edge of the paper, and then close the feeder guard.

5. Check the paper size and paper type settings displayed on the control panel. To use the settings, select

Conrm using the

Change using the

Important:

or d button, press the OK button, and then go to step 7. To change the settings, select

or d button, press the OK button, and then go to the next step.

paper setting screen is not displayed if the paper is not loaded along the right side of the rear paper feed. An

e error occurs when you start printing.

User's Guide

Loading Paper

Note:

❏ A message is displayed if the registered paper size and paper type settings dier from the print settings.

❏ e paper setting screen is not displayed if you have disabled Paper Conguration in the following menus. In this

situation, you cannot print using AirPrint.

Setup > Printer Setup > Paper Source Settings > Paper Conguration

6. On the paper size setting screen, select the paper size using the l or r button, and then press the OK button. On the paper type setting screen, select the paper type in the same way, and then press the OK button. Conrm the settings, and then press the OK button.

Note:

You can also display the paper size and paper type settings screen by selecting the following menus.

Setup > Printer Setup > Paper Source Settings > Paper Setup

7. Slide out the output tray and then raise the stopper.

Note:

Return the remaining paper to its package. If you leave it in the printer, the paper may curl or the print quality may decline.

Related Information

& “Paper Handling Precautions” on page 33 & “Available Paper and Capacities” on page 34

User's Guide

Placing Originals

Placing Originals on the Scanner Glass

Important:

When placing bulky originals such as books, prevent exterior light from shining directly onto the scanner glass.

1. Open the document cover.

Remove any dust or stains on the scanner glass.

3. Place the original face-down and slide it to the corner mark.

Note:

A range of 1.5 mm from the edges of the scanner glass is not scanned.

4. Close the cover gently.

5. Remove the originals

Note:

If you leave the originals on the scanner glass for a long time, they may stick to the surface of the glass.

aer

scanning.

User's Guide

Placing Originals

How to Place Various Originals

Placing Originals for 2-Up Layout

Placing a Double-Page Spread for 2-Up Layout

User's Guide

Placing Originals

Placing Multiple Photos for Scanning

You can scan multiple photos at once in Photo Mode in Epson Scan 2 when you select the top of the preview window.

umbnail

from the list at

User's Guide

Inserting a Memory Card

Supported Memory Cards

miniSD

miniSDHC

microSD*

microSDHC

microSDXC

SDHC

SDXC

* Attach an adapter to t the memory card slot. Otherwise, the card may get stuck.

Related Information

& “Supported Memory Card Specications” on page 147

Inserting and Removing a Memory Card

Insert a memory card into the printer.

e printer starts reading the data and the light ashes. When reading is complete, the light stops ashing and remains on.

Important:

❏ Insert a memory card straight into the printer.

❏e card should not be fully inserted. Do not try to force it all the way into the slot.

User's Guide

Inserting a Memory Card

2. When you have nished using the memory card, make sure the light is not ashing, and then remove the card.

Important:

If you remove the memory card while the light is ashing, the data in the memory card may be lost.

Note:

If you access the memory card from a computer, you need to operate the computer to safely remove the removable device.

Related Information

& “Accessing a Memory Card From a Computer” on page 152

User's Guide

Printing

Printing from the Control Panel

Printing Photos by Selecting from a Memory Card

1. Load paper in the printer.

Important:

Make the paper settings on the control panel.

2. Insert a memory card into the printer.

Important:

Do not remove the memory card until you have nished printing.

Enter Print Photos from the home screen using the

4. Use the printing more than one photo, repeat this procedure.

5. Press the OK button to display the print settings

6. To change the print settings, press the

setting items such as the paper size and the paper type, and change the settings using the When you have nished, press the OK button.

7. Press the

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35 & “List of Paper Types” on page 35 & “Inserting a Memory Card” on page 42 & “Menu Options for Print Photos Mode” on page 46

or r button to select a photo, and use the u or d button to set the number of copies. When

button to display the setting screen. Use the u or d button to select

button.

or r button, and then press the OK button.

conrmation

screen.

or r button.

User's Guide

Printing

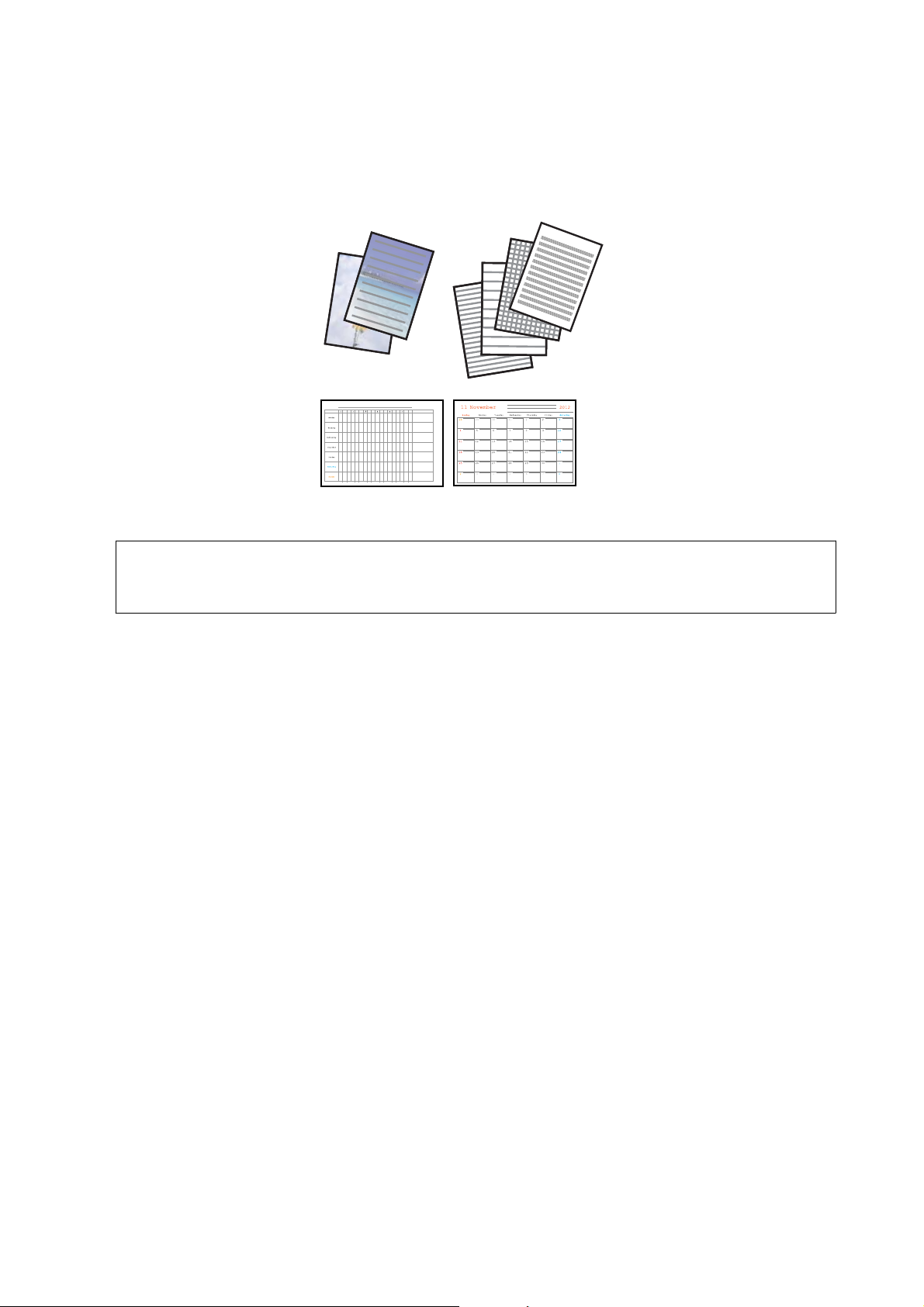

Printing Lined Paper, Calendars, and Original Writing Paper

You can easily print lined paper, calendars, and original writing paper using the Personal Stationery menu.

Load paper in the printer.

Important:

Make the paper settings on the control panel.

2. To print writing paper using a photo on your memory card, insert the memory card into the printer.

3. Enter Personal Stationery from the home screen using the

Select a menu item using the

Follow the on-screen instructions to print.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35 & “List of Paper Types” on page 35 & “Inserting a Memory Card” on page 42 & “Menu Options for Printing Lined Paper, Calendars, and Original Writing Paper” on page 45 & “Menu Options for Print Photos Mode” on page 46

or r button, and then press the OK button.

Menu Options for Printing Lined Paper, Calendars, and Original Writing Paper

Lined Papers

Prints some types of lined paper, graph paper, or music paper on A4 size paper.

Writing Papers

Prints some types of writing paper on A4 size paper with a photo from the memory card set as the background. e photo is printed lightly so that it can be easily written on.

Calendar

User's Guide

Printing

Prints a weekly or monthly calender. Select the year and the month for the monthly calendar.

DPOF Printing

printer is compatible with DPOF (Digital Print Order Format) Ver. 1.10. DPOF is a format that stores

is additional information for photos such as the date, time, user name, and printing information. DPOF-compatible cameras allow you to set which image on a memory card to print and the number of copies. When the memory card is inserted into the printer, the photos selected by the camera are printed.

Note:

For information on making print settings on your camera, see the documentation provided with your camera.

When you insert a memory card into the printer, a conrmation screen is displayed. Press the OK button to

display the print start screen. Press the

button. Setting items are the same as in Print Photos mode.

the

button to start printing. If you want to change the print settings, press

Related Information

& “Printing Photos by Selecting from a Memory Card” on page 44 & “Menu Options for Print Photos Mode” on page 46

Menu Options for Print Photos Mode

Paper Size

Select the paper size you loaded.

Paper Type

Select the paper type you loaded.

Borderless

To print without margins around the edges, select Borderless. e image is enlarged a little to remove margins from the edges of the paper. To print with margins around the edges, select Wi t h Bord e r .

Quality

Select the print quality. Selecting Best provides higher quality printing, but the printing speed may be slower.

Printing from a Computer

Printing Basics - Windows

Note:

❏ See the online help for explanations of the setting items. Right-click an item, and then click Help.

❏ Operations

depending on the application. See the application's help for details.

dier

User's Guide

Printing

1. Load paper in the printer.

Important:

Make the paper settings on the control panel.

2. Open the le you want to print.

3. Select Print or Print Setup from the File menu.

4. Select your printer.

5. Select Preferences or Properties to access the printer driver window.

6. Make the following settings.

❏ Document Size: Select the paper size you loaded in the printer.

❏ Borderless: Select to print with no margins around the image.

In borderless printing, the print data is enlarged slightly more than the paper size so that no margins are printed around the edges of the paper. Click Settings to select the amount of enlargement.

❏ Orientation: Select the orientation you set in the application.

❏ Paper Type: Select the type of paper you loaded.

❏ Quality: Select the print quality.

Selecting High provides higher quality printing, but the printing speed may be slower.

❏ Color: Select Grayscale when you want to print in black or shades of gray.

Note: When printing on envelopes, select Landscape as the Orientation setting.

User's Guide

Printing

7. Click OK to close the printer driver window.

8. Click Print.

Related Information

& “Available Paper and Capacities” on page 34 & “Loading Paper in the Rear Paper Feed” on page 35 & “Guide to Windows Printer Driver” on page 107 & “List of Paper Types” on page 35

Printing Basics - Mac OS X

Note:

Explanations in the section use TextEdit as an example. Operations and screens dier depending on the application. See the application's help for details.

1. Load paper in the printer.

Important:

Make the paper settings on the control panel.

2. Open the le you want to print.

Select Print from the File menu or another command to access the print dialog.

If necessary, click Show Details or

to expand the print window.

4. Make the following settings.

❏ Printer: Select your printer.

User's Guide

Printing

❏ Presets: Select when you want to use the registered settings.

❏ Paper Size: Select the paper size you loaded in the printer.

When printing with no margins, select a "borderless" paper size.

❏ Orientation: Select the orientation you set in the application.

Note:

❏ If the above setting menus are not displayed, close the print window, select Page Setup from the File menu, and then

make settings.

❏ When printing on envelopes, select landscape orientation.

5. Select Print Settings from the pop-up menu.

Note:

On Mac OS X v10.8.x or later, if the Print Settings menu is not displayed, the Epson printer driver has not been installed correctly.

Select System Preferences from the printer, and then add the printer again. See the following to add a printer.

http://epson.sn

6. Make the following settings.

❏ Media Type: Select the type of paper you loaded.

❏ Print Quality: Select the print quality.

Selecting Fine provides higher quality printing, but the printing speed may be slower.

❏ Expansion: Available when selecting a borderless paper size.

menu > Printers & Scanners (or Print & Scan, Print & Fax), remove the

User's Guide

Printing

In borderless printing, the print data is enlarged slightly more than the paper size so that no margins are printed around the edges of the paper. Select the amount of enlargement.

❏ Grayscale: Select to print in black or shades of gray.

Click Print.

Related Information

& “Available Paper and Capacities” on page 34 & “Loading Paper in the Rear Paper Feed” on page 35 & “Guide to Mac OS X Printer Driver” on page 110 & “List of Paper Types” on page 35

Printing on 2-Sides (for Windows only)

e printer driver prints automatically separating even pages and odd pages. When the printer has nished printing the odd pages, ip the paper over following the instructions to print the even pages. You can also print a booklet that can be created by folding the printout.

Note:

❏ is feature is not available for borderless printing.

❏ If you do not use paper that is suitable for 2-sided printing, the print quality may decline and paper jams may occur.

❏ Depending on the paper and the data, ink may bleed through to the other side of the paper.

❏ If EPSON Status Monitor 3 is disabled, access the printer driver, click Extended Settings on the Maintenance tab, and

then select Enable EPSON Status Monitor 3.

❏ 2-sided printing may not be available when the printer is accessed over a network or is used as a shared printer.

1. Load paper in the printer.

2. Open the le you want to print.

3. Access the printer driver window.

4. Select Manual (Long-edge binding) or Manual (Short-edge binding) from 2-Sided Printing on the Main tab.

User's Guide

Printing

5. Click Settings, make the appropriate settings, and then click OK.

Note: To print as a booklet, select Booklet.

6. Set the other items on the Main and More Options tabs as necessary, and then click OK.

7. Click Print.

When the instructions.

Related Information

“Available Paper and Capacities” on page 34

“Loading Paper in the Rear Paper Feed” on page 35

& “Printing Basics - Windows” on page 46

rst

side has

nished

printing, a pop-up window is displayed on the computer. Follow the on-screen

Printing Several Pages on One Sheet

You can print two or four pages of data on a single sheet of paper.

Printing Several Pages on One Sheet - Windows

Note:

is feature is not available for borderless printing.

1. Load paper in the printer.

2. Open the

3. Access the printer driver window.

4. Select 2-Up or 4-Up as the Multi-Page setting on the Main tab.

5. Click Page Order, make the appropriate settings, and then click OK to close the window.

6. Set the other items on the Main and More Options tabs as necessary, and then click OK.

you want to print.

le

User's Guide

Printing

7. Click Print.

Related Information

“Loading Paper in the Rear Paper Feed” on page 35

& & “Printing Basics - Windows” on page 46

Printing Several Pages on One Sheet - Mac OS X

1. Load paper in the printer.

2. Open the le you want to print.

Access the print dialog.

4. Select Layout from the pop-up menu.

5. Set the number of pages in Pages per Sheet, the Layout Direction (page order), and Border.

6. Set the other items as necessary.

7. Click Print.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35 & “Printing Basics - Mac OS X” on page 48

Printing to Fit the Paper Size

You can print to t the paper size you loaded in the printer.

Printing to Fit the Paper Size - Windows

Note:

is feature is not available for borderless printing.

1. Load paper in the printer.

User's Guide

Printing

2. Open the le you want to print.

3. Access the printer driver window.

Make the following settings on the More Options tab.

❏ Document Size: Select the paper size you set in the application.

❏ Output Paper: Select the paper size you loaded in the printer.

Fit to Page is selected automatically.

Note: If you want to print a reduced image at the center of the page, select Center.

Set the other items on the Main and More Options tabs as necessary, and then click OK.

6. Click Print.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35 & “Printing Basics - Windows” on page 46

Printing to Fit the Paper Size - Mac OS X

1. Load paper in the printer.

2. Open the le you want to print.

Access the print dialog.

4. Select the size of the paper you set in the application as the Paper Size setting.

5. Select Paper Handling from the pop-up menu.

6. Select Scale to t paper size.

Select the paper size you loaded in the printer as the Destination Paper Size setting.

8. Set the other items as necessary.

9. Click Print.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35 & “Printing Basics - Mac OS X” on page 48

User's Guide

Printing

Printing Multiple Files Together (for Windows Only)

Job Arranger Lite allows you to combine several print job. You can specify the print settings for combined les, such as layout, print order, and orientation.

Load paper in the printer.

2. Open the le you want to print.

3. Access the printer driver window.

Select Job Arranger Lite on the Main tab.

5. Click OK to close the printer driver window.

6. Click Print.

created by

les

dierent

applications and print them as a single

e Job Arranger Lite window is displayed and the print job is added to the Print Project.

7. With the Job Arranger Lite window opened, open the le that you want to combine with the current le, and then repeat steps 3 to 6.

Note: ❏ If you close the Job Arranger Lite window, the unsaved Print Project is deleted. To print later, select Save from the

File menu.

❏ To open a Print Project saved in Job Arranger Lite, click Job Arranger Lite on the printer driver's Maintenance

tab. Next, select Open from the File menu to select the le. e extension of the saved les is "ecl".

8. Select the Layout and Edit menus in Job Arranger Lite to edit the Print Project as necessary. See the help of Job Arranger Lite for details.

9. Select Print from the File menu.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35 & “Printing Basics - Windows” on page 46

User's Guide

Printing

Printing One Image on Multiple Sheets to Create a Poster (for Windows Only)

is feature allows you to print one image on multiple sheets of paper. You can create a larger poster by taping them together.

Note:

is feature is not available for borderless printing.

Load paper in the printer.

2. Open the

3. Access the printer driver window.

4. Select 2x1 Poster, 2x2 Poster, 3x3 Poster, or 4x4 Poster from Multi-Page on the Main tab.

5. Click Settings, make the appropriate settings, and then click OK.

Note: Print Cutting Guides allows you to print a cutting guide.

6. Set the other items on the Main and More Options tabs as necessary, and then click OK.

Click Print.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35 & “Printing Basics - Windows” on page 46

you want to print.

le

User's Guide

Printing

Making Posters Using Overlapping Alignment Marks

Here is an example of how to make a poster when 2x2 Poster is selected, and Overlapping Alignment Marks is selected in Print Cutting Guides.

1. Prepare Sheet 1 and Sheet 2. Cut o the margins of Sheet 1 along the vertical blue line through the center of the top and bottom cross marks.

User's Guide

Printing

2. Place the edge of Sheet 1 on top of Sheet 2 and align the cross marks, then temporarily tape the two sheets together from the back.

Cut the taped sheets in two along the vertical red line through the alignment markers (this time, the line to the le of the cross marks).

User's Guide

Printing

4. Tape the sheets together from the back.

5. Repeat steps 1 to 4 to tape Sheet 3 and Sheet 4 together.

6. Cut o the margins of Sheet 1 and Sheet 2 along the horizontal blue line through the center of the le and right side cross marks.

User's Guide

Printing

7. Place the edge of Sheet 1 and Sheet 2 on top of Sheet 3 and Sheet 4 and align the cross marks, and then temporarily tape them together from the back.

User's Guide

Printing

8. Cut the taped sheets in two along the horizontal red line through the alignment markers (this time, the line above the cross marks).

9. Tape the sheets together from the back.

User's Guide

Printing

10. Cut o the remaining margins along the outer guide.

Printing Using Advanced Features

is section introduces a variety of additional layout and printing features available on the printer driver.

Related Information

& “Windows Printer Driver” on page 106 & “Mac OS X Printer Driver” on page 109

Adding a Printing Preset to Print Easily

If you create your own preset of frequently used print settings on the printer driver, you can print easily by selecting the preset from the list.

User's Guide

Printing

Windows

To add your own preset, set items such as the Document Size and Paper Type on the Main or More Options tab, and then click Add/Remove Presets in Printing Presets.

Note:

To delete an added preset, click Add/Remove Presets, select the preset name you want to delete from the list, and then delete it.

Mac OS X

Access the print dialog. To add your own preset, set items such as the Paper Size and Media Type, and then save the current settings as the preset in the Presets setting.

Note:

To delete an added preset, click Presets > Show Presets, select the preset name you want to delete from the list, and then delete it.

Printing a Reduced or Enlarged Document

You can reduce or enlarge the size of a document by a specic percentage.

Windows

Note:

is feature is not available for borderless printing.

Set the Document Size on the More Options tab. Select Reduce/Enlarge Document, Zoom to, and then enter a percentage.

Mac OS X

Note:

Operations dier depending on the application. See the application's help for details.

Select Page Setup (or Print) from the File menu. Select the printer from Format For, select the paper size, and then enter a percentage in Scale. Close the window, and then print following the basic printing instructions.

Adjusting the Print Color

You can adjust the colors used in the print job.

PhotoEnhance produces sharper images and more vivid colors by automatically adjusting the contrast, saturation, and brightness of the original image data.

Note:

❏ ese adjustments are not applied to the original data.

❏ PhotoEnhance adjusts the color by analyzing the location of the subject.

the subject by reducing, enlarging, cropping, or rotating the image, the color may change unexpectedly. Selecting the borderless setting also changes the location of the subject resulting in changes in color. If the image is out of focus, the tone may be unnatural. If the color is changed or becomes unnatural, print in a mode other than PhotoEnhance.

Windows

Select the method of color correction from Color Correction on the More Options tab.

If you select Automatic, the colors are automatically adjusted to match the paper type and print quality settings. If you select Custom and click Advanced, you can make your own settings.

erefore,

if you have changed the location of

User's Guide

Printing

Mac OS X

Access the print dialog. Select Color Matching from the pop-up menu, and then select EPSON Color Controls. Select Color Options from the pop-up menu, and then select one of the available options. Click the arrow next to Advanced Settings and make the appropriate settings.

Printing a Watermark (for Windows Only)

You can print a watermark such as "Condential" on your printouts. You can also add your own watermark.

Note:

is feature is not available with borderless printing.

Click Watermark Features on the More Options tab, and then select a watermark. Click Settings to change details such as the density and position of the watermark.

Printing a Header and Footer (for Windows Only)

You can print information such as a user name and printing date as headers or footers.

Click Watermark Features in the More Options tab, and then select Header/Footer. Click Settings and select necessary items from the drop-down list.

Printing Photos Using Epson Easy Photo Print

Epson Easy Photo Print lets you lay out and print photos easily on various types of paper. See the application's help for details.

Note:

❏ By printing on genuine Epson photo paper, the ink quality is maximized and the printouts are vivid and clear.

❏ To perform borderless printing using a commercially available application, make the following settings.

❏ Create the image data to fully t the paper size and if a margin setting is available in the application you are using, set

the margin to 0 mm.

❏ Enable the borderless printing setting in the printer driver.

Related Information

& “Epson Easy Photo Print” on page 113

“Installing Applications” on page 116

User's Guide

Printing

Printing from Smart Devices

Using Epson iPrint

Epson iPrint is an application that allows you to print photos, documents, and web pages from a smart device such as a smartphone or tablet. You can use local print, printing from a smart device that is connected to the same wireless network as your printer, or remote print, printing from a remote location over the Internet. To use remote print, register your printer in the Epson Connect service.

Related Information

& “Epson Connect Service” on page 104

Installing Epson iPrint

You can install Epson iPrint on your smart device from the following URL or QR code.

http://ipr.to/a

Printing Using Epson iPrint

Start Epson iPrint from your smart device and select the item you want to use from the home screen.

User's Guide

Printing

e following screens are subject to change without notice.

Home screen displayed when the application is started.

Displays information on how to setup the printer and a FAQ.

Displays the screen where you can select the printer and make printer settings. Once you have selected the printer, you do not need to select it again from the next time.

Select what you want to print such as photos, documents, and web pages.

Displays the screen to make print settings such as paper size and paper type.

Displays the paper size. When this is displayed as a button, press it to display the paper settings currently set on the printer.

Displays photos and documents you selected.

Starts printing.

Note:

To print from the document menu using iPhone, iPad, and iPod touch running iOS, start Epson iPrint aer transferring the document you want to print using the le sharing function in iTunes.

User's Guide

Printing

Using AirPrint

AirPrint enables instant wireless printing from iPhone, iPad, and iPod touch with the latest version of iOS, and Mac with the latest version of OS X.

Note:

If you disabled paper conguration messages on your product control panel, you cannot use AirPrint. See the link below to enable the messages, if necessary.

1. Load paper in your product.

2. Set up your product for wireless printing. See the link below.

http://epson.sn

3. Connect your Apple device to the same wireless network that your product is using.

4. Print from your device to your product.

Note:

For details, see the AirPrint page on the Apple website.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35

Canceling Printing

Note:

❏ In Windows, you cannot cancel a print job from the computer once it has been completely sent to the printer. In this case,

cancel the print job by using the printer's control panel.

❏ When printing several pages from Mac OS X, you cannot cancel all of the jobs by using the control panel. In this case,

cancel the print job from the computer.

❏ If you have sent a print job from Mac OS X v10.6.8 through the network, you may not be able to cancel printing from the

computer. In this case, cancel the print job by using the printer's control panel.

Canceling Printing - Printer Button

Press the y button to cancel the print job in progress.

User's Guide

Printing

Canceling Printing - Windows

1. Access the printer driver window.

2. Select the Maintenance tab.

Click Print Queue.

4. Right-click on the job you want to cancel and then select Cancel.

Related Information

& “Windows Printer Driver” on page 106

Canceling Printing - Mac OS X

1. Click the printer icon in the Dock.

2. Select the job you want to cancel.

3. Cancel the job.

❏ Mac OS X v10.8.x or later

Click

❏ Mac OS X v10.6.8 to v10.7.x

Click Delete.

next to the progress meter.

User's Guide

Copying

1. Load paper in the printer.

Important:

Make the paper settings on the control panel.

2. Place the originals.

3. Enter Copy from the home screen using the

Copying

or r button, and then press the OK button.

4. Set the number of copies using the

5. Select color copy or monochrome copy using the

6. Press the OK button to display and check the print settings. To change the settings, press the

the setting items using the nished, press the OK button.

Note:

If you want to copy by reducing or enlarging the size of a document by a specic percentage, select any item other than Auto Fit as the Reduce/Enlarge setting, and then press the OK button. Specify a percentage in Custom Size. You can

change the percentage in increments of 10% by holding down the

7. Press the x button.

Note:

e color, size, and border of the copied image are slightly dierent from the original.

Related Information

“Loading Paper in the Rear Paper Feed” on page 35

& “Placing Originals on the Scanner Glass” on page 39 & “Menu Options for Copy Mode” on page 68

or d button.

or r button.

button, select

or d button and change settings using the l or r button. When you have

or r button.

Menu Options for Copy Mode

Note:

Available menus vary depending on the layout you selected.

The number of copies

Enter the number of copies.

Color

Copies the original in color.

B&W

User's Guide

Copies the original in black and white (monochrome).

Layout

❏ Wit h B or der

❏ Borderless

❏ A4, 2-up Copy

❏ A4, Book/2-up

Copying

Copies with margins around the edges.

Copies without margins around the edges. e image is enlarged a little to remove margins from the edges of the paper.

Copies two A4 single-sided originals onto a single sheet of A4 size paper in 2-up layout.

Copies two A4 facing pages of a book and so on onto a single sheet of A4 size paper in 2-up layout.

Reduce/Enlarge

Enlarges or reduces the originals.

❏ Actual Size

Copies at 100 % magnication.

❏ Auto Fit

Detects the scan area and automatically enlarges or reduces the original to t to the paper size you selected. When there are white margins around the original, the white margins from the corner mark of the scanner glass are detected as the scan area, but the margins at the opposite side may be cropped.

❏ Custom

Custom Size

Species the magnication used to enlarge or reduce the original within a range of 25 to 400%.

Paper Size

Select the paper size you loaded.

Paper Type

Select to specify the magnication to enlarge or reduce the original.

User's Guide

Select the paper type you loaded.

Quality

Select the print quality. Dra provides faster printing, but the printouts may be faint. Best provides higher quality printing, but the printing speed may be slower.

For users in Western Europe, the dra mode is not available.

Density

Increase the level of density by pressing the r button when the copying results are faint. Decrease the

level of density by pressing the

Copying

button when ink smears.

User's Guide

Scanning

Scanning Using the Control Panel

Scanning to a Computer

You can save the scanned image to a computer.

Important:

Make sure you have installed Epson Scan 2 and Epson Event Manager on your computer before using this feature.

1. Place the originals.

2. Enter Scan from the home screen using the

3. Select how to save the scanned image to a computer from the following menus using the then press the OK button.

❏ To Comp u ter (JP E G ): Saves the scanned image in JPEG format.

❏ To Comp u ter (P D F): Saves the scanned image in PDF format.

❏ To Comp u ter (E m a i l): Starts the email client on your computer, and then automatically attaches it to an

email.

4. Select the computer to which you want to save the scanned images.

Note:

❏ You can change the scan settings such as the scanning size, folder to save, or save format, by using Epson Event

Manager.

❏ When the printer is connected to a network, you can select the computer to which you want to save the scanned

image. Up to 20 computers can be displayed on the printer's control panel.

❏ When the computer to which you want to save the scanned images is detected on the network, the initial 15

characters of the computer name are displayed on the control panel. If you set Network Scan Name (Alphanumeric) on Epson Event Manager, it is displayed on the control panel.

or r button, and then press the OK button.

or r button, and

5. Press the x button.

Note:

e color, size, and border of the scanned image will not be exactly the same as the original.

Related Information

& “Placing Originals on the Scanner Glass” on page 39 & “Epson Event Manager” on page 112

User's Guide

Scanning

Scanning to a Computer (WSD)

Note:

❏ is feature is only available for computers running English version of Windows 10/Windows 8.1/Windows 8/Windows 7/

Windows Vista.

❏ If you are using Windows 7/Windows Vista, you need to setup your computer in advance using this feature.

1. Place the originals.

2. Enter Scan from the home screen using the

or r button, and then press the OK button.

3. Select To Comp u ter (WSD) using the

4. Select a computer.

5. Press the

Note:

e color, size, and border of the scanned image will not be exactly the same as the original.

Related Information

& “Placing Originals on the Scanner Glass” on page 39

button.

or r button, and then press the OK button.

Setting Up a WSD Port

is section explains how to set up a WSD port for Windows 7/Windows Vista.

Note:

For Windows 10/Windows 8.1/Windows 8, the WSD port is set up automatically.

e following is necessary to set up a WSD port.

❏ e printer and the computer are connected to the network.

❏

printer driver is installed on the computer.

e

1. Turn the printer on.

2. Click start, and then click Network on the computer.

3. Right-click the printer, and then click Install.

Click Continue when the User Account Control screen is displayed.

User's Guide

Scanning

Click Uninstall and start again if the Uninstall screen is displayed.

Note:

e printer name you set on the network and model name (EPSON XXXXXX (XX-XXXX)) are displayed on the network screen. You can check the printer's name set on the network from the printer's control panel or by printing a network status sheet.

4. Click Your device is ready to use.

5. Check the message, and then click Close.

6. Open the Devices and Printers screen.

❏ Wind ows 7

Click start > Control Panel > Hardware and Sound (or Hardware) > Devices and Printers.

User's Guide

Scanning

❏ Wind ows Vi s t a

Click start > Control Panel > Hardware and Sound > Printers.

7. Check that an icon with the printer's name on the network is displayed.

Select the printer name when using with WSD.

Related Information

& “Printing a Network Status Sheet” on page 29

Scanning from a Computer

Scanning Using Epson Scan 2

You can scan by using the scanner driver "Epson Scan 2". See the Epson Scan 2 help for an explanation of each setting item.

Related Information

& “Epson Scan 2 (Scanner Driver)” on page 112

Scanning Documents (Document Mode)

Using Document Mode in Epson Scan 2, you can scan originals using detailed settings that are suitable for text documents.

Place the originals.

2. Start Epson Scan 2.

3. Select Document Mode from the Mode list.

User's Guide

Scanning

4. Make the following settings on the Main Settings tab.

❏ Document Size: Select the size of the original you placed.

❏ Image Type: Select the color for saving the scanned image.

❏ Resolution: Select the resolution.

Note:

Document Source setting is

e

5. Make other scan settings if necessary.

❏ You can preview the scanned image by clicking the Preview button. e preview window opens, and the

previewed image is displayed.

❏ On the Advanced Settings tab, you can make detailed image adjustment settings that are suitable for text

documents, such as the following.

❏ Unsharp Mask: You can enhance and sharpen the outlines of the image.

❏ Descreening: You can remove moiré patterns (web-like shadows) that appear when scanning printed

papers such as a magazine.

❏ Text Enhancement: You can make blurred letters in the original clear and sharp.

❏ Auto Area Segmentation: You can make letters clear and images smooth when performing black and

white scanning for a document that contains images.

Note:

e items may not be available depending on other settings you made.

as Scanner Glass. You cannot change this setting.

xed

User's Guide

6. Set the le saving settings.

Scanning

❏ Image Format: Select the save format from the list.

You can make detailed settings for each save format except BITMAP and PNG. Select Options from the list aer selecting the save format.

❏ File Name: Conrm the save le name displayed.

You can change settings for the le name by selecting Settings from the list.

❏ Folder: Select the save folder for the scanned image from the list.

You can select another folder or create a new folder by selecting Select from the list.

7. Click Scan.

Related Information

& “Placing Originals on the Scanner Glass” on page 39

Scanning Photos or Pictures (Photo Mode)

Using Photo Mode in Epson Scan 2, you can scan originals with wide variety of image adjustment features that are suitable for photos or pictures.

User's Guide

Scanning

1. Place the originals.

By placing multiple originals on the scanner glass, you can scan them all at the same time. Make sure there is a gap of at least 20 mm between the originals.

2. Start Epson Scan 2.

3. Select Photo Mode from the Mode list.

4. Make the following settings on the Main Settings tab.

❏ Image Type: Select the color for saving the scanned image.

❏ Resolution: Select the resolution.

Note:

e Document Source setting is xed as Scanner Glass, and the Document Type setting is xed as Reective. (Reective means originals which are not transparent, for example ordinary papers or photos.) You cannot change these settings.

User's Guide

Scanning

5. Click Preview.

e preview window opens, and the previewed images are displayed as thumbnails.

Note: To preview the entire scanned area, select Normal from the list at the top of the preview widow.

Conrm the preview, and make image adjustment settings on the Advanced Settings tab if necessary.

User's Guide

Scanning

You can adjust the scanned image using detailed settings that are suitable for photos or pictures, such as the following.

❏ Brightness: You can adjust the brightness for the scanned image.

❏ Contrast: You can adjust the contrast for the scanned image.

❏ Saturation: You can adjust the saturation (color vividness) for the scanned image.

❏ Unsharp Mask: You can enhance and sharpen the outlines of the scanned image.

❏ Color Restoration: You can correct images that have faded to return them to their original colors.

❏ Backlight Correction: You can lighten scanned images that are dark due to backlight.

❏ Descreening: You can remove moiré patterns (web-like shadows) that appear when scanning printed

papers such as a magazine.

❏ Dust Removal: You can remove dust on the scanned image.

Note:

❏ e items may not be available depending on other settings you made.

❏ Depending on the original, the scanned image may not be adjusted correctly.

❏ When multiple thumbnails are created, you can adjust the image quality for each thumbnail. Depending on the

adjustment items, you can adjust the quality of scanned images all together by selecting multiple thumbnails.

Set the le saving settings.

❏ Image Format: Select the save format from the list.

You can make detailed settings for each save format except BITMAP and PNG. Select Options from the list aer selecting the save format.

❏ File Name: Conrm the save le name displayed.

You can change settings for the le name by selecting Settings from the list.

❏ Folder: Select the save folder for the scanned image from the list.

User's Guide

Scanning

You can select another folder or create a new folder by selecting Select from the list.

8. Click Scan.

Related Information

& “Placing Originals on the Scanner Glass” on page 39 & “Placing Multiple Photos for Scanning” on page 41

Scanning from Smart Devices

Epson iPrint is an application that allows you to scan photos and documents from a smart device, such as a smartphone or tablet, that is connected to the same wireless network as your printer. You can save the scanned data on a smart device or to Cloud services, send it by email, or print it.

Installing Epson iPrint

You can install Epson iPrint on your smart device from the following URL or QR code.

http://ipr.to/a

Scanning Using Epson iPrint

Start Epson iPrint from your smart device and select the item you want to use from the home screen.

User's Guide

Scanning

e following screens are subject to change without notice.

Home screen displayed when the application is started.

Displays information on how to setup the printer and a FAQ.

Displays the screen where you can select the printer and make printer settings. Once you have selected the printer, you do not need to select it again from the next time.

Displays the scanning screen.

Displays the screen where you can make scan settings such as resolution.

Displays scanned images.

Starts scanning.

Displays the screen where you can save scanned data to a smart device or Cloud services.

Displays the screen where you can send scanned data by email.

Displays the screen where you can print scanned data.

User's Guide

Replacing Ink Cartridges

Checking the Ink Levels

You can check the approximate ink levels from the control panel or the computer.

Checking the Ink Levels - Control Panel

Enter Setup from the home screen using the

or r button, and then press the OK button.

2. Select Ink Levels using the

or r button, and then press the OK button.

Checking the Ink Levels - Windows

1. Access the printer driver window.

2. Click Ink Levels on the Main tab.

Note:

If EPSON Status Monitor 3 is disabled, the ink levels are not displayed. Click Extended Settings on the Maintenance tab, and then select Enable EPSON Status Monitor 3.

Related Information

& “Windows Printer Driver” on page 106

Checking the Ink Levels - Mac OS X

1. Select System Preferences from the menu > Printers & Scanners (or Print & Scan, Print & Fax), and then select the printer.

2. Click Options & Supplies > Utility > Open Printer Utility.

3. Click EPSON Status Monitor.

Ink Cartridge Codes

Epson recommends the use of genuine Epson ink cartridges. Epson cannot guarantee the quality or reliability of non-genuine ink. e use of non-genuine ink may cause damage that is not covered by Epson’s warranties, and under certain circumstances, may cause erratic printer behavior. Information about non-genuine ink levels may not be displayed.

e following are the codes for genuine Epson ink cartridges.

User's Guide

Replacing Ink Cartridges

Product Icon BK: Black C: Cyan M: Magenta Y: Yellow

XP-342, XP-345 Strawberry

XP-343 Cherries 36

* "XL" and "XXL" indicate large cartridge.

29XL

36XL

29XL

36XL

29XL

36XL

Note:

❏ Not all cartridges are available in all regions.

❏ Ink cartridge codes may vary by location. For the correct codes in your area, contact Epson support.

❏ For users in Europe, visit the following website for information on Epson's ink cartridge yields.

http://www.epson.eu/pageyield

29XL

36XL

Related Information

& “Technical Support Web Site” on page 153

Ink Cartridge Handling Precautions

Read the following instructions before replacing ink cartridges.

Handling precautions

❏ Store ink cartridges at normal room temperature and keep them away from direct sunlight.

❏ Epson recommends using the ink cartridge before the date printed on the package.

❏ For best results, use up ink cartridge within six months of opening the package.

❏ For best results, store ink cartridge packages with their bottom down.

❏ Aer bringing an ink cartridge inside from a cold storage site, allow it to warm up at room temperature for at

least three hours before using it.

❏ Do not open the ink cartridge package until you are ready to install it in the printer. e cartridge is vacuum

packed to maintain its reliability. If you leave a cartridge unpacked for a long time before using it, normal printing may not be possible.

❏ Be careful not to break the hooks on the side of the ink cartridge when you remove it from the package.

User's Guide

Replacing Ink Cartridges

❏ You must remove the yellow tape from the cartridge before installing it; otherwise, print quality may decline or

you may not be able to print. Do not remove or tear the label on the cartridge; this can cause leakage.

❏ Do not remove the transparent seal from the bottom of the cartridge; otherwise, the cartridge may become

unusable.

❏ Do not touch the sections shown in the illustration. Doing so may prevent normal operation and printing.

❏ Install all ink cartridges; otherwise you cannot print.

❏ Do not replace ink cartridges with the power o. Do not move the print head by hand; otherwise, you may

damage the printer.

❏ Do not turn o the printer during ink charging. If the ink charging is incomplete, you may not be able to print.

User's Guide

Replacing Ink Cartridges

❏ Do not leave the printer with the ink cartridges removed or do not turn o the printer during cartridge

replacement.Otherwise, ink remaining in the print head nozzles will dry out and you may not be able to print.

❏ If you need to remove an ink cartridge temporarily, make sure you protect the ink supply area from dirt and

dust. Store the ink cartridge in the same environment as the printer, with the ink supply port facing down or sideways. Do not store ink cartridges with the ink supply port facing up. Because the ink supply port is equipped with a valve designed to contain the release of excess ink, there is no need to supply your own covers or plugs.

❏ Removed ink cartridges may have ink around the ink supply port, so be careful not to get any ink on the

surrounding area when removing the cartridges.

❏ is printer uses ink cartridges equipped with a green chip that monitors information such as the amount of

remaining ink for each cartridge. expended, you can still use the cartridge aer reinserting it back into the printer. However, when reinserting a cartridge, some ink may be consumed to guarantee printer performance.

❏ For maximum ink eciency, only remove an ink cartridge when you are ready to replace it. Ink cartridges with

low ink status may not be used when reinserted.

means that even if the cartridge is removed from the printer before it is

is

❏ To ensure you receive premium print quality and to help protect your print head, a variable ink safety reserve

remains in the cartridge when your printer indicates to replace the cartridge. e yields quoted for you do not include this reserve.

❏ Although the ink cartridges may contain recycled materials, this does not aect printer function or

performance.

❏ Specications and appearance of the ink cartridge are subject to change without prior notice for improvement.

❏ Do not disassemble or remodel the ink cartridge, otherwise you may not be able to print normally.

❏ You cannot use the cartridges that came with the printer for the replacement.

❏ Quoted yields may vary depending on the images that you are printing, the paper type that you are using, the

frequency of your prints and environmental conditions such as temperature.

Ink consumption

❏ To maintain optimum print head performance, some ink is consumed from all cartridges not only during

printing but also during maintenance operations such as ink cartridge replacement and print head cleaning.

❏ When printing in monochrome or grayscale, color inks instead of black ink may be used depending on the

paper type or print quality settings. is is because a mixture of color inks is used to create black.

❏

ink in the ink cartridges supplied with your printer is partly used during initial setup. In order to produce

e high quality printouts, the print head in your printer will be fully charged with ink. is one-o process consumes a quantity of ink and therefore these cartridges may print fewer pages compared to subsequent ink cartridges.

Replacing Ink Cartridges

Caution:

Be careful not to trap your hand or ngers when opening or closing the scanner unit. Otherwise you may be injured.

User's Guide

Replacing Ink Cartridges

Note:

❏ You can continue printing even aer the printer indicates that the ink is low. However, prepare new ink cartridges as soon

as possible.

❏ If you replace the ink cartridges while copying, the originals may move out of place. Press the

replace the originals.

1. Do one of the following.

❏ When prompted to replace ink cartridges

Check which ink cartridge needs to be replaced, and then press the OK button. Select Replace now using

or d button, and then press the OK button.

the

❏ When replacing ink cartridges before they are expended

Enter Setup from the home screen using the

Maintenance using the

using the

or r button, and then press the OK button. Next, press the x button.

or r button, and then press the OK button. Select Ink Cartridge Replacement

or r button, and then press the OK button. Select

button to cancel and

2. When replacing the black ink cartridge, gently shake the new black ink cartridge four or remove it from its package. When replacing other color cartridges, remove the new color cartridges from their package without shaking.

Important:

times and then

ve

Do not shake cartridges aer opening the package, as they may leak.

User's Guide

3. Remove only the yellow tape.

Replacing Ink Cartridges

Important:

Do not touch the sections shown in the illustration. Doing so may prevent normal operation and printing.

4. Open the scanner unit with the document cover closed.

User's Guide

Replacing Ink Cartridges

5. Squeeze the tab on the ink cartridge and pull it straight up. If you cannot remove the ink cartridge, pull it rmly.

Insert the new ink cartridge, and then press it down rmly.

Close the scanner unit.

8. Press the

Ink charging starts.

button.

Important:

Do not turn o the printer during ink charging. If the ink charging is incomplete, you may not be able to print.

Related Information

& “Ink Cartridge Codes” on page 82 & “Ink Cartridge Handling Precautions” on page 83

Temporarily Printing with Black Ink

When color ink is expended and black ink still remains when printing from a computer, you can use the following settings to continue printing for a short time using only black ink.

❏ Type of paper: plain papers, Envelope

❏ Color: Grayscale

❏ Borderless: Not selected

User's Guide

Replacing Ink Cartridges

❏ EPSON Status Monitor 3: Enabled (for Windows only)

Because this feature is only available for approximately possible.

Note:

❏ If EPSON Status Monitor 3 is disabled, access the printer driver, click Extended Settings on the Maintenance tab, and

then select Enable EPSON Status Monitor 3.

❏ e available period varies depending on the usage conditions.

days, replace the expended ink cartridge as soon as

ve

User's Guide

Replacing Ink Cartridges

Temporarily Printing with Black Ink - Windows

1. When the following window is displayed, cancel printing.

Note:

If you cannot cancel printing from the computer, cancel using the printer's control panel.

2. Access the printer driver window.

3. Clear Borderless on the Main tab.

4. Select plain papers or Envelope as the Paper Type setting on the Main tab.

User's Guide

Replacing Ink Cartridges

5. Select Grayscale.

6. Set the other items on the Main and More Options tabs as necessary, and then click OK.

Click Print.

8. Click Print in Black in the window displayed.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35 & “Printing Basics - Windows” on page 46

Temporarily Printing with Black Ink - Mac OS X

Note: To use this feature through a network, connect with Bonjour.

1. Click the printer icon in the Dock.

Cancel the job.

Note:

If you cannot cancel printing from the computer, cancel using the printer's control panel.

3. Select System Preferences from the menu > Printers & Scanners (or Print & Scan, Print & Fax), and then select the printer. Click Options & Supplies > Options (or Driver).

Select On as the Permit temporary black printing setting.

5. Access the print dialog.

6. Select Print Settings from the pop-up menu.

Select any paper size except for a borderless size as the Paper Size setting.

8. Select plain papers or Envelope as the Media Type setting.

9. Select Grayscale.

10. Set the other items as necessary.

11.

Click Print.

Related Information

& “Canceling Printing - Mac OS X” on page 67 & “Loading Paper in the Rear Paper Feed” on page 35 & “Printing Basics - Mac OS X” on page 48

User's Guide

Replacing Ink Cartridges

Conserving Black Ink when the Black Ink Is Low (for Windows Only)

When black ink is running low and there is enough color ink remaining, you can use a mixture of color inks to create black. You can continue printing while preparing a replacement black ink cartridge.

is feature is only available when you select the following settings in the printer driver.

❏ Paper Type: plain papers

❏ Quality: Standard

❏ EPSON Status Monitor 3: Enabled

Note:

❏ If EPSON Status Monitor 3 is disabled, access the printer driver, click Extended Settings on the Maintenance tab, and

then select Enable EPSON Status Monitor 3.

❏ Composite black looks slightly dierent from pure black. In addition, the print speed is reduced.

❏ To maintain the quality of the print head, black ink is also consumed.

Options Description

Yes Select to use a mixture of color inks to create black. This window is displayed the next time

you print a similar job.

No Select to continue using the remaining black ink. This window is displayed the next time

you print a similar job.

Disable this feature Select to continue using the remaining black ink. This window is not displayed until you

replace the black ink cartridge and it runs low again.

User's Guide

Maintaining the Printer

Checking and Cleaning the Print Head

If the nozzles are clogged, the printouts become faint, there is visible banding, or unexpected colors appear. When print quality has declined, use the nozzle check feature and check if the nozzles are clogged. If the nozzles are clogged, clean the print head.

Important:

❏ Do not open the scanner unit or turn o the printer during head cleaning. If the head cleaning is incomplete, you

may not be able to print.

❏ Because print head cleaning uses some ink, clean the print head only if quality declines.

❏ When ink is low, you may not be able to clean the print head. Replace the ink cartridge rst.

❏ If print quality has not improved aer repeating nozzle check and head cleaning about four times, wait for at

least six hours without printing, and then run the nozzle check again and repeat the head cleaning if necessary. We recommend to turn o the printer. If print quality has still not improved, contact Epson support.

❏ To prevent the print head from drying out, do not unplug the printer while the power is on.

Checking and Cleaning the Print Head - Control Panel

1. Load A4-size plain paper in the printer.

2. Enter Setup from the home screen using the

3. Select Maintenance using the

4. Select Nozzle Check using the

5. Follow the on-screen instructions to print the nozzle check pattern.

6. Examine the printed pattern. If there are broken lines or missing segments as shown in the "NG" pattern, the print head nozzles may be clogged. Go to the next step. If you cannot see any broken lines or missing segments as in the following "OK" pattern, the nozzles are not clogged. Print head cleaning is not necessary. Select No

using the

or d button, and then press the OK button to exit.

or r button, and then press the OK button.

User's Guide

Maintaining the Printer

7. Select Ye s using the d or u button, and then press the OK button.

8. Follow the on-screen instructions to clean the print head.

9. When cleaning is instructions to print the nozzle check pattern again. Repeat cleaning and printing the pattern until all lines are printed completely.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35

nished,

select Nozzle Check using the

or u button, and then follow the on-screen

Checking and Cleaning the Print Head - Windows

1. Load A4-size plain paper in the printer.

2. Access the printer driver window.

3. Click Nozzle Check on the Maintenance tab.

4. Follow the on-screen instructions.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35 & “Windows Printer Driver” on page 106

Checking and Cleaning the Print Head - Mac OS X

1. Load A4-size plain paper in the printer.

2. Select System Preferences from the then select the printer.

3. Click Options & Supplies > Utility > Open Printer Utility.

menu > Printers & Scanners (or Print & Scan, Print & Fax), and

4. Click Nozzle Check.

5. Follow the on-screen instructions.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35

Aligning the Print Head

If you notice a misalignment of vertical lines or blurred images, align the print head.

User's Guide

Maintaining the Printer

Aligning the Print Head - Control Panel

1. Load A4-size plain paper in the printer.

Enter Setup from the home screen using the

3. Select Maintenance using the

or r button, and then press the OK button.

4. Select Head Alignment using the

5. Follow the on-screen instructions to print the alignment pattern.

Follow the on-screen instructions to align the print head. Find and select the number for the most solid

pattern in each group using the

Note:

❏ e test pattern may vary by model.

❏ If print quality is not improved, align the print head from a computer.

Related Information

or r button, and then press the OK button.

or d button, and then press the OK button.

& “Loading Paper in the Rear Paper Feed” on page 35

Aligning the Print Head - Windows

1. Load A4-size plain paper in the printer.

2. Access the printer driver window.

3. Click Print Head Alignment on the Maintenance tab.

Follow the on-screen instructions.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35 & “Windows Printer Driver” on page 106

User's Guide

Maintaining the Printer

Aligning the Print Head - Mac OS X

1. Load A4-size plain paper in the printer.

2. Select System Preferences from the then select the printer.

3. Click Options & Supplies > Utility > Open Printer Utility.

Click Print Head Alignment.

5. Follow the on-screen instructions.

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35

menu > Printers & Scanners (or Print & Scan, Print & Fax), and

Cleaning the Paper Path

When the printouts are smeared or scued, clean the roller inside.

Important:

Do not use tissue paper to clean the inside of the printer. e print head nozzles may be clogged with lint.

1. Make sure there is no dust or stains on the scanner glass and the document cover.

2. Enter Setup from the home screen using the

3. Select Maintenance using the

4. Select Paper Guide Cleaning using the

5. Load A4-size plain paper in the printer.

6. Press the

e paper is ejected from the printer.

Note:

e printer continues to make operating sounds for a while aer the paper is ejected. is is normal and not a sign of a malfunction.

7. Repeat this procedure until the paper is not smeared with ink.

Note:

If you have a paper feed problem and if you have a cleaning sheet that came with Epson genuine paper, you may be able to solve the paper feed problem by using the cleaning sheet instead of using A4-size plain paper. When using the cleaning sheet, load the sheet in the printer following the instructions that came with the sheet. If a paper setup screen is

displayed, press the

button.

button to continue. Repeat the procedure several times using the cleaning sheet.

or r button, and then press the OK button.

User's Guide

Maintaining the Printer

Related Information

& “Loading Paper in the Rear Paper Feed” on page 35

Cleaning the Scanner Glass

When the copies or scanned images are smeared or scued, clean the scanner glass.

Important:

Never use alcohol or thinner to clean the printer.

1. Open the document cover.

chemicals can damage the printer.

ese

2. Use a so, dry, clean cloth to clean the surface of the scanner glass.

Note:

❏ If the glass surface is stained with grease or some other hard-to-remove material, use a small amount of glass cleaner

and a so cloth to remove it. Wipe o all remaining liquid.

❏ Do not press the glass surface too hard.

❏ Be careful not to scratch or damage the surface of the glass. A damaged glass surface can decrease the scan quality.

Saving Power

e printer enters sleep mode or turns o automatically if no operations are performed for a set period. You can adjust the time before power management is applied. Any increase will aect the product's energy eciency. Please consider the environment before making any change.

Saving Power - Control Panel

1. Enter Setup from the home screen using the l or r button, and then press the OK button.

2. Select Printer Setup using the

or r button, and then press the OK button.

3. Select Power O Timer or Sleep Timer using the

or r button, and then press the OK button.

User's Guide

Maintaining the Printer

4. Select the setting using the u or d button, and then press the OK button.

Saving Power - Windows

1. Access the printer driver window.

2. Click Printer and Option Information on the Maintenance tab.

3. Select the time period before the printer enters sleep mode as the Sleep Timer setting, and click Send. To make the printer turn o automatically, select the time period as the Power O Timer setting, and click Send.

4. Click OK.

Related Information

& “Windows Printer Driver” on page 106

Saving Power - Mac OS X

1. Select System Preferences from the menu > Printers & Scanners (or Print & Scan, Print & Fax), and then select the printer.

2. Click Options & Supplies > Utility > Open Printer Utility.

Click Printer Settings.

4. Select the time period before the printer enters sleep mode as the Sleep Timer setting, and click Apply. To make the printer turn o automatically, select the time period as the Power O Timer setting, and click Apply.

User's Guide

Menu Options for Setup Mode

By selecting Setup on the home screen from the control panel, you can make printer settings or perform printer maintenance.

Menu Options for Ink Levels

Select the menus on the control panel as described below.

Setup > Ink Levels

Displays the approximate levels of the ink cartridges. When an ! icon is displayed, the ink cartridge is running low. When a X mark is displayed, the ink cartridge is expended.

Menu Options for Maintenance

Select the menus on the control panel as described below.

Setup > Maintenance

Nozzle Check

Prints a pattern to check if the print head nozzles are clogged.

Head Cleaning

Cleans clogged nozzles in the print head.

Head Alignment

Adjusts the print head to improve print quality.

Ink Cartridge Replacement

Use this feature to replace the ink cartridges before the ink is expended.

Paper Guide Cleaning

Cleans the roller inside the printer. Use this feature when your printouts are smeared or when paper is not fed correctly.

Related Information

& “Checking and Cleaning the Print Head” on page 93 & “Aligning the Print Head” on page 94 & “Replacing Ink Cartridges” on page 85 & “Cleaning the Paper Path” on page 96

User's Guide

Menu Options for Setup Mode

Menu Options for Printer Setup

Select the menus on the control panel as described below.

Setup > Printer Setup

Paper Source Settings

❏ Paper Setup

Select the paper size and paper type you loaded in the paper source.

❏ Paper Setting Alert

Alerts you when the paper settings of a print job dier from the settings stored in the printer.

❏ Paper Conguration

Automatically displays the paper settings screen when paper is loaded. Disable this function if you always load the same size of paper and you do not want to make paper settings every time you load paper. AirPrint is not available when this is disabled. Also, the printer does not warn you even if the paper settings do not match the paper you loaded.

Quiet Mode

Reduces the noise the printer makes, however, this may reduce print speed. Depending on the paper type and print quality settings you selected, there may be no dierence in the printer's noise level.

Power O Timer

Automatically turns the printer o if no operations are performed for a period of time. You can adjust the time before power management is applied. Any increase will aect the product’s energy eciency. Please consider the environment before making any change.

Country/Region

Select the display country and region.

Language

Select the display language.

Sleep Timer

Select the time period before the printer enters sleep mode (energy saving mode) when no operations are performed. e LCD screen turns black when the set time passes.

Related Information

& “Saving Power” on page 97

Menu Options for Network Settings

Select the menus on the control panel as described below.

Setup > Network Settings

Print Status Sheet

100

EPSON XP-342 User Manual [nl]

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright

Trademarks

Contents

About This Manual

Introduction of Manuals

Marks and Symbols

Descriptions Used in this Manual

Operating System References

Important Instructions

Safety Instructions

Printer Advisories and Warnings
