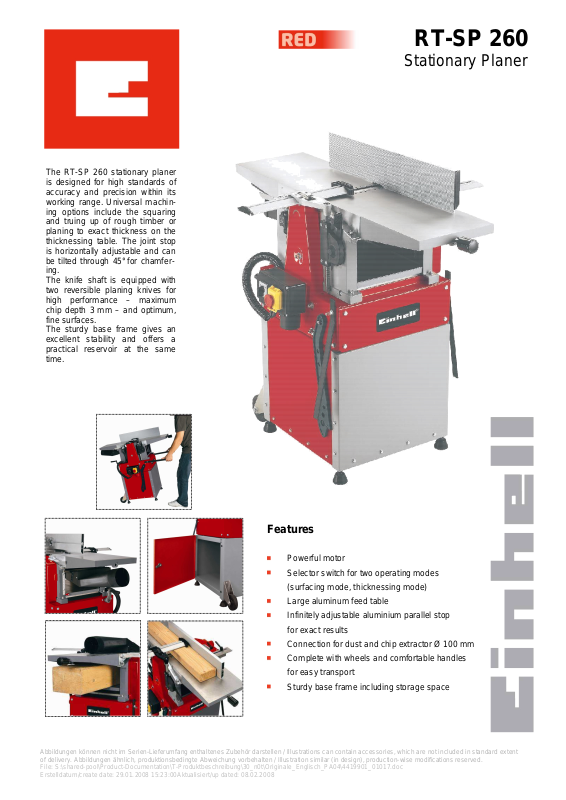

Einhell RT-SP 260 DATASHEET
RT
-
SP
260
The RT-SP 260 stationary planer
is designed for high standards of
accuracy and precision within its
working range. Universal machining options include the squaring
and truing up of rough timber or
planing to exact thickness on the
thicknessing table. The joint stop
is horizontally adjustable and can
be tilted through 45° for chamfering.
The knife shaft is equipped with
two reversible planing knives for
high performance – maximum
chip depth 3 mm – and optimum,
fine surfaces.
The sturdy base frame gives an
excellent stability and offers a
practical reservoir at the same
time.
Stationary Planer
Features
Powerful motor
Selector switch for two operating modes
(surfacing mode, thicknessing mode)
Large aluminum feed table
Infinitely adjustable aluminium parallel stop
for exact results
Connection for dust and chip extractor Ø 100 mm
Complete with wheels and comfortable handles
for easy transport
Sturdy base frame including storage space
Abbildungen können nicht im Serien-Lieferumfang enthaltenes Zubehör darstellen / Illustrations can contain accessories, which are not included in standard extent
of delivery. Abbildungen ähnlich, produktionsbedingte Abweichung vorbehalten / Illustration similar (in design), production-wise modifications reserved.
File: S:\shared-pool\Product-Documentation\T-Produktbeschreibung\30_n0t\Originale_Englisch_PA04\4419901_01017.doc
Erstelldatum/create date: 29.01.2008 15:23:00Aktualisiert/up dated: 08.02.2008
RT
-
SP 260
Ø 100 mm
Connection for dust
and chip extractor
Combined switch and
plug
Stationary Planer
Infinitely adjustable parallel
stop for exact results, for
chamfer tiltable up to 45°
Large massive aluminum feed
table
Complete with wheels
and comfortable handles
for easy transport
Logistic Information
Type:
Art.-No.:
Ident-No.:
Bar code:
Packing:
Sales unit: 1 pc
20’’:
40’’:
40’’ HC:
Weight: 90.0 kgs (gross)
Abbildungen können nicht im Serien-Lieferumfang enthaltenes Zubehör darstellen / Illustrations can contain accessories, which are not included in standard extent
of delivery. Abbildungen ähnlich, produktionsbedingte Abweichung vorbehalten / Illustration similar (in design), production-wise modifications reserved.
File: S:\shared-pool\Product-Documentation\T-Produktbeschreibung\30_n0t\Originale_Englisch_PA04\4419901_01017.doc
Erstelldatum/create date: 29.01.2008 15:23:00Aktualisiert/up dated: 08.02.2008
RT-SP 260
44.199.01
01017
4006825 541069
810 x 570 x 590 mm
112 pcs
224 pcs
--- pcs
Sturdy base frame
Incl. storage space
Technical Data
Voltage: 230 V ~ 50 Hz
Power: 2,000 W
Idle speed (planing knives): 6,500 min-1
Max. working width: 260 mm
Max. planing depth: 3 mm
Max. thicknessing depth: 3 mm
Max. thickness opening: 160 mm
Feeding speed: 5 m/min
Max. parallel guide tilt: 45°
