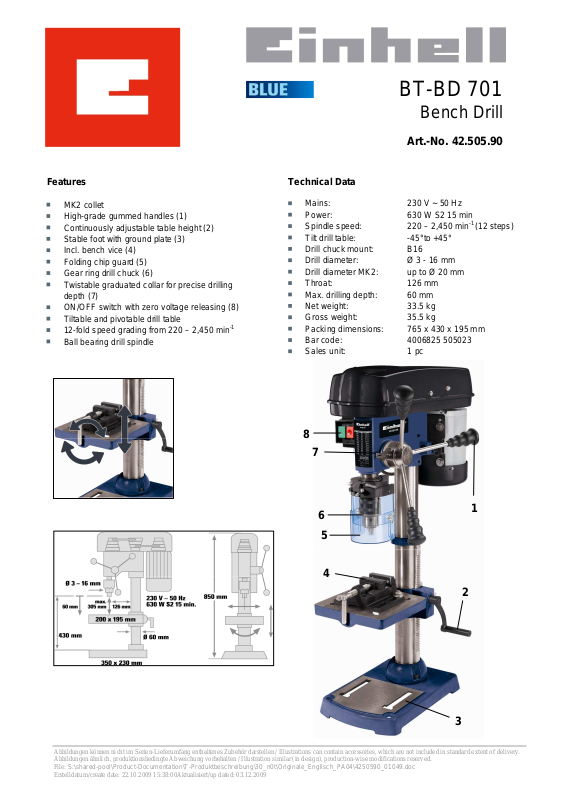

Einhell BT-BD 701 DATASHEET

Technical Data

Features

MK2 collet
High-grade gummed handles (1)
Continuously adjustable table height (2)
Stable foot with ground plate (3)
Incl. bench vice (4)
Folding chip guard (5)
Gear ring drill chuck (6)
Twistable graduated collar for precise drilling

depth (7)
ON/OFF switch with zero voltage releasing (8)
Tiltable and pivotable drill table
12-fold speed grading from 220 – 2,450 min-1
Ball bearing drill spindle

BT-BD 701

Bench Drill

Art.-No. 42.505.90

Mains: 230 V ~ 50 Hz
Power: 630 W S2 15 min
Spindle speed: 220 – 2,450 min
Tilt drill table: -45° to +45°
Drill chuck mount: B16
Drill diameter: Ø 3 - 16 mm
Drill diameter MK2: up to Ø 20 mm
Throat: 126 mm
Max. drilling depth: 60 mm
Net weight: 33.5 kg
Gross weight: 35.5 kg
Packing dimensions: 765 x 430 x 195 mm
Bar code: 4006825 505023
Sales unit: 1 pc

-1

(12 steps)

8

7

6

1

5

4

2

Abbildungen können nicht im Serien-Lieferumfang enthaltenes Zubehör darstellen / Illustrations can contain accessories, which are not included in standard extent of delivery.
Abbildungen ähnlich, produktionsbedingte Abweichung vorbehalten / Illustration similar (in design), production-wise modifications reserved.
