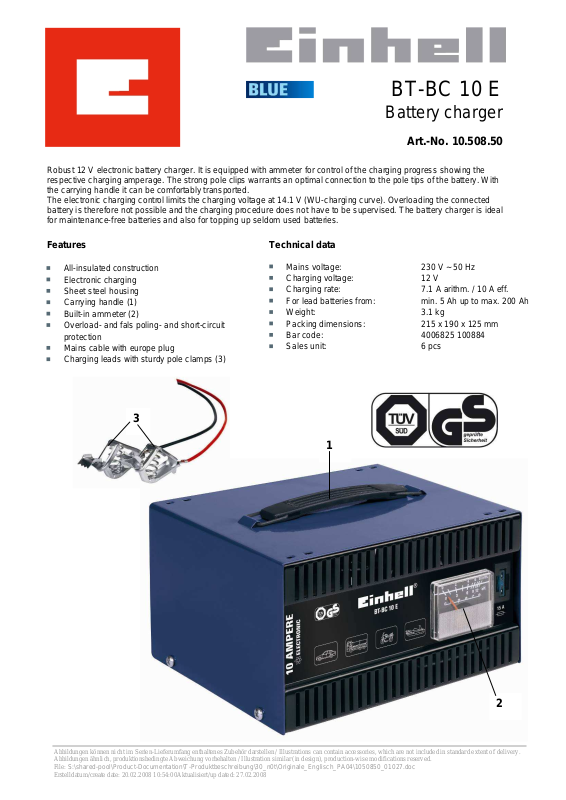

Einhell BT-BC 10 E DATASHEET

Technical data

Features

BT-BC 10 E

Robust 12 V electronic battery charger. It is equipped with ammeter for control of the charging progress showing the
respective charging amperage. The strong pole clips warrants an optimal connection to the pole tips of the battery. With
the carrying handle it can be comfortably transported.
The electronic charging control limits the charging voltage at 14.1 V (WU-charging curve). Overloading the connected
battery is therefore not possible and the charging procedure does not have to be supervised. The battery charger is ideal
for maintenance-free batteries and also for topping up seldom used batteries.

All-insulated construction
Electronic charging
Sheet steel housing
Carrying handle (1)
Built-in ammeter (2)
Overload- and fals poling- and short-circuit

protection
Mains cable with europe plug
Charging leads with sturdy pole clamps (3)

3

Mains voltage: 230 V ~ 50 Hz
Charging voltage: 12 V
Charging rate: 7.1 A arithm. / 10 A eff.
For lead batteries from: min. 5 Ah up to max. 200 Ah
Weight: 3.1 kg
Packing dimensions: 215 x 190 x 125 mm
Bar code: 4006825 100884
Sales unit: 6 pcs

1

Battery charger

Art.-No. 10.508.50

Abbildungen können nicht im Serien-Lieferumfang enthaltenes Zubehör darstellen / Illustrations can contain accessories, which are not included in standard extent of delivery.
Abbildungen ähnlich, produktionsbedingte Abweichung vorbehalten / Illustration similar (in design), production-wise modifications reserved.
