Page 1

D-Link DP-300U

Fast Ethernet Print Server

Manual

Rev. 01 (November, 2007)

Page 2

Contents

Package Contents.........................................................................................iv

Contents of Package: .............................................................................iv

System Requirements: ...........................................................................iv

Introduction................................................................................................... 1

External Features..........................................................................................3

Port Connectors.......................................................................................3

Rear Panel......................................................................................................4

Network Cable Connector ......................................................................4

USB Port Connector ...............................................................................4

Parallel Port Connector...........................................................................4

DC Power Connector..............................................................................4

Front Panel....................................................................................................5

LED Indicators........................................................................................5

Setting up the DP-300U................................................................................6

Installing the Print Server.......................................................................6

Power ON Self-Test................................................................................6

Getting Started..............................................................................................8

Using PS-Wizard...........................................................................................9

Auto-Run Installation .............................................................................9

PS-Wizard.............................................................................................10

Installing PS-Wizard............................................................................. 10

Using PS-Wizard................................................................................... 14

Using the Web Configuration ....................................................................20

Home.....................................................................................................20

SETUP > Print Server Setup.................................................................22

Page 3

SETUP > LAN Setup............................................................................24

SETUP > Printer Setup.........................................................................25

ADVANCED > Advanced LAN........................................................... 33

ADVANCED > User Access................................................................. 35

ADVANCED > E-Mail Notification.....................................................36

ADVANCED > SNMP .........................................................................38

MAINTENANCE > Password..............................................................39

MAINTENANCE > Save/Restore Settings.......................................... 40

MAINTENANCE > Firmware Upgrade...............................................41

MAINTENANCE > Diagnostics..........................................................42

STATUS > Device Info.........................................................................43

STATUS > Network..............................................................................45

STATUS >Print Log.............................................................................. 47

HELP ....................................................................................................48

Reboot...................................................................................................49

Refresh Printer Status ...........................................................................50

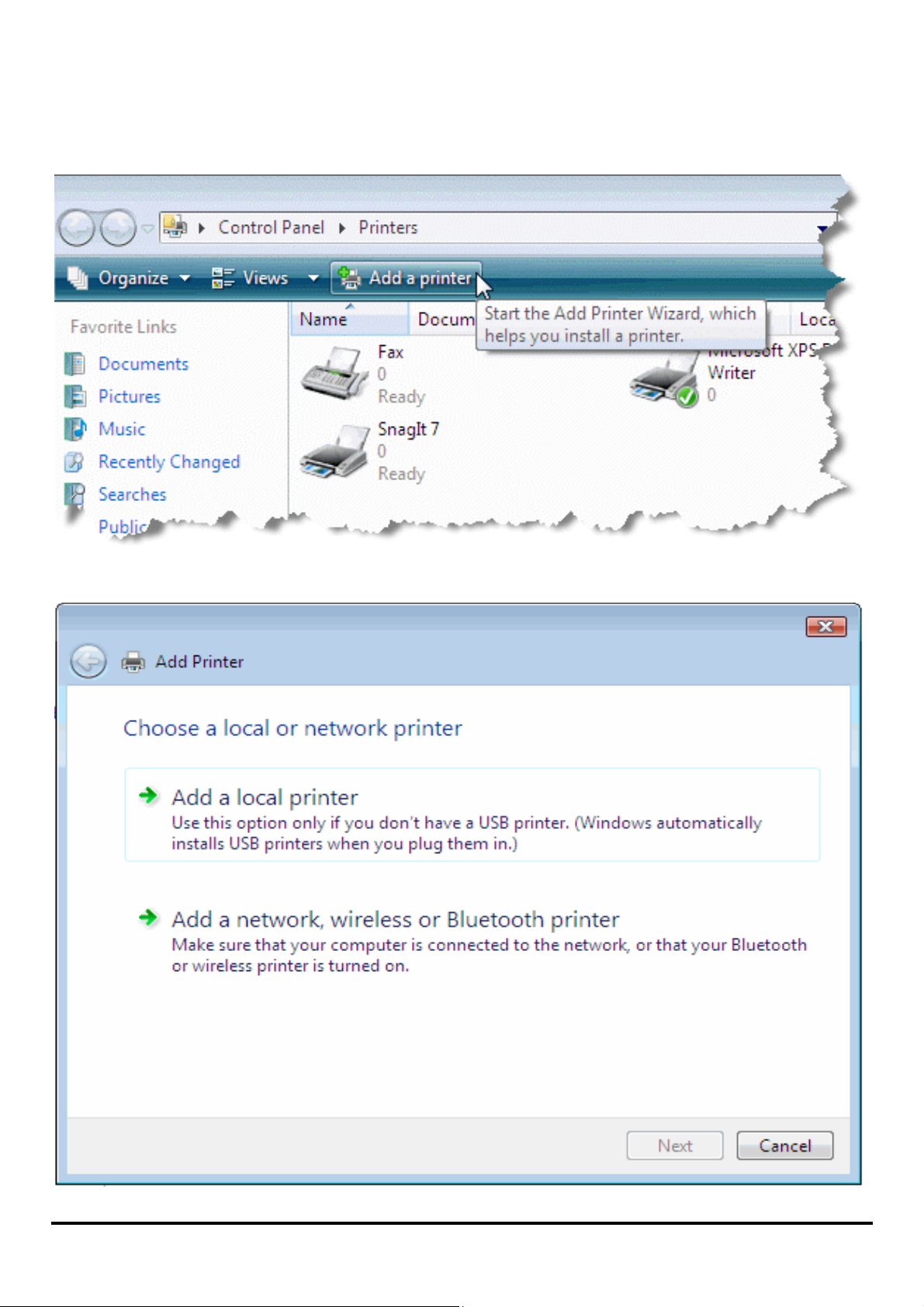

TCP/IP Printing for Windows Vista.......................................................... 51

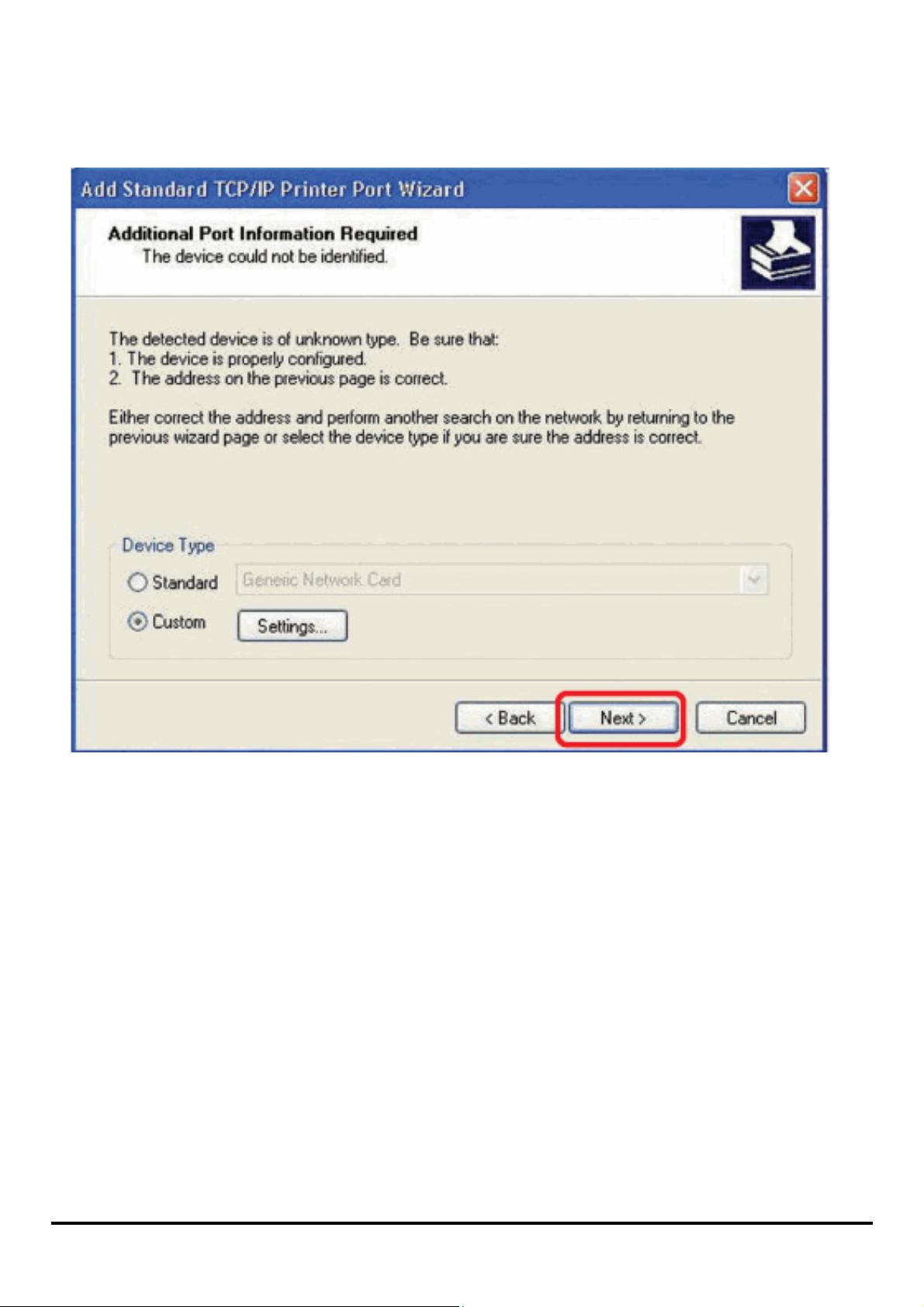

TCP/IP Printing for Windows XP............................................................. 63

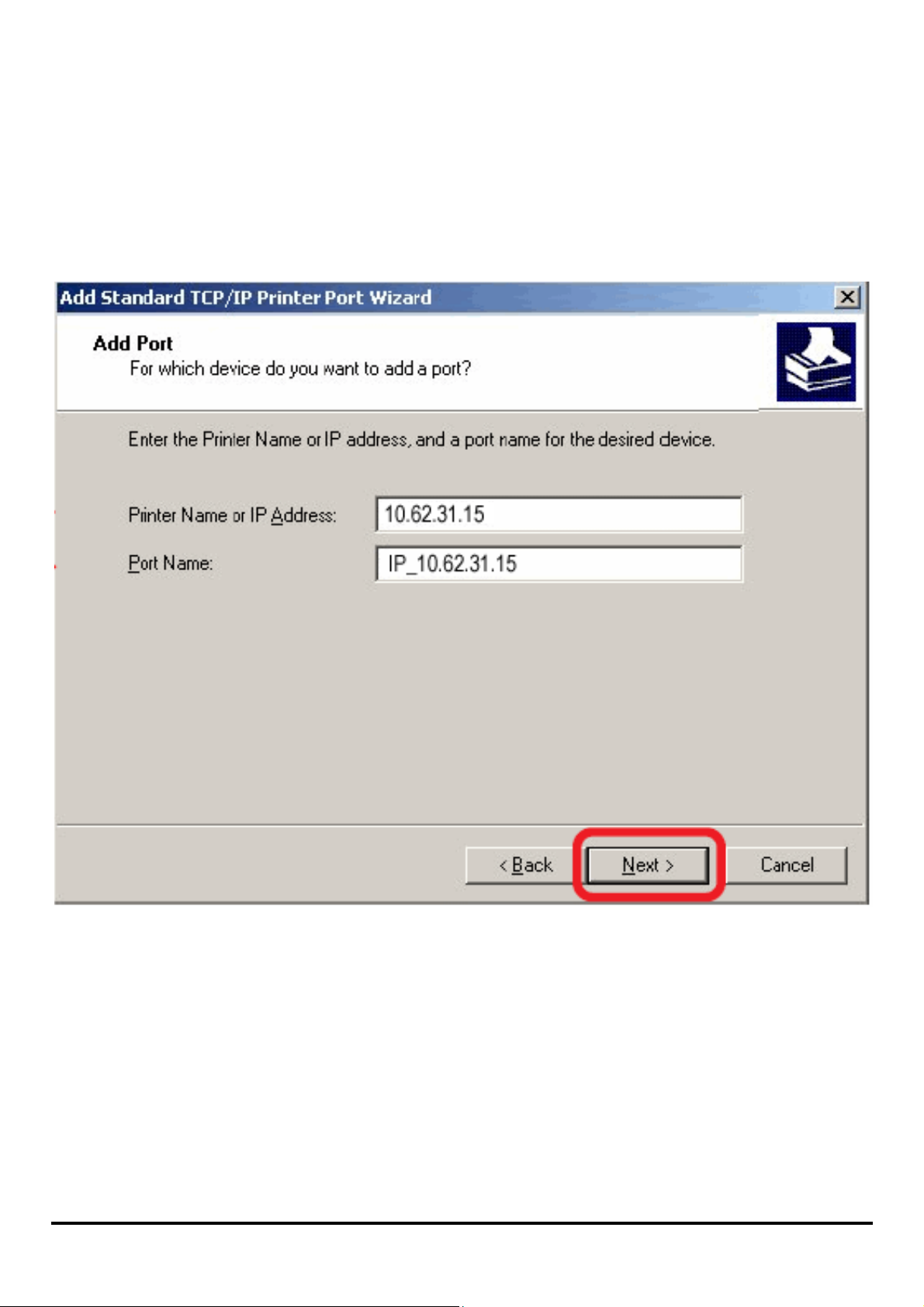

TCP/IP Printing for Windows 2000 .......................................................... 76

TCP/IP Printing for Windows 98SE/ME..................................................94

Unix/Linux Printing.................................................................................. 107

Printing Text Files form Unix.............................................................107

Printing form BSD Unix Versions ...................................................... 108

Printing from SCO Unix System V/386............................................. 111



Printing from Solaris........................................................................... 113

Printing from Red Hat Linux.............................................................. 114

Setting up Printing in Mac OS X Tiger (10.4)........................................121

Page 4

Adding a Printer.................................................................................. 123

AppleTalk-enabled or Bonjour-enabled Printers ................................125

Setting up AppleTalk or LPR Printing in Mac OS X ............................ 135

Setting up AppleTalk Printing in Mac OS 9...........................................140

Technical Specifications............................................................................145

Appendix: DP-300U Printer Compatibility List....................................146

iii

Page 5

Package Contents

Contents of Package:

 D-Link DP-300U Print Server  Manual and Warranty on CD  Printed Quick Installation Guide

If any of the above items are m i ss ing, please contact your reseller.

System Requirements:

 A computer with an installed Ethernet adapter  Windows Vista/XP/2000/NT4/ME/98SE/95  Apple Mac OS 9.x to MAC OS X 10.4.x  Linux, Solaris, SCO Unix, AIX  Internet Explorer 6.0 or above; Netscape Navigator version 6.0 or above, with

JavaScript enabled

 Printer must s upport required operating system

Page 6

Introduction

The D-Link DP-300U Print Server is print server that connects to your Ethernet/Fast Ethernet network anywhere you wish to locate printer services. The DP-300U manages the flow of print files from workstations or file servers to connected printers, delivering print jobs to printers much faster than a file server or a PC acting as a print server can.

The DP-300U includes easy-to-use software to install on most Windows-based networks. Protocol support for TCP/IP, NetBEUI, and AppleTalk are provided to ensure seamless connection to major networking Operating Systems.

The DP-300U has a built in Web-Based management feature that allows users to easily configure and manage multiple print queues through TCP/IP. The DP-300U also supports Telnet as an alternative method to configure the unit.

The DP-300U improves network printing services in the following ways:

 The DP-300U picks up the worklo ad of m a nag i ng pri nt file traffic to its connected

printers. This provides workload relief to your file servers, and allows the file servers full capacity to be used for file access or other direct services to network users. On peer-to-peer networks, workstations can print directly to the Print Server without increasing the load of another workstation or server.

 The DP-300U’s two parallel printer ports are IEEE1284-compliant high-speed

bi-directional port and its USB printer port is USB 2.0 port, which can transmit to high-speed laser print er much faster than a PC’s parallel/USB pr i nter por t. High-speed laser printer connected to the Print Server’s parallel/USB port can be operated at their full capacity.

Page 7

 Because the DP-300U is very portable and inexpensive compared to a PC-based

print server, and Print Server connects to your file servers through the network, printers can be deployed to locations of maximum convenience to users.

The DP-300U offers extraordinary flexibility, operating with all major network operating systems and protocols:

 TCP/IP

UNIX lpr/lpd (HP-UX, SunOS, Solaris, SCO, UnixWare, IBM AIX) Windows NT/2000, Windows 95/98SE/ME, Windows XP/Vista, NetWare 5.x NDPS LPR Remote

Printing

 NetBEUI

Windows NT/2000/XP, Windows 95/98SE/ME, Windows for Workgroups, Microsoft LAN Manager, IBM LAN Server

 AppleTalk

MacOS EtherTalk Furthermore, the print server features a useful software: PS-Wizard. PS-Wizard is a user-friendly program used to complete further settings for the print server, and assists you to easily add a printer on your computer. See also the “Using The PS-Wizard” chapter in this manual for th e details. The print server also supports configuration and management via the Telnet protocol for networks without Windows-compatible machines.

Page 8

External Features

Port Connectors

The DP-300U has two parallel ports and one USB port loc at e d on its back panel. The ports are configurable using the Web Configuration Interface or the print server’s Telnet interface. The Print Server’s Web configuration permits users to configure settings through the web browser. Default IP Address of DP-300U is set as automatically getting from DHCP server or Router which build-in DHCP server.

NOTE: The PC’s IP Address must be in the same subn et as the pr int server’s IP

Address for the two devices to commun icat e. (For example, if print server’s IP Address is 192.168.0.10, with a subnet mask of 255.255.255.0, then your computer’s IP Address should be 192.168.0.x, where x is a value between 1-254, excluding 10.)

Page 9

Rear Panel

DC Power Connector

Parallel Port Connector

USB Port Connector

Network Cable Connector

The Print Server’s rear panel features an RJ-45 connector for connecti on to 10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5 twisted-pair cable). The port supports the NWay protocol, allowing the Print Server to automatically detect or negotiate the transmission speed of the network.

USB Port Connector

The rear panel of the print server featu res the USB port connector. Plug this connector directly into the USB port on your network printer via a USB cable.

Parallel Port Connector

The rear panel of the print server featur es two parallel port connect o r s. Conn ect this port to the parallel port on your network printer with a parallel cable.

DC Power Connector

The DC power input connector is located on the Print Server ’s rear panel and is labeled DC 5V.

Page 10

Front Panel

LED Indicators

The front panel of the print server features five LED indicators:

LED Indictors

 Power

Steady green confirms that the Print Server is powered ON.

 Link/Act

S teady green confirms that the Print Server has a good connection to the Ethernet or Fast Ethernet network. The indicator blinks off briefly to indicate that the Print Server is receiving or transmitting from the network.

 USB

Lights up to indicate printing activity.

 LPT1/LPT2

Lights up to indicate printing activity.

These five indicators are also used by the Print Server’s Power-ON Self Test (POST) to indicate any hardware failures.

Page 11

Setting up the DP-300U

Installing the Print Server

WARNING: Configuration problems may result if the Print Server is powered up

without first establishing its network connection.

Follow this procedure to avoid complications at the configuration stage.

1. Confirm proper operation of the printers to be connected to the DP-300U.

2. When you have confirme d prope r ope rati on of the printer, switch its power OFF.

3. Confirm that your network is operating normally.

4. Connect the DP-300U RJ-45 Connector to the network, using an Ethernet CAT5 cable.

5. While the printer is powered OFF, install the corresponding parallel or USB printer cable to connect the printer’s parallel port or USB port to the printer port of the Print Server

6. Switch on the connected printer.

7. Plug the AC power adapter’s DC output plug into the DC 5V power socket on the rear panel of the Print Server.

8. Plug the power adapter into a power o utlet. This will supply power to the Print Server, as it has no external power switch. The green Power LED on the Print Server’s front panel should illuminate steadily, and the Print Server’s Self-Test will proceed.

Power ON Self-Test

Every DP-300U has been factory-tested to operate properly.

When the DP-300U is powered ON, it also automatically performs a Self-Test on each of its major components. The final result of the Self-Test is signaled by the state of the LPT/USB LED indicator following the Self-Test. Preliminary to the actual component tests, the five LED indicators are tested to confirm their steady

Page 12

and flashing operation.

Immediately after power-up, all five of the green LEDs should illuminate steadily for several seconds. Then the LPT1, LPT2 and USB LED indicators should light OFF. Irregularity of any of the three LEDs during these LED tests may mean there is a problem with the LEDs themselves.

The actual component tests immediately follow the LED tests. A normal (no fault) result is signaled by a simultaneous flashing of the LPT/USB LED three times, followed by a quiescent state with the LPT/USB LED dark.

If the Self-Test routine traps any component error, then following the LED test s t he Self-Test will halt and the LPT/USB LED will continuously signal the error according to the following table. In the event of any such error signal, contact your dealer for correction of the faulty unit.

LPT/USB LED Faulty Component

On DRAM error

1 long 3 short Flash Protected 1 long 5 short Flash Erase/Program error 1 long 6 short LAN Controller error 1 long 8 short LPT Controller error 1 long 9 short LPT error 1 long 14 short LAN MII error 1 long 18 short USB error 1 long 19 short PCI error

Page 13

Getting Started

Below is a sample network u sin g t h e DP- 300U. The DP-300U has a built- in Web-based management feature that allows users to easily configure and manage multiple print queues through TCP/IP.

For a list of printers that are compatible with the DP-300U, please see the Appendix in this manual. The compatibility list is not comprehensive. Even if it is not included in the list, your printer may be compatible with the DP-300U.

Page 14

Using PS-Wizard

This chapter will introduce you the installation and operation of a useful software program – PS-Wizard.

Auto-Run Installation

Insert the Installation CD-ROM into your computer’s CD-ROM drive to initiate the Auto-Run program. The content of the Inst all at ion CD-ROM includes:

y View Quick Installation Guide - click to preview the Quick Installation Guide in

PDF format f or step-b y -step inst r uctions of t he print serv er Installat ion.

• View Manual – click to preview the User's Guide in PDF format for detailed information of the pr int server.

• Install Acrobat Reader – click to launch Acrobat Reader for the viewing and printing of PDF files in the Installation CD-ROM.

• Install PS-Wizard – click to install PS-Wizard to complete further settings for the print server, such as:

- Changing IP address

- Adding a printer on your computer in the easiest way.

• Close – click to close the Auto-Run program.

Page 15

PS-Wizard

To avoid the conflict in your network, you can use PS-Wizard to change the related settings of your print server (such as the IP address) after finishing the installation of

PS-Wizard on your PC.

Installing PS- W izard

1. Click the PSWizardSetup icon of the Installation CD-ROM, and then the system

will prompt a window for you to select a desired setup language from its pull-down list. After done the selection of language, click OK to continue.

Page 16

2. Click Next> in the welcome window of InstallShield Wizard.

3. Specify the destination location by clicking the Browse… button. Otherwise,

leave the default setting and click Next> to continue.

Page 17

4. You may enter a new folder name in the Program Folder field if you want to change the default name. Oth erwise, you may leave the default setting and click Next> to go on the installation.

Page 18

5. The InstallShield Wizard starts to install the software, and the Progress bar indicates the installation is proceeding until the following window shows up. Click Finish to complete the installation.

After installing the program, the application program for the print server is automatically installed to your computer, and creates a folder in StartÎ ProgramsÎ PS-Wizard.

Page 19

Using PS-Wizard

PS-Wizard, supports for W indows 2000 /XP/2003/V ist a, is a simple and useful tool

for you easily adding a printer on your computer in order to quickly start your printing task without any complicated configuration. That is, the main goal and advantage of the PS-Wizard is to let you add a printer o n your PC in the easiest way.

Furthermore, the PS-Wizard also allows you to set up IP addresses of print server, such as IP address, Subnet Mask address, and default Gateway address.

Go to StartÎ ProgramsÎ PS-Wizard, and select PS-Wizard.

Page 20

Print Server: This field allows you to manually discover the connected print

server and to do further configuration of the print server that is selected from the list.

Page 21

LAN: You may also to specify dynamic or static IP address for your print

server. Then click Apply button to implement the new setting.

Port Information: This is the main function of the PS-Wizard for you to

easily add a printer on your computer.

To add a printer, click

, then the following window will display.

Page 22

The wizard provides three ways for you to select printer driver:

1. Show current installed drivers:

You may select this option, “Show currently installed drivers”, to check if the same printer driver already existed for use. If not, you may try the next method. After done the selection of pri n te r driver, click Next> button to continue.

2. Select from manufacturer list :

Check this option, “Select from manufacturer list”, to manually select your printer from drop-down menus by brand and model. Click Next> to continue when you find a desired driver. If not, try the last way (Have Disk). After done the selection of printer driver, click Next> to conti nue.

3. Have Disk:

Click Have Disk to bring up the following window. Insert the manufacture’s installation CD-ROM to ins tall the p rinter driver. Af ter the correct driver is selected, click OK to continue.

After selecting the printer driver, the wizard will ask yo u to confirm your selectio n again in the following window. Beside, you are allowed to edit the name of the

Page 23

printer in the Network Printer Name box and enable this printer as the default printer by checking the Use this printer as the default printer for Windows-based programs box.

After you did the verification and configuration in the following window, click Next> to continue. Then the printer (e.g. HP Laser 2000 used in this manual) will be auto-created in Printers and Faxes as the following illustration.

Page 24

When the following window shows up, you may do print test by clicking the Print Te st Pag e to ch eck if you can do printi ng normally. If yes, click Finish to exit the installation window and now you may start your printing tasks.

Page 25

Using the Web Configuration

Home

To begin managing th e DP-3 00U, simply launch the browser (e.g. Internet Explorer 6.0 used in this manual) you have installed on your computer and direct it to the URL address: dlink-xxxxxx, where xxxxxx are the last six digits of DP-300U’s MAC address. The MAC address can be found on the bottom side of the DP-300U device.

When you enter the correct URL, a password input dialog will pop up the following screen. Type “admin” in the User name box, leave the Password box as blank, and then click OK.

Then the main screen of the print server’s configuration will appear (see below). In addition to the product information, you can access and control the print server’s

Page 26

configuration through five links on the top of this main scree n: Setup, Advanced, Maintenance, Status, and Help. You may click a desired link from the bar, to display its submenu and select a desired option listed in the left column, and then the corresponding content will show up in the center column.

Page 27

SETUP > Print Server Setup

The Print Server Setup screen allows you to modify the Print Server Name and Port Settings, as below shows. D-Link does not recommend changing these

settings unless asked by your network administrator.

Page 28

Print Server Name

In this field, you can configure the basic information of print server. The basic information contains a name of the print server, assigned in Server Name box, and a location for the print server, assigned in Location (optional) box.

Port Settings

In this field, you can assign the Port Name for the print server, and the description for the Printer port. It also allows you to select the PJL Printer setting (Yes or No).

NOTE: PJL (Printer Job Language) has certain job requirements that must

be met to work correctly. For more information, please refer to y our printer's manual.

Once you have changed the settings in each option, click Apply Settings to store the settings, or Cancel to abandon.

Page 29

SETUP > LAN Setup

The LAN Setup screen allows you configure the local network settings of print server. Please note that this section is optional and you should not need to change any of the settings here to get print server up and running.

TCP/IP

This field allows you to assign IP address in manual or automatic method. When you choose Manually Assign, you should enter the related information in the following boxes, including IP Address, Subnet Mask, and Default Gateway. Once you have changed the settings in each option, click Apply Settings to store the settings, or Cancel to abandon.

Page 30

SETUP > Printer Setup

The Printer Setup screen allows you install the printer dr i ver s for the printer currently connected to your print server.

Network Printer Wizard

Click Next to download and run a windows wizard program to install a network printer onto your compu ter. When you click Next, you will be asked to download and run some software.

Page 31

The above screen is the Network Printer Wizard. Click Run, and if a second window appears as below click Run again.

Select the printer required, and then click Next to continue.

Page 32

The wizard provides three ways for you to select printer driver:

1. Show current installed drivers:

Page 33

2. Select from manufacturer list :

Page 34

3. Have Disk:

Click Have Disk to bring up the following window. Insert the manufacture’s installation CD-ROM to inst all the printer driver . Af ter the correct driver is selected, click OK to continue.

Page 35

After selecting the printer driver, the wizard will ask yo u to confirm your selectio n again in the following window. Beside, you are allowed to edit the name of the printer in the Network Printer Name box and enable this printer as the default printer by checking the Use this printer as the default printer for Windows-based programs box.

Page 36

When the following window shows up, you may do print test by clicking Print Test

Page to check if you can do printing normally. If yes, click OK to close the PS-Wizard dialog box.

If yes, then click Finish to exit the installatio n win d ow and now you may start your printing tasks.

Page 37

32 33

Page 38

ADVANCED > Advanced LAN

The Advanced LAN screen allows you to further network setting of print server. It is not recommended not to change the settings unless instructed to modify the setting by your network administrator. The Advanced LAN screen contains th ese fields: TCP/IP, Microsoft Network, and AppleTalk.

Page 39

TCP/IP

This field contains four options that allow you to configu re the TCP/IP setting:

DNS Server Address, UPnP, Mac Bonjour/Rendezvous, and Second HTTP Port.

 UPnP: This option allows you to enable or disable UPnP function.  Mac Bonjour/Rendezvous: This option allows you to enable or disable Mac

Bonjour/Rendezvous function.

 Second HTTP Port: This option allows you to enable or disable Second

HTTP Port for remote Web Configuration and IPP Printing.

Microsoft Network

Enter the name of the Workgroup that you want the print server associated with in this field.

AppleT alk

Enter the AppleTalk Zone name in the box. In the following options, enter the related configuration, such as the printer type.

Chooser Name Printer Type PostScript Level Font Group

: Display the print server's port name.

: Enter the printer's type in this box.

: Select from the drop-down list (Level 1 or Level 2).

: Select from the drop-down list.

Once you have changed the settings in each option, click Apply Settings to store the settings, or Cancel to abandon.

Page 40

ADVANCED > User Access

The User Access screen allows you to create and maintain an authorized list of users that are allowed to access the print server.

User Access

By configuring the Enable Authorised User List option (Yes), the user in the User List is permitted to access the print server. Any user who is not added in the User List will not be allowed to access the print server. Once you have chan ged the settings in each option, click Apply Settings to store the settings, or Cancel to abandon.

Authorised Users

You can add or delete any user to or from the User List at the bottom of the screen. It displays the current defined user and related information for the print server.

Page 41

ADVANCED > E-Mail Notification

The E-Mail Notification screen allows you to assign an e-mail address to the print server, so that your mail of the account can be printed out directly through the printer ( ASCII text only). This screen also allow you choose where to send an email when the printer status changes.

Page 42

Enable E-mail Notification

You can set the print server to send an alert message when the printer status changes through e-mail. To enable this function, click Yes in Enable e-mail

notification. Then, input the administrator's e-mail address in the Destination e-mail Address box.

E-mail Account Details

You can assign an e-mail address to the print server, so that your mail of the account can be printed out directly through the printer (ASCII text only). To enable this function, enter the e-mail account in the Print Server E-mail Address box. Then, enter the server address, used to receive your e-mail in the Incoming

E-mail (POP3) Server Address box. For Outgoing E-mail (SMTP) Server Address field, enter the server address that is used to send your e-mail.

If your mail server needs to verify the user wh en sending e-mail, Print Server will apply the E-mail Account (POP3) Name and E-mail Account (POP3)

Password to the mail server.

E-mail Printing (To LPT1 Port)

This section is for you to do e-mail Printing configuration, including:

E-mail Printing (ASCII Text Only) printing. Check E-mail Interval

check/receive E-mail periodically. After done the configuration, click Apply Settings to restore the new configuration, or Cancel to abandon.

: Allow you to set up a time interval in minute in order to

: Allows you to enable or dis able the E-mail

Page 43

ADVANCED > SNMP

The SNMP screen allows you t o u se SNMP (Simple Network Manageme nt Protocol) to manage complex networks.

SNMP Management

Community 1/2/3 Right by selecting Read Only or Read/ Write from the drop-down list.

: Enter a name in the Name box, and configure the Access

Page 44

MAINTENANCE > Password

The Password screen allows you to change the password of the print server by entering the current password in Current Password and new password in New

Password and Confirm Password. After done the configuration, click Apply Settings to enable and restore the new password, or Cancel to abandon. Be

aware that the default password of the print server is blank.

Page 45

MAINTENANCE > Save/Restore Settings

The Save/Restore Settings screen not only allows you to save the current configuration in a computer for backup by clicking Save in Save Settings to Local Hard Dri ve, but also allows you to reload a configuration that you saved before by clicking Browse to direct to the backup file, and then clicking Update Settings for reloading. Beside, you are also allowed to return the print server to the default settings by clicking Restore Device in Restore to Factory Default Settings.

Page 46

MAINTENANCE > Firmware Upgrade

The Firmware Upgrade screen displays you the cur rent firmware’s informatio n of the print server, and also allows you to upgrade the firmware of the pr int server when a new version of firmware is available. Click Browse to point to the firmware file, and then click Upgrade.

Page 47

MAINTENANCE > Diagnostics

The Diagnostics screen allows you to test the printing for LPT/USB port of the print server. After selecting a port, click Print Test Page to print a test page.

Page 48

STATUS > Device In fo

The Device Info screen displays the status of your print server, printer, and network for your reference.

Page 49

Print Server Status

This field displays the information of the print server about the firmware version, MAC/IP address, and up time.

Printer Status

The items in this field display the information of the printer, such as the given name for the printer, speed, printer status, and status of your printing tasks, etc.

LAN Status

You can monitor the networking status in this field, including the network connection, speed, and the packets status.

Page 50

STATUS > Netw ork

The Network screen displays the general Network status of your print server.

Page 51

Auto IP

This field contains the current settings of TCP/IP, including DHCP/BOOTP, UPnP, and Mac Bonjour/Rendezvous. The items in this field are configured in Advanced

Æ Advanced LAN Æ TCP/IP.

TCP/IP Printing

In this field, you can monitor the status of your printing tasks through TCP/IP.

Microsoft Network Printing

In this field, you can monitor the status of your printing tasks through Microsoft Network.

Mac AppleT alk Printing

In this field, you can monitor the status of your printing tasks through Mac AppleTalk.

Page 52

STATUS >Print Log

The Print Log screen displays t he print ing record of the authorized users.

Print Log

The items in this field display the user(s) information, which include the user(s) MAC address, IP address, name, and status of printing tasks.

Page 53

HELP

The Help screen provides you brief information about the print server for your reference.

Page 54

Reboot

If you want to reset the print server, you may just click Reboot for restarting.

Page 55

Refresh Printer Status

Click a port name to refresh the status of the connected printer.

Page 56

TCP/IP Printing for Windows Vista

Go to Start Î Control Panel Î Printers.

Page 57

Click Add a printer.

Select the first option, Add a local printer, and then click Next.

Page 58

Select the second option, Create a new port, and highlight Standard TCP/IP Port from the pull-down menu. Click Next.

Page 59

Type the IP address of the print server (e.g. 10.62.31.15 used in this manual), which can be referred from the PRINTER SERVER STATUS of the print server’s Web configuration, and then the Port Name will automatically be filled in. Click Next

Page 60

55 56

Page 61

Select Custom and click Settings.

Then the follow screen will shows up, select LPR from the Protocol field. Then enter the Queue Name, which can be referred from PRINTER STATUS of the print server’s Web configuration, in the LPR Settings field. Click OK.

Page 62

Page 63

58 59

Page 64

Highlight the printer , as shown. If the desired printer is not on the list, click Have Disk and insert the printer driver disk that came with your printer to install the printer drivers. Click Next

Page 65

Click Next.

Page 66

After clicked Print a test page, a small dialogue box will show up as below. Click Close.

Page 67

Click Finish.

The printer is now ready for printing with Windows Vista on your network.

Page 68

TCP/IP Printing for Windows XP

Go to Start Î Printers and Faxes Î Add a Printer.

When the following screen shows up, click Next.

Page 69

Select the first option, Local printer attached to this computer, and click Next.

Page 70

Select the second option, Create a new port, and highlight Standard TCP/IP Port from the pull-down menu. Click Next.

Page 71

Page 72

67 68

Page 73

Select Custom and click Settings.

Page 74

Page 75

70 71

Page 76

Click Next.

Page 77

Click Finish.

Page 78

Highlight the printer , as shown. If the desired printer is not on the list, click Have Disk and insert the printer driver disk that came with your printer to install the printer drivers. Click Next

At this screen, you can input a name for the printer, and then click Next

Page 79

Select Yes to print a test page, click Next.

Page 80

Click Finish. The printer is now ready for printing with Windows XP on your network.

Page 81

TCP/IP Printing for Windows 2000

Go to Start Î Settings Î Printers and Faxes Î Add a Printer.

Page 82

When the following screen show s up, click Next.

Page 83

Select the first option, Local printer attached to this computer, and click Next.

Page 84

Click Next.

Page 85

Select the second option, Create a new port, and highlight Standard TCP/IP Port from the pull-down menu. Click Next.

Page 86

Click Next.

Page 87

Type the IP address of the print server (e.g. 10.62.31.15 used in this manual), which can be checked from the PRINTER SERVER STAT US of the pr in t s er ver’s Web configuration, and then the Port Name will automatically be filled in. Click Next

Page 88

83 84

Page 89

Select Custom and click Settings.

Page 90

Page 91

86 87

Page 92

Click Next.

Page 93

Click Finish.

Page 94

Highlight the printer , as shown. If the desired printer is not on the list, click Have Disk and insert the printer driver disk that came with your printer to install the printer drivers. Click Next.

Page 95
