D-Link DCS-7413 User Manual

Version 1.0 | 07/10/2012

User Manual

Full HD Day & Night Outdoor Network Camera

DCS-7413

Preface

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change.

Manual Revisions

Revision Date Description

1.0 July 10, 2012 DCS-7413 Revision A1 with rmware version 1.00

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other
countries. All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.

Copyright © 2012 D-Link Corporation.

All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.

2D-Link DCS-7413 User Manual

Table of Contents

Product Overview .........................................................................4

Package Contents .................................................................4

Introduction ............................................................................ 5

System Requirements ......................................................... 5

Features .................................................................................... 6

Hardware Overview .............................................................7

Front ...................................................................................... 7

Sides ......................................................................................8

Cable Harness..................................................................... 9

Internal ...............................................................................10

Assembly and Installation .......................................................11

Installing an SD Card .........................................................11

Mounting the Camera .......................................................13

Attaching the Camera to the Wire-in Bracket .......14

Orienting the Camera ....................................................16

Deploying the Camera ..................................................17

Camera Installation Wizard .............................................19

Network Setup .................................................................34

Dynamic DNS ...................................................................37

Image Setup .....................................................................38

Audio and Video ..............................................................40

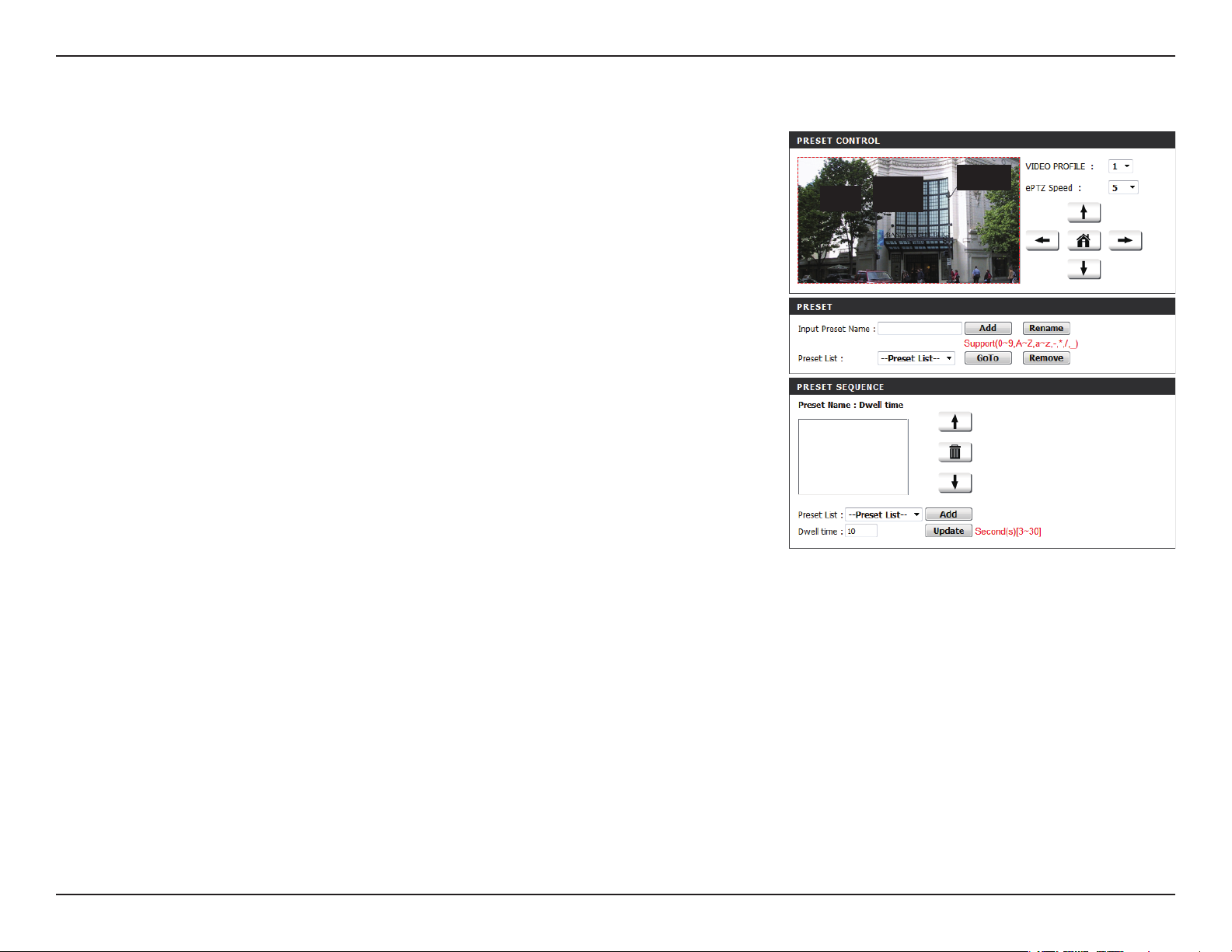

Preset ...................................................................................42

Motion Detection ...........................................................44

Time and Date ..................................................................45

Event Setup .......................................................................46

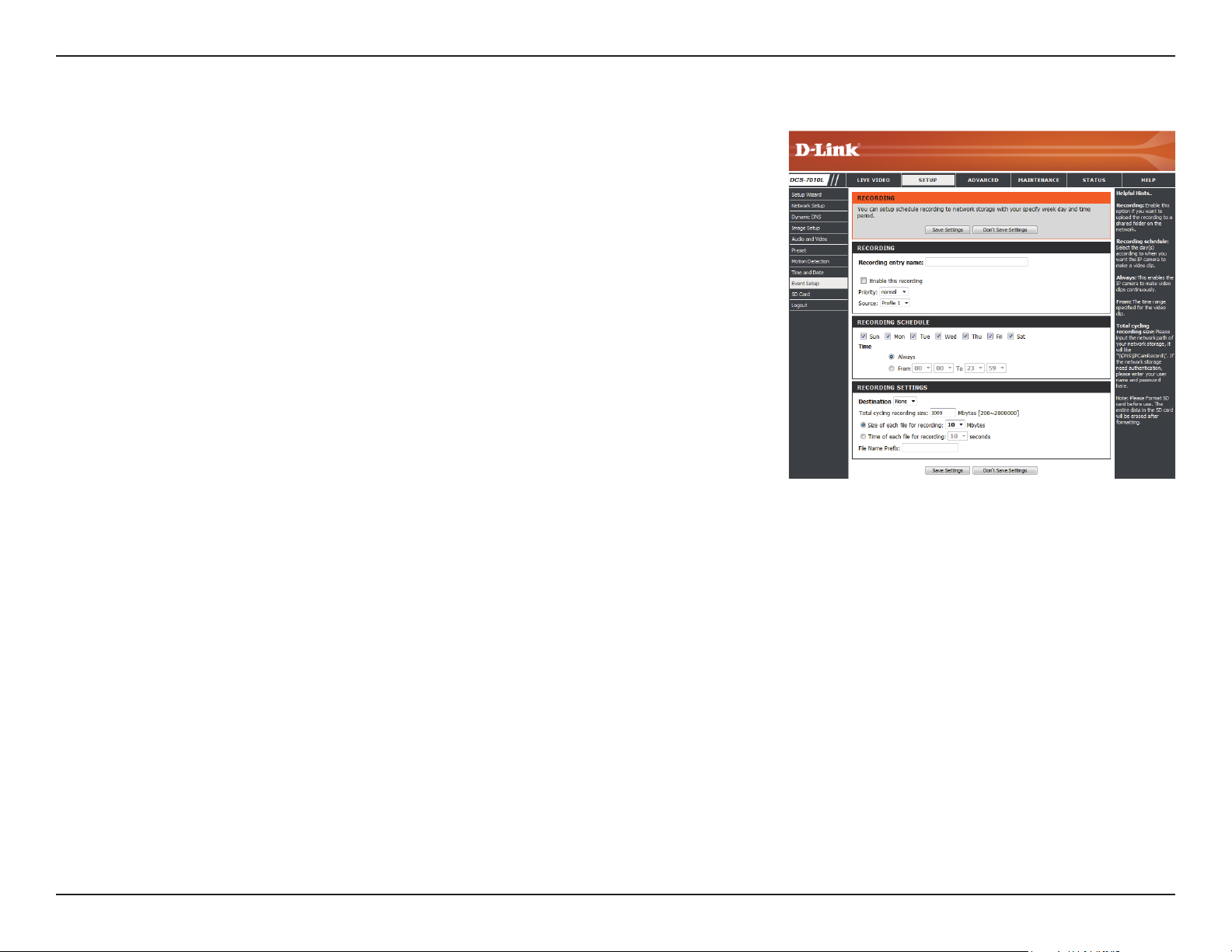

SD Card ...............................................................................54

Advanced ...............................................................................55

Digital Input/Output ......................................................55

ICR and IR ...........................................................................56

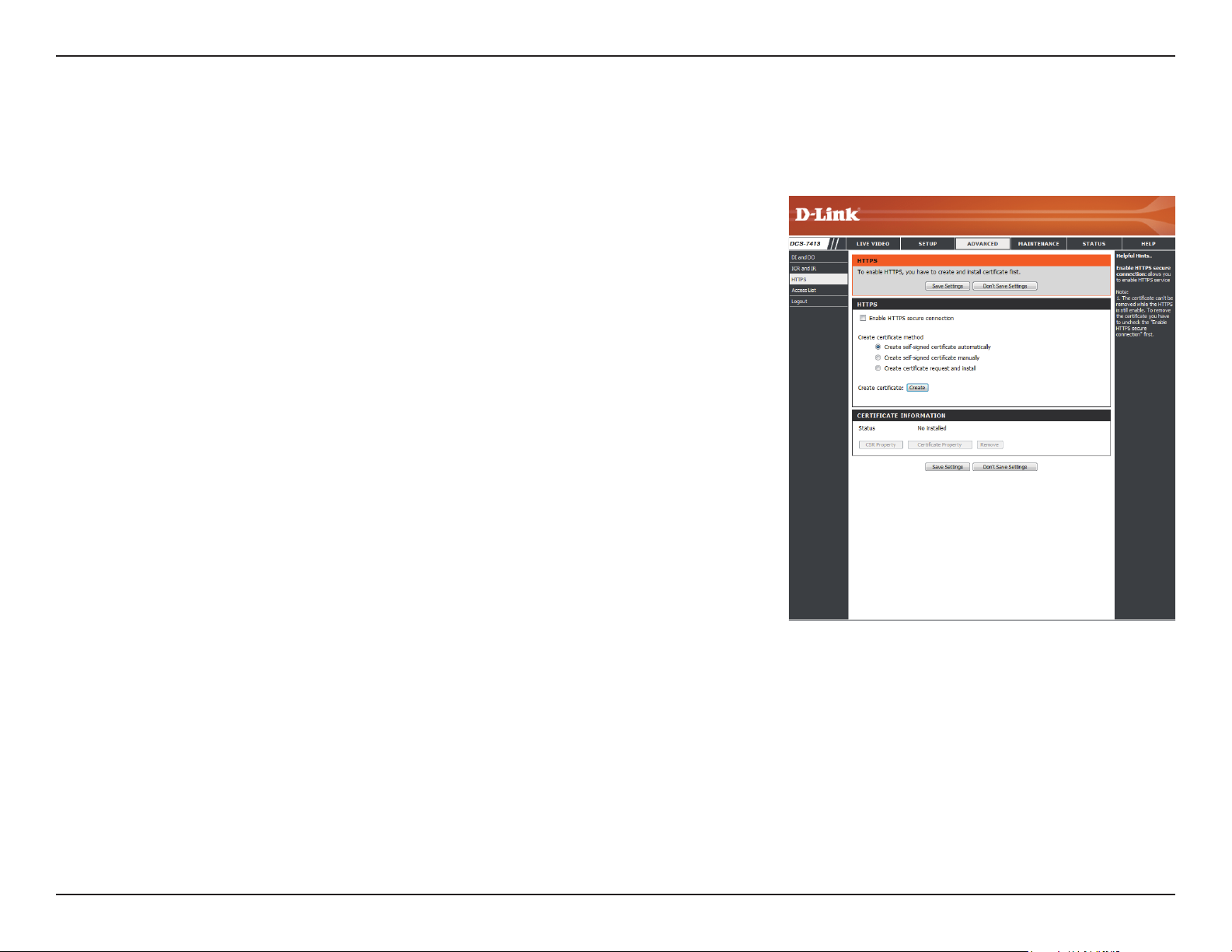

HTTPS ..................................................................................57

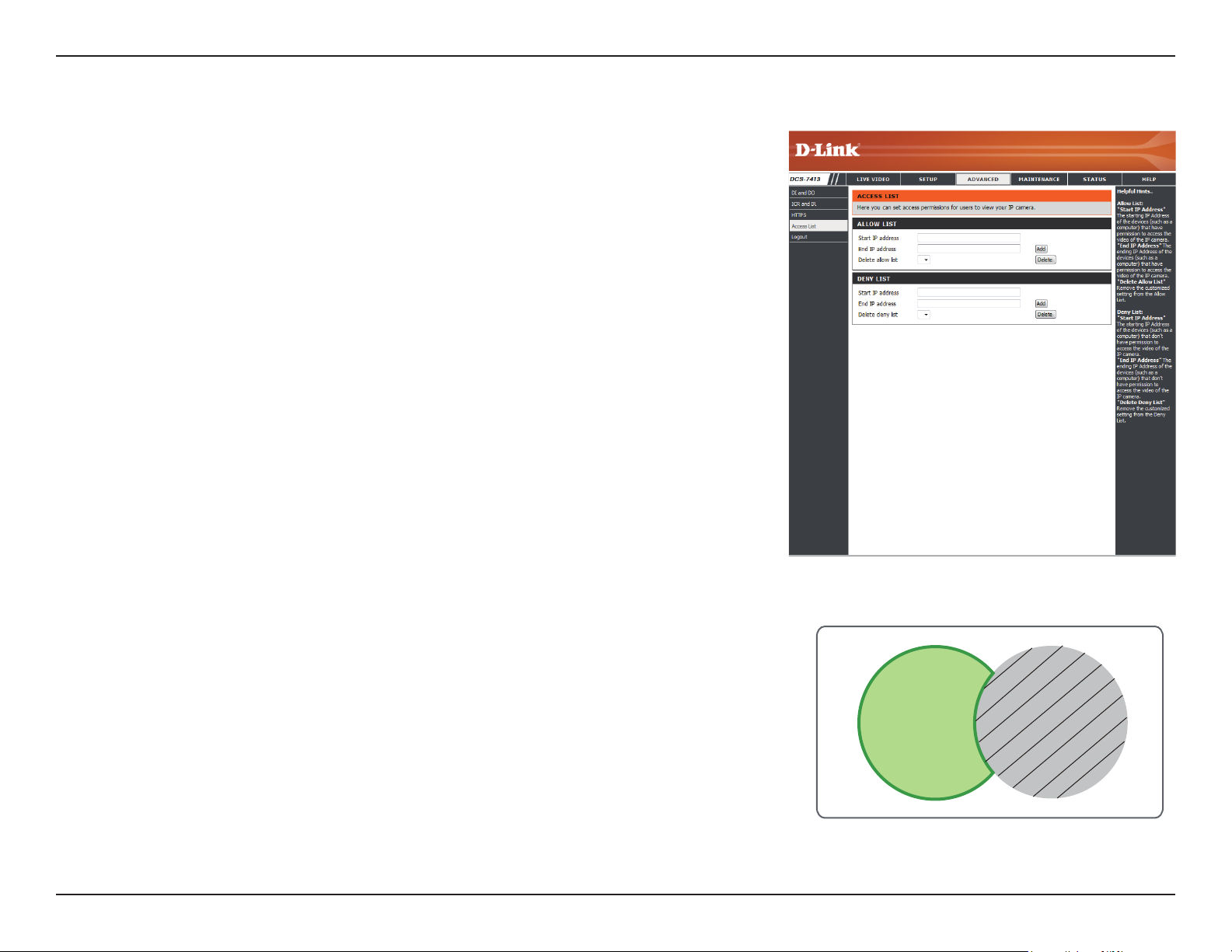

Access List ..........................................................................58

Maintenance .........................................................................59

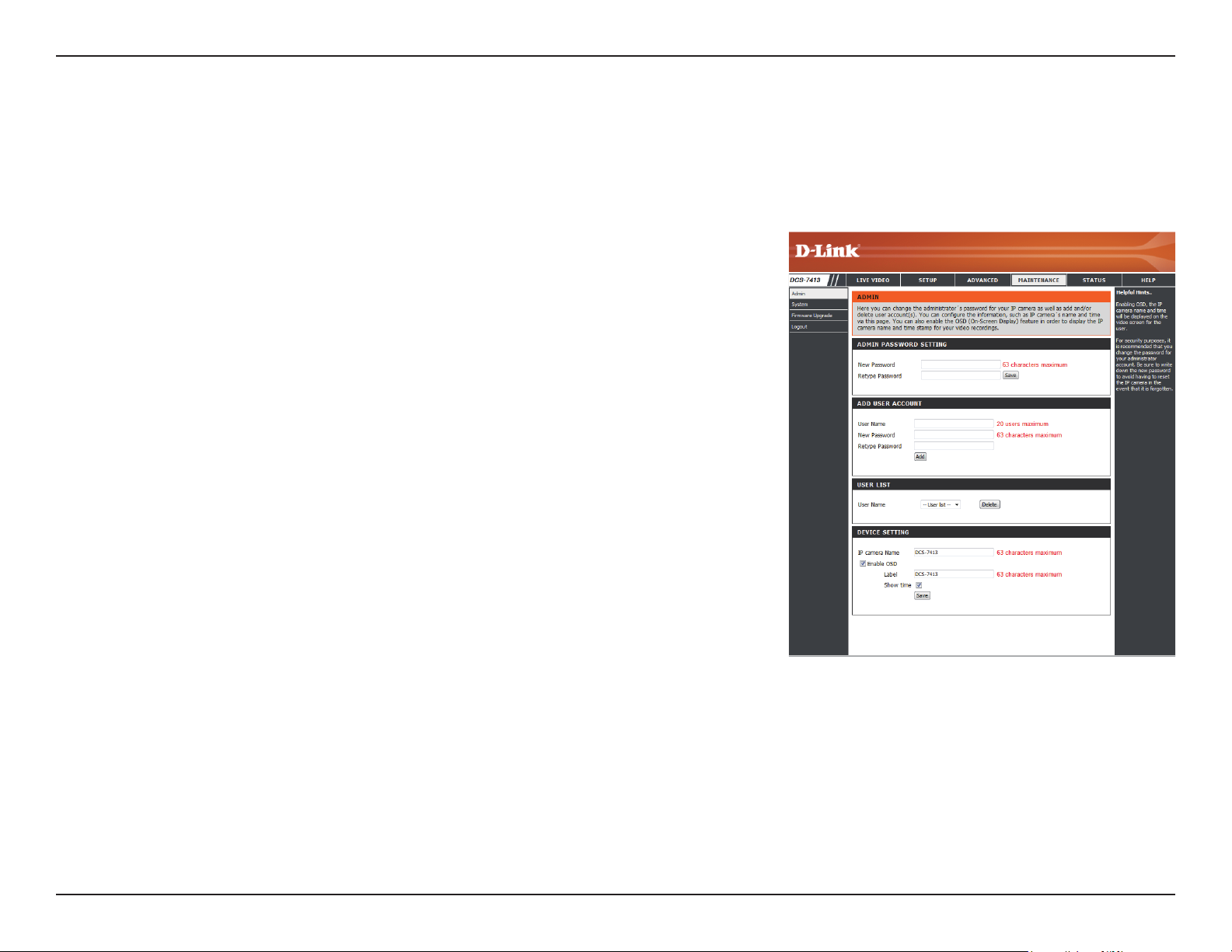

Device Management .....................................................59

System ................................................................................60

Connection with 12 V DC Power Adapter ..............19

Connection with 24 V AC Power Wiring ..................20

Connection with Power over Ethernet ....................21

Software Installation ......................................................22

Conguration ...............................................................................25

Using the Conguration Interface ................................25

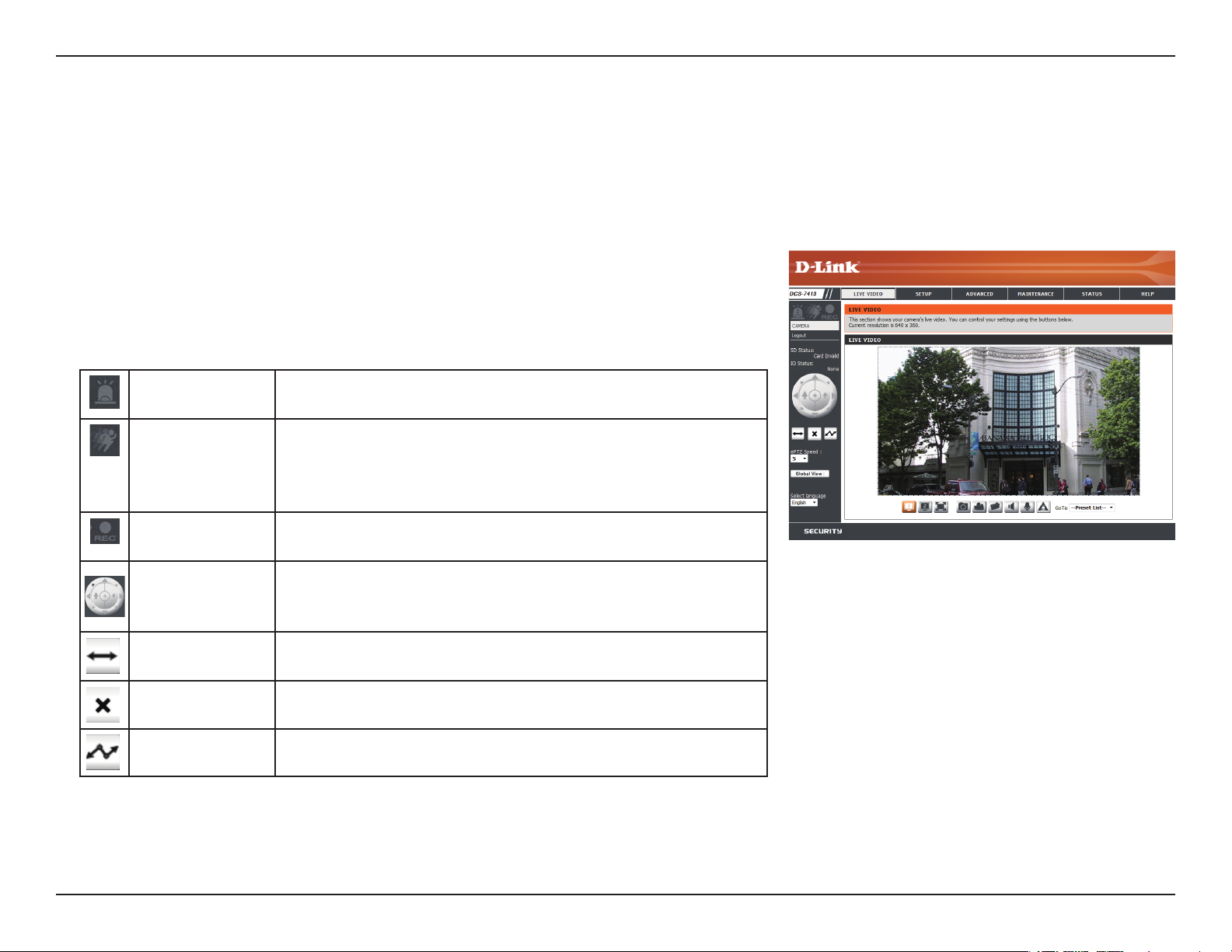

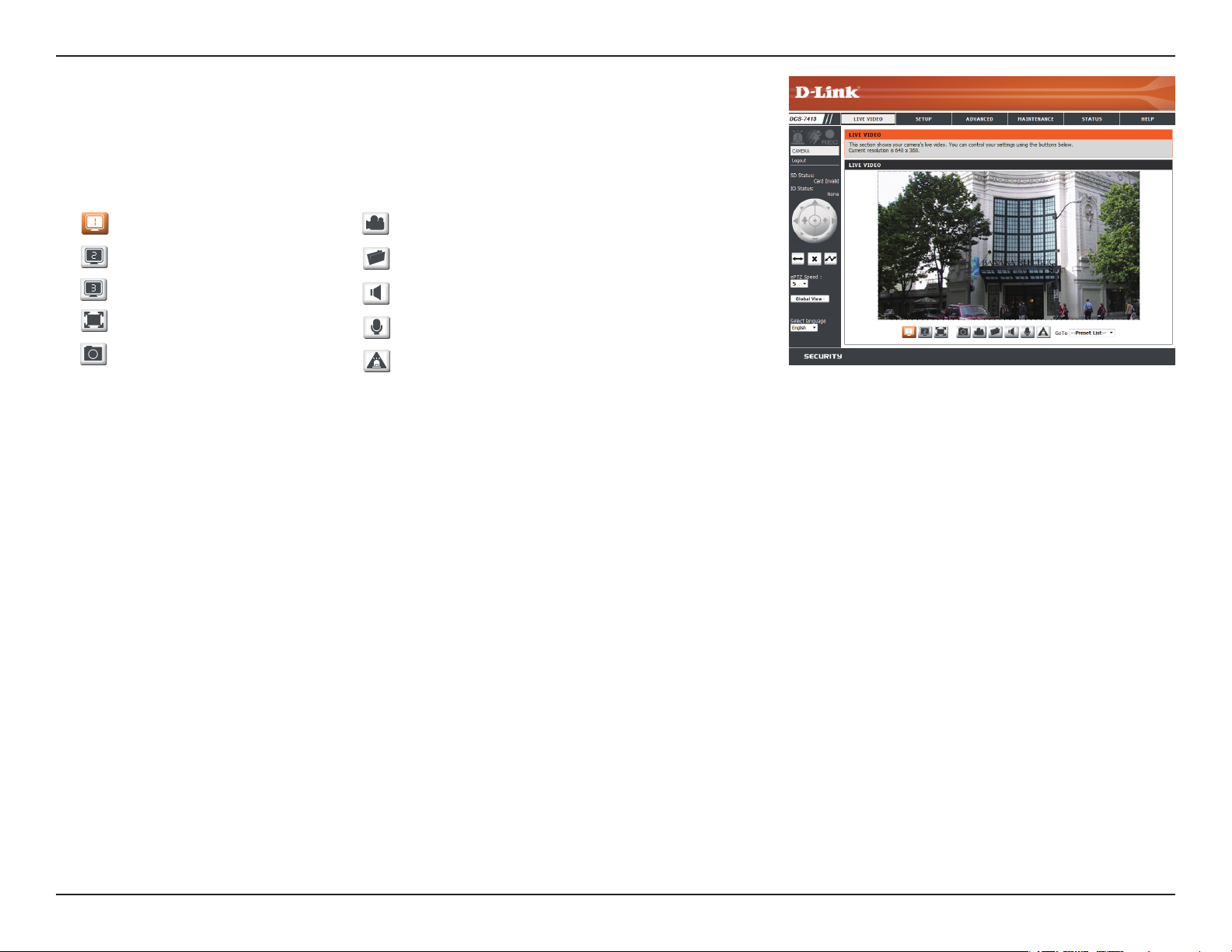

Live Video ..............................................................................26

Setup .......................................................................................28

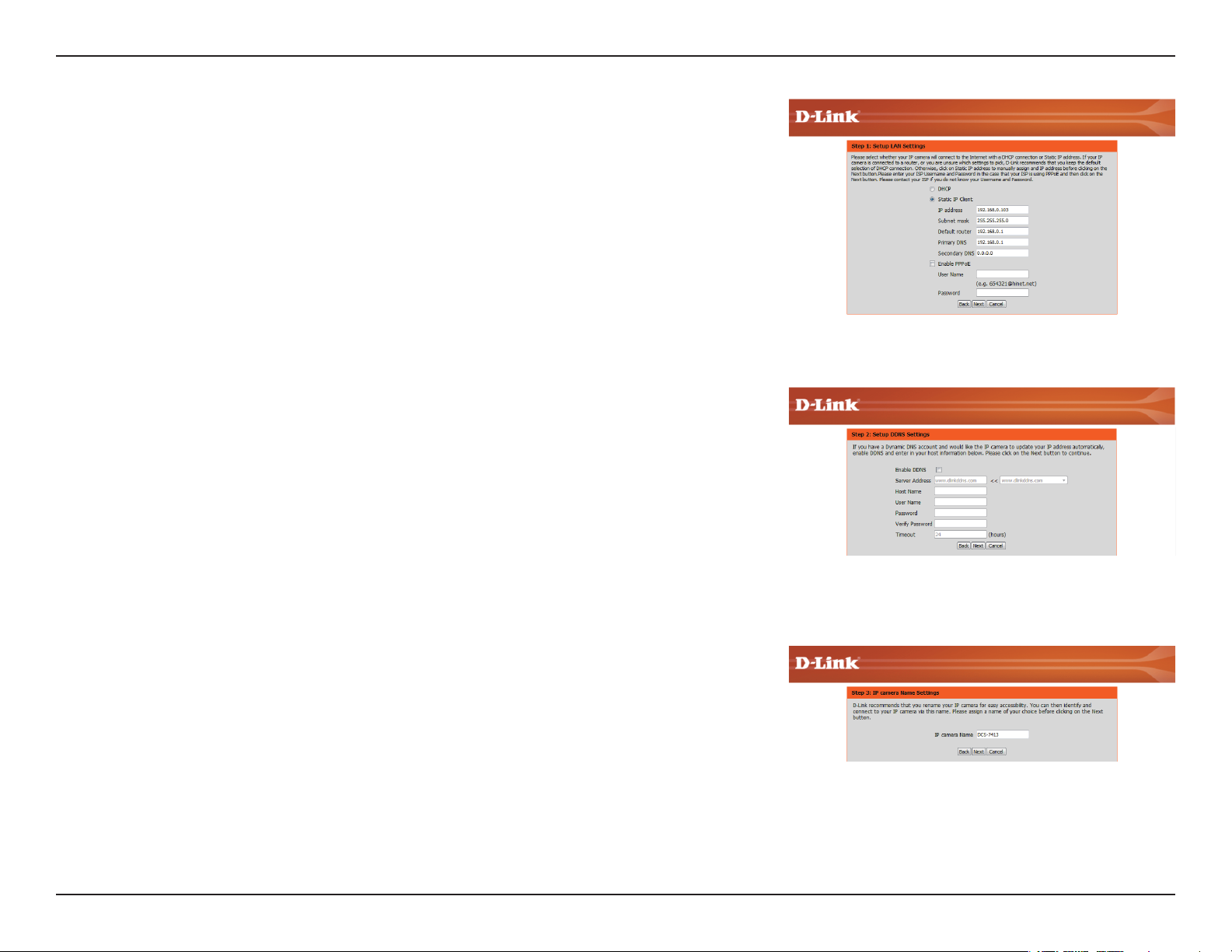

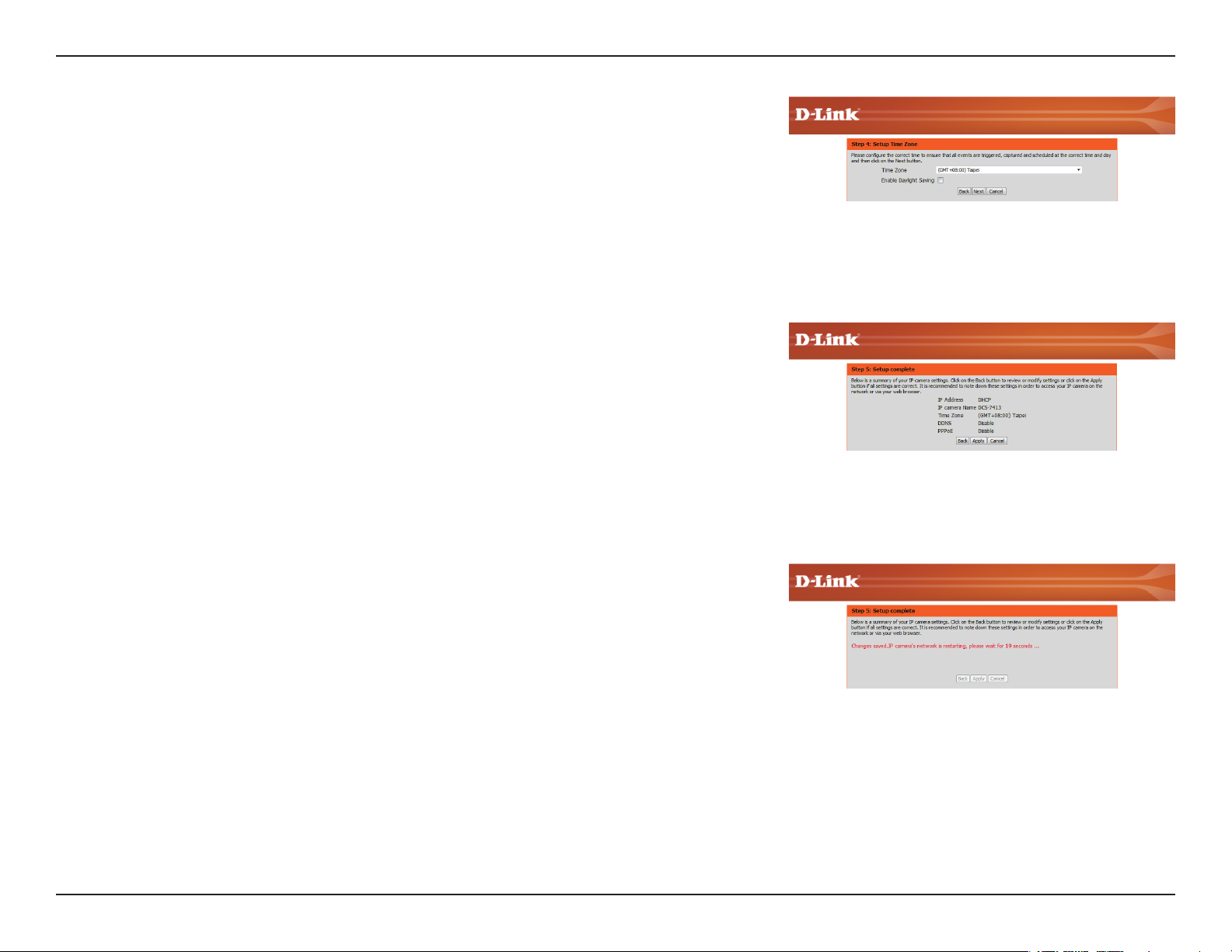

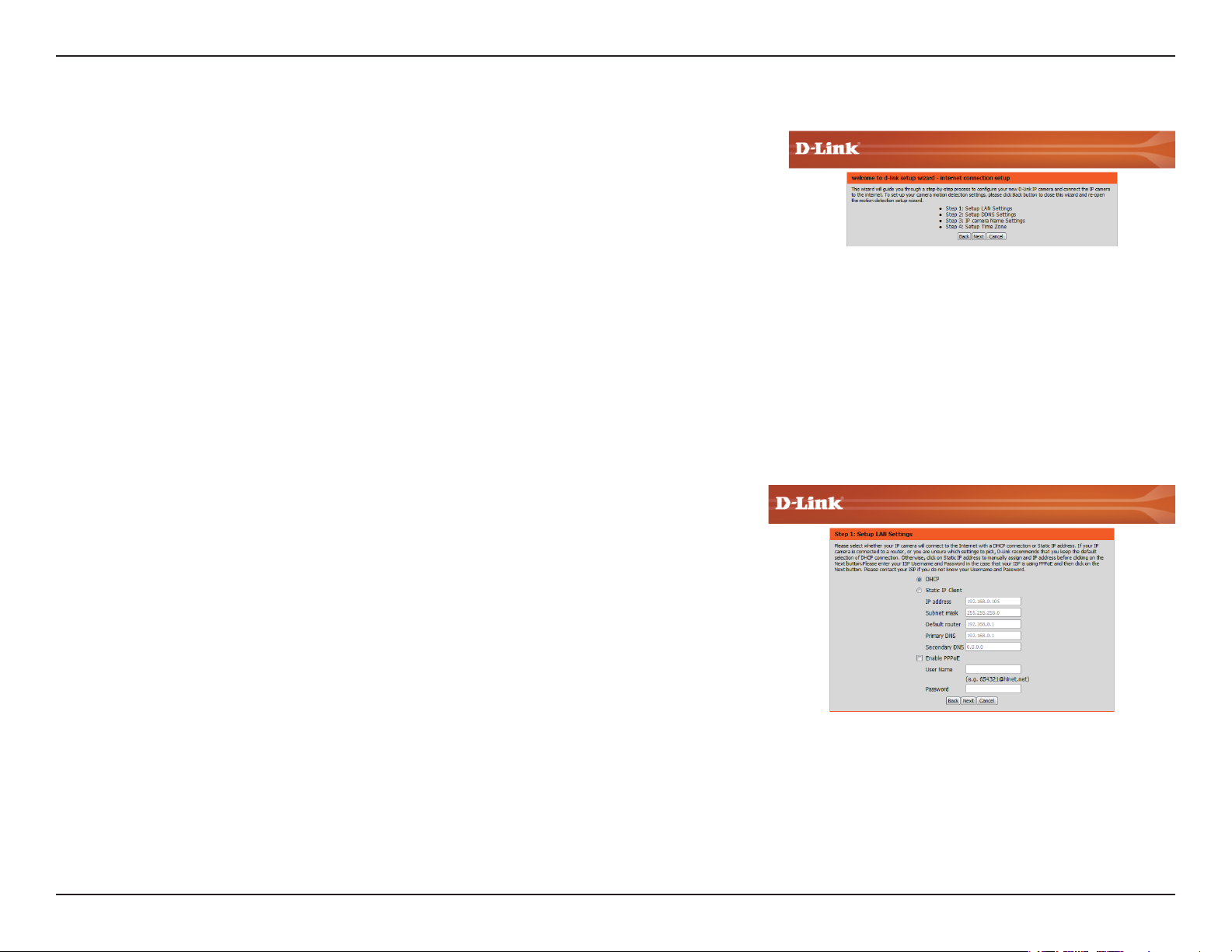

Setup Wizard ....................................................................28

Firmware Upgrade ..........................................................61

Status ......................................................................................62

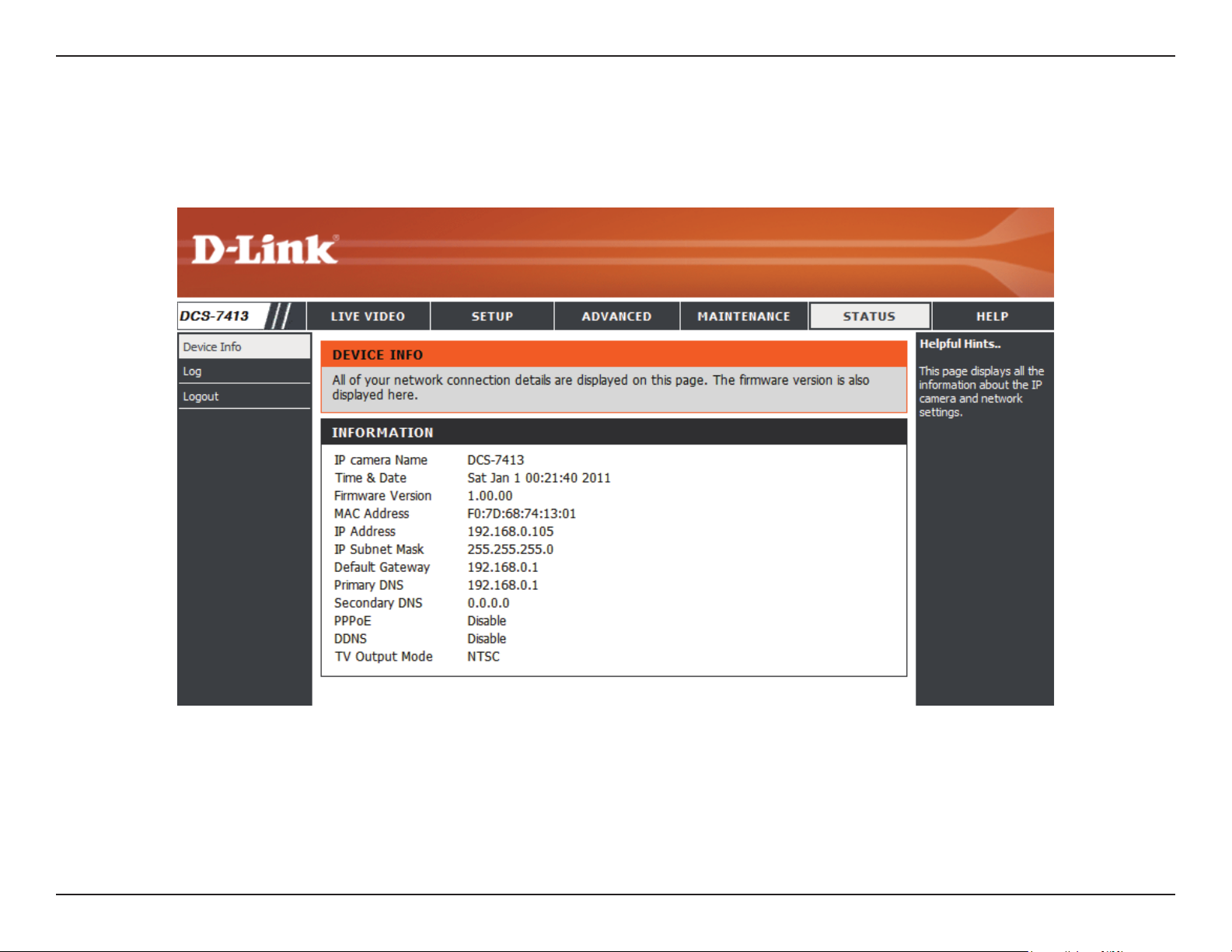

Device Info ........................................................................62

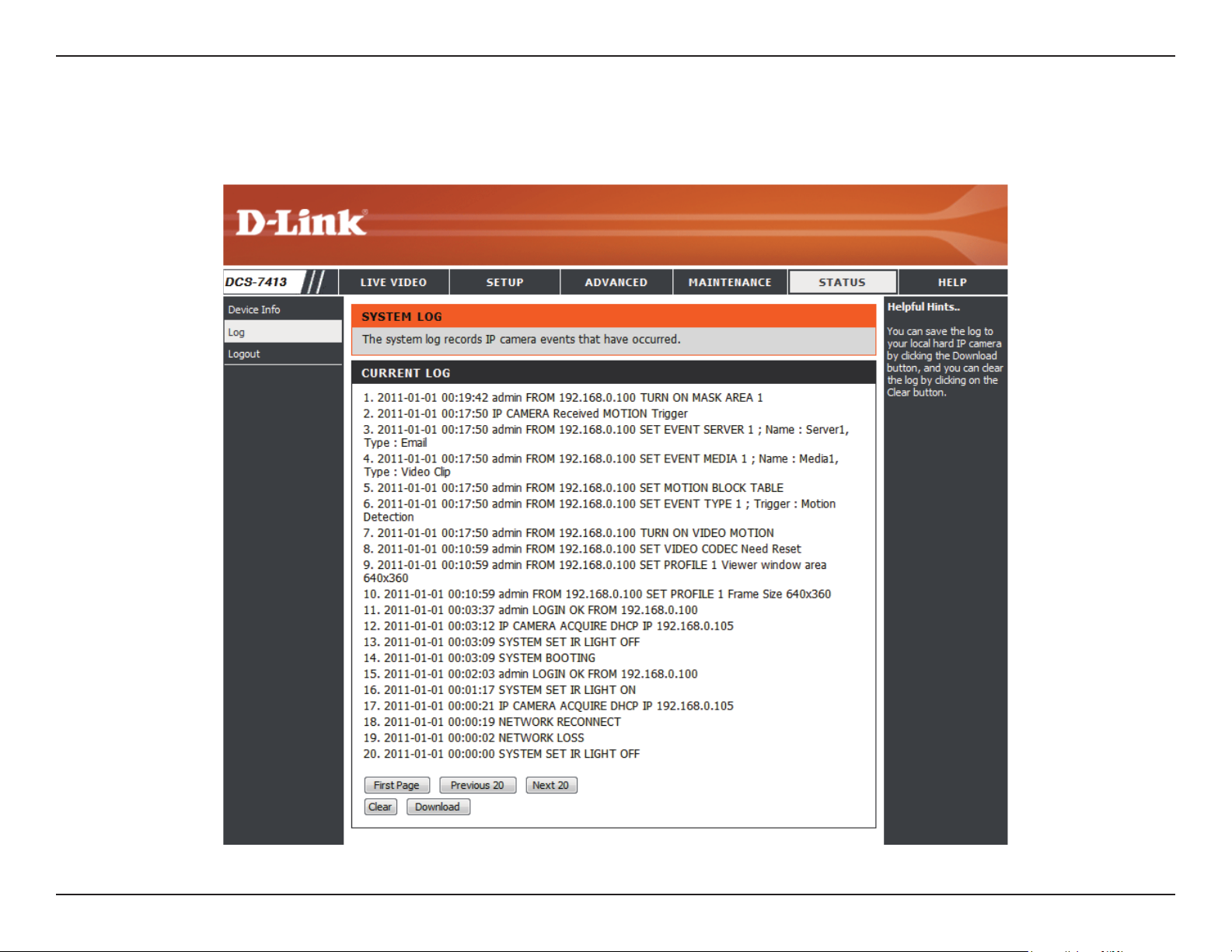

Logs .....................................................................................63

Help......................................................................................64

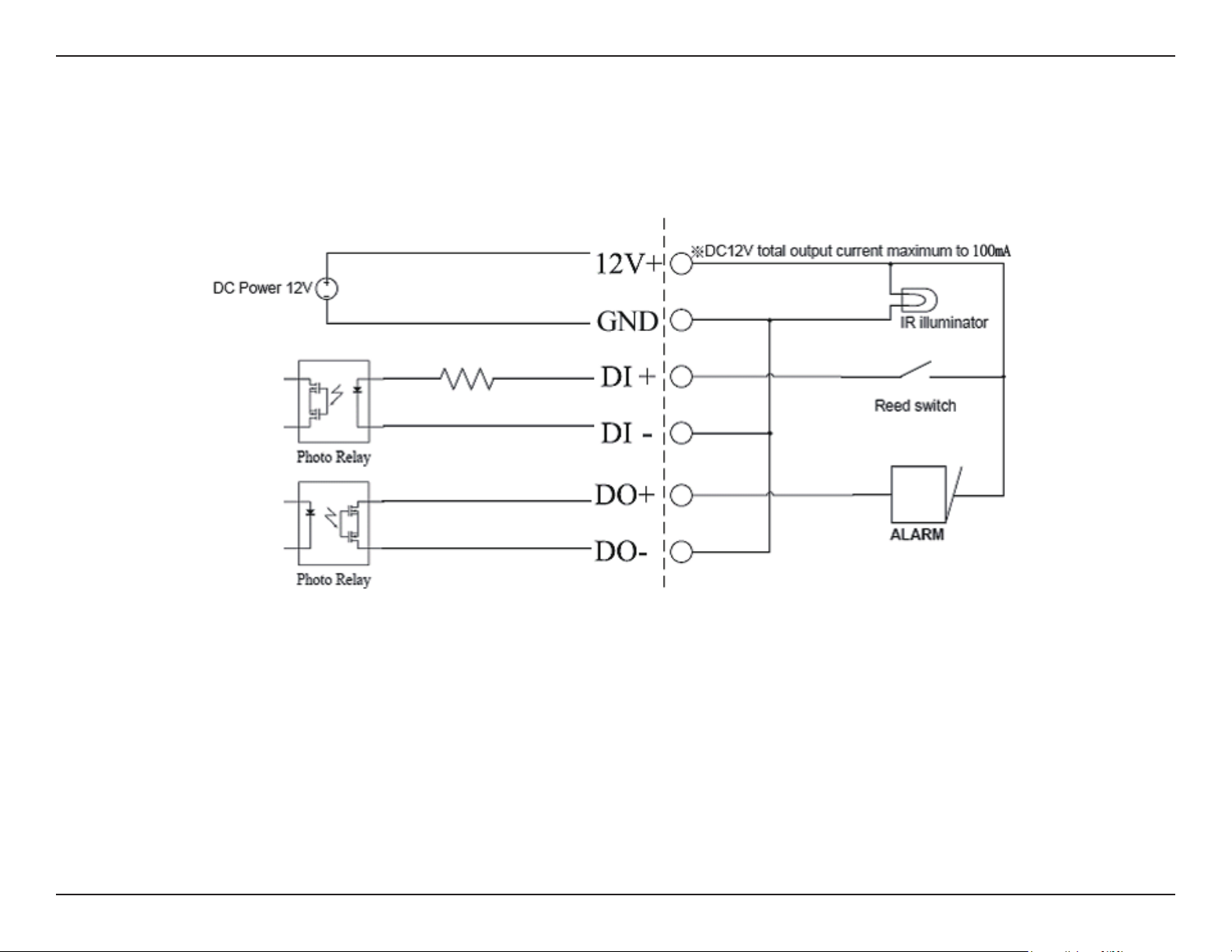

DI/DO Specications .................................................................65

Technical Specications ...........................................................66

3D-Link DCS-7413 User Manual

Section 1: Product Overview

DCS-7413 Full HD Day & Night Outdoor Network Camera

Wire in Bracket and Mounting Shoe

CAT5 Ethernet cable

Power adapter

Product Overview

Package Contents

CD-ROM with User Manual and software

Mounting Plate

Alignment Sticker and Fixings Kit

Quick Installation Guide

If any of the above items are missing, please contact your reseller.

Note: Using a power supply with a dierent voltage than the one included with your
product will cause damage and void the warranty for this product.

4D-Link DCS-7413 User Manual

Section 1: Product Overview

Introduction

Congratulations on your purchase of the DCS-7413 Full HD Day & Night Outdoor Network Camera. The DCS-7413 is a professional
surveillance and security solution for small, medium, and large enterprises alike. The DCS-7413 uses a 2 megapixel progressive
scan CMOS sensor; the professional sensor results in low noise and high sensitivity capabilities ideal for surveillance applications.

The DCS-7413 is a complete system built with an ARM SoC CPU that incorporates a web server, allowing it to transmit excellent
real-time Full HD resolution video quality for security and outdoor surveillance.

The DCS-7413 can be accessed remotely, controlled and congured from any PC/Notebook over your local network or through
the Internet via a web browser. The simple installation and intuitive web-based interface oer easy conguration across the
full range of its advanced feature set, including granular control over multiple video streams with dierent congurations and
multicast video/audio streams which helps you manage your network load.

The DCS-7413 has an IP66 certied weatherproof housing designed for both indoor and outdoor applications. The built-in
removable IR-cut lter and IR LEDs give the DCS-7413 the capability to view up to 30M at night. The DCS-7413 also incorporates
Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power
cabling. The combination of IP66 housing, IR-Cut Filter, IR LEDs and PoE make the DCS-7413 an ideal solution for a dependable
and cost-eective 24 hour surveillance solution with an easy clutter-free installation.

System Requirements

• ComputerwithMicrosoftWindows®7,Vista®,orXP(forCD-ROMSetupWizard),MacOSorLinux

• PCwith1.3GHzorabove;atleast128MBRAM

• InternetExplorer7orabove,Firefox3.5orabove,Safari4andChrome8.0orabove

• Existing10/100Ethernet-basednetwork

• AnSDmemorycard(optional)isrequiredforrecordingtoonboardstorage.SDHCClass6oraboveisrecommended.

• BroadbandInternetconnection

5D-Link DCS-7413 User Manual

Section 1: Product Overview

Features

Simple to Maintain

TheDCS-7413isastand-alonesystemwithabuilt-inCPU,requiringnospecialhardwareorsoftware.TheDCS-7413supportsbothActiveXmode
forInternetExplorerandJavamodeforotherbrowserssuchasChrome®,Firefox®andSafari®.

Supports a Variety of Platforms

Supporting TCP/IP networking, HTTP, and other Internet related protocols. The DCS-7413 can also be integrated easily into other Internet/Intranet
applications because of its standards-based features. The DCS-7413 works with any 10/100 Ethernet network, making the DCS-7413 easy to integrate
into your existing network environment.

Advanced Event Management

The DCS-7413 can be set up to send e-mail notications with snapshots when an event occurs, such as when motion is detected. Events can be
triggered from several sources, such as motion detection, timer based events or digital input based events.

Automatic Thermostat Temperature Regulation

The DCS-7413 monitors and automatically regulates its temperature to ensure it can perform at its optimal ability. It balances fan use against a built
in heater based on a range of preset thermostatic settings. This gives the DCS-7413 the ability to perform in the most demanding of environments.

Remote Monitoring Utility

The D-ViewCam application adds enhanced features and functionality for the Network Camera and allows administrators to congure and access
the Network Camera from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing
up to 32 cameras on one screen, and taking snapshots.

IR LED for Day and Night Functionality

The built-in infrared LEDs enables night time viewing of up to 30 meters (98 feet).

IP66 Weatherproof Housing

The DCS-7413 uses an IP66 weatherproof housing, allowing you to rest assured that in the toughest of conditions, it will continue to provide round­the-clock surveillance.

PoE (Power over Ethernet) for Flexible Installation

The DCS-7413 can draw all the power it needs from a PoE switch or PoE injector for a simple and clutter-free installation.

6D-Link DCS-7413 User Manual

Section 1: Product Overview

Hardware Overview

Front

3

1

1 Camera Lens

2 ICR Sensor

3 IR LEDs

4 Power/Status LED

4

2

5

Fixed lens to record video of the surrounding area

The IR-Cut Removable sensor measures the lighting conditions and switches
between color and infrared accordingly

Infrared LEDs illuminate the camera's eld of view at night

Indicates the camera's current status

5 Weatherproof Casing

The camera is housed in an IP66 certied weatherproof casing, which protects
it against rain and dust.

7D-Link DCS-7413 User Manual

Section 1: Product Overview

Sides

12

3

4

6

1 Adjustable Top Shield Shields the camera sensor from direct sunlight.

2 Adjustment Screw

3 Camera Shoe Adjustable mounting seat.

4 Wire in Bracket Tightly assembles and protects the cables from outdoor wear and tear.

5 Cable Channel

6 Quick Release Rod Allows the camera to be swiveled into position for easy maintenance.

Allows adjustment of the Top Shield.

Channel for cable placement.

5

8D-Link DCS-7413 User Manual

Section 1: Product Overview

Cable Harness

1456 3 278

1 Power Connector Power connector for the provided 12V DC power adapter.

2 Audio In (Red) Connects to a microphone.

3 Audio Out (Green)

4 BNC Connector

5 Reset Button

6 24 V Power Connector Connects to 24 V AC power supply.

7 DI/DO Connector

8 Ethernet Jack

Connects to a speaker.

The BNC connector is recommended for use with handheld monitors to
check the Field of View during installation.

Press and hold the recessed button for 10 seconds to reset the camera.

I/O connectors for external devices. 12V DC output.

Connects to an RJ45 Ethernet port. Can be replaced with a PoE cable to provide
power to the camera.

9D-Link DCS-7413 User Manual

Section 1: Product Overview

Internal

1

1 SD Card Slot

Note: For step-by-step instruction on how to insert an SD card please skip to "Installing an SD Card" on page 11.

Insert an SD card for Local storage for storing recorded image and video

10D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Assembly and Installation

Installing an SD Card

Step 1

Place the camera face down on a non-slip at surface.

Step 2

Remove the adjustable top shield by removing the two retaining screws.

2

Step 3

Remove the base of the camera by holding the camera rmly and rotating the base in a counter
clockwise direction.

3

11D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Step 4

Insert your SD memory card into the slot with the notch oriented to the fore of the camera.

Step 5

Replace the base of the camera by holding the camera rmly and rotating the base in a clockwise
direction ensuring a tight t.

4

Note: Users are advised to ensure that the weatherproof seals are secured rmly in place.

5

12D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Mounting the Camera

The DCS-7413 is suitable for mounting to a wall using the camera shoe and wire-in bracket provided.

Step 1

Straighten the two sets of cables from the camera side by side.

Step 2

Pass individual cables into the wire-in bracket ensuring the head of each has fully
passed through the bend.

Step 3

Once all the cables are in the wire-in bracket push the cable until you are able to
pull them through the base of the bracket.

1

Step 4

Attach the camera bracket to the wire-in bracket following the steps outlined in
"Attaching the Camera to the Wire-in Bracket" on page 14.

2

3

13D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Attaching the Camera to the Wire-in Bracket

Note:

Before attaching the camera to the wire-in bracket, ensure the camera shoe
is oriented correctly for its nal position. For instructions on how to orient the
camera shoe skip to "Orienting the Camera" on page 16.

Step 1

Using the two screws provided attach the quick release retention clip to the
underside of the camera.

14D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Step 2

Push the quick release rod to reveal the attachment notches.

Step 3

Slot the quick release retention clip over the quick release rod.

Step 4

Allow the quick release rod to return.

Step 5

Using the Allen Wrench provided, tighten the two remaining xing bolts.

3

2

5

15D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Orienting the Camera

The DCS-7413 can be adjusted to ensure an optimal viewing position when mounted to a wall by following the steps outlined.

Step 1

Using the Allen Wrench provided, loosen the adjusting bolts on both sides of the
camera shoe. This will allow you to adjust the vertical orientation of the camera.

Step 2

Firmly tighten the adjustment bolts on both sides of the camera shoe.

1

Step 3

Using the Allen Wrench provided, loosen the adjusting bolts on both sides of
the wire-in bracket. This will allow you to adjust the horizontal orientation of
the camera.

3

Step 4

Firmly tighten the adjustment bolts on both sides of the wire-in bracket.

16D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Deploying the Camera

Note: Before deploying the camera to a xed location, it is recommended that you take a photo from the desired location to

ensure an adequate eld-of-view.

Step 1

Position the Alignment Sticker in the desired location making sure the Camera
and Wire-in-Bracket have sufficient space. Use the dimension diagrams in
"Dimensions" on page 68 for additional reference.

1

Step 2

Use a 6mm drill bit to make required holes approximately 30mm deep.

Step 3

Remove the Alignment Sticker.

Step 4

Insert wall anchors and ax the mounting plate using the screws provided.

4

17D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Step 5

Suspend the camera and wire-in bracket from the two lugs on the mounting plate.

5

Step 6

Fasten the camera rmly to the mounting plate using the screw provided ensuring
clear passage for the cables through the cable channel or via the mounting plate
cut-out.

5

66

18D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Camera Installation Wizard

Connection with 12 V DC Power Adapter

Step 1

Connect the network camera to a hub via an Ethernet cable.

Step 2

Connect the supplied power cable from the camera to a power outlet.

2

1

19D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Connection with 24 V AC Power Wiring

Step 1

Connect the network camera to a hub via an Ethernet cable.

Step 2

Connect the supplied power cable from the camera to a power source such as your building's emergency power.

2

1

20D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Connection with Power over Ethernet

Step 1

If you are using a PoE hub, connect the IP camera to the hub via an Ethernet cable, which will provide transmission of both
power and data over a single cable.

1

21D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Software Installation

Step 1

Insert the Installation CD-ROM into your computer’s optical drive to start the
autorun program.

The CD-ROM will open the Camera Installation Wizard. The Setup Wizard will
guide you through the installation process through to conguring your camera.

Note:

If the autorun program does not automatically start on your computer, go to
Windows, click Start > Run. In the Run command box type D:\autorun.exe,
where D: represents your CD-ROM drive.

Step 2

Accept the End User Licence Agreement and follow the on screen prompts to
install the Camera Installation Wizard.

Step 3

Select your camera from the list, then click Wizard. If you have multiple cameras,
you can identify them by the MAC ID printed on the label on the back of your
camera.

3

22D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Step 4

By default the Admin ID is "admin" and the password is blank.

It is recommended that you create and conrm a password for your device.
Click Next to continue.

Step 5

Select Static IP if your Internet Service Provider has provided you with connection
settings, or if you wish to set a static address within your home network. Enter
the correct conguration information and click Next to continue.

Note: Select DHCP if you are unsure of which settings to choose.

Click Next to continue.

23D-Link DCS-7413 User Manual

Section 2: Assembly and Installation

Step 6

Conrm your camera login details and IP address details and click Restart.

The LED on the front of the DCS-7413 will blink, then turn solid green once it
successfully connects to your network.

Step 7

Your DCS-7413 camera is now set up, Click Exit to exit the wizard and can skip to
"Conguration" on page 25 for advanced conguration of your camera.

24D-Link DCS-7413 User Manual

Section 3: Conguration

Conguration

Using the Conguration Interface

After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web conguration
utility is designed to allow you to easily access and congure your DCS-7413. At the end of the wizard, click Link, or enter the
IP address of your camera into a web browser, such as Mozilla Firefox. To log in, use the User name admin and the password
you created in the Installation Wizard. If you did not create a password, the default password is blank. After entering your
password, click OK.

Step 1
Click the Link button on the Wizard.

1

Step 2

Enter your credentials to access the conguration interface.

2

25D-Link DCS-7413 User Manual

Section 3: Conguration

Live Video

This section shows your camera’s live video. You may select any of the available icons listed below to operate the camera. You may also select your
language using the drop-down menu on the left side of the screen.

You can zoom in and out on the live video image using your mouse. Right-click to zoom out or left-click to zoom in on the image.

SD Status:

IO Status:

Digital Input
Indicator

Motion Trigger
Indicator

Recording
Indicator

Control Pad

Auto Pan Starts the automatic panning function. The ROI will pan from

Stop Stops the camera ePTZ motion

This option displays the status of the SD card. If no SD card has been
inserted, this screen will display the message "Card Invalid."

This option displays the status of your I/O device if a device has been
connected.

This indicator will change color when a digital input signal is
detected.

This indicator will change color when a trigger event occurs.

Note: The video motion feature for your camera must be
enabled.

When a recording is in progress, this indicator will change
color.

This control pad can be used to electronically pan, tilt, and
zoom (ePTZ) within the camera's predened view area, if one
has been dened.

back and forth within the FOV

Preset Path Starts the camera's motion along the predened path

ePTZ Speed:

You may select a value between 0 and 10. 0 is the slowest and 10 is the
fastest.

26D-Link DCS-7413 User Manual

Section 3: Conguration

Global View:

Language:

Video Prole 1

Video Prole 2

Video Prole 3

Full screen mode

Taking a Snapshot

Go To:

(Preset List)

This window indicates the total eld of view (FOV) of the camera. The
red box indicates the visible region of interest (ROI).

You may select the interface language using this menu.

If any presets have been dened, selecting a preset from this list will
display it.

Record a Video Clip

Set a Storage Folder

Listen/Stop Audio In (from microphone)

Start/Stop Audio Out (to speaker)

Start/Stop Digital Output

27D-Link DCS-7413 User Manual

Section 3: Conguration

Setup

Setup Wizard

To congure your Network Camera, click Internet Connection Setup Wizard. Alternatively,
you may click Manual Internet Connection Setup to manually congure your Network
Camera and skip to "Network Setup" on page 34.

To quickly congure your Network Camera’s motion detection settings, click Motion

Detection Setup Wizard. If you want to enter your settings without running the wizard, click
Manual Motion Detection Setup and skip to"Motion Detection" on page 44.

28D-Link DCS-7413 User Manual

Section 3: Conguration

Internet Connection Setup Wizard

This wizard will guide you through a step-by-step process to congure your new D-Link
Camera and connect the camera to the internet. Click Next to continue.

Note: Select DHCP if you are unsure of which settings to choose.

Click Next to continue.

29D-Link DCS-7413 User Manual

Section 3: Conguration

Select Static IP if your Internet Service Provider has provided you with connection settings, or
if you wish to set a static address within your home network. Enter the correct conguration
information and click Next to continue.

If you are using PPPoE, select Enable PPPoE and enter your user name and password,
otherwise click Next to continue.

If you have a Dynamic DNS account and would like the camera to update your IP address
automatically, Select Enable DDNS and enter your host information. Click Next to continue.

Enter a name for your camera and click Next to continue.

30D-Link DCS-7413 User Manual

Section 3: Conguration

Congure the correct time to ensure that all events will be triggered as scheduled. Click Next
to continue.

Conrm the settings are correct and click Apply to save them.

The settings will be saved to the DCS-7413 and the camera will restart.

31D-Link DCS-7413 User Manual

Section 3: Conguration

Motion Detection Setup Wizard

This wizard will guide you through a step-by-step process to congure your camera's
motion detection functions.

Click Next to continue.

Step 1

This step will allow you to enable or disable motion detection, specify the detection sensitivity,
and adjust the camera’s ability to detect movement.

You may specify whether the camera should capture a snapshot or a video clip when motion
is detected.

Please see the Motion Detection section on "Motion Detection" on page 44 for information
about how to congure motion detection.

Step 2

This step allows you to enable motion detection based on a customized schedule. Specify the
day and hours. You may also choose to always record whenever motion is detected.

32D-Link DCS-7413 User Manual

Section 3: Conguration

Step 3

This step allows you to specify how you will receive event notications from your camera. You
may choose not to receive notications, or to receive notications via e-mail or FTP.

Please enter the relevant information for your e-mail or FTP account.

Click Next to continue.

Step 4

You have completed the Motion Detection Wizard.

Please verify your settings and click Apply to save them.

Please wait a few moments while the camera saves your settings and restarts.

33D-Link DCS-7413 User Manual

Section 3: Conguration

Network Setup

Use this section to congure the network connections for your camera. All relevant information must be entered accurately. After making any
changes, click the Save Settings button to save your changes.

LAN Settings:

DHCP:

Static IP Client:

IP Address:

Subnet Mask:

Default Gateway:

This section lets you congure settings for your local
area network.

Select this connection if you have a DHCP server running
on your network and would like your camera to obtain
an IP address automatically.

If you choose DHCP, you do not need to ll out the IP
address settings.

You may obtain a static or xed IP address and other
network information from your network administrator
for your camera. A static IP address may simplify access
to your camera in the future.

Enter the xed IP address in this eld.

This number is used to determine if the destination is in
the same subnet. The default value is 255.255.255.0.

The gateway used to forward frames to destinations in a
dierent subnet. Invalid gateway settings may cause the
failure of transmissions to a dierent subnet.

Primary DNS:

Secondary DNS:

The primary domain name server translates names to IP
addresses.

The secondary DNS acts as a backup to the primary DNS.

34D-Link DCS-7413 User Manual

Section 3: Conguration

Enable UPnP Presentation:

Enable UPnP Port Forwarding:

Enable PPPoE:

User Name / Password:

HTTP Port:

Access Name for Stream 1~3:

HTTPS Port:

Enabling this setting allows your camera to be congured
as a UPnP device on your network.

Enabling this setting allows the camera to add port
forwarding entries into the router automatically on a
UPnP capable network.

Enable this setting if your network uses PPPoE.

Enter the username and password for your PPPoE
account. Re-enter your password in the Conrm
Password eld. You may obtain this information from
your ISP.

The default port number is 80.

The default name is video#.mjpg, where # is the number
of the stream.

You may use a PC with a secure browser to connect to
the HTTPS port of the camera. The default port number
is 443.

Authentication:

RTSP Port:

Choose to enable or disable RTSP digest encryption.
Digest encryption uses MD5 hashes.

The port number that you use for RTSP streaming to
mobile devices, such as mobile phones or PDAs. The
default port number is 554. You may specify the address
of a particular stream. For instance, live1.sdp can be
accessed at rtsp://x.x.x.x/video1.sdp where the x.x.x.x
represents the ip address of your camera.

35D-Link DCS-7413 User Manual

Section 3: Conguration

Enable CoS:

Enable QoS:

Enable IPv6:

Enable Multicast for stream

Enabling the Class of Service setting implements a
best-eort policy without making any bandwidth
reservations.

Enabling QoS allows you to specify a trac priority
policy to ensure a consistent Quality of Service during
busy periods. If the Network Camera is connected to a
router that itself implements QoS, the router's settings
will override the QoS settings of the camera.

Enable the IPv6 setting to use the IPv6 protocol. Enabling
the option allows you to manually set up the address,
specify an optional IP address, specify an optional router
and an optional primary DNS.

The DCS-7413 allows you to multicast each of the
available streams via group address and specify the TTL
value for each stream. Enter the port and TTL settings
you wish to use if you do not want to use the defaults.

36D-Link DCS-7413 User Manual

Section 3: Conguration

Dynamic DNS

DDNS (Dynamic Domain Name Server) will hold a DNS host name and synchronize the public IP address of the modem when it has been modied.
A user name and password are required when using the DDNS service. After making any changes, click the Save Settings button to save your
changes.

Enable DDNS:

Server Address:

Host Name:

User Name:

Password:

Timeout:

Status:

Select this checkbox to enable the DDNS function.

Select your Dynamic DNS provider from the pull down
menu or enter the server address manually.

Enter the host name of the DDNS server.

Enter the user name or e-mail used to connect to your
DDNS account.

Enter the password used to connect to your DDNS
server account.

Enter the DNS timeout values you wish to use.

Indicates the connection status, which is automatically
determined by the system.

37D-Link DCS-7413 User Manual

Section 3: Conguration

Image Setup

In this section, you may congure the video image settings for your camera. A preview of the image will be shown in Live Video.

Enable Privacy Mask:

Mirror:

Flip:

Power Line:

White Balance:

The Privacy Mask setting allows you to specify up to 3
rectangular areas on the camera's image to be blocked/
excluded from recordings and snapshots.

You may click and drag the mouse cursor over the
camera image to draw a mask area. Right clicking on the
camera image brings up the following menu options:

Disable All: Disables all mask areas
Enable All: Enables all mask areas
Reset All: Clears all mask areas.

This will mirror the image horizontally.

This will ip the image vertically. When turning Flip on,
you may want to consider turning Mirror on as well.

Select the frequency used by your power lines to avoid
interference or distortion.

Use the drop-down box to change white balance settings
to help balance colors for dierent environments. You
can choose from Auto, Outdoor, Indoor, Fluorescent,
and Push Hold.

Exposure Mode:

Changes the exposure mode. Use the drop-down
box to set the camera for Indoor, Outdoor, or Night

38D-Link DCS-7413 User Manual

Section 3: Conguration

environments, or to Moving to capture moving objects.
The Low Noise option will focus on creating a high­quality picture without noise. You can also create 3
dierent custom exposure modes. The Max Gain setting
will allow you to control the maximum amount of gain
to apply to brighten the picture.

Denoise:

Brightness:

Contrast:

Saturation:

Sharpness:

Reset Default:

This setting controls the amount of noise reduction that
will be applied to the picture.

Adjust this setting to compensate for backlit subjects.

Adjust this setting to alter the color intensity/strength.

This setting controls the amount of coloration, from
grayscale to fully saturated.

Specify a value from 0 to 8 to specify how much
sharpening to apply to the image.

Click this button to reset the image to factory default
settings.

39D-Link DCS-7413 User Manual

Section 3: Conguration

Audio and Video

You may congure up to 3 video proles with dierent settings for your camera. Hence, you may set up dierent proles for your computer and
mobile display. In addition, you may also congure the two-way audio settings for your camera. After making any changes, click the Save Settings
button to save your changes.

Aspect ratio:

Mode:

Frame size / View window area:

Set the aspect ratio of the video to 4:3 standard or 16:9
widescreen.

Set the video codec to be used to JPEG, MPEG-4, or
H.264.

Frame size determines the total capture resolution, and
View window area determines the Live Video viewing
window size. If the Frame size is larger than the Live
Video size, you can use the ePTZ controls to look around.

16:9 1920 x 1080 (up to 15 fps), 1280 x 720, 800

x 450, 640 x 360, 480 x 270, 320 x 176, 176 x
144 up to 30 fps

4:3 1440 x 1080 (up to 15 fps), 1280 x 960, 1024

x 768, 800 x 600, 640 x 480, 320 x 240, 176 x
144 up to 30 fps

Note: If your View window area is the same as your Frame
size, you will not be able to use the ePTZ function.

Maximum frame rate:

A higher frame rate provides smoother motion for
videos, and requires more bandwidth. Lower frame
rates will result in stuttering motion, and requires less
bandwidth.

40D-Link DCS-7413 User Manual

Section 3: Conguration

Video Quality:

Constant bit rate:

Fixed quality:

Audio in o:

Audio in gain level:

This limits the maximum frame rate, which can be
combined with the "Fixed quality" option to optimize
the bandwidth utilization and video quality. If xed
bandwidth utilization is desired regardless of the video
quality, choose "Constant bit rate" and select the desired
bandwidth.

The bps will aect the bit rate of the video recorded
by the camera. Higher bit rates result in higher video
quality.

Select the image quality level for the camera to try to
maintain. High quality levels will result in increased bit
rates.

Selecting this checkbox will mute incoming audio.

This setting controls the amount of gain applied to
incoming audio to increase its volume.

Audio out o:

Audio out volume level:

Selecting this checkbox will mute outgoing audio.

This setting controls the amount of gain applied to
outgoing audio to increase its volume.

41D-Link DCS-7413 User Manual

Section 3: Conguration

Preset

This screen allows you to set preset points for the ePTZ function of the camera, which allows you to look around the camera's viewable area by
using a zoomed view. Presets allow you to quickly go to and view a specic part of the area your camera is covering, and you can create preset
sequences, which will automatically change the camera's view between the dierent presets according to a dened order and timing you can set.

Note: If your View window area is the same as your Frame size, you will not be able to use the ePTZ function.

Video Prole:

ePTZ Speed:

Arrow Buttons and Home Button:

Input Preset Name:

Preset List:

This selects which video prole to use.

You may select a value between 0 and 10. 0 is the slowest
and 10 is the fastest.

Use these buttons to move to a specic part of the
viewing area, which you can then set as a preset. Click
the Home button to return to the center of the viewing
area.

Enter the name of the preset you want to create, then
click the Add button to make a new preset. If an existing
preset has been selected from the Preset List, you can
change its name by typing in a new name, then clicking
the Rename button.

Click this drop-down box to see a list of all the presets
that have been created. You can select one, then click
the GoTo button to change the displayed camera view
to the preset. Clicking the Remove button will delete
the currently selected preset.

Preset Sequence:

This section allows you to create a preset sequence,
which automatically moves the camera's view between
a set of preset views.

42D-Link DCS-7413 User Manual

Section 3: Conguration

Preset List: To add a preset to the sequence, select it from the drop-

down box at the bottom of this window, set the Dwell
time to determine how long the camera view will stay at

that preset, then click the Add button. The preset name
will appear in the list, followed by the dwell time to view
that preset for.

You can rearrange your presets in the sequence by
selecting a preset in the sequence, then clicking the
arrow buttons to move it higher or lower in the current
sequence.

Clicking the trash can button will remove the currently
selected preset from the sequence.

If you want to change the dwell time for a preset, select
it from the list, enter a new dwell time, then click the
Update button.

43D-Link DCS-7413 User Manual

Section 3: Conguration

Motion Detection

Enabling Video Motion will allow your camera to use the motion detection feature. You may draw a nite motion area that will be used for
monitoring. After making any changes, click the Save Settings button to save your changes.

Enable Video Motion:

Sensitivity:

Percentage:

Draw Motion Area:

Erase Motion Area:

Select this box to enable the motion detection feature
of your camera.

Species the measurable dierence between two
sequential images that would indicate motion. Please
enter a value between 0 and 100.

Species the amount of motion in the window being
monitored that is required to initiate an alert. If this is set
to 100%, motion is detected within the whole window
will trigger a snapshot.

Draw the motion detection area by dragging your mouse
in the window (indicated by the red square).

To erase a motion detection area, simply click on the red
square that you wish to remove.

Right clicking on the camera image brings up the
following menu options:

Select All: Draws a motion detection area over the
entire screen.
Clear All: Clears any motion detection areas that have
been drawn.
Restore: Restores the previously specied motion
detection areas.

44D-Link DCS-7413 User Manual

Section 3: Conguration

Time and Date

This section allows you to automatically or manually congure, update, and maintain the internal system clock for your camera. After making any
changes, click the Save Settings button to save your changes.

Time Zone:

Enable Daylight Saving:

Auto Daylight Saving:

Set Date and Time Manually:

Oset:

Synchronize with NTP Server:

NTP Server:

Set the Date and Time Manually:

Select your time zone from the drop-down menu.

Select this to enable Daylight Saving Time.

Select this option to allow your camera to congure the
Daylight Saving settings automatically.

Selecting this option allows you to congure the Daylight
Saving date and time manually.

Sets the amount of time to be added or removed when
Daylight Saving is enabled.

Enable this feature to obtain time automatically from an
NTP server.

Network Time Protocol (NTP) synchronizes the DCS-7413
with an Internet time server. Choose the one that is
closest to your location.

This option allows you to set the time and date manually.

Copy Your Computer's Time

Settings:

This will synchronize the time information from your PC.

45D-Link DCS-7413 User Manual

Section 3: Conguration

ex.
Motion detection,
Periodically, Digital input,
System reboot

Event Condition

ex.
Snapshot, Video Clips

ex.
Email, FTP

Media

(what to send)

Server

(where to send)

Action

Event Setup

In a typical application, when motion is detected, the DCS-7413 sends images to a FTP server or via e-mail as notications. As shown in the
illustration below, an event can be triggered by many sources, such as motion detection. When an event is triggered, a specied action will be
performed. You can congure the Network Camera to send snapshots or videos to your e-mail address or FTP site.

To start plotting an event, it is suggested to congure server and media columns rst so that the Network Camera will know what action shall be
performed when a trigger is activated.

46D-Link DCS-7413 User Manual

Section 3: Conguration

The Event Setup page includes 4 dierent sections.

•Event

•Server

•Media

•Recording

1. To add a new item - "event, server or media," click Add. A screen will appear and allow you

to update the elds accordingly.

2. To delete the selected item from the pull-down menu of event, server or media, click Delete.

3. Click on the item name to pop up a window for modifying.

47D-Link DCS-7413 User Manual

Section 3: Conguration

Add Server

You can congure up to 5 servers to save snapshots and/or video to. After making any
changes, click the Save Settings button to save your changes.

Server Name:

E-mail:

FTP:

Network Storage:

SD Card:

Enter the unique name of your server.

Enter the conguration for the target e-mail server
account.

Enter the conguration for the target FTP server account.

Specify a network storage device. Only one network
storage device is supported.

Use the camera's onboard SD card storage.

48D-Link DCS-7413 User Manual

Section 3: Conguration

Add Media

There are three types of media, Snapshot, Video Clip, and System Log. After making any
changes, click the Save Settings button to save your changes.

Media Name:

Snapshot:

Source:

Send pre-event image(s) [0~4]:

Send post-event image(s) [0~7]:

Enter a unique name for media type you want to create.

Select this option to set the media type to snapshots.

Set the video prole to use as the media source. Refer
to Audio and Video on "Audio and Video" on page 40 for
more information on video proles.

Set the number of pre-event images to take. Pre-event
images are images taken before the main event snapshot
is taken.

Set the number of post-event images to take. Post-event
images are images taken after the main event snapshot
is taken. You can set up to 7 post-event images to be
taken.

For example:

If both the Send pre-event images and Send
post-event images are set to four, a total of 9
images are generated after a trigger is activated.

1 pic. 2 pic. 3 pic. 4 pic. 5 pic. 6 pic. 7 pic. 8 pic. 9 pic.

The moment the

trigger is activated.

49D-Link DCS-7413 User Manual

Section 3: Conguration

File name prex:

Add date and time sux to le

name:

Video clip:

Source:

Pre-event recording:

The prex name will be added on the le name.

SNAPSHOTS20080104_100341

File name prefix

Date and time suffix

The format is: YYYYMMDD_HHMMSS

Check this to add timing information as le name sux.

Select this option to set the media type to video clips.

Set the video prole to use as the media source. Refer
to "Audio and Video" on page 40 for more information on
video proles.

This sets how many seconds to record before the main
event video clip starts. You can record up to 4 seconds of
pre-event video.

Maximum duration:

Maximum le size:

System log:

Set the maximum length of video to record for your
video clips.

Set the maximum le size to record for your video clips.

Select this option to set the media type to system logs.
This will save the event to the camera system log, but
will not record any snapshots or video.

50D-Link DCS-7413 User Manual

Section 3: Conguration

Add Event

Create and schedule up to 3 events with their own settings here. After making any changes,
click the Save Settings button to save your changes.

Event name:

Enable this event:

Priority:

Delay:

Trigger:

Video Motion Detection:

Periodic:

Digital Input:

Enter a name for the event.

Select this box to activate this event.

Set the priority for this event. The event with higher
priority will be executed rst.

Select the delay time before checking the next event. It
is being used for both events of motion detection and
digital input trigger.

Specify the input type that triggers the event.

Motion is detected during live video monitoring. Select
the windows that need to be monitored.

The event is triggered in specied intervals. The trigger
interval unit is in minutes.

The external trigger input to the camera.

System Boot:

Network Lost:

Time:

Server:

Triggers an event when the system boots up.

Triggers an event when the network connection is lost.

Select Always or enter the time interval.

Specify the location where the event information should
be saved to.

51D-Link DCS-7413 User Manual

Section 3: Conguration

Add Recording

Here you can congure and schedule the recording settings. After making any changes,
click the Save Settings button to save your changes.

Recording entry name:

Enable this recording:

Priority:

Source:

Recording schedule:

Recording settings:

Destination:

Total cycling recording size:

The unique name of the entry.

Select this to enable the recording function.

Set the priority for this entry. The entry with a higher
priority value will be executed rst.

The source of the stream.

Scheduling the recording entry.

Conguring the setting for the recording.

Select the folder where the recording le will be stored.

Please input a HDD volume between 1MB and 2TB for
recording space. The recording data will replace the
oldest record when the total recording size exceeds this
value. For example, if each recording le is 6MB, and the
total cyclical recording size is 600MB, then the camera
will record 100 les in the specied location (folder) and
then will delete the oldest le and create new le for
cyclical recording.

Please note that if the free HDD space is not enough, the
recording will stop. Before you set up this option please
make sure your HDD has enough space, and it is better to
not save other les in the same folder as recording les.

52D-Link DCS-7413 User Manual

Section 3: Conguration

Size of each le for recording:

Time of each le for recording:

File Name Prex:

If this is selected, les will be separated based on the le
size you specify.

If this is selected, les will be separated based on the
maximum length you specify.

The prex name will be added on the le name of the
recording le(s).

53D-Link DCS-7413 User Manual

Section 3: Conguration

SD Card

Here you may browse and manage the recorded les which are stored on the SD card.

Format SD Card:

View Recorded Picture:

Playback Recorded Video:

Refresh:

Click this icon to automatically format the SD card and
create "picture" & "video" folders.

If the picture les are stored on the SD card, click on the
picture folder and choose the picture le you would like
to view.

If video les are stored on the SD card, click on the video
folder and choose the video le you would like to view.

Reloads the le and folder information from the SD card.

54D-Link DCS-7413 User Manual

Section 3: Conguration

Advanced

Digital Input/Output

This screen allows you to control the behavior of digital input and digital output devices. The I/O connector provides the physical interface for
digital output (DO) and digital input (DI) that is used for connecting a variety of external alarm devices such as IR-Sensors and alarm relays. The
digital input is used for connecting external alarm devices and once triggered images will be taken and e-mailed. After making any changes, click
the Save Settings button to save your changes.

Select D/I or D/O Mode:

LED:

Video Output:

The camera will send a signal when an event is triggered,
depending upon the type of device connected to the DI
circuit.

N.C. stands for Normally Closed. This means that the
normal state of the circuit is closed. Therefore events are
triggered when the device status changes to "Open."

N.O. stands for Normally Open. This means that the
normal state of the circuit is open. Therefore events are
triggered when the device status changes to "Closed."

You may specify whether or not to illuminate the status
LED on the camera.

Enable/ disable the BNC terminal TV output signal.

55D-Link DCS-7413 User Manual

Section 3: Conguration

ICR and IR

Here you can congure the ICR and IR settings. An IR(Infrared) Cut-Removable(ICR) lter can be disengaged for increased sensitivity in low light
environments.

Automatic:

Day Mode:

Night Mode:

Schedule Mode:

IR Light Control:

O:

On:

Sync:

The Day/Night mode is set automatically. Generally, the
camera uses Day mode and switches to Night mode
when needed.

Day mode enables the IR Cut Filter.

Night mode disables the IR Cut Filter.

Set up the Day/Night mode using a schedule. The camera
will enter Day mode at the starting time and return to
Night mode at the ending time.

The camera can enable or disable the IR (infrared) light
according to your preferences. This setting provides
additional controls depending on your specic application.

The IR light will always be o.

The IR light will always be on.

The IR light will turn on when the ICR sensor is on.

Schedule:

The IR light will turn on or o according to the schedule
that you specify below.

56D-Link DCS-7413 User Manual

Section 3: Conguration

HTTPS

This page allows you to install and activate an HTTPS certicate for secure access to your camera. After making any changes, click the Save Settings
button to save your changes.

Enable HTTPS Secure Connection:

Create Certicate Method:

Status:

Note:

Enable the HTTPS service.

Choose the way the certicate should be created. Three
options are available:

Create a self-signed certicate automatically
Create a self-signed certicate manually
Create a certicate request and install

Displays the status of the certicate.

The certicate cannot be removed while the HTTPS is
still enabled. To remove the certicate, you must rst
uncheck Enable HTTPS secure connection.

57D-Link DCS-7413 User Manual

Section 3: Conguration

Access List

Here you can set access permissions for users to view your DCS-7413.

Allow list:

Start IP address:

End IP address:

Delete allow list:

Deny list:

Delete deny list:

The list of IP addresses that have the access right to the
camera.

The starting IP Address of the devices (such as a computer)
that have permission to access the video of the camera.
Click Add to save the changes made.

Note: A total of seven lists can be congured for both
columns.

The ending IP Address of the devices (such as a computer)
that have permission to access the video of the camera.

Remove the customized setting from the Allow List.

The list of IP addresses that have no access rights to the
camera.

Remove the customized setting from the Delete List.

For example:

When the range of the Allowed List is set from 1.1.1.0
to 192.255.255.255 and the range of the Denied List is
set from 1.1.1.0 to 170.255.255.255. Only users with IPs
located between 171.0.0.0 and 192.255.255.255 can
access the Network Camera.

Alowed

List

Denied

List

58D-Link DCS-7413 User Manual

Section 3: Conguration

Maintenance

Device Management

You may modify the name and administrator’s password of your camera, as well as add and manage the user accounts for accessing the camera.
You may also use this section to create a unique name and congure the OSD settings for your camera.

Admin Password Setting:

Add User Account:

User Name:

Password:

User List:

Camera Name:

Enable OSD:

Label:

Set a new password for the administrator’s account.

Add new user account.

The user name for the new account.

The password for the new account.

All the existing user accounts will be displayed here. You
may delete accounts included in the list, but you may
want to reserve at least one as a guest account.

Create a unique name for your camera that will be added
to the le name prex when creating a snapshot or a
video clip.

Select this option to enable the On-Screen Display
feature for your camera.

Enter a label for the camera, which will be shown on the
OSD when it is enabled.

Show Time:

Select this option to enable the time-stamp display on
the video screen.

59D-Link DCS-7413 User Manual

Section 3: Conguration

System

In this section, you may backup, restore and reset the camera conguration, or reboot the camera.

Save To Local Hard Drive:

Local From Local Hard Drive:

Restore to Factory Default:

Reboot Device:

You may save your current camera conguration as a le
on your computer.

Locate a pre-saved conguration by clicking Browse and
then restore the pre-dened settings to your camera by
clicking Load Conguration.

You may reset your camera and restore the factory
settings by clicking Restore Factory Defaults.

This will restart your camera.

60D-Link DCS-7413 User Manual

Section 3: Conguration

Firmware Upgrade

The camera's current rmware version will be displayed on this screen. You may visit the D-Link Support Website to check for the latest available
rmware version.

To upgrade the rmware on your DCS-7413, please download and save the latest rmware version from the D-Link Support Page to your local
hard drive. Locate the le on your local hard drive by clicking the Browse button. Select the le and click the Upload button to start upgrading the
rmware.

Current Firmware Version:

Current Product Name:

File Path:

Upload:

Displays the detected rmware version.

Displays the camera model name.

Locate the le (upgraded rmware) on your hard drive
by clicking Browse.

Uploads the new rmware to your camera.

61D-Link DCS-7413 User Manual

Section 3: Conguration

Status

Device Info

This page displays detailed information about your device and network connection.

62D-Link DCS-7413 User Manual

Section 3: Conguration

Logs

This page displays the log information of your camera. You may download the information by clicking Download. You may also click Clear to delete
the saved log information.

63D-Link DCS-7413 User Manual

Section 3: Conguration

This page provides helpful information regarding camera operation.

Help

64D-Link DCS-7413 User Manual

Appendix A: DI/DO Specications

DI/DO Specications

65D-Link DCS-7413 User Manual

Appendix A: Technical Specications

Technical Specications

Camera Camera Hardware

Prole

Camera Housing

Image Features Congurable image size, quality, frame rate, and bit rate

Video Compression Simultaneous H.264/MPEG-4/MJPEG format compression

Video Resolution 16:9 - 1920 x 1080 (up to 15 fps), 1280 x 720, 800 x 450, 640 x 360,

Audio Support G.726 G.711

External Device
Interface

Network Network Protocols IPv6

1/2.7” 2 Megapixel progressive CMOS sensor
30 meter IR illumination distance
Minimum illumination: 0 lux with IR LED on
Built-in Infrared-Cut Removable (ICR) Filter module
10x digital zoom

IP-66 compliant weatherproof housing

Time stamp and text overlays
Congurable motion detection windows

H.264/MPEG-4 multicast streaming

480 x 270, 320 x 176, 176 x 144 up to 30 fps

10/100BASE-TXFastEthernetport
Supports 802.3af PoE

IPv4
TCP/IP
UDP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client

Focal length: 4.3 mm
Aperture: F2.0
Angle of view:

(H) 73.5°
(V) 42.5°
(D) 83.3°

Wire-in bracke

Congurable privacy mask zones
Congurable shutter speed, brightness, saturation, contrast,

and sharpness

JPEG for still images

4:3 - 1440 x 1080 (up to 15 fps), 1280 x 960, 1024 x 768, 800 x 600,
640 x 480, 320 x 240, 176 x 144 up to 30 fps

SD/SDHC card slot
Audio input/output

HTTP / HTTPS
Samba client
PPPoE
UPnP port forwarding
RTP / RTSP/ RTCP
IP ltering
QoS
CoS
Multicast
IGMP
ONVIF compliant

t

Security Administrator and user group protection

Password authentication

HTTP and RTSP digest encryption

66D-Link DCS-7413 User Manual

Appendix A: Technical Specications

System
Management

General Weight

System
Requirements for
Web Interface

Event Management Motion detection

Remote
Management

Mobile Support Windows2000/XP/Vista/Windows7/iPhone/iPad/Android

D-ViewCam™ System
Requirements

D-ViewCam™
Software Functions

External Power
Adapter

Power Consumption

Temperature

Browser: Internet Explorer, Firefox, Chrome, Safari

Supports multiple SMTP and FTP servers

Event notication and uploading of snapshots/video clips via

e-mail or FTP

Take snapshots/video clips and save to local hard drive or NAS

via web browser

OperatingSystem:MicrosoftWindows7/Vista/XP
Web Browser: Internet Explorer 7 or higher

Remote management/control of up to 32 cameras
Viewing of up to 32 cameras on one screen

1920g (with bracket and sunshield)

Input: 100 to 240 V AC, 50/60 Hz Output: 12 V DC 1.25 A

11.2 +-5% Watt

Operating: -40 to 50 °C (-40 to 122 °F) Storage: -20° to 70° C (-4° to 158° F)

Multiple event notications
Multiple recording methods for easy backup

Conguration interface accessible via web browser

Protocol: Standard TCP/IP

Supports all management functions provided in web interface
Scheduled motion triggered, or manual recording options

Humidity Operating: 20% to 80% non-condensing Storage: 5% to 95% non-condensing

Certications

CE
CE LVD

FCC
C-Tick

67D-Link DCS-7413 User Manual

Appendix A: Technical Specications

Dimensions

•

68D-Link DCS-7413 User Manual
