Version 1.01 | 10/07/2015
User Manual
Wireless AC Day/Night HD Mini Bullet Cloud Camera
DCS-7000L
Manual Overview
D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or
organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and
change. Please refer to the www.mydlink.com website for the most current information.
Manual Revisions
Revision Date Description
1.0 May 5, 2014 DCS-7000L Revision A1 with rmware version 1.00
1.01 Oct 07,2015 Minor updates.
Trademarks
D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in the United States or other countries.
All other company or product names mentioned herein are trademarks or registered trademarks of their respective companies.
Copyright © 2015 D-Link Corporation.
All rights reserved. This publication may not be reproduced, in whole or in part, without prior expressed written permission from D-Link Corporation.
2D-Link DCS-7000L User Manual
Table of Contents
Manual Overview............................................................... 2
Manual Revisions .......................................................................... 2
Trademarks ..................................................................................... 2
Product Overview .............................................................. 4
Package Contents .........................................................................4
Introduction ................................................................................... 6
Features ............................................................................................7
Hardware Overview ..................................................................... 8
Front .......................................................................................... 8
Rear ............................................................................................ 9
Adjusting Camera Focus ..........................................................10
Software Installation ....................................................... 11
Zero Conguration Setup ........................................................12
Camera Setup Wizard ................................................................16
Windows Users ....................................................................16
Mac Users...............................................................................17
Manual Hardware Installation ................................................18
Wireless Installation Considerations ....................................19
WPS - Push Button Setup .........................................................20
Setup Wizard ........................................................................25
Network Setup .....................................................................31
Wireless Setup ......................................................................34
Dynamic DNS .......................................................................35
Image Setup .........................................................................36
Audio and Video ..................................................................38
Preset.......................................................................................40
Motion Detection ...............................................................42
Sound Detection .................................................................43
Time and Date ......................................................................44
Event Setup ...........................................................................45
SD Card ...................................................................................52
Advanced ......................................................................................53

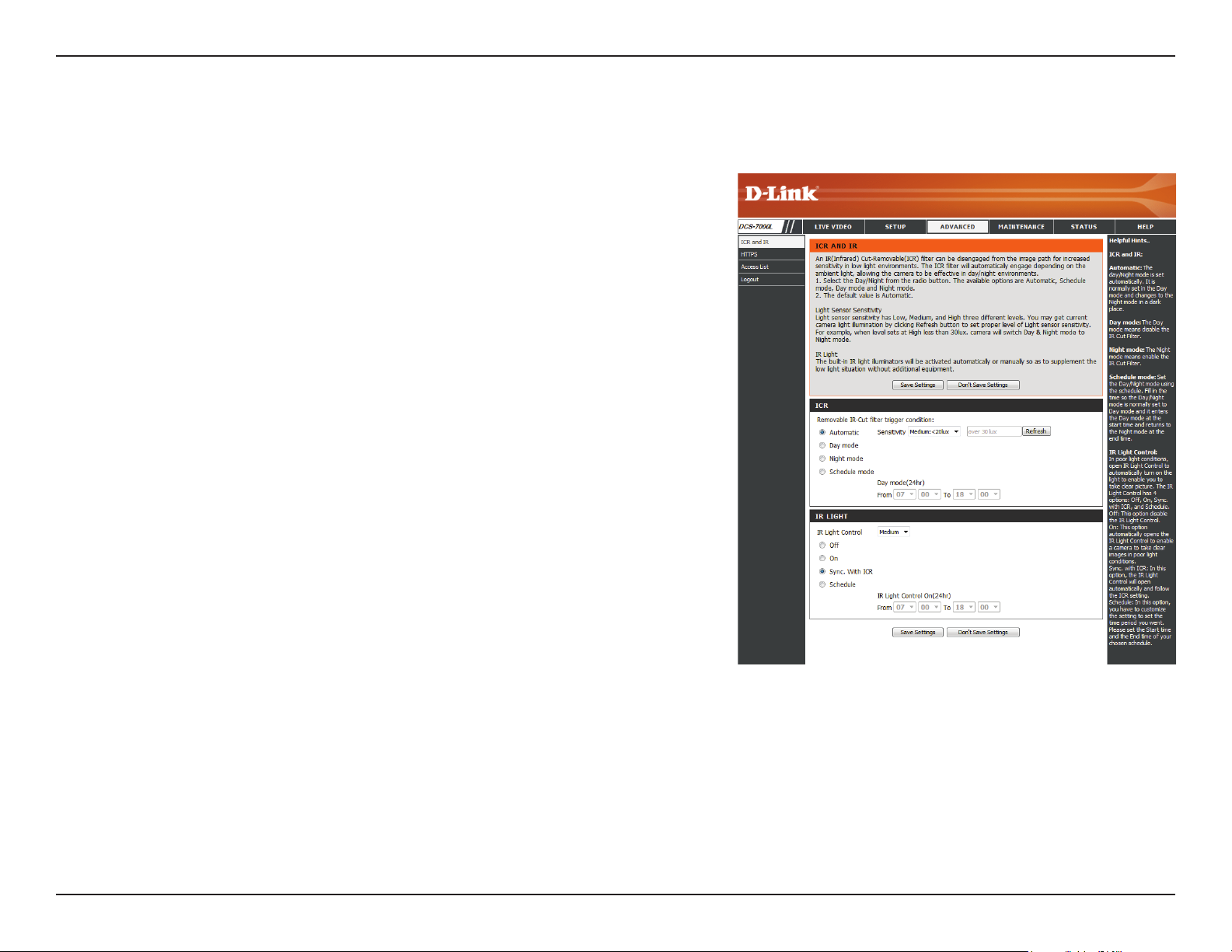

ICR and IR ...............................................................................53
HTTPS ...................................................................................... 54
Access List..............................................................................55
Maintenance ................................................................................56
Device Management .........................................................56
System ....................................................................................57
Firmware Upgrade ..............................................................58
Status ..............................................................................................59
mydlink ............................................................................. 21
Conguration ................................................................... 22
Live Video ......................................................................................23
Setup ...............................................................................................25
Device Info ............................................................................59
Logs .........................................................................................60
Help .........................................................................................61
Technical Specications .................................................. 62
3D-Link DCS-7000L User Manual
Section 1: Product Overview
DCS-7000L Wireless AC Day/Night HD Mini Bullet Cloud Camera
Wall mount kit
Power adapter
CD-ROM with User Manual and software
Product Overview
Package Contents
Quick Installation Guide
If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a dierent voltage than the one included with your
product will cause damage and void the warranty for this product.
4D-Link DCS-7000L User Manual
Section 1: Product Overview
System Requirements
Network Requirements
CD Setup Wizard Requirements
Web-based Conguration Utility
Requirements
mydlink Website Requirements
• Wired (10/100 Fast Ethernet) or Wireless (802.11ac/n/g/a) network
• Broadband modem and subscription with an Internet Service Provider
Computer with the following:
• A PC with a connection to your router
• Windows 8/7/Vista, Mac OS X 10.7 or above
Browser Requirements:
• Internet Explorer 8 or higher
• Firefox 12 or higher
• Safari 6 or higher
Note: Make sure you have the latest version of Java installed.
Visit www.java.com to download the latest version.
• Broadband Internet connection
• Computer with:
• Internet Explorer 8 or higher
• Firefox 12 or higher
• Safari 6 or higher
• Chrome 20 or higher
5D-Link DCS-7000L User Manual
Section 1: Product Overview
Introduction
Congratulations on your purchase of the DCS-7000L Wireless AC Day/Night HD Mini Bullet Cloud Camera, a versatile surveillance
and security solution for your home or small oce. Designed for indoor day or night operation, the camera supports distances
of up to ve meters in darkness.
With Wireless AC support which eliminates the need for network cabling, the DCS-7000L can be accessed remotely, and controlled
from any PC or notebook over your local network or through the Internet using a web browser. The simple installation and
intuitive web-based interface oer easy integration with your existing network.
The included D-Link D-ViewCam™ is a sophisticated piece of software which allows users to manage up to 32 network cameras,
set email alert notications, create recording schedules, and use motion detection to record directly to a hard drive. D-ViewCam™
also allows users to upload a oor plan to create a realistic layout of the premises where cameras are located, further simplifying
the management process.
6D-Link DCS-7000L User Manual
Section 1: Product Overview
Features
Simple to Use
The DCS-7000L is a stand-alone system with a built-in CPU, requiring no special hardware or software. The DCS-7000L supports both ActiveX mode
for Internet Explorer and Java mode for other browsers such as Chrome®, Firefox®, and Safari®.
Supports a Variety of Platforms
Supports TCP/IP networking, HTTP, and other Internet related protocols. The DCS-7000L can also be integrated easily into other Internet/Intranet
applications because of its standards-based features.
Web Conguration
Using a standard Web browser, administrators can congure and manage the DCS-7000L directly from its own Web page via Intranet or Internet.
This means you can access your DCS-7000L anytime, anywhere in the world.
All-Day Surveillance with low light color image capability
With built-in infrared LEDs let you monitor an area 24 hours a day, even in areas with low light or complete darkness, the DCS-7000L is a versatile
surveillance and security monitoring device.
Broad Range of Applications
With today’s high-speed Internet services, the DCS-7000L can provide the ideal solution for delivering live video images over the Intranet and
Internet for remote monitoring. The DCS-7000L allows remote access using a Web browser for live image viewing, and allows the administrator to
manage and control the DCS-7000L anytime, anywhere in the world. Many applications exist, including industrial and public monitoring of homes,
oces, banks, hospitals, child-care centers, and amusement parks.
802.11ac Wireless or Ethernet/Fast Ethernet Support
The DCS-7000L oers wireless 802.11ac and Ethernet/Fast Ethernet connectivity, making the DCS-7000L easy to integrate into your existing network
environment. The DCS-7000L works with 10/100 Mbps Ethernet based networks for traditional wired environments, and works with 802.11ac routers
or access points for added exibility. The Site Survey feature also allows you to view and connect to any available wireless networks.
Remote Monitoring Utility
The D-ViewCam application adds enhanced features and functionality for the DCS-7000L and allows administrators to congure and access the
DCS-7000L from a remote site via Intranet or Internet. Other features include image monitoring, recording images to a hard drive, viewing up to
32 cameras on one screen, and taking snapshots.
7D-Link DCS-7000L User Manual
Section 1: Product Overview
Hardware Overview
Front
3
1
2
1 IR LEDs
2 Power/Link LED
3 Light Sensor
4 Camera Lens Records video of the surrounding area
Used to illuminate the camera's eld of view at night
Indicates the camera's current status
Measures the lighting conditions and switches between color and infrared
accordingly.
4
8D-Link DCS-7000L User Manual
Section 1: Product Overview
1
Rear
2
3
4
1 Power Connector
2 Reset Button
3 WPS Button
5
6
7
Connects to the included DC 5 V power adapter
Press and hold this button for 10 seconds to reset the camera
Press this button for 3 seconds, then within the next 60 seconds press the WPS
button on your router to set up a wireless connection automatically
4 Audio In
5 microSD Card Slot Insert a microSD or microSDHC card to store recordings (max. capacity 32 GB)
6 Audio Out Connect an audio jack for audio output
7 Ethernet Port
Connect an audio jack to override the built-in audio input
RJ45 connector for Ethernet
9D-Link DCS-7000L User Manual
Section 1: Product Overview
Use the included focus
adjustment tool to adjust the
camera focus by rotating the
circular frame around the lens
clockwise or anti-clockwise.
Note: For ne tuning the focus, it is
recommended to use the included
focus adjustment tool rather than
attempting to adjust the lens with
your ngers or other objects.
Adjusting Camera Focus
10D-Link DCS-7000L User Manual
Section 2: Installation
Software Installation
There are three ways to set up your camera:
Zero Conguration Setup: If you have a mydlink-enabled router, this is the easiest way to set up your camera.
Refer to page 12.
Camera Setup Wizard: If you do not have a mydlink-enabled router, use the Camera Installation Wizard to guide
you through setup and initial conguration of your camera. Refer to page 16.
Manual Hardware Installation: This section shows you how to manually set up your camera, though in order to
use the mydlink features of your camera, you will still need to run the Camera Installation Wizard. Refer to page 18.
11D-Link DCS-7000L User Manual
Section 2: Installation
Zero Conguration Setup
If you have a D-Link Cloud Router, you can take advantage of Zero Conguration. Zero Conguration automatically congures
your camera's settings for you, and adds it to your mydlink account automatically. This type of setup allows you to set up your
camera by simply plugging it in and connecting it to your router.
Connect your camera to your mydlink enabled cloud router and Zero Conguration will automatically congure your
DCS-7000L and automatically add the camera to your mydlink account. You can now remotely access your camera from the
mydlink.com website to manage and monitor your DCS-7000L.
Connect the Ethernet Cable
If using an Ethernet connection: Connect the included Ethernet cable to the
Ethernet port located on the back of the DCS-7000L and connect it to your router.
Attach the External Power Supply
Attach the external power supply to the DC Power receptor located on the rear
panel of the DCS-7000L and connect it to your wall outlet or power strip.
12D-Link DCS-7000L User Manual
Section 2: Installation
Optional: WPS Wireless Connection
Alternatively, if your router supports WPS, you can use the WPS
button on the camera to easily create a secure wireless connection
to your network.
To create a WPS connection:
Step 1
Press and hold the WPS button for approximately 5-6 seconds. The
blue WPS status LED above the button will blink.
Step 2
Within 60 seconds press the WPS button on your router. On some
routers, you may need to log in to the web interface and click on
an on-screen button to activate the WPS feature. If you are not sure
where the WPS button is on your router, please refer to your router’s
User Manual.
The DCS-7000L will automatically create a wireless connection to
your router. While connecting, the status LED will ash. When the
connection process is complete, the status LED will turn solid.
Note: If your router does not support WPS, you can still use the wired
connection method on the previous page. After Zero Conguration
setup is complete, your router's wireless settings will be automatically
transferred to the camera.
WPS Button
13D-Link DCS-7000L User Manual
Section 2: Installation
Check Your mydlink Account
From any computer, open a web browser, go to
http://www.mydlink.com and log into your account. Once mydlink
detects your camera, a New Device Found! notice will appear in the
bottom-left corner. Click on the device name to continue.
A summary and confirmation notification will appear with the
automatically congured details. Make a note of the details and click
Yes to add the camera to your account.
14D-Link DCS-7000L User Manual
Section 2: Installation
Zero Conguration is now complete and your camera has been
added to your mydlink account. You can now view your camera on
the mydlink Live View tab.
If you wish to connect your camera to your router wirelessly, you
can simply disconnect the Ethernet cable and move the camera
to its intended location; your router's wireless settings have been
automatically transferred to the camera, and no further conguration
is required.
Your camera is now set up, and you can skip to "mydlink" on page
21 to learn more about the mydlink features of this camera, or to
"Conguration" on page 22 for advanced conguration of your camera.
15D-Link DCS-7000L User Manual
Section 2: Installation
Camera Setup Wizard
If you do not have a mydlink-enabled Cloud Router, you can use the Camera Setup Wizard to guide you through the process
of adding your camera to the mydlink service.
Windows Users
Insert the Installation CD-ROM into your computer’s optical drive to start the autorun program. If the autorun
program does not open, go to My Computer, browse to your CD drive, and double-click on the autorun.exe le.
Once the wizard has started simply click Set up your Cloud Camera to go through the Setup Wizard, which will
guide you step-by-step through the installation process from connecting your hardware to conguring your
camera and registering it with your mydlink account.
16D-Link DCS-7000L User Manual
Section 2: Installation
Mac Users
Insert the Installation CD-ROM into your computer’s optical drive. On the desktop, open your
CD drive and double-click on the SetupWizard le.
After about 20-30 seconds, the Setup Wizard will open, which will guide you step-by-step through the installation process
from connecting your hardware to conguring your camera and registering it with your mydlink account.
17D-Link DCS-7000L User Manual
Section 2: Installation
Manual Hardware Installation
If you wish to set up your camera without using the Camera Setup Wizard, please follow these steps.
Note: In order to use the mydlink features of this product, you will need to go through the Camera Setup Wizard.
Attach the External Power Supply
Attach the external power supply to the DC Power receptor located on the rear
panel of the DCS-7000L and connect it to your wall outlet or power strip.
Connect the Ethernet Cable
Connect the included Ethernet cable to the network cable connector located on
the panel at the rear of the DCS-7000L and attach it to the network.
18D-Link DCS-7000L User Manual
Section 2: Installation
Installation
Wireless Installation Considerations
This D-Link device can connect to your wireless network from anywhere within the operating range of your wireless network. However, the number,
thickness and location of walls, ceilings, or other objects that the wireless signals must pass through, may limit the range. Typical ranges vary
depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range
is to follow these basic guidelines:
1. Minimize the number of walls and ceilings between your adapter and other network devices (such as your DCS-7000L) - each wall or ceiling
can reduce your adapter’s range from 3-90 feet (1-30 meters).
2. Be aware of the direct line between network devices. A wall that is 1.5 feet thick (.5 meters), at a 45-degree angle appears to be almost 3 feet
(1 meter) thick. At a 2-degree angle, it looks over 42 feet (14 meters) thick. Position your devices so that the signal will travel straight through
a wall or ceiling (instead of at an angle) for better reception.
3. Building materials make a dierence. A solid metal door or aluminum studs may weaken the wireless signal. Try to position your access points,
wireless routers, and other networking devices where the signal passes through drywall or open doorways. Materials and objects such as
glass, steel, metal, walls with insulation, water (sh tanks), mirrors, le cabinets, brick, and concrete will degrade your wireless signal.
4. Keep your product at least 3-6 feet or 1-2 meters away from electrical devices or appliances that generate RF noise.
5. If you are using 2.4 GHz cordless phones or other radio frequency sources (such as microwave ovens), your wireless connection may degrade
dramatically or drop completely. Make sure your 2.4 GHz phone base is as far away from your wireless devices as possible. The base transmits
a signal even if the phone in not in use.
19D-Link DCS-7000L User Manual
Section 2: Installation
WPS - Push Button Setup
If your router supports WPS, you can use the WPS button on the camera to easily create a secure wireless connection to your
network.
To create a WPS connection:
Step 1
Press and hold the WPS button for approximately 5-6 seconds. The
blue WPS status LED above the button will blink.
Step 2
Within 60 seconds press the WPS button on your router. On some
routers, you may need to log in to the web interface and click on an
on-screen button to activate the WPS feature.
The DCS-7000L will automatically create a wireless connection to
your router. While connecting, the status LED will ash. When the
connection process is complete, the status LED will turn solid.
WPS Button
20D-Link DCS-7000L User Manual
Section 3: mydlink
mydlink
After registering your DCS-7000L camera with a mydlink account in the Camera Setup Wizard. You will be able to remotely
access your camera from the www.mydlink.com website. After signing in to your mydlink account, you will see a screen similar
to the following:
For more details on using your camera with mydlink, go to the Support section of the mydlink website and check the User
Manual section for your product to nd the latest instruction guide for your camera's mydlink features.
21D-Link DCS-7000L User Manual
Section 4: Conguration
Conguration
After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web conguration
interface is designed to allow you to easily access and congure your DCS-7000L. At the end of the wizard, enter the IP address
of your camera into a web browser, such as Internet Explorer®. To log in, use the User name admin and the password you created
during the setup process. If you did not create a password, the default password is blank. After entering your password, click OK.
Note: If you are directly connecting your PC to the camera, or if you are using the camera on a closed network, the default IP
is 192.168.0.20.
22D-Link DCS-7000L User Manual
Section 4: Conguration
Live Video
This section shows your camera’s live video. You may select any of the
available icons listed below to operate the camera. You may also select
your language using the drop-down menu on the left side of the screen.
You can zoom in and out on the live video image using your mouse.
Right-click to zoom out or left-click to zoom in on the image.
SD Status:
This option displays the status of the SD card. If no
SD card has been inserted, this screen will display the
message "Card Invalid."
Motion Trigger
Indicator
Recording
Indicator
Control Pad
Auto Pan Starts the automatic panning function. The ROI will pan from back and forth within the FOV
Stop Stops automatic panning.
This indicator will change color when a trigger event occurs.
Note: The video motion feature for your camera must be enabled.
When a recording is in progress, this indicator will change color.
This control pad can be used to electronically pan, tilt, and zoom (ePTZ) within the camera's
predened view area, if one has been dened.
Preset Path Starts the camera's motion along the predened path.
23D-Link DCS-7000L User Manual
Section 4: Conguration
ePTZ Speed:
Global View:
Language:
Go To:
(Preset List)
You may select a value between 0 and 64. 0 is the
slowest and 64 is the fastest.
This window indicates the total eld of view (FOV) of
the camera. The red box indicates the visible region of
interest (ROI).
You may select the interface language using this menu.
If any presets have been dened, selecting a preset
from this list will display it.
Video Prole 1
Video Prole 2
Video Prole 3
Full screen mode
Taking a Snapshot
Record a Video Clip
Set a Storage Folder
Listen/Stop Audio In (from microphone)
Start/Stop Audio Out (to speaker)
24D-Link DCS-7000L User Manual
Section 4: Conguration
Setup
Setup Wizard
This section allows you to begin setup wizards which will guide you through the process of getting your camera’s various functions congured. If
you comfortable with adjusting the settings manually, you may skip the wizards and adjust the necessary as needed.
Internet
Connection
Setup Wizard:
Manual
Internet
Connection
Setup:
Motion
Detection Setup
Wizard:
Manual
Motion
Detection
Setup:
You may choose to congure your network by using the Internet
Connection Setup Wizard that includes step-by-step instructions.
Please refer to page "Internet Connection Setup Wizard" on page
26 for more details.
If you would rather manually setup the camera internet
connection, you can refer to page "Network Setup" on page 31
which provides more details on the information required.
You may choose to congure motion detection by using the
Motion Detection Setup Wizard that includes step-by-step
instructions. Please refer to page "Motion Detection Setup
Wizard" on page 29 for more details.
If you would rather manually setup the camera’s motion
detection features, you can refer to page "Motion Detection" on
page 42 which provides more details on the information required.
25D-Link DCS-7000L User Manual
Section 4: Conguration
Internet Connection Setup Wizard
This wizard will guide you through a step-by-step process to congure your new
D-Link Camera and connect the camera to the Internet. Note that this wizard will
not register your camera with mydlink.com.
Click Next to continue.
Select Automatic IP Address if you want your DHCP server (usually enabled on
your router) to assign the camera its IP settings. If you want to manually assign the
IP settings, select Static IP Address and enter the following details:
IP Address:
Subnet Mask:
Default
Gateway:
Primary DNS:
Secondary DNS:
If you are required to connect using PPPoE, select Enabled and enter the Username
and Password for your PPPoE connection. Only select this option if your camera is
directly connected to your broadband modem. If it is on a network with a router or
gateway, do not select this option.
Click Next to continue.
Enter an IP address for your camera.
Enter the subnet mask of your network.
Enter the default gateway address. This is usually the IP address
of your router.
Enter the primary DNS server’s IP address. This is usually the IP
address of your router.
Enter the secondary DNS server’s IP address. This is optional.
26D-Link DCS-7000L User Manual
Section 4: Conguration
A Dynamic DNS account allows you to access your camera over the Internet when
you have an IP address that changes each time you connect to the Internet. If you
have a Dynamic DNS account, click Enable and enter the following details:
Enable:
Server Address:
Host Name:
User Name:
Password:
Verify Password:
Timeout:
Click to enable the DDNS function. The Dynamic Domain Name
Server (DDNS) will hold a DNS host name and synchronize the
public IP address of the modem when it has been modied. The
username and password are required when using the DDNS
service.
Select your Dynamic DNS Server from the drop down menu.
Enter the host name of the DDNS server.
Enter your username or e-mail address used to connect to the
DDNS.
Enter your password used to connect to the DDNS server.
Re-enter your password for verication.
You can setup how often the camera noties the DDNS server
of its current global IP address by entering a whole number in
hours.
Click Next to continue.
27D-Link DCS-7000L User Manual
Section 4: Conguration
Create a unique name for your camera. Click Next to continue.
Select the time zone that the camera is geographically located in so that scheduled
events occur at the correct time. If your time zone observes daylight saving, check
the Enable Daylight Saving box.
Click Next to continue.
A summary of the options you selected is displayed for conrmation. If you are
happy with the selected conguration, click Apply otherwise click Back to make
the required changes.
28D-Link DCS-7000L User Manual
Section 4: Conguration
Motion Detection Setup Wizard
This wizard will guide you through a step-by-step process to congure your
camera's motion detection functions.
Click Next to continue.
Step 1
This step will allow you to enable or disable motion detection, specify the detection
sensitivity, and adjust the camera’s ability to detect movement.
You may specify whether the camera should capture a snapshot or a video clip
when motion is detected.
Please see "Motion Detection" on page 42 for information about how to congure
motion detection.
Step 2
This step allows you to enable motion detection based on a customized schedule.
Specify the day and hours. You may also choose to always record whenever motion
is detected.
29D-Link DCS-7000L User Manual
Section 4: Conguration
Step 3
This step allows you to specify how you will receive event notications from your
camera. You may choose not to receive notications, or to receive notications via
e-mail or FTP.
Please enter the relevant information for your e-mail or FTP account.
Click Next to continue.
Step 4
You have completed the Motion Detection Wizard.
Please verify your settings and click Apply to save them.
Please wait a few moments while the camera saves your settings and restarts.
30D-Link DCS-7000L User Manual
Section 4: Conguration
Network Setup
Use this section to congure the network connections for your camera. All
relevant information must be entered accurately. After making any changes, click
the Save Settings button to save your changes.
DHCP:
Static IP
Address:
IP Address:
Subnet Mask:
Default Gateway:
Primary DNS:
Secondary DNS:
Enable UPnP
Presentation:
Select this connection if you have a DHCP server running on
your network and would like your camera to obtain an IP address
automatically.
You may obtain a static or xed IP address and other network
information from your network administrator for your camera.
Enter the xed IP address in this eld.
This number is used to determine if the destination is in the same
subnet. The default value is 255.255.255.0.
The gateway used to forward data to.
The primary domain name server translates names to IP
addresses.
The secondary DNS acts as a backup to the primary.
Enabling this setting allows your camera to be congured as a
UPnP device on your network.
Enable UPnP
Port Forwarding:
Forwarding
Port:
Forwarding
Status:
Enabling this setting allows the camera to specify a port to
forward for remote UPnP connections.
Enter the UPnP port you wish to forward, and click Test to check
whether it is available.
Displays the current UPnP port forwarding status.
31D-Link DCS-7000L User Manual
Section 4: Conguration
Enable PPPoE:
User Name /
Password:
HTTP Port:
Access Name for
Stream 1~3:
HTTPS Port:
RTSP Port:
Enable CoS:
Enable this setting if your network uses PPPoE.
Enter the username and password for your PPPoE account. Reenter your password in the Conrm Password eld. You may
obtain this information from your ISP.
The default port number is 80.
The default name is video#.mjpg, where # is the number of the
stream.
You may use a PC with a secure browser to connect to the HTTPS
port of the camera. The default port number is 443.
The port number that you use for RTSP streaming to mobile
devices, such as mobile phones or PDAs. The default port number
is 554. You may specify the address of a particular stream. For
instance, live1.sdp can be accessed at rtsp://x.x.x.x/video1.sdp
where the x.x.x.x represents the ip address of your camera.
Enabling the Class of Service setting implements a best-eort
policy without making any bandwidth reservations.
Enable QoS:
Enable IPv6:
Enabling QoS allows you to specify a trac priority policy to
ensure a consistent Quality of Service during busy periods. If the
DCS-7000L is connected to a router that itself implements QoS,
the router's settings will override the QoS settings of the camera.
Enable the IPv6 setting to use the IPv6 protocol. Enabling the
option allows you to manually set up the address, specify an
optional IP address, specify an optional router and an optional
primary DNS.
32D-Link DCS-7000L User Manual
Section 4: Conguration
Enable Multicast
for stream
The DCS-7000L allows you to multicast each of the available
streams via group address and specify the TTL value for each
stream. Enter the port and TTL settings you wish to use if you do
not want to use the defaults.
Please verify your settings and click Save Settings to commit
them.
33D-Link DCS-7000L User Manual
Section 4: Conguration
Wireless Setup
This section allows you to set up and congure the wireless settings on your camera.
After making any changes, click the Save Settings button to save your changes.
Site Survey:
SSID:
Wireless Mode:
Channel:
Authentication:
Encryption:
Click the Rescan button to scan for available wireless networks. After
scanning, you can use the drop-down box to select an available
wireless network. The related information (SSID, Wireless Mode,
Channel, Authentication, Encryption) will be automatically lled
in for you.
Enter the SSID of the wireless access point you wish to use.
Use the drop-down box to select the mode of the
wireless network you wish to connect to. Infrastructure is
normally used to connect to an access point or router. Ad-Hoc is
usually used to connect directly to another computer.
If you are using Ad Hoc mode, select the channel of the wireless
network you wish to connect to, or select Auto.
Select the authentication you use on your wireless network Open, Shared, WPA-PSK, or WPA2-PSK.
If you use WPA-PSK or WPA2-PSK authentication, you will need
to specify whether your wireless network uses TKIP or AES
encryption. If you use Open or Shared authentication, WEP
encryption should be the setting.
Key:
If you use WEP, WPA-PSK, or WPA2-PSK authentication, enter the
Key (also known as password) used for your wireless network.
34D-Link DCS-7000L User Manual
Section 4: Conguration
Dynamic DNS
DDNS (Dynamic Domain Name Server) will hold a DNS host name and synchronize
the public IP address of the modem when it has been modied. A user name and
password are required when using the DDNS service. After making any changes,
click the Save Settings button to save your changes.
Enable DDNS:
Server Address:
Host Name:
User Name:
Password:
Timeout:
Status:
Select this checkbox to enable the DDNS function.
Select your Dynamic DNS provider from the pull down menu or
enter the server address manually.
Enter the host name of the DDNS server.
Enter the user name or e-mail used to connect to your DDNS
account.
Enter the password used to connect to your DDNS server account.
Enter the DNS timeout values you wish to use.
Indicates the connection status, which is automatically
determined by the system.
35D-Link DCS-7000L User Manual
Section 4: Conguration
Image Setup
In this section, you may congure the video image settings for your camera. A
preview of the image will be shown in Live Video.
Enable Privacy
Mask:
Anti Flicker:
Mirror:
Flip:
Power Line:
The Privacy Mask setting allows you to specify up to 3 rectangular
areas on the camera's image to be blocked/excluded from
recordings and snapshots.
You may click and drag the mouse cursor over the camera image
to draw a mask area. Right clicking on the camera image brings
up the following menu options:
Disable All: Disables all mask areas
Enable All: Enables all mask areas
Reset All: Clears all mask areas.
If the video ickers, try enabling this setting.
This will mirror the image horizontally.
This will ip the image vertically. When turning Flip on, you may
want to consider turning Mirror on as well.
Select the frequency used by your power lines to avoid
interference or distortion.
White Balance:
Use the drop-down box to change white balance settings to help
balance colors for dierent environments. You can choose from
Auto, Outdoor, Indoor, Fluorescent, and Push Hold.
36D-Link DCS-7000L User Manual
Section 4: Conguration
Exposure Mode:
Denoise:
Brightness:
Contrast:
Saturation:
Sharpness:
Changes the exposure mode. Use the drop-down box to set
the camera for Indoor, Outdoor, or Night environments, or to
Moving to capture moving objects. The Low Noise option will
focus on creating a high-quality picture without noise. You can
also create 3 dierent custom exposure modes. The Max Gain
setting will allow you to control the maximum amount of gain to
apply to brighten the picture.
This setting controls the amount of noise reduction that will be
applied to the picture.
Adjust this setting to compensate for backlit subjects.
Adjust this setting to alter the color intensity/strength.
This setting controls the amount of coloration, from grayscale to fully
saturated.
Specify a value from 0 to 8 to specify how much sharpening to apply
to the image.
Reset Default:
Click this button to reset the image to factory default settings.
37D-Link DCS-7000L User Manual
Section 4: Conguration
Audio and Video
You may congure up to 3 video proles with dierent settings for your camera.
Hence, you may set up dierent proles for your computer and mobile display. In
addition, you may also congure the two-way audio settings for your camera. After
making any changes, click the Save Settings button to save your changes.
Number of
active proles:
Aspect ratio:
Mode:
Frame size /
View window
area:
Maximum frame
rate:
You can use the drop-down box to set up to 2 active proles.
Set the aspect ratio of the video to 4:3 standard or 16:9
widescreen.
Set the video codec to be used to JPEG, or H.264.
Frame size determines the total capture resolution, and View
window area determines the Live Video viewing window size. If
the Frame size is larger than the Live Video size, you can use the
ePTZ controls to look around.
16:9 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176
4:3 960 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240
Note: If your View window area is the same as your Frame size,
you will not be able to use the ePTZ function.
A higher frame rate provides smoother motion for videos,
and requires more bandwidth. Lower frame rates will result in
stuttering motion, and requires less bandwidth.
38D-Link DCS-7000L User Manual
Section 4: Conguration
Video Quality:
Constant bit
rate:
Fixed quality:
Audio in o:
Audio in gain
level:
Audio out o:
Audio out
volume level:
This limits the maximum frame rate, which can be combined with
the "Fixed quality" option to optimize the bandwidth utilization
and video quality. If xed bandwidth utilization is desired
regardless of the video quality, choose "Constant bit rate" and
select the desired bandwidth.
The bps will aect the bit rate of the video recorded by the
camera. Higher bit rates result in higher video quality.
Select the image quality level for the camera to try to maintain.
High quality levels will result in increased bit rates.
Selecting this checkbox will mute incoming audio.
This setting controls the amount of gain applied to incoming
audio to increase its volume.
Selecting this checkbox will mute outgoing audio.
This setting controls the amount of gain applied to outgoing
audio to increase its volume.
39D-Link DCS-7000L User Manual
Section 4: Conguration
Preset
This screen allows you to set preset points for the ePTZ function of the camera,
which allows you to look around the camera's viewable area by using a zoomed
view. Presets allow you to quickly go to and view a specic part of the area your
camera is covering, and you can create preset sequences, which will automatically
change the camera's view between the dierent presets according to a dened
order and timing you can set.
Note: If your View window area is the same as your Frame size, you will not be able
to use the ePTZ function.
Video Prole:
ePTZ Speed:
Arrow Buttons
and Home
Button:
Input Preset
Name:
Preset List:
Preset
Sequence:
This selects which video prole to use.
You may select a value between 0 and 64. 0 is the slowest and 64
is the fastest.
Use these buttons to move to a specic part of the viewing area,
which you can then set as a preset. Click the Home button to
return to the center of the viewing area.
Enter the name of the preset you want to create, then click the
Add button to make a new preset. If an existing preset has been
selected from the Preset List, you can change its name by typing
in a new name, then clicking the Rename button.
Click this drop-down box to see a list of all the presets that have
been created. You can select one, then click the GoTo button to
change the displayed camera view to the preset. Clicking the
Remove button will delete the currently selected preset.
This section allows you to create a preset sequence, which
automatically moves the camera's view between a set of preset
views.
40D-Link DCS-7000L User Manual
Section 4: Conguration
Preset List: To add a preset to the sequence, select it from the drop-down box
at the bottom of this window, set the Dwell time to determine
how long the camera view will stay at that preset, then click the
Add button. The preset name will appear in the list, followed by
the dwell time to view that preset for.
You can rearrange your presets in the sequence by selecting a
preset in the sequence, then clicking the arrow buttons to move
it higher or lower in the current sequence.
Clicking the trash can button will remove the currently selected
preset from the sequence.
If you want to change the dwell time for a preset, select it from
the list, enter a new dwell time, then click the Update button.
41D-Link DCS-7000L User Manual
Section 4: Conguration
Motion Detection
Enabling Video Motion will allow your camera to use the motion detection feature.
You may dene a motion area that will be used for monitoring. After making any
changes, click the Save Settings button to save your changes.
Enable Video
Motion:
Sensitivity:
Percentage:
Draw Motion
Area:
Erase Motion
Area:
Select this box to enable the motion detection feature of your
camera.
Species the measurable dierence between two sequential
images that would indicate motion. Please enter a value between
0 and 100.
Species the amount of motion in the window being monitored
that is required to initiate an alert. If this is set to 100%, motion is
detected within the whole window will trigger a snapshot.
Draw the motion detection area by dragging your mouse in the
window (indicated by the red square).
To erase a motion detection area, simply click on the red square
that you wish to remove.
Right clicking on the camera image brings up the following
menu options:
Select All: Draws a motion detection area over the entire screen.
Clear All: Clears any motion detection areas that have been
drawn.
Restore: Restores the previously specied motion detection
areas.
42D-Link DCS-7000L User Manual
Section 4: Conguration
Sound Detection
Enabling Sound Detection will allow your camera to use the built-in microphone
to trigger events with audio. If this option is selected, the trigger by option under
SD recording, Video Clip, or Snapshot should also be selected. After making any
changes, click the Save Settings button to save your changes.
Enable Sound
Detection:
Detection Level:
Check this box to enable the motion detection feature of your
camera.
Species the measurable level that would indicate sound. Please
enter a value between 50 and 90, the higher the number the
more sensitive the camera will be to sound.
43D-Link DCS-7000L User Manual
Section 4: Conguration
Time and Date
This section allows you to automatically or manually congure, update, and
maintain the internal system clock for your camera. After making any changes,
click the Save Settings button to save your changes.
Time Zone:
Enable Daylight
Saving:
Auto Daylight
Saving:
Set Date and
Time Manually:
Oset:
Synchronize
with NTP Server:
NTP Server:
Select your time zone from the drop-down menu.
Select this to enable Daylight Saving Time.
Select this option to allow your camera to congure the Daylight
Saving settings automatically.
Selecting this option allows you to congure the Daylight Saving
date and time manually.
Sets the amount of time to be added or removed when Daylight
Saving is enabled.
Enable this feature to obtain time automatically from an NTP
server.
Network Time Protocol (NTP) synchronizes the DCS-7000L with
an Internet time server. Choose the one that is closest to your
location.
Set the Date and
Time Manually:
Copy Your
Computer's
Time Settings:
This option allows you to set the time and date manually.
This will synchronize the time information from your PC.
44D-Link DCS-7000L User Manual
Section 4: Conguration
ex.
Motion detection,
Periodically, Digital input,
System reboot
Event Condition
ex.
Snapshot, Video Clips
ex.
Email, FTP
Media
(what to send)
Server
(where to send)
Action
Event Setup
In a typical application, when motion is detected, the DCS-7000L sends images to a FTP server or via e-mail as notications. As shown in the
illustration below, an event can be triggered by many sources, such as motion detection or external digital input devices. When an event is
triggered, a specied action will be performed. You can congure the DCS-7000L to send snapshots or videos to your e-mail address or FTP site.
To start plotting an event, it is suggested to congure server and media columns rst so that the DCS-7000L will know what action shall be
performed when a trigger is activated.
45D-Link DCS-7000L User Manual
Section 4: Conguration
The Event Setup page includes 4 dierent sections.
• Server
• Media
• Event
• Recording
1. To add a new item - "server, media, or event," click Add. A screen will appear and
allow you to update the elds accordingly.
2. To delete the selected item from the pull-down menu of event, server or media,
click Delete.
3. Click on the item name to pop up a window for modifying.
46D-Link DCS-7000L User Manual
Section 4: Conguration
Add Server
You can congure up to 5 servers to save snapshots and/or video to. After making
any changes, click the Save Settings button to save your changes.
Server Name:
E-mail:
FTP:
Network
Storage:
SD Card:
Enter the unique name of your server.
Enter the conguration for the target e-mail server account.
Enter the conguration for the target FTP server account.
Specify a network storage device. Only one network storage
device is supported.
Use the camera's onboard SD card storage.
47D-Link DCS-7000L User Manual
Section 4: Conguration
Add Media
There are three types of media, Snapshot, Video Clip, and System Log. After
making any changes, click the Save Settings button to save your changes.
Media Name:
Snapshot:
Source:
Send pre-event
image(s) [0~3]:
Send post-event
image(s) [0~7]:
File name prex:
Add date and
time sux to
le name:
Enter a unique name for media type you want to create.
Select this option to set the media type to snapshots.
Set the video prole to use as the media source. Refer to Audio
and Video on "Audio and Video" on page 38 for more information
on video proles.
Set the number of pre-event images to take. Pre-event images
are images taken before the main event snapshot is taken.
Set the number of post-event images to take. Post-event images
are images taken after the main event snapshot is taken. You can
set up to 7 post-event images to be taken.
The prex name will be added on the le name.
Check it to add timing information as le name sux.
Video clip:
Source:
Pre-event
recording:
Select this option to set the media type to video clips.
Set the video prole to use as the media source. Refer to "Audio
and Video" on page 51 for more information on video proles.
This sets how many seconds to record before the main event
video clip starts. You can record up to 3 seconds of pre-event
video.
48D-Link DCS-7000L User Manual
Section 4: Conguration
Maximum
duration:
Maximum le
size:
File name prex:
System log:
Set the maximum length of video to record for your video clips.
Set the maximum le size to record for your video clips.
This is the prex that will be added to the lename of saved
video clips.
Select this option to set the media type to system logs. This will
save the event to the camera system log, but will not record any
snapshots or video.
49D-Link DCS-7000L User Manual
Section 4: Conguration
Add Event
Create and schedule up to 2 events with their own settings here. After making any
changes, click the Save Settings button to save your changes.
Event name:
Enable this
event:
Priority:
Delay:
Video Motion
Detection:
Periodic:
System Boot:
Network Lost:
Enter a name for the event.
Select this box to activate this event.
Set the priority for this event. The event with higher priority will
be executed rst.
Select the delay time before checking the next event. It is being
used for both events of motion detection and digital input
trigger.
Motion is detected during live video monitoring. Select the
windows that need to be monitored.
The event is triggered in specied intervals. The trigger interval
unit is in minutes.
Triggers an event when the system boots up.
Triggers an event when the network connection is lost.
Sound
Detection:
Schedule:
Triggers an event when sound is detected.
This option allows you to schedule the event manually.
50D-Link DCS-7000L User Manual
Section 4: Conguration
Add Recording
Here you can congure and schedule the recording settings. After making any
changes, click the Save Settings button to save your changes.
Recording entry
name:
Enable this
recording:
Priority:
Source:
Recording
schedule:
Recording
settings:
Destination:
Total cycling
recording size:
The unique name of the entry.
Select this to enable the recording function.
Set the priority for this entry. The entry with a higher priority
value will be executed rst.
The source of the stream.
Scheduling the recording entry.
Conguring the setting for the recording.
Select the folder where the recording le will be stored.
Input a value between 200 MB and 2000000 MB (2 TB) for the
space allocated to recording. New recordings will replace the
oldest recording when the total recording size exceeds this value.
Size of each le
for recording:
Time of each le
for recording:
File Name Prex:
If this is selected, les will be separated based on the le size you
specify.
If this is selected, les will be separated based on the maximum
length you specify.
The prex name will be added on the le name of the recording
le(s).
51D-Link DCS-7000L User Manual
Section 4: Conguration
SD Card
Here you may browse and manage the recorded les which are stored on the SD
card.
Format SD Card:
View Recorded
Picture:
Playback
Recorded Video:
Refresh:
Click this icon to automatically format the SD card and create
"picture" & "video" folders.
If the picture les are stored on the SD card, click on the picture
folder and choose the picture le you would like to view.
If video les are stored on the SD card, click on the video folder
and choose the video le you would like to view.
Reloads the le and folder information from the SD card.
52D-Link DCS-7000L User Manual
Section 4: Conguration
Advanced
ICR and IR
Here you can congure the ICR and IR settings. An IR(Infrared) Cut-Removable (ICR)
lter can be disengaged for increased sensitivity in low light environments.
Automatic:
Day Mode:
Night Mode:
Schedule Mode:
IR Light Control:
O:
On:
Sync:
The Day/Night mode is set automatically. Generally, the camera
uses Day mode and switches to Night mode when needed.
Day mode enables the IR Cut Filter.
Night mode disables the IR Cut Filter.
Set up the Day/Night mode using a schedule. The camera will
enter Day mode at the starting time and return to Night mode at
the ending time.
The camera can enable or disable the IR (infrared) light according
to your preferences. This setting provides additional controls
depending on your specic application.
The IR light will always be o.
The IR light will always be on.
The IR light will turn on when the ICR sensor is on.
Schedule:
The IR light will turn on or o according to the schedule that you
specify below.
53D-Link DCS-7000L User Manual
Section 4: Conguration
HTTPS
This page allows you to install and activate an HTTPS certicate for secure access
to your camera. After making any changes, click the Save Settings button to save
your changes.
Enable
HTTPS Secure
Connection:
Create
Certicate
Method:
Status:
Enable the HTTPS service.
Choose the way the certicate should be created. Three options
are available:
Create a self-signed certicate automatically
Create a self-signed certicate manually
Create a certicate request and install
Displays the status of the certicate.
Note: The certicate cannot be removed while the HTTPS is still
enabled. To remove the certicate, you must rst uncheck Enable
HTTPS secure connection.
54D-Link DCS-7000L User Manual
Section 4: Conguration
Access List
Here you can set access permissions for users to view your DCS-7000L.
Allow list:
Start IP address:
End IP address:
Delete allow list:
Deny list:
Delete deny list:
The list of IP addresses that have the access right to the camera.
The starting IP Address of the devices (such as a computer) that
have permission to access the video of the camera. Click Add to
save the changes made.
Note: A total of seven lists can be congured for both columns.
The ending IP Address of the devices (such as a computer) that
have permission to access the video of the camera.
Remove the customized setting from the Allow List.
The list of IP addresses that have no access rights to the camera.
Remove the customized setting from the Delete List.
For example:
When the range of the Allowed List is set from 1.1.1.0 to
192.255.255.255 and the range of the Denied List is set from
1.1.1.0 to 170.255.255.255. Only users with IPs located between
171.0.0.0 and 192.255.255.255 can access the DCS-7000L.
Alowed
List
Denied
List
55D-Link DCS-7000L User Manual
Section 4: Conguration
Maintenance
Device Management
You may modify the name and administrator’s password of your camera, as well as
add and manage the user accounts for accessing the camera. You may also use this
section to create a unique name and congure the OSD settings for your camera.
Admin Password
Setting:
Add User Account:
User Name:
Password:
User List:
Camera Name:
Enable OSD:
Label:
Show Time:
Set a new password for the administrator’s account.
Add new user account.
The user name for the new account.
The password for the new account.
All the existing user accounts will be displayed here.
Create a unique name for your camera that will be added to the
le name prex when creating a snapshot or a video clip.
Select this option to enable the On-Screen Display feature for
your camera.
Enter a label for the camera, which will be shown on the OSD
when it is enabled.
Select this option to enable the time-stamp display on the video
screen.
LED:
You may specify whether or not to illuminate the status LED on
the camera.
56D-Link DCS-7000L User Manual
Section 4: Conguration
System
In this section, you may backup, restore and reset the camera conguration, or
reboot the camera.
Save To Local
Hard Drive:
Load From Local
Hard Drive:
Restore to
Factory Defaults:
Reboot Device:
You may save your current camera conguration as a le on your
computer.
Locate a pre-saved conguration by clicking Browse and then
restore the pre-dened settings to your camera by clicking Load
Conguration.
You may reset your camera and restore the factory settings by
clicking Restore Factory Defaults.
This will restart your camera.
57D-Link DCS-7000L User Manual
Section 4: Conguration
Firmware Upgrade
The camera's current rmware version will be displayed on this screen. You may
visit the D-Link Support Website to check for the latest available rmware version.
To upgrade the rmware on your DCS-7000L, please download and save the latest
rmware version from the D-Link Support Page to your local hard drive. Locate the
le on your local hard drive by clicking the Browse button. Select the le and click
the Upload button to start upgrading the rmware.
Current
Firmware
Version:
Current Product
Name:
File Path:
Upload:
Displays the detected rmware version.
Displays the camera model name.
Locate the le (upgraded rmware) on your hard drive by clicking
Browse.
Uploads the new rmware to your camera.
58D-Link DCS-7000L User Manual
Section 4: Conguration
Status
Device Info
This page displays detailed information about your device and network
connection.
59D-Link DCS-7000L User Manual
Section 4: Conguration
Logs
This page displays the log information of your camera. You may download the
information by clicking Download. You may also click Clear to delete the saved log
information.
60D-Link DCS-7000L User Manual
Section 4: Conguration
Help
This page provides helpful information about using and conguring your camera.
61D-Link DCS-7000L User Manual
Appendix B: Technical Specications
Technical Specications
Camera Camera Hardware
Prole
Image Features Congurable image size, quality, frame rate, and bit rate
Video Compression Simultaneous H.264 / MJPEG format compression
Video Resolution 16:9 - 1280x720, 800x448,640x360, 480x272, 320x176 up to 30
Audio Compression AAC G.711
External Device
Interface
Network Network Protocols
Security
1/4” Megapixel progressive CMOS sensor
8 meter IR illumination distance
Minimum illumination 0 Lux with IR LED on
Built-in Infrared-Cut Removable (ICR) lter module
Built-in Audio in / Audio out
Minimum object distance: 200 mm
10x digital zoom
Time stamp and text overlays
Congurable motion detection windows
H.264 multicast streaming
fps recording
10/100 BASE-TX Fast Ethernet port
IEEE 802.11a/b/g/n/ac 2.4 GHz, 5 GHz dual-band wireless
IPv6
IPv4
TCP/IP
UDP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
HTTP / HTTPS
Administrator and user group protection
Password authentication
1
Fixed length 2.4 mm
Aperture f/2.0
Angle of view:
(H) 98°
(V) 52°
(D) 115°
Congurable privacy mask zones
Congurable shutter speed, brightness, saturation, contrast,
sharpness
JPEG for still images
4:3 -960x720, 800x592, 640x480, 480x352, 320x240 up to 30 fps
recording
microSD card slot
Samba client
PPPoE
UPnP port forwarding
RTP / RTSP/ RTCP
IP ltering
QoS
CoS
Multicast
IGMP
SNMP (Phase II)
ONVIF compliant
HTTP and RTSP digest authentication
1
2
62D-Link DCS-7000L User Manual
Appendix B: Technical Specications
System
Management
System
Requirements for
Web Interface
Event Management Motion detection
Remote
Management
Mobile Support mydlink Lite/mydlink+ mobile app for iPhone, iPad, and
D-ViewCam™ System
Requirements
D-ViewCam™
Software Functions
General Weight
External Power
Adaptor
Power Consumption
Temperature
Operating System: Microsoft Windows® 8/7/Vista/XP, or Mac
with OS X 10.6 or higher
Browser: Internet Explorer 7, Firefox 12, Safari 6, or Chrome
version 20 or higher with Java installed and enabled
Supports multiple SMTP and FTP servers
Event notication and uploading of snapshots/video clips via
Multiple event notications
email or FTP
Take snapshots/video clips and save to local hard drive via web
Conguration interface accessible via web browser
browser
Android mobile devices
Operating System: Microsoft Windows 8/7/Vista/XP
Protocol: Standard TCP/IP
Web Browser: Internet Explorer 7 or higher
Remote management/control of up to 32 cameras
Viewing of up to 32 cameras on one screen
Supports all management functions provided in web interface
Scheduled motion triggered, or manual recording options
115 grams
Input: 100 to 240 V AC, 50/60 Hz Output: 5 V DC, 1.2 A, 50/60 Hz
3.5 watts
Operating: 0 to 40 °C (32 to 104 °F) Storage: -20 to 70 °C (-4 to 158 °F)
Humidity Operating: 20% to 80% non-condensing Storage: 5% to 95% non-condensing
Certications
CE
CE LVD
Dimensions
56
1
Frame rates when streaming video may vary depending on network conditions and method used.
2
An SD / SDHC card of Class 6 or above is recommended. Supports card capacities up to 32 GB.
FCC
C-Tick
93
63D-Link DCS-7000L User Manual
Loading...
