D-Link DCS-70 Quick Install Manual
Camera Housing
DCS-70
Quick Install Guide+
Installations-Anleitung+
Guide d’installation+
Guía de instalación+
Guida di Installazione+
2
Quick Installation Guide
DCS-70
Network Camera Outdoor Enclosure

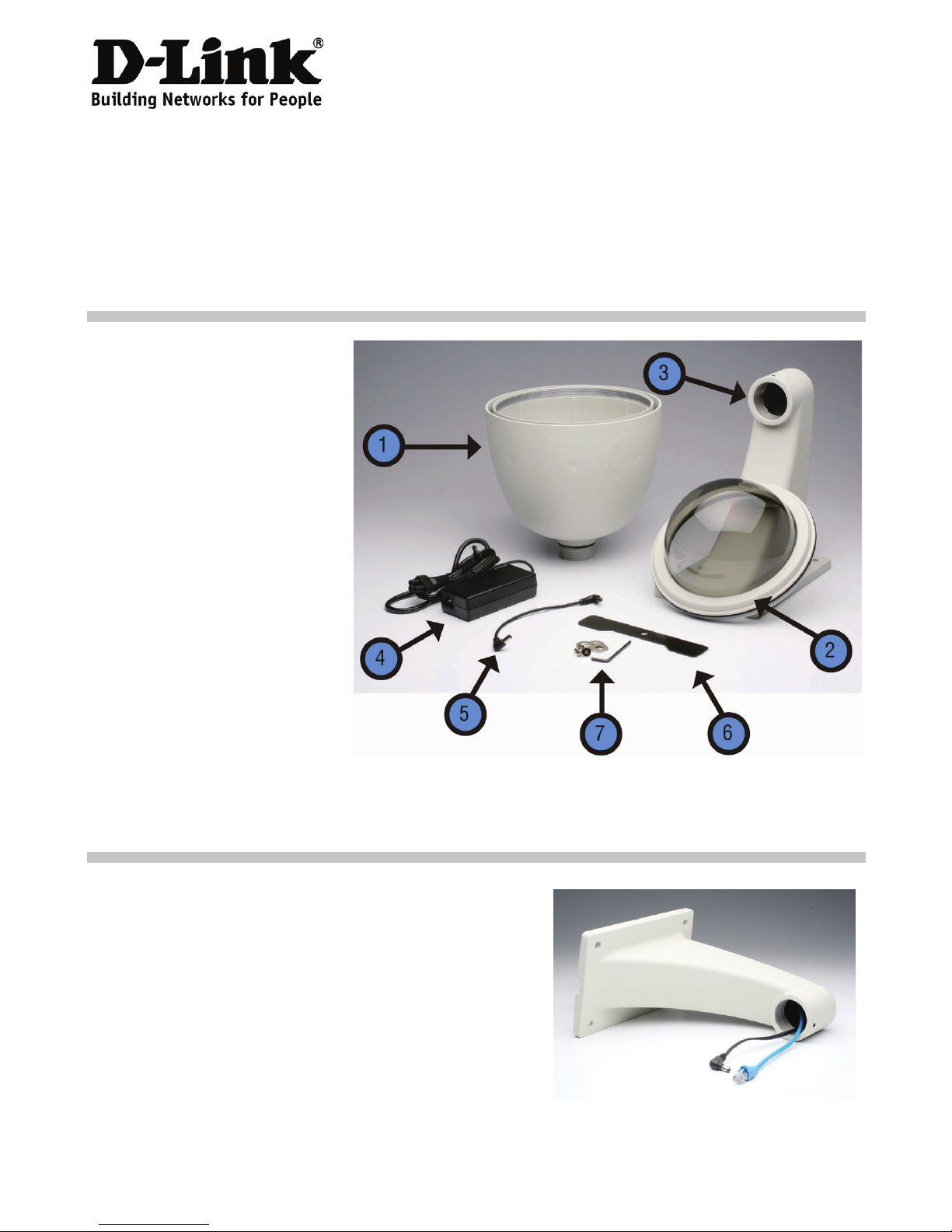

Package Contents
1. Housing
2. Cover
3. Wall mount bracket
4. Power Supply
5. DC to DC Cable
6. Cross iron plate
7. Hardware (screws,
washers, allen
wrench)
Installation
Step 1
Pull the Ethernet and power cable through the
wall mount bracket.
3

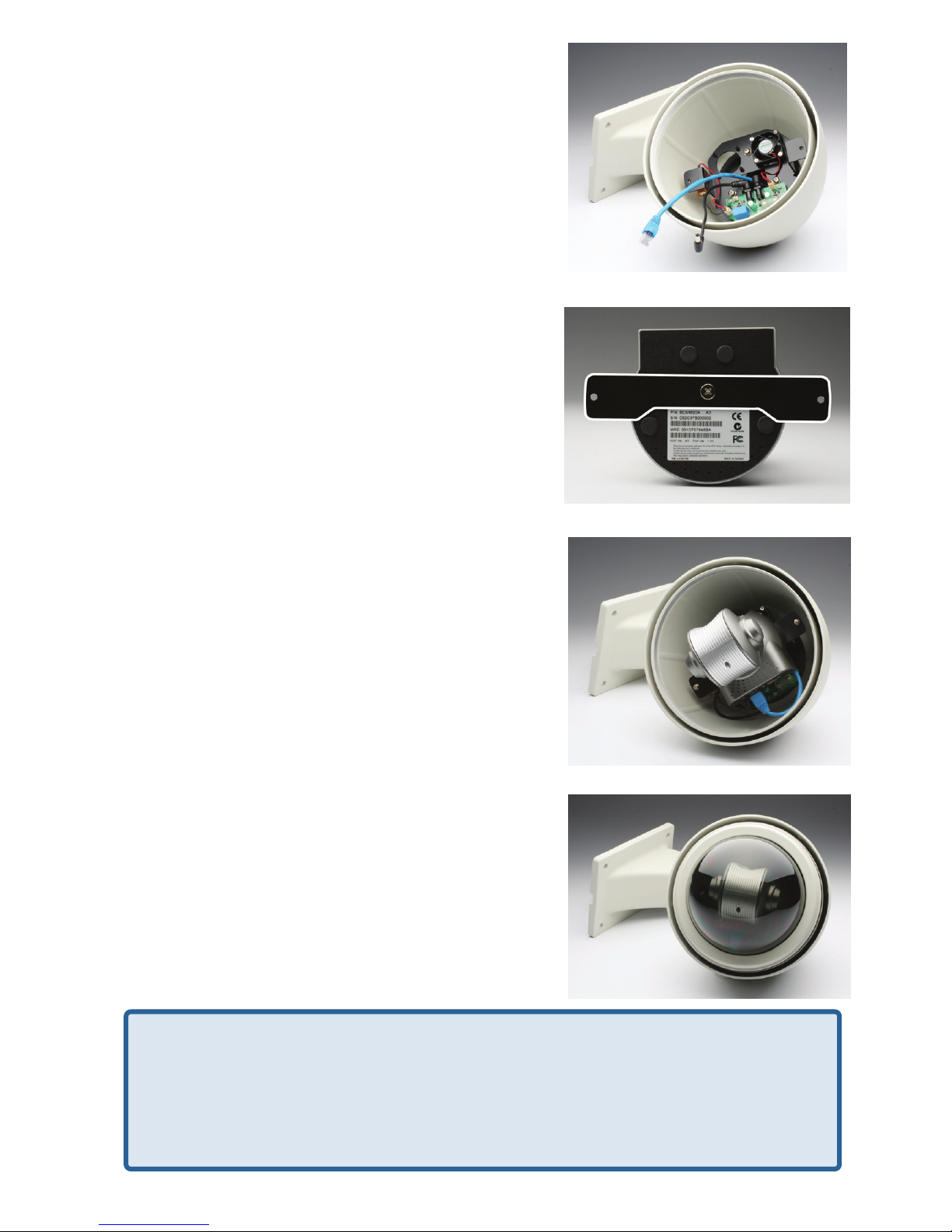

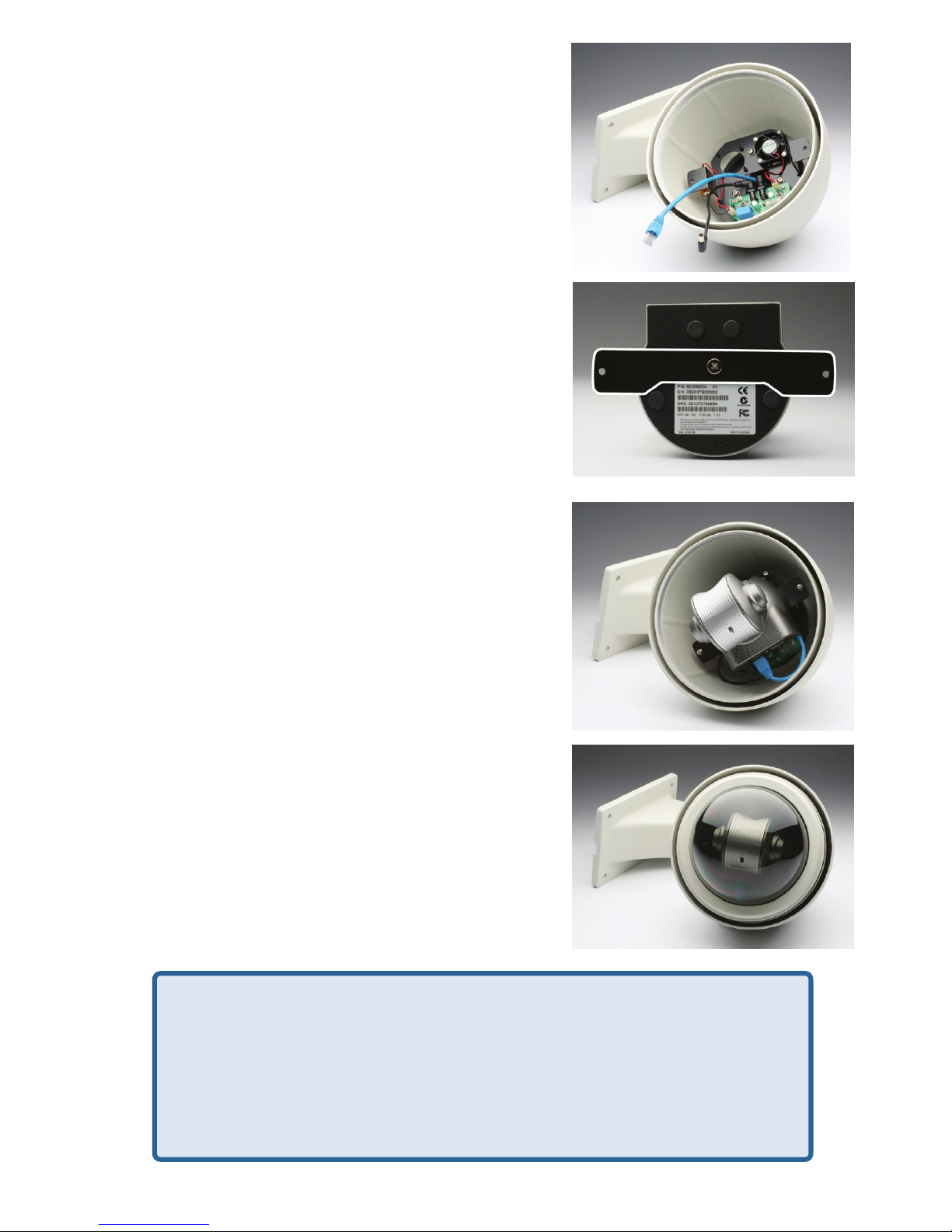

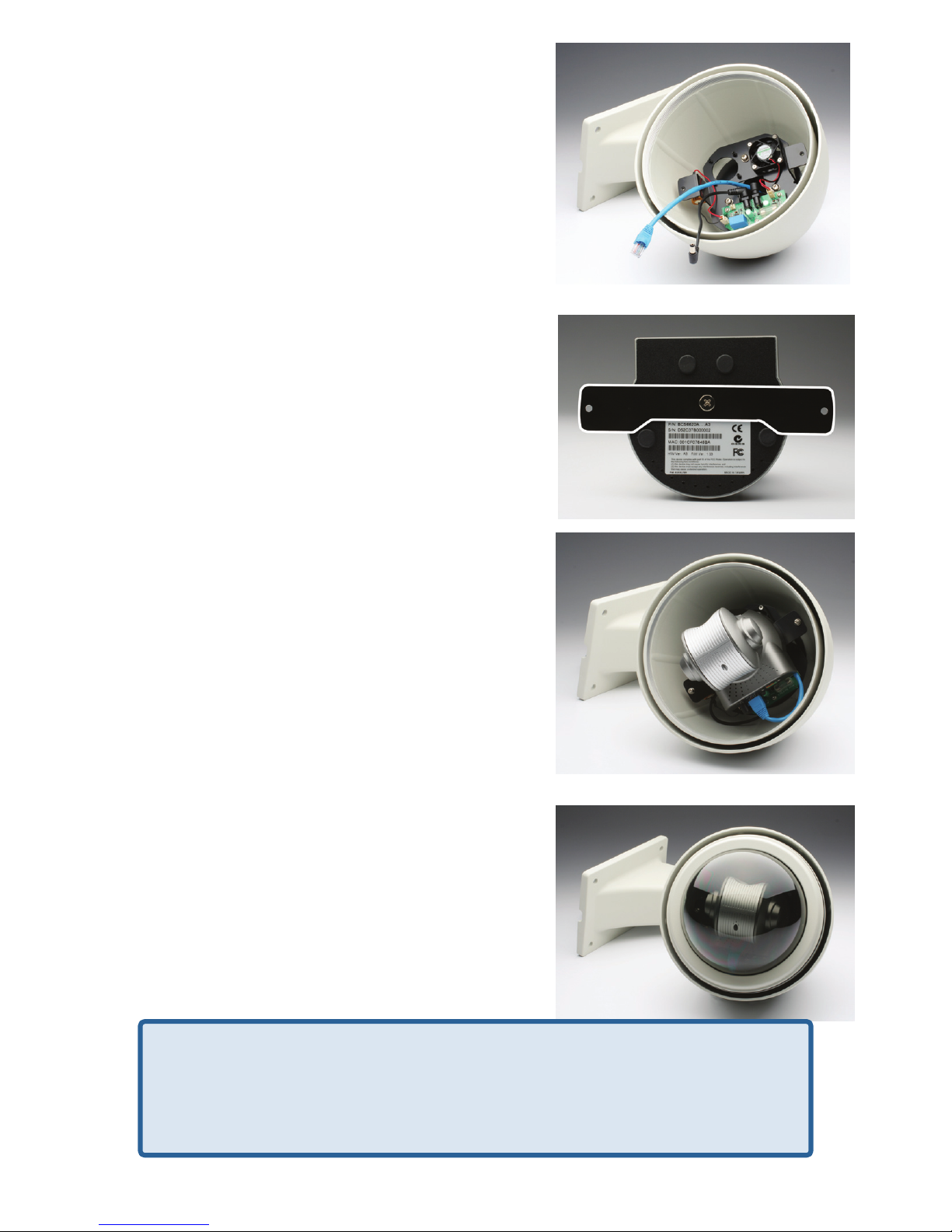

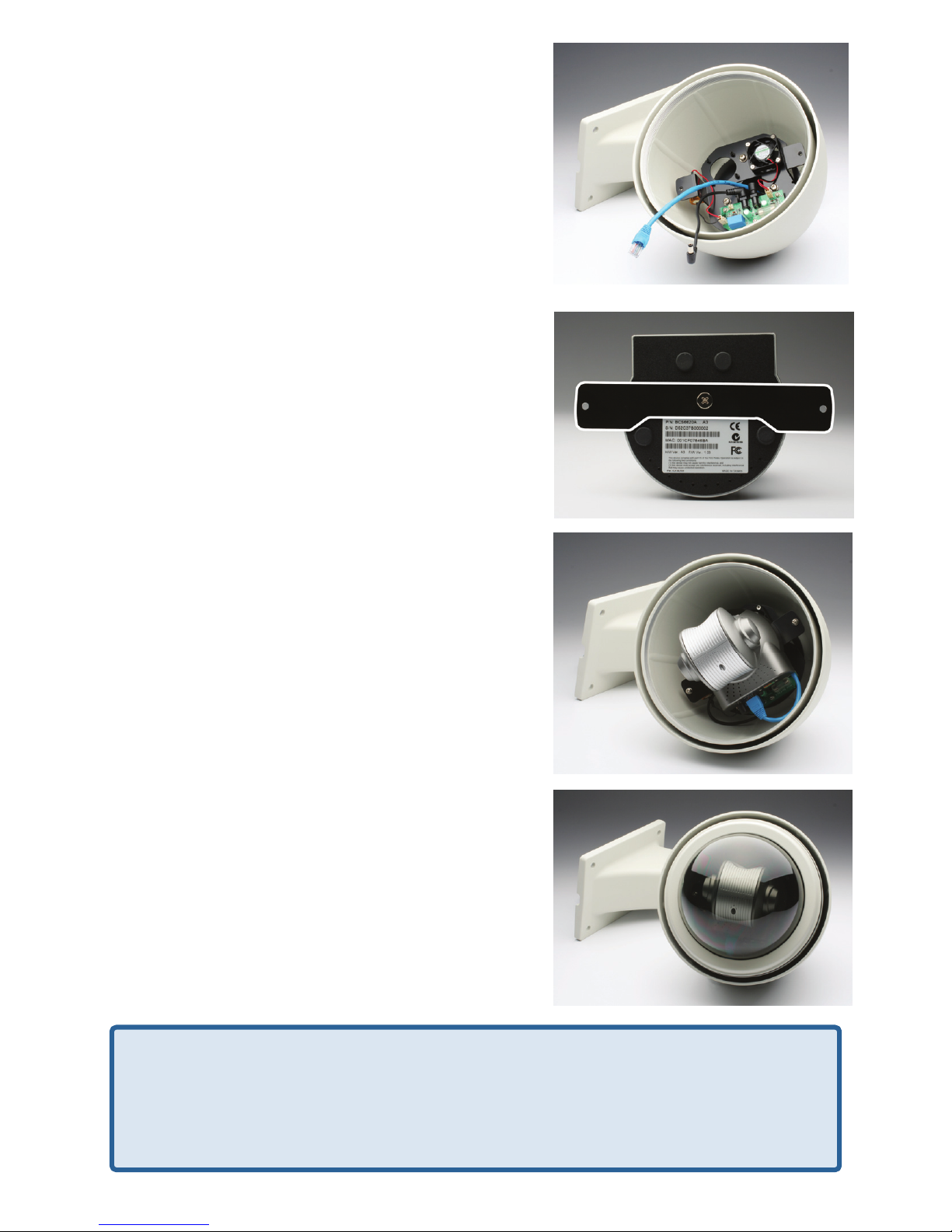

Step 2
Push the power supply and Ethernet cable
through the center of the housing. Then, insert
the power plug into the power socket labeled
DC12V IN
and attach one end of the
DC to DC
cable into the power socket labeled
DC12V
OUT
.
Step 3
Screw the camera base to the cross iron plate.
Note: As seen in the image, align the cross iron plate
with the camera base in the correct position before fixing
it. The dome cover should NOT touch the camera.
Step 4
Plug in the power and Ethernet cables to the
camera, and then attach both screws to the
sides of the cross iron plate.
Step 5
Screw the cover on to the housing.
Technical Support
D-Link UK Technical Support over the Telephone:
0871 873 3000 (United Kingdom)
BT 10ppm (UK Pence per minute), other carriers may vary.
Times Mon-Fri 9.00am - 6.00pm Sat 10.00am - 2.00pm
+1890 886 899 (Ireland)
€0.05ppm peak, €0.045ppm off peak Times Mon-Fri 9.00am - 6.00pm Sat 10.00am - 2.00pm
D-Link UK & Ireland Technical Support over the Internet:
http://www.dlink.co.uk
ftp://ftp.dlink.co.uk
4
Schnellinstallationsanleitung
DCS-70
Wetterfestes Gehäuse f. Netzwerkkamera

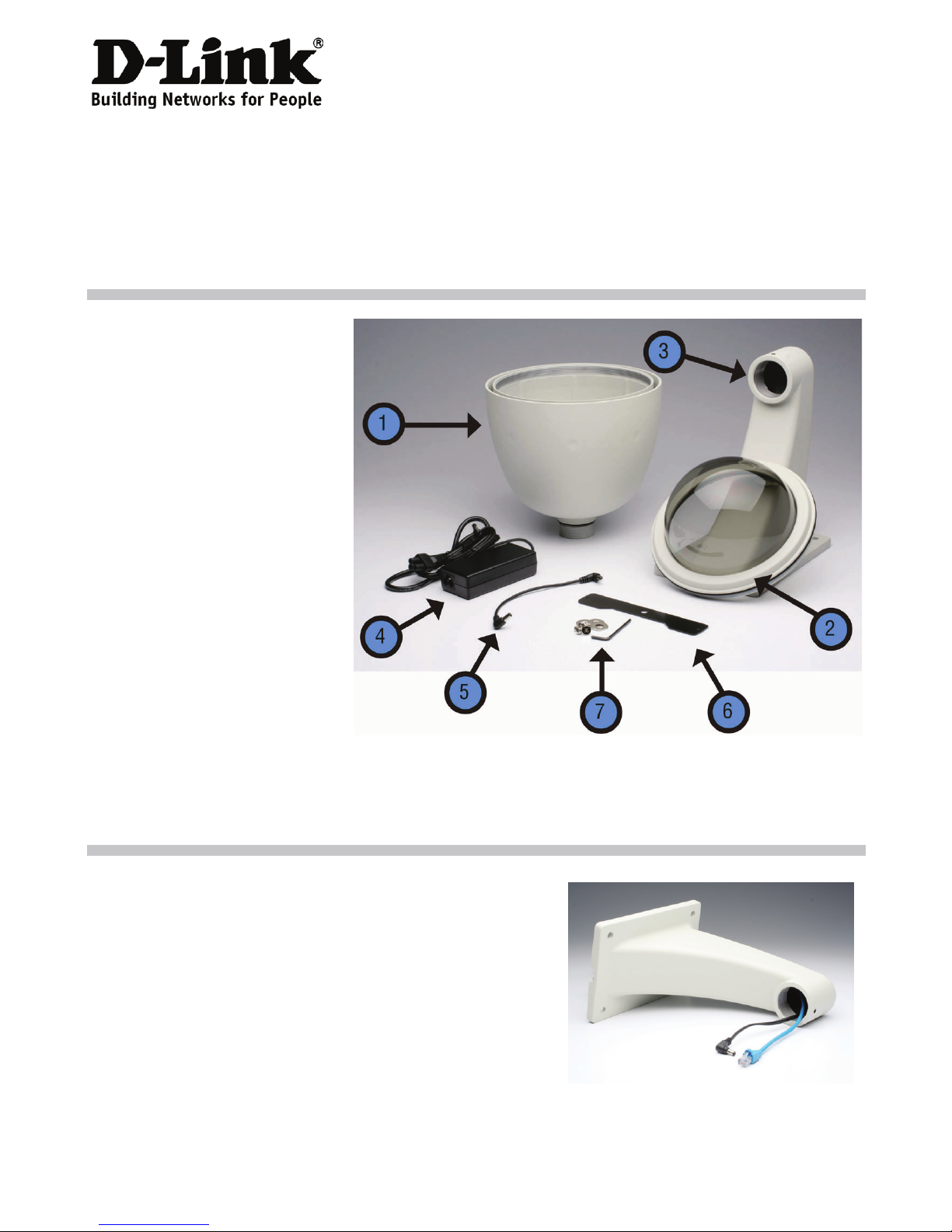

Packungsinhalt
1. Gehäuse
2. Abdeckung
3. andmontage-halterung
4. Netzteil
5. DC/DC-Kabel
6. Quereisenplatte
7. Eisenteile (Schrauben,
Unterlegscheiben,
Inbusschlüssel)
Installation
Schritt 1
Ziehen Sie das Ethernet- und Netzkabel durch
die Wandmontagehalterung.
