D-Link DCM-201
USB/Ethernet
Broadband Cable Modem
Manual
Building Networks for People
Contents
Package Contents ............................................................... 3
System Requirements for Configuration ............................. 4
Local Cable Network Service ............................................... 5
Prepare Your Workspace for the Installation....................... 5
Introduction ..........................................................................7
Which Installation to Use? ...................................................8
Ethernet Installation..............................................................9
Troubleshooting the Ethernet Installation .......................... 1 2
USB Installation..................................................................1 5
Troubleshooting the USB Installation ................................. 2 4
Front and Rear Panels..........................................................27

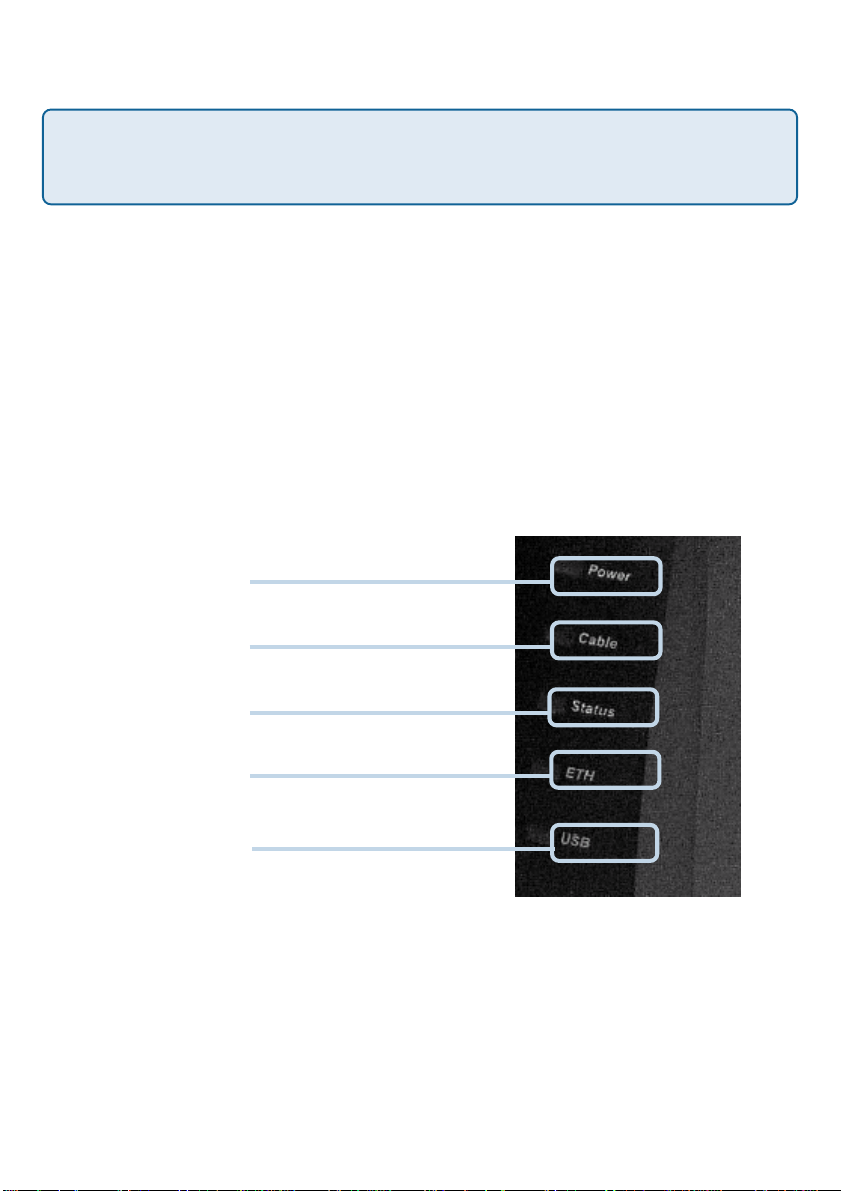

LEDs..................................................................................28
Back Panel Connectors ..................................................... 29
Technical Specifications .................................................... 30
Technical Support ..............................................................31
Warranty and Registration.................................................. 32
2
Package Contents
Contents of Package:
D-Link DCM-201
USB/Ethernet Broadband Cable Modem
Manual, Warranty and Drivers on CD
Printed Quick Installation Guide
One 12VDC/1.25A Power adapter
CAUTION! You must use the 12VDC/1.25A power adapter that comes with
the D-Link DCM-201 cable modem. Using the wrong power adapter can
damage the cable modem.
1 CA T 5 UTP Ethernet ca ble
1 USB cable
1 Cable modem stand to install the cable modem in a vertical
position
If any of the above items are missing, please contact your reseller.
CAUTION! Be sure to read this entire User Manual from front to back in
sequence before installing the D-Link DCM-201 cable modem.
3
System Require ments for Configuration:
Verify that you have these items before beginning the installation:
A cable-line splitter (not included), if you plan to have the cable modem
and a television connected to the same wall cable outlet.
An active two-way cable line.
To install the cable modem using the Ethernet port:
To install the cable modem using the USB port:
Any PC running Microsoft Windows 95, Windows 98,
Windows Me, Windows 2000, Windows XP, or Windows NT
operating systems or a computer running any other operating
(OS) that supports the TCP/IP Internet protocol.
An active Ethernet port on your computer.
TCP/IP protocol installed. See the “Configuring the TCP/IP
Communications Protocol” section for more information on
installing the TCP/IP protocol.
A PC running Windows XP, Windows 2000, or Windows Me
operating system (OS). The USB drivers do not support the
Macintosh operating system.
Original Windows 2000, or Windows ME
installation CD or diskettes.
An active USB port on your computer
4
Local Cable Network Service
Before installing the modem:
1 Read this entire User’s Manual from front to back in sequence.
2 Find the Serial Number, RF and Ethernet address located on a sticker on
the cable modem and write them here:
Serial Number S/N: ____________________
RF and ETH MAC: ____________________
USB MAC: ____________________
3 Contact your local cable service operator for Internet/cable network
access.Your local cable operator will check for cable access availability in
your area, install a cable line (if necessary), provide you with an access
account, set up configuration and verify other technical details.
4 As k your local ca ble service provider a bout a dding a dditional IP a ddre sse s
to your account. See “ Which Installation to Use?” for more information.
Prepare Your Workspa ce for the Cable Mode m
Installation
Before installing the cable modem, you should prepare your workspace. You
can install the cable modem vertically with the included bracket, or install the
cable modem horizontally.
To prepare your workspace:
1 Position the cable modem so that it is located near the computer and the
wall cable outlet. There should be plenty of room to guide the cables away
from the cable modem without crimping them.
2 Prepare the cable modem:
For vertical installation: Place the cable modem securely in the
included stand.
For horizontal installation: Use the four included feet to install the
cable modem.
5
Prepare Your Workspa ce for the Cable Mode m
Installation (continued)
3 Do not restrict the airflow around the cable modem.
4 To enhance the best performance and proper function of the cable
modem, place it on a horizontal surface or workplace and make sure that
the cable modem does not move when it is operating.
6
Introduction
Thank you for purchasing the D-Link “Broadba nd Ca ble Mode m with USB &
Ethernet” DCM-201, which is an MCNS DOCSIS™ 1.1 cable modem
featuring the latest DOCSIS technology.
The cable modem enables your network cable operator to provide you with
broadband applications such as telecommunications, IP dedication for your
small office/home office (SOHO), or high-speed residential Internet access.
The cable modem provides a downstream speed of up to 38 Mbps from the
cable network to your computer and 10Mbps from your computer to the cable
network.
The DES data encryption helps ensure privacy for the transmitted
information. Another distinctive feature of the cable modem is its easy
installation, because DHCP and TFTP clients can obtain automatic access
to the IP address and configuration from their network servers via the
modem. SNMP agents permit remote configuration and monitoring from a
management station equipped with an SNMP server.
7
Features
Full-featured compact, economical cable modem with Ethernet
and USB ports
DOCSIS 1.1-compliant
Capable of handling downstream data transmission speeds up to
38Mbps; upstream to 10Mbps
RJ-45 10/100BaseT Ethernet port provides traditional industrystandard connection
USB port allows easy plug-and-play attachment to PCs with the
latest Microsoft Windows operating system.
Extensive SNMP management support: MIB-II,
Ethernet-like MIB, Bridge MIB, Cable Device MIB,
Baseline privacy Interface MIB, RF Interface MIB
Easy-to-read front panel LED’s clearly display network status and
activity
Decide Which In stallation Proce ss to Use
The cable modem enables you to connect to the Internet using either your
computer’s Ethernet or USB port.
Be sure to follow the installation steps for the setup you want to use. Using
the Ethernet setup enables you to use a hub to connect multiple computers
to the cable modem. To do this, you might have to obtain additional IP
addresses from your cable operator.

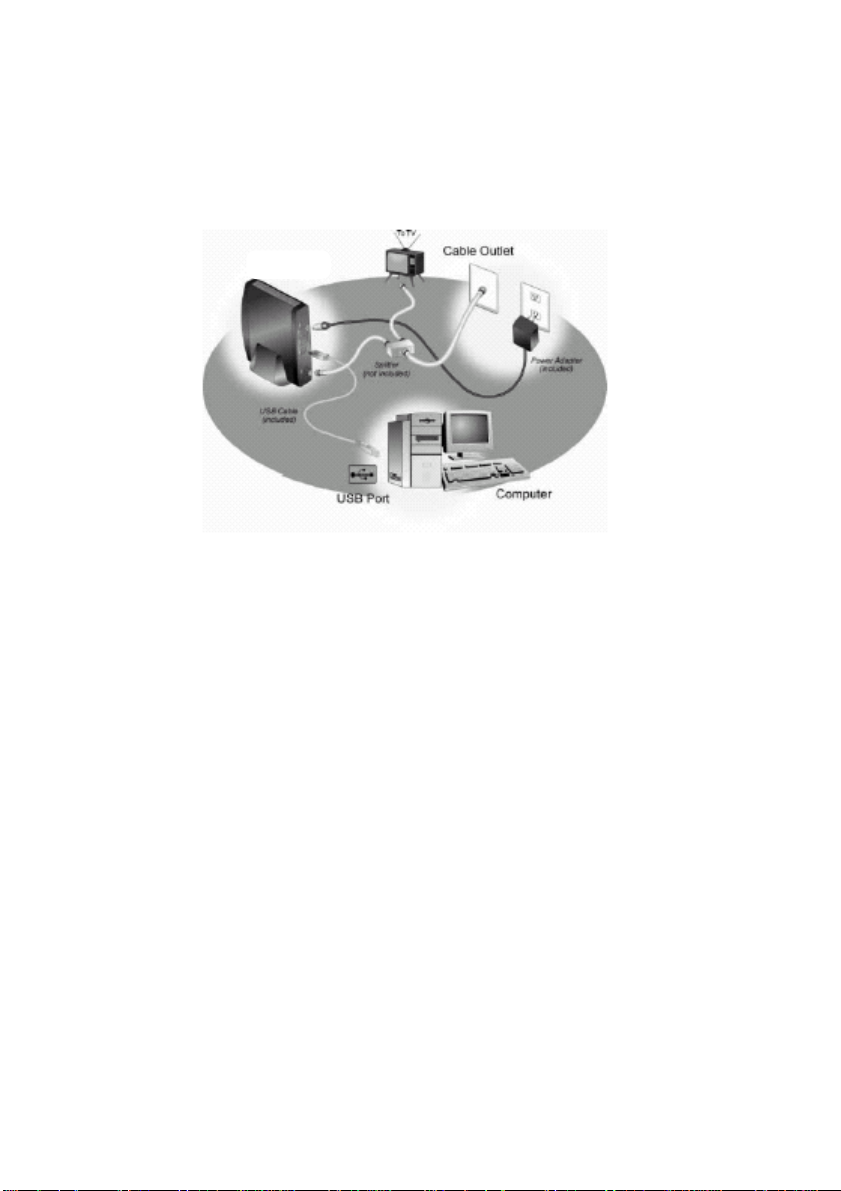

Using the USB port enables you to install the cable modem more quickly and
easily than connecting to the Internet using the Ethernet port, because you do
not have to install a network interfa ce card (NIC) into your computer. The
USB port, however, only en ables you to connect one computer to the cable
modem.
See “Installing the Cable Modem Using the Ethernet Port”, or see “Installing
the Cable Modem Using the USB Port” in the following pages, for more
information.
8
Installing the Ca ble Modem Using the Ethernet
Port
DCM-201
9
Installing the Ca ble Modem Using the Ethernet
Port
CAUTION! Be sure to read this entire User’s Manual from front to back in
sequence before installing the D-Link DCM-201 USB/Ethernet Broadband
Cable Modem.
This chapter describes how to install the cable modem using the Ethernet
port. Using the Ethernet port enables you to use a single connection to the
Internet or use a hub to connect multiple computers to the cable modem. You
can also use multiple IP addresses from your cable operator when using the
Ethernet connection. See “Installing the Cable Modem Using the USB Port” in
this manual to set up the USB Connection.
You ca n use the Ethernet port to connect to the Internet with the following
operating systems: Windows 95, Windows 98, Windows 98SE, Windows
2000, Windows Me, Windows NT, Macintosh 7.6 (or later), a nd other popular
operating systems.
V erify the TCP/IP Protocol Configuration
Before installing the modem using the Ethernet setup, you must verify that
your computer has the TCP/IP protocol installed. Follow the procedure for
your operating system to verify or install the TCP/IP protocol.
Configuring TCP/IP on Windows 95, Windows 98, and
Windows Me
To configure TCP/IP on a computer with the Windows 95, Windows 98,
or Windows Me operating system:
1 Right-click the Network Neighborhood icon (Windows Me: the My Network
Places icon) on the Windows desktop and click Properties.
10
Configuring TCP/IP on Windows 95, Windows 98, and
Windows Me continued
2 Look for a n entry n amed TCP/IP. If you see TCP/IP listed next to your
Ethernet hardware device, you can now go to the section “Connecting the
Cable Modem”. However, if TCP/IP is not listed, you must complete the
following steps.
a Click Add.
b Click Protocol and click Add.
c Click Microsoft in the Manufacturers list and Click TCP/IP in the
Network Protocols list.
d Click OK.
e Click Yes when prompted to restart your computer.
You can now connect the cable modem. See “Connecting the
Cable Modem” for the instructions.
Configuring TCP/IP on the Windows XP or Windows
2000 Operating Systems
To configure TCP/IP on your Windows XP and Windows 2000 PC:
1 Right-click the My Network Places icon and select Properties.
2 Right-click Local Area Connection a nd click Properties. Look for an entry
named TCP/IP. If you see TCP/IP listed next to your Ethernet hardware
device, you can now go to the section “Conne cting the Cable Modem.”
However, if TCP/IP is not listed, you must complete the following steps.
a Scroll to the Internet Protocol TCP/IP option.
b Click to place a check mark in the Internet Protocol check box
c Click OK.
d You can now connect the cable modem. See the section
“Connecting the Cable Modem” for the instructions.
11
Configuring TCP/IP on the Windows NT 4.0 Operating
Systems
To configure TCP/IP on your Windows NT 4.0 PC:
1 Right-click the Network Neighborhood icon and click Properties.
2 Click the Bindings tab
3 Select All Protocols from the Show bindings drop-down list.
4 Look for a n entry n amed TCP/IP. If you see TCP/IP listed, double-click it to
search for your Ethernet card. If you see your Ethernet card listed, you can
now go to the section “Connecting the Cable Mode m”. However, if
TCP/IP is not listed, you must complete the following steps:
a Click the Protocols tab.
b Click Add.
c Click TCP/IP Protocol in the Network protocol list.
d Click OK
e Click Yes when prompted to restart your computer
f You can now connect the cable modem. See “Connecting the
Cable Modem” for the instructions
Configuring TCP/IP on a Macintosh Computer
Before you install your cable modem, you must verify that the TCP/IP
communications protocol and an Ethernet device are installed on your
system. Many Macintosh computers have Ethernet devices installed at the
factory.
To configure TCP/IP on a Macintosh:
1 Click the Apple icon in the Finder.
2 Select Control Panels and then TCP/IP. The TCP/IP screen appears.
3 Select Edit in the Finder and select User Mode…The User Mode screen
appears.
4 Select Advanced, and then click OK. Additional fields appear on the TCP/IP
screen.
5 Click the selector arrows to the right of the Configure: drop-down menu and
select Using DHCP server.
6 Click Options…The TCP/IP Options screen appears.
7 Select Active and check the Always Connected check box.
8 Click OK…The TCP/IP dialog box appears.
9 Verify that the Use 802.3 check box is unche cked. If the box is che cked,
click the box to remove the check mark. Then click Info.
12
To configure TCP/IP on a Macintosh (continued):
10 Click OK. If you have made any changes, you are prompted to save the
settings.
11 Click OK to save the settings and exit
12 Click OK and close the TCP/IP Control Panel (click File and scroll down
to click Close).
Connecting the Cable Modem
Install the cable modem according to the following procedure:
1 Power off the computer.
2 Unplug the computer from the electrical wall outlet.
3 Make these connections:
a Connect the coaxial cable to the cable modem’s CATV cable
connector. If you plan to have the cable connected to a television as
well as the cable modem, you must use a cable line splitter (not
included).
b Plug the cable modem’s power adapter into a wall outlet or surge
protector and into the cable modem’s power jack.
c Plug one end of the Ethernet cable into the cable modem’s Ethernet
port and the other end of the cable into the existing NIC.
4 Plug in the computer .
5 Power on the computer. When installation is complete, your setup should
resemble the illustration above. The modem is operating properly if the
Power, Cable, Status and ETH light emitting diode s (LEDs) are solid green
(lit and not blinking).
T roubleshooting the Ethernet In stallation
The following troubleshooting procedures apply to the Ethernet installation.
Problem: “I cannot access my e-mail or Internet service.”
1 Verify that the Power , Ca ble, Status, and Eth light-emitting diodes (LEDs)
are lit and not blinking.
2 Check all connections:
a Make sure the coaxial cable is securely connected to the cable jack
on the back of the cable modem.
b Verify that the Ethernet cable is securely plugged into both the
cable modem and the computer.
c Make sure the power adapter is properly plugged into both the
cable modem and a wall outlet or surge protector.
13
Problem: “I cannot access my e-mail or Internet service.” (continued)
3 Power cycle the cable modem by unplugging the power adapter from its
electrical outlet and then plugging it back into the outlet. Then try accessing
the Internet.
4 Power cycle the computer
a Power off the computer.
b Unplug the computer from its electrical outlet or surge protector and
then plug it back into the electrical outlet or surge protector.
c Restart the computer and try accessing the Internet.
5 Call your cable operator to verify that their service is two-way. This cable
modem is designed for use with two-way cable plants.
6 If you are using a cable line splitter so that you can connect the cable
modem and a television at the same time, try removing the splitter and
reconnecting the cables so that the cable modem is connected directly to
the cable wall jack. Then try accessing the Internet.
7 The NIC might be malfunctioning. Refer to its documentation for
troubleshooting information.
8 Check for a resource conflict (Windows users only). To do this:
a Right-click the My Computer icon on the Windows desktop.
b Click Properties.
c Click the Device Manager tab and look for a yellow exclamation
point or red X over the NIC in the Network adapters field. If you see
either, you have an IRQ conflict. To correct this, refer to the
manufacturer’s documentation that came with your NIC.
9 Ma ke sure that TCP/IP is the default protocol in use by your computer.
a Release and renew the computer’s IP address.
To release and renew the IP address for the Windows 95, Windows 98,
and Windows Me operating systems:
1 Click Start and click Run.
2 Type winipcfg in the Open f ield and click OK. The IP Configuration screen
appears.
3 In the Ethernet Adapter Information group area, click the drop down arrow
and select the D-Link USB/Ethernet Broadband Cable Modem.
4 Click Release. The IP address changes to 0.0.0.0.
5 Click Renew to refresh the IP address. The refreshed address may or may
not be the same as the original IP address.
14
To release and renew the IP address for the Windows XP,
Windows 2000, and Windows NT 4.0 operating system:
1 Click Start and select Programs, then Accessories.
2 Click Command Prompt.
3 At the command prompt (C:\), type ipconfig/release. Windows releases
the IP address.
4 At the command prompt type ipconfig/renew. Windows renews the IP
address.
5 At the command prompt (C:\), type exit and press Enter to return to the
Windows desktop.
Problem: “All o f the LEDs on the front of my cable modem look right,
but I cannot access the Internet.”
1 If the Power , Ca ble, Status, and Eth (LEDs) are lit a nd not blinking the ca ble
modem is operating properly. Try shutting down the computer a nd then
turning it back on. This will cause the computer to re-establish
communications with your local cable provider.
2 Power cycle the cable modem by removing the power adapter from its
outlet and then plugging it back into the outlet. W ait several minutes for the
cable modem to re-establish communications with your local cable
operator, then try accessing the Internet.
3 Verify that you have installed TCP/IP properly (for Windows 95, Windows
98, Windows 98SE, and Windows Me: winipcfg; for Windows 2000 and
Windows XP: ipconfig), and that the TCP/IP parameters provided by your
local cable provider are correct for your computer.
4 If you are using a cable line splitter so that you can connect the cable
modem and a television to the same outlet:
a Try removing the splitter and reconnecting the cables so that the
cable modem is connected directly to the cable wall jack.
b Wait several minutes, then try accessing the Internet.
Problem: The power on my cable modem goes on and off sporadically.
You may be using the wrong power adapter. Check that the power adapter
you are using is the one that came with the cable modem.
CAUTION! You must use the 12VDC/1.25A power adapter that comes with
the D-Link DCM-201 cable modem. Using the wrong power adapter can
damage the cable modem.
15
Installing the Ca ble Modem Using the USB Port
DCM-201
16
Installing the Ca ble Modem Using the USB Port
CAUTION! Be sure to read this entire User’s Manual from front to back in
sequence before installing the DCM-201
This chapter describes how to install the cable modem using the USB port.
First you connect the hardware (cable modem and power adapter). You then
install the software drivers and verify that the mode m is operating properly.
The USB port does not support the Macintosh operating system.
Using the USB port to connect to the Internet enables you to install the cable
modem more quickly and e asily than connecting to the Internet using the
computer’s Ethernet port, because you do not have to remove the case from
the computer to install a network interface card (NIC). Using the USB port,
however, enables you to connect only one computer to the cable modem.
See “Installing the Cable Modem Using the Ethernet Port” if you wish to
install the cable modem using the Ethernet port.
Installing the Hardware (Ca ble Modem a nd Power
Adapter)
To install the hardware:
WARNING! Risk of electric shock. Do not expose the cable modem to water
or moisture.
1 Power off the computer (and television, if you plan to have the cable
modem and television connected to the same wall cable outlet).
2 Unplug the computer (and television).
3 Connect the coaxial cable to the cable modem’s cable television (CATV)
cable connector.
4 If you plan to have the cable modem and a television connected to the
same wall outlet, you must use a cable line splitter (not included).
5 Connect one end of the included USB cable to the USB port on the cable
modem and the other end of the cable to the USB port on the computer.
CAUTION! You must use the 12VDC/1.25A power adapter that comes with
the D-Link DCM-201 cable modem. Using the wrong power adapter can
damage the cable modem.
17
Installing the Hardware (Ca ble Modem a nd Power
Adapter) continued
6 Plug the cable modem’s power adapter into the cable modem’s power jack
and into a grounded electrical outlet or surge protector that is plugged into
a grounded electrical outlet.
7 You must now install the software drivers provided on the Installation CD.
Be sure to follow the instructions (below) for your specific operating
system.
8 Plug in the computer (and television).
Installing the Software Drivers
After installing the hardware, use the software driver installation procedure
for your computer’s operating system.
Installing the Software Drivers (Windows XP OS)
This section explains how to install the cable modem using the USB
Connections with the Winasdf WindowsWXP operating system (OS).
1 Power on the computer. After the computer boots up:
a Windows detects the cable modem.
b The Found New Hardware screen appears. Click Next.
Cable Modem DCM-201
2 Select Install the software automatically (Recommended) and click
Next. Note: This installation will complete automatically.
18
Installing the Software Drivers (Windows 2000 OS)
This section explains how to install the cable modem using the USB
Connections with the Windows 2000 operating system (OS).
1 Power on the computer. After the computer boots up:
a Windows detects the cable modem.
b The Found New Hardware screen appears.
c The Found New Hardware Wizard screen appears.
2 Select Search for a suitable driver for my device (recommended) and click
Next.
19
Installing the Software Drivers (Windows 2000 OS)
(continued)
3 Check the Specify a location check box and click Next to search for the
necessary driver files.
4 Insert the D-Link Installation and Documentation CD into the computer’s
CDROM drive.
5 The location of the file is:
D:\Drivers\
If necessary, replace D with the letter of your computer’s CD-ROM
drive. You can either type the location of the file into the Copy
manufacturer’s files from field, or click Browse to locate the file.
6 When the correct location of the driver file appears, click OK.
20
Installing the Software Drivers (Windows 2000 OS)
(continued)

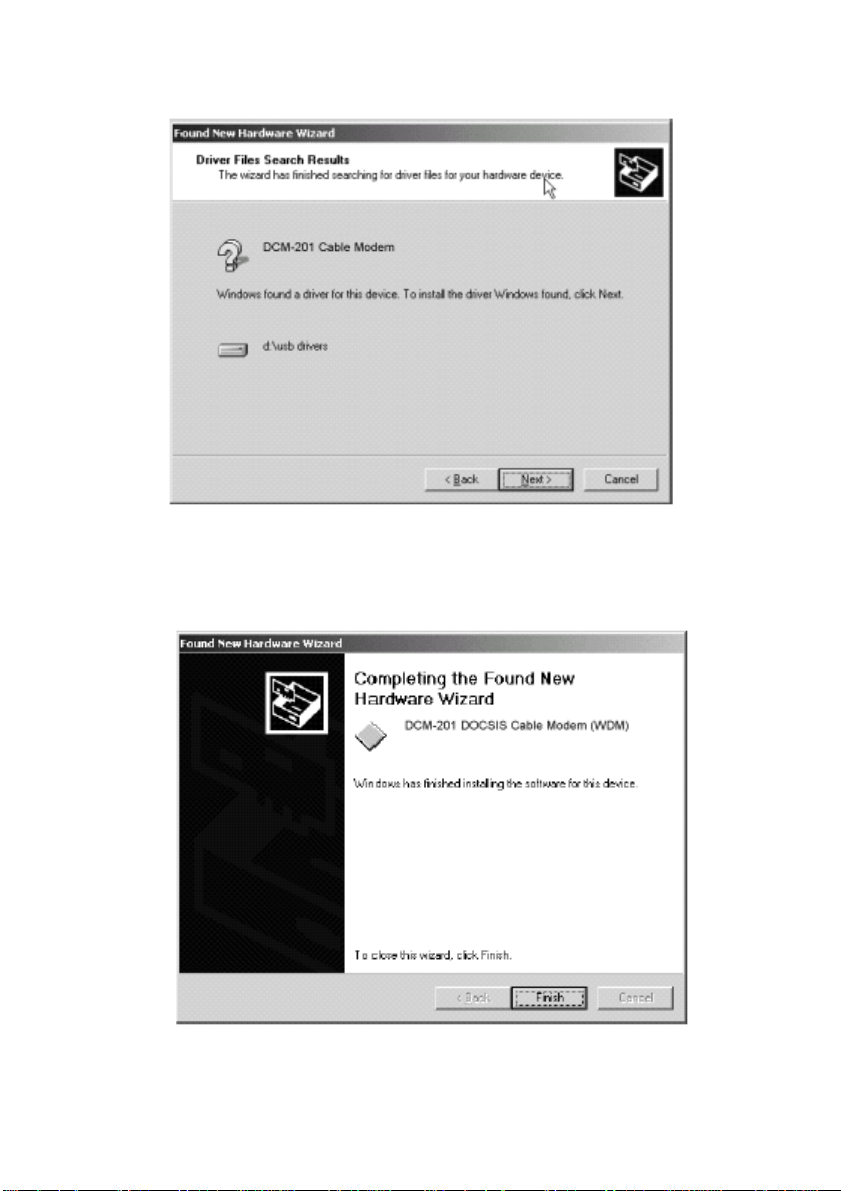

7 The Found New Hardware Wizard displays the search results.
8 Click Next to install the driver files for the cable modem.
If the Digital Signature Not Found screen appears, click Yes to continue the
driver installation.
9 The Found New Hardware Wizard completes the driver installation. Click
Finish to close the wizard.
21
Installing the Software Drivers (Windows 2000 OS)
(continued)
10 V erify that the Power, Cable, Status, and USB LED lights are solid green
and not blinking. If they are lit and not blinking, installation is now
complete; otherwise, see “Troubleshooting the USB Installation” for help.
See “Cable Modem Front and Rear Pa nels” for more information about
the front panel LEDs.
Installing the Software Drivers (Windows Me OS)
This section explains how to install the cable modem using the USB port with
the Windows Me operating system (OS):
1 Power on the computer. After the computer boots up:
a Windows detects the cable modem.
b The Found New Hardware screen appears.
c The Add New Hardware Wizard screen appears.
2 Insert the D-Link DCM-201 Installation and Documentation CD into the
computer’s CDROM drive.
3 Select Specify the location of the driver (Advanced) and click Next.
4 Follow the on screen prompts to install the software driver from the DCM-
201 Installation and Documentation CD. The location of the file is:
D:\Drivers\
If necessary, replace D with the letter of your computer’s CD-ROM
drive.
22
Installing the Software Drivers (Windows Me OS)
(continued)
5 When Windows locates the device driver, click Next. The computer copies
the necessary driver files from the CD.
6 Click Finish after the computer has copied the necessary files. The System
Settings Change dialog box appears.
7 Click Yes to restart the computer.
8 Verify that the Power , Ca ble, Status, and USB LEDs are solid green a nd not
blinking. If they are lit and not blinking, installation is now complete;
otherwise, see “Troubleshooting the USB Installation” for help. See “Cable
Modem Front and Rear Panels” for more information about thefront panel
LEDs.
23
T roubleshooting the USB Installation
The following troubleshooting procedures apply to the USB installation.
Problem: “I cannot access my e-mail or Internet service.”
1 V erify that the Power, Cable, and Status, and USB LEDs are lit and not
blinking.
2 Verify that the USB LED is green or blinking green.
3 Check all connections:
a Make sure the coaxial cable is securely connected to the cable jack
on the back of the cable modem.
b Verify that the USB cable is se curely plugged into both the ca ble
modem and the computer.
c Make sure the power adapter is properly plugged into both the cable
modem and a wall outlet or surge protector.
4 Power cycle the cable modem by unplugging the power adapter from its
electrical outlet and then plugging it back into the outlet. Then try accessing
the Internet.
5 Power cycle the computer. To do this:
a Power off the computer.
b Unplug the computer from its electrical outlet or surge protector and
then plug it back into the electrical outlet or surge prote ctor.
c Power the computer on.
d Try accessing the Internet.
6 Call your cable operator to verify that their service is two-way. This cable
modem is designed for use with two-way cable plants.
7 If you are using a cable line splitter so that you can connect the cable
modem and a television to the same cable wall jack, try removing the
splitter and reconnecting the cables so that the cable modem is connected
directly to the cable wall jack. Then try accessing the Internet.
8 If you use the Windows 98 operating system, verify that you have fewer
than five TCP/IP bindings. To do this:
a Click Start, select Settings, and click Control Panel.
b Double-click Network and count the number of TCP/IP bindings
listed. For the cable modem to operate, your computer cannot have
more than four TCP/IP bindings. You must remove enough TCP/IP
bindings so that your computer has no more than four bindings.
24
T roubleshooting the USB In stallation (continued)
c After you remove the extra bindings, uninstall the ca ble mode m,
following the instructions in this user’s manual.
d Reboot the computer and re-install the cable modem, following the
instructions in this user’s manual.
e Release and renew the computer’s IP address.
To release and renew the IP address for the Windows 98 and
Windows Me operating systems:
1 Click Start and click Run.
2 Type winipcfg in the Open field a nd click OK. The IP
Configuration screen appears.
3 In the Ethernet Adapter Information group area, click the
drop down arrow and select the D-Link cable modem.
4 Click Release. The IP address changes to 0.0.0.0.
5 Click Renew. Windows refreshes the IP address. The
refreshed address may or may not be the same as the
original IP address.
6 Click OK to return to the Windows desktop.
To release and renew the IP address for the Windows
2000 and Windows NT 4.0 operating systems:
1 Click Start and select Programs, then Accessories.
2 Click Command Prompt.
3 At the command prompt (C:\), type ipconfig/release and
press Enter. Windows releases the IP address.
4 At the command prompt type ipconfig/renew. Windows
renews the IP address.
5 At the command prompt (C:\), type exit and press Enter to
return to the Windows desktop.
25
Problem: “All of the LEDs on the front of my cable modem look right,
but I cannot access the Internet.”
1 If the Power , Ca ble, Status, and Eth LEDs are lit and not blinking the cable
modem is operating properly. Try shutting down the computer a nd then
turning it back on. This will cause the computer to re-establish
communications with your local cable provider.
2 Power cycle the cable modem by removing the power adapter from its
outlet and then plugging it back into the outlet. Wait several minutes for
the cable modem to re-establish communications with your local cable
operator, then try acce ssing the Internet.
3 Verify that you have installed TCP/IP properly (for Windows 95, 98SE, and
Me: winipcfg; for Windows 2000: ipconfig), and that the TCP/IP
parameters provided by your local cable provider are correct for your
computer.
4 If you are using a cable line splitter so that you can connect the cable
modem and a television to the same outlet:
a Try removing the splitter and reconnecting the cables so that the
cable modem is connected directly to the cable wall jack.
b Wait several minutes, then try accessing the Internet.
Problem:“The power on my cable modem goes on and off
sporadically.”
You might be using the wrong power adapter. Check that the power adapter
you are using is the one that came with the cable modem.
CAUTION! You must use the 12VDC/1.25A power a da pter that comes with the
DCM-201 cable modem. Using the wrong power adapter can damage the cable
modem.
26
Cable Modem Front and Rear Panels
CAUTION! Be sure to read this entire User’s Manual from front to back in
sequence before installing the D-Link DCM-201cable modem.
This chapter describes the light emitting diodes (LEDs) on the front panel
and the connectors on the rear panel of the cable modem.
Front Panel LEDs
The LEDs on the cable modem indicate:
• The current performance of the cable modem.
• The condition of the network connection between the cable modem
and your cable service provider.
• The condition of the connection between your cable mode m and
electrical power.
Front Panel LEDs
Power
Cable
Status
ETH
USB
27
What the LED Activity Means
LED LABEL COLOR DESCRIPTION
LED Label Color Description
Power Green Cable modem is plugged in to an
electrical outlet and is and receiving
power
Cable Orange-Blinking The modem is searching for the
DOWNSTREAM frequency
Orange Downstream frequency is locked.
Searching for UPSTREAM frequency
Green Upstream frequency is locked
Status Green-Blinking Modem is registering with the cable
company’ s hea d-end
Green Modem is ready for data transfers
ETH Green Valid Ethernet link status
Green-Blinking Cable modem is transmitting/receiving
data through the Ethernet port
USB Green USB interface is connected
Green-Blinking Data is being sent/received through the
USB port
28
Back Panel Connectors
Descriptions of the Back Panel Connectors
ETH RJ-45 female port for connection of Ethernet cable
USB USB ‘B’-type port. Connects through USB cable to a
computer’s USB ‘A’-type port.
CATV RF connector to attach the cable for broadband Internet
access
PWR Jack to connect the power adapter included in the product
package
Caution! You must use the 12VDC/1.25A power adapter that
comes with the DCM-201 cable modem. Using the
wrong power adapter can damage the cable modem.
RESET Restores factory default settings
29
T echnical Specification s
Dimensions 120mm (L) x 142mm (W) x 30mm (H)
4.7in x 5.6in x 1.2in
Power Supply 12V/1.25A
Power Consumption 8 Watts
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity 10%~90% Non-Condensing
Cable Interface Female “F” Type RF Connector
CPE Interface RJ-45 10/100BaseT USB B-Type
Downstream transmission
speed (MAX) 38Mbps
Upstream transmission
speed (MAX) 10Mbps
30
Contacting Technical Support
You can find the most recent software and user documentation on the D-Link
website.
D-Link provides free technical support for customers within the United States
for the duration of the warranty period on this product.
U.S. customers can contact D-Link technical support through our web site,
or by phone.
D-Link Technical Support over the Telephone:
(877) 453-5465
24 hours a day, seven days a week.
D-Link Technical Support over the Internet:
http://support.dlink.com
When contacting technical support, please provide the following information:
Serial number of the unit (Bottom of unit)
Model number or product name
Software type and version number
31
Warranty and Registration
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited
warranty for its product only to the person or entity that originally purchased the product from:
D-Link or its authorized reseller or distributor and
Products purchased and delivered within the fifty states of the United States, the District of
Columbia, U.S. Possessions or Protectorates, U.S. Military Installations, addresses with an
APO or FPO.
Limited Warranty: D-Link warrants that the hardware portion of the D-Link products described below
will be free from material defects in workmanship and materials from the date of original retail purchase
of the product, for the period set forth below applicable to the product type (“Warranty Period”), except
as otherwise stated herein.
1-Year Limited Warranty for the Product(s) is defined as follows:
Hardware (excluding power supplies and fans) One (1) Year
Power Supplies and Fans One (1) Year
Spare parts and spare kits Ninety (90) days
D-Link’s sole obligation shall be to repair or replace the defective Hardware during the Warranty Period
at no charge to the original owner or to refund at D-Link’s sole discretion. Such repair or replace ment will
be rendered by D-Link at an Authorized D-Link Service Office. The replacement Hardware need not be
new or have an identical make, model or part. D-Link may in its sole discretion replace the defective
Hardware (or any part thereof) with any reconditioned product that D-Link reasonably determines is
substantially equivalent (or superior) in all material respects to the defective Hardware. Repaired or
replacement Hardware will be warranted for the remainder of the original Warranty Period from the date
of original retail purchase. If a material defect is incapable of correction, or if D-Link determines in its sole
discretion that it is not practical to repair or replace the defective Hardware, the price paid by the original
purchaser for the defective Hardware will be refunded by D-Link upon return to D-Link of the defective
Hardware. All Hardware (or part thereof) that is replaced by D-Link, or for which the purchase price is
refunded, shall become the property of D-Link upon replacement or refund.
Limited Software Warranty: D-Link warrants that the software portion of the product (“Software”)
will substantially conform to D-Link’s then current functional specifications for the Software, as set forth
in the applicable documentation, from the date of original retail purchase of the Software for a period of
ninety (90) days (“Warranty Period”), provided that the Software is properly installed on approved
hardware and operated as contemplated in its documentation. D-Link further warrants that, during the
Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical
defects. D-Link’s sole obligation shall be to replace the non-conforming Software (or defective media)
with software that substantially conforms to D-Link’s functional specifications for the Software or to
refund at D-Link’s sole discretion. Except as otherwise agreed by D-Link in writing, the replacement
Software is provided only to the original licensee, and is subject to the terms and conditions of the
license granted by D-Link for the Software. Software will be warranted for the remainder of the original
Warranty Period from the date or original retail purchase. If a material non-conformance is incapable of
correction, or if D-Link determines in its sole discretion that it is not practical to replace the nonconforming Software, the price paid by the original licensee for the non-conforming Software will be
refunded by D-Link; provided that the non-conforming Software (and all copies thereof) is first returned
to D-Link. The license granted respecting any Software for which a refund is given automatically
terminates.
Non-Applicability of Warranty: The Limited Warranty provided hereunder for hardware and software
of D-Link’s products will not be applied to and does not cover any refurbished product and any product
purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the sellers,
or the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case,
the product is being sold “As-Is” without any warranty whatsoever including, without limitation, the
Limited Warranty as described herein, notwithstanding anything stated herein to the contrary.
Submitting A Claim: The customer shall return the product to the original purchase point based on its
return policy. In case the return policy period has expired and the product is within warranty, the
customer shall submit a claim to D-Link as outlined below:
The customer must submit with the product as part of the claim a written description of the
Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm
the same.
32
The original product owner must obtain a Return Material Authorization (“RMA”) number from
the Authorized D-Link Service Office and, if requested, provide written proof of purchase of
the product (such as a copy of the dated purchase invoice for the product) before the
warranty service is provided.
After an RMA number is issued, the defective product must be packaged securely in the
original or other suitable shipping package to ensure that it will not be damaged in transit, and
the RMA number must be prominently marked on the outside of the package. Do not include any
manuals or accessories in the shipping package. D-Link will only replace the defective portion
of the Product and will not ship back any accessories.
The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery
(“COD”) is allowed. Products sent COD will either be rejected by D-Link or become the property
of D-Link. Products shall be fully insured by the customer and shipped to D-Link Systems,
Inc., 53 Discovery Drive, Irvine, CA 92618. D-Link will not be held responsible for any
packages that are lost in transit to D-Link. The repaired or replaced packages will be shipped
to the customer via UPS Ground or any common carrier selected by D-Link, with shipping
charges prepaid. Expedited shipping is available if shipping charges are prepaid by the customer
and upon request.
D-Link may reject or return any product that is not packaged and shipped in strict compliance with the
foregoing requirements, or for which an RMA number is not visible from the outside of the package. The
product owner agrees to pay D-Link’s reasonable handling and return shipping charges for any product
that is not packaged and shipped in accordance with the foregoing requirements, or that is determined
by D-Link not to be defective or non-conforming.
What Is Not Covered: This limited warranty provided by D-Link does not cover: Products, if in D-Link’s
judgment, have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse,
faulty installation, lack of reasonable care, repair or service in any way that is not contemplated in the
documentation for the product, or if the model or serial number has been altered, tampered with, defaced
or removed; Initial installation, installation and removal of the product for repair, and shipping costs;
Operational adjustments covered in the operating manual for the product, and normal maintenance;
Damage that occurs in shipment, due to act of God, failures due to power surge, and cosmetic damage;
Any hardware, software, firmware or other products or services provided by anyone other than DLink; Products that have been purchased from inventory clearance or liquidation sales or other sales in
which D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the
product. Repair by anyone other than D-Link or an Authorized D-Link Service Office will void this
Warranty.
Disclaimer of Other Warranties: EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE
PRODUCT IS PROVIDED “ AS-IS” WITHOUT ANY WARRANTY OF ANY KIND WHA TSOEVER INCLUDING,
WITHOUT LIMIT ATION, ANY W ARRANTY OF MERCHANT ABILITY , FIT NESS FOR A P ARTICULAR PURPOSE
AND NON-INFRINGEMENT . IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY
WHERE A PRODUCT IS SOLD, THE DURATION OF SUCH IMPLIED W ARRANTY SHALL BE LIMITED TO
NINETY (90) DA YS. EXCEPT AS EXPRESSL Y COVERED UNDER THE LIMITED WARRANTY PROVIDED
HEREIN, THE ENTIRE RISK AS TO THE QUALITY, SELECTION AND PERFORMANCE OF THE PRODUCT IS
WITH THE PURCHASER OF THE PRODUCT .
Limitation of Liability: T O THE MAXIMUM EXTENT PERMITTED BY LA W , D-LIN K IS NOT LIABLE UNDER
ANY CONTRACT , NEGLIGENCE, STRICT LIABILITY OR OTHER LEGAL OR EQUIT ABLE THEORY FOR ANY
LOSS OF USE OF THE PRODUCT , INCON VENIENCE OR DAMAGES OF ANY CHARACTER, WHETHER
DIRECT , SPECIAL, INCIDENT AL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR
LOSS OF GOOD WILL, LOSS OF REVENUE OR PROFIT, WORK STOPP AGE, COMPUTER F AILURE OR
MALFUNCTION, FAILURE OF OTHER EQUIPMENT OR COMPUTER PROG RAMS TO WHICH D-LINK’S
PRODUCT IS CONNECTED WITH, LOSS OF INFORMA TION OR DA T A CONT AINED IN, STORED ON, OR
INTEGRA TED WITH ANY PRODUCT RETURNED TO D-LIN K FOR WARRANTY SERVICE) RESUL TING FROM
THE USE OF THE PRODUCT , RELA TING TO W ARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF
THIS LIMITED W ARRANTY , EVEN IF D-LINK HAS BEEN AD VISED OF THE POSSIBILITY OF SUCH DAMAGES.
THE SOLE REMEDY FOR A BREACH OF THE FOREGOING LIMITED W ARRANTY IS REP AIR, REPLACEMENT
OR REFUND OF THE DEFECTIVE OR NON-CONFORMING PRODUCT . THE MAXIMUM LIABILITY OF D-LIN K
UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE PRICE OF THE PRODUCT COVERED BY THE
WARRANTY . THE FOREGOING EXPRESS WRITTEN W ARRANTIES AND REMEDIES ARE EXCLUSIVE AND
ARE IN LIEU OF ANY OTHER W ARRANTIES OR REMEDIES, EXPRESS, IMPLIED OR ST A TUTORY.
33
Governing Law: This Limited Warranty shall be governed by the laws of the State of California. Some
states do not allow exclusion or limitation of incidental or consequential damages, or limitations on how
long an implied warranty lasts, so the foregoing limitations and exclusions may not apply. This limited
warranty provides specific legal rights and the product owner may also have other rights which vary
from state to state.
Trademarks: D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered
trademarks are the property of their respective manufacturers or owners.
Copyright Statement: No part of this publication or documentation accompanying this Product may
be reproduced in any form or by any means or used to make any derivative such as translation,
transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as
stipulated by the United States Copyright Act of 1976. Contents are subject to change without prior
notice. Copyright© 2002 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
CE Mark Warning: This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
FCC Statement: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communication. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This
equipment should be installed and operated with a minimum distance of about eight inches (20cm) between
the radiator and your body.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
Register your D-Link product online at http://support.dlink.com/register/
(01/21/2003)
34
Loading...
