17 Litre Electronic Microwave

Owner sI n struction M anual

DENVER OG-170

Read the Instructions carefully and Keep for Future Reference

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

- WARNING: when the appliance is operated in the combination mode,
children should only use the oven under adult supervision due to
the temperatures generated;

- WARNING: if the door or door seals are damaged, the oven must not be

operated until it has been repaired by a competent person;

- WARNING: it is hazardous for anyone other than a competent person to

carry out any service or repair operation that involves the removal

of a cover which gives protection against exposure to microwave
energy;

- WARNING: liquids and other foods must not be heated in sealed
containers since they are liable to explode

- WARNING: Only allow children to use the oven without supervision

when adequate instructions have been given so that the child is

able to use the oven in a safe way and understands the hazards of
improper use;

- only use utensils that are suitable for use in microwave ovens

- when heating food in plastic or paper containers, keep an eye on the

oven due to the possibility of ignition;

- if smoke is observed, switch of or unplug the appliance and keep the

door closed in order to stifle any flames;

- microwave heating of beverages can result in delayed eruptive boiling,

therefore care must be taken when handling the container;

- the contents of feeding bottles and baby food jars shall be stirred or

shaken and the temperature checked before consumption, in order to
avoid burns;

- eggs in their shell and whole hard-boiled eggs should not be heated in

microwave ovens since they may explode, even after microwave
heating has ended;

- the oven should be cleaned regularly and any food deposits removed;

- failure to maintain the oven in a clean condition could lead to

deterioration of the surface that could adversely affect the life of the
appliance and possibly result in a hazardous situation;

- if the supply cord is damaged, it must be replaced by the manufacturer,

its service agent or similarly qualified persons in order to avoid a
hazard.

- The temperature of accessible surfaces may be high when the appliance

is operating.

-2-

SPECIFICATIONS

Power consumption:
Output:
Grill heater:
Operating Frequency:
Outside Dimensions:
Oven Cavity Dimensions:
Oven Capacity:
Uncrated Weight:

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not
appear or the display disappears:
a) Check to ensure that the oven is plugged in securely. If it
is not, remove the plug from the outlet, wait 10 seconds
and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped
main circuit breaker. If these seem to be operating properly,

230V~50Hz,1080W
700W
1000W
2,450MHz
458mm(W) X 375mm(D) X 296mm(H)
320mm(W) X 288mm(D) X 183mm(H)
17 litres
Approx. 13.5kg

test the outlet with another appliance.

2. If the microwave power does not function:
a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to
engage the safety interlocks. Otherwise, the microwave
energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT.

Note:
The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor
use only.

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be
eliminated or reduced by the following procedures.
a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

-3-

INSTALLATION

1. Make sure all the packing materials are removed from
the inside of the door.

2. Inspect the oven after unpacking for any visual
damage such as:
Misaligned Door
Damaged Door
Dents or Holes in Door Window and Screen
Dents in Cavity
If any of the above are visible, DO NOT use the
oven.

3. This Microwave Oven weighs 13.5 kg and must be
placed on a horizontal surface strong enough to

WARNING-THIS APPLIANCE MUST BE EARTHED.

1. The plug socket should be within easy reach

support this weight.

4. The oven must be placed away from high temperature
and steam.

5. DO NOT place anything on top of the oven.

6. Keep the oven at least 8 cm away from both sidewalls
and 10 cm away from rear wall to ensure the correct
ventilation.

7. DO NOT remove the turn -table drive shaft.

8. As with any appliance, close supervision is necessary
when used by children.

of the power cord

2. This oven requires 1.1 KVA for its input.
consultation with service engineer is
suggested when installing the oven.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live

As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:

CAUTION:This oven is protected internally by
a 250V, 8 Amp Fuse.

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the
letter E or by the earth symbol coloured green of green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

-4-

IMPORTANT SAFETY INSTRUCTIONS

-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult
supervision due to the temperatures generated; (Only for the model with grill function)

-WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a
competent person;

-WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation
that involves the removal of a cover which gives protection against exposure to microwave energy;

-WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.

-WARNING: Only allow children to use the oven without supervision when adequate instructions have been given
so that the child is able to use the oven in a safe way and understands the hazards of improper use;

- The oven must have sufficient air flow.Keep 10 cm space at back;15 cm at both sides and 30cms from top of the
oven.Don't remove oven's feet, do not block air events of the oven.

- Only use utensils that are suitable for use in microwave ovens.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;

- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;

- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling
the container;

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before
consumption, in order to avoid burns;

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode,
even after microwave heating has ended;

- When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents
applied with a sponge or soft cloth.

- The oven should be cleaned regularly and any food deposits removed;

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect
the life of the appliance and possibly result in a hazardous situation;

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS FOR GENERAL USE
Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from
this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.

2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any
other nonfood items, or for sterilizing purposes.

3. Do not operate the oven when empty. This could damage the oven.

4. Do not use the oven cavity for any type of storage,such a papers, cookbooks, etc.

5.Do not cook any food surrounded by a membrane,such as egg yolks,potatoes,chicken livers,etc without
first being pierced several times with a fork.

-5-

6. Do not insert any object into the openings on the outer
case.

7. Do not at any time remove parts from the oven such as
the feet, coupling, screws, etc.

8. Do not cook food directly on the glass tray. Place food
in/on proper cooking utensil before placing in the oven.

9. IMPORTANT-COOKWARE NOT TO USE IN YOUR
MICROWAVE OVEN
Do not use metal pans or dishes with metal handles.
Do not use anything with metal trim.
Do not use paper covered wire twist-ties on plastic bags.
Do not use melamine dishes as they contain a material
which will absorb microwave energy. This may cause
the dishes to crack or char and will slow down the
cooking speed.
Do not use Centura Tableware. The glaze is not suitable
for microwave use. Corelle Livingware closed handle
cups should not be used.
Do not cook in a container with a restricted opening,
such as a pop bottle or salad oil bottle, as they may
explode if heated in a microwave oven.
Do not use conventional meat or candy thermometers.
There are the thermometers available specifically for
microwave cooking. These may be used.

10. Microwave utensils should be used only in
accordance with manufacturer's instructions.

11. Do not attempt to deep-fry foods in this oven.

12. Please remember that a microwave oven only
heats the liquid in a container rather than the
container itself.Therefore, even though the lid
of a container is not hot to the touch when

FEATURE DIAGRAM

5

3

6

removed from the oven, please remember that
the food/liquid inside will be releasing the same
amount of steam and/or spitting when the lid is
removed as in conventional cooking.

13. Always test the temperature of cooked food
yourself especially if you are heating or cooking
food/liquid for babies. It is advisable never to
consume food/liquid straight from the oven but
allow it to stand for a few minutes and stir food/
liquid to distribute heat evenly.

14. Food containing a mixture of fat and water,
e.g.stock,should stand for 30-60 seconds in the
oven after it has been turned off. This is to allow
the mixture to settle and to prevent bubbling when
a spoon is placed in the food/liquid or a stock cube
is added.

15. When preparing/cooking food/liquid and remember
that there are certain foods, e.g. Christmas
puddings, jam and mincemeat, which heat up very
quickly. When heating or cooking foods with a high
fat or sugar content do not use plastic containers.

16. Cooking utensil may become hot because of heat
transferred from the heated food. This is especially
true if plastic wrap has been covering the top and
handles of the utensil. Potholders may be needed
to handle the utensil.

17.To reduce the risk of fire in the oven cavity:
(a)Do not overcook food. Carefully attend microwave
oven if paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
(b)Remove wire twist-ties from bags before placing
bag in oven.
(c)If materials inside the oven should ignite, keep oven
door closed, turn the oven off at the wall switch, or
shut off power at the fuse or circuit breaker panel.

(1) Door Safety Lock System
(2) Oven Window
(3) Oven Air Vent
(4) Roller Ring

4

2

1

1

7

(5) Glass Tray
(6) Control Panel
(7) Grill rack

-6-

CONTROL PANEL

(1)DISPLAY WINDOW

Micro/Grill

(2)MICRO/GRILL

1 Min 10 Sec

(6)1 Min

Start/Reset

Press and hold to stop

(3)10 Sec

(4)START/RESET

(5)10 Min

10 Min

OPERATION INSTRUCTION

1.SIMPLE COOKING
You only need press "START/RESET" to start cooking for 1 min with 100% microwave power. Each press means

increasing one minute cooking time, the maximum time is 30 min. After cooking finished you will sound five beeps
for remind.

Press and hold the "Start/Reset" for 2 seconds to stop.

-7-

2.MICROWAVE COOKING
(A) Fast cooking method
(For example: Select 100% power to cook foods for 5 minutes.)
a) Set the time "5:00"
b) Press "START/RESET" button
(B) Control by hand
(For example: Select 70% power to cook foods for 10 minutes)
a) Press "MICRO/GRILL" button to select 70% power.
b) Press time button to set cooking time "10:00"
c) Press "START/RESET" button.
You can press "MICRO/GRILL" button to select power.

Step

1 P10 100%
2
3

4
5

Display Micro power

P7
P5

P3
P1

70%
50%
30%
10%

3.AUTO DEFROST FUNCTION
You need to press "1Min" (1.0kg) and "10Sec" (0.1kg) according to the weight of the food.The oven can
select defrosting program and auto start defrosting.
For example: defrost 0.4kg frozen foods

1) Press "MICRO/GRILL" to choose defrost function, display "DEF".

2) Set weight "0.4kg" by pressing "1Min" and "10Sec" buttons.

3).Press "START/RESET" button.
Remark: the maximum weight is 2kgs.

4.GRILL/COMBINATION COOKING FUNCTION
This function has four modes, you can choose the favourite mode by pressing the "MICRO/GRILL" button.
(The maximum time is 60 minutes)
Mode 1: 85% grill power, display "G-1".
Mode 2: 50% grill power, display "G-2".
Mode 3: Combination cook I (55% micro+45% grill) display "C-1".
Mode 4: Combination cooking II (30% microwave+ 70% grill) display "C-2".
In grill operation (exclusive combination grill), the procedure will pause automatically and sound two beeps to
remind you to turn over the food at the half of cooking time. Close the oven door after you turn over the food,
then press "START/RESET", cooking will continue; If you do not want to turn over the food, the oven will
continue cooking automatically after one minute pause.

-8-

5.START AND RESET

1) Open door status
Press "START/RESET" button to cancel setting or cooking program.

2) Close door status
Press "START/RESET" button to start cooking after setting cooking program.
Press "START/RESET" button to continue cooking when the cooking is in pause status.
Press "START/RESET" button to stop working when the microwave oven is operating.

6.CHILDREN SAFETY LOCK

To activate the Child Lock, press "1Min" and "10Sec" buttons at the same time for 2 seconds.After that press

any button is useless. If press "1Min" and "10Sec" button at the same time for 2 seconds again it will unlock

this function.

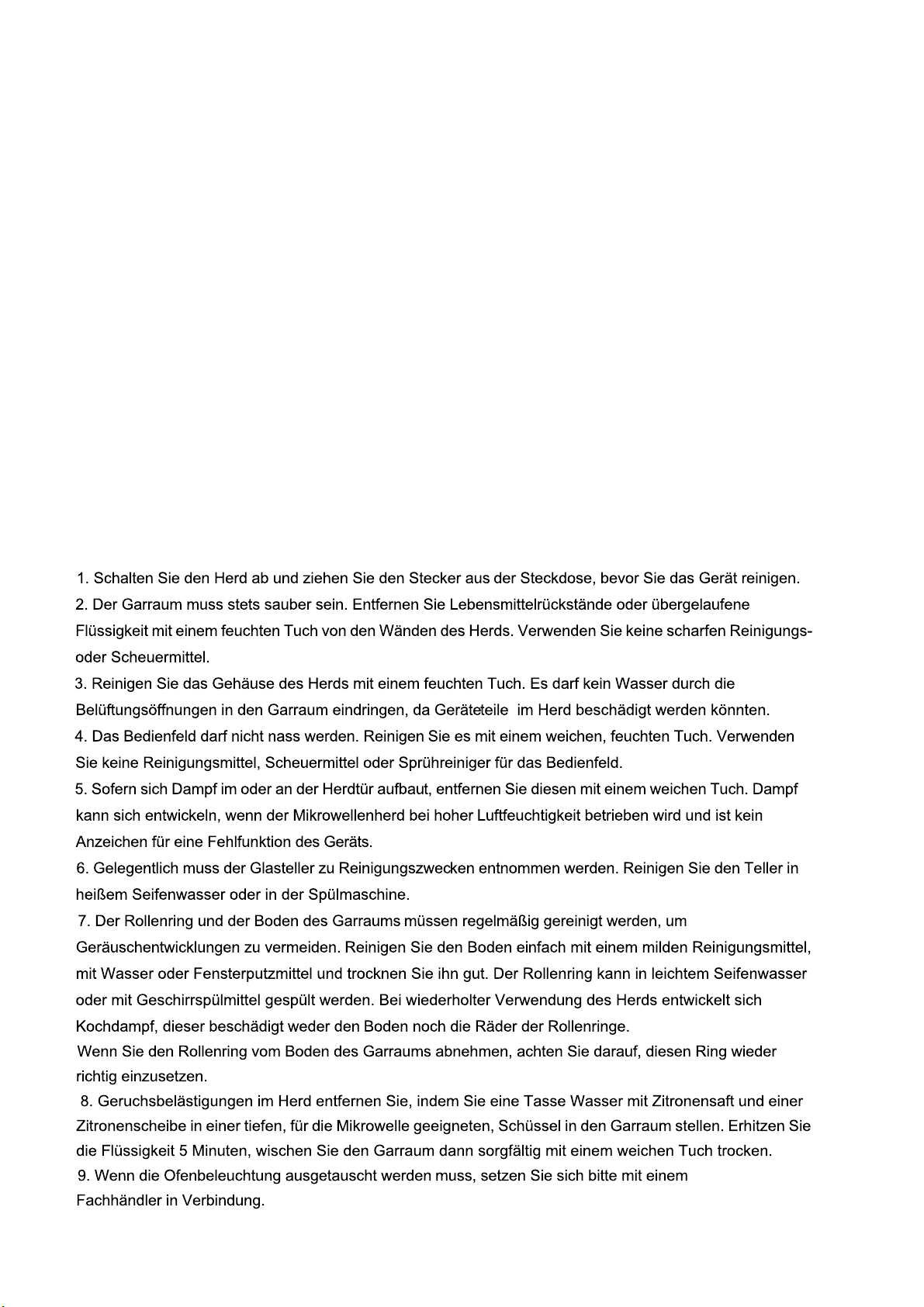

CARE OF YOUR MICROWAVE OVEN

1.Turn the oven off and remove the power plug from the wall socket before cleaning.

2.Keep the inside of the oven clean.When food splatters or spilled liquids adhere to oven walls,wipe with a
damp cloth.The use of harsh detergent or abrasives is not recommended.

3.The outside oven surface should be cleaned with a damp cloth.To prevent damage to the operating parts
inside the oven,water should not be allowed to seep into the ventilation openings.

4.Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents,
abrasives or spray-on cleaners on the control Panel.

5.If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth.This may occur
when the microwave oven is operated under high humidity conditions and in no way indicates malfunction
of the unit.

6.It is occasionally necessary to remove the glass tray for cleaning.Wash the tray in warm sudsy water or in
a dishwasher.

7.The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise.Simply wipe the
bottom surface of the oven with mild detergent,water or window cleaner and dry.The roller ring may be
washed in mild sudsy water or dish washer.Cooking vapour collect during repeated use but in no way
affect the bottom surface or roller ring wheels.
When removing the roller ring from cavity floor for cleaning,be sure to replace it in the proper position.

8.Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a
deep microwaveable bowl. Microwave for 5 minutes,wipe thoroughly and dry with a soft cloth.

9.When it becomes necessary to replace the oven light,please consult a dealer to have it replaced.

-9-

Instructions on environment protection

Do not dispose of this product in the usual household garbage at the end of its lifecycle;
hand it over at a collection point for the recycling of electrical and electronic appliances.
The symbol on the product, the instructions for use or the packing will inform about the
methods for disposal.
The materials are recyclable as mentioned in this marking. By recycling, material
recycling or other forms of re-utilization of old appliances, you are making an
important contribution to protect our environment.
Please inquire at the community administration for the authorized disposal location.

ALL RIGHTS RESERVED

COPY RIGHT DENVER ELECTRONICS A/S

www.denver-electronics.com

-10-

Elektronisk Mikrobølgeovn, 17 Liter

Betjeningsvejledning

Læs vejledningen omhyggeligt og gem den, så du kan slå op i den senere.

DENVER OG-170

SPECIFIKATIONER

Strømforbrug: 230V~50Hz, 1080W
Udgangseffekt: 700W
Grill varmelegeme: 1000W
Driftsfrekvens: 2,450MHz
Ydre mål: 458 mm (B) x 375 mm (D) x 296 mm (H)
Indre mål: 320 mm (B) x 288 mm (D) x 183 mm (H)
Ovnens kapacitet: 17 liter
Nettovægt: Ca. 13,5 kg

FØR DU BRINGER OVNEN TIL REPARATION

1. Hvis ovnen slet ikke reagerer på kommandoer, og
hvis displayet også er slukket, bør du kontrollere
følgende:
a) Kontrollér, at netledningen er sat sikkert fast i en
stikkontakt, og at der er tændt på kontakten. Hvis
stikket ikke er trykket helt ind, skal du tage stikket
ud, vente 10 sekunder og sætte det i igen.
b) Kontrollér, om der skulle være sprunget en sikring
et sted i huset, eller om HFI-relæet skulle være slået
fra. Hvis disse lader til at være i orden,

kan du teste stikkontakten ved at tilslutte et andet
elektrisk apparat og se, om det virker.

2. Hvis mikrobølgeeffekten ikke fungerer:
a) Kontrollér, om timeren er indstillet.
b) Kontrollér, om ovnlågen er helt lukket, således at
sikkerhedslåsen er aktiveret. Er det ikke tilfældet, vil
ovnen nægte at fungere.

HVIS INGEN AF OVENNÆVNTE LØSNINGSFORSLAG VIRKER, BØR DU KONTAKTE EN
AUTORISERET SERVICETEKNIKER MED HENBLIK PÅ REPARATION.

Bemærk:
Denne ovn er udelukkende beregnet til brug i en almindelig husholdning. Ovnen er designet med
henblik på opvarmning af mad- og drikkevarer gennem elektromagnetisk energi og er udelukkende
beregnet til indendørs brug.

INTERFERENS I RADIO-TV UDSTYR

En mikrobølgeovn kan forårsage interferens i dine elektroniske apparater så som radio, TV eller lignende.
Skulle der opstå interferens, kan problemes løses eller minimeres ved at følge nedenstårende retningslinjer.
a. Rengør ovnens låge og sikkerhedspakninger.
b. Placér radio, TV etc. så langt fra mikrobølgeovnen som muligt.
c. Anvend en korrekt monteret og indstillet antenne til dit radio-TV udstyr, således at signalet går klart og
tydeligt igennem.

-12-
