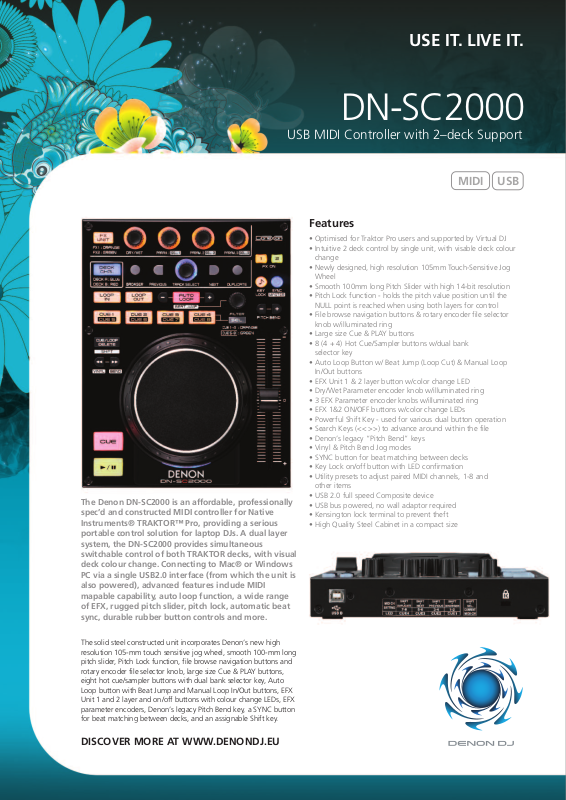

Denon DN-SC2000 DATASHEET
USE IT. LIVE IT.
DN-SC2000
USB MIDI Controller with 2–deck Support
The Denon DN-SC2000 is an affordable, professionally
spec’d and constructed MIDI controller for Native
Instruments® TRAKTOR™ Pro, providing a serious
portable control solution for laptop DJs. A dual layer
system, the DN-SC2000 provides simultaneous
switchable control of both TRAKTOR decks, with visual
deck colour change. Connecting to Mac® or Windows
PC via a single USB2.0 interface (from which the unit is
also powered), advanced features include MIDI
mapable capability, auto loop function, a wide range
of EFX, rugged pitch slider, pitch lock, automatic beat
sync, durable rubber button controls and more.
MIDI
USB
Features
• Optimised for Traktor Pro users and supported by Virtual DJ
• Intuitive 2 deck control by single unit, with visable deck colour
change
• Newly designed, high resolution 105mm Touch-Sensitive Jog
Wheel
• Smooth 100mm long Pitch Slider with high 14-bit resolution
• Pitch Lock function - holds the pitch value position until the
NULL point is reached when using both layers for control
• File browse navigation buttons & rotary encoder file selector
knob w/illuminated ring
• Large size Cue & PLAY buttons
• 8 (4 + 4) Hot Cue/Sampler buttons w/dual bank
selector key
• Auto Loop Button w/ Beat Jump (Loop Cut) & Manual Loop
In/Out buttons
• EFX Unit 1 & 2 layer button w/color change LED
• Dry/Wet Parameter encoder knob w/illuminated ring
• 3 EFX Parameter encoder knobs w/illuminated ring
• EFX 1&2 ON/OFF buttons w/color change LEDs
• Powerful Shift Key - used for various dual button operation
• Search Keys (<< >>) to advance around within the file
• Denon’s legacy “Pitch Bend” keys
• Vinyl & Pitch Bend Jog modes
• SYNC button for beat matching between decks
• Key Lock on/off button with LED confirmation
• Utility presets to adjust paired MIDI channels, 1-8 and
other items
• USB 2.0 full speed Composite device
• USB bus powered, no wall adaptor required
• Kensington lock terminal to prevent theft
• High Quality Steel Cabinet in a compact size
The solid steel constructed unit incorporates Denon’s new high
resolution 105-mm touch sensitive jog wheel, smooth 100-mm long
pitch slider, Pitch Lock function, file browse navigation buttons and
rotary encoder file selector knob, large size Cue & PLAY buttons,
eight hot cue/sampler buttons with dual bank selector key, Auto
Loop button with Beat Jump and Manual Loop In/Out buttons, EFX
Unit 1 and 2 layer and on/off buttons with colour change LEDs, EFX
parameter encoders, Denon’s legacy Pitch Bend key, a SYNC button
for beat matching between decks, and an assignable Shift key.
DISCOVER MORE AT WWW.DENONDJ.EU
Specifications
General
Type: USB MIDI Controller
Dimensions: 170 (W) x 30 (H) x 220 (D) mm
(6-11/16” x 1-3/16” x 8-21/32”)
Weight: 1.3 kg (2 Ibs 13.86 oz)
Power supply: 5 V (USB Bus Power)
Current consumption: 450 mA
Operational temperature: 5 – 35 °C
Operational humidity: 25 – 85 %
Storage temperature: –20 – 60 °C
USB I/F
USB connector: USB 2.0 (Full Speed)
USB MIDI I/O 1 port
USE IT. LIVE IT.
DN-SC2000
USB–MIDI-Controller für 2 Decks
tems MIDI command
I
.FX UNIT SW ON: 0x9n SW OFF: 0x8n 0x58 SW ON: 0x40 SW OFF: 0x00
1
.DECK CHG. 0x03
2
3. DRY/WET SW (FX1) 0x15
3. DRY/WET SW (FX2) 0x55
4. BROWSER 0x64
. PREVIOUS 0x30
5
. PARAM.1 SW (FX1) 0x12
6
. PARAM.1 SW (FX2) 0x52
6
7. TRACK SELECT KNOB SW 0x28
8. PARAM.2 SW (FX1) 0x13
8. PARAM.2 SW (FX2) 0x53
9. NEXT 0x29
0. DUPLICATE 0x65
1
11. PARAM.3 SW (FX1) 0x14
11. PARAM.3 SW (FX2) 0x54
2. BEND - 0x0D
1
3. FX ON 1 0x56
1
4. KEY LOCK 0x06
1
15. FX ON 2 0x57
16. SYNC 0x6B
17. BEND + 0x0C
18. LOOP IN 0x37
19. CUE1 0x17
19. CUE5 0x21
20. CUE/LOOP DELETE(SHIFT) 0x60
21. FAST SEARCH - 0x11
22. PLAY 0x43
23. CUE 0x42
24. FAST SEARCH + 0x10
25. CUE2 0x18
25. CUE6 0x22
26. LOOP OUT 0x39
27. BEAT - 0x69
28. CUE3 0x19
28. CUE7 0x23
29. AUTO LOOP 0x1D
30. CUE4 0x20
30. CUE8 0x24
31. BEAT + 0x6A
32. Jogwheel touch 0x51
33. FILTER SW 0x68
34. SEL. 0x1A
ommand Number Value
C
Items MIDI command
3. DRY/WET KNOB (FX1) 0xBn 0x55 Increment 0x00
Increment / Decrement Decrement 0x7F
3. DRY/WET KNOB (FX2) 0x59 Increment 0x00
6. PARAM.1 KNOB (FX1) Increment / Decrement 0x56
6. PARAM.1 KNOB (FX2) Increment / Decrement 0x5A
7. TRACK SELECT KNOB Increment / Decrement 0x54
8. PARAM.2 KNOB (FX1) Increment / Decrement 0x57
8. PARAM.2 KNOB (FX2) Increment / Decrement 0x5B
11. PARAM.3 KNOB (FX1) Increment / Decrement 0x58
11. PARAM.3 KNOB (FX2) Increment / Decrement 0x5C
32. JOGWHEEL FWD/REV 0x51 Reverse 0x3F~0x01
33. FILTER KNOB Increment / Decrement 0x5D Increment 0x00
35 PITCH SLIDER 0xEn 0xllx(LSB) 0xmm (MSB)
DISCOVER MORE AT WWW.DENONDJ.EU
Command Number Value
Decrement 0x7F
Foward 0x41~0x7F
slow fast
*relative data 2048Pulse/cycle
Decrement 0x7F
