Specifications and Main Features
- Model – DN-M2000R -
- Type – MD Recorder -
- Input Voltage- 100V – 240V AC -
- Frequency Response- 20 Hz – 20 kHz -.
- Total Harmonic Distortion- less than 0.003% -.
- Signal to Noise Ratio- greater than 100 dB -.
- Audio sampling rates- 44.1 kHz, 48 kHz -.
- Digital Output- Coaxial, Optical -.
- Dimensions- 430mm x 330mm x 100mm -
- Weight- 3.6kg –
- Built-in error code monitoring and display -.

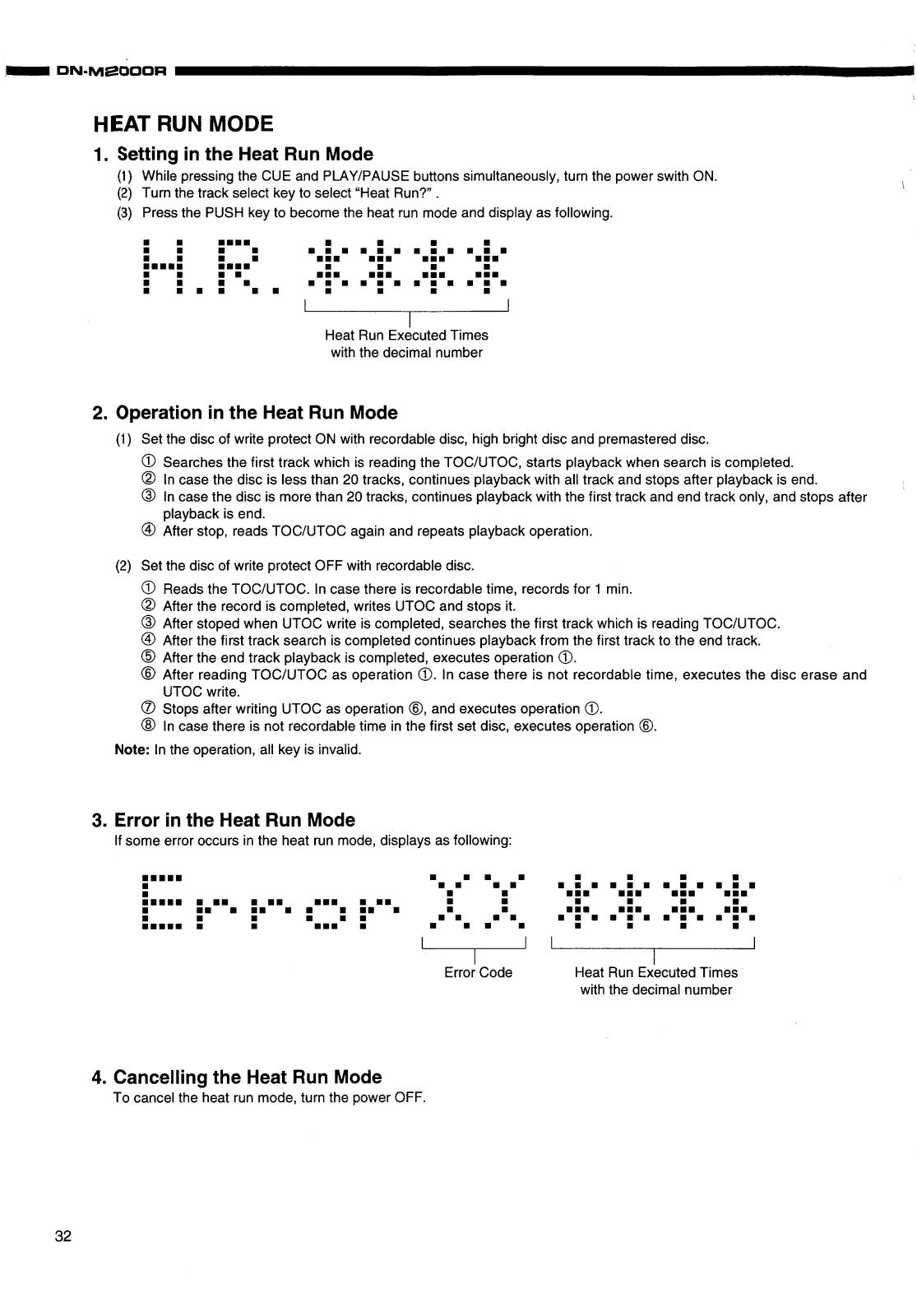

- Heat run mode for operational reliability - .

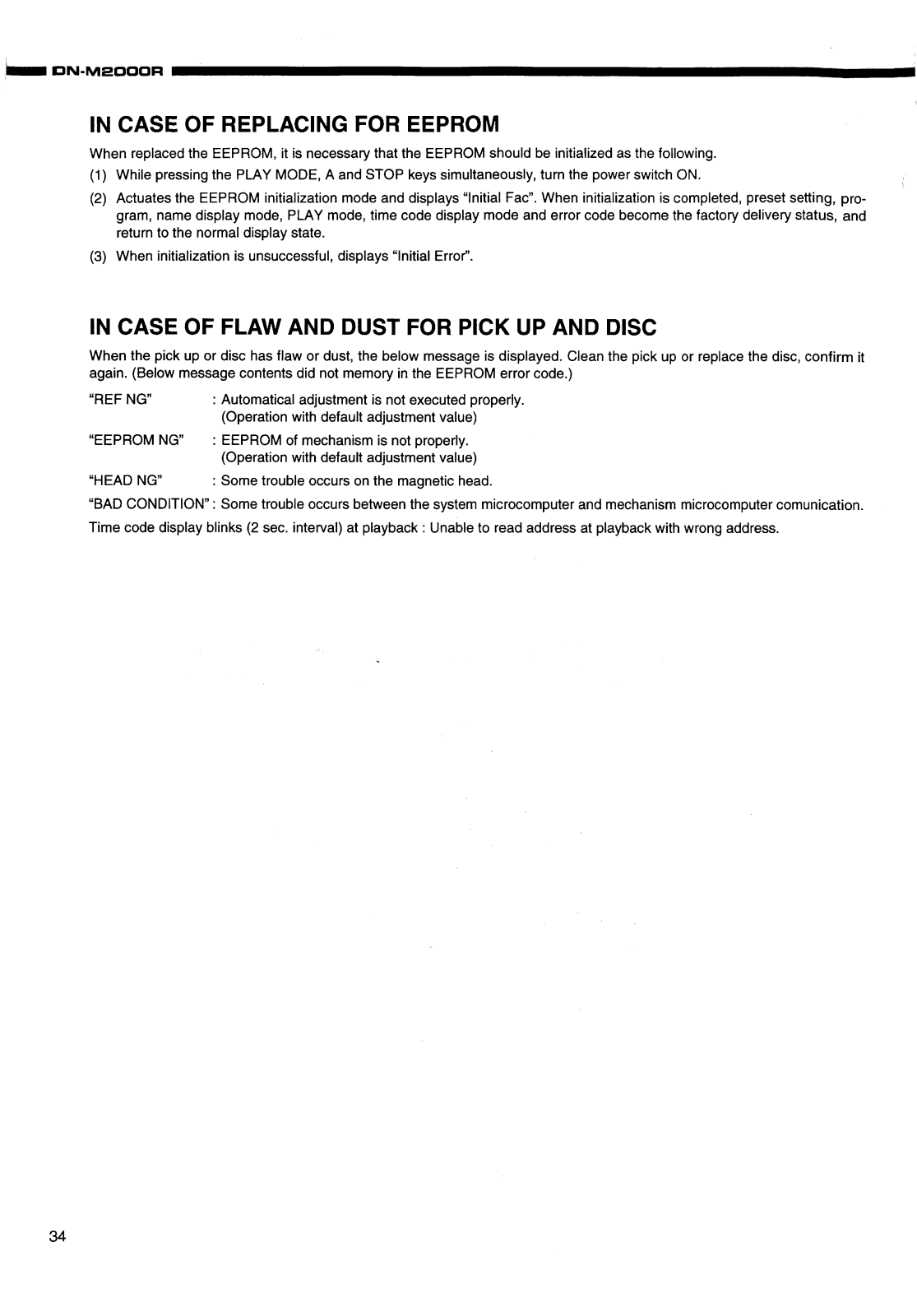

- EEPROM and firmware version up capabilities -.
Frequently Asked Questions
- Q: How do i reset the dn m2000r after an error? -.
- Ans: Press cue and play/pause buttons simultaneously, and then turn the power off and on. -
- Q: What should I do when the laser power is out of specification? -.
- Ans: Conduct laser power adjustment as stated on the manual, making sure the method stated has been complied with and using laser power meter-.
- Q: How do i check the error codes of the device? -.
- Ans: Press cue and play/pause buttons together and select error disp? to check device’s error codes. -
- Q: What steps do I take when I want to upgrade the firmware of the device?
- A: In doing any firmware upgrade follow the method of version up by first removing the top cover, placing the short pin and turning the power on while pressing certain keys and following the directions on the screen.
- Q: Is there a specified time for device calibration?
- A: I would advise that the device is calibrated after realizing that the error is too great or has gone through some maintenance.
- Q: Is it possible to use the product on different AC voltage?
- A: The product is able to use any voltage between 100V and 240V AC so that is a yes for the question.
- Q: Is there any care I am to observe when using the optical pick-up?
- A: Of course Yes, the pick-up should be kept free from dust and any sort of physical damage; the pick up should also be cleaned frequently to enhance performance.
