OPERATING INSTRUCTIONS
1. DESCRIPTION OF THE APPLIANCE (SEE PAGE 3)
A. Cup warmer tray
B. Steam knob
C. Steam spout
D. Milk frother
E. Water tank (removable)
F. Cup support tray
G. Drip tray (removable)
H. Service door
I. Coffee spout, adjustable in height
J. Control panel
K. Bean container lid
L. Centre lid for the ground coffee
M. Infuser
N. Power cable
O. Milk frother (removable)
P. Milk frother nozzle (removable)
Q. Measure for pre-ground coffee
R. Removable container for the coffee grounds
S. Grinding coarseness adjustment knob
T. Container for the coffee beans
U. Compartment for the measure
V. Funnel for pre-ground coffee
Z. Mobile drawer
Control panel
1) On/off button
2) 1 cup and coffee temperature OK light
3) One cup button
4) 2 cup and coffee temperature OK light
5) Two cup button
6) Steam and steam temperature OK light
7) Steam function selector button
8) Coffee quantity selector knob (short, normal or
long)
9) Grinding quantity selector knob (for weak, normal or strong coffee)
10) Rinse and descaling button
11) Ground coffee button (disables the coffee grin-
der)
12) Ground coffee light (coffee grinder disabled)
13) Scale alarm light
14) Generic alarm indicator light
15) Grounds container full or absent indicator
light
16) No water or water tank absent indicator light
1
8
2
34567
9
16 15 14 13
12
11
10
23
OPERATING INSTRUCTIONS
GB
2 SAFETY WARNINGS
CAREFULLY READ AND KEEP THESE INSTRUCTIONS!
• This machine is designed to “make espresso
coffee” and to “heat drinks”: be careful to
avoid scalding from the water and steam jets
or by using the machine incorrectly.
• This appliance is for household use only. All
other use is considered improper and consequently dangerous.
• The manufacturer is not liable for damage
caused by improper, incorrect or unreasonable use of the appliance.
• During operation, do not touch the hot surfaces of the appliance. Use the knobs or handles.
• Do not touch the appliance with damp hands
or feet.
• Do not allow children or unfit persons to use
the appliance unsupervised.
• Do not allow children to play with the appliance.
• In the event of breakdown or faulty operation,
turn the appliance off and do not tamper with
it. For repairs, contact a technical service centre authorised by the manufacturer only.
Request that only original spare parts be used.
Failure to respect the above may compromise
the safety of the appliance.
3 INSTALLATION
• After unpacking, make sure the appliance is
complete and undamaged. If in doubt, do not
use it. Contact professionally qualified personnel.
• Packing elements (plastic bags, polystyrene
etc) must not be left within reach of children as
they may represent a hazard.
• Place the appliance on a work surface far
away from water taps, basins and sources of
heat.
• After having positioned the appliance on the
work bench, make sure that there is a free
space of around 5 cm between the surfaces
of the appliance and the side and rear walls
and a free space of at least 20 cm above the
coffee maker.
• Never install the machine in environments
where the temperature may reach 0°C or
lower (the appliance may be damaged if the
water freezes).
• Check that the voltage of the mains power
supply corresponds to the value indicated on
the appliance’s rating plate. Only connect the
appliance to a power outlet with a minimum
rating of 10A that is properly earthed. The
manufacturer declines all liability for any accidents caused if the system is not correctly
earthed.
• If the power outlet does not match the plug on
the appliance, have the outlet replaced with a
suitable type by qualified personnel.
• The power cable for this appliance must not
be replaced by the user, in that this operation
requires the use of special tools. In the event of
damage, only contact a service centre authorised by the manufacturer so as to avoid any
risks.
• The water hardness should be set as soon as
possible, following the procedure described in
chapter 10.4.
24
OPERATING INSTRUCTIONS
To correctly learn how to use the machine, when starting it for the first
time, carefully follow the step-by-step instructions described in the following paragraphs.
4 PREPARING THE COFFEE MAKER
4.1 FILLING THE WATER TANK
• Remove the water tank (Fig.1), rinse it and fill it with fresh water,
without exceeding the MAX line. When removing the tank, the milk
frother must always be positioned towards the centre of the machine,
otherwise the tank cannot be removed.
• Replace the tank, pushing it all the way in.
4.2 FILLING THE CONTAINER WITH COFFEE BEANS
• Open the lid on the coffee bean container (Fig.2).
• Fill the container with coffee beans.
•Close the lid.
WARNING: To avoid malfunctions, never introduce ground coffee,
freeze-dried coffee or caramelised beans, or other objects that may
damage the machine.
4.3 USING THE COFFEE MAKER FOR THE FIRST TIME
1. Check that the water tank is full and that power cable is plugged into the
power outlet.
2. Move the milk frother towards the outside and place a cup underneath
(Fig.3). Then turn the machine on by pressing the button (Fig.4).
3. IMMEDIATELY AFTER, WITHIN A MAXIMUM OF 30 SECONDS, turn the
steam knob anticlockwise until it stops (Fig.5) (it is normal for the machine to
make some noise).
4. After few seconds, a little water will come out of the milk frother. When
there is around 30cc in the cup, turn the steam knob half a turn clockwise
(Fig.6) until it stops, so as to stop the water coming out.
5. Wait for the and lights to stop flashing and turn on steady.
(When the lights are flashing it means that the machine is pre-heating,
while when they are on steady it means that the machine has reached the
ideal temperature for making coffee - par. 11 - points 1 and 2).
A few moments before the lights stop flashing the machine automatically
performs a rinse cycle: a little hot water will come out of the delivery
spouts and will be collected in the drip tray underneath.
Tip: for a hotter, short coffee (less than 60 cc), , first fill the cup with the hot rinsing water. Then leave it inside for a few seconds (before emptying it) so as to
pre-heat the cup.
6. At this point, the machine is ready for use.
Fig.1
Fig.2
Fig.3
Fig.4
25
OPERATING INSTRUCTIONS
GB
5 PREPARING THE COFFEE (USING COFFEE BEANS)
1) Before delivering the coffee, always make sure that the green and
lights are on steady, that the water tank and the coffee bean
container are full.
2) Adjust the right-hand knob (Fig. 7) to set the desired taste of the coffee.
Tu rning the knob clockwise increases the quantity of coffee beans that
the machine will grind, and thus makes the taste of the coffee stronger.
When using the machine for the first time, the correct position of the
knob can be found by trial and error. Make sur
e not to turn it too far
clockwise, otherwise the coffee will be deliver
ed too slowly (in drops),
above all when preparing two cups of coffee.
3) Adjust the left-hand knob (Fig. 8) to set the quantity of coffee required. Turning the knob clockwise makes a longer coffee. When using
the machine for the first time, the correct position of the knob can be
found by trial and error.
4) Place one cup under the spouts to make 1 coffee (Fig. 9) or 2 cups
for 2 coffees (Fig. 10). For a creamy coffee, lower the spouts to bring
them as close to the cups as possible (Fig. 11).
5) Press the button (Fig. 12) to make one cup of coffee or the
button (Fig. 13) to make 2 coffees. At this point the machine grinds
the beans, runs a short pre-infusion cycle, a pause and then completes the delivery.
Once the desired quantity has been reached, the machine automatically stops delivering the coffee and discharges the grounds into the
special container.
6) After a few seconds, when both the green and indicator lights
are on again, another coffee can be made.
7) To switch the machine off, press the button. (Before switching off, the
machine automatically runs a rinse cycle: a little hot water will come out of
the spouts and will be collected in the drip tray underneath - be careful, to
avoid being scalded ). If the machine is not switched off using the button, it will switch itself off and run a brief rinse cycle 3 hours after the last
operation
Fig.5
Fig.6
Fig.7
Fig.8
NOTE 1: : If the coffee is delivered a drop at a time or not at all, turn the
grinding coarseness regulator (fig. 17) one click clockwise (see para. 6). Turn a
click at a time until the coffee is delivered satisfactorily.
NOTE 2:
If the coffee is delivered too fast and is not creamy enough, turn the
right-hand knob (fig. 7) clockwise. Proceed by trial and error to find the correct
position of the knob. Make sure not to turn the knob too far clockwise, otherwise
the delivery may become too slow (in drops), above all when making two cups of
coffee. If, after several coffees, the cream is still not satisfactory, also turn the grinding adjustment knob (Fig. 17) one click clockwise (see par. 6).
NOTE 3: Tips on making hotter coffee:
1) ) If, when the machine has just been turned on, a short cup of coffee is required
(less than 60cc), use the hot rinsing water to pre-heat the cups (see the suggestion
in par. 4.3, point 5). 1) If, when the machine has just been turned on, a short cup
of coffee is required (less than 60cc), use the hot rinsing water to pre-heat the cups
(see the suggestion in par. 4.3, point 5). If, on the other hand, more than 2/3
minutes have elapsed since the last coffee was made, before preparing another
coffee the infuser must be pre-heated, pressing the button (Fig. 14).
26
OPERATING INSTRUCTIONS
Fig.9
Fig.10
Then let the water flow out into the drip tray underneath, or alternatively use this
water to fill (and then empty) the cup to be used for the coffee, so as to pre-heat it.
2) Unless preheated, do not use cups that are too thick, as they will absorb too much
heat.
3) Use cups that have been previously heated by rinsing them with hot water or
alternatively by leaving them for at least 20 minutes on the cup warmer tray on top
of the machine with the appliance on.
NOTE 4: while the machine is making the coffee, the delivery can be stopped
at any time by pressing the button (Fig. 12) or button (Fig. 13), as previously selected.
NOTE 5: as soon as delivery is complete, to increase the quantity of coffee,
simply press and hold the button (Fig. 12) or button (Fig. 13), as previously selected, until reaching the desired quantity (this operation must be
performed within 3 seconds from the end of the delivery of the coffee from the
spouts).
NOTE 6:
when the alarm comes on (chap. 12, point 1), the water tank must
be filled, otherwise the coffee cannot be made. The water tank can only be
removed if the milk frother is first positioned towards the centre of the machine.
(It is normal for there to be a little water left in the tank when the alarm
comes on).
NOTE 7: : the machine counts the number of cups of coffee made. Each 14 single
cups (or 7 double cups), the light switches on steady
(chap. 12 point 3), warning the user that the grounds container is full and must be emptied and cleaned.
Until the grounds container has been cleaned, the light will remain on and the machine cannot deliver coffee. To clean the container, open the service door on the front
(pulling the handle, Fig. 15), the light flashes (see para 12 point 9); remove the
drip tray (Fig. 16), empty and clean. Empty and carefully clean the grounds container, making sure to remove all the residues that may be deposited on the bottom.
Also dry the any drops of condensate that may have formed inside the machine
under the drip tray. IMPORTANT: when removing the drip tray, the grounds contai-
ner MUST be emptied, even if it is not completely full. If this is not done, when next
making coffee the grounds container may fill over the maximum level and block
the machine with lumps of coffee grounds.
NOTE 8: the grinder in the coffee maker may become worn over time and con-
sequently the coffee will change taste as it is ground more coarsely.
To resolve this problem, re-set the grinding coarseness on the coffee grinder by
adjusting the knob (Fig. 17) one click anticlockwise (as described in chap. 6).
NOTE 9: if the machine is not used for a long period, the infuser must be cleaned, as described in par. 10.2.
NOTE 10: while the machine is delivering cof
fee, never remove the water tank. If it
is removed, the machine will not be able to make the coffee and the "no water"
light will flash. If you try and make another coffee, the machine becomes noisy
and does not make the coffee. To reset the machine, turn the steam knob anticlockwise as far as it will go and run off water from the cappuccino maker for a
few seconds.
Fig.11
Fig.12
27
OPERATING INSTRUCTIONS
GB
Fig.13
Fig.14
Fig.15
Fig.16
When an alarm light comes on to signal an anomaly, do not contact the
service centre straight away. The problems can almost always be resolved
by following the instructions indicated in paragraphs 12 and 13. If necessary, contact the customer service by calling the number listed on the sheet
enclosed on page 2.
If your country is not listed on the sheet, call the number indicated on
the warranty.
When using the machine for the first time, 4-5 cups of coffee need to
be made before the machine starts to give satisfying results.
Fig.17
6 ADJUSTING THE COFFEE GRINDER
The cof
fee grinder must not be adjusted, at least initially, as it has already
been pre-set in the factory for the correct delivery of the coffee.
Nonetheless, after having made the first coffees, if delivery is too fast or
too slow (in drops), the grinding coarseness must be adjusted using the
knob (Fig.17) located inside the bean container. Turning one click (one
number) clockwise achieves faster delivery of the coffee (without drops).
Turning one click anticlockwise achieves slower delivery and makes the
coffee creamier in appearance.
These adjustments will only be evident after the delivery of at least 2 cups
of coffee.
The grinding coarseness adjustment knob must only be turned when the
coffee grinder is on.
Turn anticlockwise for finer ground coffee
and consequently slower delivery and a
creamier appearance.
Turn clockwise for coarser ground coffee
and consequently faster delivery (not a
drop at a time).
NOTE 1: The machine has been tested in
the factory using coffee and therefore it is
completely normal to find some traces of
coffee in the grinder.
The machine is in any case guaranteed to be
new.
28
OPERATING INSTRUCTIONS
Fig.18
Fig.19
Fig.20

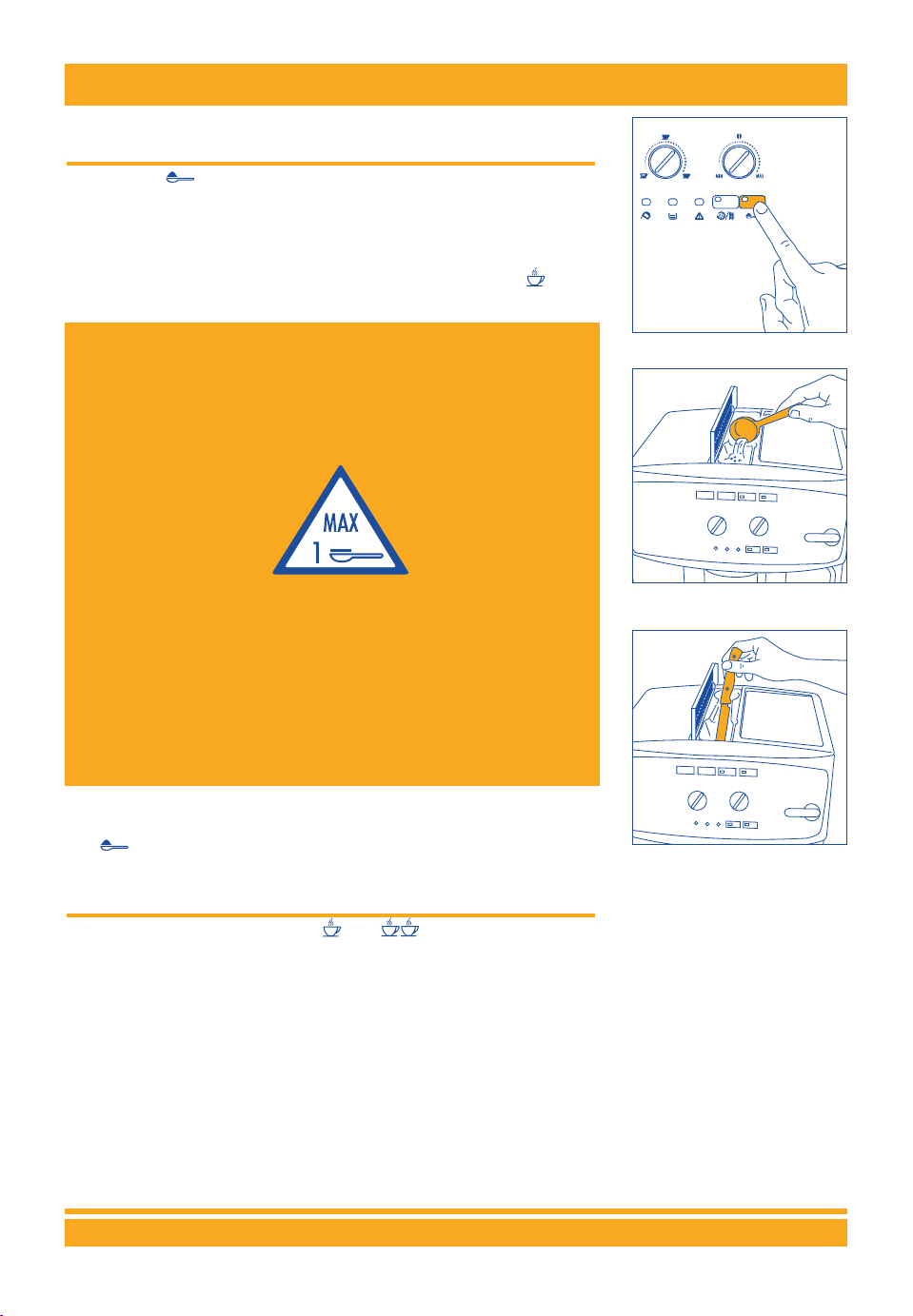

7 PREPARING ESPRESSO COFFEE WITH GROUND COFFEE (INSTEAD OF
BEANS)
1. Press the button to select the ground coffee function (Fig. 18).
The light inside the button switches on to indicate that the function
has been selected and the coffee grinder has been disabled.
2. Lift the lid in the centre, insert the pre-ground coffee measure in the
funnel (see fig. 19) and proceed as described in paragraph 5.
NB: You can make just one coffee at a time by pressing the button.
NOTE 1: Never add the ground coffee when the machine is off,
to prevent it from spilling inside the machine.
NOTE 2: Never add more than 1 measure, otherwise either the
machine will not make the coffee and the pre-ground coffee will
be lost inside the machine, dirtying it, or the coffee will be run off
in drips.
NOTE 3: When dosing the quantity of coffee to be added, only
use the measure supplied.
NOTE 4: Only use ground coffee for espresso coffee makers: do
not use coffee beans, freeze-dried coffee or other materials that
may damage the machine.
NOTE 5: If you add more than one measure of pre-ground coffee
and the funnel blocks, use a knife to push the coffee down (Fig.
20) and then remove and clean the infuser and the machine, as
described in paragraph 10.2 "Cleaning the infuser".
3. Once the coffee has been delivered, to make coffee using the
beans again, deactivate the ground coffee function by pressing the
button again (the light goes off and the coffee grinder is ena-
bled for operation again).
8 HOT WATER DELIVERY
• Always make sure that the green and lights are on steady.
•Turn the milk frother towards the outside of the machine (Fig. 3).
• Position a container underneath the milk frother (Fig. 3).
•Turn the steam knob half a turn in anticlockwise until it stops (Fig. 5):
hot water will come out of the milk frother and start to fill the container underneath.
•To stop the flow of hot water, turn the knob all the way clockwise (Fig. 6)
and return the milk frother to the original position towards the centre of the
machine. (It is recommended to deliver hot water for no more than 2 minutes).
29
OPERATING INSTRUCTIONS
GB
9 PREPARING CAPPUCCINOS (USING STEAM)
• Fill a container with around 100 grams of milk for each cappuccino
being prepared. When choosing the size of the container, remember that the volume will increase by 2 or 3 times. It is recommen-
ded to use partially skimmed milk at fridge temperature.
• Move the milk frother towards the outside (Fig. 3).
•Prepare the espresso coffee as described in the previous paragraph, using sufficiently large cups.
• Then press the steam button (Fig. 21). The light (Fig. 22) starts
flashing to indicate that the machine is heating up.
•When the light remains on steady and stops flashing, the temperature of the machine has reached the ideal value for making the
steam (par. 11 - point 6).
• Immediately after, within a maximum of two minutes (otherwise
the machine automatically returns to the coffee function), dip the
milk frother into the container of milk (Fig. 23), making sure not to
immerse the line in relief on the milk frother (indicated by the arrow
in Fig. 24) and turn the steam knob half a turn anticlockwise until it
stops (Fig. 5). (Be careful, to avoid being scalded). The steam released will make the milk froth and increase in volume. To make creamier foam, dip the milk frother into the milk and rotate the container
with slow movements from the bottom to the top (you are recommended to limit steam delivery to no more than two minutes at a
time).
• Once having reached the desired temperature, stop the steam by
turning the steam knob clockwise until it stops (Fig. 6) and then
press the steam button (Fig. 21) to deactivate the steam function .
• Pour the frothed milk into the cups containing the espresso coffee
prepared previously. The cappuccino is now ready (add sugar to
taste and if desired, sprinkle the foam with a little cocoa powder).
NOTE 1: : immediately after having prepared the cappuccino, once
having pressed the steam button Fig. 21) to deactivate the function, when pressing the (Fig. 12) or button (Fig. 13) to
make coffee again, the machine is too hot to make coffee (the green
and lights flash to indicate that the temperature is not suitable); simply wait around ten minutes for the machine to cool down
a little.
HINT: To cool it down more quickly, after having deactivated the
steam function, open the steam knob and release some water from
the milk frother into a container, until the green and lights
stop flashing.
NOTE 2: The milk frother must always be cleaned after use.
Proceed as follows:
• Release a little steam for a few seconds by turning the steam knob
anticlockwise until it stops (Fig. 5).
Fig.21
Fig.22
Fig.23
Fig.24
With this operation, the steam spout discharges any milk that may
be left inside. IMPORTANT: For reasons of hygiene, this operation
should always be performed, so as to prevent the milk from remaining in the circuits inside the milk frother.
•Turn the knob clockwise as far as it will go. With one hand, hold the
cappuccino tube firm and with the other unscrew the cappuccino
maker itself by rotating clockwise and extracting downwards (fig.
25).
• Remove the steam nozzle from the delivery spout by pulling it
downwards (Fig. 26).
• Carefully wash the milk frother and the steam nozzle in warm water.

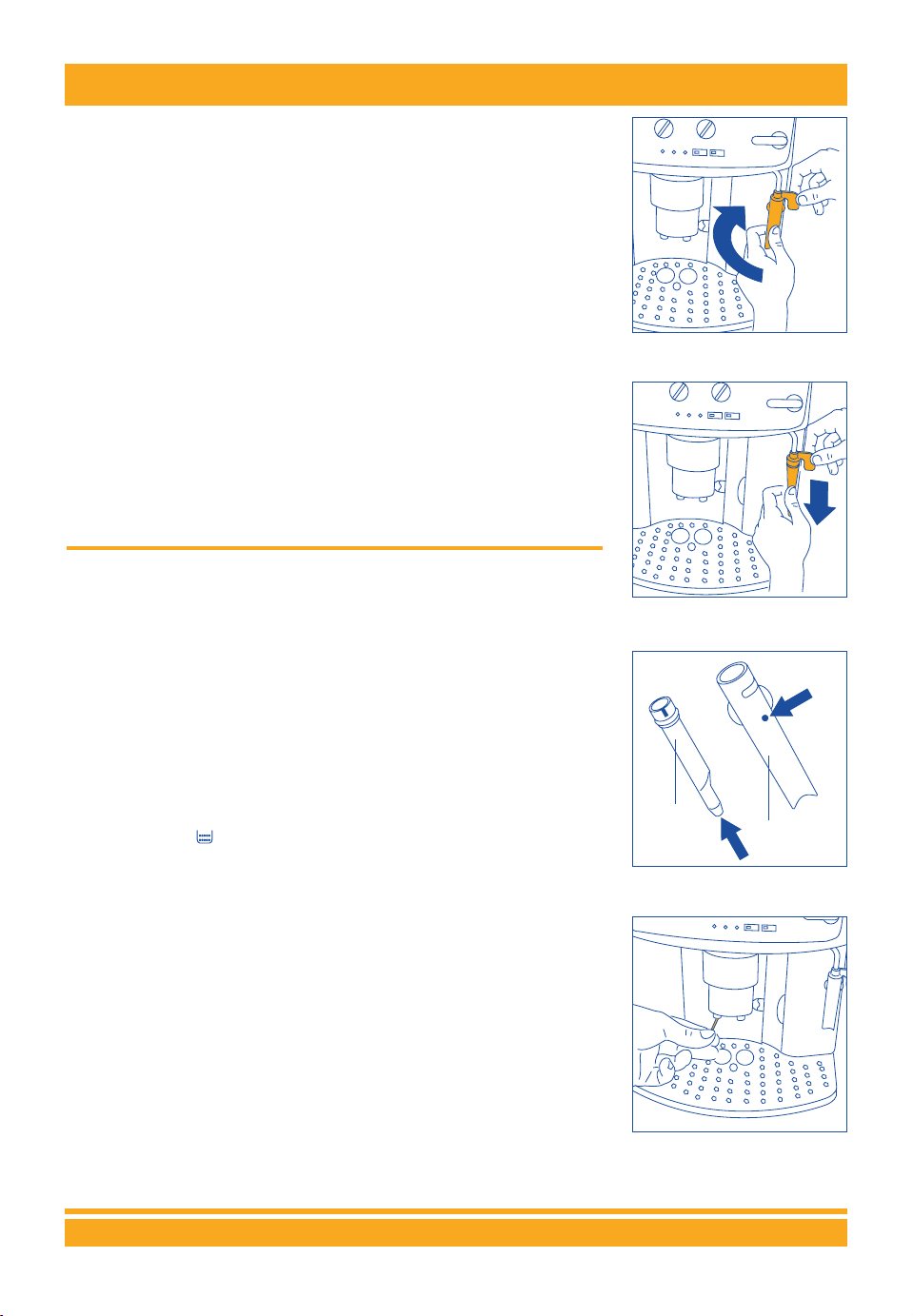

• Check that the two holes indicated by the arrows in Fig. 27 are not
clogged. If necessary, clean them using a needle or pin.
• Replace the steam nozzle by inserting it and vigorously turning it
upwards into the steam spout.
• Replace the milk frother by pushing it upwards and turning it anticlockwise.
10 CLEANING AND MAINTENANCE
• Before performing any cleaning operations, the machine must have
cooled down and must be disconnected from the mains power supply.
• Never immerse the machine in the water: it is an electrical appliance.
• Do not use solvents or abrasive detergents to clean the coffee maker.
A soft damp cloth will suffice.
• All the components of the machine must not be washed in the
dishwasher.
10.1 CLEANING THE COFFEE MAKER
•Clean the grounds container (as described in chapter 5, note 7)
whenever the light comes on steady (chap. 12 - point3).
• The water tank should be cleaned regularly.
• The drip tray is fitted with a level indicator (red) showing the level of
water inside. When the indicator starts to become visible (a few millimetres under the drip tray), the drip tray must be emptied and
cleaned.
• Check that the holes in the coffee delivery spout are not blocked. To
clean them, scrape the dry coffee residues with a needle (Fig. 28).
30
OPERATING INSTRUCTIONS
Fig.25
Fig.26
Fig.27
Fig.28
Steam
nozzle
Milk frother
31
OPERATING INSTRUCTIONS
GB
10.2 CLEANING THE INFUSER
The infuser must be cleaned regularly to prevent it from filling with coffee
deposits (that may lead to malfunctions). To clean it, proceed as follows:
• turn the machine off by pressing the button (Fig. 4) (do not
unplug it) and wait for all the indicator lights to go off;
• open the service door (Fig. 15);
• remove the drip tray and the grounds container (Fig. 16) and clean
them;
•press the two red release buttons on the infuser sideways and
towards the centre (Fig. 29) and pull it out;
WARNING: THE INFUSER CAN ONLY BE REMOVED WHEN THE MACHINE
IS OFF. ATTEMPTING TO REMOVE THE INFUSER WITH THE MACHINE ON
WILL RISK CAUSING DAMAGE.E.
• wash the infuser under r
unning water, without using detergents.
Never wash the infuser in the dishwasher;
• carefully clean the inside of the machine. To remove the coffee stuck
to the parts inside the machine, scrape it with a plastic or wooden
fork (Fig. 30) and then pick up all the residues using a vacuum cleaner (Fig. 31);
• Replace the infuser by sliding it onto the supports and the pin at the
bottom; then push the PUSH symbol fully in until hearing the click.
Fig.29
Fig.30
Fig.31
Support
Pin
Infuser
Push the PUSH
symbol fully in until
hearing the click.
After having heard
the click, check that
the red buttons have
opened back out.
Bottom pipe on the infuser.
The pin must be inserted
into the bottom pipe on the
infuser.
32
OPERATING INSTRUCTIONS
Check that the two red buttons have opened back out, otherwise the door
cannot close.
NOTE 1: If the infuser is not inserted correctly until hearing the
click and the two red buttons have not opened out properly, the
service door will not close and the machine will not operate (when
switching on the machine the light starts flashing (chap. 12 point 9)).
NOTE 2: if it is hard to insert the infuser, (before inserting it)
squeeze it into size by pressing it vigorously from above and
below at the same time, as shown in Figure 32
NOTE 3: if it is still hard to insert the infuser, leave it out of the machine,
close the service door, unplug from the mains then plug in again. Wait
for all the lights to go off, then open the door and replace the infuser.
•replace the drip tray, complete with the grounds container;
• close the service door.
10.3 DESCALING
Due to the continuous heating of the water used to make the coffee, over
time it is normal for the tubing inside the machine to fill with lime scale.
When the light starts flashing( chap. 12-point 5), it is time to descale
the machine.
NOTE: when the light switches on, the coffee maker can still be used to
prepare coffee.
Proceed as follows:
•
empty the water tank and add the contents of one bottle (125
ml) of DURGOL descaler plus one litre of water;
•place a container with a minimum capacity of 1.5 litres under
the milk frother (Fig. 3);
• turn the machine on by pressing the button (Fig. 4).
•wait for the green and indicator lights to come on steady.
•press and hold the button for at least 5 seconds (Fig.14). The
light inside the button switches on (chap. 11 - point 8) to indicate
the start of the descaling program (the and lights remain
off to indicate that it is not possible to make coffee).
• turn the steam knob half a turn anticlockwise (Fig.5). The
descaling solution will come out of the milk frother and start to
fill the container underneath.
•the descaling program automatically performs a series of deliveries and pauses, so as to remove the lime scale deposits from
inside the coffee maker.
• after around 30 minutes, when the light comes on (chap.
12 - point 1), turn the steam knob half a turn clockwise (Fig.6)
until it stops.
Fig.32
The two red buttons have opened
out CORRECTLY
The two red buttons have not
opened out
CORRECT
INCORRECT
33
OPERATING INSTRUCTIONS
GB
The machine must be rinsed so as to eliminate the residues of descaling
solution from inside the machine. Proceed as follows:
• remove the water tank, rinse it and fill it with clean water.
• reposition the tank.
• empty the collection container (located under the milk frother) that is
full of liquid, and then replace it under the milk frother.
• turn the steam knob half a turn anticlockwise (Fig. 5). Hot water will
come out of the milk frother and fill the container underneath.
• when the tank is empty, the light goes off and the light
comes on (chap. 12 - point 1).
• turn the steam knob all the way clockwise (Fig. 6) and fill the water
tank with clean water again.
• the program of descaling is hour terminated and the machine is
ready per do again the coffee.
NOTE: if the descaling procedure is stopped before completion, the
alarm (chap. 12 - point 5) is not deactivated and the procedure
must be started again form the beginning.
IMPORTANT: THE GUARANTEE IS NOT VALID IF THE ABOVE DESCALING OPERATION IS NOT PERFORMED REGULARLY.
10.4 SETTING THE WATER HARDNESS
The light (chap. 12 - point 5) switches on after a preset period of operation, set in the factory, considering the maximum quantity of lime scale that
may be contained in the mains water. If necessary, this period of operation can
be extended, thus making the descaling operation less frequent, by programming the machine based on the actual lime content in the water used. Proceed
as follows:
• after having removed the "Total hardness test" strip (enclosed on page 2)
from its packaging, dip it fully in the water for a few seconds, then pull it
out and wait around 30 seconds (until it changes colour and a number of
red dots are formed);
• check that the machine is off (all the indicator lights are off);
•press the button (Fig. 14) and hold it for at least 5 seconds. The four
lights , , and come on.
•press the button (Fig.18) repeatedly until the number of lights that are
on coincides with the number of red squares on the test strip (for example, if there are 3 red squares on the test strip, press the button until
3 indicator lights come on together, , and ).
•press the button (Fig. 14) to save the data. The coffee maker is now
programmed to provide the descaling warning when effectively necessary, based on the actual hardness of the water..
34
OPERATING INSTRUCTIONS
LIGHT DESCRIPTION MEANING
The , indicator
lights flash
The machine is not ready to make coffee (the ideal
water temperature has not yet been reached).
Wait for the indicator lights to come on steady
before making the coffee.
The , indicator
lights are on steady.
The machine is at the right temperature and
ready to make coffee
The light is on
steady
The machine is delivering one cup of coffee.
The light is on
steady
The machine is delivering two cups of coffee.
The steam light
flashes
The machine is heating to the ideal temperature to
produce steam. Wait for the light to come on
steady before turning the steam knob.
The light is on steady The machine is ready to deliver steam and the
steam knob can be turned.
The light is on
steady
The machine is ready for delivery using ground
coffee (see chap. 7).
The light is on
steady
The automatic descaling program is in progress
(see par. 10.3)
11 MEANING OF THE NORMAL OPERATION INDICATOR LIGHTS
1
2
3
4
5
6
7
8
35
OPERATING INSTRUCTIONS
GB

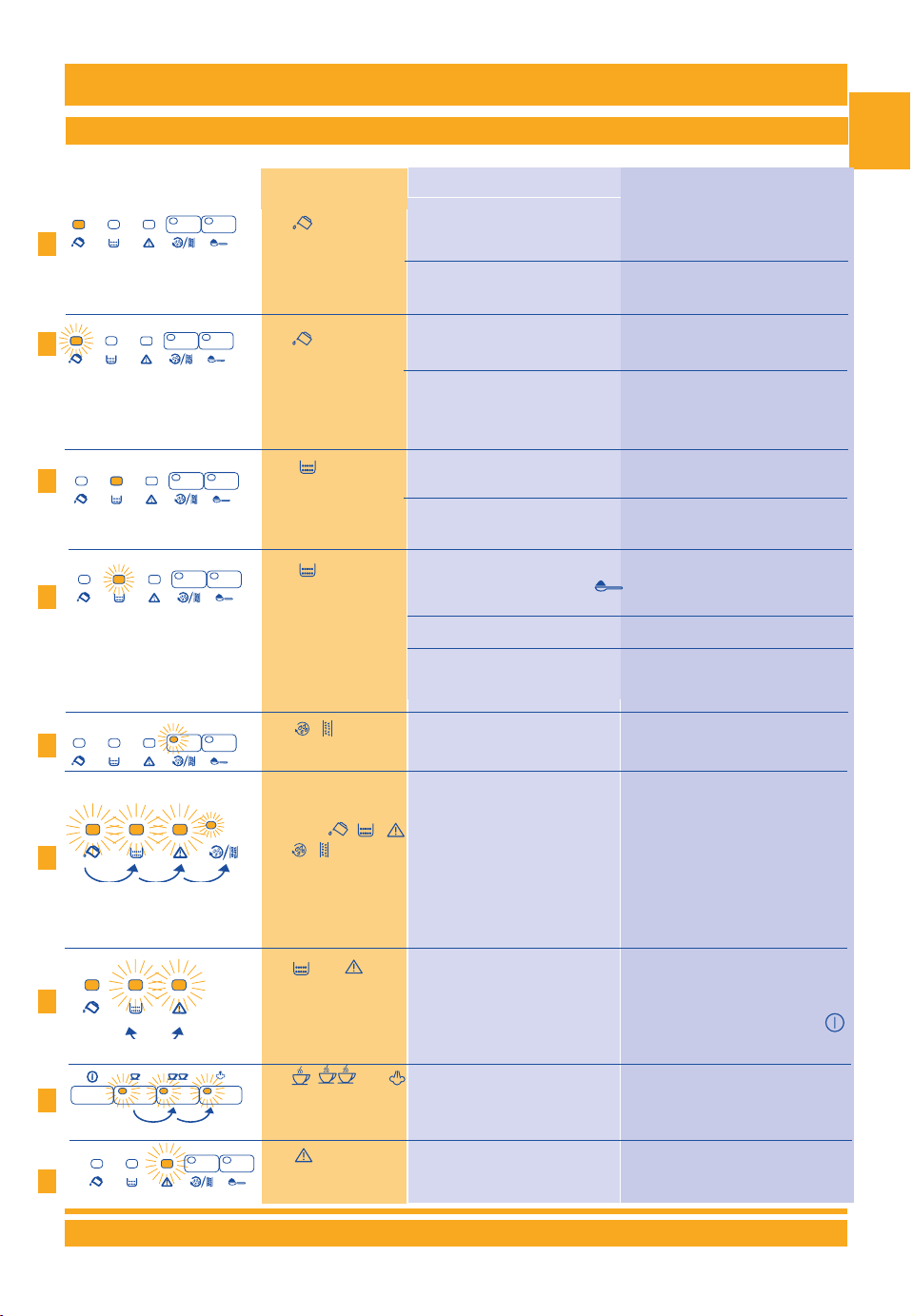

12 MEANING OF THE ALARM INDICATOR LIGHTS AND WHAT TO DO WHEN THEY ARE ON
The light
flashes
This indicates the presence of lime
scale in the machine.
The descaling procedure, described in
par. 10.3, needs to be performed as
soon as possible.
The machine makes a
strange noise and the
four lights , ,
and flash
alternately.
After cleaning, the infuser has probably been left out of the coffee
maker.
Leave the service door closed and the
infuser out of the coffee maker. Press
the 1CUP and 2CUPS buttons together
until the four lights go off. Only when
all four lights are off can the door be
opened and the infuser inserted (to
insert the infuser see par. 10.2)
The machine has just been switched on and the infuser is not
inserted correctly, consequently the
door is not closed properly.
Press the infuser where marked PUSH
until hearing the click. Check that the two
red buttons open out correctly (par.
10.2).
Close the service door and press the
button.
The and lights
flash alternately
The machine has been switched on
with the steam knob in the open
position.
Tu rn the steam knob clockwise all the
way round (Fig. 6).
The , and
lights are on and
flashing
The light is on
steady
The water tank is empty or is
positioned incorrectly.
The tank is dirty or lined with lime
scale.
Fill the water tank as described in par.
5, note 6 and insert it fully.
Rinse or descale the tank.
The light flashes
The machine cannot make the
coffee and is noisy.
Tu rn the steam knob anticlockwise (Fig. 5) as
described in par. 5 note 10.
The light is on
steady
The coffee grounds container is full
or not in place.
The grounds container has not
been replaced after cleaning.
Empty the grounds container and clean it as
described in par. 5 - note 7, then insert it fully.
Open the access door and replace the
grounds container.
The light flashes
The ground coffee has not been
poured into the funnel with the
function selected.
Add the ground coffee as described in
par. 7.
No more coffee beans
Fill the container with beans, as described in par. 4.2
LIGHTS
DESCRIPTION
MEANING
ACTION
The service door is open.
If the service door cannot be closed,
check that the infuser is inserted correctly (par. 10.2 - note 1)
The light is flashing
1
2
3
4
5
6
7
8
9
The coffee comes out too slowly.
Turn the grinding adjustment knob
(Fig. 17) one click clockwise (par.
6).
If the coffee grinder is very noisy, it
means that a small stone in the coffee
beans has blocked the coffee grinder.
Contact an authorised Dè Longhi service centre.
36
OPERATING INSTRUCTIONS
SOLUTION
Heat the cups by rinsing them in hot water
or leaving them to rest for at least 15 minutes on the cup warmer tray on the lid (see
par. 5 note 3).
Heat the infuser by pressing the button
before making the coffee (Fig. 14, see note 3,
chapter 5).
Turn the right-hand knob (Fig. 7) a little
clockwise (see chap. 5 note 2)
Turn the grinding adjustment knob (Fig. 17)
one click anticlockwise (see chap. 6).
Use another brand of coffee blend.
Tu rn the grinding adjustment knob (Fig. 17) one
click clockwise (see chap. 6).
Tu rn the right-hand knob (Fig. 7) a little anticlockwise.
Tu rn the grinding adjustment knob (Fig. 17) one
click anticlockwise (see chap. 6).
Tu rn the right-hand knob (Fig. 7) a little clockwise.
PROBLEM
• The coffee does not come out
of one of the spouts.
• The coffee is not creamy enough
• The coffee comes out too
slowly
• The coffee comes out too
quickly.
CAUSE
• The cups have not been
preheated.
• The infuser is too cold
• The machine uses too little coffee during the infusion process.
• The coffee is ground too coarse
• The ground coffee is not correct
• The coffee is ground too fine.
• The machine uses too much coffee during the infusion process
• The coffee is ground too
coarse
• The machine uses too little coffee during infusion.
If the machine is not working and an alarm light is on, the causes of the malfunction can be identified and resolved by
referring to chap. 12. If, on the other hand, no alarm light is on, run the following checks before calling the service
centre.
LIGHTS
DESCRIPTION
MEANING
ACTION
The light is on
steady and the green
lights are flashing.
Insert the infuser, see par. 10.2
The inside of the machine is very
dirty.
Thoroughly clean the inside of the
machine, as described in par. 10.2
After cleaning, the infuser has probably been left out of the coffee
maker
13 PROBLEMS THAT CAN BE RESOLVED BEFORE CALLING THE SERVICE CENTRE
10
The light is
flashing
The ground coffee funnel is clogged.
Empty the funnel with the help of a
knife, as described in par. 7 note 5
(Fig.20).
11
37
OPERATING INSTRUCTIONS
GB
SOLUTION
Scrape the remains of dry coffee
accumulated with a needle (Fig.
28).
Clean the holes in the milk frother and the
steam nozzle (see chap. 9 - Fig.27).
Remove the ground coffee inside
the funnel, using a knife (see chap.
7 – note 5). Then clean the infuser
and the inside of the machine (see
the description in par. 10.2)
Check that the power cable is plugged into the power outlet
Tu rn the machine off (see par. 10.2).
WARNING: the infuser can only be
removed when the machine is off.
Attempting to remove the infuser with
the machine on will risk causing
damage.
Remove the infuser and thoroughly
clean the inside of the machine, as
described in par. 10.2. Repeat the
operation using a maximum of 1 level
measure of ground coffee
Thoroughly clean the inside of the
machine, as described in par. 10.2.
Repeat the operation by first pressing the button, as indicated in
chapter 7.
Remove the infuser and thoroughly
clean the inside of the machine, as
described in par. 10.2. Repeat the
operation, however switching on
the machine first.
Scrape the holes with a needle (see
par. 10.1, Fig. 28).
Thoroughly clean the mobile
drawer, above all near the hinges,
so that they swing smoothly.
PROBLEM
• The coffee does not come
out of one of the spouts.
•Turning the steam knob, no
steam comes out of the
milk frother.
•Pressing the and
buttons, the machine does
not deliver coffee, but only
water.
•Pressing the button, the
machine does not switch
on.
• The infuser cannot be
removed for cleaning.
•Ground coffee is used
(rather than beans) and the
machine does not deliver
the coffee.
• The coffee does not come
out of the spouts, but
rather around the service
door.
CAUSE
• The outlet is blocked
• The holes in the spouts are clogged.
•Ground coffee may be blocked
in the funnel.
• The machine is not plugged in.
• The machine is on. The infuser
can only be removed if the
machine is off
• Too much ground coffee has
been added.
• The button has not been
pressed and the machine has
used both the ground coffee
added and the coffee ground
by the grinder.
• Ground coffee has been added
when the machine is off.
• The holes in the spouts are clogged with dry coffee.
• The mobile drawer inside the
service door is blocked and
cannot swing.
Loading...
