Page 1
Overview
The LA4582CM is a preamplifier plus power amplifier IC
that support auto-reverse, and was developed for 3-V
headphone stereo systems.
Features
• The LA4582CM was developed for cassette playback
systems, and in addition to preamplifier and power
amplifier functions, it also provides low boost and
automatic power limitation (PVSS: Peak Volume Select
System) functions.
• Provided in a 36-pin miniature flat package (0.65 mm
lead pitch) that is optimal for set miniaturization.
• Capable of driving 8-Ω speakers
• Two-channel playback auto-reverse preamplifier
• Two-channel headphone power amplifier
• Low-frequency boost function (auto-loudness effect)
• Output suppression function (PVSS)
• Two-channel radio input switch (pre-mute switch)
• Power mute switch
Package Dimension
unit: mm
Monolithic Linear IC
Ordering number : EN5701
63097HA(OT) No. 5701-1/6
SANYO: QFP36
[LA4582CM]
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110 JAPAN
Pre + Power Amplifier for
3-V Headphone Stereo Systems
LA4582CM
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage V
CC
max 4.5 V
Allowable power dissipation Pd max 375 mW
Operating temperature Topr –20 to +75 °C
Storage temperature Tstg –40 to +150 °C
Specifications
Maximum Ratings at Ta = 25°C
Parameter Symbol Conditions Ratings Unit
Recommended supply voltage V
CC
3.0 V
Operating voltage range V
CC
op 1.8 to 3.6 V
Operating Conditions at Ta = 25°C
Ambient temperature, Ta – °C
Allowable power dissipation, Pdmax – mW
Page 2
No. 5701-2/6
LA4582CM
Parameter Symbol Conditions
Ratings
Unit
min typ max
[PRE + L.BOOST + PVSS + POWER]
Quiescent current
I
CCO
1 Rg = 2.2 kΩ, low boost off, PVSS off 13 19 29 mA
I
CCO
2 Rg = 2.2 kΩ, low boost on, PVSS on 14 20 30 mA
Voltage gain (closed loop) VG
TVO
= –5 dBm 62.5 64.5 67.5 dB
[Preamplifier]
Voltage gain (open loop) VG
0VO
= –5 dBm 70 83 dB
Voltage gain (closed loop) VG
1VO
= –5 dBm 40 dB
Maximum output voltage V
O
max1 THD = 1%, VCC= 1.8 V 0.1 0.2 V
Total harmonic distortion THD
1VO
= 0.2 V, VG = 40 dB/NAB 0.05 0.5 %
Equivalent input noise voltage V
NI
Rg = 2.2 kΩ, BPF = 20 Hz to 20 kHz 1.3 2.0 µV
Crosstalk CT
1
Rg = 2.2 kΩ, TUNE 1 kHz 60 80 dB
Ripple rejection Rr
1
Rg = 2.2 kΩ, VCC= 1.8 V,
40 50 dB
Vr = –20 dBm, fr = 100 Hz
[Power Amplifier]
Output power P
O
THD = 10% 23 34 mW
Voltage gain (closed loop) VG
2VO
= –5 dBm 27 29 32 dB
Total harmonic distortion THD
2PO
= 1 mW 0.4 1.0 %
Interchannel crosstalk CT
2VO
= –5 dBm, RV= 0 Ω 30 40 dB
Output noise voltage V
NO1RV
= 0 Ω, BPF = 20 Hz to 20 kHz 25 40 µV
Ripple rejection Rr
2
RV= 0 Ω, Vr= –20 dBm
45 55 dB
fr = 100 Hz, V
CC
= 1.8 V
Input resistance Ri 22 30 38 kΩ
DC offset voltage V
ODC OFF
Between pin 8 and pins 4 to 6 –90 +90 mV
[L· BOOST]
Voltage gain VG
3VIN
= –30 dBm, boost: on/off –2.3 –3.8 –5.3 dB
Boost
BST
1VINBST
= –30 dBm, f = 100 Hz, boost: on 11.2 14.7 18.2 dB
BST
2VINBST
= –30 dBm, f = 10 Hz, boost: on 7.0 8.5 10 dB
Maximum output voltage V
O
max2 THD = 1%, boost: on 0.3 0.5 V
Total harmonic distortion THD
3VO
= 0.1 V, boost: on 0.04 0.5 %
Interchannel crosstalk CT
3VO
= –20 dBm, Rg = 0, boost: on 25 32 dB
Output noise voltage V
NO2
Rg = 0, BPF = 20 Hz to 20 kHz, boost: off 2.0 5.0 µV
Ripple rejection Rr3
Rg = 0, f
R
= 100 Hz, VR= –20 dBm,
45 53 dB
V
CC
= 1.8 V, boost: on
[L· BOOST + PVSS + POWER] R
V
= 30 kΩ max
Voltage gain VG
4VIN
= –40 dBm, f = 1 kHz, boost: on/off 22.0 24.5 28.0 dB
Low boost output voltage
V
O
1 VIN= –43 dBm, f = 100 Hz, boost: on 0.13 0.23 0.33 V
V
O
2 VIN= –28 dBm, f = 100 Hz, boost: on 0.25 0.4 0.55 V
Low boost total harmonic distortion THD
4VIN
= –40 dBm, f = 100 Hz, boost: on 0.5 1.2 %
PVSS voltage V
O
3 VIN= –40 dBm, PVSS2 –40 –37 –34 dBm
Input increment between the point where
PVSS width W
PVSS
operation starts and the point where the
30 40 dB
output is +4 dB from there.
PVSS: on
PVSS total harmonic distortion THD
5VIN
= –40 dBm, PVSS2 0.5 1.2 %
PVSS start input V
OPIN
PVSS2 –67 –63 –59 dBm
Operating Characteristics at Ta = 25°C, VCC= 3.0 V, fi = 1 kHz, 0.775 V = 0 dBm
RL= 10 kΩ (preamplifier), RL= 30 kΩ (low boost), RL= 16 Ω (power amplifier)
Note: The amount of boost for a 1-kHz signal.
Page 3
Block Diagram
No. 5701-3/6
LA4582CM
Unit (Resistance: Ω)
Page 4
Test Circuit
No. 5701-4/6
LA4582CM
Unit (Resistance: Ω, Capacitance: F)
LP.2
Page 5

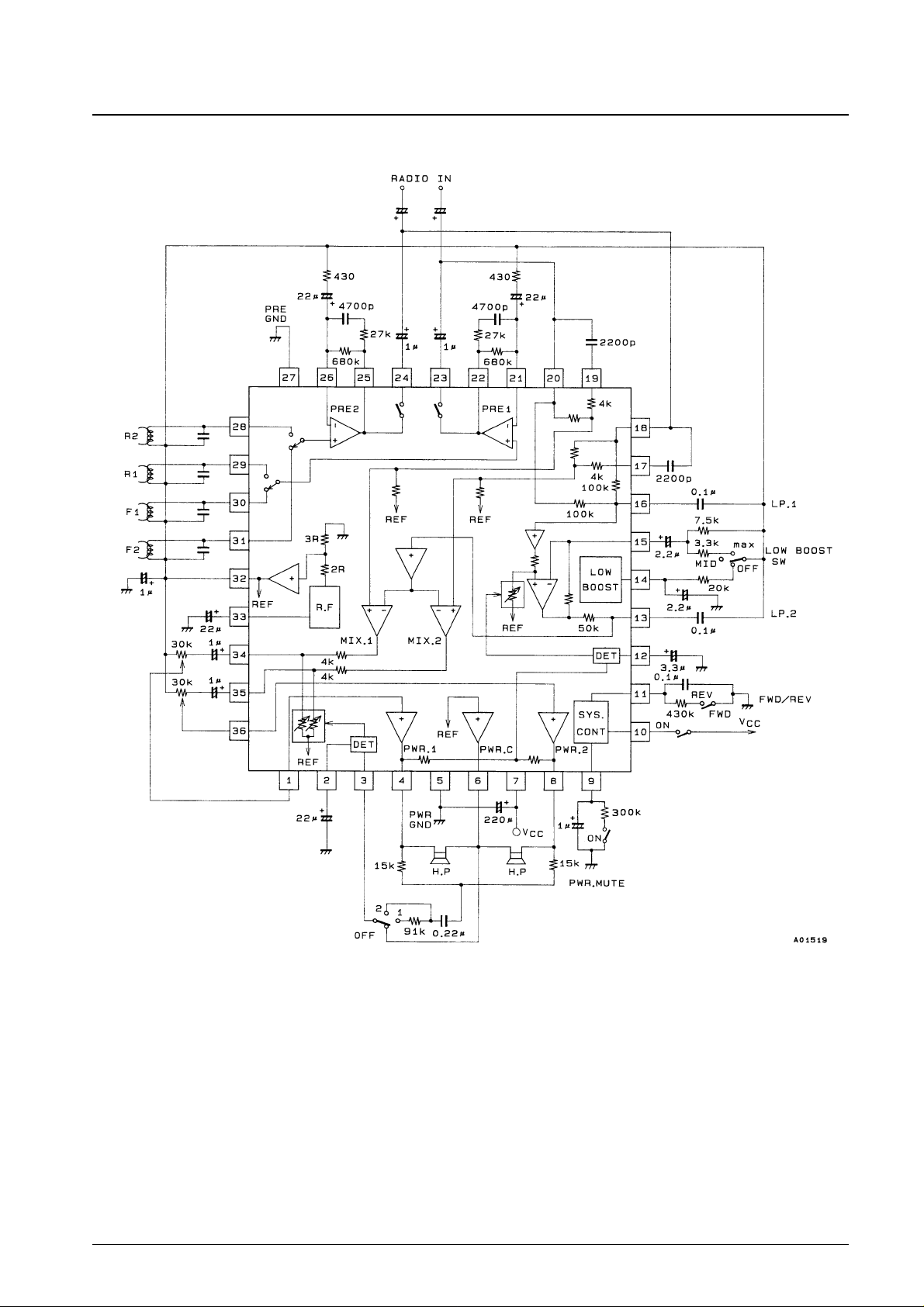

Sample Application Circuit
No. 5701-5/6
LA4582CM
Unit (Resistance: Ω, Capacitance: F)
PRE. MUTE
Page 6
No. 5701-6/6
LA4582CM
