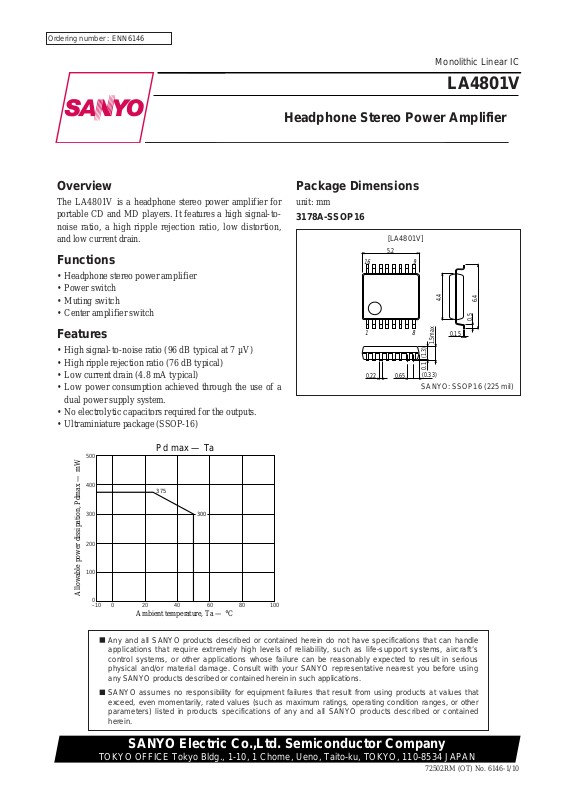

Ordering number : ENN6146
72502RM (OT) No. 6146-1/10
Overview
The LA4801V is a headphone stereo power amplifier for
portable CD and MD players. It features a high signal-tonoise ratio, a high ripple rejection ratio, low distortion,
and low current drain.
Functions
• Headphone stereo power amplifier
• Power switch
• Muting switch
• Center amplifier switch
Features
• High signal-to-noise ratio (96 dB typical at 7 µV)
• High ripple rejection ratio (76 dB typical)
• Low current drain (4.8 mA typical)
• Low power consumption achieved through the use of a
dual power supply system.
• No electrolytic capacitors required for the outputs.
• Ultraminiature package (SSOP-16)
Package Dimensions
unit: mm
3178A-SSOP16
18
916
6.4
0.5
4.4
5.2
0.1
1.5max
0.65
0.22
(0.33)
0.15
(1.3)
SANYO: SSOP16 (225 mil)
[LA4801V]
LA4801V
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
Headphone Stereo Power Amplifier
Monolithic Linear IC
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft’s
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
100
0
200
300
400
500
–10 0 20 40 60 80 100
Pd max — Ta
300
375
Ambient temperature, Ta — °C
Allowable power dissipation, Pdmax — mW
Page 2
No. 6146-2/10
LA4801V
Parameter Symbol Conditions Ratings Unit
Maximum supply voltage V
CC
max 4.5 V
Allowable power dissipation Pd max 375 mW
Operating temperature Topr –15 to +50 °C
Storage temperature Tstg –40 to +150 °C
Specifications
Maximum Ratings at Ta = 25°C
Parameter Symbol Conditions Ratings Unit
Recommended supply voltage
V
CC
1 1.5 V
V
CC
2 2.5 V
Operating supply voltage range
V
CC
1 op 0.9 to 4.5 V
V
CC
2 op * 1.5 to 3.5 V
Recommended load resistance R
L
16 to 32 Ω
Operating Conditions at Ta = 25°C
Note: * However, when VCC2 is under 2.5 V, with a 1.5 V minimum, VCC1 must be less than or equal to VCC2.
Item Symbol Conditions
Ratings
Unit
min typ max
I
CCO
1 IC off: with pin 1 open. 0.05 1.0 µA
Quiescent current
I
CCO
2 Mute on 1.3 3.0 mA
I
CCO
3 Center amplifier off: with pin 3 at Vref 3.3 8.0 mA
I
CCO
4 No input 4.8 9.0 mA
Voltage gain VG V
O
= –10 dBm 10.3 11.8 13.3 dB
Channel balance ∆VG V
O
= –10 dBm –1 0 1 dB
Output power P
O
THD = 10% 6 13 mW
Total harmonic distortion THD P
O
= 0.5 mW 0.2 1.0 %
Output noise voltage V
NO
Rg = 1 kΩ, DIN AUDIO 7.8 15 µV
Crosstalk CT T
UN
1kHz, VO= –10 dBm 35 45 dB
Ripple rejection ratio SVRR
VCC= 1.0 V, fr = 100 kHz, Vr = –20 dBm, TUN100Hz
60 70 dB
Muting attenuation V
OFF
THD = 1%, TUN1kHz –80 –96 dB
Output DC offset V
DC OFF
V1 = 0 V, Rg = 1 kΩ –20 +20 mV
Power on current sensitivity I1 ON V
CC
1 = 0.9 V, VCC2 = 1.5 V, V5 ≥ 0.7 V 20 40 µV
Power off voltage sensitivity V1 OFF V
CC
1 = 0.9 V, VCC2 = 1.5 V, V5 ≤ 0.1 V 0.5 0.6 V
Mute off current sensitivity I16 OFF V
CC
1 = 0.9 V, VCC2 = 1.5 V, V5 ≥ 0.7 V 4.0 6.0 µV
Mute on voltage sensitivity V16 ON V
CC
1 = 0.9 V, VCC2 = 1.5 V, V5 ≥ 0.7 V 0.9 1.0 V
Electrical Characteristics at Ta = 25°C, VCC1 = 1.5 V, VCC2 = 2.5 V, fIN= 1 kHz, RL= 16 Ω
Page 3
No. 6146-3/10
LA4801V
PW A
PW C
PW B
1
2
3
4
5
6
7
8
PW SW
16
9
15
14
13
12
11
10
MT SW
RIPPLE
FILTER
VREF
BIAS
PW SW
IN A
PWR C CONT
IN B
V
REF
PRE GND
V
REF
CONT
RF OUT
MUTE SW
OUT A
OUT C
OUT B
PWR GND
VCC 1
RF CONT
VCC 2
300kΩ
3kΩ
10kΩ
1kΩ
10kΩ
3kΩ
Top view

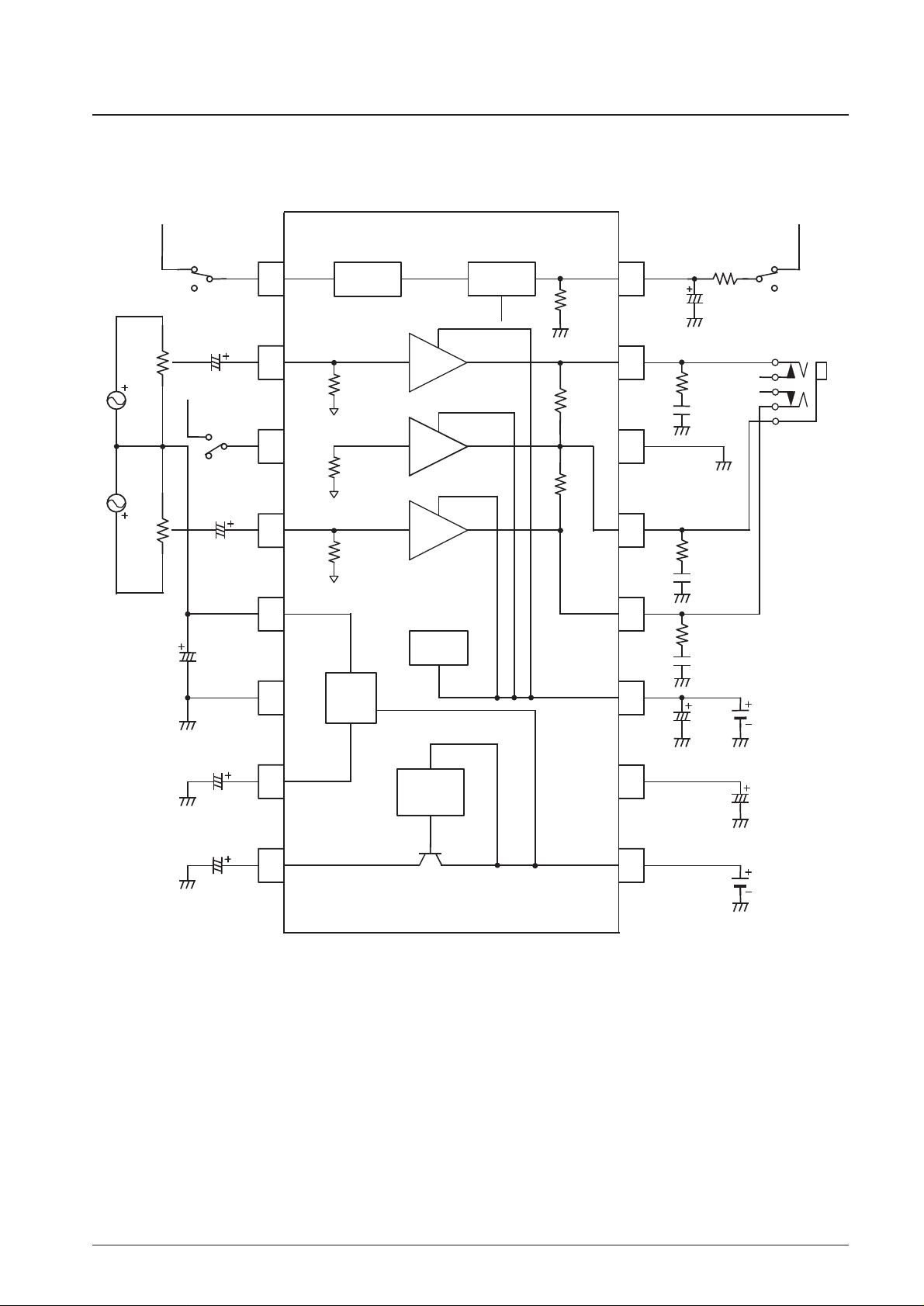

Pin Assignment and Block Diagram
Page 4
No. 6146-4/10
LA4801V
PW A
PW C
PW B
1
2
3
4
5
6
7
8
PW SW
16
9
15
14
13
12
11
10
MT SW
RIPPLE
FILTER
VREF
3kΩ
300kΩ
BIAS
10kΩ
1kΩ
10kΩ
PW SW
IN A
PWR C CONT
IN B
V
REF
PRE GND
V
REF
CONT
RF OUT
MUTE SW
OUT A
OUT C
OUT B
PWR GND
VCC 1
RF CONT
VCC 2
Top view
Vcc 1
Vcc 1
Vcc 2
Vcc 2
ON
OFF
1kΩ
ON
OFF
1kΩ
SG
3.3µF
4.7
3.3
100kΩ
1
ON
OFF
0.15
220
4.3Ω
16Ω
16Ω
2Ω
4.3Ω
0.33
0.15
4.7
V
REF
µF
µF
µF
µF
µF
µF
µF
µF

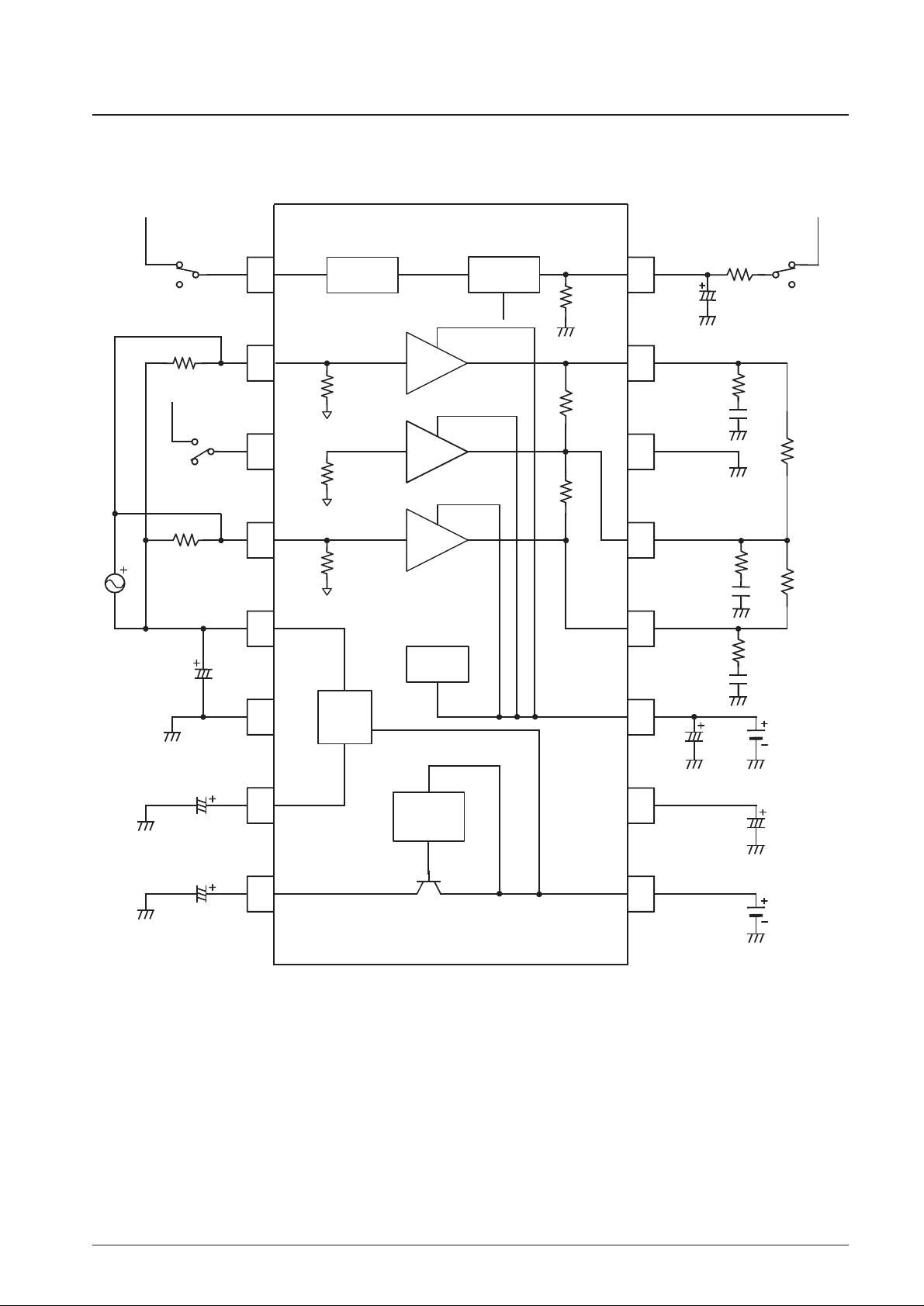

Test Circuit
kΩ
Page 5
No. 6146-5/10
LA4801V
PW A
PW C
PW B
1
2
3
4
5
6
7
8
PW SW
16
9
15
14
13
12
11
10
MT SW
RIPPLE
FILTER
VREF
BIAS
PW SW
IN A
IN B
V
REF
PRE GND
V
REF
CONT
RF OUT
MUTE SW
OUT A
OUT C
OUT B
PWR GND
RF CONT
VCC 2
Top view
Vcc 1
Vcc 1
Vcc 2
Vcc 2
ON
OFF
ON
OFF
4.7
3.3
100kΩ
1
ON
F
0.15
220
4.3Ω
VR
VR
2Ω
4.3Ω
0.33µF
µF
µF
µF
µF
µF
µF
µF
0.15
4.7
V
REF
C1
1µF
1µF
C2
C9
C3
C4
C5
C11
R4
R3
C10
R2
R1
C8
C7
C6
VCC 1
PWR C
CONT
3.3µF
10kΩ
1kΩ
10kΩ
300kΩ
3kΩ
3kΩ
Sample Application Circuit
OF
Page 6
No. 6146-6/10
LA4801V

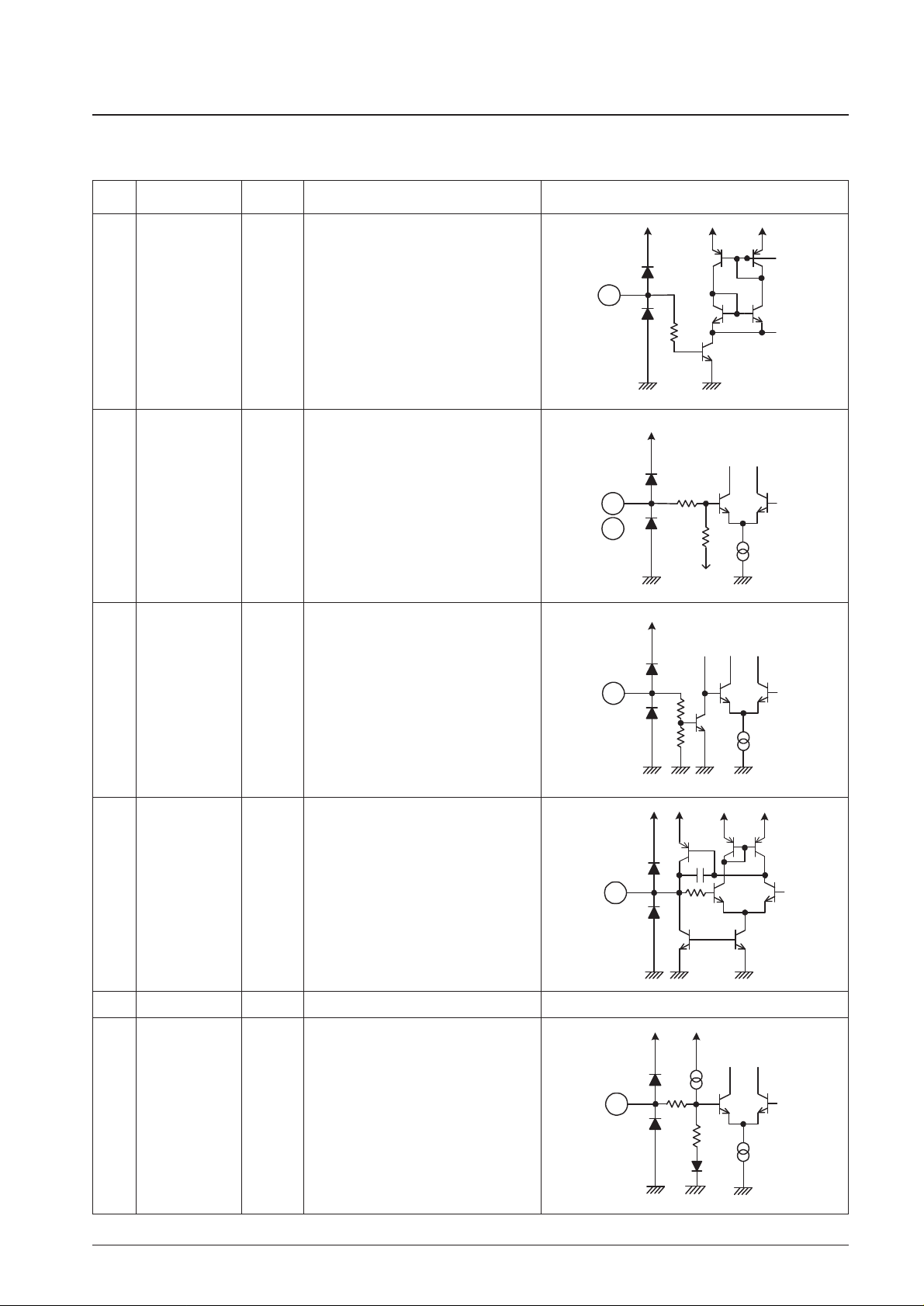

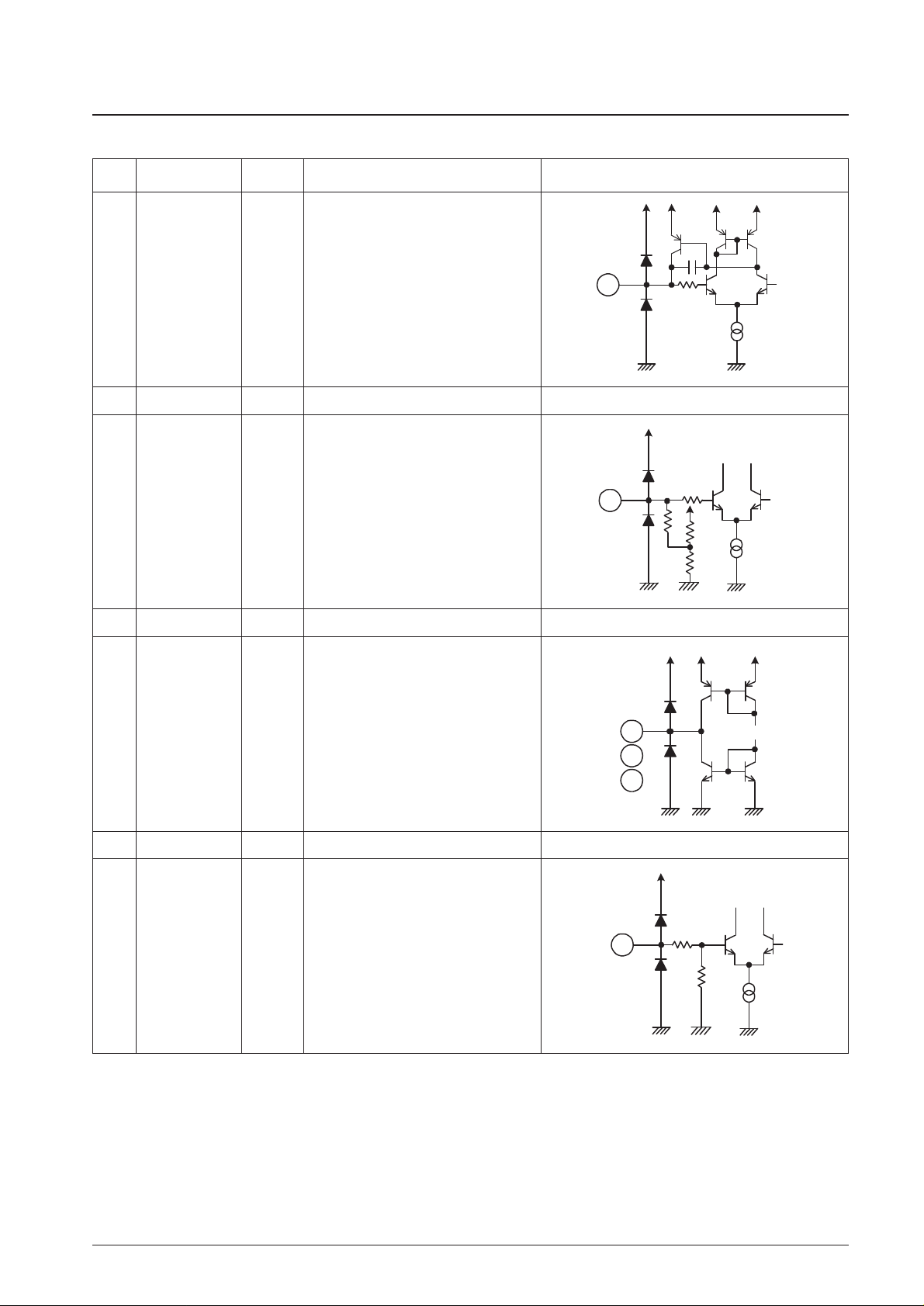

Pin Descriptions
Pin No. Pin name
Pin
Pin description Equivalent circuit
voltage (V)
• IC on/off switch
1
POWER SW
20kΩ
1
Continued on next page.
The pin voltage applies when VCC= 1.5 V and VCC2 = 2.5 V.
• Power input
2
4
POWER IN 0.82
300Ω
10kΩ
2
4
• Center amplifier on/off switch
• The center amplifier is on when this input
is floating or at the ground level.
3
POWER C CONT
100kΩ
300Ω
3
• V
REF
amplifier output
5
V
REF
OUT
0.82
300Ω
5
6
PRE GND
• V
REF
amplifier reference
7
V
REF
CONT
0.82
300Ω
1.2kΩ
7
Page 7
No. 6146-7/10
LA4801V
Continued from preceding page.
Pin No. Pin name
Pin
Pin description Equivalent circuit
voltage (V)
• Ripple filter output
8
RF OUT 2.17
300Ω
8
• Ripple filter reference
10
RF CONT 2.19
300Ω
3.9kΩ
45kΩ
30kΩ
10
• OUT A and OUT B are the power
amplifier outputs.
• Pin 13 (OUT C) is the center amplifier
output. This pin is a virtual ground when
driving headphones.
12
13
15
OUT B
OUT C
OUT A
0.69
12
13
15
9
V
CC
2
• Mute on/off switch
• The mute function is on when this pin is at
the ground level.
16
MUTE SW
300Ω
200kΩ
16
11
V
CC
1
14
PWR GND
Page 8
No. 6146-8/10
LA4801V

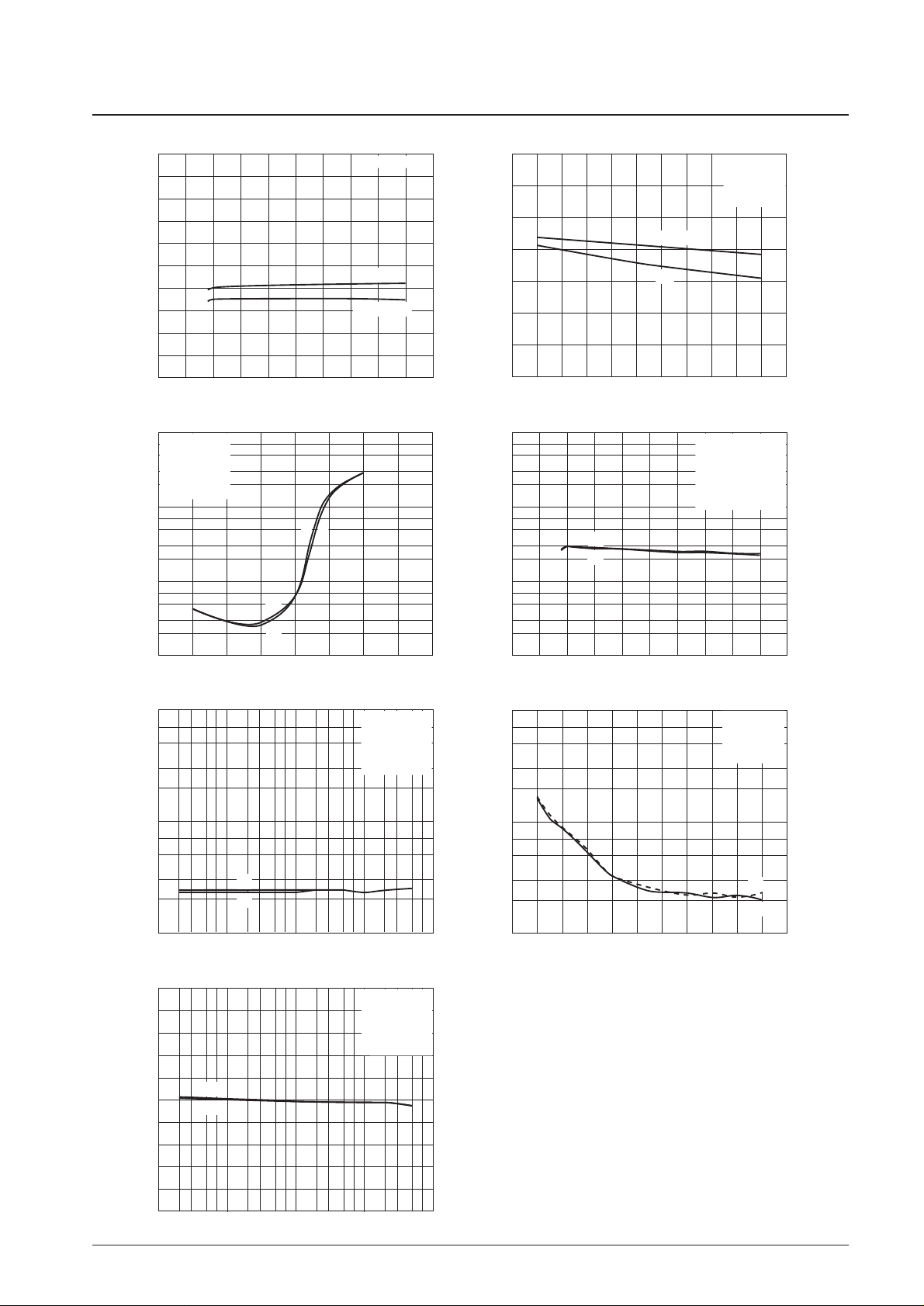

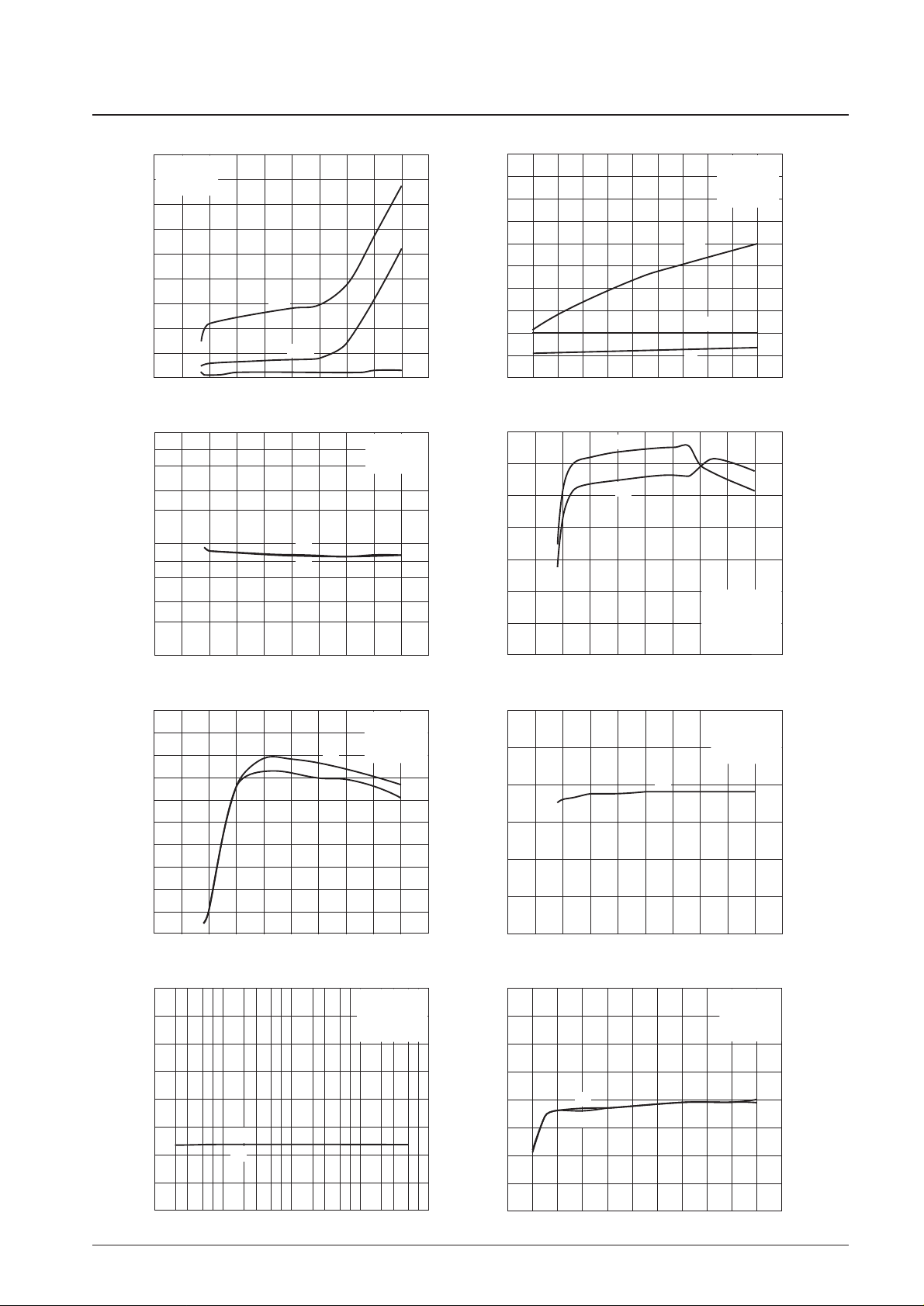

VG — VCC1
