DNC 600S

User Guide

CYBELEC SA Tel. ++ 41 24 447 02 00

CYBELEC SA Tel. ++ 41 24 447 02 00 RUE DES UTTINS 27 Fax ++ 41 24 447 02 01

RUE DES UTTINS 27 Fax ++ 41 24 447 02 01 CH - 1400 YVERDON-LES-BAINS E-Mail: info@cybelec.ch

CH - 1400 YVERDON-LES-BAINS E-Mail: info@cybelec.ch SWITZERLAND

SWITZERLAND V-DOC-60PS-EN

V-DOC-600PS-EN

Information in this document is subject to change without notice, and does not represent a commitment on the part of CYBELEC SA.

The software described in this document is furnished under a licence or nondisclosure agreement. The software may be used or copied only in accordance with the terms of the agreement. It is against the law to copy the software on any medium except as specifically allowed in the licence or nondisclosure agreement.

In view of the fact that numerical controls can be equipped with configurable functions by the press manufacturer for his own specific purposes, please refer to the manufacturer-supplied complementary instructions regarding the programming of these functions.

Autocad CYBELEC Ethernet IBM

is a registered trade mark of Autodesk Inc..

is a registered trademark of CYBELEC SA.

is a registered trade mark of Xerox Corporation.

, PC/AT , PC Network , Token Ring Network

are registered trade marks of the International Business Machines Corporation. MS-DOS MS-Windows Novell Netware Windows NT

is a registered trade mark of Microsoft Corporation.

is a registered trade mark of Novell, Incorporated.

is a registered trade mark of Microsoft Corporation.

SAFETY AND MAINTENANCE INSTRUCTIONS

The operator must be trained for working with the



machine on which the numerical control is installed. Improper use of the numerical control can cause



heavy damage on equipment and/or injuries to people.

Modification of machine parameters can cause



important material damage or lead to irregular product quality.

The rear panel may only be removed by a qualified



technician (danger of electrocution). Do not expose the numerical control to excessive



humidity so as to avoid any risk of electrocution and any deterioration of the equipment.

Make sure the numerical control is disconnected



from the mains power before carrying out any cleaning. Do not use liquids based on alcohol or ammoniac.

In case of malfunction of the numerical control, call a



technician. Do not expose the numerical control to direct sun



rays or any other heat source. Do not place the numerical control in the



neighbourhood of magnetic equipment such as transformers, motors or devices which generate interference (welding machines, etc.)

Replace fan filters at regular intervals so as to avoid



overheating.

SAFETY AND MAINTENANCE INSTRUCTIONS PAGE I

This page has been left blank intentionally.

PAGE II USER GUIDE DNC 60 PS

LICENCE AGREEMENT FOR CYBELEC SOFTWARE

GENERAL COPYRIGHT

The CYBELEC software is protected by Copyright, and all the copying rights are reserved. The CYBELEC software may only be installed and used in authorized equipments (PC or DNC). The user manuals are also covered by copyright, and all rights to use and to copy are reserved. This document may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced

without prior consent, in writing, from CYBELEC.

SPECIAL DISKETTE COPYRIGHT

The legal users of this software product are authorized only to copy the contents of the diskette into the memory of the computer to run the program, and to make one backup copy of the original diskette for safety purposes in case of loss of the original program.

Unauthorized copying, duplicating, selling or otherwise distributing this product is a violation of the law.

SPECIAL EPROM COPYRIGHT

The CYBELEC DNC and CNC units in which the original software made by CYBELEC has been replaced by a copy not made by CYBELEC, and without written authorization of CYBELEC, will immediately lose their warranty.

WARRANTY

CYBELEC does not warrant that its software products will function properly in every computer and programming environment.

The limitations of use of a software product and its technical specifications are decided by CYBELEC only; CYBELEC solely is entitled to decide upon conformity and performance of a given software.

The CYBELEC software does not compensate for incompatibilities in operating system revisions or versions.

Running the CYBELEC software under various revisions or versions, or switching between different versions or revisions may result in loss or alteration of data.

LICENSE AGREEMENT PAGE III

SOFTWARE UPDATE SERVICE

Purchase of the CYBELEC software entitles the user, during one year, to delivery of software updates of the "correction" type.

During the use of a revised or corrected version of the software it may occur that data (program, parameters, etc.) is lost, or that the equipment or its connections need to be modified; these effects are not always foreseeable and do not engage CYBELEC's responsibility.

TERMINATION

This agreement shall automatically terminate upon any act of bankruptcy by or against licensee, upon any assignment for the benefit of creditors of the licensee, upon any attachment execution of judgement or process against licensee or its assets that substantially inhibits its ability to do business, or upon dissolution of licensee.

CYBELEC has the right to terminate this agreement immediately, should the licensee violate the aforementioned conditions.

Within 30 days of termination of this agreement for any reason, licen see shall at his option, either:

 return to CYBELEC or authorized dealer all existent copies of such software and related materials, or  furnish to CYBELEC evidence satisfactory that the original and all copies of the software, in whole

and in any form, have been destroyed.

LIMITATION OF LIABILITY

The foregoing warranty is instead of all other warranties, expressed or implied. Licensee further agrees that CYBELEC shall not be liable for any lost profits, lost savings, loss of use, or

other incidental or consequential damages arising from the use or inability to use the software, or fo r any claim or demand against licensee by any other party.

In no event shall CYBELEC be liable for consequential damages, even if CYBELEC has been advised of the possibility of such damages.

CYBELEC does not warrant that the functions contained in the software will meet the licensee's requirement or that the operation of the software will be totally error free.

Should the software prove defective, the licensee (and not CYBELEC or an authorized dealer or representative) will assume the entire cost of all necessary service, repair or correction.

CYBELEC warrants the diskettes, EPROMS or other magnetic support or cassettes on which the programs are supplied to be free of defects in material and workmanship under normal use for a period of 90 days from the date of shipment to the licensee as evidenced by a copy of the packing slip.

PAGE IV LICENCE AGREEMENT

LIMITATION OF REMEDIES

CYBELEC's entire liability and the licensee's exclusive remedy shall be as follows: The replacement of any diskettes or EPROMS or magnetic support media or cassettes not meeting

CYBELEC's limited warranty and which materials are returned to CYBELEC or an authorized CYBELEC representative with a copy of the packing slip, or

If CYBELEC or its representative is unable to deliver replacement diskettes, magnetic support media, EPROM or cassettes which are free of defects in materials or workmanship, the licensee may terminate this agreement under the terms and conditions herein mentioned, and the purchaser's money will be refunded.

GENERAL

The licensee acknowledges that he has read this agreement, understands it and agrees to be bound by its terms and conditions.

The licensee agrees to hold CYBELEC harmless on all liability associated with licensee's breach of this agreement including, but not limited to, all reasonable attorney's fees and court costs, if any.

This licence agreement shall be governed by Swiss law; place of jurisdiction is Lausanne, Switzerland.

MAINTENANCE

CYBELEC will provide one year of software maintenance. The extent of maintenance, and response time for furnishing same, shall be at the sole discretion of CYBELEC. Maintenance shall normally include correction of errors in code, correction of errors in supporting documentation, update versions of the covered software which may be released by CYBELEC during the maintenance period.

In no event shall CYBELEC be obliged to provide technical support in attempting to resolve problems or difficulties resulting from licensee's modification of the licensed software; any such modification by licensee is entirely at licensee's own risk.

LICENSE AGREEMENT PAGE V

This page has been left blank intentionally.

PAGE VI LICENCE AGREEMENT

02.06.2008 V. 1.0

CONTENTS

SAFETY AND MAINTENANCE INSTRUCTIONS...........................................................................I

LICENCE AGREEMENT FOR CYBELEC SOFTWARE..................................................................III

Safety, Copyright & License agreement..............................................................................3

HOW TO….......................................................................................................................................5

Use Easy Bend (Very Basic Bends)....................................................................................5

Program a Simple Product..................................................................................................5

Program a Product using the Graphic Display....................................................................5

EASY BEND PAGE..........................................................................................................................6

CREATING A PRODUCT ................................................................................................................8

Using the Sequence Page...................................................................................................8

Programming with the Sequence Page...............................................................................12

PRODUCT MANAGEMENT.............................................................................................................18

Product List..........................................................................................................................18

APPENDIX A: CONVENTIONS.......................................................................................................22

Typographical Conventions.................................................................................................22

Abbreviations / Glossary .....................................................................................................22

APPENDIX B: USER INTERFACE..................................................................................................24

Using the Screen.................................................................................................................24

Using the Keyboard.............................................................................................................24

APPENDIX C: MAIN MENU.............................................................................................................30

Main Menu Options.............................................................................................................31

APPENDIX D: WORKING MODES..................................................................................................32

Adjustment Mode ................................................................................................................32

Sensitive Mode....................................................................................................................33

Automatic Mode ..................................................................................................................33

APPENDIX E: TOOL PROGRAMMING...........................................................................................34

Programming Punches / Dies .............................................................................................34

APPENDIX F: PROGRAMMING WITH L-ALPHA ...........................................................................38

Programming Using the L-alpha Page................................................................................39

L-alpha Method ...................................................................................................................43

Defining the Bending Order.................................................................................................46

N600S_EN.DOC CONTENTS PAGE 1

APPENDIX G: MISCELLANEAOUS ............................................................................................... 55

INITIALIZATION Page........................................................................................................ 55

Tool Reference...................................................................................................................57

Pinch Point.......................................................................................................................... 60

Gauge Axes........................................................................................................................61

Programming the Axes Datum ...........................................................................................65

Calibration...........................................................................................................................66

Ideal Curve .........................................................................................................................67

Cycle without Bend............................................................................................................. 70

Punching.............................................................................................................................70

Bottoming............................................................................................................................ 71

Angle Correction................................................................................................................. 71

Alphanumerical Characters................................................................................................ 73

Messages / Errors .............................................................................................................. 73

Interactive Messages.......................................................................................................... 74

APPENDIX H: TRANSFER ............................................................................................................. 78

Testsing the Serial Ports .................................................................................................... 79

CYBACK.............................................................................................................................80

APPENDIX I: PRINTING THE CURRENT SCREEN......................................................................82

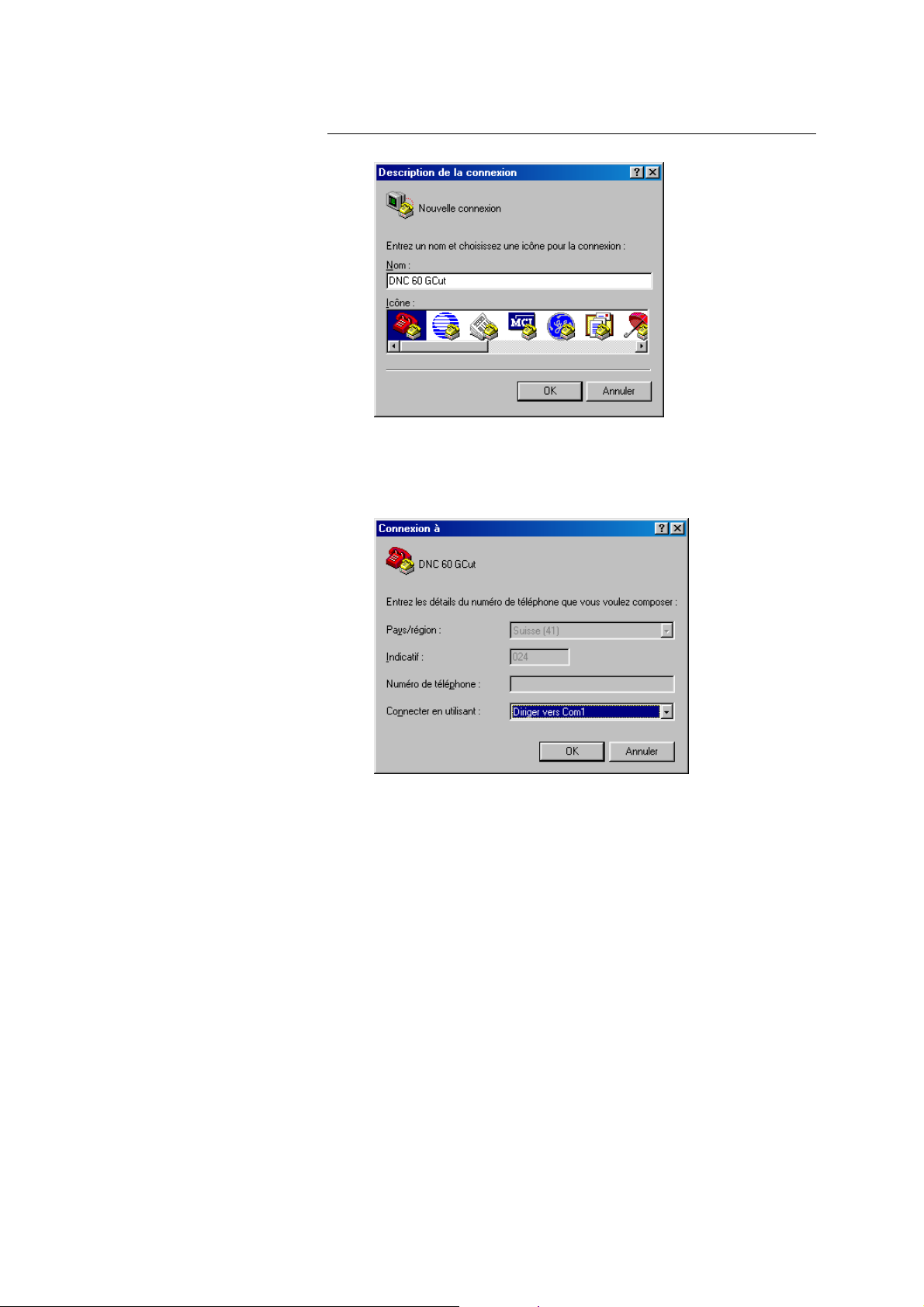

HyperTerminal....................................................................................................................83

APPENDIX J: PROTECTING THE ACCESS LEVELS...................................................................90

General Information............................................................................................................ 90

Users .................................................................................................................................. 91

Password Protected Access............................................................................................... 92

Accessing Levels Higher than 3.........................................................................................93

Changing a Password ........................................................................................................ 94

Managing Access Levels with an External Key

MAINTENANCE ..............................................................................................................................96

LCD Screen........................................................................................................................96

In case of failure .................................................................................................................97

Internal Backup...................................................................................................................98

Internal restore of PMs and tools........................................................................................100

ACCESSORIES............................................................................................................................... 102

INDEX.............................................................................................................................................. 104

...................................................................95

PAGE 2 CONTENTS

SAFETY, COPYRIGHT & LICENSE AGREEMENT

Please consult the safety instructions, copyright and license agreement on the first pages of the manual.

ABOUT THIS MANUAL

This manual is designed to help the user to familiarize with the numerical control DNC 600S and to use it with a maximum of efficiency.

To reach a maximum of comfort and productivity of the numerical control, it is recommended to read attentively the whole manual.

A table of contents and a well organized index enable you to find rapidly the searched subject.

Note: In this User Guide it is assumed that the DNC has an

operational configuration (i.e. machine parameters and tools are programmed).

This manual is evolutive. You, the user, can help us to give you better assistance. If you have any comments on this document, please write us to:

CYBELEC S.A. Dpt Communication Rue des Uttins 27

CH-1401 Yverdon-les-Bains Fax ++ 41 24 447 02 01

E-mail: info

@cybelec.ch

FOREWORD PAGE 3

This page has been left blank intentionally.

PAGE 4 USER GUIDE DNC 600S

HOW TO…

USE EASY BEND (VERY BASIC BENDS)

Go to page 6,.EASY BEND Page.



PROGRAM A SIMPLE PRODUCT

Go to page 12, Programming with the Sequence Page.



PROGRAM A PRODUCT USING THE GRAPHIC DISPLAY

 Go to page 38, Appendix F: Programming with L-Alpha.

TIPS

Press this key to navigate through the main fields of the page from the top

down.

Press this key to navigate through all fields of the page from the bottom up.

Keeping this key pressed will navigate from field to field using the au torepeat feature of the key (3X per second).

The navigation feature of both these keys can be activated or de-activated in

the USER PREFERENCES page from the main menu.

+ Press this key combination to go to the top left field.

HOW TO… PAGE 5

Pressing on either of these keys while the cursor is on the P field will toggle the display between a white and a black background.

Pressing on either of these keys while the cursor is on the P field will adjust

the contrast.

EASY BEND PAGE

Online

Help

The EASY BEND page is accessible by hitting the

key twice.

Easy Bend

Th: 2.00 σ 45.00 Kg/mm2 Ac_Al_In_ p/d 1/1 CR __/ri 2.78

--MEM-- --POS-- --COR--

90.0° mes __._° Y1 293.11 350.92

Y2 293.11 351.05 L 136.0 X1 133.9 51.8 Lp 5000 Fp 78 Rx ___ Start Ext _

Vy __% __% ΔTp _._s PCV ___

Material thickness

This page makes it possible to quickly programme a bend, and/or briefly stop production to perform a single bend without modifying or losing data in the production programme.

PROGRAMMING A BEND

 Enter the thickness and the tools if they differ from the product in the

course of production. To speed up programming, the p/m fields as well as the material are taken over from sequence 1 of the product currently in hand. The modification of these data does not affect the programme that is running.

 Enter the angle of the bend in the  Enter the height

the X gauge will be calculated automatically. or directly enter the distance at which the X gauge is to be positioned.

 Enter the length of the bend.

The system automatically calculates the pressure and bending.

 Possibly also enter,

o how long the pressure is to be maintained (if not o the retraction of the gauge,

o the reduction in bending speed, o slow lifting, etc.

L of the wing (external measurement) and the position of

programmed, the default is = 0.5 s),

field

PAGE 6 USER GUIDE DNC 600S

 Press the START button or the pedal and the axes will position to the

desired values. The numerical command will automatically go into semiautomatic mode. Actuate the pedal to bend. When the beam returns, the DNC switches to programming mode. You can now enter new data or actuate the pedal for a new bend.

 Hit the

key to return to production mode.

FIELD OVERVIEW

See Field Overview, page 9.

EASY BEND PAGE PAGE 7

CREATING A PRODUCT

This paragraph explains how to programme a product as well as the method for correcting and recording it.

USING THE SEQUENCE PAGE

This page displays all the bending informations for the current sequence. That is the requested position of the Y and X (R, etc.) axes, the pressure, the gauge retraction, the crowning, the dwell time, etc.

Important This page displays the result of the calculations made when programming a

product in the L-alpha page with definition of the bending order. The operator can modify these values if necessary (especially the retraction, the dwell time, the top dead center). However he must avoid to directly modify the Y and X values calculated by the DNC.

Hint An operator can directly program a product in this page, without "passing"

through the L-alpha page and definition of the bending order. This simplifies the manipulations a great deal, since all the informations required for the bending are on this page.

To reach the sequence page, press the

Pressing once will display the page in large characters, pressing twice will display all dimensions and functions of the current sequence in small characters.

Pressing the key 3 times characters, with a graphic of the part underneath.

This page is displayed during the powering-on of the DNC.

To change from one sequence to another, press the

In order to add a new sequence with the same content as the last sequence at

the end of the program, press displays.

will display the main sequence data in large

, then 1 when the warning message

key.

In order to insert after the current sequence a sequence with the same content

as the current one, press

The another.

The can be deactivated in the user preferences.

PAGE 8 USER GUIDE DNC 600S

key is used to move the cursor from one significant field to

key is used to move the cursor across all the fields. This function

when the cursor is on the N field.

If a product is removed, the data contained in the tool fields, the thickness field and the material information fields continue to be displayed. This saves the operator from having to reprogramme unchanged data.

P 1 N 1 CY __ Th: 2.00 45.00 Kg/mm² p/d 1/ 1 CR __/ri 2.78

--MEM-- --POS-- --COR--

90.0° Y1 293.11 350.92 ____.__

Y2 293.11 351.05 ____.__ X 1 133.91 51.85 ____.__ Q ____ ____ Lmat 5000 TON 78 Rx _ ___ Ext start _

Vy __% __% ΔT _._s TDC ___ SP ___ F1:___ F2:___ F3:___ F4:__ F5:__ Cr: 41

FIELD OVERVIEW

P+

Number of the product in the work memory.

Number of the following product when there is a sequence of programmes.

Bending order (sequence) number to be made and the total number of bends for the product.

Number of sequence repetitions. (programmed 0, the sequence is jumped)

Material thickness.

The Greek symbol "Sigma" indicates the tensile and rupture strength. This field, as well as those showing the type of material, can be hidden (see the page in the machine parameters). If this field is hidden, the default value is

45 kg/mm

the ad hoc field in the machine parameters.

, but other values can be defined in

preferences

steel

p/d

CREATING A PRODUCT PAGE 9

Number of the punch/die pair associated with the bend to be made.

In the P or D field press of tools.

to display the list

CR/ri

--MEM--

--POS--

--COR--

The

, Y1, Y2, etc. fields are dependant on the axes programmed in

the numerical control.

Select the tool in the list then press

again

to return.

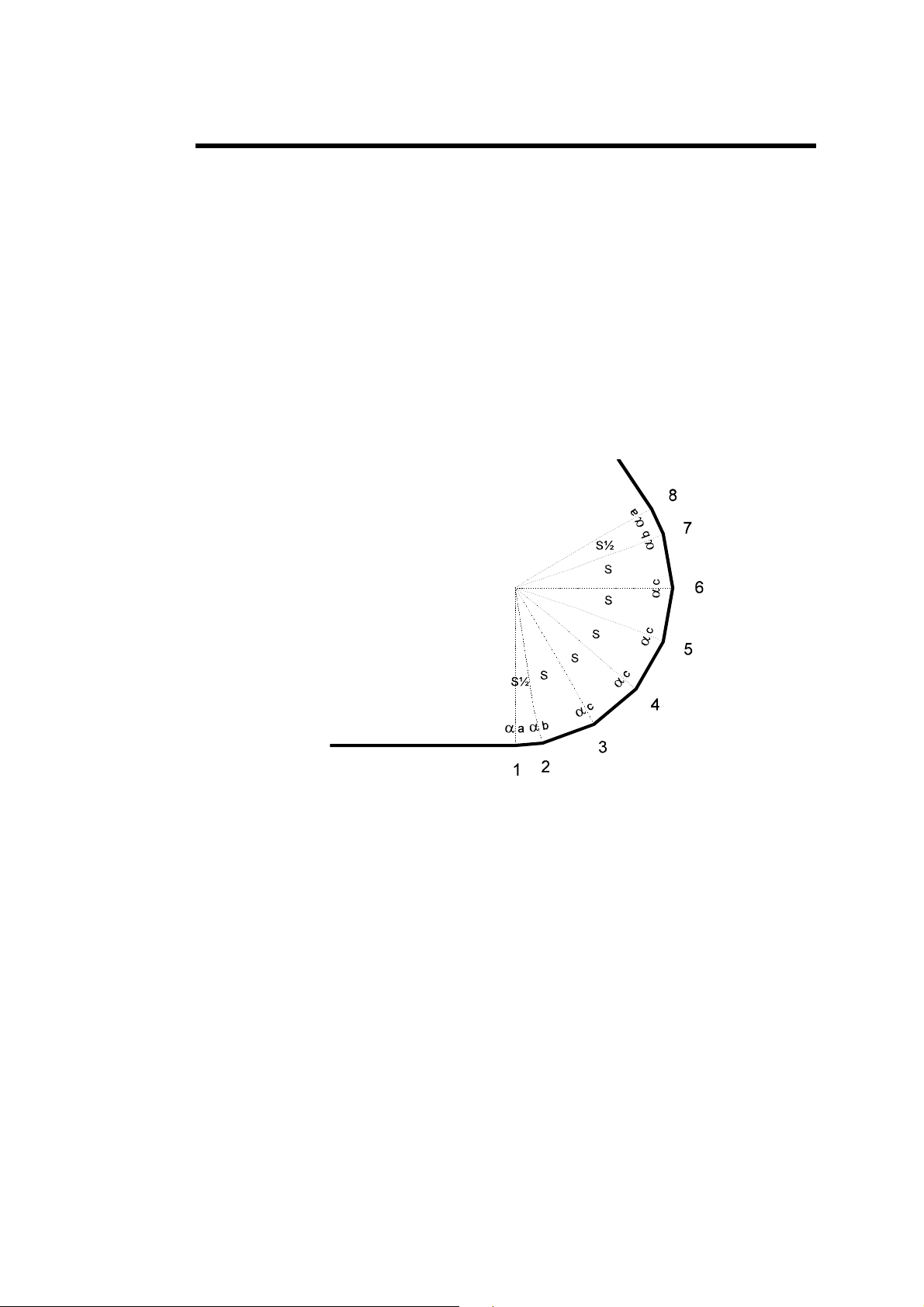

Number of bends requested when working with step bending (min. 4), and internal bending radius.

This column contains either the values calculated by the system when simulating, or the values programmed by the operator.

This column indicates the real axes' positions.

This column contains all the sequence and product corrections introduced on the CORRECTION page.

Height of the wing after bending. The DNC will automatically calculate the position of the back gauge of axis X.

Q Quantity of products to be produced. The Q

field is displayed only if the parameter in the

PREFERENCES page is activated.

Lmat

TON

Bending length.

Bending force.

Back gauge retraction. The operator indicates in mm the retraction distance. If nothing is programmed, the beam doesn't stop at the PP. No retraction. If value 0 is introduced, the beam stops at the PP, then executes immediately the bend without carrying out a retraction.

The field between the Rx and the retraction value serves to define the retraction mode. _ = the beam stops at the PP and waits till the

retraction is made, in order to carry out the bend.

1 = the beam stops at the PP, then continues

immediately, at the same time as the retraction is carrying out.

Ext start

If nothing is programmed in this field, the axes start automatically from the BDC, from the PP or from the TDC, depending on the choice made in the machine parameters.

PAGE 10 USER GUIDE DNC 600S

If 1 is programmed, the start will be made as a function of the configuration made by the

constructor.

- In most of the configurations, it will be sufficient to give a down command. At this command, the axes take position, then a second down command has to be given, in order to move the beam.

- In other configurations, the provided start button must be pressed.

- When the message TOL ZONE appears, that means that a down command has been given and that the axes are not positionned in the current sequence. Give a start with the provided button or on the front panel of the DNC.

ΔT

TDC

F1: - F5:, Cr

These fields can also be re-programmed by the user. However, certain fields are related, that is modifying one provokes a modification of the other.

Beam bending speed. Programmed at 0, the speed is 1 mm/s. Programmed at 9, the speed is 10 mm/s. (If the machine is capable of reaching this speed)

Rising speed from BDC to PP. Programmable from 0 (slow) to 9 (fast). Allows to vary the speed at which the beam rises to the PP. (Function depending on the machine's hydraulics).

Dwell time.

Distance from top dead center.

Distance from the beam speed changing point. (Switch Point).

Value of the auxiliary functions F1 to F5 and crowning.

CREATING A PRODUCT PAGE 11

PROGRAMMING WITH THE SEQUENCE PAGE

In this guide, it is considered that the DNC is configured so as to be operational (i.e. machine and tool parameters programmed).

The operator has 2 methods available for programming.

The fastest

Direct programming (or programming in the sequence page)

Direct programming is the faster method for an experienced operator, because all the programming of the product is done on the same page. This makes it possible to programme the positions of the axes directly, and it calculates the depth of bending according to the angle entered.

With calculation of the flat pattern

The L-Alpha method.

The L-alpha method makes it possible to enter a profile to bend with the external dimensions and angle of each face. The DNC will calculate the developed length: After having programmed the sequence of bends, the DNC will calculate the position of the gauges. Explanation of this method in page 38.

Appendix F: Programming with L-Alpha on

DIRECT PROGRAMMING

Programming Example

The following product is to be realized:

The bending order is the following:

Th: 2.0 mm Lmat: 1000 mm

PAGE 12 USER GUIDE DNC 600S

 Bend 1 on FACE 1 and LEG 0

 Bend 2 on FACE 3 and LEG 4

 Bend 3 on FACE 2 and LEG 3

Clear the memory  Call the sequence page with the

Clear the work memory. In the event of the removal of a product, the data contained in the Tools fields, the Thickness field and the Material Information fields remain (if displayed). This avoids the operator having to reprogramme unchanged data.

Place the cursor in the N field (reminder: cursor on the top of the page).

key.

+ to position the

CREATING A PRODUCT PAGE 13

P 125 N 99 CY __ Th: __.__ __.__ Kg/mm² p/d _/_ CR __/ri __.__

--MEM-- --POS-- --COR- __._°

Y1 ___.__ 350.92 ___.__

 Introduce 99 and press the key.

1st sequence  Introduce the thickness, the sigma, the tools as below:

 To select a tool, enter the tool number or press

is in the P or M field to display the tool list. Select the tool in the list and press

sequence page.

again to go back to the

when the cursor

P 0 N 1 CY __ Th: 2.00 σ 37.00 Kg/mm²

p/d 1/1 CR __/ri __.__

 Program 90 in the field.

By leaving the field, the system calculates the Y1 and Y2 axes' values.

 Introduce 58.0 in the X field (stop position for this first bend).  Introduce the bending length 1000.

The system calculates the pressure and the crowning automatically.

 If necessary, introduce the dwell time (by default non-programmed =

0.5 s), the gauge retraction, the bending speed reduction, the slow raising, etc.

 Press

sequence 2. The message COPIED is displayed, the N field passes on 2. The LED of the key remains lighted, indicating that you are on the last sequence.

and then 1, in order to copy this first sequence in

PAGE 14 USER GUIDE DNC 600S

2nd sequence The following screen is displayed:

Note: The values Y1, Y2, Fb and Cr will vary, for they are

calculated as a function of the programmed tools. The values POS Y1, Y2 and X will also be different, for they display the real position of the axes.

P 0 N 2 CY __ Th: 2.00 37.00 Kg/mm² p/d 1/ 1 CR __/ri __.__

--MEM-- --POS-- --COR--

90.0° Y1 229.90 350.92 ____.__

Y2 229.90 351.05 ____.__ L ___.__ X 58.00 51.85 ____.__

Lmat 1000 TON 19 Rx ___ Ext start _

Vy _ _ ΔT _._s TDC ___ SP ___ F1:___ F2:___ F3:___ F4:__ F5:__ Cr: 41

Modify the values which are different for this sequence, in this case enter

20.0 in the L field or 18 in the X field.

P 0 N 2 CY __ Th: 2.00 37.00 Kg/mm² p/d 1/ 1 CR __/ri __.__

--MEM-- --POS-- --COR--

90.0° Y1 229.90 350.92 ____.__

Y2 229.90 351.05 ____.__ L 20.0 X 18.00 51.85 ____.__

Lmat 1000 TON 19 Rx ___ Ext start _

Vy _ _ ΔT _._s TDC ___ SP ___ F1:___ F2:___ F3:___ F4:__ F5:__ Cr: 41

 Press the sequence forwards key , in order to copy this second

sequence in sequence 3. The message COPIED is displayed, the N field passes on 3. The LED of the key remains lighted, indicating that you are on the last sequence.

CREATING A PRODUCT PAGE 15

3rd sequence The following screen is displayed:

P 0 N 3 CY __ Th: 2.00 37.00 Kg/mm² p/d 1/ 1 CR __/ri __.__

--MEM-- --POS-- --COR--

90.0° Y1 229.90 350.92 ____.__

Y2 229.90 351.05 ____.__ L 20.00 X 18.00 51.85 ____.__ Lmat 1000 TON 19 Rx ___ Ext start _

Vy _ _ ΔT _._s TDC ___ SP ___ F1:___ F2:___ F3:___ F4:__ F5:__ Cr: 41

 Modify the values which are different for this sequence, in this case

enter 50.0 in the L field (X is automatically calculated) or the value 48 in the X field.

The programming of the product is terminated. If you wish to save:

 Place the cursor on the P field.

(

and to position the cursor on the top of the page.)

 Introduce the number you wish to give to this product.

 Press

for saving this product). The product will be saved in the internal memory with the number

which you have given it. It will, however, remain present in the work memory.

 Pass to semi-automatic mode  Call the sequence 1.  Execute the first bend.

(if the system replies EXISTS, choose another number

PAGE 16 USER GUIDE DNC 600S

CORRECTIONS

It can happen that the angle bent is slightly greater or less than the angle programmed.

The operator has then the possibility to introduce the real value of the angle bent. The DNC will correct the Y1 and Y2 axis values accordingly.

The corrections can be entered into two different pages:

 Page corrections (see explanation on page 71).  Sequence page.

P 0 P+__ N 1 / 4 CY __ Th: 2.00 σ 37.00 Kg/mm2

p/d 1/1 CR __/ri __.__

--MEM-- --POS-- --COR--

90.0° mes 91.20 Y1 229.60 350.92 ____.__

Y2 229.60 351.05 ____.__ L 60.00 X 58.00 51.85 ____.__ Lp 1000 Fp 19 TON Rx ___ Start ext _

Vy _ _ ΔTp _._s PMH ___ PCV ___ F1:___ F2:___ F3:___ F4:__ F5:__ Bo: 41

The following working method is recommended:

 Programme or call the product.  Switch to semi-automatic mode.  Execute first bend.  Measure the result.  Switch to programming mode.

Enter the measured angle into the COR field (see above). The DNC

automatically calculates the corrections to be made to Y1 and Y2.

 If necessary, make the corrections to the gauge axes.  Bend a second product on the first bend to check the corrections.  Move to the following sequence and then proceed in the same way for

all subsequent sequences.

 When all the bends are correct, switch to automatic mode and proceed

normally. The correction entered above is applied only to the current sequence. Every other sequence must be corrected individually.

Product-by-product correction is possible in the CORRECTION page (see explanation on page 71).

CREATING A PRODUCT PAGE 17

PRODUCT MANAGEMENT

This chapter indicates how to manage the products (programs) stored in the numerical control.

PRODUCT LIST

 Press the key.

ACTUAL PIECE NEW_P CODE 623-42.15 SEQUENCES PROGRAMMED 42 AVAILABLE 306

-LIST OF PRODUCTS IN MEMORY 1 2 11 222 997 ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___

The upper part of the screen displays the number of the product currently in the work memory as well as the number of the drawing of that product.

Note: The drawing number is optional. It may be activated in the User Preference

page.

The DNC also displays the number of sequences programmed, as well as the number of sequences still available in the internal memory. Then are displayed, in ascending order, the numbers of all the products stored in the internal memory.

The NEW_P field enables the operator to create a new product directly, starting from this page.

 Position the cursor on NEW_P and press the

key.

PAGE 18 USER GUIDE DNC 600S

SEARCHING FOR A PRODUCT BY CRITERIA

 Press the key again.

ACTUAL PIECE 28 New_P

-- CRITERIA - CODE p/d __/__ Th __.__ Lmat _____ DevL ____.__

-- LIST OF PRODUCTS IN MEMORY- P CODE p/d Th ___ __/__ ___.__ ___ __/__ ___.__ ___ __/__ ___.__ ___ __/__ ___.__

This page allows to display a list of searched products according to one or more criteria like the code number, the thickness, the bending length and/or the unfolded length.

Under the heading --CRITERIA-- are displayed the different criteria according to which it is possible to search for a product. These criteria can be combined, that is it is possible, for example, to ask for the list of all the products stored using a specific tool pair and having a particular material thickness.

The products meeting the defined selection criteria are displayed on the second half of the screen.

To make a search by criteria, proceed as follows:

 Introduce one or more selection criteria in the fields provided.

 Press

If the list contains 7 or more products, the following page or pages can be

displayed by pressing

PRODUCT MANAGEMENT PAGE 19

CALLING A PRODUCT

This operation searchs a product in the internal memory and place it into the work me mory.

Calling a product is possible from all pages on which the cursor can be placed on the P or CODE field.

Caution: The called product "erases" the product already in the work

memory. Pay attention to save, if necessary, the current product before calling another product.

 Introduce the product number in the P field or the code number in the

CODE field.

 Leave the cursor on the field which has been programmed just now.

 Press

The product requested is then copied into the work memory (the original of this product is, of course, conserved in the internal memory).

SAVING A PRODUCT

This operation is used to permanently save a product located in the work memory.

Saving a product is possible from all pages on which the cursor can be placed on the P field.

It should be noted that after saving the product remains present in the work memory.

To save a product proceed as follows:

 If you wish to give a drawing number or name to the product, fill in

the CODE field. This operation is optional.

 Enter the number of the product in the P field.  Leave the cursor in the P field.

 Press the

If the system displays the message EXISTS, choose another number.

If you wish to save a product under a number which already exists (e.g. after modifying a product), the product bearing that number must first be deleted in the internal memory.

NB: Caution, the N° 998 and 999 are reserved for special functions.

 998 for the temporary storage of the work memory contents during PC

<-> DNC transfer.

 999 for total deletion of the internal memory (see page 21).

PAGE 20 USER GUIDE DNC 600S

key.

DELETING A PRODUCT

 Call the list of products page.  Place the cursor on the P field and introduce the number of the

product to be deleted.

 Press

It should be noted that this action has no effect on the internal memory.

DELETING ALL PRODUCTS

Caution This operation deletes the totality of the products stored in the internal

memory without the possibility to cancel this command.

 Call the list of products page.  Introduce the value

 Press

999 in the P field.

PRODUCT MANAGEMENT PAGE 21

APPENDIX A: CONVENTIONS

As a general rule, in this manual we will not repeat how to validate a field, select a tool, call a page or any other basic manipulations. These informations are described at the beginning of this manual.

TYPOGRAPHICAL CONVENTIONS

Arial bold Quotations of text as seen on the screen.

Arial bold italic Used to indicate the name of a DNC input or

output.

Italic Reference to a written element, a paragraph or a

manual. For example: See ///ADD CROSS REFERENCE.

ABBREVIATIONS / GLOSSARY

Explications of the abbreviations which are not visible fields in the pages of the numerical control.

TDC Top dead centre. SWP Switch point of speed, i.e. the change from

PSS Safety point. This point is calculated in function

PP Pinch point (see page 60). BDC Bottom dead centre LED Light Emitting Diode. Small red light serving as

approach speed in bending speed in the descent phase.

of the tools height and the material thickness.

luminous indicator.

PAGE 22 USER GUIDE DNC 600S

This page has been left blank intentionally.

APPENDIX A: CONVENTIONS PAGE 23

APPENDIX B: USER INTERFACE

USING THE SCREEN

The screen displays the products, tools and machine parameters as well as all other useful information for programming and machine work.

The keys situated on the front of the DNC are used for selecting the screen pages and introducing data.

A cursor indicates where the user can intervene. On all pages, when first displayed the cursor is located on the programmable

field on which it was placed during the last intervention on that page. The cursor can be moved to the previous or following field by pressing the

or key.

Faster Regardless of the cursor position on the page, pressing the

keys simultaneously moves the cursor to the first programmable field

of the page.

USING THE KEYBOARD

The keyboard is divided into six zones:

 Numerical keyboard  Screen page selection keys  Working mode zone  The commands  The cursor keys  The manual mode keys

NUMERICAL KEYBOARD

and the

The numerical keys as well as the and keys are used to introduce numbers or values into the different fields.

PAGE 24 USER GUIDE DNC 600S

SCREEN PAGES SELECTION KEYS

Main menu key A dual-function key Hitting the key once opens the MAIN MENU page.

Hitting the key a second time displays the

///ADD CROSS REFERENCE

Product list key Double function key. Pressing this key once displays the list of products in the DNC memory. Pressing the key again displays the search for products by criteria page.

Product key Triple function key. Pressing this key once displays the angle length (L-alpha) values. Pressing a second time displays the bending order with their respective legs. Pressing a third time displays the bending values which are calculated as a function of the values introduced on the previous page.

Sequence key Triple function key. Pressing the key once displays all the bending values in large characters of the current sequence. Pressing a second time displays all the values and functions of the current sequence. Pressing a third time displays the Graphical Bend page.

Correction key This key displays the correction page which allows to make corrections to the current sequence, as well as to the entire product.

APPENDIX B: THE USER INTERFACE PAGE 25

WORKING MODES

Programming mode Allows to introduce, modify and read data as well as to store, search for and transfer programs.

Manual mode Authorizes axis movement and auxiliary

functions using the keys.

Semi-automatic mode Allows a machine cycle with the current sequence values without automatic sequence change. This mode is used for adjustments when realizing the first product, as well as for products with only one bend.

The sequence change is made using the

keys.

NB: The product counter Q does not function

in this mode.

Automatic mode Normal mode for product production. The DNC automatically changes sequence after each bend. Changing directly from "programming" mode automatically forces the first sequence of the program. Changing from "programming " mode to "semi-automatic" mode and then to "automatic" mode, conserves the current sequence for execution. This allows to take up again a product in production without having to make "empty" cycles.

PAGE 26 USER GUIDE DNC 600S

COMMANDS

Delete key Allows to delete a sequence or a program when the cursor is placed on the PRODUCT or N fields. Only functions in programming mode.

Clear key This key allows to delete data indicated by the cursor. Caution: pressing this key twice, on most pages, deletes all the data on the page.

Search key According to the cursor position allows:

- to search for a product

- to search for a sequence

- to search for a tool

- to search for a screen page

- to start a product feasibility calculation

- to transform L-alpha values into machine values

- to calculate the unfolded length of the sheet

- to execute a transfer Only functions in programming mode.

Store / insert / teach key Depending on the cursor position, allows to store the current program in the DNC internal memory, or create (insert) a new sequence in the middle of an existing program, or copy (teach) the value of an axis positioned manually in the current sequence. This key is only valid in programming (memorization and insertion) mode and in manual (teach) mode.

APPENDIX B: THE USER INTERFACE PAGE 27

CURSOR KEYS

Sequence forwards / Page forwards key This key allows to scroll pages of the same type. Also allows to pass to the next page when a series of information occupies several pages.

Eg.: program sequence punch-die pages production pages parameter pages

In programming mode also allows to create an identical sequence (copy function) to the previous one as long as this is the last sequence of the program. The incorporated LED indicates whether the sequence is the last of the program.

Page backwards / Sequence backwards key

Inversed function of the Allows to scroll backwards through pages of the same type. Functions in all modes except automatic mode.

key.

and

Cursor upwards, to the next accessible field. Holding this key down causes an auto-repeat to move the cursor back until the key is released.

Cursor downwards, to next accessible field. Holding this key down causes an auto-repeat to move the cursor forwards until the key is released.

This key combination positions the cursor in the upper part of the current page.

PAGE 28 USER GUIDE DNC 600S

"MANUAL" ZONE

Start key Commands:

- The displacement of the axis and auxiliary functions. During movement the LED lights up (except for the beam).

- An indexation at the beam (on option depending on the configuration on other axes) when this key is first pressed after switching on the DNC.

To indicate that an index is being taken the LED remains constantly alight, until the indexes are received. Indexes can only be

taken in

Stop key Depending on the working mode chosen, stops the axes or auxiliary functions, or stops the calculation being executed. When the DNC is in transfer mode (RS232) the STOP key allows to terminate the transfer.

Manual displacement keys of the selected axes. Allows, in the machine parameters, to configure the axis type, the inputs/outputs and to select the display of the N2X axes.

or modes.

APPENDIX B: THE USER INTERFACE PAGE 29

APPENDIX C: MAIN MENU

By pressing the key on the top right of the keyboard, the main menu appears.

CHOICE ? __ 1 NEW PRODUCT 2 EASY BEND 3 LIST OF PRODUCTS /CRITERIA 4 LIST OF PUNCHES 5 LIST OF DIES 6 PROGR. PUNCHES / DIES 7 PRODUCT PUNCHES / DIES 8 L-ALPHA PRODUCT 9 BEND SEQUENCE 10 USER PREFERENCES (KEY 2) 11 PROGR.AXES DATUM 12 TRANSFER DNC <-> PC 13 MACHINE PARAMETERS VIEWER

Regardless of which screen page you are on, you can always gain access to

the main menu by the different pages.

The option desired is chosen by entering the option number in the CHOICE

field on the first line of the screen and pressing the search

key, which allows you to circulate in the

key.

PAGE 30 USER GUIDE DNC 600S

MAIN MENU OPTIONS

1 NEW PRODUCT

2 EASY BEND

3 LIST OF

PRODUCTS /CRITERIA

4 LIST OF PUNCHES 5 LIST OF DIES 6 PROGR. PUNCH /

DIE

7 PRODUCT

PUNCHES / DIES

8 L-ALPHA

PRODUCT

Create a new product and display the page sequence, ready for entering the data. Access ///ADD CROSS REFERENCE Allows for quickly programming a bend and/or stopping production to quickly do another job (bend) without loss or modification of the program in hand.

This double page displays the list of parts held in DNC memory and allows for selectively seeking parts.

Displays the list of the punches.

Displays the list of thedies.

From this page, it is possible to recall, program or delete a die or a punch.

This page allows to modify, for the product only, the reference of a tool.

Generally called L-alpha page, this page displays and allows the programming of products in "lengths and angles" mode.

9 BEND SEQUENCE

10 USER

PARAMETERS (KEY 2)

11 PROGR. AXES

DATUM

12 TRANSFER

DNC <-> PC

13 MACHINE

PARAMETERS VIEWER

Displays the page allowing to program or modify the bending order.

Lets you edit user parameters and materials preferences.

Allows to program the axis position counter.

Allows the global or partial two way transfer of products, tools or machine parameters between the fixed internal memory and a PC.

Displays all machine parameter pages. Caution: you cannot edit machine parameters using this menu option.

APPENDIX C: THE MAIN MENU PAGE 31

APPENDIX D: WORKING MODES

3 working modes are generally available at machine level. The functioning is described hereinafter.

Depending on the manufacturers and the safety standards in force in the country, the functioning can be different.

Adjustment mode

Sensitive mode

Automatic mode

These modes are independent of the DNC be combined. Exception: the adjustment mode.

ADJUSTMENT MODE

This mode only functions with the DNC in mode. If this is not the case, the press refuses to descend. In this mode the table only functions in bending speed with the pressure and

speed programmed in the current sequence. The top dead center of the current sequence is active, it is thus not possible to

raise the beam above this point. On the other hand, the bottom dead center programmed in the sequence is not

active. Thus only stopping the descent command, or a mechanical stop (punch in the die), or the lower limit switch will stop the beam in the descent phase.

modes and can

PAGE 32 USER GUIDE DNC 600S

SENSITIVE MODE

DNC in Mode

The functioning is identical to adjustment mode, except that the return to the TDC is made in one movement.

DNC in or Mode

The press works in the conventional way, that is:

 High speed approach  Deceleration  Safety stop (if the mode requires it)  Bending  Bottom dead center

It is at the bottom dead center (BDC) that the differences appear. The DNC remains under pressure at the bottom dead center until the descent

command disappears, and this indifferently to the dwell time at BDC. When the descent command is suppressed, the DNC remains at the BDC

without pressure or descent command, until reception of a rise command which it executes immediately.

AUTOMATIC MODE

This mode functions in a similar way to sensitive mode, except that the raising of the beam is made automatically once the dwell time programmed in the current sequence has elapsed.

This even if the descent command remains active.

NB: In all these modes the ascent command has priority. It is executed

immediately on its reception.

APPENDIX D: THE MACHINE WORKING MODES PAGE 33

APPENDIX E: TOOL PROGRAMMING

The DNC 600S has several pages which allow consultation of the list of existing tools, to display them and / or program new ones.

The DNC 600S memory can hold a maximum of 20 punches and 30 dies.

PUNCH LIST

 From the main menu choose option LIST OF PUNCHES.

The system displays the list of punches existing in the memory, with the number and characteristics of each punch:

If your DNC contains more than 4 punches, you can call the following page

or pages by pressing

Die List

From the main menu, choose option LIST OF DIES. The consultation of the list of dies can be done in the same way as explained

for the punches.

PROGRAMMING PUNCHES / DIES

TOOL PROGRAMMING OVERVIEW

The programming of tools is done by introducing their values and dimensions on the page as represented below.

 Call the PROGRAMMING PUNCH / DIE page (via the main menu).

p Punch angle.

rp TON/M

PAGE 34 USER GUIDE DNC 600S

Height of the punch between the lowest part of the beam and the point of the punch.

Punch radius.

Maximum force supported by the punch per linear meter.

V width of the die.

hd rd TON/M

V angle of the die.

Height of the die from the surface of the table.

Die radius.

Maximum force supported by the die per linear meter.

REF Y

Sum of the hp and hd. This value is automatically calculated during programming of pairs. See Erreur ! Résultat incorrect pour une table..

SAF X

X Safety distance. (Not programmed = half V opening)

a: and b:

Table and die dimensions according to the drawing displayed on the screen.

APPENDIX E: TOOL PROGRAMMING PAGE 35

PROGRAMMING A PUNCH

 On the PUNCH / DIE PROGRAMMING page, delete the values on

this page by pressing the

 Fill in the different fields.  If you wish to save this new punch proceed as follows:

a) Place the cursor on the PROGR. p/d field and introduce the

number you wish to give to this punch as indicated below. Caution: The die N° must not be programmed.

b) Press c) If the system displays the message EXISTS, choose another

number.

key twice.

PROGR. p/d 1/__ PUNCH p 90° hp 100.00 rp 1.50 TON/M 100 DIE Vd 15.00 d 90° hd 100.00 rd 1.50 TON/M 100 REF Y 200.00 SAF X 10.00 a: 20 b: 30

Modifying a Punch to Create a New One

On the PUNCH / DIE PROGRAMMING page.

 Call the punch which will serve as a basis.

Place for that the cursor in the p field, introduce the desired number

and press the

 Modify the values as necessary.  Save the new punch by introducing its number in the p/ field and

press the

PAGE 36 USER GUIDE DNC 600S

key.

MODIFYING A PUNCH

On the PUNCH / DIE PROGRAMMING page.

 Call the punch which will serve as a basis.

Place for that the cursor in the p field, introduce the desired number

and press the

 Modify the values as necessary.  To be able to save this punch under the same number, the former

version must first be deleted from the internal memory.

Place the cursor on the punch number and press the

 Leave the cursor at the same place and press

Caution: The die N° must not be programmed.

The former version of your punch has now been replaced by the new one which has the same number.

DELETING A PUNCH

 Call the LIST OF PUNCHES page (via the main menu).  Introduce the number of the punch to be deleted in the p/ field.

key.

 Press

PROGRAMMING A DIE

The programming of a die is done in the same way as for a punch, but in the /m field.

APPENDIX E: TOOL PROGRAMMING PAGE 37

APPENDIX F: PROGRAMMING WITH L-ALPHA

In this manual, it is being assumed that the DNC is configurated in such a way to be operational (i.e. the tools and machine parameters have already been programmed).

2 programming methods are accessible by the operator.

The L-alpha method allows to enter a profile to be bended with the external dimensions and angles of each face. The DNC calculates the unfolded length. After having programmed the bending order, the DNC will calculate the stop positions.

Before starting to program a product, make sure that the tools necessary to make the product exist in the DNC memory and write down the numbers of the punches and dies to be used.

To do this proceed as described below: If you are already familiar with the tools present in the DNC, you may go directly to

Appendix F: Programming with L-Alpha, page 38).

Looking up the Punch List

To display the tools list in the P or M field, hit the key. Select the tool from the list then press

If you don't find a punch which corresponds to your needs, you can create one.

In this case refer to chapter Appendix E: Tool Programming, page 34. It is possible, if more than four punches are programmed to see them by

pressing the

key.

again to return

Looking up the Die List

Proceed in the same way as described above for punches; access from the main menu LIST OF DIES.

PAGE 38 USER GUIDE DNC 600S

PROGRAMMING USING THE L-ALPHA PAGE

The L-ALPHA PRODUCT page is often called L-alpha page for its programming method. On this page, a product is programmed by defining its profile by the length and the angle of each face.

Call the L-alpha page using the choosing L-ALPHA PRODUCT.

This page presents as follows:

key, or by passing via the main menu

P 0 P+ ___ N 1 I/mm CODE CAL_/__.__ p/d __/__ St:_ Al:_ SS:_ Th: __.__ Kg/mm² ___.___ Lmat _____ Dev L ____.__

-N- -L- - - -p/d- -ri- CR 1 ____.__ ____._° __/__ ____.__ __

2 ____.__ ____._° __/__ ____.__ __ 3 ____.__ ____._° __/__ ____.__ __ 4 ____.__ ____._° __/__ ____.__ __

Note: On the following pages, you will find a systematic explication of all the

fields which figure on the L-alpha page. If you wish to just follow the procedure, you may pass directly to chapter L-alpha Method, page 43.

L-ALPHA PAGE: FIELD OVERVIEW

APPENDIX F: PROGRAMMING WITH L-ALPHA PAGE 39

Product number

- existent in the work memory or

- to be created or

- to be searched for

The product number must be a number of a maximum of 3 digits between 1 and 997. (998 and 999 are reserved numbers)

If the product is created from an empty page, the field contains the number 0. The field keeps this value as long as the product has not been stored.

P+

Number of the next product which will be executed automatically. If this field is left empty, when the last sequence of the product is executed, the program will return to the first sequence of the current product. If it contains a product number, it will be executed immediately at the end of the current product. This allows to follow on several programs one after another. Do not forget to program in the last program the number of the first program in order to close the loop.

I/mm

CODE

CAL

p/d

Number of the current sequence, whose axe's values are displayed on the sequence page.

Allows to choose the unit of length. Programmed at 1, the face length values are expressed in Inches. Not programmed or programmed with a value other than 1, the data is displayed in millimeters.

Code name or number (facultative), allowing to associate supplementary information with the product number in order to facilitate product management and searching. For the introduction of alphanumerical characters, see

Alphanumerical Characters,

page 72.

Allows automatic compensation of variations in sheet metal thickness. For programming this field, refer to chapter Calibration, page 65.

Punch and die of the current product.

St: Al: S.S.:

Th:

Kg/mm²

Lmat

Dev L

PAGE 40 USER GUIDE DNC 600S

Choice of product material, steel, aluminium or stainless steel. Program 1 in the field next the material used.

If no field is programmed, steel is used by default.

Material thickness.

(Sigma) Tensile strength.

Bending length.

Unfolded length of the product calculated by the system according to DIN 6935 standard.

L-alpha Page: Field Overview

Each line (except the last) of the table on the L-ALPHA PRODUCT page represents data related to one bend.

-N- -L- - - -p/d- -ri- CR TOL 1 ____.__ ____._°__/__ ____.__ __ ___

2 ____.__ ____._°__/__ ____.__ __ ___ 3 ____.__ __

-N-

-L-

80.00 60.00 80.00 85.00 120.00

Automatic numbering of the faces. A "face" is defined as being that part of the sheet metal situated between two bends or between the edge of the sheet and a bend. The maximum number of faces which can be programmed for a product is 14. If more sequences are needed, use the chaining of product function (see previous page, field P+).

Face length. Designates the distance between two bends or the distance between the edge of the sheet and the first bend.

←⎯→

Length

p/d

-ri-

APPENDIX F: PROGRAMMING WITH L-ALPHA PAGE 41

Bending angle. Allows, for a given bend, to define a special

tooling pair different from the one specified for the product.

If the adjacent field CR (step bending) is

empty, when the field indicates the internal bending radius calculated taking into account the angle, the material and the tools.

The operator can enter the value of the internal radius which he considers to be correct, then introduce the value 1 in the CR field.

During the calculation, the TOL (tolerance)

key is pressed, the ri

field indicates the distance defined according to the TOL explication below.

When performing step bending, this field indicates the theoretical radius requested by the operator. (See Ideal Curve, page 67).

TOL

Number of bends requested when working with step bending. (See Ideal Curve, page 67). This number must be between 3 and 99. The value 2 makes it impossible to change modes.

Note: This number must be such that the

length of the step bend segments are greater than half the length of the die V opening.

Tolerance. If the value in the CR field is equal to 1, the tolerance indicates the value according to the illustration below.

R1 = Bending radius introduced by the operator.

ri = Bending radius calculated by the system. If the value in the CR field lies between 4 and

99, indicates the difference between the chord formed by two bends and the arc of the theoretical circle, that is the difference between the theoretical radius ri and the apex A of the chord.

ri = Theoretical bending radius requested by the operator. A = Apex.

For an example of ideal curve (also called step bending), see Ideal Curve, page 67.

PAGE 42 USER GUIDE DNC 600S

L-ALPHA METHOD

1. If you have it not already on screen, call the PRODUCT L-alpha

page. The screen displays the data concerning the product in the work memory at present.

2. In order to program a new product, the work memory must be cleared by deleting the product already there.

If you do not wish to loose that product, you can transfer it to the internal memory by following the instructions below; if the current product is not important or has already been saved, you can pass directly to point 4.

3. To save the product:  Place the cursor on the P field.

and

(

 Type the number which you wish to give to this product.

 Press

number for saving this product). The product will be saved in the internal fixed memory with the

number which you have given it. It will, however, remain present in the work memory.

4. Delete the product from the work memory:

 Place the cursor on the N field.  Introduce the value

 Press the

The work memory is now empty. Note that this operation only acts on the work memory and don't

destroy the data contained in the internal memory.

to position the cursor on the top of the page.)

(if the system replies EXISTS, choose another

99.

key.

APPENDIX F: PROGRAMMING WITH L-ALPHA PAGE 43

5. The product in our example is defined as follows:

Thickness: 2 mm Sigma: 45 Kg/mm² Material: Steel Bending length: 250 mm

6. Fill in the fields on the screen according to the model below, taking in to account the following particularities:

CODE: Optional field.

p/d When the cursor is over the P or the M field, press

display the tool list. Select the tool you wish to use and

press Then fill in the table columns. Your screen should present as follows (but with the punch and die

numbers corresponding to your tools):

to go back to the PRODUCT L-alpha page.

P 0 P+ ___ N 1 I/mm CODE EXAMPLE-01 CAL_/__.__ p/d 1/ 1 St:1 Al:_ SS:_ Th: 2.00 Kg/mm² 45.000 Lmat 250.000 Dev L ____.__

-N- -L- - - -p/d- -ri- CR 1 80.00 -90.0° __/__ ____.__ __

2 60.00 90.0° __/__ ____.__ __ 3 90.00 135.0° __/__ ____.__ __ 4 85.00 -135.0° __/__ ____.__ __

7. After introducing the last length, press the key. The system calculates the radius of each bend as well as the unfolded length of the product and displays these values on the screen.

PAGE 44 USER GUIDE DNC 600S

Save this product in the internal memory by proceeding as follows:

 Introduce the number you wish to give the product in the P field, in

this case the number 1 for this product which will be used later as an example.

 Press the

If the system replies with the message EXISTS, choose another number.

key.

MODIFYING A PRODUCT

If you wish to modify a product programmed in L-alpha, call the product from the PRODUCT L-alpha page.

Deleting a Bend

 Place the cursor on the N field and enter the number of the face to be

deleted.

 Press the

key; the face containing the bend is deleted.

Adding a Bend

 Place the cursor on the N field and enter the number of the face in

front of which you wish to insert a new face.

 Press

current bend. Modify the LENGTH and ANGLE fields.

 Start the calculation by pressing  Continue in the next chapter. The definition of the bending order has

to be reprogrammed.

.The system inserts a line and copies the data of the

APPENDIX F: PROGRAMMING WITH L-ALPHA PAGE 45

DEFINING THE BENDING ORDER

Press the key, to display the bending order page (Choice 9, BEND

SEQUENCE of the main menu).

P 1 N 1 p/d 1/ 1

BEND 1 2 3 4 5 6 7 8 9 10

__ __ __ __ __ __ __ __ __ __

LEG __ __ __ __ __ __ __ __ __ __

Field Overview

FACE

LEG

Number of the sequence.

Face number.

Number of the face which will press against the stop.

PAGE 46 USER GUIDE DNC 600S

The orientation of the legs is made as a function of the bending order.

Number of bends requested when working with step bending .

p/d

Definition of a tooling pair for a particular bend (if different from the pair specified in the p/d field at the top of the page).

Example a

For this example we will use the previously created product. It was stored under the number 1. (If you cannot find it, create it by following the instructions of page 43).

 Call the product number 1 by entering its number in the P field, and

then pressing the

The following illustrations show you the desired b ending order. For each sequence, the illustration shows the sheet metal with its bend before and after bending.

 Sequence N 1: Face 1 and Leg 0

key.

 Sequence N 2: Face 3 and Leg 1

APPENDIX F: PROGRAMMING WITH L-ALPHA PAGE 47

 Sequence N 3: Face 2 and Leg 1

 Sequence N 4: Face 4 and Leg 5

To introduce this bending order:

 Fill in the FACE and LEG fields as follows:

P 1 N 1 p/d 1/ 1

BEND 1 2 3 4 5 6 7 8 9 10

1 3 2 4 __ __ __ __ __ __

LEG 0 1 1 5 __ __ __ __ __ __

 Press the key.

The system calculates the entire machine program (axes, functions, etc.).

PAGE 48 USER GUIDE DNC 600S

P 1 N 2 p/m 1/ 1 RETURNS

BEND 1 2 3 4 5 6 7 8 9 10

1 3 2 4 __ __ __ __ __ __

LEG 0 1 1 5 __ __ __ __ __ __

Fig. Sheet metal manipulation

1 Return 2 Swing 3 Swivel (= Swing 180° + return)

APPENDIX F: PROGRAMMING WITH L-ALPHA PAGE 49

 Press the information on how to move the metal sheet between bends.

key 3 times to view the bend sequence and all

N 2 / 5 CR _ _

Pu 1 Di 3 RETURNS

Example b

Here is an other bending order. For this new bending order, the following illustrations show each sequence

before and after bending.

 Sequence N1: Face 4 and Leg 0

 Sequence N2: Face 1 and Leg 0

PAGE 50 USER GUIDE DNC 600S

 Sequence N 3: Face 2 and Leg 1

 Sequence N 4: Face 3 and Leg 2

 Call the bending order page by pressing the  Fill in the

You will remark that the p/d fields are already programmed since we have already made a calculation before.

and LEG fields as below.

key twice.

P 1 N 2 p/d 1/ 1

BEND 1 2 3 4 5 6 7 8 9 10

4 1 2 3 __ __ __ __ __ __

LEG 0 0 1 2 __ __ __ __ __ __

 Press the key.

The system calculates the entire machine program (axes, functions, etc.).

APPENDIX F: PROGRAMMING WITH L-ALPHA PAGE 51

P 1 N 2 p/d 1/ 1

BEND 1 2 3 4 5 6 7 8 9 10

4 1 2 3 __ __ __ __ __ __

LEF 0 0 1 2 __ __ __ __ __ __

You may navigate between sequences in order to display each one with its

related face and leg by pressing the

bend=

 Press the

key 3 times to view the bend sequence and all

information on how to move the metal sheet between bends.

and keys (legs=

N 3 / 5 CR _ _

Pu 1 Di 3 RETURNS

 Go to sequence 1.

 Switch to semi-automatic mode by pressing  Perform the first bend.



To view the axes' position, go to the Bend Numerical page (large or

small characters) by pressing the

PAGE 52 USER GUIDE DNC 600S

key.

This page has been left blank intentionally.

APPENDIX F: PROGRAMMING WITH L-ALPHA PAGE 53

PAGE 54 USER GUIDE DNC 600S

APPENDIX G: MISCELLANEAOUS

INITIALIZATION P AGE

This page appears if a s impossible, due to unprogrammed data

r an incorrect value.

can also appear as a result of pollution of one of the memory zones which

It will also give im

calculation i

possible calculations.

INITIALIZATION DNC PS

_ Clear variables zone _ Clear punches-dies zone _ Clear machine parameters zone

EXECUTION CODE ___

It can be necessary to display this page intentionally in order to clear

mpletely the data of the DNC and to re-start the programming on a "cleanco

asis.

o display the initialization page:

Switch on the machine by pressing the

In case of unexpected apparition of the init page, proceed as follows: If point n° 1 does not re-establish a normal situation, go on to the next point

and so on. The following operations clear successively all the data in the selected

memories. It is therefore recommended to re-introduce the data.

1) Press the

2) Enter:

value

1 in the field Clear variables zone

and value

Press the

key twice.

817 in the field EXECUTION CODE.

key.

key twice.

and keys.

APPENDIX G: MISCELLANEAOUS PAGE 55

3) Enter:

1 in the field Clear variables zone,

value

1 in the field Clear punches-dies zone

value

and value

Press the

4) Enter: value

value

and value

Press the

Tche clearing of the machine parameters deletes also all the input / output

onfiguration defined by the operator.

817 in the field EXECUTION CODE.

key.

key twice.

1 in the field Clear variables zone, 1 in the field Clear punches-dies zone, 1 in the field Clear machine parameters zone

817 in the field EXECUTION CODE.

key.

key twice.

It is therefore advisable to re-configure the DNC 600S before the next use.

Caution: If you use an external system for the data re-introducing (CYBACK via RS232) and the problem persists, then the informations reentered by this system have to be called into question. The best to do in this case is to delete again the whole contents o f the DNC and to re-program the DNC manually via the keyboard (not the RS232 line).

PAGE 56 USER GUIDE DNC 600S

TOOL REFERENCE

The machine has been adjusted according to the following principle: When, theoretically, the punch's leg face on the beam is in contact with the

surface of the table, the value of the Y1 and Y2 counters is 000.00. In practice this adjustment is made using two calibrated blocks, whose value

has been introduced into the counters. Definition:

The reference value (REF Y) is theoretically the sum of the heights of both tools; punch and die.

The height of the punch is the distance between the "point" of the punch an its leg face on the beam.

The precision of all bends realized by the machine depends on the reference value REF Y.

The numerical control calculates the bending depth using:

 the REF Y value,  the geometrical values of the tools,  the sheet metal thickness.

If the resulting bends differ greatly from the programmed value, the reference and the values above must be controlled.

APPENDIX G: MISCELLANEAOUS PAGE 57

To control the reference, simply, in on the flat of the die (be careful with the pressure of the active sequence) and read the value indicated by the POS Y1 and Y2 counters.

This value must be identical, for both counters and also correspond to the REF Y reference value displayed on the PUNCH / DIE PROGRAMMING page.

If it is not possible to move the die to obtain a situation as shown possible using a die with a small opening, to place on the die a thick sheet (which will not bend under the weight of the beam) or blocks of a know precise thickness, (see figure below).

The value of the material introduced between the punch and the die mu then be subtracted to obtain the reference value REF Y.

mode, place the point of the punch

above, it is

PAGE 58 USER GUIDE DNC 600S

Y1 and Y2 Counters Differ Greatly

If the counters are not identical and present a difference superior to what is normally tolerated (the press in this case furnishes an angle which varies from one side to the other of the machine), a test must be made with another tool in order to d badly finished p press is badly calibrated. In the latter case, you must contact the manufacturer.

etermine if the difference comes from the tool itself (tool

resenting a difference in height along its length) or if the

Y1 and Y2 Counters Identical, but Different from REF

If the difference between the counters Y1 and Y2 is within the acceptable tolerance, but the Y1-Y2 value is greatly different from the REF Y value, you must determine if the difference comes from the height of the die or that of the punch.

In this case the tool at fault must be corrected so that the REF Y result is identical to the value of the Y1 Y2 counters.

Modifying the Reference for a Given Product

The possibility exists to modify the reference for each tool used for the pro c

du t. This modification is stored with the product.

It i t tool. It is thus

s in some ways a reference modification per produc

pos stinct products, to

sible in this case for the same tool pair used for two di

hav roduct XXX and to have a

e a reference modified positively in the p

reference modified negatively for the product YYY. The principle of measure / control is identical to that which is described

above. To modify the reference in a particular product, you must access the

PRODUCT PUNCHES / DIES page via the main menu, choice program the new reference in the REF Y field which is accessible by the cursor.

7, and

All the sequence

APPENDIX G: MISCELLANEAOUS PAGE 59

s having the same tooling will be modified.

PINCH POINT

Definition

The pinch point (contact point) is the position of the beam which corresponds to the moment when the point of the punch makes contact with the sheet metal placed in the die.

This point is not programmable, but is calculated by the DNC using the REF Y value and the sheet thickness.

The position is determined by the following PP = REF Y + Th (sheet thickness). The PP is used by the DNC cycle to maintain the s

retraction is programmed. As we have seen at the beginning of this chapter, the PP is cl

the Y reference and the sheet thickness. The following cases may occur: a

) the sheet is not pinched during X backgauge retraction

b) the sheet is bent too much during X backgauge retraction

To remedy these problems you must:

 verify the sheet thickness and if necessary correct it  verify the reference and if necessary correct it  add a PP correction in paramete 37.

A simple way of ver with a very large retract beam.

During the execution of the retraction, the easy to control if the sheet is pinched suffici

ifying the position of the PP is to program a sequence

ion (approx. 400 mm) and make a descent of the

calculation:

heet when an X backgauge

osely linked to

beam stops on the sheet, it is thus

ently or too much.

imply interrupt the descent command before the end of retraction to prevent

e beam from bending the sheet. An ascent command frees it immediately

r another try.

For the softwares having the "PP correction" parameter, if the reference, the tooling dimensions and material thickness are correct you can modify this parameter in order to correct the PP (adjustment of the material clamping) without interfering with the other points.

PAGE 60 USER GUIDE DNC 600S

GAUGE AXES

The addition of supplementary axes (to X) does not present any difficulties for the operator, the fields being clearly defined on the screen.

The safety factors concerning the supplementary axes such as R, X1, X2, Z1 and Z2 are described below.

X-R Safety Factors

When the R axis is a digital axis, an anti-collisi

tionin es in the die.

posi g of the gauge prob

ety z the die provokes a particular type of positioning

A saf one encircling

the p themselves in this zone.

when robes position

safety defined by the data introduced in the

The zone encircling the die is

hine p by the manufacturer.

mac arameters, and are defined The zone where all positioning is p

troduced for each set of tools. in

1 Safety zone 2 Prohibited zone 3 Value Safety die X parameter 50 4 Value Safety die R parameter 50

rohibited, is defined using the values

on safety factor prohibits the

APPENDIX G: MISCELLANEAOUS PAGE 61

X-R Safety Positioning Diagram

X"o R"o = machine parameters value 50 Xo = "a" die value Ro = "hm" die value X'o = Xo + X"o R'o = Ro + R"o Xc = X axis current value Rc Xv = X axis t Rv = R axis target value

= R axis current value

arget value

PAGE 62 USER GUIDE DNC 600S

Two Examples of Positioning

These two examples show that it is possible to position in the safety zone. If the positioning requested is situated in the prohibited zone, the DNC

refuses to go into mode and the cursor moves to the X field.

1 Departing position 2 Temporary stopping position 3 Destination position

1 Departing position 2 Temporary stopping position 3 Temporary stopping position 4 Destination position

Xv > X'o ? non Rv > R'o ?

non

oui

Pos à R'o

et X puis R

Xv > X'o ? non Rv > R'o ?

non

oui

Pos à R'o

et X puis R

oui

Rc > R'o

non

dégagem ent R

non

oui

Rc > R'o

non

dégagem ent R

non

pos. X et R

dégagemen t R

puis pos . X puis pos. R

pos. X et R

dégagemen t R

puis pos . X puis pos. R

Xv > X'c ?

Positionnem ent

simultané X et R

oui

Xv > X'c ?

Positionnem ent

simultané X et R

ouioui

ouinon

oui

Rv > Rc ?

non

Rv > R'o ?

non

oui

Xc > X'o ?Rc> R'o ?

non

ouinon

oui

Rv > Rc ?

non

Rv > R'o ?

non

oui

Xc > X'o ?Rc> R'o ?

non

APPENDIX G: MISCELLANEAOUS PAGE 63

X1-X2 Safety Factor

The safety factors offered for X1 X2 are identical to the ordinary X axis.

axis (X1 or X2) to the die is taken into account for thThe nearest

ctor.

e safety

Z1-Z2 Safety Factor

An anti-collision safety factor prevents the pass and age to modes, and the interactive message "Z1-Z2" is obtimained if the positioning is

possible (see parameter 51).

ormally the origin of the Z axes is on the left of the machine when looking

t the front of the machine.

PAGE 64 USER GUIDE DNC 600S

PROGRAMMING THE AXES DATUM

Select option 11 of the main menu, the following page appears:

AXES DATUM

--SET-- --POS- X _____.__ 0.00 Y1 ____.__ ____.__ Y2 ____.__ ____.__

 Introduce in the SET colum  Leave the field for validatio

At this moment, the POS field takes the new value.

n the values for the axes datum. n.

Dangerous Operation

 This operation can only be executed by an experimented operator who

knows the consequences of his modification.

 If you modify e positio

corresponds to the reality. After modifying, the e and mechanical limit switches are to verify. Generally the axis in question is displaced in manual mode slow speed up to the negative/positive limit switch.

 It is recommended not to modify Y1 and Y2.

is should be the case however, a particular caution has to be

If th taken. In fact, if you modify here the position and an error is committed, the damages caused by this modification can be dangerous and/or harmful for the functioning of the machine. Furthermore this modification get lost at each restarting of the machine.

th n of an axis in this way, make sure that it

lectronic, electrical

APPENDIX G: MISCELLANEAOUS PAGE 65

CALIBRATION

The CAL (calibration) field on the L-ALPHA PRODUCT STATUS page is used for the automatic compensation of varia tions in sheet metal thickness.

To ensure the good working of this function, it is necessary that the "set down" on the sheet metal with minimum pressure without bending it.

The principle of fun The bea pproaches the sheet at minimum speed and pressure, the

resistance o thickness of a reference sh

It is thus essential that the sheet is rigid enough to stop the beam with flexing, otherwise the measure will be false.

m a

f the sheet will stop the beam. This stop allows to measure the

the sheet under the punch, and in the case of a difference with

eet, to make a correction.

ctioning is as follows:

beam can

out

Calibration (procedure)

Calibration is only possible on sequence N° 1.

 Measure a reference sheet with a micrometer.  Introduce this value in the Th field.

 Program the CAL field at  Verify that the DNC is on the sequence N1.

 Change to  Place the reference sheet in the tools and bend.  Once the bend is finished, the CAL field changes automatically to the

value 4, which confirms that the calibration has been ade.

he calibration is only done once for a series of products of the same

ickness.

mode.

Use

After calibration, it is possible to work in mode. The measurement of

the sheet is made for each product on sequence N1.

To leave this work mode, clear the CAL field using the If any modifications are made to the tools, it will be necessary to repeat the

calibration.

key.

PAGE 66 USER GUIDE DNC 600S

IDEAL CURVE

The ideal curve functionality (also called step bending or big radius) allows to m

ake a bend with a large internal radius.

Ideal

curve can be programmed on one or the other of these pages.

Ideal curve i 4 to 98 (programming 0, 2 or 3 will give an error).

Note: For the result to be coherent, the number of bends to realize the

In ideal curve mode, the software calculates different bends for the first, second, second last and last bend according to the drawing below.

s defined by programming from

angle must be such that the length of each segment is greater than half the length of the V opening of the die. If this is not the case a message informs the operator and the result will be an angle too open.

APPENDIX G: MISCELLANEAOUS PAGE 67

Procedure to Perform an Ideal Curve

In this exa , an ideal curve with an internal radius of 50 mm is to be made.

mple

 Ca L-ALPHA PRODUCT page and fill in the fields in ord

ll the er to

make the bend illustrated below.

P 0 P+ ___ N 1 I/mm CODE CAL_/__.__ p/d 1/ 1 St:1 Al:_ SS:_ Th: 2.00 Kg/mm² 45.000 Lmat 2000 Dev L ___.__

-N- -L- - - -p/d- -ri- CR

1 100.00 90.0°__/__ 50 00 15 ___ 2 200.00 90.0°__/__ ____.__ __ ___ 3 100.00 ____._°__/__ ____.__ __ ___ 4 ____.__ ____._°__/__ ____.__ __ ___ 5 ____.__ ____._°__/__ ____.__ __ ___ ____.__ ____._°__/__ ____.__ __ ___

 Press the key.

Th e e system fills in th Dev L, and ri fields.

PAGE 68 USER GUIDE DNC 600S

P 1 N 2 p/d 1/ 1

BEND 1 2 3 4 5 6 7 8 9 10

1 2 __ __ __ __ __ __

LEG 0 1 __ __ __ __ __ __

Not s are not supported in the graphical display.

e: bends with a big radiu



Th e X

e total number of steps (CR) in the big radius must be such that th

distance is greater than half the V-width. Otherwise, the final resulting angle is incorrect.

d fill in the LEG and

 Press the

key an fields as below.

P 1 N 2 p/d 1/ 1

BEND 1 2 3 4 5 6 7 8 9 10

1 2 __ __ __ __ __ __

LEG _ __ __ __ __ __ 0 1 _

Caution On the sequence page, the X values in the TARGET column do not

correspond to the position actually aimed for by the axis during ideal curve.

APPENDIX G: MISCELLANEAOUS PAGE 69

CYCLE WITHOUT BEND

The cycle without bend is used to move the axes and auxiliary functions without moving the beam.

nd: To program a cycle without be

PUNCHING

 Delete the  Program Y1 and Y2 at a value greater than that of the pinch point

(PP).

The cycle proceeds as follows:

 Descent command  TDC output cut  End of bend  Sequence forward  Start of axes and auxiliary functions depending on the mode  TDC ou  Control synchro impulse  Wait descent command

This cycle has been defined for re-arming the bend.

tput activated

field.

impulse

electrical cabinet for a new

To use punching tools on the pressbrake, it is essential to know of the punch.

Then the DNC is to program in such a way that the bottom dea corresp

If necessary, a fictitious tools pair can be programmed in order to reference height such that the clamping point is just above the the punching tools.

To find these values:

onds to this exit point.

 Make a descent with the machine in adjustment mode

DNC in

 When the punch reaches its exit point, stop the descent and note the

position of the beam.

 Delete the  Introduce this value in Y1 Y2.

 Regulate the tool reference value as a function of the tools used.

mode.

field.

the exit value

d center

adjust the

pressing up of

and the

PAGE 70 USER GUIDE DNC 600S

BOTTOMING

As for most work under pre n the center of the press.

 Delete or leave the Y

The press makes the descen the bottom of the die with th .

The DNC es that the beam switch

not has stopped and the ascent cycle is then

ed on.

ssure, it is preferable to do this type of bending i

 Delete th fiel

1 and Y2 fields unprogrammed.

t in the conventional way until the beam stops in

e pressure of the current sequence

ANGLE CORRECTION

the angle bent an the angle

It can happen that is slightly greater or less th programmed.

The operator has then the possibility to introduce t bent. Th d Y2 axis vae DNC will correct the Y1 an

This pa lay the corrections on the calculated

ge allows to introduce and disp

axi bend.

s values for the current product and

he real value of the angle lues in consequence.

Call th ge by pressing the

e CORRECTION pa key.

Th a

e p ssage to the following or previous bend is made by using the or

keys.

N 1 CY __

-COR N- -COR P-

90.0°

MES ___._° ___._° Y1 ___.__ ___.__ Y2 ___.__ ___.__ X ___.__ ___.__

APPENDIX G: MISCELLANEAOUS PAGE 71

COR N This column a

current sequen

llows to make a correction for the

ce only. (The wording COR N

may possibly not appear according to the machine configuration, however it concerns always the fields of the left column).

COR P This co m rrections on th

whole product in one singl peration.

lumn allows to ake co e

e o

Value of the angle programmed in the sequence.

This field is not program e on this page. It simply repeats the desi

mabl

red value.

MES Value of the angle measured after bending.

By leaving the

field the DNC calculates automatically the correction for Y1-Y2. A cord to w ether the op tor will app

c ing h era ly this correction to the current sequence or to all the sequences having the same angle, the measured value is to program in the COR N or

COR P column.

2, X, etc. Direct corrections on the axes.

Y1, Y

ollowing working method is recommended:

The f

 Program or call the product.  Pass to semi-automatic mode.  Execute the first bend.  Measure the re

Enter the measured angle in the COR N or COR P field (see above).



sult.

The DNC calculates automatically the corrections to apply in Y1 and Y2.

 If necessary, make the corrections on the gauge axes.  Bend a second product on the first bend, in order to control the

corrections.

 Pass to the next sequence and proceed in the sam

e way for the

following sequences.

 When all the bends are correct, pass to automa ode and produce

tic m

normally.

Axes Y1-Y2 to intervene directly on the values of the Y1 and Y2

If the operator wishes axes, he has to do it on this page directly in the Y1-Y2 fields, and not in th

equence page

PAGE 72 USER GUIDE DNC 600S

ALPHANUMERICAL CHARACTERS

The CODE field allows the introduction of alphanumerical characters.

To introduce these combined with the ys of the keyboard.

Example: To int

Here i hese keys:

s the correspondence of t

0 1 7 8 9

--------------------------------------------------------------------------------------------

A D G J M P S V Y \ B E Z H K N Q T W ] C F I L O R U X [ ^

MESSAGES RORS / ER

characters, the keys are used, numerical ke

roduce the character A, press the

the latter held down, press the key.

and

key and keeping

2 3 4 5 6

W i-automatic or

hen passing from

a de, t or is mentioned

utomatic mo

b ossibility to sen mode.

y the imp pass to the cho

T orces t

he DNC f he

concerned and the

The error must then be corrected and the passage to or tried again. If ano il all rs have been correcte

By error we under ming of a value not realizable by the DNC (further than the limit switches, collision, etc.).

programming or manual mode into sem

he safety systems are verified and any err

mode; the cursor positions itself on the

interactive field indicates ERROR.

ther error exists the process repeats itself unt the erro

stand the program

field

mode be

APPENDIX G: MISCELLANEAOUS PAGE 73

INTERACTIVE MESSAGES

CASSETTE

COMPLETE

COPIED

DELETED

END

Indicates that the "cassette" (internal memory)

- has not been initialized

- is polluted

- has changed the format (e.g. by changing the software version). Just "clea

the P field, entering 999 and pressing the

Displayed in more space for an additional sequence).

Displayed in

deleted using the

Displayed in sequence of the program.

n" the internal memory by placing the cursor on

key.

mode when the buffer is full. (No

mode when a new sequence has been

singcreated at the end of the program u the

mode when a product or sequence is

key.

or mode, indicates the last

key.

xes

Err - a

Err - FC

ERROR

EXECUTED

EXISTS

FREE

Following error (theoretical trajectory).

Limit switch e

This message is indicated when a calculation is impossible, or would create out When security measures are in force (in other words when an axis is told to move beyond its authorized limits).

This information is followed by a return to and the cursor positions itself automatically over the field to be corrected.

In the case of a transmission exterior ->DNC, this indicates that the data received are not valid, and thus impossible to read.

The DNC has made the calculation correctly (corrections transformations, etc.).

Indicates that the product or tool number chosen for storage already exists.

Displayed in

rror.

-of-range values.

mode when the buffer is empty (no

mode

message

PAGE 74 USER GUIDE DNC 600S

sequences programmed).

IGNORE

INSERTED

Jitter

LAST

NO ACTIVE

NO PLACE

Displayed when the k (must not) be used

ey used cannot at

that time.

Indicates that the insertion has been made correct

ly.

Error caused by the application of simultaneous edges on the input encoder signals (can be provoked by

a parasite, a fault in the encoder or a short-circuit on the encoder phases).

Displayed in

mode when the sequence shown is the

last of the product.

Is displayed during successive display (

key) of the sequences which exist in the buffer (except for the last sequence which indicates END).

Indicates an attempt to change to

or mode on

a sequence where the CY is programmed at 0.

Indicates that the product list memory has no more space available.

PAUSE

RUN

STOP

STORED

synchro

TEACH OK

TIME OUT

Axis pause.

Same as NEXT but with the

key.

Indicates that the transmission is being made correctly. This message flashes slowly for the duration of the transmission.

Indicates that the transmission has been interrupted by means of the DNC STOP key.

Indicates that the storage operation has been made correctly.

The maximum authorized separation (X1<->X2) has been exceeded.

The TEACH operation has been made correctly.

Indicates that the DNC has not received any valid information since the beginning of the transmission, and thus returns the command to the operator. This message appears after about 30 seconds.

TOL ZONE

Displayed in

or mode when the axes are positioned outside of their tolerances. Generally, just press the start of the front pannel to position the axes will d o.

APPENDIX G: MISCELLANEAOUS PAGE 75

UNDEFINED

Refusal to change to or vital to execution are not or only partially programmed and thus prevent the verification calculations.

, if the parameters

Var KO

One of the DNC inputs "SERVO DRIVER OK" is not (no longer) active (+24 VDC).

PAGE 76 USER GUIDE DNC 600S

lank intentionally. This page has been left b

APPENDIX G: MISCELLANEAOUS PAGE 77

APPENDIX H: TRANSFER

For transfer to a PC by serial line the DNC 600S must be equipped with the RS

232 option.

Products The PC ipped with the CYBELEC PC1200 software with option

LINK7000. This combination allows to create pr software on PC and to transfer them to the DNC

Backup e equipped with the CYBACK storage software.

Updating sity

The PC must b CYBACK allo intervention on the data on the PC's level.

Easy, practical and very rapid, this possibility facilitates in case of neces the updating of the DNC software in the FLASH memory. The PC must be equipped with the updating software.

must be equ

oducts in the bending for execution.

ws to make a backup of the data in the DNC without

 Call the TRANSFER DNC <--> PC page via the main menu.

DNC <-> PC STATUS TEST TRANSFER _ 1,2 Cyback 3,4 DATA LINK TEST 1 2 7 FLASH 8 EXT KEYB

11 Internal backup 12 Internal restore Quantity of free backup memory 96%

-- COMPUTER LINK -Baud rate 57600 Stop 1.0 Parity odd (1) EVEN (0) _ Bits 8

Who commands ? This page will only be used to initialize the transmission type. It is not

possible to start the transmission from the DNC, this will always be done from the PC.

TRANSFER Allows to select the type of transmission. Cyback Will initialize a d

utility C page 80

DATA LINK TEST Selects the test mode of the serial ports.

See the following chapter.

FLASH Prepares the EXT KEYBD Puts the DNC in external terminal mode.

See the concerned chapter.

Internal backup Launches a backup of all mac

and/or tools onto the Flash m ils, refer to page 98, Internal Bac

Internal restore Restores all machine paramters and/or tools

previously backed up in the Flash memory. For details, refer to page 100, Internal restore of

PMs and tools

yback and the DNC. For details, refer to

, CYBACK.

ata transfer between the PC

DNC to receive an updating.

hine parameters

emory For deta

kup.

PAGE 78 USER GUIDE DNC 600S

TESTSING THE SERIAL PORTS

The 2 serial ports of the DNC 600S are SUB-D 9P, plugs J5 and J6.

 Introduce and verify that the transmission parameters are programmed

as follows:

PARAMETERS RS232 / DIVERS

. . .

-- COMPUTER LINK – 106 BAUD RATE 4800 STOP 1.0 PARITY ODD(1) EVEN(2) _ BITS 8 PROTOCOLE _ BCC ___

 Set a test loopback connector on the serial line connector RS232 to be

tested.

key to

 Press the

The message RUN must flash.

 To stop the test, press the

If you wish as well to test the

 Connect the transmission cable to the DNC and fit a short circuiting

loopback connector on the other end

start the test.

(STOP) key.

cable:

of the cable to be tested.

est Loopback Connector T

Pin 2 (RXD) wired to pin 3 (TXD) Pin 4 (DTR) wired to pin 6 (DSR) Pin 7 (RTS) wired to pin 8 (CTS)

RS 232 Transmission Cable

The shield must be connected on the metallic hood of the Sub-D plugs.

APPENDIX H: TRANSFER PAGE 79

CYBACK

For this program, the RS cable must be connected on the RS232 port of the J5 plug. The transmission parameters must be programmed on the DNC with the same values as for the test of the serial ports (see paragraph above). These same values must be programmed on the PC.

If the transmission runs at 4800 baud, you can try to increase the transmission speed at 9600 baud. The RS 232 norm gives as limit 15 m. By using a more important distance, there is a risk of bad transmission and it will be necessary to diminue the transmission speed.

Reminder: The transmission command can be given only from the PC side.

To permit the serial transmission with CYBACK: Pass to programming mode.

 Call the TRANFER DNC <–> PC page.  Introduce 2 in the TRANSFER field.

 Press the

The display indicates STATUS RS232.

Programming mode From this instant on, the DNC can receive data sent from the PC, provided

that the DNC is in programming mode. In the other modes (auto, semi-auto or manual) the DNC doesn't respond, the transmission is not accepted. During the transmission the operator can leave the DNC on any page. It is not necessary to display the transfer page.

The transfer mode remains memorized, even if the DNC is disconnected from power supply. It has to be re-programmed if the mode has been changed (for instance FLASH).

key.

PAGE 80 USER GUIDE DNC 600S

This page has been left blank intentionally.

APPENDIX H: TRANSFER PAGE 81

AP G THE CURRENT SCREEN PENDIX I: PRINTIN

The DNC 600S authorizes, if the RS232 port is included (optional), to print the content of a page displayed on the screen (connector J5).

This allows, through a hardcopy, to retain information regarding the product(s), tools or machine parameters.

To be able to nd this information to the p rinter, it is compulsory that you

use a serial pri You have to program the DNC 600S transmission parameters to the printer's

required specifications.

Baud rate: 4800 max. Bits: 7 or 8 Stop bits: 1, 2 etc. Parity: 1 or leave blank Protocol : this field defines how many DNC's pages you want to have

BCC: this field defines the left margin in cm.

Valid range: 0 (2 space characters) to 9 (20 space characters) Example: BCC = 4, then 2 + (4 x 2) = 10

nter (RS232).

on one printer's page. After the relevant number the DNC sends a form feed character. Example: 1 = 1 DNC's page per printer'spage. 2 = 2 DNC's pages per printer's page, etc.

left margin = 2 + (BCC x 2)

TO PRINT FROM THE DNC

 Select the relevant page.

 Simultaneously press the stop and correction

keys.

or menu

PAGE 82 USER GUIDE DNC 600S

HYPERTERMINAL

It is possible to enter all the pages of a DNC600S on a PC in a txt fil allows for a hardc DNC 600S elements.

opy backup of the machine parameters, programs or other

CONNECTION

Connect an inverted (non-modem) RS 232 cable between t the DNC and the RS 232 port of the computer. the of a ble computer without an RS 232 port, a USB-RS23 onv (e.g. an Aten brand converter).

In case porta

2 c erter has to be used

e, which

he J5 connector of

APPENDIX I: PRINT OF THE CURRENT SCREEN PAGE 83

PREPARATION

The connection parameters must be the same on the DNC as on the HyperTerminal.

DNC 600S Parameters

RS232/STOPS/DIVERSE

104 DWELL TIME IN MINUTES _

---- COMPUTER LINK ---106 BAUD RATE 57600 STOP 1.0 PARITY ODD (1) EVEN (0) BITS 8 PROTOCOLE_ BCC

Protocole: The number of DNC pages printed on a page is

indicated in this field. According to the indicated number, DNC sends a page-feed to the printer.

Example:

1 = 1 DNC page per printer page. 2 = 2 DNC pages per printer page. If nothing is programmed, the pages are sent one after the other.

BCC: this field

(spaces). left margin= 2 + (BCC x 2)

Field: 0 (2 characters) to 9 (20 characters)

Example: BCC = 4, i.e. 2 + (4 x 2) = 10

defines the left margin in characters

LAfter having modified the parameters:

• Go to the TRANSFER page.

• Select 1 then hit the

new parameters, or turn the DNC off and on again.

key to confirm the transmission with the

PAGE 84 USER GUIDE DNC 600S

Configuring HyperTerminal

• Enter a name for the file which will contain the parameter setting for

this numerical command and choose an icon. You will call up this file every time you having to reset the Hyper Terminal pa

connect to the numerical command without

rameters.

• Connect via a serial port.

APPENDIX I: PRINT OF THE CURRENT SCREEN PAGE 85

• - Port parameters:

Bits per second: Data bits: 8 Parity: None Stop bits: 1 Control flow: None

9600

• Select properties:

PAGE 86 USER GUIDE DNC 600S

• Enter the parameters as above.

• Click the ASCII Configuration button.

• Check the Line Wordwrap box. Then OK

• Select Display then Font

APPENDIX I: PRINT OF THE CURRENT SCREEN PAGE 87

• Choose Standard Terminal 14

ENTERING THE SCREENS

The parameters have now been set on bo which have been interconnected are ready to transm

• Open the Call menu,

• Select Call

• Open the Transfer menu.

• Select Text Capture.

th the DNC and the Hyper Terminal,

it.

• Select the location and name of the file which will contain the DNC

screen pages.

PAGE 88 USER GUIDE DNC 600S

• On DNC 600S, select the page to be printed

• Press the

• Repeat for each desired page.

• Disconnect

and keys simultaneously.

es are visible in the previously selected txt file. • The captured pag

Printing out all Machine Parameters

With the DNC 600S P, PC and PS, starting from the SIXFDAx version, it is possible to print all the machine parameters in a single operation. To do th

• Go to th

• Press

e machine parameters

simultaneously and

is:

APPENDIX I: PRINT OF THE CURRENT SCREEN PAGE 89

APPENDIX J: PROTECTING THE ACCESS LEVELS

GENERAL INFORMATION

Depending on the version, the DN 00S r can not 4 tions physi y.

-posi cal ke However the protection levels 0-1-2 and 3 still ex ist. For the case where the physical key doesn' t, the acc password.

CAUTION

initialization of the machine param rs (817 on INIT pa Mach Par = 1).

T in this man e always w speak f a (virtual)

hus,

e ey in posi ".

.g.: "K

vels T exist 4 acc vels, 0 to 3

Le here ess le .

0 = Programming prohibited. 1 = Creation, correction, modification, saving, deleting, transfer of one

2 = Creation, correction, modification, saving, deleting, transfer of the

3 = Programming, modification and transfer of the machine param

Access These levels are accessed by pressing the

minimum. A pop-up is displayed.

: these passwords will be reset default

ual w

tion 3

(or more) product(s).

tools.

C 6 can o be equipped with a

ill o key position like

t exis ess is made by

in the values at each

ge and Choice Init ete

eters.

keys during two seconds

Press the The key position is displaye ber on the upper right part of the screen (after the interactive field).

When passing to a higher, not authorized level, a password modification will be requested. When the password has been introduced, you can "navigate" levels inferior or equal to the authorized one without reintroducing the password. Passing to level 0 resets password validity.

Users A number of different users are predefined. A user is not a physical person in

particular, but can be e.g. all the operators having the authorization to work on the machine. Each predefined user possesses his own password and a maximum level which he can reach. See further under Table of users, access and passwords.

Password Certain users can modify their own password. For the others, the password

can only be changed by a user having a superior access.

Loss of the password In case of loss of the password, a user of a superior level has to reprogram

the password.

PAGE 90 USER GUIDE DNC 600S

or keys.

d as a num

USERS

Table of users, access and p

Level Names of

predefined users

1 2 3

4 WSSUPER OK Workshop supervisor OK 3 5 MACHMAN turer's NO OK 3 Machine manufac

6 MACHMAN0 hnicians

A predefined user is just a r Many physical persons can 1).

EUL1 NO

EUL2 NO NO

EUL3 NO

asswords

Changing of Changing of Level Password Us the personal passwords of virtual key by default

password the

subordinateds

1 2

OK OK 3 Responsible of the tec

ole. have the same role. E.g., many physical operators can be a EUL1 (level

111 Operators having the access

222 Operators having the access

333 Operators having the access

er generally attributed to:

authorization of level 1

authorization of leve

Service technicians

at the machine manufacturer's

f level 2 authorization o

l 3

After ins it is advised to modify the p assword by default of level 4 (WSSUPER = Workshop supervisor) and o ecause the passwords are in this manua

talling the machine

f level 3 (EUL3 = Operators with authorization level 3), b

APPENDIX J: PROTECTION OF THE ACCESS LEVELS PAGE 91

cybelec DNC600S User Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
