Numerical Control CybTouch 8 PS
The CybTouch 8 PS is available as a box or panel version, controlling 3 or 4 axes.
Its revolutionary fully touch screen interface makes it
The optional graphical profile drawing and manual sequencing features make the CybTouch 8 PS a powerful,
efficient and productive numerical control for your synchronized press-brake.
The new beam management offers smother and faster movements with higher precision.
CybTouch 8 PS provides a high speed radio RFlink wireless communication with portable PC for backup,
restore, data transfer functions, including one oscilloscope for tracing the beam movements.
as easy to use as a positioner control.
Ordering information
CybTouch 8 PS 3 axes (Y1-Y2-X)
In box version, white color S-CBT-83PSA12/BW
In box version, grey color S-CBT-83PSA12/BG
In panel version S-CBT-83PSA12/P
NB, The emergency button is included in the delivery of the CybTouch.
The 2 other buttons on the left are not delivered and the holes are hidden.
Options:
Graphic 2D
Profile drawing with manual bend sequencing (CybTouch 8 only) S-OFT-CBT/2D
4th axis
Upgrades the CybTouch 8 with a 4th analog axis for R axis S-OFT-CBT/4A
RFlink USB key for PC including CybTouchTools software S-OPT-RFLINK
RFlink USB
key for PC.
Datasheet_CybTouch8_PS_v1.8.doc / June 2014 1/5
Advantages
FOR OEM
FOR END USER
• Complete set of Wizards for backgauge axes
and beam. Machine startup is made very
simple and straightforward. Time of setup is
significantly reduced and more reliable.
• RFlink wireless radio frequency data
communication allows easy and fast backup /
restoring of parameters, parts and tools.
During startup, the positioning beam curves
can immediately be observed and controlled
on the PC. All this without any cable
connection to the numerical control *.
• Reduced electrical wiring, electrical cabinet
size and equipment for lower set-up costs on
each press brake.
• Flexible software for axes configuration,
inputs-outputs and auxiliary functions
according to specific needs.
• Screen content can be simplified to its
essential minimum by removing all unused
functions, buttons or information.
• New indexing functions reduce the quantity of
switches and wiring, while provid ing m ore
reliable indexing.
• CybTouch 8 PS accepts encoders with or
without complementary signals.
• Available as integrated into a box to be
mounted on an arm or in panel version.
• Very intuitive, no explanations required.
• Operator immediatel y feels conf ident and
comfortable using this control.
User intuitively enters the angle, the desired
position of the bend and the thickness of the
material. No need to erase, memorize or
change modes. The depth and back gauges,
pressure and crowning are automatically
adjusted.
• EasyBend page provides immediate easy use
of the machine: a second operator can briefly
interrupt production without changing the
program when an urgent bend is required.
• Profile drawing and manual sequencing
(option) for fast and precise program creation,
as well as manual bend sequencing.
• Energy saving thanks to integrated Eco mode
function that automatically stops the main
pump after a chosen time of inactivity.
• Fully touch screen human machine interface
offers the best of modern technology.
• Colors are vivid but not aggressive, prov id ing
excellent readability thanks to the large
characters and big buttons.
• Recurrent programs for producing complex
parts can be created and memorized for easy
re-use.
• Can easily be integrated into existing
electrical box diagrams. Ideal for upgrading
machines without NC with m inimal chang es .
• RFlink*, a wireless radio frequency
transmission integrated in the CybTouch,
allows easy parameters backups or firmware
upgrades. This provides modern, fast and
simple communication, with no need to open
the housing, no need of connecting cable.
• Pop-up messages for security or external
malfunctions.
• RFlink wireless radio frequency data
communication allows backup and restoring
operations without any cable connection to
the numerical control *.
• Many languages available directly in the
CybTouch 8 PS.
• Internal backup in a special safe memory
allows the user to restore at any time the
original parameters; machine is running again
in an extremely short time in the event of a
memory loss or involuntary parameter
modification.
• The USB port allows easy backup and parts
transfers.
*Need RFlink USB key (option)
Datasheet_CybTouch8_PS_v1.8.doc 2/5
Axis and bending functions
Back gauge axis & bending beam
Wizards and auto-tuning of the axes (including for the bending beam).
Oscilloscope for the beam trajectories via RFlink (without cable).
Indexing in several modes (including for the bending beam).
Encoders with or without complementary signals.
Inch / mm.
Bending features
Program page at start up for quick accessibility.
User friendly tool management.
Automatic calculation of:
(according to the programmed material, thickness, bend angle and selected tools).
Pressure management.
Crowning (pressure or mechanical type).
Up to 10 pre-programmable types of materials.
Backgauge clearance during the bending process (yes / no).
Automatic back gauge correction according to the bend and flange length.
Sequence repetition.
Part counter with auto-stop.
Time and stroke counters for oil service.
Eco mode.
Pump start button.
Memory capacity
Punches 100
Dies 100
Programs 300
Sequences per program 24
The below elements are available and can be configured on CybTouch 8 PS by the OEM.
However, some functions depend on the machine construction.
Available features depend on the number of available axes and inputs/outputs.
• Bend depth.
• Bend pressure.
• Back gauge positioning.
• Crowning:
Standard calculation.
Automatically calculated if 3 resulting angles are measured.
• Angle correction.
• Bend allowance.
• Manual bend sequencing.
Datasheet_CybTouch8_PS_v1.8.doc 3/5
Technical Characteristics
CybTouch 8 PS
Screen
7" color graphic CRT screen, 800 x 480 pixels with LED backlight control.
Work memory
SRAM /SDRAM
System memory
FLASH memory with firmware update via RFlink.
Cybelec RFlink (radio frequency link).
micro USB port (for memory stick only)
X – R Axes
• +/- 10VDC management of AC/DC drives and motors.
• SP-SN 0-10 VDC 2 adjustable speeds.
Units
inch/mm conversion.
Power supplies
• numerical control: stabilized + 24VDC -15% / + 20% 15W
• digital inputs/outputs: stabilized + 24VDC -15% / + 20%
Encoder inputs
3 (+ 1) encoders
complementary signals are not necessary, but recommended.
Power supplies
for encoders
5 VDC (supplied by CybTouch) max. 250 mA for each encoder.
Digital inputs
8 inputs.
optocoupled.
Analog inputs
2 analog inputs 0-10 VDC.
short circuit proof.
Digital outputs
12 outputs
possibility to define 2 outputs for doubling the current.
Analog outputs
6 analog outputs -/+10 VDC, Y1-Y2-X-R, pressure and crowning.
impedance out < 100 Ω, short circuit proof. load ≥ 2 kΩ (max 15 mA).
Reference
voltage
10VDC reference.
impedance out < 100 Ω, short circuit proof. load ≥ 2 kΩ (max 15 mA).
Operating
conditions
min. 5° Celsius, max. 40° Celsius.
relative humidity 10 to 85% noncondensing.
Dimensions
See diagram below.
EC Directives
IEC61131-2.
Communication
• 0-10 VDC frequency converter for AC asynchronous motors.
• SP-SN-HS 2 speeds mode.
5 VDC or 12 VDC* or 24 VDC* (* = external power supply).
optocoupled and short circuit proof.
24 VDC source mode, max. 0.5 A.
Datasheet_CybTouch8_PS_v1.8.doc 4/5

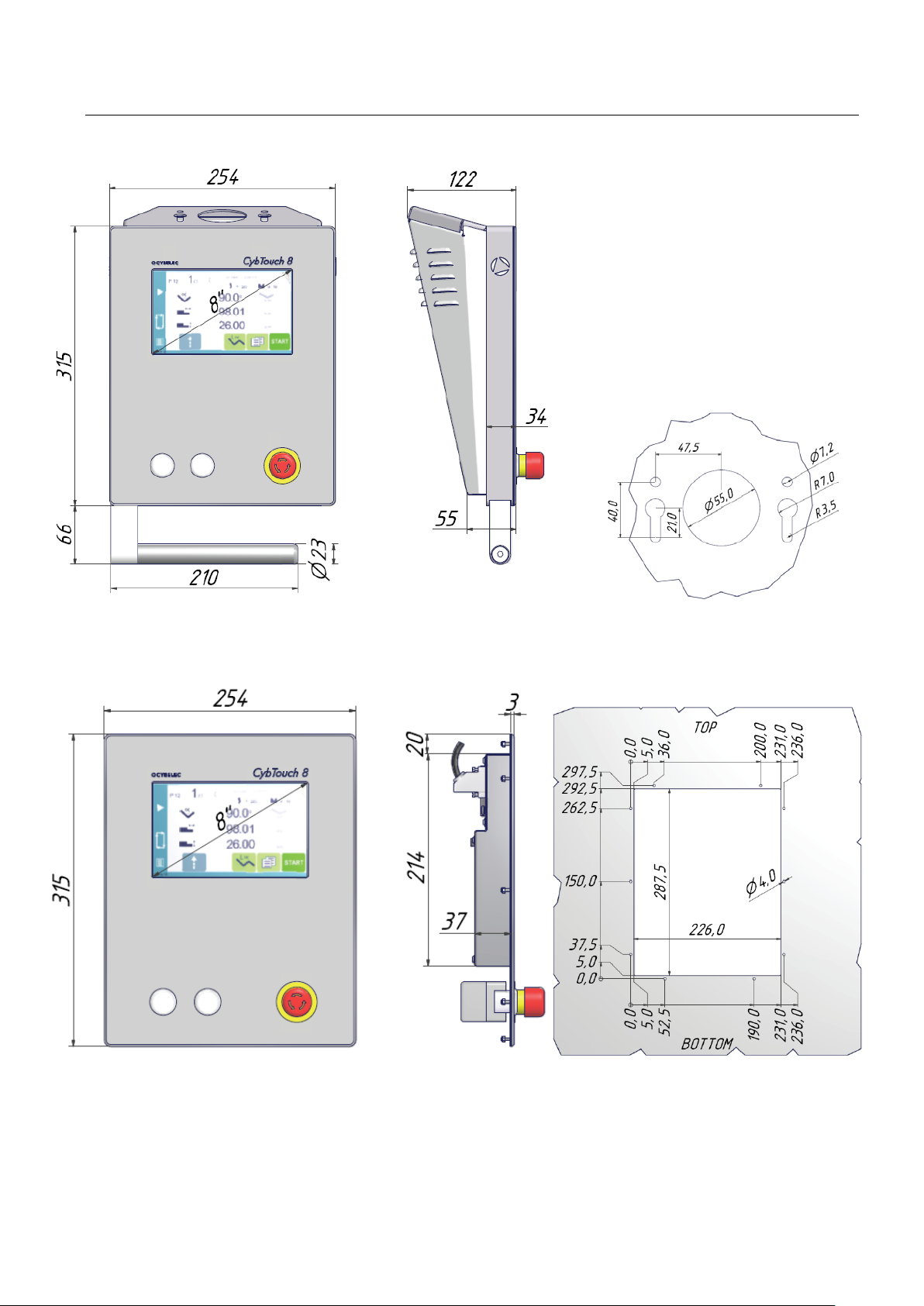

Dimensions
Modifications rights reserved
Box version
Panel version
Datasheet_CybTouch8_PS_v1.8.doc 5/5
