MANUAL BRAKE BLEEDER & UNIVERSAL

ADAPTOR

MODEL NO: CHT857 & CHT858

PART NO: 1801857 & 1801858

OPERATING INSTRUCTIONS

ORIGINAL INSTRUCTIONS GC0921 - REV 1

INTRODUCTION

Thank you for purchasing this CLARKE Brake Bleeder.

The CHT857 clutch & brake bleeding kit is designed for one-man operation
requiring no external power source, The user has to only fill the reservoir and
pump the handle.

The reservoir capacity of 4 ltr enables an entire system flush in one fill, without
the risk of running the reservoir dry.

The bleeder is supplied with a 44 mm diameter cap which will fit the master
cylinders of most European cars. In the event that the standard 44 mm
diameter cap does not fit the master cylinder reservoir, the optional Universal
Adaptor - CHT858 will be required.

Please read this manual thoroughly before attempting to use this product, and
carefully follow all instructions given.

SPECIFICATIONS (CHT857)

Method of operation Hand operation (one-way siphoning)

Max Container Capacity 4 Litres

Operating Pressure 10 psi

Max Pressure 30 psi

Dimensions D x W x H 174 x 184 x 415 mm

Suction & Connecting Hose Size 8 mm o/d x 1000 mm long

GUARANTEE

This CLARKE product is guaranteed against faulty manufacture for a period of
12 months from the date of purchase. Please keep your receipt as proof of
purchase.

This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.

Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.

This guarantee does not effect your statutory rights.

2

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

SAFETY PRECAUTIONS

WARNING: AS WITH ALL EQUIPMENT, THERE ARE CERTAIN HAZARDS
INVOLVED WITH ITS OPERATION AND USE. EXERCISING CAUTION WILL
REDUCE THE RISK OF PERSONAL INJURY.

It is vitally important that all precautions are taken, as specified, which will not
only provide protection for yourself and that of others around you, but will also
ensure that the product will give you long and satisfactory service.

WORK AREA

1. Keep the work area clean and well lit. Floors should always be kept clear.
Cluttered or dark areas invite accidents.

2. Keep children and bystanders away while operating machines and using
tools. Distractions can cause loss of control.

PERSONAL SAFETY

1. Always stay alert, watch what you are doing and use common sense when
operating this product. Do not use the product while you are tired or under
the influence of medication, drugs or alcohol. A moment of inattention
can result in personal injury.

2. Do not over-reach. Keep your proper footing and balance at all times
when positioning the product.

3. Brake fluid is highly corrosive. It is advisable to always wear gloves and
approved safety glasses at all times and always prevent contact with
painted surfaces.

4. Always store this product out of reach of children and do not allow persons
unfamiliar with these instructions to operate it.

5. Always thoroughly familiarise yourself with this product & its operation, and
always read and understand the instructions and warnings in this manual
before using the equipment.

GENERAL EQUIPMENT USE AND CARE

1. Always maintain the product with care and keep it clean for best / safest
performance.

2. Never use this product if any part is damaged. Have it inspected and
repaired by your local Clarke dealer.

3. Never modify or tamper with this product in any way. Use it only for the
purpose for which it is designed.

3

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

4. Never use the fluid container to extract or store flammable liquids, toxic or
corrosive chemicals or hold any fluids at very high temperatures.

5. Always consult and follow the vehicle manufacturers recommended
procedures when working on any hydraulic system.

6. Always drain, wash and clean the unit immediately after each use.

7. Always ensure the brake bleeder is in a level position.

8. Never drop, throw or mishandle the equipment.

9. Always make sure that the brake bleeder is in perfect condition before use
with no cracks which would result in fluid leaks.

11. If brake fluid is spilt, the area must be cleaned completely and sand or
sawdust scattered on the area to absorb the fluid and then cleaned up.
You should also alert people in the vicinity to the possible danger of
slipping.

12. Always comply with all local authority regulations when disposing of any
type of used fluid.

13. Always have the unit repaired by your local CLARKE dealer, using only
identical replacement parts. This will ensure the safety of the unit is
maintained. The use of non standard parts could be hazardous.

Your CLARKE Brake Bleeder has been designed to give long and trouble free
service. If, however, having followed the instructions in this booklet carefully,
you encounter problems, take the unit to your local CLARKE dealer.

ENVIRONMENTAL PROTECTION

One of the most damaging sources of environmental pollution is oil products.
Never throw away used brake fluid with domestic refuse or flush it down a sink
or drain. Collect all the brake fluid in a leak proof container and take it to your
local waste disposal site.

If disposing of this product or any damaged components, do not dispose of
with general waste. This product contains valuable raw materials. Metal
products should be taken to your local civic amenity site for recycling of metal
products.

4

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

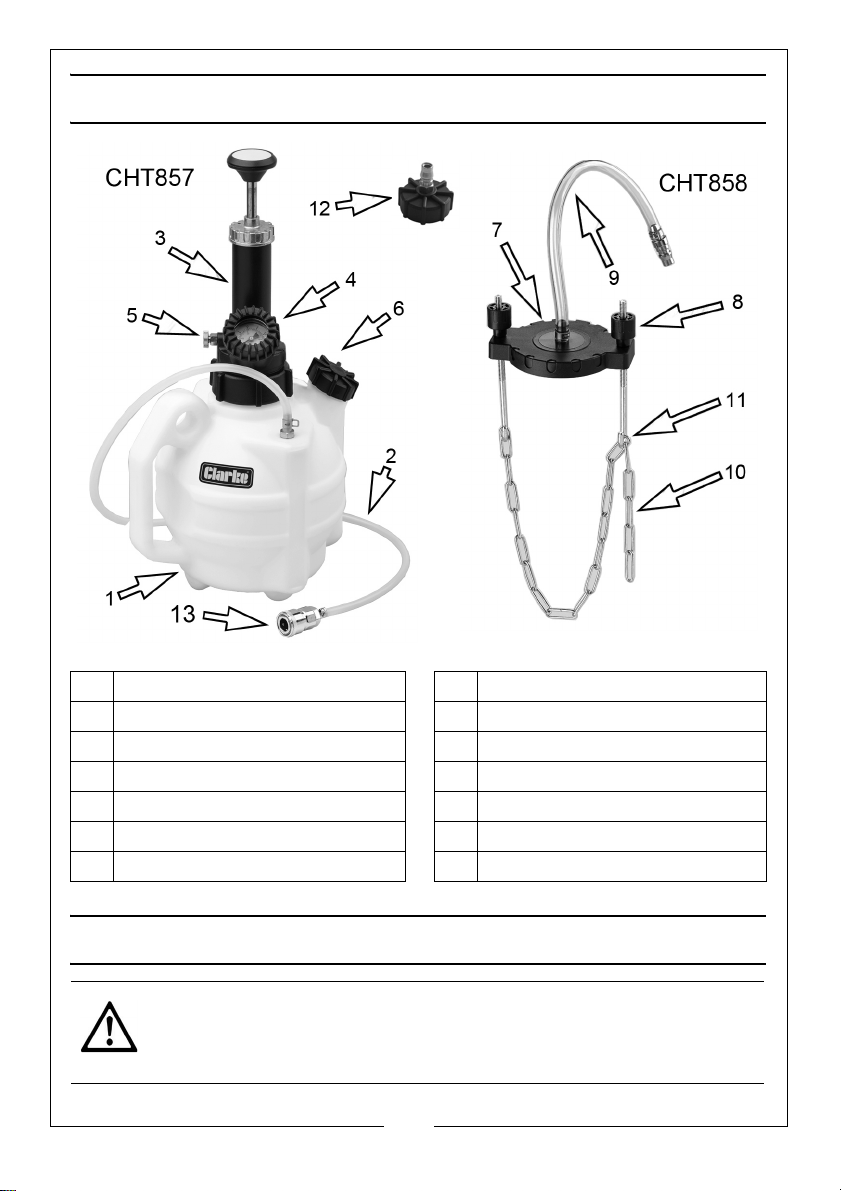

OVERVIEW OF CHT857 & CHT858

1 Fluid Container 8 Tensioning Nut

2Container Hose 9Adaptor Hose

3Hand Pump 10Chain

4 Pressure gauge 11 “J” Hook

5 Pressure Release Valve 12 Bleeder Cap (44 mm)

6 Container Cap 13 Quick-release Coupling

7 Reservoir Adaptor

CONNECTION & OPERATION

CAUTION: BRAKE FLUID IS CORROSIVE. IN THE EVENT OF FLUID SPILLAGE,
CLEAN UP & USE WATER TO FLUSH AWAY IMMEDIATELY.

5

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

CHT857 BRAKE BLEEDER

1. Ensure that the brake bleeder is clean and free from old brake fluid.

2. Remove the hydraulic fluid reservoir cap from the vehicle. If old fluid is
contaminated, drain it off and refill the system with fresh fluid.

3. Firmly screw the bleeder cap (12) onto the vehicle hydraulic fluid reservoir,
ensuring that the gasket seats correctly.

4. Make sure that the quick-release coupling (13) of the container hose (2)
and cap (12) are clean. Pull back the collar of the quick coupler and push
the adapter into it. Release the collar to lock the two together.

5. Place the brake bleeder in a stable location in the vehicle engine bay and
tighten the bleeder cap (6). Commence pumping the hand pump (3) to
pressurize the system to approx 10 psi (0.7 bar) as indicated by the gauge.

6. Check for leaks at the cap (12) and at the hose (2) and if leaking, release
the pressure in the bleeder by gently unscrewing the pressure release valve
(5). Re-fit the cap and hose and pressurise again.

• DO NOT remove the container cap before depressurising the bleeder.

7. If leak free, release the pressure, unscrew the bleeder cap (6) and add
new hydraulic fluid of the type recommended for your vehicle. to the
bleeder container.

8. Tighten the bleeder cap and pressurise the bleeder.

• DO NOT exceed 20 psi (1.4 bar). Higher pressures may damage your

vehicle hydraulic system and could result in injury.

9. Determine the correct brake bleeding sequence from your vehicle service
manual.

10. Attach a bleed tube (not supplied) to the bleed nipple at the first wheel
cylinder to be bled. Place the free end into a container. Open the bleed
nipple and wait until fluid runs clear and free of bubbles, then re-tighten
the bleed nipple.

11. Repeat on each bleed nipple, restoring pressure in the bleeder if
necessary. When complete, release the pressure by loosening the pressure
release valve (5).

12. If, when finished, fluid remains in the bleeder container, open the bleed
valve closest to the vehicle master cylinder until the fluid drops just to the
maximum fill level on the reservoir. Close the brake bleed valve.

13. Remove the bleeder cap (12) from the fluid reservoir, taking care to avoid
spilling any fluid remaining in the hose.

14. Replace the reservoir cap on the vehicle, checking that the fluid level is at
the maximum level indicated on the vehicle reservoir.

6

Parts & Service: 020 8988 7400 / E-mail: [e-mail] or [e-mail]

15. Carefully check for leaks and test for proper brake operation before
driving the vehicle,

CHT858 RESERVOIR ADAPTER

If the 44mm bleeder cap (12) does not fit the vehicle hydraulic reservoir, the
CHT858 adaptor will be required.

1. Fit the reservoir adapter over the reservoir filler neck.

2. Pass the chain (10) under the hydraulic reservoir, of the vehicle and attach
to both "J" hooks (11). Turn the two tensioning nuts (8) equally to tighten the
Reservoir Adapter to the reservoir rim to seal the system.

3. Make sure that the quick-release coupling (13) of the container hose (2)
and adapter hose (9) are clean. Pull back the collar of the quick coupler
and push the adapter into it. Release the collar to lock the two together.

4. Place the brake bleeder in a stable location in the vehicle engine bay and
commence pumping the hand pump (3) to pressurize the system to
approx 10 psi (Do not exceed 20 psi).

5. If the system does not hold air pressure, adjust the adapter and retighten all
connections, then try again.

6. Follow the procedure on page 6 from step 5 onwards.

TROUBLESHOOTING

Problem Cause Solution

Poor or no brake
fluid transfer.

Loose connection(s). Make sure all connections are

secure.

Hose(s) blocked or kinked. Remove any kinks in hose

and/or remove any blockage.

System not adequately
pressurised.

Vehicle brake system is
empty of brake fluid.

Pump the hand pump until the
correct pressure is achieved.

Replenish fluid.

CARE AND STORAGE

1. Always drain the unit of all fluid before storing it for long periods. Store both
the brake fluid and the brake bleeder in a safe place away from heat,
sparks and children. Store in a dry place which is not exposed to direct
sunlight or extremes of temperature.

2. After use wipe the brake bleeder clean with a dry cloth.

3. Do not store hydraulic fluid in the bleeder fluid container. Always dispose of
excess fluid appropriately in accordance with local authority regulations.
