PAIR OF EXTN SUPPORT ARMS
MODEL NO: CHT711
PART NO: 1801711
USER INSTRUCTIONS
LS0412
Page 2
INTRODUCTION
Thank you for purchasing these CLARKE extension Pair of extn support armss.
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully.
GENERAL SAFETY RULES
IMPORTANT: Failure to follow these precautions could result in personal
injury, and/or damage to property.
1. ALWAYS seek help with large
items such as plasterboard etc.
2. ALWAYS wear a safety helmet,
safety shoes, gloves and goggles,
manufactured to the latest
European Safety Standards.
3. ALWAYS keep work area clean.
Cluttered areas invite accidents.
4. ALWAYS keep children away. All
visitors should be kept a safe
distance from the work area.
5. ALWAYS concentrate on the job
in hand, no matter how trivial it
may seem. Be aware that
accidents are caused by
carelessness due to familiarity.
6. ALWAYS keep your proper footing
and balance at all times - don’t
overreach. For best footing, wear
rubber soled footwear. keep floor
clear of oil, scrap wood, etc.
7. ALWAYS wear proper apparel.
Loose clothing or jewellery may
get caught in moving parts. Wear
protective hair covering to
contain long hair.
8. ALWAYS check tool is in perfect
working order before using.
9. NEVER use the tool if it becomes
damaged, i.e. bent etc.
10. NEVER use where a risk exceeding
the rated capacity exists.
SUPPORT ARM SAFETY PRECAUTIONS
1. ALWAYS ensure floor is firm and
reasonably level.
2. ALWAYS check load to be
supported does not exceed
maximum capacity, (30kg).
3. ALWAYS ensure when adjusting
support arm length, a minimum of
2½”(64mm) of top tube remains
in the bottom tube.
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
4. ALWAYS ensure the support arms
are as near vertical as possible,
DO NOT use at an angle.
5. ALWAYS check the load is
supported safely before starting
work.
6. NEVER use the support arms to lift
anything, They are designed to
support weight only.
2
Page 3
DIRECTIONS FOR USE
WARNING: DO NOT USE THE SUPPORT TO LIFT LOADS. FAILURE TO
OBSERVE THIS INSTRUCTION WOULD INVALIDATE YOUR GUARANTEE AND
MAY CAUSE DAMAGE TO YOUR SUPPORT, AND COULD EVEN RESULT IN
PERSONAL INJURY OR DAMAGE TO PROPERTY.
1. Ensure floor is firm and reasonably
level before starting. If not, use
boards to obtain it. Once satisfied
continue as follows.
2. Set arms to the approximate
height as follows:

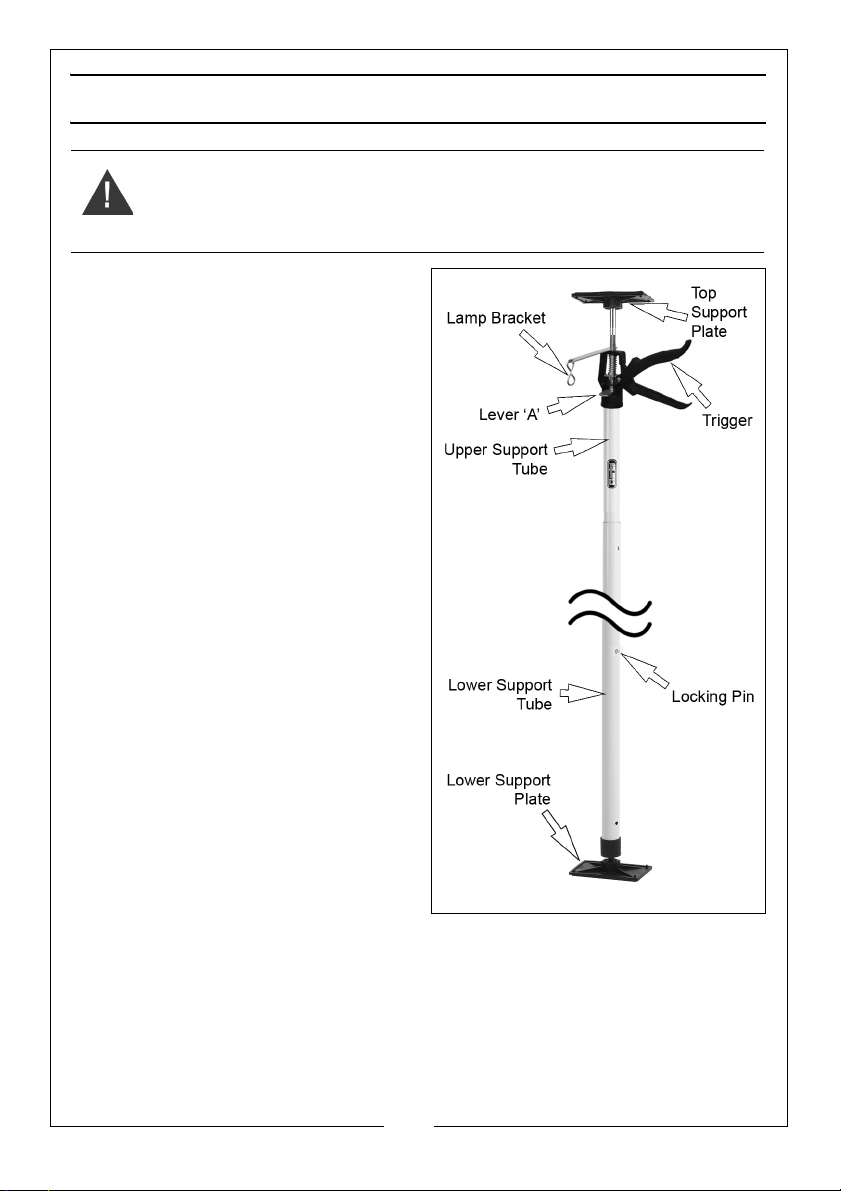

• Lift lever ‘A’ whilst pushing down
the top support plate.
• Push in the locking pin and
move the upper support tube to
one of the 3 positions available.
• The locking pin will pop out
through the hole on the side of
the lower support tube when it is
correctly located.
• Lift lever ‘A’ and pull the top
support plate upwards again,
until required height is reached.
Release the lever, the support is
now ready to use.
3. Carefully lift the object to be
supported into position.
NOTE: Seek assistance if required
4. Place the supports underneath
and slowly pump the handle until
the top support plate is firmly
against the workpiece.
5. Make sure the supports are vertical, if not, correct before continuing.
6. When the object is permanently secured into position, remove the support
by lifting lever ‘A’ and pushing the support upwards against the ceiling etc.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
SPECIFICATIONS
Model :....................................................................................CHT711
Part No :................................................................................ 1801711
Adjustable Range : ...........................................1.16 to 2.92 metres
Maximum Capacity : ............................................................... 30 kg
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
