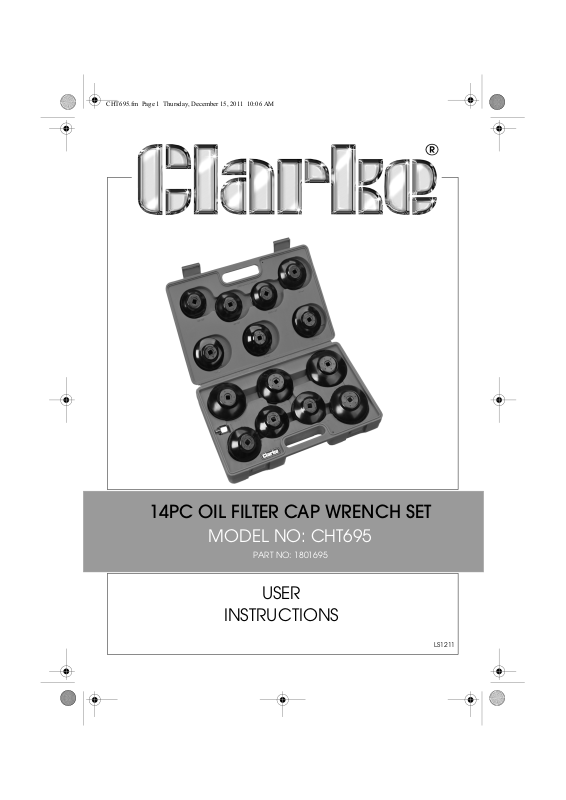

14PC OIL FILTER CAP WRENCH SET
MODEL NO: CHT695
PART NO: 1801695
USER
INSTRUCTIONS
LS1211
Page 2
CHT695.fm Page 2 Thursday, December 15, 2011 10:06 AM
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12 months from
the date of purchase. Please keep your receipt which will be required as proof of
purchase.
This guarantee is invalid if the product is found to have been abused or tampered with
in any way, or not used for the purpose for which it was intended.
Faulty goods should be returned to their place of purchase, no product can be
returned to us without prior permission.
This guarantee does not effect your statutory rights.
SAFETY
WARNING: THE WARNINGS, CAUTIONS AND INSTRUCTIONS DISCUSSED IN
THIS MANUAL CANNOT COVER ALL POSSIBLE CONDITIONS AND
SITUATIONS THAT MAY OCCUR. IT MUST BE UNDERSTOOD THAT COMMON
SENSE AND CAUTION ARE FACTORS WHICH MUST BE APPLIED BY THE
OPERATOR
1. DO NOT use tools if damaged. Replace with recommended parts only. Unauthorised
parts may be dangerous and will invalidate the warranty.
2. Maintain tools in good and clean condition for best and safest performance.
3. Use in a suitable working area. Keep area clean and tidy, and free from unrelated
materials and ensure that there is adequate lighting.
4. Wear approved eye protection. A full range of personal safety equipment is
available from your CLARKE dealer.
5. Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long
hair.
6. Ensure that the floor is not slippery and wear non-slip shoes.
7. Keep children and unauthorised persons away from the work area.
8. DO NOT attempt to start the engine whilst there is no oil filter fitted to the vehicle's
engine.
9. Ensure all pieces are returned to the case and store this in a safe, dry, childproof
location.
10. Dispose of waste oil in accordance with local authority regulations.
11. If changing the oil filter requires the operator to be underneath the vehicle, always
ensure that the vehicle is adequatley supported on suitable axel stands and is on a
firm level surface and cannot move. The operator must ensure that there is no risk of
injury.
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
N0 Description
1. 65 mm - 14 flutes
2. 68 mm - 14 flutes
3. 73 mm - 14 flutes
4. 65/67 mm - 14 flutes
5. 76 mm - 14 flutes
6. 75/77 mm - 15 flutes
7. 76 mm - 30 flutes
8. 93 mm - 15 flutes
9. 90 mm - 15 flutes
10 100 mm - 15 flutes
11 93/36 mm - 36 flutes
12 60/62 mm - 15 flutes
13 80 mm - 15 flutes
14 74/76 mm - 15 flutes
15 Adaptor 3/8” Male
Square Drive - 1/2”
Female Square Drive
CHT695.fm Page 3 Thursday, December 15, 2011 10:06 AM
INSTRUCTIONS
Use with 3/8” Sq. drive, or adaptor allows use with 1/2” Sq. drive wrenches.
WARNING: THIS SET IS FOR USE ONLY IN THE REMOVAL OF FILTERS. YOU
SHOULD NOT ATTEMPT TO FIT A FILTER USING THIS SET, DUE TO THE RISK OF
OVER-TIGHTENING WHICH COULD DAMAGE THE FILTER AND LEAD TO
FURTHER COMPLICATIONS. CONSULT THE VEHICLE MANUFACTURER’S
SERVICE INSTRUCTIONS FOR SPECIFIC INSTRUCTIONS.
IMPORTANT: These instructions are provided as a guide only. Always refer to
the vehicle manufacturer’s service instructions, or a proprietary manual, to
establish the correct procedure regarding the removal and fitting of an oil
filter.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
