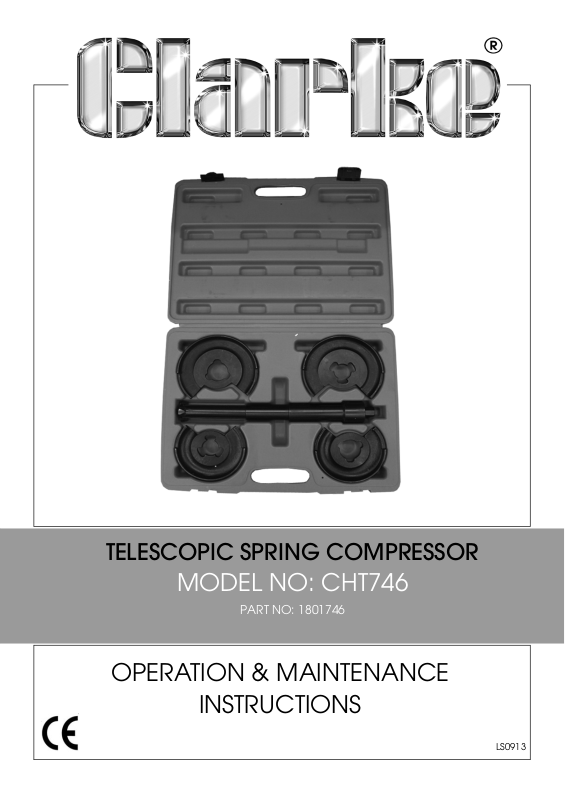

TELESCOPIC SPRING COMPRESSOR
MODEL NO: CHT746
PART NO: 1801746
OPERATION & MAINTENANCE
INSTRUCTIONS
LS0913
Page 2
INTRODUCTION
Thank you for purchasing this CLARKE Telescopic Spring Compressor. Designed
for use on wishbone suspension using access points in the rear suspension arm.
features two pairs of carefully shaped yokes that prevent the coil spring from
bowing
Before attempting to use this product, please read this manual thoroughly and
follow the instructions carefully. In doing so you can look forward to your
purchase giving you long and satisfactory service.
GUARANTEE
This product is guaranteed against faulty manufacture for a period of 12
months from the date of purchase. Please keep your receipt which will be
required as proof of purchase.
This guarantee is invalid if the product is found to have been abused or
tampered with in any way, or not used for the purpose for which it was
intended.
Faulty goods should be returned to their place of purchase, no product can
be returned to us without prior permission.
This guarantee does not effect your statutory rights.
WHAT IS SUPPLIED
Contact your Clarke dealer if any items are missing or damaged.
• 1 x drive handle • 2 pairs of compression yokes
TECHNICAL SPECIFICATION
Maximum Spring Load 1250 kg
Size/Suitability Ø 80-135 mm
Opening Range 115 - 300 mm
Weight 6.5 kg
Drive 19 mm Hex
2
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 3
SAFETY INSTRUCTIONS
WARNING: ENSURE HEALTH & SAFETY, LOCAL AUTHORITY, AND
GENERAL WORKSHOP PRACTICE REGULATIONS ARE
ADHERED TO WHEN USING THIS EQUIPMENT.
WARNING: WEAR APPROVED SAFETY EYE PROTECTION (STANDARD
SPECTACLES ARE NOT ADEQUATE).
WARNING: DO NOT COMPRESS THE SPRING TO AN EXTENT WHERE THE
COIL WINDINGS OR YOKES TOUCH.
WARNING: MEASURE THE OUTSIDE DIAMETER OF THE SPRING TO BE
COMPRESSED AND SELECT THE CORRECT SET OF YOKES TO
FIT THE SPRING.
• DO NOT operate the spring compressor if parts are damaged or
missing as this can cause failure or injury.
• DO NOT force the spring compressor to achieve a task it was not
designed to perform.
• DO NOT USE AIR TOOLS TO ADJUST THE SPRING COMPRESSOR.
• DO NOT allow untrained persons to use the spring compressor.
• Familiarise yourself with the applications, limitations and potential
hazards of the spring compressor.
• Maintain the spring compressor in good condition. Replace or repair
damaged parts. Use genuine parts only. Unauthorised parts may be
dangerous and will invalidate the warranty.
• Keep the work area clean, uncluttered and ensure there is adequate
lighting.
• Keep hands and body clear of the spring when operating the spring
compressor.
• Maintain correct balance and footing. Ensure the floor is not slippery
and wear non-slip shoes.
• Remove ill fitting clothes. Remove ties, watches, rings, other loose
jewellery. Contain and/or tie back long hair.
• Wear appropriate protective clothing.
• When not in use, clean and store the spring compressor in a safe, dry,
childproof location.
• Do not exceed the maximum capacity of this spring compressor
(1250 kg), if in doubt contact the vehicle manufacturer.
3
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 4
INSTRUCTIONS FOR USE
WARNING: MEASURE THE OUTER DIAMETER OF THE SPRING TO BE
COMPRESSED AND SELECT THE CORRECT SET OF YOKES.
WARNING: ENSURE THAT THE COIL SPRING TO BE COMPRESSED IS FREE
FROM DIRT AND GREASE WHERE THE YOKES WILL BE IN CONTACT WITH IT
IMPORTANT: Do not use the coil spring compressor fully extended, but
adjusted to a length of approx. 200 mm. This will allow adequate travel to
expand and compress the spring.
1. Raise the vehicle to allow access to the spring.
• Make sure that the vehicle is safely and correctly supported.

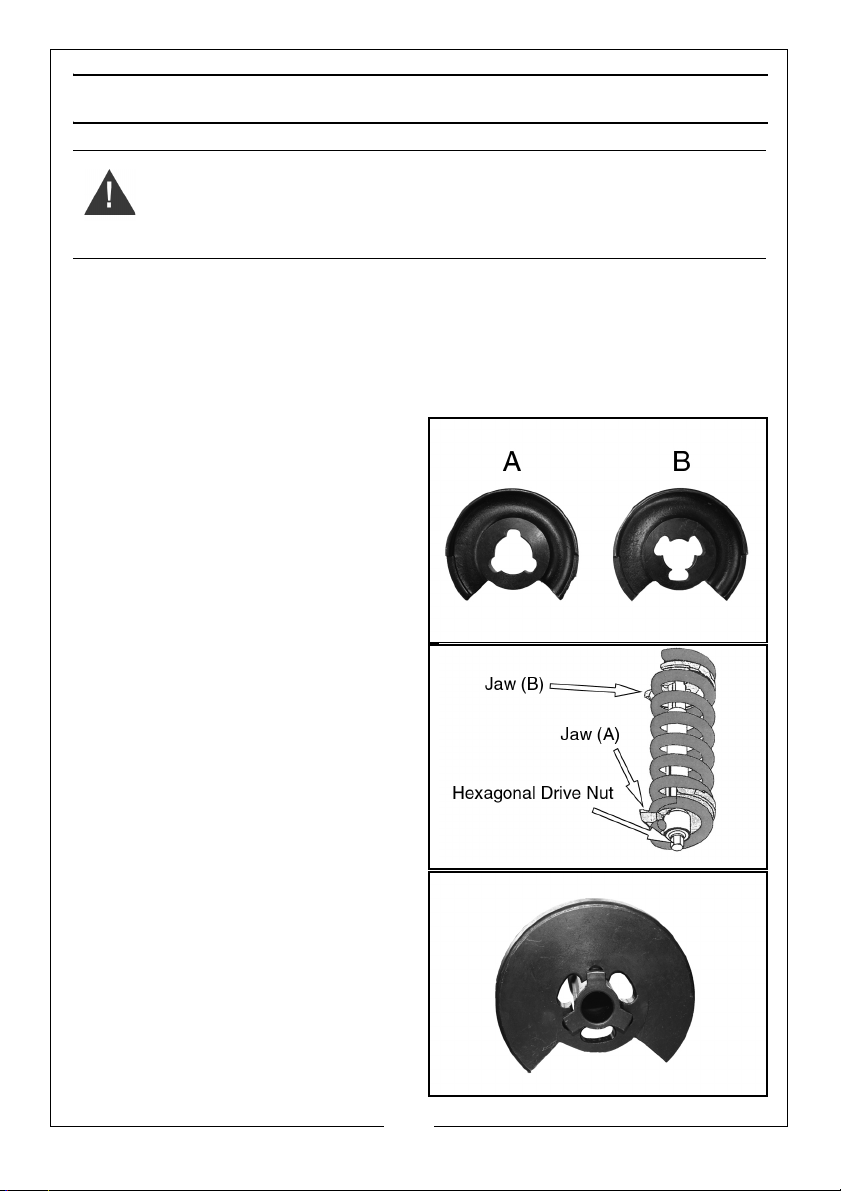

2. Put the yoke (A) into the lower
part of the spring windings.
3. Insert yoke (B) into the upper part
of the spring windings.
• Make sure that the spring
windings sit between the inner
and outer rims of the yoke.
4. Insert the body of the spring
compressor up through the spring.
• The hexagonal drive nut must
be facing downwards.
5. Guide the compressor through
the lower yoke (A) and up into the
upper yoke (B),
6. When the compressor has passed
through the upper yoke turn the
body through approx 50° so it
locates in the locking grooves on
the yoke as shown.
• Make sure that the spring is
correctly placed within both
yokes and yokes are correctly
aligned with the compressor
body.
4
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 5
7. Use a 19mm hex socket to turn the hexagonal drive nut until the yokes are
firmly in contact with the spring.
8. Now continue to compress the spring.
WARNING: AIR TOOLS MUST NOT BE USED TO ADJUST THE SPRING
COMPRESSOR. USE OF AIR TOOLS WILL INVALIDATE THE WARRANTY.
WARNING: DO NOT ALLOW THE SPRING WINDINGS TO TOUCH. DO NOT
ALLOW THE COMPRESSOR TO REACH THE LIMIT OF ITS TRAVEL IN EITHER
DIRECTION.
9. Remove the spring and compressor assembly from the vehicle as soon as
you have attained sufficient compression.
10. With the spring supported turn the hexagonal drive nut in the opposite
direction and remove the compressor and yokes from the spring.
11. To re-mount the spring, reverse the procedure.
5
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 6
MAINTAINING THE SPRING COMPRESSOR
• Before each use check the compressor to ensure it is not damaged
or worn.
• If any damage is suspected, do not use the unit, but contact your
local Clarke Dealer who will be able to advise you regarding repair
and spare parts.
• Grease the compressor spindle as necessary to inhibit corrosion.
• Keep the compressor clean, and when not in use, store in a safe,
dry, location.
6
Parts & Service: 020 8988 7400 / E-mail: [email protected] or [email protected]
Page 7
