CITIZEN SR-135 User Manual

Contents

FEATURES ......................................................................... 2

THE KEYBOARD AND OPERATING CONTROLS ........... 2

DISPLAY........................................................................... 10

CALCULATION................................................................. 11

1. Calculation order of priority................................................ 11

2. Addition, subtraction, multiplication and division and

constant calculations. ........................................................ 12

3. Memory calculation............................................................ 13

4. Calculations with parenthesis. ........................................... 14

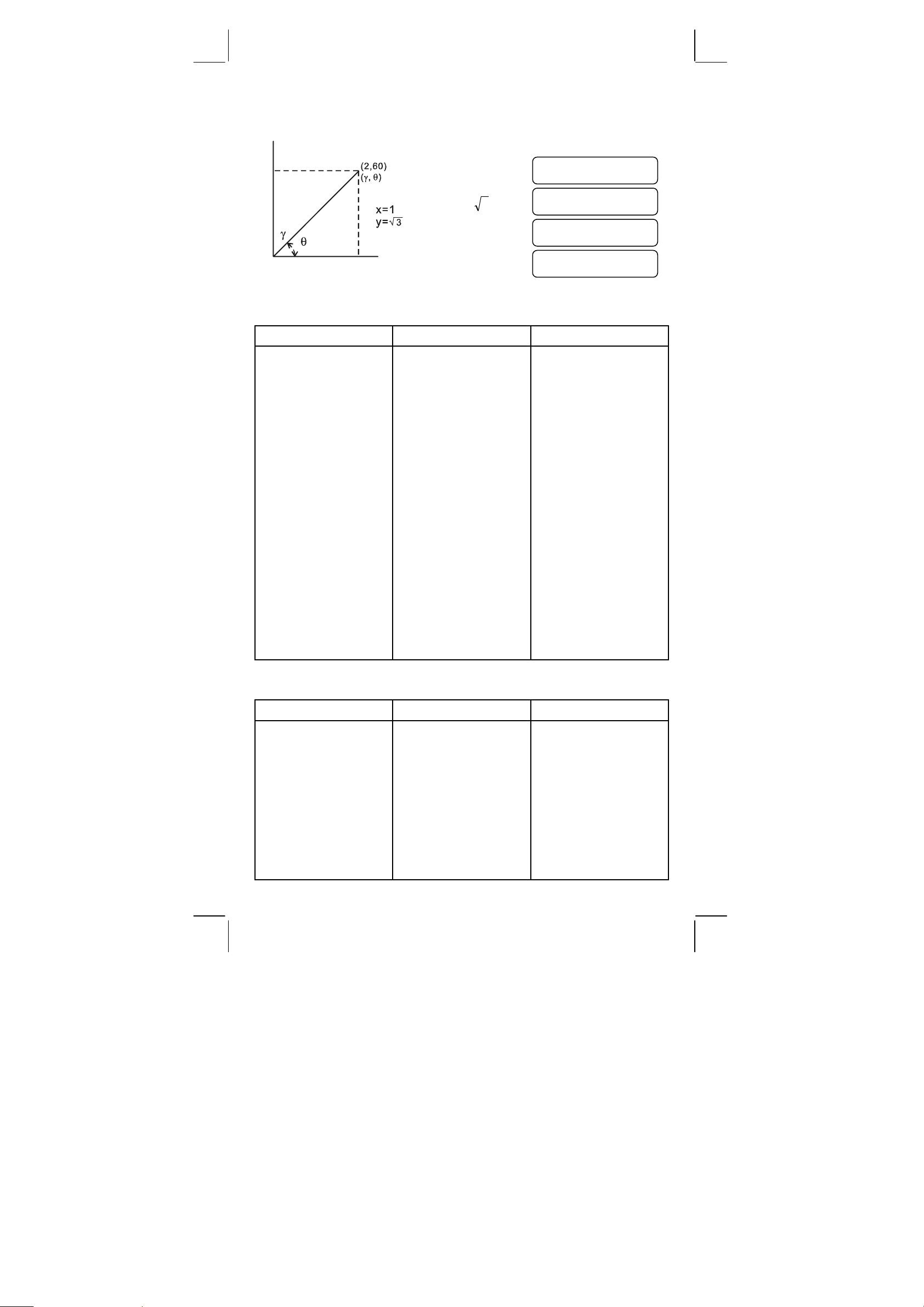

5. Coordinate conversion:...................................................... 14

6. Complex Calculation.......................................................... 15

7. Statistical calculation. ........................................................ 16

SPECIFICATIONS ............................................................ 17

AUTOMATIC POWER OFF .............................................. 17

BATTERY REPLACEMENT ............................................. 17

E1 -

SR135_English_090326.rtf SIZE : 140x75mm SCALE 2:1 2009/3/26

FEATURES

(1) Normal operations.

Four operation (+, –, x,

percentage.

(2) Memory calculation (X→M, MR, M+).

(3) General mathematical function:

Trigonometric (3) Arctrigonometric (3)

Logarithmic (2) Exponential (2)

Square Power

Square Root Cube Root

), xy,

, auto-constant, parenthesis,

Root

Parenthesis Reciprocal

EXP +/–

SCI Factorial

DEG, RAD, GRAD Degree, minute, second conversion (2)

FIX X↔Y

RND Coordinate conversion.

(4) Binary, octal, decimal and hexadecimal mode.

Mutual conversions and calculations of binary, octal, decimal, and

hexadecimal numbers.

(5) Memory protection when power off.

(6) An automatic power off feature to preserve battery life.

(7) Statistics calculations.

• Number of sample (n).

• Total of square of all data (Σx2).

• Average (x).

• 2 kinds of the standard deviation (

n–1, σn).

• Total of all data (Σx).

(8) 2-variable function polar-rectangular coordinate conversion.

THE KEYBOARD AND OPERATING CONTROLS

(1)

2. Set and clear the statistics mode.

SR135_English_090326.rtf SIZE : 140x75mm SCALE 2:1 2009/3/26

[]

ON/C

: 1. Power on and clear an error condition.

E2 -

(2)

: 1. Clear entry key.

[]

2. Factorial function (x!).

x! = n x (n–1) x (n–2) x (n–3) x .....x 2 x 1

(3)

(4)

[OFF]

[SHIFT]

: Power off key.

: This is the key for specifying the second function. When

this key is pressed, the special display “SHIFT” lights. When this key press twice continuously, the second function mode releas.

(5)

[]

DRG

: a. Pressing this key will change the mode of angle unit



sequentially

DEG RAD GRAD

and display it

on LCD.

b. Pressing this key after [SHIFT] key shall change the

mode of angle and shall convert the displayed data.

DEG RAD GRAD

(6)

(7)

[0] ~ [9]

RND

[ ]



: Press these keys in their logical sequence to enter

: a. Use to set the decimal point when entering numbers.

→

RAD : RAD = DEG x π/180

→

GRAD : GRAD = RAD x 200/π

→

DEG : DEG = GRAD x 180/200

numbers.

b. When press as the first number, it is regarded as [0]

and [ • ] keys are pressed.

c. Random as a second function.

Pressing this key shall display the random number.

The range of random number is 0.000~0.999.

(8)

: a. In setting data in the mantissa section, this key reverse

[+/–]

code in the mantissa section similarly for exponent section, it reverse code in the exponent section.

b. For the operation result, this key reverse code in the

mantissa section.

(9)

[+], [–], [x], [ ÷ ], [ ( ], [ ) ]

a. When the key operations are performed by these keys

according to a numerical expression, a result of operation is obtained according to mathematical priorities. Priorities discriminated are:

1) 1-variable function.

2) Expression in "( )"; (The most inner expression has priority in case of multiple parenthesis)

3) xy,

4) x, ÷

5) +, –

E3 -

SR135_English_090326.rtf SIZE : 140x75mm SCALE 2:1 2009/3/26

b. Whenever the key is operated, the calculator discriminates the

above priorities and holds the data and operation keys pending as required.

This pending action is possible up to 6 times, and 15 levels or

more pending become error.

c. [ ( ] key is accepted only immediately after [CE], [+], [–], [x], [÷],

[xy], [

], [=], [ ( ] keys can not accepted in all other cases.

When this key is accepted, the displayed data is cleared to 0. When [ ( ] key is first accepted, the special display “( )” illuminates.

When a parenthesis expression is completed [ ) ] and [=] key or

When it is cleared by the [ON/C] key, etc. or when errors are generated, the special display “( )” goes out.

d. If it is within the allowable range of pending, [ ( ] can be input

into any place in an expression as many times as desired. However, if the key is pressed continuously 16 times or more, it becomes error.

e. From a viewpoint of numerical expression when the

corresponding “ ) ” key is not pressed, the operation is not executed even if the “ ( ” key is pressed. On the other hand, When the “ ( ” key is pressed and the “ = ” key is the pressed without pressing the corresponding “ ) ” key, the operation is also completed according to the priority.

(10) [X→M], [MR], [M+] Memory calculation

a. The memory register “M” used by these keys is a completely

independent single memory.

b. Display data is added to “M” (memory register) by [M+] key. If

data overflows at this time, the proceeding data is hold.

c. Display data is stored in “M” by [X→M] key.

d. Contents of “M” is displayed by [MR] key.

e. When any data except for 0 is stored in “M”, the special display

“M” illuminates.

(11)

[]

EXP

: 1. Exponent select key.

2. This key display a rounded value : 3.141592654.

(12)

: Calculation

[]

a. When any arithmetic functions constant mode has been set, the

displayed number is converted from a percentage to a decimal.

Example: 61.5%

Key Input Display

[6] [1] [ • ] [5] [SHIFT] [%] 0.615

b. When [=] key is pressed after [%] following arithmetic function

will be executed.

E4 -

SR135_English_090326.rtf SIZE : 140x75mm SCALE 2:1 2009/3/26

CALCULATION

EXAMPLE

WHAT IS 30% OF 450?

KEY OPERATION LCD DISPLAY

450 [x] 30 [SHIFT] [%]

[=]

135.

0.3

WHAT PERCENTAGE OF 600 IS 120?

(120

600x100=20)

120 [

] 600 [SHIFT] [%]

[=]

20.

WHAT 25% OF 400 IS AN EXTRA? (400+(400x25/100)

400 [+] 25 [SHIFT] [%]

[=]

100.

500.

=500)

WHAT 25% 0F 400 IS A DISCOUNT? (400–(400x25/100)

400 [–] 25 [SHIFT] [%]

[=]

100.

300.

=300)

(13) Trigonometric and arctrigonometric function / Hyperbolic and arc

hyperbolic trigonometric function (1-variable)

([sin], [cos], [tan], [sin

–

], [cos

–

], [tan

–

]).

These function are calculated according to respective defined

areas and accuracy shown in behind chart, any displayed result of operation can become operators.

(14) Exponential and Logarithmic functions (1-variable).

([In], [log], [e

], [10X]) Same as Trigonometric functions.

(15) Reciprocal, Square, Square Root, and Cube Root.

([1/x] , [x2], [ ] , [ 3 ]) Same as Trigonometric functions.

(16)

[ ]

a. These keys convert degrees, minutes, seconds, into

decimal degree and decimal degrees into degree minutes, and seconds.

b. On the “ ” format, the integer part of display data is

regarded as degree, 2 digits below the decimal point as minutes and the 3rd digit and belows as seconds.

Example:

[] <degree minute second>

2.111111111 [SHIFT] [ ] 2 06 3999

(39.99 seconds)

(17) Binary mode ([SHIFT],

BIN

, [0], [1] ).

[ ]

a. Data input and output are both binary integers in a maximum

of 10 digits.

b. A negative number is expressed in binary of two's

complement.

E5 -

SR135_English_090326.rtf SIZE : 140x75mm SCALE 2:1 2009/3/26
