INSTRUCTION MANUAL

FOR

DIGITAL BLOOD PRESSURE MONITOR

REF CH-602B

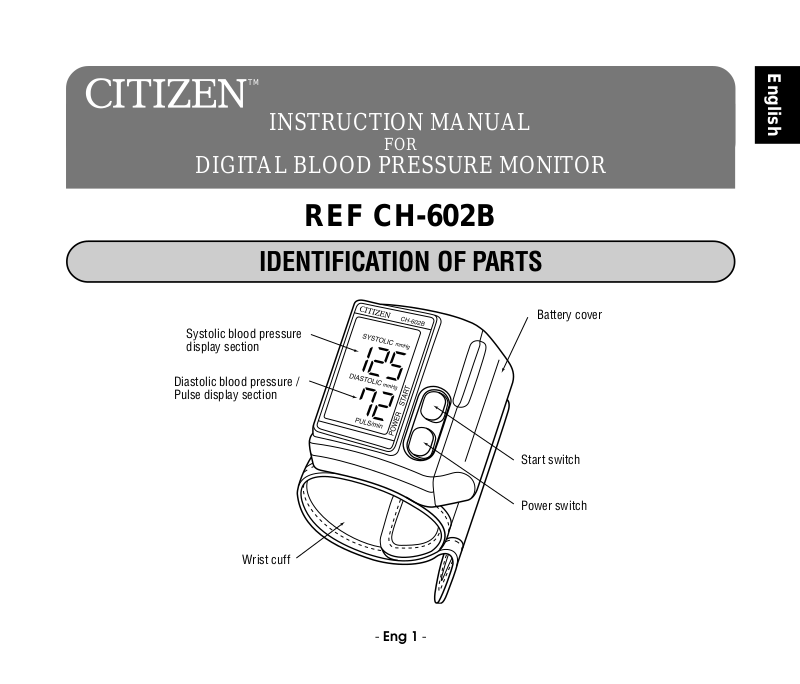

IDENTIFICATION OF PARTS

Battery cover

Systolic blood pressure
display section

Diastolic blood pressure /
Pulse display section

Start switch

Power switch

English

Wrist cuff

- Eng 1 -

SPECIFICATIONS

Measuring method: Oscillometric system
Indication: Digital display
Measuring range: Pressure; 0
Accuracy: Pressure; ±3mmHg, Pulse; ±5%
Inflation: Automatic inflation by internal pump
Deflation: Automatic constant speed deflation system
Exhaust: Quick exhaust by electromagnetic valve
Memory function: One data
Power source: 2 pcs “AAA” (LR03) alkaline batteries
Battery life: Approx. 250 times/LR03 (once a day, 180mmHg, room temp. 22°C)
Rated voltage: 3V DC
Working temp. & humidity: +10°C
Storage temp. & humidity: –20°C
Left wrist circumference: 13.5cm
Outside dimensions: 74mm(W) × 31mm(D) × 72mm(H)
Weight: Approx. 140g (including batteries)
Electric shock protection: Type B equipment
Accessories: 2 pcs “AAA” (LR03) alkaline batteries, Instruction manual, Storage case

*Specifications and designs may be changed without notice in the event of improvements being made.

⬃ 280mmHg, Pulse; 40 ⬃ 200 beat/min.

⬃ +40°C, 30% to 85%RH
⬃ +60°C, 10% to 95%RH

⬃ 19.5cm

CLEANING METHOD OF CUFF

After cleaning the cuff with a neutral detergent, lightly rinse it with
water and let it dry in the air. Hard rubbing or washing in a washing

machine will cause air leakage. Also, be careful not to get water into
the air hose.

- Eng 2 -

GENERAL REMARKS

English

General Remarks on blood pressure measurement

• If the cuff is to be deflated quickly, depress “POWER” switch.

• The attached cuff is suited for a wrist circumstance of 13.5cm to

19.5cm.

• When attaching the cuff, the body of a blood pressure monitor
should be placed on the inside of your wrist.

• Self measurement is no therapy! In no case may you change the
dosage of medication prescribed by your physician.

• In operation for blood pressure measurement, you should urinate
and should remain relatively still for 10 to 15 minutes prior to
measurement.

• Exercise, eating and drinking, smoking, etc., prior to measurement
may affect the results.

• The blood pressure varies constantly throughout the day. Mea­surement should be made regularly at the same time each day.

• Do NOT be impressed by the results of one measurement. Keep a
record of blood pressure variations. Many readings tell a story.

• Emotional stress may tend to cause pressure to rise.

For proper measurement of blood pressure

• Take a deep breath five or six time and then relax before measur­ing blood pressure. If you are tense when taking the measure­ment, you will not get a valid reading.

• Blood pressure will be elevated when you are in a worrisome or
irritated state, suffering from lack of sleep or constipation, or after
exercise or a meal.

• Putting on the cuff is one of the most important tasks for ensuring
proper measurement of blood pressure.
wrist and tighten it so that one finger may be inserted between the
cuff and arm.

• Do NOT measure blood pressure after bathing or drinking.

• When you feel like relieving yourself, you should do so before
measuring blood pressure.

• Measure blood pressure where the room temperature is about 20˚C.
Do NOT measure blood pressure when it is too cold (below 10˚C)
or too hot (above 40˚C) in the room.

• Do NOT measure blood pressure immediately after drinking cof­fee or tea or smoking.

• Measure blood pressure with a relaxed and quiet posture. Keep
the center of the cuff at the level of your heart, and do NOT move
your arm or talk during measurement.

• Do NOT keep on measuring so many times, as your arm will have
built up congestion of blood, and you will not get a valid reading.

Wind the cuff around the

- Eng 3 -

PRECAUTION FOR USE AND MAINTENANCE

Precautions for use

• If you suffer from heart disease, high blood pressure or other cir­culatory disease, please consult your doctor first.

• If you feel abnormal pressure of the cuff during use or any other
irregularity, reduce the pressure by immediately switching off the
power or removing the batteries and consult the sales outlet where
purchased.

• If you think the measured value is abnormal or if measuring makes
you feel unwell, discontinue use and consult your doctor.

• Measurement of blood pressure may not be possible for someone
with a weak pulse or arrhythmia.

• Congestion, swelling, etc. may occur in some people.

• If blood pressure is measured repeatedly, an accurate result will
not be achieved. An interval of about 10 minutes should be al­lowed.

• The memory is erased if the batteries are removed for replace­ment, etc. and a record should be kept of any necessary data.

Precautions for maintenance

• Do NOT store the blood pressure monitor where it will be exposed
to direct sunlight, high temperature (over 60˚C), low temperature
(below –20˚C), high relative humidity (over 95%) or in a dusty
place.

• Do NOT expose the blood pressure monitor to under force or vi­bration, or drop it.

• Remove the battery/batteries when not in use for a long period.

• Do NOT disassemble the apparatus.

• Do NOT bend the cuff or air hose unnecessarily.

• NEVER wipe the blood pressure monitor with thinner or benzene,
as they may damage it.

• When the monitor is very dirty, wipe it clean with a cloth moist­ened with Sterilizing alcohol or a neutral detergent, and then wipe
it with a dry cloth. Do NOT use thinner or benzene.

Nature and frequency of maintenance:

This products is designed for use over an extended period of time;
however, it is generally recommended that it be inspected every two
years to ensure proper function and performance.

Protect the nature environment:

Please help protect natural environment by respecting national and/
or local recycling regulations when disposing of the batteries and
the products at the end of their useful lives.

Reference European standard:

This products complies with EC instructions 93/42/EEC (Medical
Device Directive) and with the following standards: EN 1060-1 : 1995
“Noninvasive Sphygmomanometers, Part 1 General Requirements”
and EN 1060-3 : 1997 “Noninvasive Sphygmomanometers, Part 3
Supplementary Requirements for Electromechanical Blood-Pressure
Measuring Systems”.

Manufacturer:

Name: Premier Precision Ltd.
Address: Block E, G-H, 6

Phase 2, Yip Fat Factory Building,
73-75 Hoi Yuen Road,
Kwun Tong, Kowloon, Hong Kong

th

floor,

European Representative:

Name: WvW elektronische Geräte Vertrieb GmbH.
Address: Robert-Koch-Straße 20,

D-80538 München,
GERMANY

- Eng 4 -

INSTALLING THE BATTERIES

• To use this unit, you must install batteries, and also if battery mark

” will appear on the display, you must change two pieces of

“
batteries.

• Open battery cover as illustrated.
Replace the new two pieces of batteries, matching the (+) and
(–) polarities on each battery with the polarity marks on the case.

English

• After fastening the under hook, close the battery cover.

• “LR03” batteries or equivalent is suitable for this blood pressure
monitor.

- Eng 5 -

1. Turn Power On

MEASUREMENTS

SYSTOLICmmHg

g

H

m

m

SYSTOLIC

T

Hg

m

m

IC

L

O

T

S

IA

D

STAR

R
E

W

P

U

L

S

/m

in

O
P

Press the “POWER” switch to turn on.

BT

SYSTOLICmmHg

DIASTOLICmmHg

PULSE/min

All display marks appear for approximately one second and
buzzer beeps.
If batteries become weak, “

” mark is appeared and mea-

surement is discontinued.

DIASTOLICmmHg

PULSE/min

After all display marks are disappeared, the last measured sys­tolic and diastolic blood pressure values are displayed. (Value of
the pulse is not memorized nor displayed.)
Memory function works on for approximately one second or
during “POWER” switch is depressed.

SYSTOLICmmHg

DIASTOLICmmHg

PULSE/min

After memorized blood pressure value is disappeared, deflation
mark “▼” appear for approximately one second.

- Eng 6 -

SYSTOLICmmHg

DIASTOLICmmHg

English

PULSE/min

After three short buzzer beeps, the

“0”

appears on the display.

Then, ready for measurement.

2. Attaching of Wrist Cuff

Wrist cuff

Open the wrist cuff as the figure.

Turn left hand palm upwards and wrap the cuff around the wrist
so that the display is placed on the side of palm.
Wrap the wrist cuff on bare skin.
Wrist circumference: 13.5 ~ 19.5cm

Wrist edge

Place the wrist cuff at the 1cm from the wrist edge.

Wrap the cuff around your
wrist securely.

Wrap the cuff around your wrist securely so that there is no
space between the wrist and cuff with the edge of wrist cuff
pulled.

Fold up the rest of unused wrist cuff.

- Eng 7 -

Place your elbow on a table so that the palm is turned upwards

SYSTOLICmmHg

DIASTOLICmmHg

PULSE/min

SYSTOLICmmHg

DIASTOLICmmHg

PULSE/min

SYSTOLICmmHg

DIASTOLICmmHg

PULSE/min

and the cuff center is as high as your heart. Relax your entire
body.

3. To Start the Measurement

mmHg

IC

L

O

T

S

Y

S

mmHg

IC

L

O

T

S

IA

D

START

ER

W

P

U

L

S

/m

in

PO

When inflation is completed, the automatically exhaust mecha­nism will gradually deflate the pressure in the “wrist cuff”, and
the mark “Q” will appear indicating that measurement is in
progress.

When a pulse is detected, the pressure value moves to the lower
side of the display. At this time the mark “Q” flashes and buzzer
beeps.

Press the “START” switch.
The unit is inflated when the “START” switch is pressed.

If the inflation is insufficient at a pressure of 180mmHg, the
reinflation is automatically made to a pressure of 210, 240, and
280mmHg until inflation is suitable for measurement. This unit
cannot be inflated over a pressure of 280mmHg.

- Eng 8 -

SYSTOLICmmHg

5. Turn Power Off

Press the “Power Switch” to turn OFF.

English

DIASTOLICmmHg

PULSE/min

When diastolic pressure value is detected, the measurement is
complete. Systolic pressure value is displayed on the upper side
and diastolic pressure on the lower side of the display.
Then air in the “wrist cuff” will deflate immediately and the mark
“▼” appears during deflation.

SYSTOLICmmHg

DIASTOLICmmHg

PULSE/min

SYSTOLICmmHg

DIASTOLICmmHg

PULSE/min

Blood pressure values and pulse rate appear alternatively on the
display every approximately two seconds. Display of the mea­surement result will continue until power is turned off.

4. Subsequent Measurements

When more than one reading is desired, wait at least two min­utes between reading in order for the blood at wrist flow to re­turn to normal. Then press the “START” switch again.

6. Automatic Power Off Function

If this unit is left on after measurement, an Automatic Power­OFF Function turns the power OFF after approximately 3 min­utes. To continue measurement press the power switch to turn
the unit ON.

- Eng 9 -

DESCRIPTION OF DISPLAY MARKS

DISPLAY MARK

BT

CONDITION/CAUSE CORRECTIVE ACTION

Measurement is begun, but the pressure was insufficient.

Appears when the blood pressure could not be measured accu­rately.
(Some noises were detected by the movement of arm during
measurement).

Appears when the pulse could not be measured.

Appears when the batteries become weak.

Device has a trouble.

Repeat measurement again.

Repeat measurement again.

First, exhaust air from the cuff, reapply the cuff prop­erly and remeasure.
Repeat measurement again.

Replace the batteries.

Ask purchased shop.

- Eng 10 -
