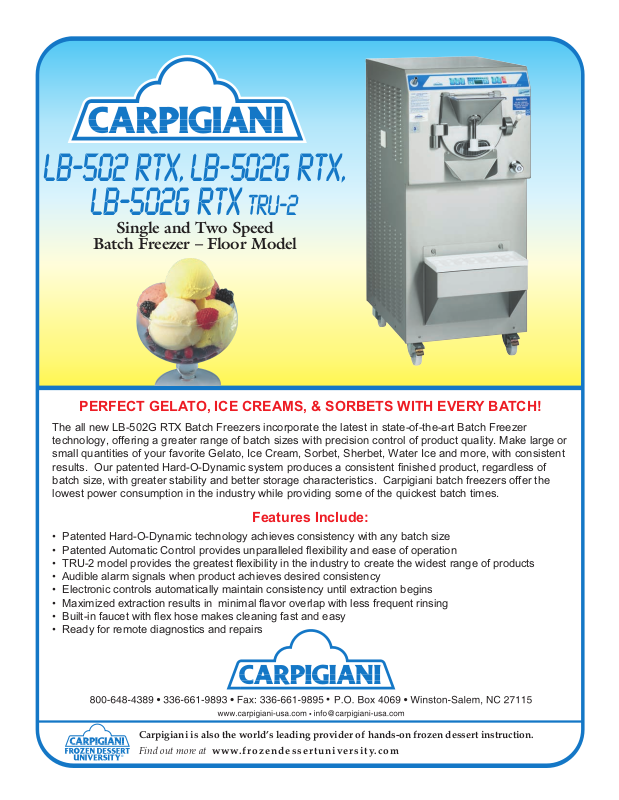

LB‐502 RTX, LB‐502G RTX,
LB‐502G RTX
Tru‐2
Single and Two Speed
Batch Freezer – Floor Model
•
®
Carpigiani is also the world’s leading provider of hands-on frozen dessert instruction.
Find out more at www.frozendessertuniversity.com
PERFECT GELATO, ICE CREAMS, & SORBETS WITH EVERY BATCH!
The all new LB-502G RTX Batch Freezers incorporate the latest in state-of-the-art Batch Freezer
technology, offering a greater range of batch sizes with precision control of product quality. Make large or
small quantities of your favorite Gelato, Ice Cream, Sorbet, Sherbet, Water Ice and more, with consistent
results. Our patented Hard-O-Dynamic system produces a consistent finished product, regardless of
batch size, with greater stability and better storage characteristics. Carpigiani batch freezers offer the
lowest power consumption in the industry while providing some of the quickest batch times.
Features Include:
• Patented Hard-O-Dynamic technology achieves consistency with any batch size
• Patented Automatic Control provides unparalleled flexibility and ease of operation
• TRU-2 model provides the greatest flexibility in the industry to create the widest range of products
• Audible alarm signals when product achieves desired consistency
• Electronic controls automatically maintain consistency until extraction begins
• Maximized extraction results in minimal flavor overlap with less frequent rinsing
• Built-in faucet with flex hose makes cleaning fast and easy
• Ready for remote diagnostics and repairs
Carpigiani-USA manufactures a complete line of frozen
dessert production equipment: Batch Freezers, Soft Serve
Freezers, Yogurt Freezers, Slush Freezers, Milk Shake
Machines, Granita Machines, Whipped Topping
Dispensers, Frozen Custard Freezers, Specialty and
Mix Processing Equipment, Display Cabinets...
ICA 5556 LS 502
Rev. 5/2007
MODEL LB-502 RTX,
MODEL LB-502G RTX &
MODEL LB-502G RTX Tru-2
Single/two speed floor model. Designed for
medium to high volume requirements.
Beater
Beater
Models LB-502 RTX, 502G RTX & 502G RTX Tru-2
Description
Cylinder Capacity (w/beater) 20 Qts
Cylinder Refrig. Control System Electronic
Cylinder Type Helicoidal Path
Compressor Motor 3 H.P.
Water Connections ½” MPT
Condenser Cooling Air or Water
Refrigerant Type R-404A
Frame Type Floor Model
Frame Construction Welded Steel
Outer Panels Stainless Steel
Faucet with Flex Hose Standard
Beater Design Unibody w/
Replaceable Blades
5” Casters
Standard
Weight
Gross
Net
693 lbs (315 kg)
635 lbs (289 kg)
Electrical Requirements
Voltage
Phase
Cycle
Breaker Size
208-230 1/3 60 Hz 50 Amps/40
Running Amps: 39/31 Number of Feeders: 1
Dimensions
Width Depth Height
(w/casters)
24” (610 mm) 40” (1016 mm)* 55”
(1400 mm)
Drive Motor Design
3 H.P. Unibody w/ Delrin Blades
Model LB-502 RTX
Weight
Gross
Net
770 lbs (350 kg)
693 lbs (315 kg)
Electrical Requirements
Voltage
Phase
Cycle
Breaker Size
208-230 3 60 Hz 40 Amps
Running Amps: 33 Number of Feeders: 1
Drive Motor Design
3.75 / 7.5 H.P. Unibody w/ Delrin Blades
Models LB-502G RTX & LB-502G RTX Tru-2
*Water Cooled version
