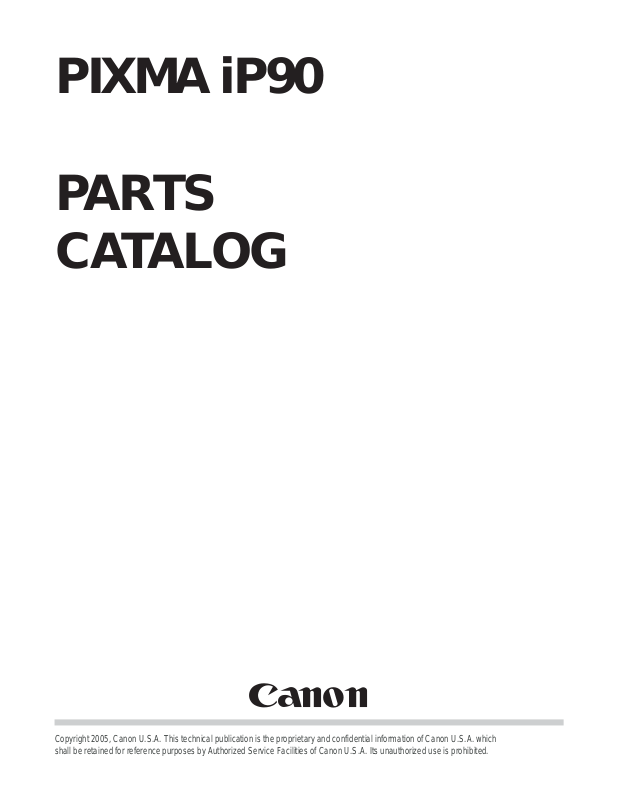

Canon iP90 PARTS CATALOG

PIXMA iP90

PARTS
CATALOG

Canon

Copyright 2005, Canon U.S.A. This technical publication is the proprietary and confidential information of Canon U.S.A. which
shall be retained for reference purposes by Authorized Service Facilities of Canon U.S.A. Its unauthorized use is prohibited.

Parts Catalog PIXMA iP90

FIGURE 1 PRINTER & PRINT HEAD FIGURE 2 OUTPUT COVER UNIT &

I/F COVER

NUM. PART # DESCRIPTION NUM. PART # DESCRIPTION

1 - 1 QY6-0052-000 PRINT HEAD 2 - 1 QC1-5805-000 EMBLEM, PIXMA

2 QL2-0873-000 TRAY, FEED
3 QC1-5812-000 COVER, SIDE L
4 QC1-5801-000 WINDOW, SIDE
5 QC1-5802-000 COVER, SIDE R
6 QL2-0870-000 OUTPUT SLOT COVER UNIT
