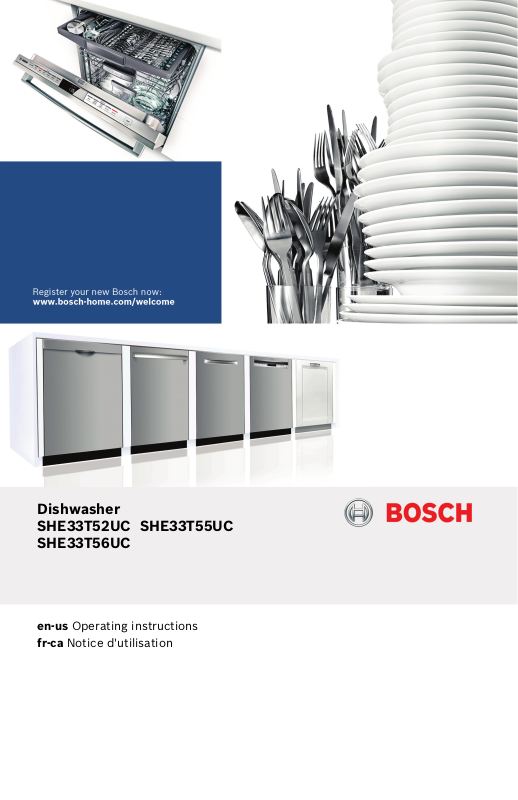

Dishwasher
SHE33T52UC SHE33T55UC
SHE33T56UC
en-us Operating instructions
fr-ca Notice d'utilisation
2
en-us
Table of contents
en-us Operating instructions
( Safety Definitions. . . . . . . . . . .5
( IMPORTANT SAFETY
INSTRUCTIONS . . . . . . . . . . . .6
ƒ Causes of Damage . . . . . . . . . .9
* Getting Started . . . . . . . . . . . .10
, Rinse Aid. . . . . . . . . . . . . . . . .12
- Loading the Dishwasher . . . .13
. Detergent . . . . . . . . . . . . . . . .19
/ Dishwasher Cycles . . . . . . . .22
0 Dishwasher Cycle Options . .23
1 Operating the Dishwasher. . .24
2 Care and Maintenance . . . . . .27
3 Troubleshooting. . . . . . . . . . .31
4 Customer Service. . . . . . . . . .35
‡ Statement of Limited
Product Warranty. . . . . . . . . .36
3
en-us
'HDU9DOXHG&XVWRPHU
7KDQN\RXIRUVHOHFWLQJD%RVFK
GLVKZDVKHU<RXKDYHMRLQHGWKH
PDQ\FRQVXPHUVZKRGHPDQGTXLHWDQGVXSHULRUSHUIRUPDQFHIURP
WKHLUGLVKZDVKHUV
7KLVPDQXDOZDVZULWWHQZLWK\RXUVDIHW\DQGFRQYHQLHQFHLQPLQG
DQGWKHLQIRUPDWLRQFRQWDLQHGKHUHLQLVYHU\LPSRUWDQW:HKLJKO\
UHFRPPHQGWKDW\RXUHDGWKLVPDQXDOEHIRUHXVLQJ\RXUGLVKZDVKHU
IRUWKHILUVWWLPH
7ROHDUQPRUHDERXW\RXUGLVKZDVKHUDQGDYDLODEOHDFFHVVRULHVDV
ZHOODVPDQ\RWKHUWRSTXDOLW\%RVFKDSSOLDQFHVYLVLWRXUZHEVLWHDW
ZZZERVFKKRPHFRPXV86$
RU
ZZZERVFKKRPHFD&DQDGD
:KLOHWKHUHGRQ·WIRUJHWWRUHJLVWHU\RXUQHZGLVKZDVKHUE\FOLFNLQJ
RQWKH´6XSSRUWµWDERUILOOLQJRXWWKHSURGXFWUHJLVWUDWLRQFDUG
HQFORVHGZLWK\RXUQHZXQLW
,I\RXKDYHDQ\TXHVWLRQVRUFRPPHQWVSOHDVHFRQWDFWXVE\SKRQHDW
RUZULWHXVDW
%6++RPH$SSOLDQFHV&RUSRUDWLRQ
0DLQ6WUHHW6XLWH
,UYLQH&$
4
( Safety Definitions
Safety Definitions
9 WARNING
This indicates that death or
serious injuries may occur as a
result of non-observance of this
warning.
9 CAUTION
This indicates that minor or
moderate injuries may occur as
a result of non-observance of
this warning.
NOTICE
This indicates that damage to the
appliance or property may occur as a
result of non-compliance with this
advisory.
Safety Definitions en-us
Note: This alerts you to important
information and/or tips.
5
9
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
( IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
This dishwasher is provided with
Installation Instructions and this Use
and Care Manual. Read and
understand all instructions before
using the dishwasher.
This dishwasher is intended for use
up to a maximum altitude of
13,000 ft (4,000 meters) above sea
level.
To reduce the risk of fire, electrical shock, or serious injury, observe the following:
Risk of fire, electrical shock, or serious injury
9 WARNING
RISK OF INJURY OR DEATH!
Misuse of the dishwasher can
result in serious injury or death.
Do not use the dishwasher in
any way not covered in this
manual or for any purpose other
than those explained in the
following pages.
9 WARNING
RISK OF ELECTRICAL SHOCK
OR FIRE!
Electrical shock or fire could
result if the electrical supply for
the dishwasher covered in this
manual is incorrectly installed or
if the dishwasher has been
improperly grounded. Do not
use the dishwasher covered in
this manual unless you are
certain the electrical supply has
been correctly installed and the
dishwasher has been properly
grounded.
9 WARNING
HEALTH HAZARD!
Never use harsh chemicals to
clean your dishwasher. Some
chloride-containing products
can damage your dishwasher
and may present health
hazards!
9 WARNING
RISK OF INJURY!
Severe injury and/or product
damage could result from the
use of unauthorized service
technicians or non-original
replacement parts. All repairs
must be performed by an
authorized service technician
using only original equipment
factory replacement parts.
6
9
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded to
a metal, permanent wiring system or
an equipment grounding conductor
must be run with the circuit
conductors and connected to the
equipment grounding terminal or
lead on the dishwasher. See the
Installation Instructions included with
this dishwasher for more information
on electrical requirements.
9 WARNING
RISK OF ELECTRIC SHOCK!
This appliance must be
grounded. In the event of a
malfunction or breakdown,
grounding will reduce the risk of
electric shock by providing a
path of least resistance for
electric current. This appliance
is equipped with a cord having
an equipment-grounding
conductor.
Improper connection of the
equipment-grounding conductor
can result in risk of electric
shock. Check with a qualified
electrician if you are in doubt
whether the appliance is
properly grounded.
Safe Operation
Use this dishwasher only for its
intended function, which is the
washing of household dishware and
kitchenware rated as dishwasher
safe.
Use only detergents or rinsing agents
recommended for use in a
dishwasher, and keep them out of
the reach of children.
9 CAUTION
When loading items to be
washed:
■ Locate sharp items so they
are not likely to damage the
door seal.
■ Load knives and other sharp
utensils with their HANDLES
UP to reduce the risk of
cut-type injuries.
■ Do not wash plastic items
unless they are marked
“dishwasher safe” or the
equivalent. For plastic items
not so marked, check the
manufacturer’s
recommendations.
■ Do not operate your
dishwasher unless all
enclosure panels are in
place.
■ Do not tamper with or
override controls and
interlocks.
Do not abuse, sit or stand on the
door or dish racks of the dishwasher.
9 WARNING
RISK OF INJURY!
To avoid risk of injury, always
use caution when opening the
door during or following a wash
cycle as hot water or steam
may escape. Do not fully open
the door until water noises have
stopped and steam has
subsided.
NSF/ANSI 184 Certified residential
dishwashers are not intended for
licensed food establishments.
7
9
IMPORTANT SAFETY INSTRUCTIONS
READ AND SAVE THESE INSTRUCTIONS
Child Safety
To reduce risk of injury, do not allow
children to play in or on the
dishwasher.
When children become old enough
to operate the appliance, it is the
responsibility of the parents/legal
guardians to ensure the children are
instructed in safe practices by
qualified persons.
Proper Care and Maintenance
9 WARNING
RISK OF EXPLOSION!
Under certain conditions,
hydrogen gas may be produced
in a hot water system that has
not been used for two weeks or
more. Hydrogen gas is
explosive. Before using a
dishwasher that is connected to
a hot water system that has
been unused for two weeks or
longer, turn on all hot water
faucets and let the water flow
from each for several minutes.
This will release any
accumulated hydrogen gas. As
the gas is explosive, do not
smoke or use an open flame
during this time.
temperatures. Freezing temperatures
can damage the water fill valve and
potentially other components of your
dishwasher.
NOTICE
It is highly recommended for the end
user to become familiar with the
procedure to shut off the incoming
water supply and the procedure to
shut off the incoming power supply.
See the Installation Instructions or
contact your installer for more
information.
9 WARNING
STATE OF CALIFORNIA
PROPOSITION 65 WARNINGS!
This product contains one or
more chemicals known to the
State of California to cause
cancer, birth defects, or other
reproductive harm.
Remove the dishwasher door to the
washing compartment when
removing an old dishwasher for
service or discarding.
To avoid floor damage and possible
mold growth, do not allow wet areas
to remain around or under the
dishwasher.
To avoid dishwasher damage, do not
allow water to remain in your
dishwasher systems through
extended periods of freezing
8
ƒ Causes of Damage
Causes of Damage
NOTICES
■ Never use steam cleaning
products to clean your
dishwasher. The manufacturer will
not be liable for the possible
damages or consequences.
■ Bleach-based wipes can cause
stainless-steel doors and tubs to
rust.
■ Using harsh chemicals
(e.g. bleach), abrasive cleaners,
scouring pads (metal or plastic),
or abrasive cloths/paper towels
can damage your dishwasher’s
exterior door panel, fascia panel
and buttons.
■ To avoid dishwasher damage, do
not load the dishwasher with
paper products, plastic bags,
packing materials or anything
other than normal, dishwasher
safe dishware and kitchenware.
Causes of Damage en-us
9
en-us Getting Started
* Getting Started
Getting Started
Appliance overview
2Q
2II
%
K PLQ
6DQLWL]HG $GG5LQVH$LG
$
&
6WDUW
5HVHWVHF
5HVHWVHF
The dotted lines show optional
features which may or may not be
10
included with your dishwasher.
Getting Started en-us
The numbers stated below refer to
the overview images on the previous
page of this manual.
1B Vent hole
1J Lower spray arm
1R Dispenser for special salt
1Z Filters
Operating panel
1b Silverware basket *
1j Lower rack
( On/Off button
0 Wash cycles**
8 Digital display
@ Time preselection
H Wash cycle options**
P Start button
**number of wash cycles and options
9" Rinse aid dispenser
9* Detergent dispenser
92 Lock for detergent dispenser
9: Rating plate
* optional feature which may or may
not be included with your
dishwasher.
varies on specific model number
Display indicators
Dishwasher interior components
1" Interior light *
1* Upper rack
12 Upper spray arm
1: Detergent tab tray
‹:‹‹
Add Rinse
Aid
Sanitize
--------
Menu overview
The dishwasher has been preset with
certain settings for your convenience.
You can change these factory
settings.
Setting Factory setting Description
§ Rinse aid
§:‹† Amount of rinse aid affects drying. When using
§:‹‹ - §:‹‡
š Intensive drying *
š:‹‹ / Off Improved drying for glasses and plasticware.
Use the function keys #, + and
3 to change the settings.
Multitabs, select setting 0.
Cycle time remaining
Lights up when rinse aid is low
Lights up when sanitation
requirements are met
š:‹‹ - š:‹‚
˜ Auto power off
˜:‹‚ Dishwasher switches off automatically after wash
˜:‹‹ - ˜:‹ƒ
* depending on the features of your dishwasher
--------
cycle is complete.
11
en-us Rinse Aid
, Rinse Aid
Rinse Aid
To achieve proper drying, always use
a liquid rinse aid, even if your
detergent contains a rinse aid or
drying additive.
Note: The dishwasher indicates low
rinse aid by turning on the Rinse Aid
indicator on the display 8. If this
indicator lights up, you need to refill
the rinse aid dispenser 9" by
following the directions below.
Adding rinse aid
NOTICE
To avoid oversudsing or clogging, do
not overfill the rinse aid
dispenser 9". Wipe up any spills
with a damp cloth.
1.
Open the rinse aid dispenser 9" by pressing on the latch of the lid and pull it open.
PD[
3.
Close the lid. Lid must be fully closed until it clicks in order to seal.
4.
Wipe up any excess rinse aid that
may have puddled when the
dispenser reservoir is full.
The indicator light will go out a few
moments after the dishwasher door
is shut.
NOTICE
Do not fill the rinse aid dispenser 9"
with detergent. Doing so will damage
the dishwasher.
2.
Add liquid rinse aid to the dispenser 9" until it is full. Do not overfill.
12
Setting the amount of rinse aid used
The amount of rinse aid dispensed
can be set from §:‹‹ to §:‹‡. The
factory setting is §:‹†.
You should only change the setting if
streaks remain on the dishes (lower
the amount), or if dishes are not
getting dry enough (increase the
amount).
Setting Amount
§:‹‹ dispenser is OFF
§:‹‚ lowest setting
§:‹ƒ low setting
§:‹„ medium setting
§:‹… medium/high setting
Loading the Dishwasher en-us
Setting Amount
§:‹† high setting
§:‹‡ highest setting
1.
Press the On/Off button (.
2.
Hold down the function key # and press the Start button P until the display 8 indicates š:‹x (x can be any number). Release both buttons.
3.
Press the function key # until the display 8 shows §:‹†.
4.
Press the function key 3 to select the desired setting.
5.
Press the Start button P to save the setting.
Turning off rinse aid indicator
Proceed as described in the section
“Setting the amount of rinse aid
used” and set value to §:‹‹. The
rinse aid indicator is now turned off.
NOTICE
Using no rinse aid or setting the
dispenser to §:‹‹ may result in
longer cycle times consuming more
energy and water. The higher
temperatures and longer cycle times
can damage fine china or glassware.
- Loading the
Dishwasher
Loading the Dishwasher
Dishware material
Note: Before using your dishwasher
for the first time, check the
information in this section. Some
items are not dishwasher-safe and
should be hand washed; others
require special loading.
Recommended
Aluminum Colored anodized aluminum
China, Crystal,
Stoneware
Glass Milk glass may discolor or
Non-stick
Coatings
Plastics Make sure the plasticware is
Stainless Steel,
Sterling Silver
and Silver
Plates
may fade over time.
Minerals in your water may
cause the aluminum to
darken or spot. This can
usually be removed with a
soap-filled steel wool pad.
Some hand-painted utensils
may discolor, fade or spot.
Hand wash these utensils.
Position fragile glassware so
that it will not topple over or
come in contact with other
utensils during the wash
cycle.
become yellow.
Apply a light coating of
vegetable oil to non-stick
surfaces after drying.
dishwasher-safe.
Load these so they do not
come in contact with other
metals, stainless steel
dishwasher tub walls or the
inner door.
13
en-us Loading the Dishwasher
Not Recommended
Acrylic Crazing or small cracks
throughout the acrylic, may
occur.
AdhesiveJoined Pieces
Adhesives that join
materials such as plastic,
wood, bone, steel, copper,
tin, etc. may loosen.
Bone-Handled
Handles may separate.
Utensils
Iron Iron will rust. Hand wash
and dry immediately.
Non-Dishware
Items
Your dishwasher is intended
for use in cleaning ONLY
standard household
dishware and kitchenware.
Pewter, Brass,
Bronze
These items will tarnish.
Hand wash and dry
immediately.
Tin Tin will stain. Hand wash
and dry immediately.
Wood Wooden bowls, wooden
utensils and utensils with
wooden handles can crack,
warp and lose their finish.
Glass and silverware damage
Causes:
■ Glass type.
■ Type of dishwasher detergent.
■ Water temperature of the wash
cycle.
Recommendation:
■ Use only glasses and porcelain
which the manufacturer
designates as dishwasher-safe.
■ Use a detergent which protects
silverware.
■ Use less intensive wash cycles
and take glass and silverware
out of the dishwasher as soon as
possible after the wash cycle
ends.
Loading the racks
For best dishwashing results, observe the following when loading the dishwasher:
■ Do not pre-wash items with
loosely attached food soil.
■ Remove all food particles, bones,
toothpicks and excessive grease.
■ Pre-treat items having burned-on,
baked-on or starchy soils.
■ Load dishes in the dishwasher
racks so the insides of bowls,
pots and pans are facing the
spray arms.
■ Avoid nesting and contact points
between dishes.
■ Separate items of dissimilar
metals. Use care to not block
movement of the spray arms.
■ Only wash household dishware
and kitchenware rated as
dishwasher-safe.
Refer to the Dishware Materials
section for more information
about dishware suitability.
NOTICE
To avoid dishwasher damage, do not
load the dishwasher with paper
products, plastic bags, packing
materials or anything other than
normal, dishwasher safe dishware
and kitchenware.
Loading the upper rack
Ensure items do not protrude through
the bottom of the racks and block the
spray arms.
Note: When pushing the upper
rack 1* into the dishwasher, push it
until it stops against the back of the
tub so the upper rack spray
arm 12 connects to the water
supply at the back of the tub. Do not
push racks in using the door.
14
Loading the Dishwasher en-us
Loading the lower rack
Place large items in the lower
rack 1j. Load pots, pans and bowls
upside down. Do not block the vent
hole 1B with tall baking sheets.
Load these items on the right side of
the dishwasher.
Recommended loading pattern
12 place setting
Lower rack 1j
10 place setting
Lower rack 1j
Upper rack 1*
Upper rack 1*
Note: Folding the cup shelves down
will allow the cups to sit at an
increased angle and reduce water
pooling on cup bottoms.
Note: Folding the cup shelves down
will allow the cups to sit at an
increased angle and reduce water
pooling on cup bottoms.
15
en-us Loading the Dishwasher
Loading the silverware basket
Place knives and sharp utensils with
their handles up and forks and
spoons with their handles down. If
large or oddly-shaped items are
loaded in the silverware basket, be
sure they do not nest together.
9 WARNING
RISK OF INJURY!
The sharp points and edges of
knives and other sharp utensils
can cause serious injury. Load
knives and other sharp utensils
with edges down. Do not allow
children to handle or play near
knives and sharp utensils.
Long silverware basket
Suggested loading patterns
1 Salad fork
2 Teaspoon
3 Dinner fork
4 Knife
5 Tablespoon
6 Serving spoon
7 Serving fork
Note: The silverware basket lid may
also be folded downward in order to
leave the basket open.
16
Unloading the dishwasher
When unloading the dishwasher, to
prevent water from dripping onto dry
dishes, unload the lower
rack 1j first. Next, unload the
silverware basket 1b followed by
the upper rack 1*, and then the
third rack (if equipped).
Note: Dishes are more likely to chip
when unloading before cooling.
Loading the Dishwasher en-us
Rack accessories
Flip tines*
The upper and lower rack are fitted
with flip tines that can be folded
down depending on what you may
need to load in the rack.
Lower rack flip tines: To fold down,
pull flip tine gently forward and
release it from the notch. Push the
flip tine downward. To fold up, push
flip tines into an upright position until
the holder engages in the notch.
Upper rack flip tines: To fold down,
push flip tines downward with gentle
pressure. To fold up, push flip tines
into an upright position until the
holder engages in the notch.
Plastic item clips*
Light-weight plastic accessories
(cups, lids, etc.) can be held securely
by the plastic item clips.
Press the plastic item clip against the
upper rack 1* as shown until it
clicks.
&/,&.
* optional feature which may or may
not be included with your
dishwasher.
Vase holder*
The vase holder can be placed
anywhere in the lower rack to hold
and thoroughly clean vases, bottles,
and other containers.
* optional feature which may or may
not be included with your
dishwasher.
* optional feature which may or may
not be included with your
dishwasher.
17
en-us Loading the Dishwasher
Cup shelves*
The cup shelves and the space
underneath them can be used for
small cups or for larger serving
utensils.
&/,&.
* optional feature which may or may
not be included with your
dishwasher.
Knife shelf*
Long knives and other utensils can
be placed in the knife shelf.
Extra tall item sprinkler*
If an item is too tall to be placed in
the lower rack 1j even with the
upper rack 1* in the raised
position, remove the empty upper
rack 1* by pulling it out of the
dishwasher until it stops. Pull the
front of the rack upward and outward
until the rack will not slide out
anymore. Then lift it up and away
from the dishwasher, until the rollers
are completely free of the roller
guides (A).
Set the upper rack 1* aside and
push the roller guides (A) back into
the dishwasher. Insert the extra tall
item sprinkler (B) into the upper rack
spray outlet (C) and turn the sprinkler
clockwise to lock into position.
$
&
$
* optional feature which may or may
not be included with your
dishwasher.
18
%
Note: Keep the vent hole 1B on the
tub’s left side clear by placing tall
items such as plastic cutting boards
and tall baking sheets on the lower
rack’s right side or center.
NOTICE
To avoid dishwasher damage, do not
reinstall the upper rack 1* without
removing the extra tall item
sprinkler (B).
* optional feature which may or may
not be included with your
dishwasher.
Detergent en-us
. Detergent
Detergent
Use only detergent specifically
designed for dishwashers. For best
results, use fresh powdered
dishwashing detergent or detergent
tabs.
NOTICE
To avoid dishwasher damage:
■ Do not use hand dishwashing
products in your dishwasher.
■ Do not use too much detergent if
your water is soft. Using too much
detergent with soft water may
cause etching in glassware and
fine china.
This dishwasher uses less water than
most, therefore, less detergent is
required. With soft water,
1 tablespoon (15 ml) of detergent
will clean most loads. The detergent
dispenser cup has lines that measure
detergent to 1 tablespoon (15 ml)
and 1.75 tablespoons (25 ml).
3 tablespoons (45 ml) of detergent
will completely fill the detergent
dispenser.
Note: If you do not know the
hardness of your water supply, use
15 ml of detergent. Increase the
amount if necessary to the least
amount required to get your
kitchenware clean.
19
en-us Detergent
Use the measuring lines in the
detergent dispenser cup as a guide
Wash Cycle Hard Water/
Heavy 3 tbsp
Auto 1.75 - 3 tbsp
Normal 1.75 - 3 tbsp
Rinse none none none
Heavy Soil
(45 ml)
(25 - 45 ml)
(25 - 45 ml)
Adding detergent
1.
If the detergent dispenser 9* is still closed, actuate the locking bar 92 to open it.
Note: Make sure the detergent
dispenser is dry and clear of
detergent residue.
to measure the amount of detergent
recommended in the following table.
Medium Water/ Medium Soil
3 tbsp
(45 ml)
1.75 tbsp
(25 ml)
1.75 tbsp
(25 ml)
2.
Pour detergent into the dry
detergent dispenser 9* only.
Add detergent. Do not overfill the
detergent dispenser.
PD[
WEVSPO
WEVSPO
WEVSPO
Soft Water/ Little Soil
1.75 - 3 tbsp
(25 - 45 ml)
1 - 1.75 tbsp
(15 - 25 ml)
1 - 1.75 tbsp
(15 - 25 ml)
20
When using detergent tabs, lay
them such that they do not come
in contact with the cover, insert a
detergent tab flat, not on its side.
Note: Do not place detergent
tabs or utensils in the detergent
tab tray 1:. Place tabs or other
detergent forms directly in the
detergent dispenser 9*.
Dosage: see manufacturer’s
instructions on the packaging.
3.
Close the lid by placing the finger on the lid as shown. Slide the lid closed and press down firmly until it clicks.
Detergent en-us
&/,&.
The detergent dispenser will open
automatically at the ideal time for
the set cycle. The powder or liquid
detergent is distributed in the
appliance and is dissolved,
detergent tabs will fall into the
detergent tab tray 1: where it
dissolves during the cycle.
Tip: If the utensils are only lightly
soiled, slightly less than the indicated
amount of detergent is usually
adequate.
21
en-us Dishwasher Cycles
/ Dishwasher Cycles
Dishwasher Cycles
Wash cycle Recommended use Possible wash cycle option
Heavy Best for cleaning items with baked-on
food or grease. These dishes would
normally require soaking or hand
scouring.
Auto Smartest cycle, with most flexible soil
sensing, which is ideal for mixed dishware
and food soils.
Normal
(see note at
bottom of table)
Recommended for daily, regular or typical
use to completely wash a full load of
normally soiled dishes.
Rinse Use this cycle if you need to pre-rinse
dishes to avoid odors. Place unrinsed
dishes inside the dishwasher and select
the Rinse cycle. Uses less water than
hand rinsing and very low energy.
*the number of wash cycles depends on the features of your dishwasher
all
all
all
Note: In order to obtain optimal
performance with minimum energy
consumption, it is recommended to
disable all available options and
settings, except Auto Power Off - set
to ˜:‹‚~ "Auto power off"
on page 25
Delay
Note: The Energy Guide label was based on the Normal soil sensing cycle as
follows: The unit was tested without any rinse aid (liquid) in the rinse aid
dispenser 9". A single dose of detergent was inserted into the detergent
dispenser 9*, with no detergent being used in the prewash. The unit was not
subjected to truncated testing per the definitions in the test procedure. We
recommend that dish loads such as the one in the energy certification test
have the rack position set in the highest position.
22
Dishwasher Cycle Options en-us
0 Dishwasher Cycle
Options
Dishwasher Cycle Options
* Depending on the features of your
dishwasher you can select various
wash cycle options H.
Delay
Allows you to delay the start time of
your dishwasher up to 24 hours.
Wash Cycle Information
To save energy, this dishwasher has
EcoSense where the sensors in the
dishwasher automatically adjust the
cycle length, temperature and water
changes based on the amount of
food soil and the incoming water
temperature. The “Smart Control”
makes decisions that can cause the
Heavy Auto Normal Rinse
Cycle
time
min.
Water
usage
gal/L
Wash
temp.
°F/°C
Rinse
temp.
°F/°C
Sanitize
Cycle
time
min.
Water
usage
gal/L
110 - 135 105 - 129 130 - 135 9
4.9-6.4/
18.6-24.2
150-160/
66-71
162/
72
130-150 125-150 135-155 N/A
4.9-6.4/
18.6-24.2
3.5-6.5/
13.1-24.5
127-150/
53-66
153/
67
3.5-6.5/
13.1-24.5
Sanitize
This function increases the
temperatures and retains them for an
extra long time to obtain a defined
disinfecting performance. Continuous
use of this function increases the
hygiene status. This additional option
is ideal for cleaning items such as
chopping boards and baby bottles.
The sanitize LED will light when
sanitation requirements are met.
Using the Sanitize option may also
improve drying.
cycle time and water usage to adjust
intermittently. Wash cycle times are
based on 120°F (49° C) water
supply. If your household water
supply is different than 120°F
(49° C), your dishwasher’s cycle
times may be impacted.
2.2-5.5/
8.8-20.8
113-131/
45-55
156/
69
2.4-5.5/
8.8-20.8
1.1/
4.1
incoming
incoming
N/A
23
en-us Operating the Dishwasher
Note: Only sanitizing cycles have been designed to meet the requirements of
Section 6 of the NSF/ANSI Standard for Residential Equipment for soil removal
and sanitization efficacy. There is no intention, either directly or indirectly, to
imply that all cycles have passed sanitization performance tests.
1 Operating the
Dishwasher
Operating the Dishwasher
9 WARNING
RISK OF INJURY!
To avoid risk of injury, always
use caution when opening the
door during or following a wash
cycle as hot water or steam
may escape. Do not fully open
the door until water noises have
stopped and steam has
subsided.
Protection against unintentional operation
Your dishwasher is equipped with a
function that helps to prevent
unintentional operation (e.g. by
children).
After setting the dishwasher, the
dishwasher door has to be closed
within 4 seconds, otherwise the
operation will be paused. There will
be a signal on the control panel
advising you to press the Start button
again and close the door.
This function will be activated when:
■ pressing Start to begin a wash
cycle
■ setting Delay time and pressing
Start
■ opening the door while Delay time
is active
■ opening the door during a wash
cycle.
Note: This function cannot be
deactivated.
AquaSensor
AquaSensor
The AquaSensor is an optical
measuring device which measures
the cleanliness of the rinse water.
The AquaSensor is used according
to the wash cycle. If the AquaSensor
is active, “clean” rinse water can be
transferred to the next rinse and
water consumption can be reduced
by 0.8–1-5 gal (3–6 liters). If the
rinse water is not yet clear, the water
is drained and is replaced with fresh
water. In the automatic wash cycles
the temperature and running time
can also be adjusted to the degree of
soiling.
Switching the appliance on
1.
Turn the water supply on fully.
2.
Press the On/Off button (.
The AUTO wash cycle has been
preset as a default whenever the
appliance starts. This wash cycle
remains selected if no other wash
cycle button 0 is pressed.
Select any desired option.
3.
Press Start button P.
Wash cycle sequence starts.
Note: Your dishwasher is protected
against unintentional operation. If the
appliance door remains open for
more than 4 seconds after pressing
the Start button, the operation will be
paused. Close the appliance door
and press the Start button P again.
24
Operating the Dishwasher en-us
Time display
When a wash cycle is selected the
remaining wash cycle time is shown
on the display 8.
The wash cycle time is determined
during the wash cycle by the water
temperature, the amount of dishes,
as well as the degree of soiling and
may vary (depending on the selected
wash cycle).
Delay start
You can delay the start of the cycle in
one hour increments up to 24 hours.
œ:‹‚ 1 hour delay
œ:ƒ… 24 hours delay
To set Delay start:
1.
Press On/Off button (. Select a cycle.
2.
Press Delay button @ until the displayed time corresponds with your requirements.
3.
Press Start button P to activate Delay start.
To cancel Delay start:
1.
Press Delay button @ until œ:‹‹ is indicated on the digital display 8.
2.
Press Start button P to save setting.
Note: Your dishwasher is protected
against unintentional operation. If the
appliance door remains open for
more than 4 seconds after pressing
the Start button, the operation will be
paused. Close the appliance door
and press the Start button P again.
Wash cycle end
The wash cycle has ended when the
display 8 reads ‹‹:‹‹.
Auto power off
To save energy, the dishwasher is
turned off 1 minute after the wash
cycle ends.
This setting can be adjusted from
˜:‹‹ to ˜:‹ƒ.
˜:‹‹ dishwasher does not turn off
˜:‹‚ dishwasher turns off
˜:‹ƒ dishwasher turns off
To change the setting:
1.
2.
3.
4.
5.
6.
automatically
automatically after 1 minute
automatically after
120 minutes (2 hours)
Press the On/Off button (.
Hold down the function key #
and press the Start button P
until the display 8 indicates
š:‹x (x can be any number).
Release both buttons.
Press the function key # until
the display 8 indicates ˜:‹x.
Press the function key 3 until
the display corresponds with your
requirements.
Press the Start button P.
Switching off the appliance
Short time after the end of the wash cycle:
1.
Press On/Off button (.
2.
Turn off water supply.
3.
Remove the utensils when they have cooled down.
9 WARNING
RISK OF INJURY!
To avoid risk of injury, always
use caution when opening the
door during or following a wash
cycle as hot water or steam
may escape. Do not fully open
the door until water noises have
stopped and steam has
subsided.
25
en-us Operating the Dishwasher
Interrupting the wash cycle
9 CAUTION
Expansion (overpressure) may
cause the appliance door to
open and/or water to escape! If
the door was opened on an
appliance which has a hot water
connection or is heated, always
leave the door ajar for several
minutes and then close.
1.
Press On/Off button (.
The LED’s go out. The wash cycle
is saved.
2.
To continue the wash cycle, close the door and press On/Off button ( again.
Note: Your dishwasher is protected
against unintentional operation. If the
appliance door remains open for
more than 4 seconds after pressing
the Start button, the operation will be
paused. Close the appliance door
and press the Start button P again.
Terminating the wash cycle (Reset)
Terminating the wash cycle
1.
Press and hold Start button P for approximately 3 seconds until the display reads ‹:‹‚.
2.
Wait about 1 minute while the dishwasher drains.
3.
Press On/Off button (.
You may now power the dishwasher
back on and begin a new cycle if
desired.
Child Lock (panel lock)*
The child lock will lock the panel
while the dishwasher is in operation
to prevent that a wash cycle is
interrupted unintenionally (e.g. by
children).
To set the panel lock:
1.
Start the desired wash cycle.
2.
Hold down the button that says
‘Child Lock’ underneath it for
approximately 3 seconds until the
display reads ’–.
The panel lock is active.
’– will be indicated now if any button is pressed and the program will not be reset.
To deactivate the panel lock hold
down the button that says ‘Child
Lock’ underneath it for approximately
3 seconds until the display no longer
reads ’–.
The panel lock is deactivated
automatically when the wash cycle is
completed. In case of a power
outage the panel lock will remain
active. The panel lock has to be
activated with each new wash cycle.
* optional feature which may or may
not be included with your
dishwasher.
Changing the wash cycle
When the Start button ( has been
pressed, the wash cycle cannot be
changed. The only way a wash cycle
can be changed is by terminating the
wash cycle (Reset).
26
Loading...
