Block PVSL 400 Catalog Page
Three-phase, primary switched mode
power supply, Line
PVSL 400
Typ PVSL 400/24-10 PVSL 400/24-20 PVSL 400/24-40
Input
Input rated voltage 3 x 400 - 500 Vac 3 x 400 - 500 Vac 3 x 400 - 500 Vac
Input voltage range 340 - 550 Vac (480 - 780 Vdc) 340 - 550 Vac (480 - 780 Vdc) 340 - 550 Vac (480 - 780 Vdc)
Input rated current (rated load) 0.6 A (3 x 340 Vac) 1.1 A (3 x 340 Vac) 2 A (3 x 340 Vac)
Rated frequency range 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz
Starting current limiter <30 A, NTC <30 A, NTC <30 A, NTC
Input fuse internal 3 x 1.6 A (slow-blow) 3 x 2.5 A (slow-blow) 3 x 6.3 A (slow-blow)
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A, characteristics B, C 6 A, 10 A, 16 A, characteristics B, C 10 A, 16 A, characteristics B, C
Harmonic correction
passive passive passive
Mains buffering (rated load) 22.6 / 51.5 ms (400 / 500 Vac) 13.2 / 36.8 ms (400 / 500 Vac) 15.6 / 42.9 ms (400 / 500 Vac)
Transient surge voltage protection Varistor Varistor Varistor
Output
Output rated voltage 24 Vdc 24 Vdc 24 Vdc
Output voltage range 22.8 - 28.8 Vdc 22.8 - 28.8 Vdc 22.8 - 28.8 Vdc
Resistance to reverse feed max. 35 Vdc 35 Vdc 35 Vdc
Output rated current 10.00 A 20.00 A 40.00 A
Parallel connection Yes Yes Yes
Power Boost
20 A / 4 s (15 A / 8 s) 40 A / 4 s (30 A / 8 s) 60 A / 4 s (50 A / 8 s)
Overload behaviour
Constant current or fuse Constant current or fuse Constant current or fuse
Efficiency typ. 91.7 % typ. 92.9% typ. 93.1 %
Ripple factor typ. 70 mVss typ. 70 mVss typ. 70 mVss
Top Boost 70 A / 50 ms 80 A / 50 ms 100 A / 50 ms
Signaling
Power Good (DC OK)
LED green, LED red, LED yellow LED green, LED red, LED yellow LED green, LED red, LED yellow
Active signal outputs 4 x 24 Vdc, 2 configurable 4 x 24 Vdc, 2 configurable 4 x 24 Vdc, 2 configurable
Stand-by-input No No No
Display, interface Yes, RS 232 Yes, RS 232 Yes, RS 232
Approvals
Approvals cURus, cULus cURus, cULus cURus, cULus
Environment
Ambient temperature -25 °C to +70 °C -25° C to +70° C -25° C to +55° C
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Derating -3 %/K > +50 °C -3%/K > +50 °C -5 %/K > +50 °C
Safety and protection
Protection index
IP 20 IP 20 IP 20
Safety class
I, with PE connection I, with PE connection I, with PE connection
Accessory
Connector for signalling PV-CON (optional) PV-CON (optional) PV-CON (optional)
Adapter cable for interface
PV-KOK2 (optional) PV-KOK2 (optional) PV-KOK2 (optional)
Side DIN rail mounting PV-TS35M (optional) PV-TS35M (optional) PV-TS35M (optional)
Direct screw fastening plate
for lateral mounting
PV-WB2 (optional) PV-WB2 (optional) PV-WB2 (optional)
Order numbers
Order Number PVSL 400/24-10 PVSL 400/24-20 PVSL 400/24-40
+
-
Power supplies
Three-phase switched mode power supplies
2

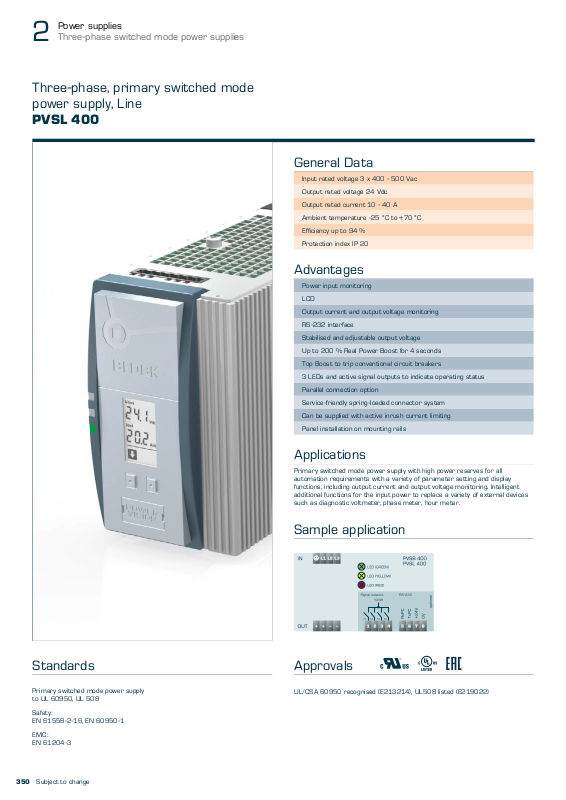

Three-phase, primary switched mode
power supply, Line
PVSL 400
StandardsZ
General Data
Input rated voltage 3 x 400 - 500 Vac
Output rated voltage 24 Vdc
Output rated current 10 - 40 A
Ambient temperature -25 °C to +70 °C
Efficiency up to 94 %
Protection index IP 20
Advantages
Power input monitoring
LCD
Output current and output voltage monitoring
RS-232 interface
Stabilised and adjustable output voltage
Up to 200 % Real Power Boost for 4 seconds
Top Boost to trip conventional circuit breakers
3 LEDs and active signal outputs to indicate operating status
Parallel connection option
Service-friendly spring-loaded connector system
Can be supplied with active inrush current limiting
Panel installation on mounting rails
Applications
Primary switched mode power supply with high power reserves for all
automation requirements with a variety of parameter setting and display
functions, including output current and output voltage monitoring. Intelligent
additional functions for the input power to replace a variety of external devices
such as diagnostic voltmeter, phase meter, hour meter.
Sample application
Approvals W o J Z
Primary switched mode power supply
to UL 60950, UL 508
Safety:
EN 61558-2-16, EN 60950-1
EMC:
EN 61204-3
Subject to change
350
UL/CSA 60950 recognised (E213214), UL508 listed (E219022)
+
-
Power supplies
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Three-phase switched mode power supplies
2

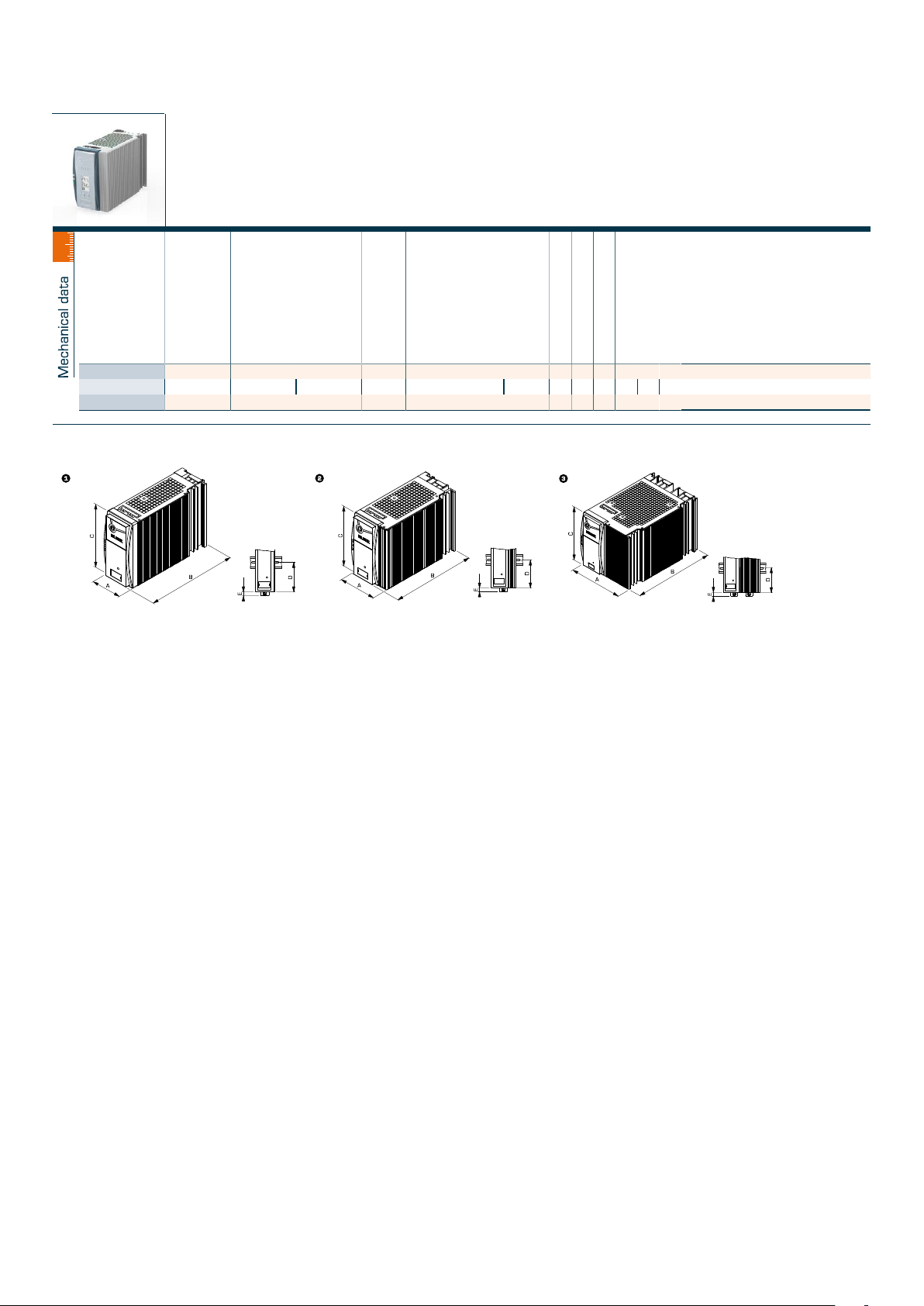

Three-phase, primary switched mode
power supply, Line
PVSL 400
Typ PVSL 400/24-10 PVSL 400/24-20 PVSL 400/24-40
Input
Input rated voltage 3 x 400 - 500 Vac 3 x 400 - 500 Vac 3 x 400 - 500 Vac
Input voltage range 340 - 550 Vac (480 - 780 Vdc) 340 - 550 Vac (480 - 780 Vdc) 340 - 550 Vac (480 - 780 Vdc)
Input rated current (rated load) 0.6 A (3 x 340 Vac) 1.1 A (3 x 340 Vac) 2 A (3 x 340 Vac)
Rated frequency range 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz
Starting current limiter <30 A, NTC <30 A, NTC <30 A, NTC
Input fuse internal 3 x 1.6 A (slow-blow) 3 x 2.5 A (slow-blow) 3 x 6.3 A (slow-blow)
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A, characteristics B, C 6 A, 10 A, 16 A, characteristics B, C 10 A, 16 A, characteristics B, C
Harmonic correction
Mains buffering (rated load) 22.6 / 51.5 ms (400 / 500 Vac) 13.2 / 36.8 ms (400 / 500 Vac) 15.6 / 42.9 ms (400 / 500 Vac)
Transient surge voltage protection Varistor Varistor Varistor
Output
Output rated voltage 24 Vdc 24 Vdc 24 Vdc
Output voltage range 22.8 - 28.8 Vdc 22.8 - 28.8 Vdc 22.8 - 28.8 Vdc
Resistance to reverse feed max. 35 Vdc 35 Vdc 35 Vdc
Output rated current 10.00 A 20.00 A 40.00 A
Parallel connection Yes Yes Yes
Power Boost
Overload behaviour
Efficiency typ. 91.7 % typ. 92.9% typ. 93.1 %
Ripple factor typ. 70 mVss typ. 70 mVss typ. 70 mVss
Top Boost 70 A / 50 ms 80 A / 50 ms 100 A / 50 ms
Signaling
Power Good (DC OK)
Active signal outputs 4 x 24 Vdc, 2 configurable 4 x 24 Vdc, 2 configurable 4 x 24 Vdc, 2 configurable
Stand-by-input No No No
Display, interface Yes, RS 232 Yes, RS 232 Yes, RS 232
Approvals
Approvals cURus, cULus cURus, cULus cURus, cULus
Environment
Ambient temperature -25 °C to +70 °C -25° C to +70° C -25° C to +55° C
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Derating -3 %/K > +50 °C -3%/K > +50 °C -5 %/K > +50 °C
Safety and protection
Protection index
Safety class
Accessory
Connector for signalling PV-CON (optional) PV-CON (optional) PV-CON (optional)
Adapter cable for interface
Side DIN rail mounting PV-TS35M (optional) PV-TS35M (optional) PV-TS35M (optional)
Direct screw fastening plate
for lateral mounting
Order numbers
Order Number PVSL 400/24-10 PVSL 400/24-20 PVSL 400/24-40
passive passive passive
20 A / 4 s (15 A / 8 s) 40 A / 4 s (30 A / 8 s) 60 A / 4 s (50 A / 8 s)
Constant current or fuse Constant current or fuse Constant current or fuse
LED green, LED red, LED yellow LED green, LED red, LED yellow LED green, LED red, LED yellow
IP 20 IP 20 IP 20
I, with PE connection I, with PE connection I, with PE connection
PV-KOK2 (optional) PV-KOK2 (optional) PV-KOK2 (optional)
PV-WB2 (optional) PV-WB2 (optional) PV-WB2 (optional)
Subject to change
351
