Power supplies
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Uninterruptible power supplies
2

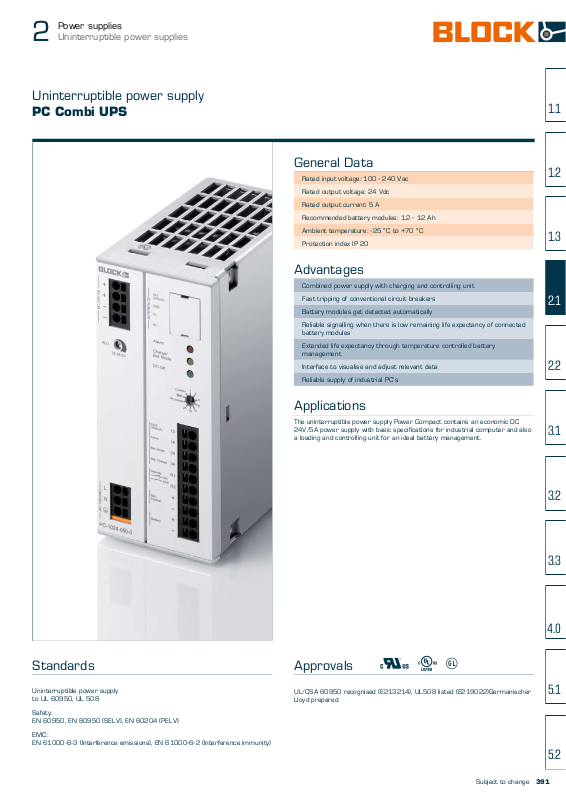

Uninterruptible power supply
PC Combi UPS
General Data
Rated input voltage: 100 - 240 Vac
Rated output voltage: 24 Vdc
Rated output current: 5 A
Recommended battery modules: 1.2 - 12 Ah
Ambient temperature: -25 °C to +70 °C
Protection index IP 20
Advantages
Combined power supply with charging and controlling unit
Fast tripping of conventional circuit breakers
Battery modules get detected automatically
Reliable signalling when there is low remaining life expectancy of connected
battery modules
Extended life expectancy through temperature controlled battery
management
Interface to visualise and adjust relevant data
Reliable supply of industrial PC's
Applications
The uninterruptible power supply Power Compact contains an economic DC
24V/5A power supply with basic specifications for industrial computer and also
a loading and controlling unit for an ideal battery management.
StandardsZ
Uninterruptible power supply
to UL 60950, UL 508
Safety:
EN 60950, EN 60950 (SELV), EN 60204 (PELV)
EMC:
EN 61000-6-3 (Interference emissions), EN 61000-6-2 (Interference immunity)
Approvals W o # Z
UL/CSA 60950 recognised (E213214), UL508 listed (E219022)Germanischer
Lloyd prepared
Subject to change
391
Page 2
+
-
Uninterruptible power supply
PC Combi UPS
Typ PC-1024-050-0
Input
Input rated voltage 100 - 240 Vac
Input voltage range 85 - 264 Vac
(120 - 372 Vdc)
AC input derating -1.5 % / Vac < 110 Vac
DC input derating -1 % / Vdc < 150 Vdc
Rated frequency range 47 Hz - 63 Hz / 0 Hz
Input rated current (rated load) 1.96 A / 0.95 A (100 / 230 Vac)
+
-
Uninterruptible power supply
PC Combi UPS
Typ
Terminals signalling (direct plug-in
technology Push-in)
Terminals output (direct plug-in
technology Push-in)
Terminals input (direct plug-in
technology Push-in)
Terminals storage medium direct
plug-in technology Push-in
Weight

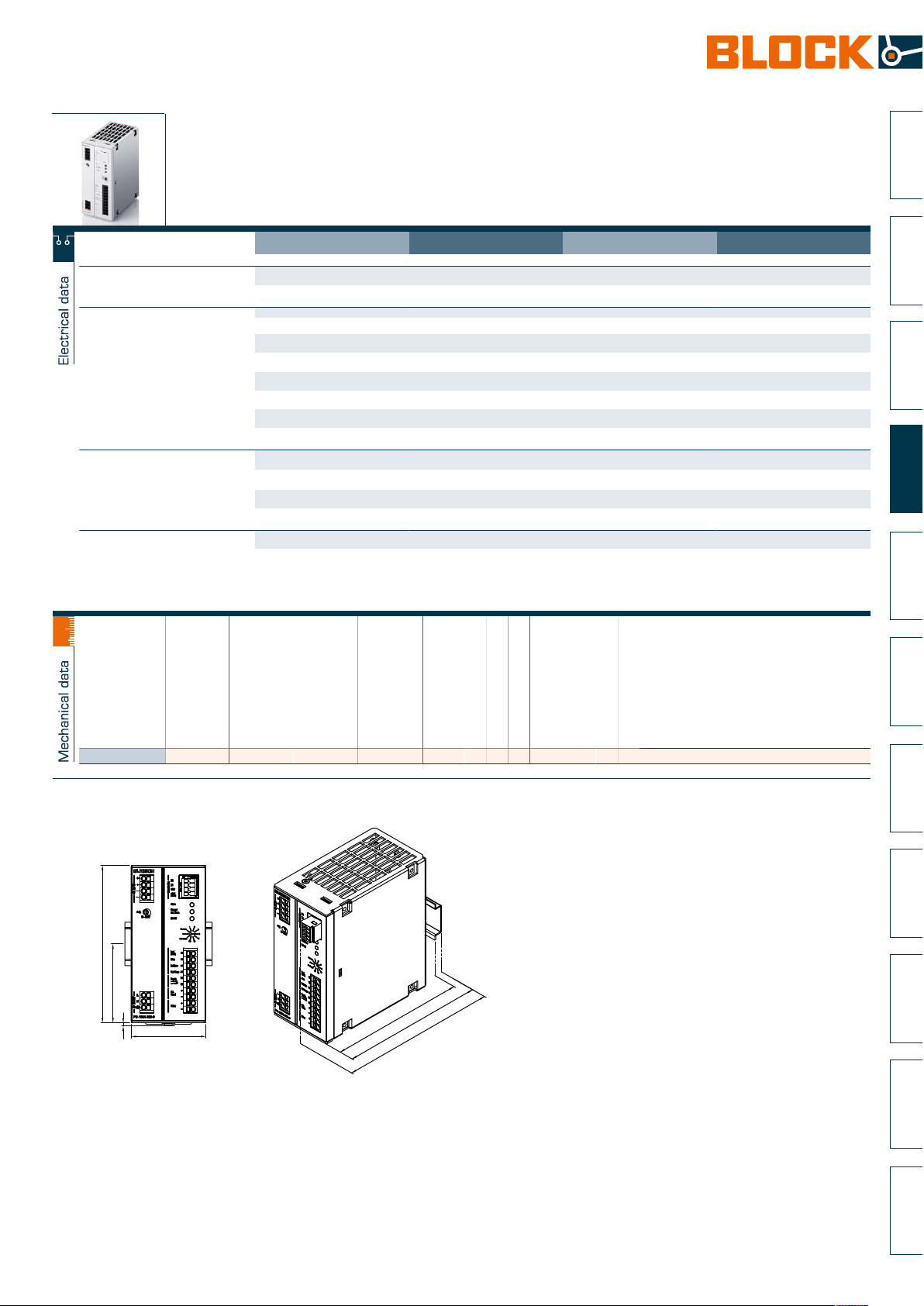

Dimension picture (in mm)
A B C D E F G
PC-1024-050-0 max 2,5 mm² max 2,5 mm² max 2,5 mm² max. 2,5 mm² 0.8 kg
1
127 63.5 3 60 118.5 126 136
30
Dimension pictures
A
D
E
F
B
C
G
2
392
Power supplies
Uninterruptible power supplies
Uninterruptible power supply
PC Combi UPS
Typ PC-1024-050-0
Input
Input rated voltage 100 - 240 Vac
Input voltage range 85 - 264 Vac
AC input derating -1.5 % / Vac < 110 Vac
DC input derating -1 % / Vdc < 150 Vdc
Rated frequency range 47 Hz - 63 Hz / 0 Hz
Input rated current (rated load) 1.96 A / 0.95 A (100 / 230 Vac)
Starting current limiter < 30 A, NTC
Switch-on time < 200 ms
Input fuse internal 4 A (time-lag)
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A, charakteristic B, C
Transient surge voltage protection Varistor
Output
Output rated current 5.00 A
Tripping of LS circuit breakers max. B4
Parallel connection Only with redundancy module, max. 5 A
Serial operation Yes
Ripple factor typ. 50 mVss
Output rated voltage 24 Vdc
Over-voltage-protection typ. 38 Vdc
Rated output voltage (normal mode) 24 Vdc
Rated output voltage (buffer mode) 24 Vdc
Output voltage range (mains operation) 23 – 28.5 Vdc
Output voltage range (battery operation) Battery voltage - 0.5 V (27.5 - 19 Vdc)
Output voltage limiting (mains operation) typ. 6.5 A, constant current
Output voltage limiting (battery operation) typ. 5.5 A
Power losses in mains operation (nominal load,
battery charged)
Max. power losses in battery operation (standby/nominal load)
Storage medium
Remote shutdown Yes
Buffer period 1, 2, 3, 5, 10, 15, 20 Min, PC-Mode,
Type of the storage medium
Reverse connection protection Yes, (fuse in battery module trips)
Charging characteristic 3-stage charging process (IUoU
Charging current
End-of-charge voltage 26...29,5 V temperature-controlled,
Check for presence of battery 1 per minute
Check remaining battery life 6 per hour
Deep discharge protection 19 Vdc
Warning threshold, battery almost flat 20.4 Vdc
Recommended battery modules 1.2 - 12 Ah
Parallel connection of battery modules Yes, max. 3
Signaling
Status indicator 3 LED green/yellow/red
Isolated group input max. 30 V / 200 mA current limiting (in
Alarm/Bat.Mode/Bat.Charge signal output Relay, kill switch type, max. 30 V,
Subject to change
(120 - 372 Vdc)
output current
22 W (100 Vac)
17W (230 Vac)
3.2 W / 5.2 W
Maximum, Individual
Accumulator, external
charging characteristic)
max. 0.6 A
adjustable via interface
3 seperate signal outputs)
function adjustable via interface
Page 3
+
-
Power supplies
Uninterruptible power supply
PC Combi UPS
30
A
D
E
F
B
C
G
Uninterruptible power supply
PC Combi UPS
Typ PC-1024-050-0
Input
Input rated voltage 100 - 240 Vac
Input voltage range 85 - 264 Vac
(120 - 372 Vdc)
AC input derating -1.5 % / Vac < 110 Vac
DC input derating -1 % / Vdc < 150 Vdc
Rated frequency range 47 Hz - 63 Hz / 0 Hz
Input rated current (rated load) 1.96 A / 0.95 A (100 / 230 Vac)
Starting current limiter < 30 A, NTC
Switch-on time < 200 ms
Input fuse internal 4 A (time-lag)
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A, charakteristic B, C
Transient surge voltage protection Varistor
Output
Output rated current 5.00 A
Tripping of LS circuit breakers max. B4
Parallel connection Only with redundancy module, max. 5 A
output current
Serial operation Yes
Ripple factor typ. 50 mVss
Output rated voltage 24 Vdc
Over-voltage-protection typ. 38 Vdc
Rated output voltage (normal mode) 24 Vdc
Rated output voltage (buffer mode) 24 Vdc
Output voltage range (mains operation) 23 – 28.5 Vdc
Output voltage range (battery operation) Battery voltage - 0.5 V (27.5 - 19 Vdc)
Output voltage limiting (mains operation) typ. 6.5 A, constant current
Output voltage limiting (battery operation) typ. 5.5 A
Power losses in mains operation (nominal load,
battery charged)
22 W (100 Vac)
17W (230 Vac)
Max. power losses in battery operation (stand-
by/nominal load)
3.2 W / 5.2 W
Storage medium
Remote shutdown Yes
Buffer period 1, 2, 3, 5, 10, 15, 20 Min, PC-Mode,
Maximum, Individual
Type of the storage medium
Accumulator, external
Reverse connection protection Yes, (fuse in battery module trips)
Charging characteristic 3-stage charging process (IUoU
charging characteristic)
Charging current
max. 0.6 A
End-of-charge voltage 26...29,5 V temperature-controlled,
adjustable via interface
Check for presence of battery 1 per minute
Check remaining battery life 6 per hour
Deep discharge protection 19 Vdc
Warning threshold, battery almost flat 20.4 Vdc
Recommended battery modules 1.2 - 12 Ah
Parallel connection of battery modules Yes, max. 3
Signaling
Status indicator 3 LED green/yellow/red
Isolated group input max. 30 V / 200 mA current limiting (in
3 seperate signal outputs)
Alarm/Bat.Mode/Bat.Charge signal output Relay, kill switch type, max. 30 V,
function adjustable via interface
Approvals
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Uninterruptible power supplies
2
Uninterruptible power supply
PC Combi UPS
Typ PC-1024-050-0
Input
Approvals cURus, cULus, GL
Input rated voltage 100 - 240 Vac
Environment
Input voltage range 85 - 264 Vac
Storage temperature -25 °C ... +85 °C
AC input derating -1.5 % / Vac < 110 Vac
Derating -3 %/K > +50 °C
DC input derating -1 % / Vdc < 150 Vdc
Mounting position
Rated frequency range 47 Hz - 63 Hz / 0 Hz
Type of cooling natural convection
Input rated current (rated load) 1.96 A / 0.95 A (100 / 230 Vac)
Required minimum spacing (left/right) 0 mm
Required minimum spacing (over/under) 50 mm
Safety and protection
Protection index
Safety class
Resistance to reverse feed max. 35 Vdc
Order numbers
Order Number PC-1024-050-0
Typ
PC-1024-050-0 max 2,5 mm² max 2,5 mm² max 2,5 mm² max. 2,5 mm² 0.8 kg
Dimension pictures
(120 - 372 Vdc)
horizontal for standard rail DIN TS35
IP 20
I, with PE connection
Terminals signalling (direct plug-in
technology Push-in)
Terminals output (direct plug-in
technology Push-in)
Terminals input (direct plug-in
technology Push-in)
Terminals storage medium direct
plug-in technology Push-in
Weight
Dimension picture (in mm)
A B C D E F G
127 63.5 3 60 118.5 126 136
1
Subject to change
393
