Page 1
Three-phase, primary switched mode
power supply
PC 3AC
Typ PC-0324-100-0 PC-0324-100-2 PC-0324-200-0 PC-0324-200-2
Input
Input rated voltage 400 - 500 Vac 400 - 500 Vac 400 - 500 Vac 400 - 500 Vac
Input voltage range 320 - 575 Vac 320 - 575 Vac 320 - 575 Vac 320 - 575 Vac
Input voltage derating - - - -
Rated frequency range 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz
Input rated current (rated load) 3 x 0.73 A (400 Vac) / 0.66 A (500 Vac) 3 x 0.73 A (400 Vac) / 0.66 A (500 Vac) 3 x 1.21 A (400 Vac) / 1.03 A (500 Vac) 3 x 1.21 A (400 Vac) / 1.03 A (500 Vac)
Starting current limiter < 30 A, NTC < 30 A, NTC < 30 A, NTC < 30 A, NTC
Input fuse internal - - - -
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A,
characteristic B, C
6 A, 10 A, 16 A,
characteristic B, C
6 A, 10 A, 16 A,
characteristic B, C
6 A, 10 A, 16 A,
characteristic B, C
Transient surge voltage protection Varistor Varistor Varistor Varistor
Output
Output rated voltage 24 Vdc 24 Vdc 24 Vdc 24 Vdc
Output voltage range 23 – 28.5 Vdc 23 – 28.5 Vdc 23 – 28.5 Vdc 23 – 28.5 Vdc
Output rated current 10 A 10 A 20 A 20 A
Output limited current typ. 11 A (constant current) typ. 11 A (constant current) typ. 22 A (constant current) typ. 22 A (constant current)
Power Boost
- 15 A / 5 s - 30 A / 5 s
Tripping of LS circuit breakers max. B6/C2 @ 2.5mm²/20m max. B6/C2 @ 2.5mm² /20m max. B6/C4/K4 @ 6mm² /20m max. B6/C6/K4 @ 6mm² /20m
Parallel connection Yes Yes Yes Yes
Serial operation Yes Yes Yes Yes
Power dissipation, no load/rated load 2.7 W / 27.6 W (400 Vac) 2.7 W / 27.6 W (400 Vac) 4.03 W / 42.53 W (400 Vac) 4.03 W / 42.53 W (400 Vac)
Ripple factor typ. 30 mVss typ. 30 mVss typ. 30 mVss typ. 30 mVss
Efficiency typ. 90 % typ. 90 % typ. 92 % typ. 92 %
Resistance to reverse feed max. 35 Vdc 35 Vdc 35 Vdc 35 Vdc
Over-voltage-protection max. 40 Vdc max. 40 Vdc max. 40 Vdc max. 40 Vdc
Signaling
Status indicator LED green LED green LED green LED green
Signal output Relay contact Relay contact Relay contact Relay contact
Approvals
Approvals cURus, cULus, GL (in preparation) cURus, cULus, GL (in preparation) cURus, cULus, GL (in preparation) cURus, cULus, GL (in preparation)
Environment
Type of cooling natural convection natural convection natural convection natural convection
Ambient temperature -25 °C to +70 °C -25 °C to +70 °C -25 °C to +70 °C -25 °C to +70 °C
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Derating -2.5 %/K > +55 °C -2.5 %/K > +55 °C -2.5 %/K > +55 °C -2.5 %/K > +55 °C
Required minimum spacing (left/right) 0 mm 0 mm 0 mm 0 mm
Required minimum spacing (over/under) 50 mm 50 mm 50 mm 50 mm
Safety and protection
Protection index
IP 20 IP 20 IP 20 IP 20
Safety class
I, with PE connection I, with PE connection I, with PE connection I, with PE connection
Order numbers
Order Number PC-0324-100-0 PC-0324-100-2 PC-0324-200-0 PC-0324-200-2
+
-
Power supplies
Three-phase switched mode power supplies
2

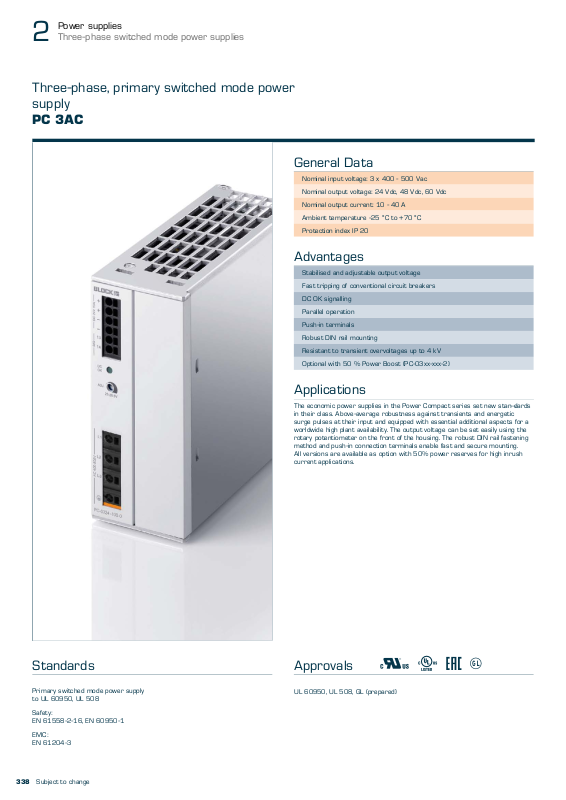

Three-phase, primary switched mode power
supply
PC 3AC
General Data
Nominal input voltage: 3 x 400 - 500 Vac
Nominal output voltage: 24 Vdc, 48 Vdc, 60 Vdc
Nominal output current: 10 - 40 A
Ambient temperature -25 °C to +70 °C
Protection index IP 20
Advantages
Stabilised and adjustable output voltage
Fast tripping of conventional circuit breakers
DC OK signalling
Parallel operation
Push-in terminals
Robust DIN rail mounting
Resistant to transient overvoltages up to 4 kV
Optional with 50 % Power Boost (PC-03xx-xxx-2)
Applications
The economic power supplies in the Power Compact series set new stan¬dards
in their class. Above-average robustness against transients and energetic
surge pulses at their input and equipped with essential additional aspects for a
worldwide high plant availability. The output voltage can be set easily using the
rotary potentiometer on the front of the housing. The robust DIN rail fastening
method and push-in connection terminals enable fast and secure mounting.
All versions are available as option with 50% power reserves for high inrush
current applications.
StandardsZ
Primary switched mode power supply
to UL 60950, UL 508
Safety:
EN 61558-2-16, EN 60950-1
EMC:
EN 61204-3
Subject to change
338
Approvals W o J # Z
UL 60950, UL 508, GL (prepared)
Page 2
+
-
Power supplies
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Three-phase switched mode power supplies
2
Three-phase, primary switched mode
power supply
PC 3AC
Typ PC-0324-100-0 PC-0324-100-2 PC-0324-200-0 PC-0324-200-2
Input
Input rated voltage 400 - 500 Vac 400 - 500 Vac 400 - 500 Vac 400 - 500 Vac
Input voltage range 320 - 575 Vac 320 - 575 Vac 320 - 575 Vac 320 - 575 Vac
Input voltage derating - - - -
Rated frequency range 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz
Input rated current (rated load) 3 x 0.73 A (400 Vac) / 0.66 A (500 Vac) 3 x 0.73 A (400 Vac) / 0.66 A (500 Vac) 3 x 1.21 A (400 Vac) / 1.03 A (500 Vac) 3 x 1.21 A (400 Vac) / 1.03 A (500 Vac)
Starting current limiter < 30 A, NTC < 30 A, NTC < 30 A, NTC < 30 A, NTC
Input fuse internal - - - -
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A,
Transient surge voltage protection Varistor Varistor Varistor Varistor
Output
Output rated voltage 24 Vdc 24 Vdc 24 Vdc 24 Vdc
Output voltage range 23 – 28.5 Vdc 23 – 28.5 Vdc 23 – 28.5 Vdc 23 – 28.5 Vdc
Output rated current 10 A 10 A 20 A 20 A
Output limited current typ. 11 A (constant current) typ. 11 A (constant current) typ. 22 A (constant current) typ. 22 A (constant current)
Power Boost
Tripping of LS circuit breakers max. B6/C2 @ 2.5mm²/20m max. B6/C2 @ 2.5mm² /20m max. B6/C4/K4 @ 6mm² /20m max. B6/C6/K4 @ 6mm² /20m
Parallel connection Yes Yes Yes Yes
Serial operation Yes Yes Yes Yes
Power dissipation, no load/rated load 2.7 W / 27.6 W (400 Vac) 2.7 W / 27.6 W (400 Vac) 4.03 W / 42.53 W (400 Vac) 4.03 W / 42.53 W (400 Vac)
Ripple factor typ. 30 mVss typ. 30 mVss typ. 30 mVss typ. 30 mVss
Efficiency typ. 90 % typ. 90 % typ. 92 % typ. 92 %
Resistance to reverse feed max. 35 Vdc 35 Vdc 35 Vdc 35 Vdc
Over-voltage-protection max. 40 Vdc max. 40 Vdc max. 40 Vdc max. 40 Vdc
Signaling
Status indicator LED green LED green LED green LED green
Signal output Relay contact Relay contact Relay contact Relay contact
Approvals
Approvals cURus, cULus, GL (in preparation) cURus, cULus, GL (in preparation) cURus, cULus, GL (in preparation) cURus, cULus, GL (in preparation)
Environment
Type of cooling natural convection natural convection natural convection natural convection
Ambient temperature -25 °C to +70 °C -25 °C to +70 °C -25 °C to +70 °C -25 °C to +70 °C
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Derating -2.5 %/K > +55 °C -2.5 %/K > +55 °C -2.5 %/K > +55 °C -2.5 %/K > +55 °C
Required minimum spacing (left/right) 0 mm 0 mm 0 mm 0 mm
Required minimum spacing (over/under) 50 mm 50 mm 50 mm 50 mm
Safety and protection
Protection index
Safety class
Order numbers
Order Number PC-0324-100-0 PC-0324-100-2 PC-0324-200-0 PC-0324-200-2
characteristic B, C
- 15 A / 5 s - 30 A / 5 s
IP 20 IP 20 IP 20 IP 20
I, with PE connection I, with PE connection I, with PE connection I, with PE connection
6 A, 10 A, 16 A,
characteristic B, C
6 A, 10 A, 16 A,
characteristic B, C
6 A, 10 A, 16 A,
characteristic B, C
Subject to change
339
Page 3
+
-
Three-phase, primary switched mode
power supply
PC 3AC
Typ PC-0360-160-0
Input
Input rated voltage 400 - 500 Vac
Input voltage range 390 - 575 Vac
(550 - 800 Vdc)
Input voltage derating -
Rated frequency range 44 Hz - 66 Hz / 0 Hz
Input rated current (rated load) 3 x 2,02 A (400 Vac)/ 1,6 A (520 Vac)
Starting current limiter < 30 A, NTC
Input fuse internal 6,3 AT
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A,
characteristic B, C
Transient surge voltage protection Varistor
Output
Output rated voltage 60 Vdc
Output voltage range 40 – 61 Vdc
Output rated current 16 A
Output limited current typ. 11 A (constant current)
Power Boost
-
Tripping of LS circuit breakers max. B10/C6/K6
Parallel connection Yes
Serial operation Yes
Power dissipation, no load/rated load 7,5 W / 68,93 W (400 Vac)
Ripple factor typ. 25 mVss
Efficiency typ. 93%
Resistance to reverse feed max. 63 Vdc
Over-voltage-protection typ. 63 Vdc
Signaling
Status indicator LED green
Signal output Relay contact
Approvals
Approvals cURus, cULus, GL (in preparation)
Environment
Type of cooling natural convection
Ambient temperature -25 °C to +70 °C
Storage temperature -25 °C to +85 °C
Derating -2.5 %/K > +55 °C
Required minimum spacing (left/right) 0 mm
Required minimum spacing (over/under) 50 mm
Safety and protection
Protection index
IP 20
Safety class
I, with PE connection
Order numbers
Order Number PC-0360-160-0
+
-
Power supplies
Three-phase switched mode power supplies
2
Three-phase, primary switched mode
power supply
PC 3AC
Typ PC-0324-400-0 PC-0324-400-2 PC-0348-200-0 PC-0348-200-2
Input
Input rated voltage 400 - 500 Vac 400 - 500 Vac 400 - 500 Vac 400 - 500 Vac
Input voltage range 320 - 575 Vac 320 - 575 Vac 320 - 575 Vac
Input voltage derating - - - -
Rated frequency range 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz
Input rated current (rated load) 3 x 2.15 A (400 Vac) / 1.82 A (500 Vac) 3 x 2.15 A (400 Vac) / 1.82 A (500 Vac) 3 x 2,01 A (400 Vac)/ 1,63 A (520 Vac) 3 x 2,01 A (400 Vac)/ 1,63 A (520 Vac)
Starting current limiter < 30 A, NTC < 30 A, NTC < 30 A, NTC < 30 A, NTC
Input fuse internal - - 6,3 AT 6,3 AT
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A,
Transient surge voltage protection Varistor Varistor Varistor Varistor
Output
Output rated voltage 24 Vdc 24 Vdc 48 Vdc 48 Vdc
Output voltage range 23 – 28.5 Vdc 23 – 28,5 Vdc 40 – 56 Vdc 40 – 56 Vdc
Output rated current 40 A 40 A 20 A 20 A
Output limited current typ. 44 A (constant current) typ. 44 A (constant current) typ. 22 A (constant current) typ. 22 A (constant current)
Power Boost
Tripping of LS circuit breakers max. B10/C6/K4 @ 6/10mm²/40m max. B10/C6/K4 @ 6/10mm² /40m max. B10/C6/K6 max. B10/C6/K6
Parallel connection Yes Yes Yes Yes
Serial operation Yes Yes Yes Yes
Power dissipation, no load/rated load 2.78 W / 83.91 W (400 Vac) 2.78 W / 83.91 W (400 Vac) 5 W / 71,14 W (400 Vac) 5 W / 71,14 W (400 Vac)
Ripple factor typ. 30 mVss typ. 30 mVss typ. 25 mVss typ. 25 mVss
Efficiency typ. 92.5 % typ. 92.5 % typ. 93% typ. 93%
Resistance to reverse feed max. 35 Vdc 35 Vdc 63 Vdc 63 Vdc
Over-voltage-protection max. 40 Vdc max. 40 Vdc typ. 60 Vdc typ. 60 Vdc
Signaling
Status indicator LED green LED green LED green LED green
Signal output Relay contact Relay contact Relay contact Relay contact
Approvals
Approvals cURus, cULus, GL (in preparation) cURus, cULus, GL (in preparation) cURus, cULus, GL (in preparation) cURus, cULus, GL (in preparation)
Environment
Type of cooling natural convection natural convection natural convection natural convection
Ambient temperature -25 °C to +70 °C -25 °C to +70 °C -25 °C to +70 °C -25 °C to +70 °C
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Derating -2.5 %/K > +55 °C -2.5 %/K > +55 °C -2.5 %/K > +55 °C -2.5 %/K > +55 °C
Required minimum spacing (left/right) 0 mm 0 mm 0 mm 0 mm
Required minimum spacing (over/under) 50 mm 50 mm 50 mm 50 mm
Safety and protection
Protection index
Safety class
Order numbers
Order Number PC-0324-400-0 PC-0324-400-2 PC-0348-200-0 PC-0348-200-2
characteristic B, C
- 60 A / 5 s - 30 A / 5 s
IP 20 IP 20 IP 20 IP 20
I, with PE connection I, with PE connection I, with PE connection I, with PE connection
6 A, 10 A, 16 A,
characteristic B, C
(450 - 800 Vdc)
6 A, 10 A, 16 A,
characteristic B, C
320 - 575 Vac
(450 - 800 Vdc)
6 A, 10 A, 16 A,
characteristic B, C
Subject to change
340
Page 4
+
-
Power supplies
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Three-phase switched mode power supplies
2
Three-phase, primary switched mode
power supply
PC 3AC
Typ PC-0360-160-0
Input
Input rated voltage 400 - 500 Vac
Input voltage range 390 - 575 Vac
Input voltage derating -
Rated frequency range 44 Hz - 66 Hz / 0 Hz
Input rated current (rated load) 3 x 2,02 A (400 Vac)/ 1,6 A (520 Vac)
Starting current limiter < 30 A, NTC
Input fuse internal 6,3 AT
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A,
Transient surge voltage protection Varistor
Output
Output rated voltage 60 Vdc
Output voltage range 40 – 61 Vdc
Output rated current 16 A
Output limited current typ. 11 A (constant current)
Power Boost
Tripping of LS circuit breakers max. B10/C6/K6
Parallel connection Yes
Serial operation Yes
Power dissipation, no load/rated load 7,5 W / 68,93 W (400 Vac)
Ripple factor typ. 25 mVss
Efficiency typ. 93%
Resistance to reverse feed max. 63 Vdc
Over-voltage-protection typ. 63 Vdc
Signaling
Status indicator LED green
Signal output Relay contact
Approvals
Approvals cURus, cULus, GL (in preparation)
Environment
Type of cooling natural convection
Ambient temperature -25 °C to +70 °C
Storage temperature -25 °C to +85 °C
Derating -2.5 %/K > +55 °C
Required minimum spacing (left/right) 0 mm
Required minimum spacing (over/under) 50 mm
Safety and protection
Protection index
Safety class
Order numbers
Order Number PC-0360-160-0
(550 - 800 Vdc)
characteristic B, C
-
IP 20
I, with PE connection
Subject to change
341
Page 5
30
1
A
D
B
C
E
F
G
Three-phase, primary switched mode
power supply, Economy
PVSE 400
General Data
Input rated voltage 3 x 400 - 500 Vac
Output rated voltage 24 - 48 Vdc
Output rated current 10 - 40 A
Ambient temperature -25 °C to +70 °C
Efficiency up to 95 %
Protection index IP 20
Advantages
Stabilised and adjustable output voltage
Up to 200 % Real Power Boost for 4 seconds
Top Boost to trip conventional circuit breakers
DC OK signalling
Parallel connection option
Service-friendly spring-loaded connector system
Can be supplied with active inrush current limiting option
Can be supplied with isolated DC OK signalling function
Panel installation on mounting rails
Applications
Primary switched mode power supply with massive power reserves focussing
on the key task of power supply.
Sample application
StandardsZ
Approvals W o J Z
Primary switched mode power supply
to UL 60950, UL 508
Safety:
EN 61558-2-16, EN 60950-1
EMC:
EN 61204-3
UL/CSA 60950 recognised (E213214), UL508 listed (E219022)
Power supplies
Three-phase switched mode power supplies
2
Typ
PC-0324-100-0 horizontal for standard rail DIN TS35 max 2,5 mm² max 2,5 mm² max 2,5 mm² 1.02 kg 55 x 127 x 152 mm
PC-0324-100-2 horizontal for standard rail DIN TS35 max 2,5 mm² max 2,5 mm² max 2,5 mm² 1.02 kg 55 x 127 x 152 mm
PC-0324-200-0 horizontal for standard rail DIN TS35 max 2,5 mm² max 6 mm² max 2,5 mm² 1.51 kg 80 x 127 x 152 mm
PC-0324-200-2 horizontal for standard rail DIN TS35 max 2,5 mm² max 6 mm² max 2,5 mm² 1.51 kg 80 x 127 x 152 mm
PC-0324-400-0 horizontal for standard rail DIN TS35 max 2,5 mm² max 16 mm² max 2,5 mm² 2.71 kg 126 x 127 x 170 mm
PC-0324-400-2 horizontal for standard rail DIN TS35 max 2,5 mm² max 16 mm² max 2,5 mm² 2.71 kg 126 x 127 x 170 mm
PC-0348-200-0 horizontal for standard rail DIN TS35 max 2,5 mm² max 16 mm² max 2,5 mm² 2.76 kg 126 x 127 x 170 mm
PC-0348-200-2 horizontal for standard rail DIN TS35 max 2,5 mm² max 16 mm² max 2,5 mm² 2.77 kg 126 x 127 x 170 mm
PC-0360-160-0 horizontal for standard rail DIN TS35 max 2,5 mm² max 16 mm² max 2,5 mm² 2.76 kg 126 x 127 x 170 mm

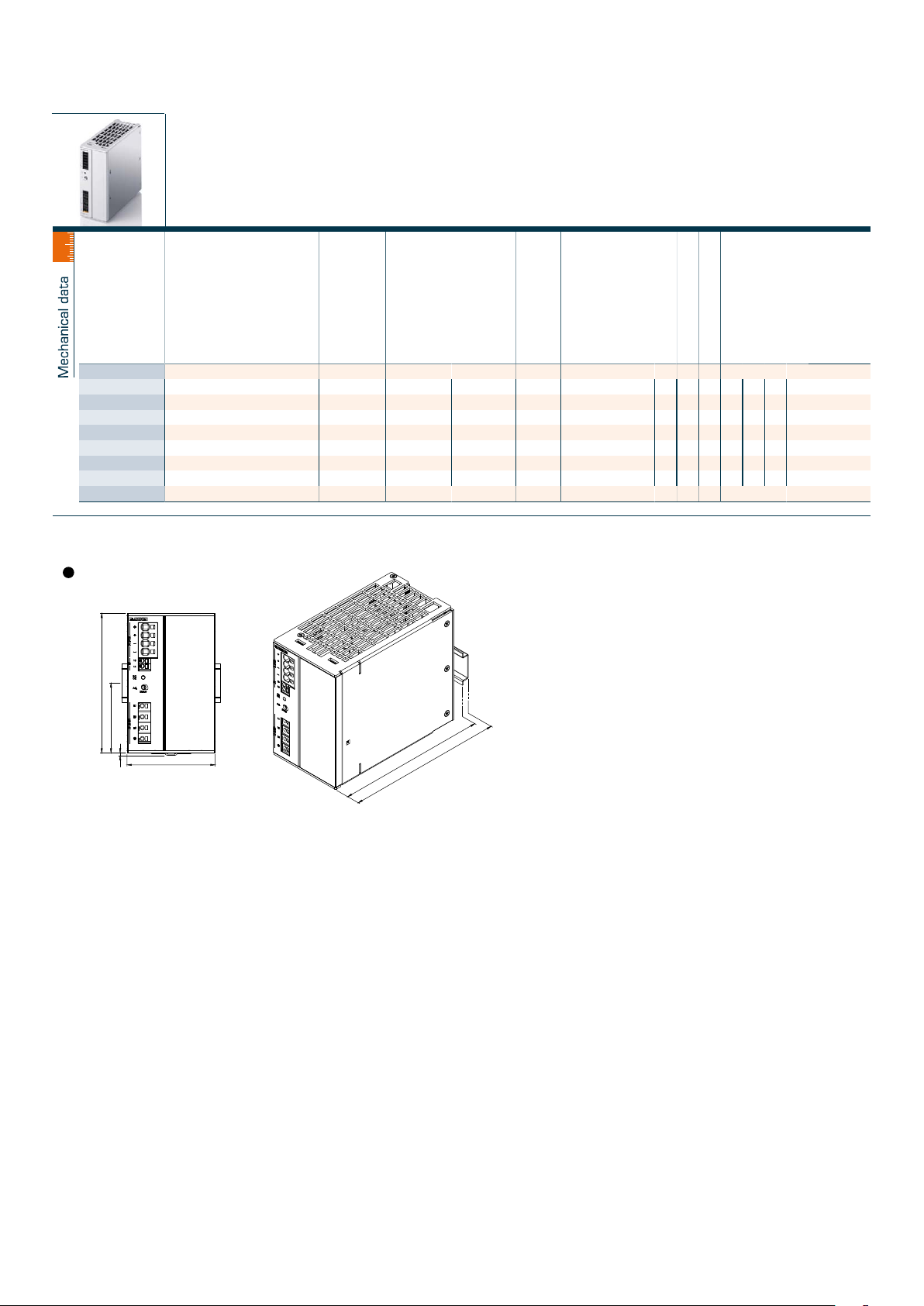

Dimension pictures
Three-phase, primary switched mode
power supply
PC 3AC
Mounting position
Terminals signalling (direct plug-in
technology Push-in)
Terminals output (direct plug-in
technology Push-in)
Terminals input (direct plug-in
technology Push-in)
Weight
Dimension (W x H x D)
Dimension picture (in mm)
A B C D E F
127 63.5 3 55 152.5 160
1
127 63.5 3 55 152.5 160
1
127 63.5 3 80 152.5 160
1
127 63.5 3 80 152.5 160
1
127 63.5 3 126 170.5 178
1
127 63.5 3 126 170.5 178
1
127 63.5 3 126 170.5 178
1
127 63.5 3 126 170.5 178
1
127 63.5 3 126 170.5 178
1
Subject to change
342
Loading...
