Page 1
Single-phase, primary switched mode
power supply
PEL Neo
Typ PEL-0124-013-0 PEL-0124-025-0 PEL-0124-040-0
Input
Input rated voltage 100 - 240 Vac 100 - 240 Vac 100 - 240 Vac
Input voltage range 85 - 264 Vac (120 - 373 Vdc) 85 - 264 Vac (120 - 373 Vdc) 85 - 264 Vac (120 - 373 Vdc)
Input rated current (rated load) 0.7 / 0.4 A (110 / 230 Vac) 1.4 / 0.6 A (110 / 230 Vac) 1.6 / 0.9 A (110 / 230 Vac)
Rated frequency range 44 - 66 Hz / 0 Hz 44 - 66 Hz / 0 Hz 44 - 66 Hz / 0 Hz
Starting current limiter <30 A, NTC <30 A, NTC <30 A, NTC
Input fuse internal 2 A (slow-blow) 2 A (slow-blow) 4 A
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A, characteristics B, C 6 A, 10 A, 16 A, characteristics B, C 6 A, 10 A, 16 A, characteristics B, C
Mains buffering (rated load) 10 / 80 ms 10 / 80 ms 15 / 100 ms
Transient surge voltage protection Varistor Varistor Varistor
Output
Output rated voltage 24 Vdc 24 Vdc 24 Vdc
Output voltage range 22.8 - 26.4 Vdc 22.8 - 26.4 Vdc 22,8 - 26,4 Vdc
Output rated current 1.30 A 2.50 A 4.00 A
Resistance to reverse feed max. 30 Vdc 30 Vdc 30 Vdc
Overload behaviour
Constant current Constant current Constant current
Ripple factor typ. 100 mVss typ. 100 mVss typ. 100 mVss
Parallel connection Yes Yes Yes
Serial operation Yes Yes Yes
Efficiency typ. 82 % typ. 88 % typ. 88 %
Signaling
Power Good (DC OK)
LED green LED green LED green
Approvals
Approvals cURus, cULus, GL cURus, cULus, GL cURus, cULus, GL
Environment
Ambient temperature -25 °C to +55 °C -25 °C to +55 °C -25 °C to +55 °C
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Derating -3 %/K > +45 °C -3 %/K > +45 °C -3 %/K > +45 °C
Current capacity by any mounting position max. 0.9 A max. 1.6 A max. 2.4 A
Safety and protection
Protection index
IP 20 IP 20 IP 20
Safety class
II, (in closed cabinet) II, (in closed cabinet) II, (in closed cabinet)
Order numbers
Order Number PEL-0124-013-0 PEL-0124-025-0 PEL-0124-040-0
+
-
Power supplies
Single-phase switched mode power supplies
2

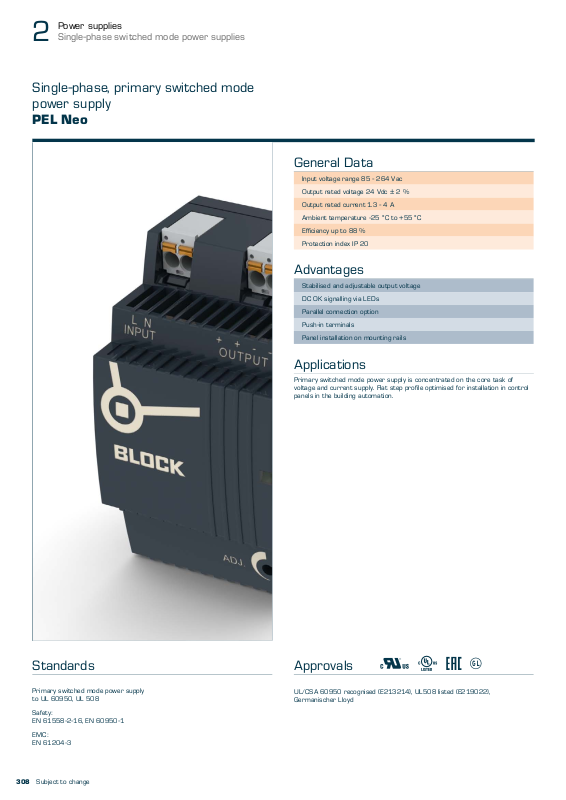

Single-phase, primary switched mode
power supply
PEL Neo
General Data
Input voltage range 85 - 264 Vac
Output rated voltage 24 Vdc ± 2 %
Output rated current 1.3 - 4 A
Ambient temperature -25 °C to +55 °C
Efficiency up to 88 %
Protection index IP 20
Advantages
Stabilised and adjustable output voltage
DC OK signalling via LEDs
Parallel connection option
Push-in terminals
Panel installation on mounting rails
Applications
Primary switched mode power supply is concentrated on the core task of
voltage and current supply. Flat step profile optimised for installation in control
panels in the building automation.
StandardsZ
Primary switched mode power supply
to UL 60950, UL 508
Safety:
EN 61558-2-16, EN 60950-1
EMC:
EN 61204-3
Subject to change
308
Approvals W o J # Z
UL/CSA 60950 recognised (E213214), UL508 listed (E219022),
Germanischer Lloyd
Page 2
+
-
Power supplies
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Single-phase switched mode power supplies
2
Single-phase, primary switched mode
power supply
PEL Neo
Typ PEL-0124-013-0 PEL-0124-025-0 PEL-0124-040-0
Input
Input rated voltage 100 - 240 Vac 100 - 240 Vac 100 - 240 Vac
Input voltage range 85 - 264 Vac (120 - 373 Vdc) 85 - 264 Vac (120 - 373 Vdc) 85 - 264 Vac (120 - 373 Vdc)
Input rated current (rated load) 0.7 / 0.4 A (110 / 230 Vac) 1.4 / 0.6 A (110 / 230 Vac) 1.6 / 0.9 A (110 / 230 Vac)
Rated frequency range 44 - 66 Hz / 0 Hz 44 - 66 Hz / 0 Hz 44 - 66 Hz / 0 Hz
Starting current limiter <30 A, NTC <30 A, NTC <30 A, NTC
Input fuse internal 2 A (slow-blow) 2 A (slow-blow) 4 A
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A, characteristics B, C 6 A, 10 A, 16 A, characteristics B, C 6 A, 10 A, 16 A, characteristics B, C
Mains buffering (rated load) 10 / 80 ms 10 / 80 ms 15 / 100 ms
Transient surge voltage protection Varistor Varistor Varistor
Output
Output rated voltage 24 Vdc 24 Vdc 24 Vdc
Output voltage range 22.8 - 26.4 Vdc 22.8 - 26.4 Vdc 22,8 - 26,4 Vdc
Output rated current 1.30 A 2.50 A 4.00 A
Resistance to reverse feed max. 30 Vdc 30 Vdc 30 Vdc
Overload behaviour
Ripple factor typ. 100 mVss typ. 100 mVss typ. 100 mVss
Parallel connection Yes Yes Yes
Serial operation Yes Yes Yes
Efficiency typ. 82 % typ. 88 % typ. 88 %
Signaling
Power Good (DC OK)
Approvals
Approvals cURus, cULus, GL cURus, cULus, GL cURus, cULus, GL
Environment
Ambient temperature -25 °C to +55 °C -25 °C to +55 °C -25 °C to +55 °C
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Derating -3 %/K > +45 °C -3 %/K > +45 °C -3 %/K > +45 °C
Current capacity by any mounting position max. 0.9 A max. 1.6 A max. 2.4 A
Safety and protection
Protection index
Safety class
Order numbers
Order Number PEL-0124-013-0 PEL-0124-025-0 PEL-0124-040-0
Constant current Constant current Constant current
LED green LED green LED green
IP 20 IP 20 IP 20
II, (in closed cabinet) II, (in closed cabinet) II, (in closed cabinet)
Subject to change
309
Page 3
30
C
B
A
1
D
Single-phase, primary switched mode
power supply
PM 1AC
General Data
Input voltage range 85 - 264 Vac
Nominal output voltage: DC 12 - 48 V
Nominal output current: 1 - 20 A
Ambient temperature -25 °C to +70 °C
Conform to domestic appliances EN 60335-1
Protection index IP 20
Plastic housing
Advantages
Stabilised and adjustable output voltage
Low stand-by consumption <1 W
Constant current limiting without overload shutdown
DC OK signalling
Parallel operation option
Push-in terminals
Panel installation on mounting rails
In compliance with EN 60335-1
Applications
Efficient, primary switched mode power supply in slim plastic housing. A
powerful and flexible option that's still light and compact. Our real all-rounders,
these power supply units are suitable for a highly diverse range of applications
in solar, measurement and control technology as well as industrial and building
automation. The devices cover the lower and average power requirements from
25 W to 100 W. Versions with 12 V, 24 V, and 48 V are available, enabling a
whole range of applications. A version with 3.8 A rated current is available for
establishing NEC Class 2 circuits. All power supplies also comply with the EN
60335-1 standard for domestic appliances. The output voltage can be easily
set using the rotary potentiometer on the front of the housing. The DIN rail
fastening method and push-in connection terminals enable fast and secure
mounting.
For applications in the medical field, power supplies are available with approval
according to UL 60601-1.
StandardsZ
Approvals W o J # Z
Primary switched mode power supply
to UL 60950, UL 508
Safety:
EN 61558-2-16, EN 60950-1, EN 60335-1
EMC:
EN 61204-3
UL/CSA 60950 recognised, UL508 listed, Germanischer Lloyd; Medical
Netzteil: UL 60601-1 (3rd ed. 2MOPP)
Power supplies
Single-phase switched mode power supplies
2
Typ
PEL-0124-013-0 max. 2,5 mm² max. 2,5 mm² DIN rail system TS35 vertical 0.17 kg
PEL-0124-025-0 max. 2,5 mm² max. 2,5 mm² DIN rail system TS35 vertical 0.24 kg
PEL-0124-040-0 max. 2,5 mm² max. 2,5 mm² DIN rail system TS35 vertical 0.30 kg
Single-phase, primary switched mode
power supply
PEL Neo
Terminals input (direct plug-in
technology Push-in, pluggable)
Terminals output (direct plug-in
technology Push-in, pluggable)
Fixing method

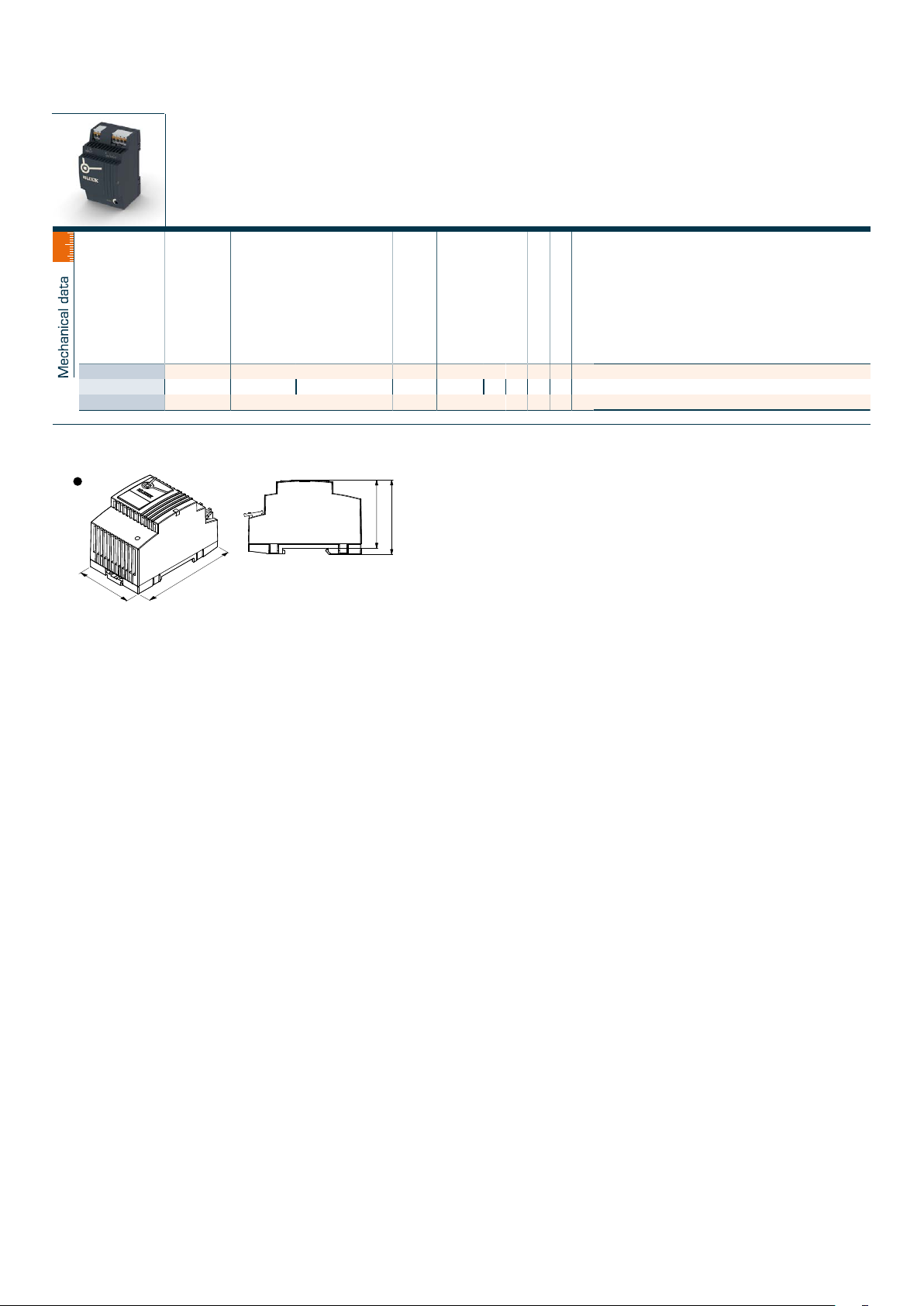

Dimension pictures
Mounting position
Weight
Dimension picture (in mm)
A B C D
54 89 59 54
1
72 89 59 54
1
90 89 59 54
1
Subject to change
310
