Power supplies

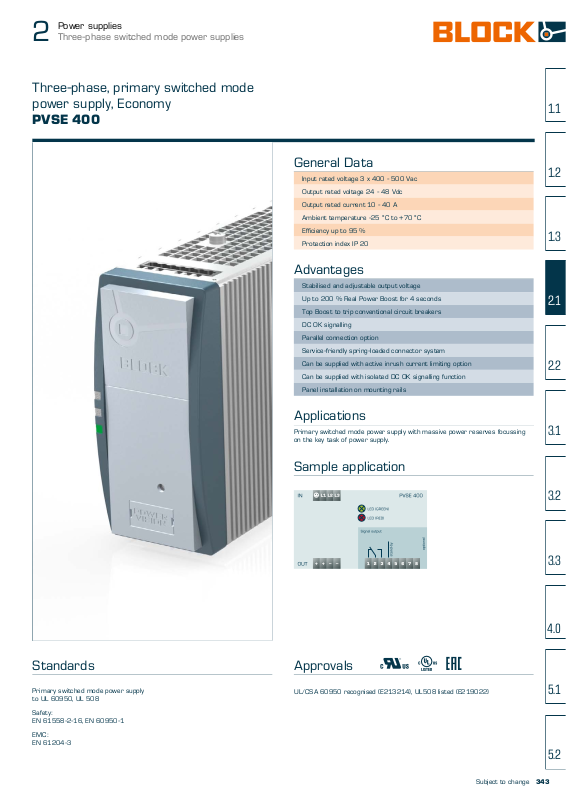

Three-phase switched mode power supplies

2

Three-phase, primary switched mode
power supply, Economy

PVSE 400

General Data

Input rated voltage 3 x 400 - 500 Vac

Output rated voltage 24 - 48 Vdc

Output rated current 10 - 40 A

Ambient temperature -25 °C to +70 °C

Efficiency up to 95 %

Protection index IP 20

Advantages

Stabilised and adjustable output voltage

Up to 200 % Real Power Boost for 4 seconds

Top Boost to trip conventional circuit breakers

DC OK signalling

Parallel connection option

Service-friendly spring-loaded connector system

Can be supplied with active inrush current limiting option

Can be supplied with isolated DC OK signalling function

Panel installation on mounting rails

Applications

Primary switched mode power supply with massive power reserves focussing
on the key task of power supply.

Sample application

StandardsZ

Primary switched mode power supply
to UL 60950, UL 508

Safety:
EN 61558-2-16, EN 60950-1

EMC:
EN 61204-3

Approvals W o J Z

UL/CSA 60950 recognised (E213214), UL508 listed (E219022)

Subject to change

343

+

-

Three-phase, primary switched mode
power supply, Economy

PVSE 400

Typ PVSE 400/48-10 PVSE 400/48-20

Input

Input rated voltage 3 x 400 - 500 Vac 3 x 400 - 500 Vac

Input voltage range 340 - 550 Vac (480 - 780 Vdc) 340 - 550 Vac (480 - 780 Vdc)

Input rated current (rated load) 1.1 A (3 x 340 Vac) 2 A (3 x 340 Vac)

Rated frequency range 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz

Starting current limiter <30 A, NTC <30 A, NTC

Input fuse internal 3 x 6.3 A (slow-blow) 3 x 6.3 A (slow-blow)

Recommended back-up fuse (circuit breaker) 10 A, 16 A, characteristics B, C 10 A, 16 A, characteristics B, C

Harmonic correction

passive passive

Mains buffering (rated load) 12 / 35 ms

(400 / 500 Vac)

15.6 / 42.9 ms
(400 / 500 Vac)

Transient surge voltage protection Varistor Varistor

Output

Output rated voltage 48 Vdc 48 Vdc

Output voltage range 37 - 51 Vdc 37 - 51 Vdc

Resistance to reverse feed max. 63 Vdc 63 Vdc

Output rated current 10.00 A 20.00 A

Parallel connection Yes Yes

Power Boost

15 A / 4 s (12.5 A / 8 s) 30 A / 4 s (25 A / 8 s)

Overload behaviour

Constant current Constant current

max. Power loss idling/nominal load 8.2 / 38 W 5.2 / 59.2 W

Serial operation Yes Yes

Efficiency typ. 93 % typ. 94.4 %

Ripple factor typ. 70 mVss typ. 70 mVss

Top Boost 55 A / 50 ms 80 A / 50 ms

Signaling

Power Good (DC OK)

LED green, LED red LED green, LED red

Potential free signal contact Yes Yes

Stand-by-input Yes Yes

Approvals

Approvals cURus, cULus cURus, cULus

Environment

Ambient temperature -25° C to +70° C -25° C to +70° C

Storage temperature -25 °C to +85 °C -25 °C to +85 °C

Derating -3 %/K > +50 °C -3 %/K > +50 °C

Safety and protection

Protection index

IP 20 IP 20

Safety class

I, with PE connection I, with PE connection

Accessory

Connector for signalling PV-CON (optional) PV-CON (optional)

Side DIN rail mounting PV-TS35M (optional) PV-TS35M (optional)

Direct screw fastening plate
for lateral mounting

PV-WB2 (optional) PV-WB2 (optional)

Order numbers

Order Number PVSE 400/48-10 PVSE 400/48-20

+

-

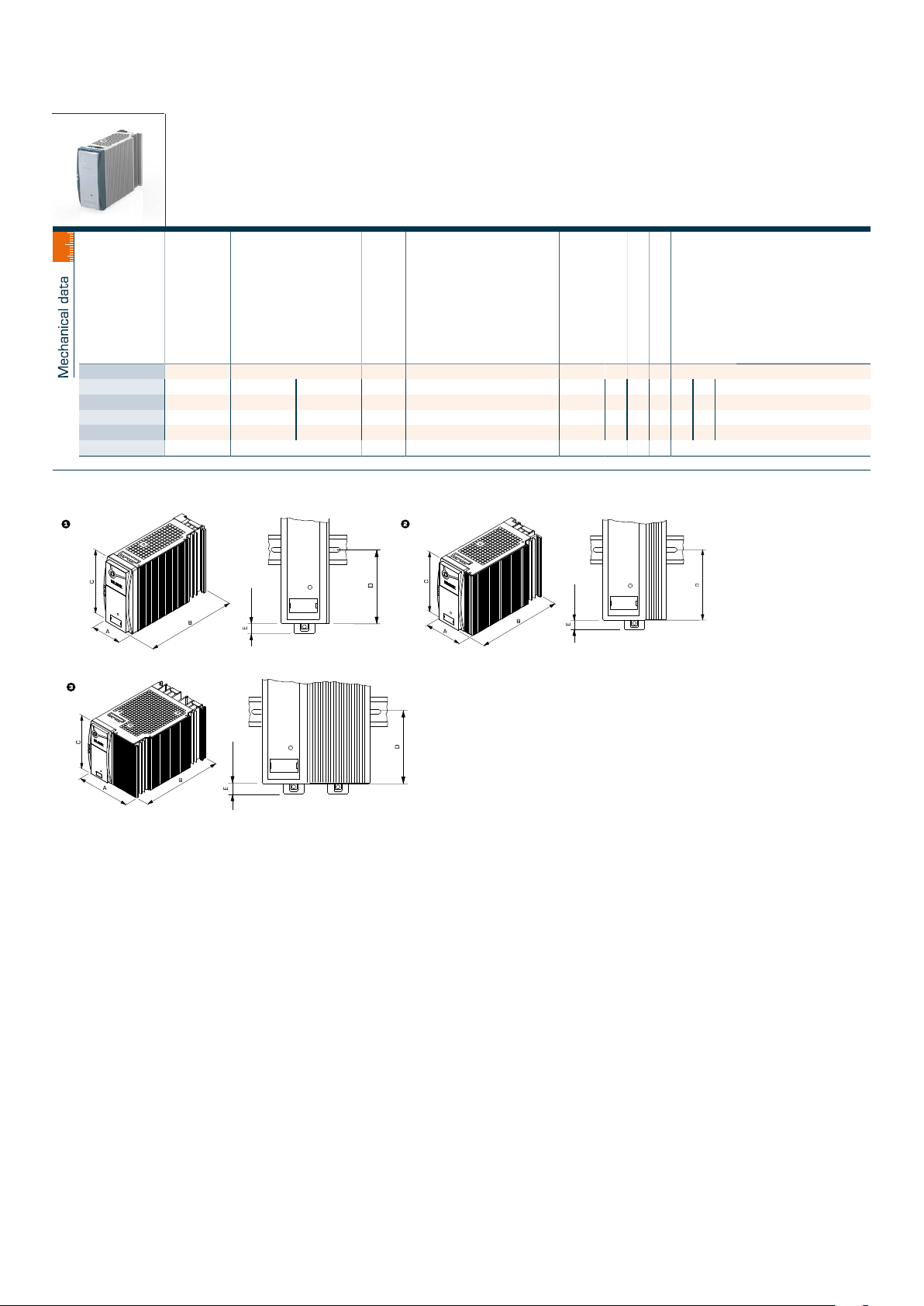

Power supplies

Three-phase switched mode power supplies

2

Three-phase, primary switched mode
power supply, Economy

PVSE 400

Typ PVSE 400/24-10 PVSE 400/24-20 PVSE 400/24-40 PVSE 400/30-25

Input

Input rated voltage 3 x 400 - 500 Vac 3 x 400 - 500 Vac 3 x 400 - 500 Vac 3 x 400 - 500 Vac

Input voltage range 340 - 550 Vac (480 - 780 Vdc) 340 - 550 Vac (480 - 780 Vdc) 340 - 550 Vac (480 - 780 Vdc) 340 - 550 Vac (480 - 780 Vdc)

Input rated current (rated load) 0.6 A (3 x 340 Vac) 1.1 A (3 x 340 Vac) 2 A (3 x 340 Vac) 1.6 A (3 x 340 Vac)

Rated frequency range 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz

Starting current limiter <30 A, NTC <30 A, NTC <30 A, NTC <30 A, NTC

Input fuse internal 3 x 1.6 A (slow-blow) 3 x 2.5 A (slow-blow) 3 x 6.3 A (slow-blow) 3 x 6.3 A (slow-blow)

Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A, characteristics B, C 6 A, 10 A, 16 A, characteristics B, C 10 A, 16 A, characteristics B, C 10 A, 16 A, characteristics B, C

Harmonic correction

Mains buffering (rated load) 22.6 / 51.5 ms

Transient surge voltage protection Varistor Varistor Varistor Varistor

Output

Output rated voltage 24 Vdc 24 Vdc 24 Vdc 30 Vdc

Output voltage range 22.8 - 28.8 Vdc 22.8 - 28.8 Vdc 22.8 - 28.8 Vdc 27 - 43 Vdc

Resistance to reverse feed max. 35 Vdc 35 Vdc 35 Vdc 63 Vdc

Output rated current 10.00 A 20.00 A 40.00 A 25.00 A

Parallel connection Yes Yes Yes Yes

Power Boost

Overload behaviour

max. Power loss idling/nominal load 7.8 / 19.9 W 8.3 / 38.4 W 7.0 / 66.2 W 5.2 / 47.3 W

Serial operation Yes Yes Yes Yes

Efficiency typ. 91.7 % typ. 92.9 % typ. 93.1 % typ. 94.1 %

Ripple factor typ. 70 mVss typ. 70 mVss typ. 70 mVss typ. 70 mVss

Top Boost 70 A / 50 ms 80 A / 50 ms 100 A / 50 ms 85 A / 50 ms

Signaling

Power Good (DC OK)

Potential free signal contact Yes Yes Yes Yes

Stand-by-input Yes Yes Yes Yes

Approvals

Approvals cURus, cULus cURus, cULus cURus, cULus cURus, cULus

Environment

Ambient temperature -25 °C to +70 °C -25° C to +70° C -25 °C to +55 °C -25° C to +70° C

Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C

Derating -3 %/K > +50 °C -3 %/K > +50 °C -5 %/K > +45 °C -3 %/K > +50 °C

Safety and protection

Protection index

Safety class

Accessory

Connector for signalling PV-CON (optional) PV-CON (optional) PV-CON (optional) PV-CON (optional)

Side DIN rail mounting PV-TS35M (optional) PV-TS35M (optional) PV-TS35M (optional) PV-TS35M (optional)

Direct screw fastening plate
for lateral mounting

Order numbers

Order Number PVSE 400/24-10 PVSE 400/24-20 PVSE 400/24-40 PVSE 400/30-25

passive passive passive passive

13.2 / 36.8 ms

(400 / 500 Vac)

20 A / 4 s (15 A / 8 s) 40 A / 4 s (30 A / 8 s) 60 A / 4 s (50 A / 8 s) 45 A / 4 s (35 A / 8 s)

Constant current Constant current Constant current Constant current

LED green, LED red LED green, LED red LED green, LED red LED green, LED red

IP 20 IP 20 IP 20 IP 20

I, with PE connection I, with PE connection I, with PE connection I, with PE connection

PV-WB2 (optional) PV-WB2 (optional) PV-WB2 (optional) PV-WB2 (optional)

(400 / 500 Vac)

15.6 / 42.9 ms
(400 / 500 Vac)

15.6 / 42.9 ms
(400 / 500 Vac)

Subject to change
