Block PVSA 230 Catalog Page
Single-phase, primary switched mode
power supply
PVSA 230
Typ PVSA 230/30-3
Special features
Characteristics Compatible to AS-i
Input
Input rated voltage 100 – 240 Vac
Input voltage range 85 - 264 Vac (120 - 350 Vdc)
Input voltage derating 5%/Vac < 95 Vac
Switch-on time 700 ms
Transient surge voltage protection Varistor
Input rated current (rated load) 1,13/0,7 Aac (100 Vac/ 240 Vac)
Power factor 0,68
Starting current limiter <30 A
Input fuse internal 4 AT
Frequency Range 50 Hz – 60 Hz
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A,
characteristic B, C
Mains buffering (rated load) typ. 80 ms @230 Vac
Output
Output rated voltage 30,5 Vdc
Output voltage range 29,0 - 32,0 Vdc
Resistance to reverse feed max. 50 Vdc
Output rated current 3.00 A
Power Boost
6 A / 4 s (4,5 A / 8 s)
Top Boost 18 Adc for 25 ms
Overload behaviour
Constant current
Parallel connection Yes
max. Power loss idling/nominal load 7,3 W / 20 W
Efficiency 82.0 %
Correction time typ. 1 ms
Output limited current typ. 1,1 x Inenn
Leakage current (50 Hz) 1 mA
Signaling
Status indicator LED green: Uout > 0,85 x Unenn; LED
red: off
Environment
Ambient temperature –10 °C … +70 °C
Storage temperature –25 °C … +85 °C
Derating -3 %/K > +50 °C
Required minimum spacing (left/right) 0 mm
Type of cooling Natural convection
Required minimum spacing (over/under) 70 mm
Safety and protection
Protection index
IP 20
Safety class (prepared)
I
Accessory
Connector for signalling PV-CON (optional)
Order numbers
Order Number PVSA 230/30-3
+
-
Power supplies
Single-phase switched mode power supplies
2

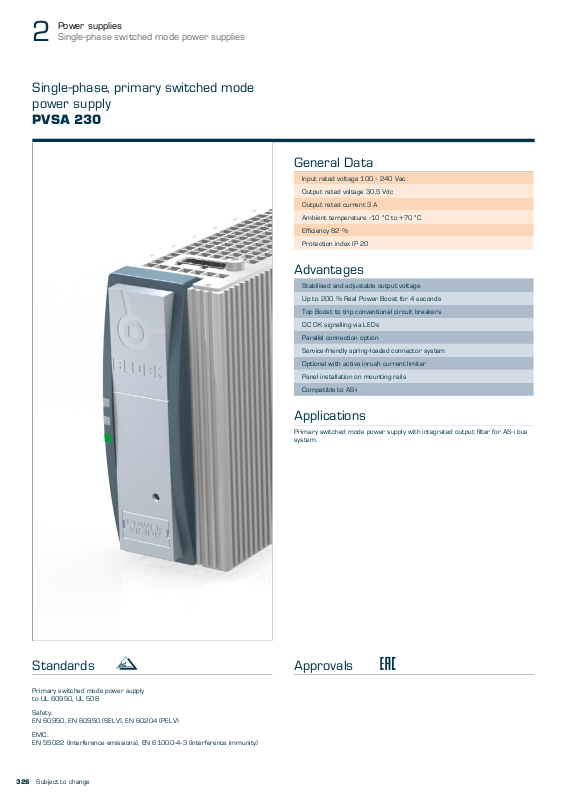

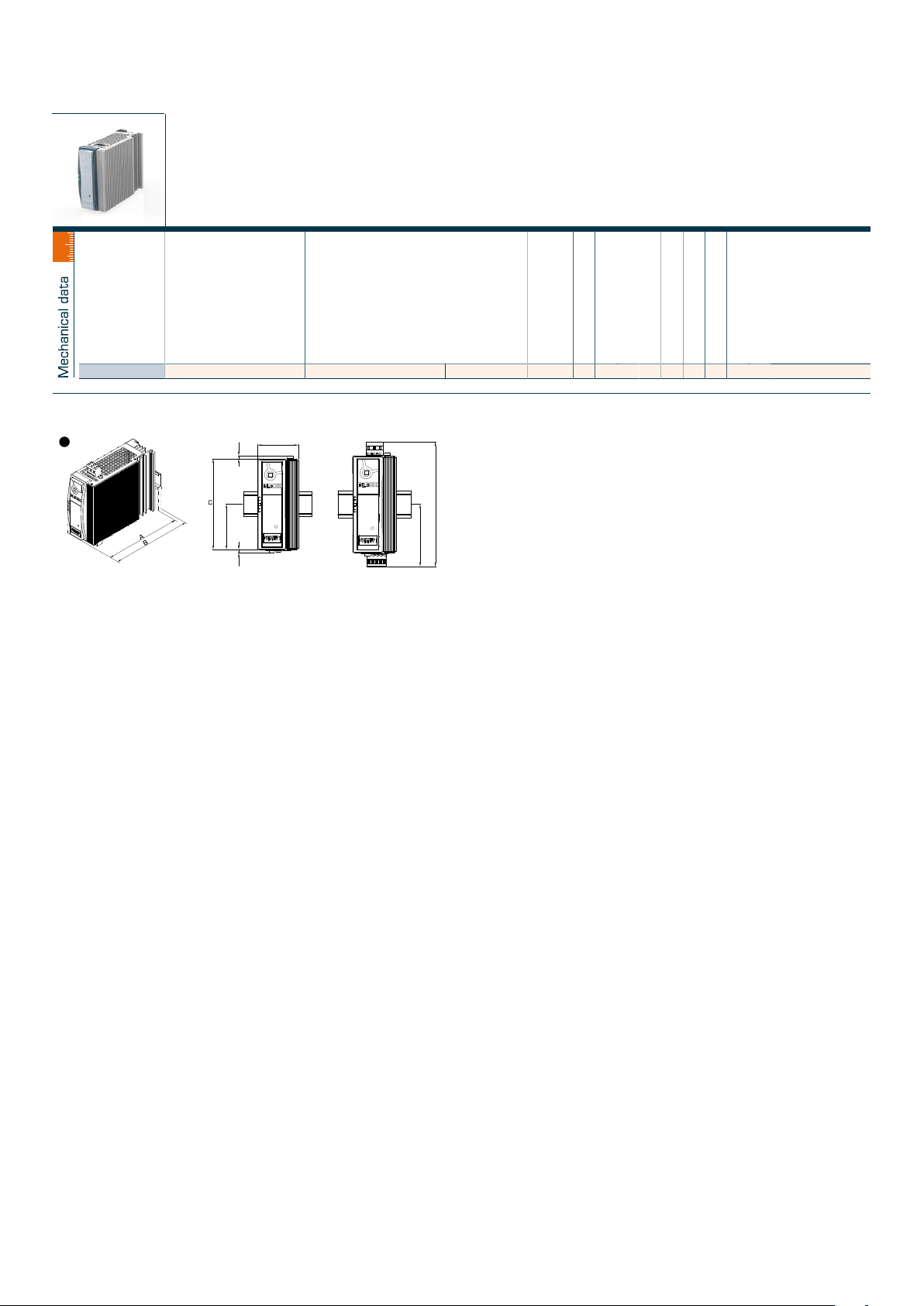

Single-phase, primary switched mode
power supply
PVSA 230
Standards y Z
Primary switched mode power supply
to UL 60950, UL 508
Safety:
EN 60950, EN 60950 (SELV), EN 60204 (PELV)
EMC:
EN 55022 (Interference emissions), EN 61000-4-3 (Interference immunity)
General Data
Input rated voltage 100 - 240 Vac
Output rated voltage 30,5 Vdc
Output rated current 3 A
Ambient temperature -10 °C to +70 °C
Efficiency 82 %
Protection index IP 20
Advantages
Stabilised and adjustable output voltage
Up to 200 % Real Power Boost for 4 seconds
Top Boost to trip conventional circuit breakers
DC OK signalling via LEDs
Parallel connection option
Service-friendly spring-loaded connector system
Optional with active inrush current limiter
Panel installation on mounting rails
Compatible to AS-i
Applications
Primary switched mode power supply with integrated output filter for AS-i bus
system.
Approvals J Z
Subject to change
326
+
-
Power supplies
1.1
1.2
5.1
1.3
2.1
2.2
3.1
3.2
3.3
5.2
4.0
Single-phase switched mode power supplies
2
Single-phase, primary switched mode
power supply
PVSA 230
Typ PVSA 230/30-3
Special features
Characteristics Compatible to AS-i
Input
Input rated voltage 100 – 240 Vac
Input voltage range 85 - 264 Vac (120 - 350 Vdc)
Input voltage derating 5%/Vac < 95 Vac
Switch-on time 700 ms
Transient surge voltage protection Varistor
Input rated current (rated load) 1,13/0,7 Aac (100 Vac/ 240 Vac)
Power factor 0,68
Starting current limiter <30 A
Input fuse internal 4 AT
Frequency Range 50 Hz – 60 Hz
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A,
Mains buffering (rated load) typ. 80 ms @230 Vac
Output
Output rated voltage 30,5 Vdc
Output voltage range 29,0 - 32,0 Vdc
Resistance to reverse feed max. 50 Vdc
Output rated current 3.00 A
Power Boost
Top Boost 18 Adc for 25 ms
Overload behaviour
Parallel connection Yes
max. Power loss idling/nominal load 7,3 W / 20 W
Efficiency 82.0 %
Correction time typ. 1 ms
Output limited current typ. 1,1 x Inenn
Leakage current (50 Hz) 1 mA
Signaling
Status indicator LED green: Uout > 0,85 x Unenn; LED
Environment
Ambient temperature –10 °C … +70 °C
Storage temperature –25 °C … +85 °C
Derating -3 %/K > +50 °C
Required minimum spacing (left/right) 0 mm
Type of cooling Natural convection
Required minimum spacing (over/under) 70 mm
Safety and protection
Protection index
Safety class (prepared)
Accessory
Connector for signalling PV-CON (optional)
Order numbers
Order Number PVSA 230/30-3
characteristic B, C
6 A / 4 s (4,5 A / 8 s)
Constant current
red: off
IP 20
I
Subject to change
327
