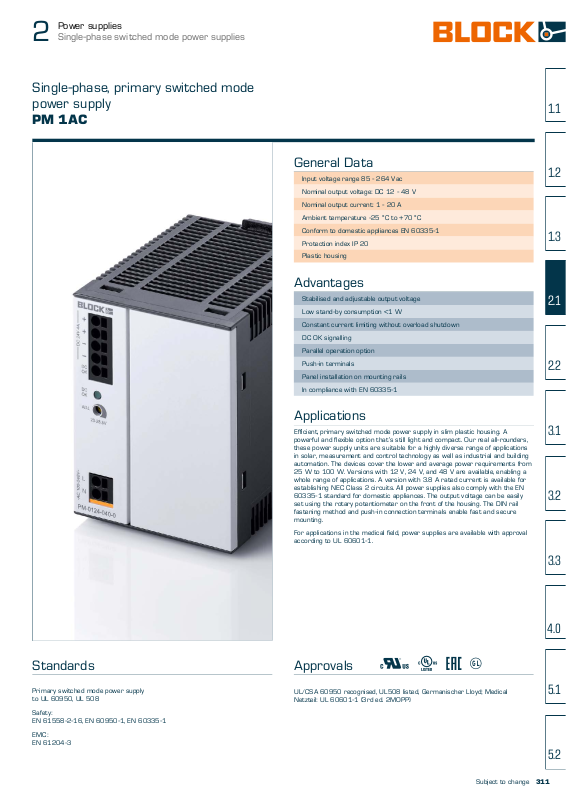

Power supplies
Single-phase switched mode power supplies
2
Single-phase, primary switched mode
power supply
PM 1AC
General Data
Input voltage range 85 - 264 Vac
Nominal output voltage: DC 12 - 48 V
Nominal output current: 1 - 20 A
Ambient temperature -25 °C to +70 °C
Conform to domestic appliances EN 60335-1
Protection index IP 20
Plastic housing
Advantages
Stabilised and adjustable output voltage
Low stand-by consumption <1 W
Constant current limiting without overload shutdown
DC OK signalling
Parallel operation option
Push-in terminals
Panel installation on mounting rails
In compliance with EN 60335-1
StandardsZ
Primary switched mode power supply
to UL 60950, UL 508
Safety:
EN 61558-2-16, EN 60950-1, EN 60335-1
EMC:
EN 61204-3
Applications
Efficient, primary switched mode power supply in slim plastic housing. A
powerful and flexible option that's still light and compact. Our real all-rounders,
these power supply units are suitable for a highly diverse range of applications
in solar, measurement and control technology as well as industrial and building
automation. The devices cover the lower and average power requirements from
25 W to 100 W. Versions with 12 V, 24 V, and 48 V are available, enabling a
whole range of applications. A version with 3.8 A rated current is available for
establishing NEC Class 2 circuits. All power supplies also comply with the EN
60335-1 standard for domestic appliances. The output voltage can be easily
set using the rotary potentiometer on the front of the housing. The DIN rail
fastening method and push-in connection terminals enable fast and secure
mounting.
For applications in the medical field, power supplies are available with approval
according to UL 60601-1.
Approvals W o J # Z
UL/CSA 60950 recognised, UL508 listed, Germanischer Lloyd; Medical
Netzteil: UL 60601-1 (3rd ed. 2MOPP)
Subject to change
311
+
-
Single-phase, primary switched mode
power supply
PM 1AC
Typ PM-0124-020-0 PM-0124-020-4 PM-0124-038-0 PM-0124-040-0
Special features
Characteristics - Suitable for the medical field For establishing NEC Class 2 circuits -
Input
Input rated voltage 100 - 240 Vac 100 - 240 Vac 100 - 240 Vac 100 - 240 Vac
Input voltage range 85 - 264 Vac (120 - 373 Vdc) 85 - 264 Vac (120 - 373 Vdc) 85 - 264 Vac (120 - 373 Vdc) 85 - 264 Vac (120 - 373 Vdc)
Input voltage derating -2.5 %/Vac < 95 Vac -2.5 %/Vac < 95 Vac -2.5 %/Vac < 95 Vac -2.5 %/Vac < 95 Vac
Rated frequency range 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz
Input rated current (rated load) 0.73 A (100 Vac) / 0.37 A (240 Vac) 0,82 A (100 Vac) / 0,48 A (230 Vac) 1.5 A (100 Vac, 91 W) / 0.6 A (240 Vac,
91 W)
1.52 A (100 Vac) / 0.66 A (240 Vac)
Starting current limiter < 30 A, NTC < 30 A, NTC < 30 A, NTC < 30 A, NTC
Switch-on time 0.5 s (100 Vac) / 0.27 s (230 Vac) 0,5 s (100 Vac) / 0,27 s (230 Vac) <0.5 s (100 Vac) / <0.2 s (230 Vac) 0.24 s (100 Vac) / 0.14 s (230 Vac)
Power factor 0,47 0,47 0.5 0.5
Input fuse internal 4 A 4 AT 4 A 4 A
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A,
characteristic B, C
6 A, 10 A, 16 A,
characteristic B, C
6 A, 10 A, 16 A,
characteristic B, C
6 A, 10 A, 16 A,
characteristic B, C
Mains buffering (rated load) 20 ms (100 Vac) / 120 ms (230 Vac) 20 ms ( 100 Vac) / 120 ms (230 Vac) >15 ms (100 Vac) / >80 ms (230 Vac) 15 ms (100 Vac) / 80 ms (230 Vac)
Transient surge voltage protection Varistor Varistor Varistor Varistor
Output
Output rated voltage 24 Vdc 24 Vdc 24 Vdc 24 Vdc
Output voltage range 23 – 28.5 Vdc 23 - 28,5 Vdc 23 – 28.5 Vdc (> 24 Vdc constant
capacity)
23 – 28.5 Vdc
Output rated current 2 A 2 A 3.8 A / NEC Class 2 4 A
Output limited current 2.2 ... 2.4 A (constant current) 2.2 ... 2.4 A (constant current) 3.8 ... 3.2 A (constant current, Class 2) 4.4 ... 4.7 A (constant current)
Class 2 output (UL Limited Power Source, LPS)
o
-
o
-
Parallel connection Yes Yes Yes Yes
Serial operation Yes Yes Yes Yes
Power dissipation, no load/rated load < 1 W / 4 W (230 Vac) < 1 W / 4 W (230 Vac) 2.8 W / 14 W (230 Vac) < 1 W / 12 W (230 Vac)
Max. power losses 7 W (100 Vac / 24 V / 2 A) 7,0 W (100 Vac/ 24 V/ 2A) <20 W (100 Vac / 91 W) 15 W (100 Vac / 24 V / 4 A)
Ripple factor typ. 20 mVss typ. 20mVss typ. 20 mVss typ. 20 mVss
Resistance to reverse feed max. 35 Vdc 35 Vdc 35 Vdc 35 Vdc
Over-voltage-protection max. 37 Vdc max. 37 Vdc max. 40 Vdc max. 40 Vdc
Efficiency 89 % typ. 89 % 87 % 89 %
Signaling
Status indicator LED green
Uout > typ. 21.5 Vdc
LED lit permanently
LED green
Uout > typ. 21.5 Vdc
LED lit permanently
LED green
Uout > typ. 21.5 Vdc
LED lit permanently
LED green
Uout > typ. 21.5 Vdc
LED lit permanently
Signal output Active high signal
Uout > typ. 21.5 Vdc
max. 20 mA@24 Vdc
short circuit proof
Active high signal
Uout > typ. 21.5 Vdc
max. 20 mA@24 Vdc
short circuit proof
Active high signal
Uout > typ. 21.5 Vdc
max. 20 mA@24 Vdc
short circuit proof
Active high signal
Uout > typ. 21.5 Vdc
max. 20 mA@24 Vdc
short circuit proof
Approvals
Approvals cURus, cULus, GL cURus, cULus (UL 60601), GL cURus, cULus, GL cURus, cULus, GL
Environment
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Ambient temperature -25° C to +70° C -25° C to +70° C -25° C to +70° C -25° C to +70° C
Derating -3 %/K > +50 °C -3 %/K > +50 °C -3 %/K > +50 °C -3 %/K > +50 °C
Mounting position
horizontal for standard rail DIN TS35 horizontal for standard rail DIN TS35 horizontal for standard rail DIN TS35 horizontal for standard rail DIN TS35
Type of cooling Natural convection Natural convection Natural convection Natural convection
Required minimum spacing (left/right) 0 mm 0 mm 0 mm 0 mm
Required minimum spacing (over/under) 50 mm 50 mm 50 mm 50 mm
Safety and protection
Protection index
IP 20 IP 20 IP 20 IP 20
Safety class
II, without PE connection II, without PE connection II, without PE connection II, without PE connection
Order numbers
Order Number PM-0124-020-0 PM-0124-020-4 PM-0124-038-0 PM-0124-040-0
+
-
Power supplies
Single-phase switched mode power supplies
2
Single-phase, primary switched mode
power supply
PM 1AC
Typ PM-0112-020-0 PM-0112-040-0 PM-0112-070-0 PM-0124-010-0
Special features
Characteristics - - - -
Input
Input rated voltage 100 - 240 Vac 100 - 240 Vac 100 - 240 Vac 100 - 240 Vac
Input voltage range 85 - 264 Vac (120 - 373 Vdc) 85 - 264 Vac (120 - 373 Vdc) 85 - 264 Vac (120 - 373 Vdc) 85 - 264 Vac (120 - 373 Vdc)
Input voltage derating -2.5 %/Vac < 95 Vac -2.5 %/Vac < 95 Vac -2.5 %/Vac < 95 Vac -2.5 %/Vac < 95 Vac
Rated frequency range 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz
Input rated current (rated load) 0.44 A (100 Vac) / 0.22 A (240 Vac) 0.83 A (100 Vac) / 0.41 A (240 Vac) 1.87 A (100 Vac) / 0.94 A (240 Vac) 0.43 A (100 Vac) / 0.2 A (240 Vac)
Starting current limiter < 30 A, NTC < 30 A, NTC < 30 A, NTC < 30 A, NTC
Switch-on time 1.5 s (100 Vac) / 0.4 s (230 Vac) 1.5 s (100 Vac) / 0.7 s (230 Vac) 0.5 s (100 Vac) / 0.3 s (230 Vac) 2.3 s (100 Vac) / 0.74 s (230 Vac)
Power factor 0.48 0.48 0.55 0.48
Input fuse internal 2 A 4 A 4 A 2 A
Recommended back-up fuse (circuit breaker) 6 A, 10 A, 16 A,
Mains buffering (rated load) 15 ms (100 Vac) / 120 ms (230 Vac) 15 ms (100 Vac) / 120 ms (230 Vac) 15 ms (100 Vac) / 80 ms (230 Vac) 20 ms (100 Vac) / 120 ms (230 Vac)
Transient surge voltage protection Varistor Varistor Varistor Varistor
Output
Output rated voltage 12 Vdc 12 Vdc 12 Vdc 24 Vdc
Output voltage range 11.5 – 14.5 Vdc 11.5 – 14.5 Vdc 11,5 – 14,5 Vdc 23 – 28,5 Vdc
Output rated current 2 A 4 A 7 A 1 A
Output limited current 2.2 ... 2.4 A (constant current) 4.4 ... 4.8 A (constant current) 7.7 ... 8 A (constant current) 1.25 ... 1.4 A (constant current)
Class 2 output (UL Limited Power Source, LPS)
Parallel connection Yes Yes Yes Yes
Serial operation Yes Yes Yes Yes
Power dissipation, no load/rated load 0.7 W / 5,3 W (230 Vac) <1 W / 8 W (230 Vac) <1 W / 16.2 W (230 Vac) < 1 W / 4 W (230 Vac)
Max. power losses 5.7 W (100 Vac / 12 V / 2 A) 9.1 W (100 Vac / 12 V / 4 A) 19.8 W (100 Vac / 12 V / 7 A) 5 W (100 Vac / 24 V / 1 A)
Ripple factor typ. 20 mVss typ. 20 mVss typ. 20 mVss typ. 20 mVss
Resistance to reverse feed max. 25 Vdc 25 Vdc 25 Vdc 35 Vdc
Over-voltage-protection max. 35 Vdc max. 35 Vdc max. 32 Vdc max. 39 Vdc
Efficiency 82 % 86 % 86 % 86 %
Signaling
Status indicator LED green
Signal output Active high signal
Approvals
Approvals cURus, cULus, GL cURus, cULus, GL cURus, cULus, GL cURus, cULus, GL
Environment
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Ambient temperature -25° C to +70° C -25° C to +70° C -25° C to +70° C -25° C to +70° C
Derating -3 %/K > +50 °C -3 %/K > +50 °C -3 %/K > +50 °C -3 %/K > +50 °C
Mounting position
Type of cooling Natural convection Natural convection Natural convection Natural convection
Required minimum spacing (left/right) 0 mm 0 mm 0 mm 0 mm
Required minimum spacing (over/under) 50 mm 50 mm 50 mm 50 mm
Safety and protection
Protection index
Safety class
Order numbers
Order Number PM-0112-020-0 PM-0112-040-0 PM-0112-070-0 PM-0124-010-0
characteristic B, C
o o
Uout > typ. 10 Vdc
LED lit permanently
Uout > typ. 10 Vdc
max. 40 mA@12 Vdc
short circuit proof
horizontal for standard rail DIN TS35 horizontal for standard rail DIN TS35 horizontal for standard rail DIN TS35 horizontal for standard rail DIN TS35
IP 20 IP 20 IP 20 IP 20
II, without PE connection II, without PE connection II, without PE connection II, without PE connection
6 A, 10 A, 16 A,
characteristic B, C
LED green
Uout > typ. 10 Vdc
LED lit permanently
Active high signal
Uout > typ. 10 Vdc
max. 40 mA@12 Vdc
short circuit proof
6 A, 10 A, 16 A,
characteristic B, C
LED green
Uout > typ. 10 Vdc
LED lit permanently
Active high signal
Uout > typ. 10 Vdc
max. 40 mA@12 Vdc
short circuit proof
-
6 A, 10 A, 16 A,
characteristic B, C
o
LED green
Uout > typ. 21.5 Vdc
LED lit permanently
Active high signal
Uout > typ. 21.5 Vdc
max. 20 mA@24 Vdc
short circuit proof

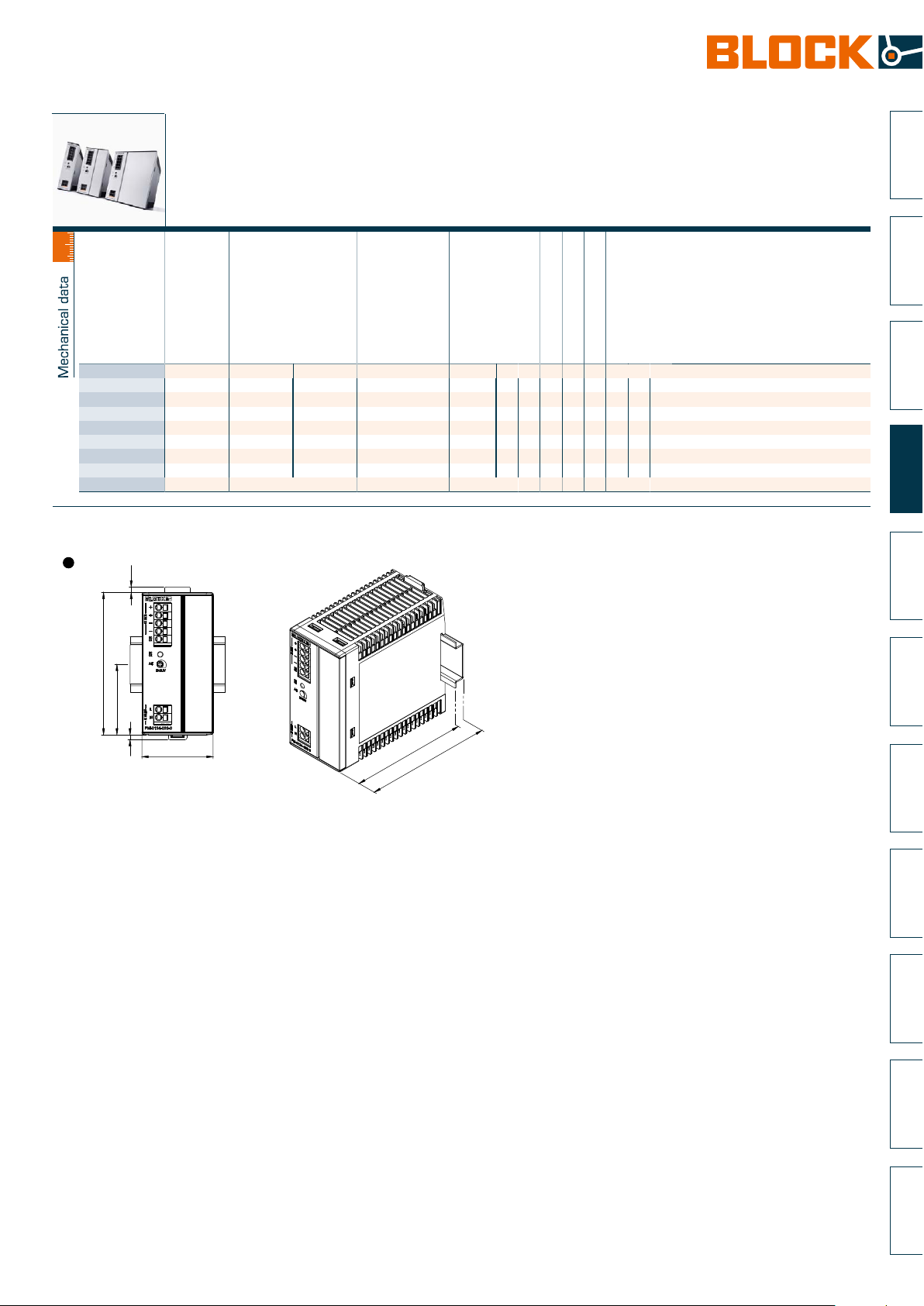

Subject to change
