Block PC 1AC Catalog Page

Single-phase, primary switched mode power supply
PC 1AC
Typ PC-0112-150-0 PC-0124-050-0 PC-0124-050-4 PC-0124-100-0
Special features
Characteristics - - Suitable for the medical field -
Input
Input rated voltage 100 - 240 Vac 100 - 240 Vac 100 - 240 Vac 100 - 240 Vac
Input voltage range 85 - 264 Vac
(120 - 372 Vdc)
85 - 264 Vac (120 - 372 Vdc)
85 - 264 Vac (120 - 372 Vdc)
85 - 264 Vac (120 - 372 Vdc)
Input voltage derating -2.5 %/Vac < 100 Vac -2.5 %/Vac < 97 Vac -2,5 %/Vac < 97 Vac -2.5 %/Vac < 100 Vac
Rated frequency range 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz
Input rated current (rated load) 2.07 A (100 Vac) / 0,95 A (230 Vac) 2.25 A (100 Vac) / 1.2 A (230 Vac) 2,3 A (100 Vac) / 1,24 A (230 Vac) 2.74 A (100 Vac) / 1.25 A (230 Vac)
Starting current limiter < 30 A, NTC (active) < 30 A, NTC < 30 A, NTC (active) < 30 A, NTC (active)
Switch-on time 0.71 s (100 Vac) / 0.43 s (230 Vac) 0.25 s (100 Vac) / 0.2 s (230 Vac) 0,25 s (100 Vac) / 0,2 s (230 Vac) 1.3 s (100 Vac) / 0.25 s (230 Vac)
Mains buffering (rated load) 28 ms (100 Vac) / 28 ms (230 Vac) 10 ms (100 Vac) / 80 ms (230 Vac) 10 ms (100 Vac) / 80 ms (230 Vac) 15 ms (100 Vac) / 17 ms (230 Vac)
Power factor 0.91 (active PFC) 0.5 0,47 0.92 (active PFC)
Input fuse internal 6.3 A 4 A 4AT 6.3 A
Recommended back-up fuse (circuit breaker) 10 A, 16 A,
characteristic B, C
6 A, 10 A, 16 A, characteristic B, C
6A, 10 A, 16 A, characteristic B, C
10 A, 16 A, characteristic B, C
Transient surge voltage protection Varistor Varistor Varistor Varistor
Output
Output rated voltage 12 Vdc 24 Vdc 24 Vdc 24 Vdc
Output voltage range 11.5 – 15 Vdc 23 – 28.5 Vdc 11,8 – 27,5 Vdc 23 – 28.5 Vdc
Output rated current 15 A 5 A 5 A 10 A
Output limited current typ. 16.5 A (constant current) typ. 5.5 A (constant current) typ. 16.5 A (constant current) typ. 11 A (constant current)
Tripping of LS circuit breakers max. B4 max. B4 Yes max. B6, C2
Parallel connection Yes Yes Yes Yes
Serial operation Yes Yes Yes Yes
Power dissipation, no load/rated load 4.4 W / 21.8 W (230 Vac) 1.2 / 14.6 W (230 Vac) 1,2 W / 14,6 W (230 Vac) 6.6 / 24.4 W (230 Vac)
Max. power losses 24.7 W (100 Vac / 12 V / 15 A) 19.4 W (100 Vac / 24 V / 5 A) 19,4 W (100 Vac / 24 V / 5 A) 31.3 W (100 Vac / 24 V / 10 A)
Ripple factor typ. 35 mVss typ. 30 mVss typ. 30 mVss typ. 50 mVss
Efficiency typ. 90 % typ. 89 % typ. 89 % typ. 91 %
Resistance to reverse feed max. 35 Vdc 35 Vdc 0 Vdc 35 Vdc
Over-voltage-protection max. 20 Vdc max. 41 Vdc max. 41 Vdc max. 40 Vdc
Signaling
Typ. switching threshold for LED and signal output (DC OK)
- - LED: Uout > 11,2 V, signal output: Uout > 16 V (typ.)
-
Status indicator LED green LED green LED green LED green
Signal output Relay contact Relay contact Relay contact, max. 30 V / 1 A Relay contact
Approvals
Approvals cURus, cULus, GL cURus, cULus, GL cURus, cULus (UL 60601), GL cURus, cULus, GL
Environment
Type of cooling natural convection natural convection natural convection natural convection
Ambient temperature -25 °C to +70 °C -25 °C to +70 °C -25 °C to +70 °C -25 °C to +70 °C
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Derating -5 %/K > +60 °C @ 196 - 264 Vac
-2.5 %/K > +50° C @ 85 - 195 Vac
-5 %/K > +60 °C @ 196 - 264 Vac
-2.5 %/K > +50° C @ 85 - 195 Vac
-5 %/K > +60 °C @ 196 - 264 Vac
-2.5 %/K > +50° C @ 85 - 195 Vac
-5 %/K > +60 °C @ 196 - 264 Vac
-2.5 %/K > +50° C @ 85 - 195 Vac
Required minimum spacing (left/right) 0 mm 0 mm 0 mm 0 mm
Required minimum spacing (over/under) 50 mm 50 mm 50 mm 50 mm
Safety and protection
Protection index
IP 20 IP 20 IP 20 IP 20
Safety class
I, with PE connection I, with PE connection I I, with PE connection
Order numbers
Order Number PC-0112-150-0 PC-0124-050-0 PC-0124-050-4 PC-0124-100-0
+
-
Power supplies
Single-phase switched mode power supplies
2

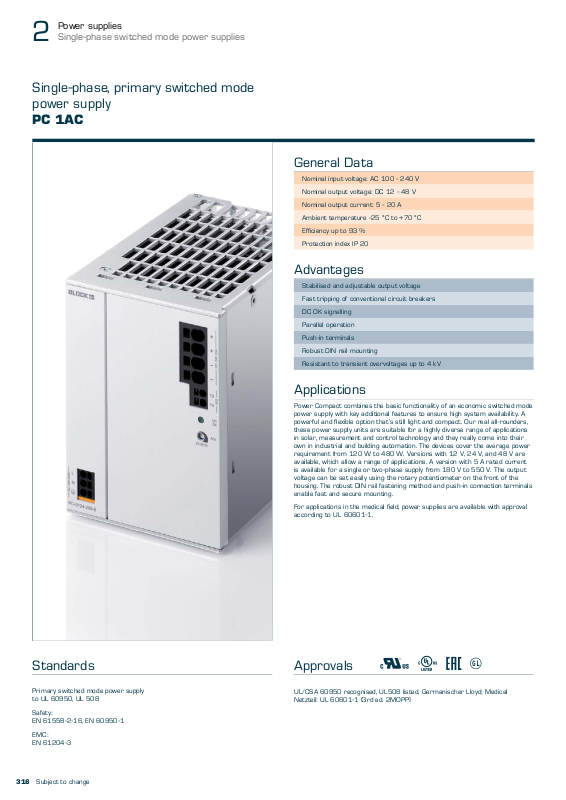

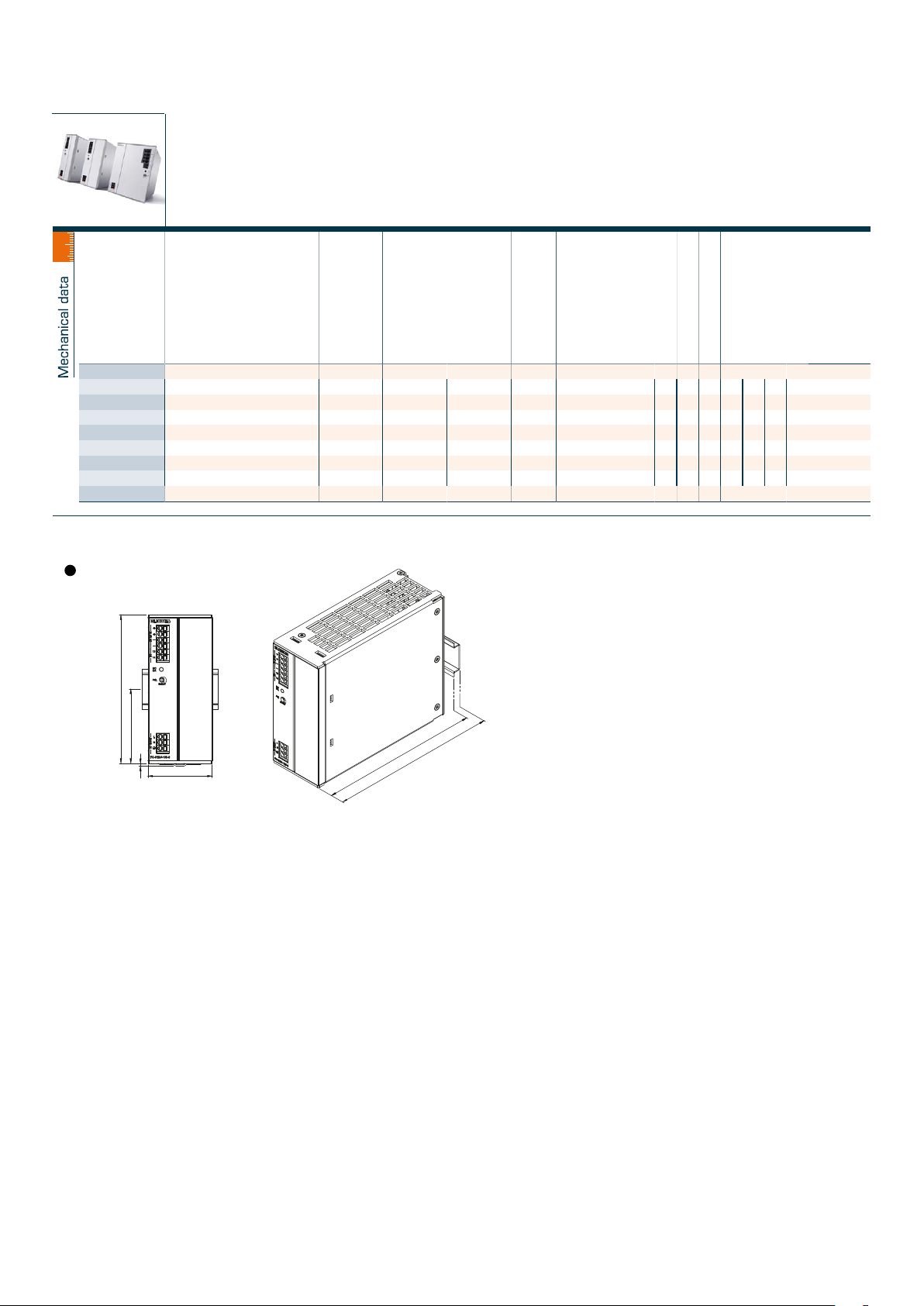

Single-phase, primary switched mode power supply
PC 1AC
StandardsZ
Primary switched mode power supply to UL 60950, UL 508
Safety: EN 61558-2-16, EN 60950-1
EMC: EN 61204-3
General Data
Nominal input voltage: AC 100 - 240 V
Nominal output current: 5 - 20 A
Ambient temperature -25 °C to +70 °C
Efficiency up to 93 %
Protection index IP 20
Advantages
Stabilised and adjustable output voltage
Fast tripping of conventional circuit breakers
DC OK signalling
Parallel operation
Push-in terminals
Robust DIN rail mounting
Resistant to transient overvoltages up to 4 kV
Applications
Power Compact combines the basic functionality of an economic switched mode power supply with key additional features to ensure high system availability. A powerful and flexible option that's still light and compact. Our real all-rounders, these power supply units are suitable for a highly diverse range of applications in solar, measurement and control technology and they really come into their own in industrial and building automation. The devices cover the average power requirement from 120 W to 480 W. Versions with 12 V, 24 V, and 48 V are available, which allow a range of applications. A version with 5 A rated current is available for a single or two-phase supply from 180 V to 550 V. The output voltage can be set easily using the rotary potentiometer on the front of the housing. The robust DIN rail fastening method and push-in connection terminals enable fast and secure mounting.
For applications in the medical field, power supplies are available with approval according to UL 60601-1.
Approvals W o J # Z
UL/CSA 60950 recognised, UL508 listed, Germanischer Lloyd; Medical Netzteil: UL 60601-1 (3rd ed. 2MOPP)
Subject to change
316
+
-
Single-phase, primary switched mode power supply
PC 1AC
Typ PC-0148-100-0
Special features
Characteristics -
Input
Input rated voltage 100 - 240 Vac
Input voltage range 85 - 264 Vac
(120 - 372 Vdc)
Input voltage derating -2.5 %/Vac < 100 Vac
Rated frequency range 44 Hz - 66 Hz / 0 Hz
Input rated current (rated load) 5.15 A (100 Vac) / 2.22 A (230 Vac)
Starting current limiter < 30 A, NTC (active)
Switch-on time 0.45 s (100 Vac) / 0.2 s (230 Vac)
Mains buffering (rated load) 20 ms (100 Vac) / 20 ms (230 Vac)
Power factor 0.92 (active PFC)
Input fuse internal 10 A
Recommended back-up fuse (circuit breaker) 10 A, 16 A,
characteristic B, C
Transient surge voltage protection Varistor
Output
Output rated voltage 48 Vdc
Output voltage range 40 – 56 Vdc
Output rated current 10 A
Output limited current typ. 11 A (constant current)
Tripping of LS circuit breakers max. B6, C4, K2
Parallel connection Yes
Serial operation Yes
Power dissipation, no load/rated load 11.7 / 36.3 W (230 Vac)
Max. power losses 64.9 W (100 Vac / 48 V / 10 A)
Ripple factor typ. 80 mVss
Efficiency typ. 93 %
Resistance to reverse feed max. 63 Vdc
Over-voltage-protection max. 60 Vdc
Signaling
Typ. switching threshold for LED and signal output (DC OK)
-
Status indicator LED green
Signal output Relay contact
Approvals
Approvals cURus, cULus, GL
Environment
Type of cooling natural convection
Ambient temperature -25 °C to +70 °C
Storage temperature -25 °C to +85 °C
Derating -5 %/K > +60 °C @ 196 - 264 Vac
-2.5 %/K > +50° C @ 85 - 195 Vac
Required minimum spacing (left/right) 0 mm
Required minimum spacing (over/under) 50 mm
Safety and protection
Protection index
IP 20
Safety class
I, with PE connection
Order numbers
Order Number PC-0148-100-0
+
-
Power supplies
Single-phase switched mode power supplies
2
Single-phase, primary switched mode power supply
PC 1AC
Typ PC-0124-100-4 PC-0124-200-0 PC-0124-200-4 PC-0148-050-0
Special features
Characteristics Suitable for the medical field - Suitable for the medical field -
Input
Input rated voltage 100 - 240 Vac 100 - 240 Vac 100 - 240 Vac 100 - 240 Vac
Input voltage range 85 - 264 Vac
Input voltage derating -2,5 %/Vac < 100 Vac -2.5 %/Vac < 100 Vac -2,5 %/Vac < 100 Vac -2.5 %/Vac < 100 Vac
Rated frequency range 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz 44 Hz - 66 Hz / 0 Hz
Input rated current (rated load) 2,74 A (100 Vac) / 1,25 A (230 Vac) 5.56 A (100 Vac) / 2.23 A (230 Vac) 5,56 A (100 Vac) / 2,23 A (230 Vac) 2.68 A (100 Vac) / 1.19 A (230 Vac)
Starting current limiter < 30 A, NTC < 30 A, NTC (active) < 30 A, NTC (active) < 30 A, NTC (active)
Switch-on time 1,3 s (100 Vac) / 0,25 s (230 Vac) 0.45 s (100 Vac) / 0.2 s (230 Vac) 0,45 s (100 Vac) / 0,2 s (230 Vac) 0.68 s (100 Vac) / 0.31 s (230 Vac)
Mains buffering (rated load) 15 ms (100 Vac) / 17 ms (230 Vac) 20 ms (100 Vac) / 20 ms (230 Vac) 8 ms (100 Vac) / 20 ms (230 Vac) 21 ms (100 Vac) / 21 ms (230 Vac)
Power factor 0,92 0.98 (active PFC) 0,98 0.92 (active PFC)
Input fuse internal 6,3 AT 10 A 10 AT 6.3 A
Recommended back-up fuse (circuit breaker) 10 A, 16 A,
Transient surge voltage protection Varistor Varistor Varistor Varistor
Output
Output rated voltage 24 Vdc 24 Vdc 24 Vdc 48 Vdc
Output voltage range 23 – 28,5 Vdc 23 – 28,5 Vdc 23 – 28,5 Vdc 40 – 56 Vdc
Output rated current 10 A 20 A 20 A 5 A
Output limited current typ. 11 - 13 A (constant current) typ. 22 A (constant current) typ. 22 A (constant current) typ. 5.5 A (constant current)
Tripping of LS circuit breakers Yes max. B6, C6, K4 Yes max. B6, C4, K2
Parallel connection Yes Yes Yes Yes
Serial operation Yes Yes Yes Yes
Power dissipation, no load/rated load 6,6 W / 24,4 W (230 Vac) 7.2 / 42.4 W (230 Vac) 7,2 W / 42,4 W (230 Vac) 7 W / 40,8 W (230 Vac)
Max. power losses 31,3 W (100 Vac / 24 V / 10 A) 68.3 W (100 Vac / 24 V / 20 A) 68,3 W (100 Vac / 24 V / 10 A) 26,5 W (100 Vac / 48 V / 5 A)
Ripple factor typ. 50 mVss typ. 70 mVss typ. 70 mVss typ. 35 mVss
Efficiency typ. 91 % typ. 92 % typ. 92 % typ. 92 %
Resistance to reverse feed max. 0 Vdc 35 Vdc 0 Vdc 63 Vdc
Over-voltage-protection max. 40 Vdc max. 40 Vdc max. 40 Vdc max. 60 Vdc
Signaling
Typ. switching threshold for LED and signal output (DC OK)
Status indicator LED green LED green LED green LED green
Signal output Relay contact, max. 30 V / 1 A Relay contact Relay contact, max. 30 V / 1 A Relay contact
Approvals
Approvals cURus, cULus (UL 60601), GL cURus, cULus, GL cURus, cULus (UL 60601), GL cURus, cULus, GL
Environment
Type of cooling natural convection natural convection natural convection natural convection
Ambient temperature -25 °C to +70 °C -25 °C to +70 °C -25 °C to +70 °C -25 °C to +70 °C
Storage temperature -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C -25 °C to +85 °C
Derating -5 %/K > +60 °C @ 196 - 264 Vac
Required minimum spacing (left/right) 0 mm 0 mm 0 mm 0 mm
Required minimum spacing (over/under) 50 mm 50 mm 50 mm 50 mm
Safety and protection
Protection index
Safety class
Order numbers
Order Number PC-0124-100-4 PC-0124-200-0 PC-0124-200-4 PC-0148-050-0
(120 - 372 Vdc)
characteristic B, C
Uout > 21,5 V - Uout > 21,5 V -
-2.5 %/K > +50° C @ 85 - 195 Vac
IP 20 IP 20 IP 20 IP 20
I I, with PE connection I I, with PE connection
85 - 264 Vac (120 - 372 Vdc)
10 A, 16 A, characteristic B, C
-5 %/K > +60 °C @ 196 - 264 Vac
-2.5 %/K > +50° C @ 85 - 195 Vac
85 - 264 Vac (120 - 372 Vdc)
10 A, 16 A, characteristic B, C
-5 %/K > +60 °C @ 196 - 264 Vac
-2.5 %/K > +50° C @ 85 - 195 Vac
85 - 264 Vac (120 - 372 Vdc)
10 A, 16 A, characteristic B, C
-5 %/K > +60 °C @ 196 - 264 Vac
-2.5 %/K > +50° C @ 85 - 195 Vac
Subject to change
318
