Block PC-0724-800-1 Catalog Page

Electronic circuit breaker with thermomagnetic characteristic
PC-0724-800-1
Advantages
Adjustable tripping current for each output channel via current selector switch accessible from the front
Ability to turn-on high load capacitance at each channel
Comprehensive single-channel-diagnostics and remote switching on/off of each output channel via 2-wire-interface
LED signalization and remote request for each output channel
Group alarm contact for simple diagnosis
Applications
ECONOMY SMART circuit breakers with a thermomagnetic characteristic represent an economical alternative to the classic circuit breaker. They also ensure reliable tripping even in the case of high line resistance. This makes the circuit breakers ideal for use in standard machine production. The electronic circuit breaker distributes and monitors the load current over several current circuits. Overloads and short circuits on an output are reliably recognized. The electronics permit brief current peaks and switch longer overloads off. The rated current for each output can be individually set with a current selector switch accessible from the front. The outputs are activated depending on the time delay and load to avoid an overload current. If the rated current is exceeded for a certain amount of time, the output will be switched off automatically and can be reactivated after a waiting time (thermal relaxation) using the pushbutton or the remote signal input S1. The pushbutton can also be used to switch the output manually. It is possible to read out the state of each output using the three signal contacts. The state of each output is also indicated with a multi-colored LED.

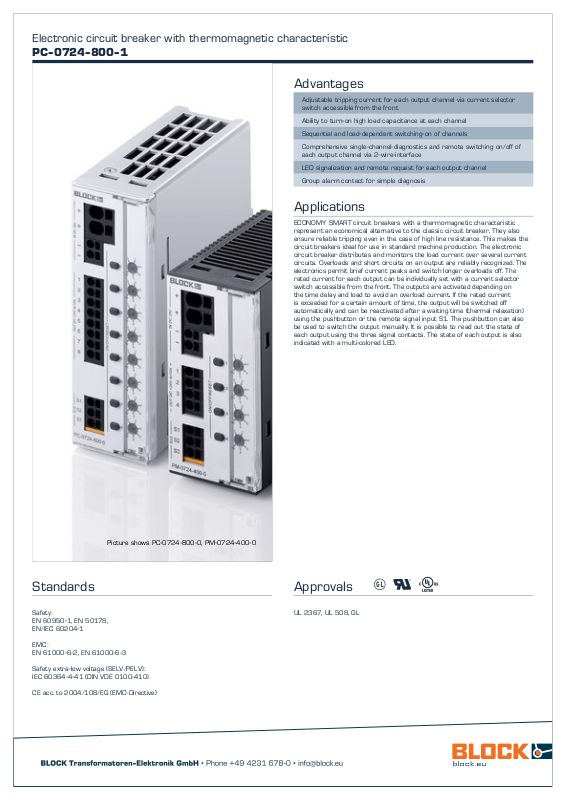

Picture shows PC-0724-800-0, PM-0724-400-0
Standards Z
Safety: EN 60950-1, EN 50178, EN/IEC 60204-1
EMC: EN 61000-6-2, EN 61000-6-3
Safety extra-low voltage (SELV/PELV): IEC 60364-4-41 (DIN VDE 0100-410)
CE acc. to 2004/108/EG (EMC-Directive)
Approvals # U o Z
UL 2367, UL 508, GL
Electronic circuit breaker with thermomagnetic characteristic
142.0
151.0
127.0
63.5
42.0
3.0
+
-
30
PC-0724-800-1
Type PC-0724-800-1
Input
Input rated voltage Input voltage range Maximal residual ripple of supplied input voltage Required input voltage for turning-on of outputs Max. total input current Max. input current for each pole of terminal Over voltage protection Stand-by current Power losses in stand-by mode
Output
Output rated voltage Output rated current Maximum voltage drop between input and output Initialization time of module Turn-on delay of outputs Waiting periode after switch-off of an output Efficiency Max. power losses Internal output fuse Resistance to reverse feed max. Parallel use of outputs Serial use of outputs
Signaling
Status indicator Signal input S1
Signal output S2
Signal output S3
Approvals
Approvals
Environment
Storage temperature Ambient temperature Derating Cooling method Required minimum spacing (left/right) Required minimum spacing (over/under)
Safety and protection
Protection index Safety class Degree of pollution
Order numbers
Order Number
24 Vdc 18 - 30 Vdc 3 %
19.5 V (Turn-off Threshold 18 V) 70 A 40 A Suppressor diode 33 V 55 mA @ 24 V
1.32 W @ 24 V
24 Vdc 8 x (2, 3, 6, 8, 10 A) 200 mV @ 8 x 10 A 250 ms Load dependent, min. 50 ms / max. 5 s 500 ms (short circuit) ... 10 s (overload) 99 % 20 W @ 8 x 10 A 15 A 35 Vdc Not allowed Not allowed
LED (red, green, orange) DC 24 V (On/Off/Reset) DC 24 V, max. 25 mA
(status output channels) DC 24 V, max. 25 mA
(Summation message)
cURus, cULus, GL
-25° C ... +85° C
-25° C ... +70° C
­Natural convection 0 mm 40 mm
IP 20 III, without PE connection 2
PC-0724-800-1
Type PC-0724-800-1
Input
Input terminals (2 x "-"), 1) direct plug-in technology Push-in 2) pluggable, WAGO series 721 Input terminals (2 x "+"), 1) direct plug-in technology Push-in 2) pluggable, WAGO series 831
Output
Output terminals ("+"), 1) direct plug-in technology Push-in 2) pluggable, WAGO series 721
Signaling
Connections signalling, 1) direct plug-in technology Push-In 2) pluggable, WAGO series 721
Terminal and mounting
Mounting position
Measures and weights
Weight
2) max. 2,5 mm²
2) max. 10 mm²
2) max. 2,5 mm²
2) max. 2,5 mm²
horizontal for standard rail DIN TH 35
0.40 kg
Subjects to change.
