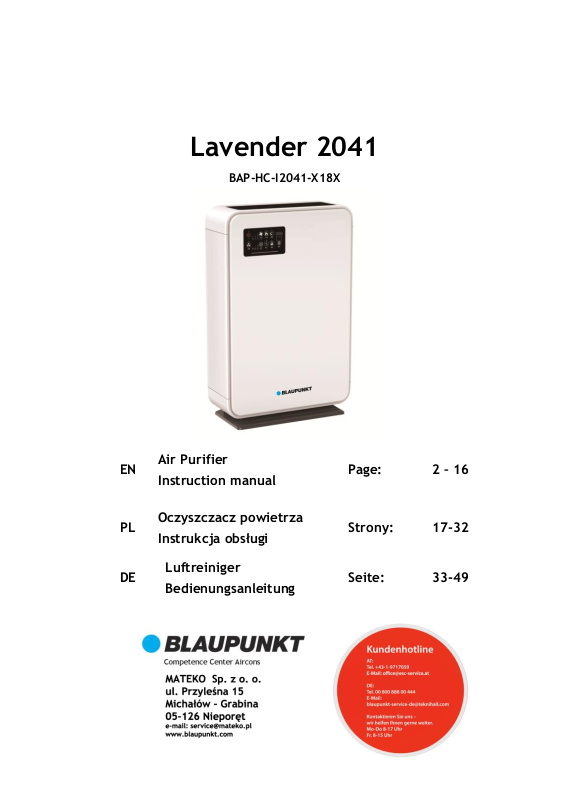

Blaupunkt Lavender 2041 operation manual
EN
Air Purifier
Instruction manual
Page:
2 – 16
PL
Oczyszczacz powietrza
Instrukcja obsługi
Strony:
17-32
DE
Luftreiniger
Bedienungsanleitung
Seite:
33-49
Lavender 2041
BAP-HC-I2041-X18X
www.blaupunkt.com LV 2041
CONTENTS
IMPORTANT SAFETY INFORMATION ............................................... 2
PRODUCT STRUCTURE ............................................................. 4
BEFORE FIRST USE .................................................................. 5
USING THE APPLIANCE ............................................................. 7
CLEANING ............................................................................ 9
FILTER REPLACEMENT ............................................................ 12
STORAGE ........................................................................... 14
ENVIRONMENT ..................................................................... 14
TROUBLESHOOTING .............................................................. 15
SPIS TREŚCI
ŚRODKI OSTROŻNOŚCI ............................................................ 18
BUDOWA PRODUKTU ............................................................. 20
PRZED PIERWSZYM UŻYCIEM .................................................... 21
UŻYTKOWANIE .................................................................... 23
CZYSZCZENIE ...................................................................... 25
WYMIANA FILTRU ................................................................. 28
PRZECHOWYWANIE ............................................................... 30
ŚRODOWISKO ...................................................................... 30
ROZWIĄZYWANIE PROBLEMÓW ................................................. 31
INHALTSVERZEICHNIS
SICHERHEITSHINWEISE ........................................................... 34
AUFBAU DES GERÄTS ............................................................. 36
VOR DEM ERSTEN GEBRAUCH ................................................... 37
INBETRIEBNAHME ................................................................. 39
REINIGUNG ........................................................................ 42
FILTERWECHSEL................................................................... 45
AUFBEWAHRUNG .................................................................. 47
UMWELT............................................................................ 47
PROBLEMLÖSUNGEN .............................................................. 48
NOMENCLATURE .................................................................. 50
1
www.blaupunkt.com LV 2041
IMPORTANT SAFETY INFORMATION
Read this user manual carefully before you use the appliance and save it for future
reference.
Danger
Do not let water or any other liquid or flammable detergent enter the appliance to avoid
electric shock and/or a fire hazard.
Do not clean the appliance with water or any other liquid or a (flammable) detergent to avoid
electric shock and/or a fire hazard.
Warning
Check if the voltage indicated on the bottom of the appliance corresponds to the local mains
voltage before you connect the appliance.
If the mains cord is damaged, you must have it replaced by distributor, or a service centre
authorised by distributor or similarly qualified persons in order to avoid a hazard.
Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not block the air inlet and outlet, e.g. by placing items on the air outlet or in front of the air
inlet
Caution
This appliance is not a substitute for proper ventilation, regular vacuum cleaning or use of an
extractor hood or fan while cooking.
If the wall socket used to power the appliance has poor connections, the plug of the appliance
becomes hot. Make sure you plug the appliance into a properly connected wall socket.
Always place and use the appliance on a dry, stable, level and horizontal surface.
2
www.blaupunkt.com LV 2041
Leave at least 40cm free space behind and on both sides of the appliance and leave at least
40cm free space above the appliance.
Do not place anything on top of the appliance and do not sit on the appliance.
Do not place the appliance directly below an air conditioner to prevent condensation from
dripping onto the appliance.
Make sure all filters are properly installed before you switch on the appliance.
Only use the original filters specially intended for this appliance. Do not use any other filters.
Avoid knocking against the appliance (the air inlet and outlet in particular) with hard objects.
Always lift or move the appliance by the handle at the back of the appliance.
Do not insert your fingers or objects into the air outlet.
Do not use this appliance when you have used indoor smoke-type insect repellents or in places
with oily residues, burning incense or chemical fumes.
Do not use the appliance near gas appliances, heating devices or fireplaces.
Always unplug the appliance after use and before you clean it.
Do not use the appliance in a room with major temperature changes, as this may cause
condensation inside the appliance.
The appliance is only intended for household use under normal operating conditions.
Do not use the appliance in wet surroundings or in surroundings with high ambient
temperatures, such as the bathroom, toilet or kitchen.
The appliance does not remove carbon monoxide (CO) or radon (Rn). It cannot be used as a
safety device in case of accidents with combustion processes and hazardous chemicals.
To prevent is interference , should be kept at least 2 meters distance between the product and
the use of radio waves electrical.
3
www.blaupunkt.com LV 2041
PRODUCT STRUCTURE
Welcome using our company air purifier, before using, please read this manual
4
www.blaupunkt.com LV 2041
BEFORE FIRST USE
Placing the filters
The appliance comes with all filters fitted inside, but you have to remove the
packaging of the filters before you can use the appliance. Remove all filters,
unpack them and place them back into the appliance as described below.
Tip: Place the appliance against a wall for more stability when you remove or
insert filters.
Note: Make sure you insert the filters in the correct position.
1. Place your fingers in the recesses of the side
cover and gently pull the top part of the back
cover towards you. Then lift the hooks at the
bottom of the cover out of the bottom of the
appliance.
2. Remove all the filters from the appliance.
3. Remove all packaging material from the filters.
5
www.blaupunkt.com LV 2041
4. Put filter 4(HEPA filter), filter 3(Activated carbon filter), filter 2(Charcoal
filter), filter 1(Pre-filter) back into the appliance. Specific operation see Chapter 6
"Filter replacement" .
Note: Make sure that the side with the tag is pointing towards you (Filter 4、3、2).
5. To reattach the back cover , insert the bottom
hooks into the bottom of the appliance first . Then
push the back cover against the body of the
appliance.
6
www.blaupunkt.com LV 2041
AQ indiacator color
Air quality level
Blue
Good
Yellow
Fair
Red
Bad
USING THE APPLIANCE
1. Put the plug in the wall socket
All lights go on once and you hear a beep. Then all lights go out again.
2. Press the on/off button to switch on the appliance.
The power light and FAN SPEED 1 (lowest) light on the control panel.
3. AQ(Air Quality)
Built-in air quality sensor can detect air quality, after switching on the applicance,
pressing button to turn on the AQ indicator, the AQ indicator will flash once ,
then show the quality of the air. Please see the following information.
To switch off the AQ indicator, just press the
AQ button.
4. Filter replacement lights
There are total 4 filter as follows:
1) Pre-filter, we suggest you clean it every month.
2) Charcoal filter, we suggest you replace it every 3 months.
3) Activated carbon filter, we suggest you replace it every 6 months.
4) HEPA filter, we suggest you replace it every 6 months.
Note: The filters’ lifetime is based to your house air quality and using time, the
above our suggested period is just for your reference. Using the appliance in a
humid environment will reduce the lifetime of activated carbon filter and HEPA
filter.
When flash, you have to clean the Pre-filter, when or or icon
flash, you have to replace these filters.
7
www.blaupunkt.com LV 2041
5. Fan speed adjustment
The fan speed light indicates at which fan speed the appliance is operating. Press
Speed button to adjust fan speed level, there are three levels 1~3 refers to
Low, Medium and High level.
Tips : When the appliance is switched on, the fan speed is at the low level.
6. Setting timer
When the appliance is switched on, press button to start timer function, you
can set the working time 2H, 4H or 8H by pressing the button , after this time,
your appliance will switch off automatically. To cancel the Timer function, just
press button repeatedly till light turn off.
7. Auto mode
When the appliance is switched on, the build-in air quality sensor automatically
measures the ambient air quality. When the auto mode is activated, the appliance
selects the most appropriate fan speed for the measured air quality.
8. Anion mode
When the appliance is switched on, press button to start Anion mode, the
appliance will release 6 millions of Anions per second to make the air fresh. Press
button again to switch off.
9. Sleep mode
When you use the appliance in Sleep mode, it works very quietly. Press button
to activate the sleep mode, only the and buttons light on, all other buttons
light off, press button again or any other buttons to exist the sleep mode.
10. Keylock mode
1) Press button to activate Keylock mode , all buttons are locked at this mode;
If your house has young child, we suggest use this mode.
2) To cancel the keylock mode, just press and hold button for 3 seconds.
8
www.blaupunkt.com LV 2041
CLEANING
● Always unplug the appliance before you clean it.
● Never immerse the appliance in water or any other liquid.
● Never use aggressive or flammable cleaning agents such as bleach or alcohol
to clean any part of the appliance.
● Only the pre-filter is washable. All other filters are NOT washable.
1. Body of the appliance
Regularly clean the inside and outside of the body to prevent dust from collecting
on the inside and outside.
1) Wipe away dust with a soft dry cloth from the body of the appliance.
2) Clean the air inlet and the air outlet with a soft dry cloth.
2. Air quality sensor
Clean the air quality sensor every 2 months for optimal functioning of the
appliance. Clean it more frequently if you use the appliance in a dusty
environment.
Note: When the humidity level in the room is very high, it is possible that
condensation develops on the air quality sensor. As a result, the Air Quality light
on the control panel and the air quality indicator may show that the air quality is
bad even though the air quality is good. In this case you have to clean the air
quality sensor or use one of the manual speed settings.
1) Clean the air quality sensor inlet and outlet
with a soft brush.
2) Remove the air quality sensor cover.
9
www.blaupunkt.com LV 2041
3) Clean the air quality sensor, the dust inlet and
the dust outlet with a lightly moistened cotton swab.
4) Dry them with a dry cotton swab.
5) Reattach the air quality sensor cover.
3. Pre-filter
Note: Only the pre- filter is washable; Clean the Pre-filter 30 days once, ensure
your air purifier running at optimal performance.
Clean the pre-filter when the first filter replacement light flashes to ensure
optimal functioning of the appliance.
1) Switch off the appliance and unplug it. (a)
2) Place your fingers in the recesses of the
side cover and gently pull the top part of the
back cover towards you. Then lift the hooks
at the bottom of the cover out of the bottom
of the appliance. (b)
10
www.blaupunkt.com LV 2041
3) To remove the pre-filter , grab the two
projection at the top and pull the filter towards
you. (c)
4) Wash the pre-filter under a running tap ,
If the pre-filter is very dirty, use a soft brush
to brush away the dust. (d)
Tip: Alternatively, you can clean the pre-filter
by removing the dust with a vacuum cleaner.
5) Air-dry the pre-filter.
Note: Make sure that the pre-filter is completely
dry. If it is still wet, bacteria may multiply in it
and shorten the lifetime of the pre-filter.
6) Put the pre-filter back into the appliance.
Attach all hooks properly to the appliance. (e)
Note: Make sure that the side with the two
projections is pointing towards you. You also
can find word“Front”towards you.
7) To reattach the back cover , insert the bottom
hooks into the bottom of the appliance first . Then
push the back cover against the body of the
appliance.(f)
11
www.blaupunkt.com LV 2041
FILTER REPLACEMENT
When one of the filters is almost full and has to be cleaned or replaced, the
appropriate filter replacement light starts to flash. Filter replacement light 1
flashes: filter 1 (the pre-filter) has to be cleaned, see chapter“Cleaning” 5.3 for
further instructions. Filter replacement light 2 flashes: filter 2(charcoal filter) has
to be replaced. Filter replacement light 3 flashes: filter 3 (activated carbon filter)
has to be replaced.
1. How to replacing the filter 2, filter 3 and filter 4?
Tip: Place the appliance against a wall for more stability when you remove or
insert filters.
1) Switch off the appliance and unplug it. (a)
2) Place your fingers in the recesses of the
side cover and gently pull the top part of the
back cover towards you. Then lift the hooks
at the bottom of the cover out of the bottom
of the appliance. (b)
3) To remove filter 1 (pre-filter), grab the two
projections at the top and pull the filter towards
you. (c)
4) To remove the filter 2 (charcoal filter) which
fixed by velcro with filter 3, just tear it off and
replace the new charcoal filter. (d)
12
www.blaupunkt.com LV 2041
5) To remove the filter 3 (activated carbon filter),
grab its tag and pull it towards you, then replace
the new activated carbon filter. (e)
6) To remove the filter 4 (HEPA filter), grab its tag
and pull it towards you, then replace the new HEPA
filter. (f)
Note: The sequencing to put filters back into the
appliance, please refers to the drawing of page 4 -“product structure”.
7) To reattach the back panel, insert the bottom
hooks into the bottom of the appliance first, then
push the panel against the body of the appliance.
(g)
8) Put the plug in the wall socket and switch on the
appliance again. (h)
2. Reset Filter's lifetime.
Even you replace the new filters, when you switch on
the appliance, the light of filter icon still flash, you
need to reset the filter’s lifetime, so that the appliance
can cycle to calculate the filters’ working time.
Press the button, the light still turn on but not flash, it
means you choose this filter No. to reset, press and
hold button for 3 seconds, the light of filter turn off, the reset finished.
13
www.blaupunkt.com LV 2041
3. Filter replacement force mode
Suppose you use the appliance under air pollution environment, you can replace
these filters even the light does not flash, the filters replacing method is same,
please see chapter: Filter replacement.
To force reset the filter’s lifetime:
1) Switch on the appliance at the standby mode(Not press the button), press
and hold the button for 5 seconds, filters light will flash.
Note: Press button or without any operation for 60 seconds, the appliance will
exit the Filter replacement force mode.
2) Press button repeatedly to choose the filter, the chosen filter light will stop
flash, press and hold button for 3 seconds, this filter light turn off and the
reset finish.
3) You can repeat step 2 operation to turn off the other filters light and finish all
filters reset.
STORAGE
To store the mains cord, remove the back cover, wind it round the cord storage
facility at the bottom of the appliance, then reattach the back cover.
ENVIRONMENT
Do not throw away the appliance with the normal household waste at the end of its
life, but hand it in at an official collection point for recycling. By doing this, you
help to preserve the environment.
14
www.blaupunkt.com LV 2041
PROBLEM
POSSIBLE CAUSE
POSSIBLE SOLUTION
The appliance
doesn’t work
Back cover can not be fastened in place .
Removing the back cover and
reinstall it.
Power plug is not connected to a power supply.
Unplug and then plug the power
again.
The machine is not turned on.
Plug in the power and turn on the
machine again .
Outlet airflow
significantly
reduced
than before
Filter’s plastic packaging haven’t been removed.
Filter’s plastic packaging haven ’t
been removed. before use.
Air quality is good ,and the Auto mode has
been activated .
At the Auto mode ,the machine will
automatically adjust the fan speed
in the order to achieve energy
saving.
Sleep mode automatically start , the LED indicator
turns off. Meanwhile the fan speed and the noise is
also reduced.
Press the button and choose the
favourable fan speed.
The Pre-filter is too dirty.
Please clean up the Pre-filter.
The filter haven’t be replaced.
Replace a new filter.
No suitable clearance and space for ventilation in the
surroundings .
Make sure all the rear and up sides
each has 40cm space left.
Fan speed can’t
adjust
automatic
Air quality sensor become damp, the indoor
temperature is too high, which make the sensor
surface from a condensate .
Keep the air quality sensor clean
and dry .
TROUBLESHOOTING
This chapter summarises the most common problems you could encounter with
the appliance. If you are unable to solve the problem with the information below,
contact the Consumer Care Centre in your country.
15
Loading...
