Biostar NF61V MICRO AM2 SE Setup Manual

NF61V Micro AM2 SE/NF61S Micro AM2 SE

Setup Manual

FCC Inf or m at ion and Copyr i ght

This equipment has been tested and found to comply with the limits of a Class
B digital device, pursuant to Part 15 of the FCC Rules. T hese limits are designed
to prov ide reason able protec tion ag ai nst harmful interfe rence in a resi de n tial
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not ins talled and used in accordance with the instructions, may
cause harmful interference to radio communications. There is no guarantee
that interference will not occ ur in a partic ula r ins talla ti o n .

The ve n do r ma kes no re p res e nta tio ns o r wa r ra nties wi th res pec t to th e
contents here and specially disclaims any implied warranties of merchantability
o r f i tnes s f o r any purp ose . F urt he r t he ve ndo r res e rves the rig ht to r ev ise this
publication and to make c hanges to the contents here without obligation to
notify any party beforehand.

D up lica ti on o f t his publ ic at io n , i n part or in wh ol e , is no t al lo wed wi tho ut fi rst
obtaining the vendor’s approval in writing.

The content of this user’s manual is subject to be changed without notice and
we will not be res ponsible for any mis takes found in this use r’s manual. All the
brand and produc t names are trademarks of their respective companies.

All manuals and user guides at all-guides.com

all-guides.com

Table of Content s

Chapter 1: Introduction .............................................1

1.1 Before You Start................................................................... 1

1.2 Package Checklist................................................................1

1.3 Motherboard Features..........................................................2

1.4 Rear Panel Connectors (Ver 6.x)............................................4

1.5 Rear Panel Connectors (Ver 5.x)............................................ 4

1.6 Mo t he r boa r d Layo u t (Ver 6.x)...............................................5

1.7 Mot he r boa r d Layo u t (Ver 5.x )...............................................6

Chapter 2: Hardware Installation ..............................7

2.1 Installing Central Proce ssing Unit (CPU)................................ 7

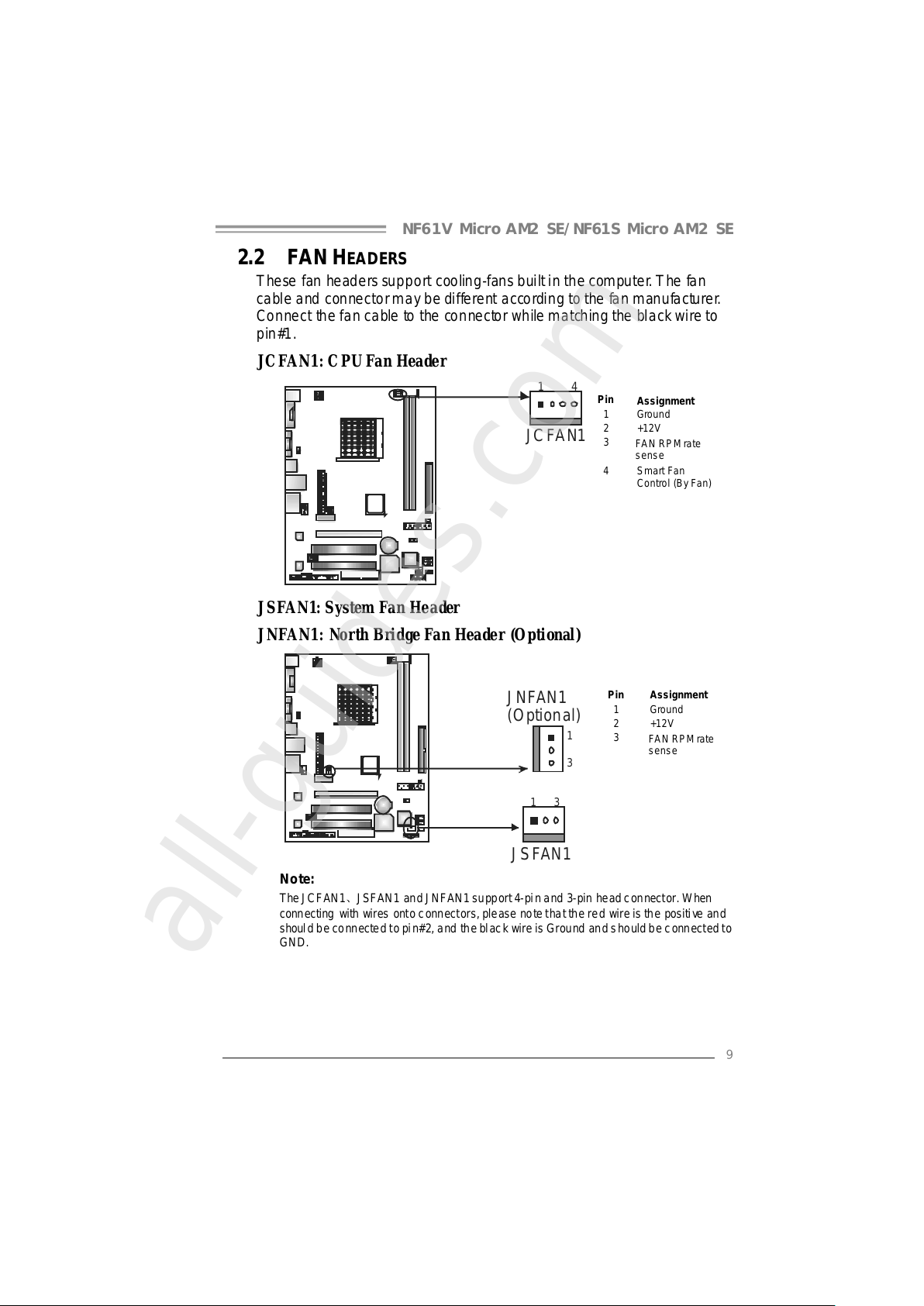

2.2 FAN Headers........................................................................9

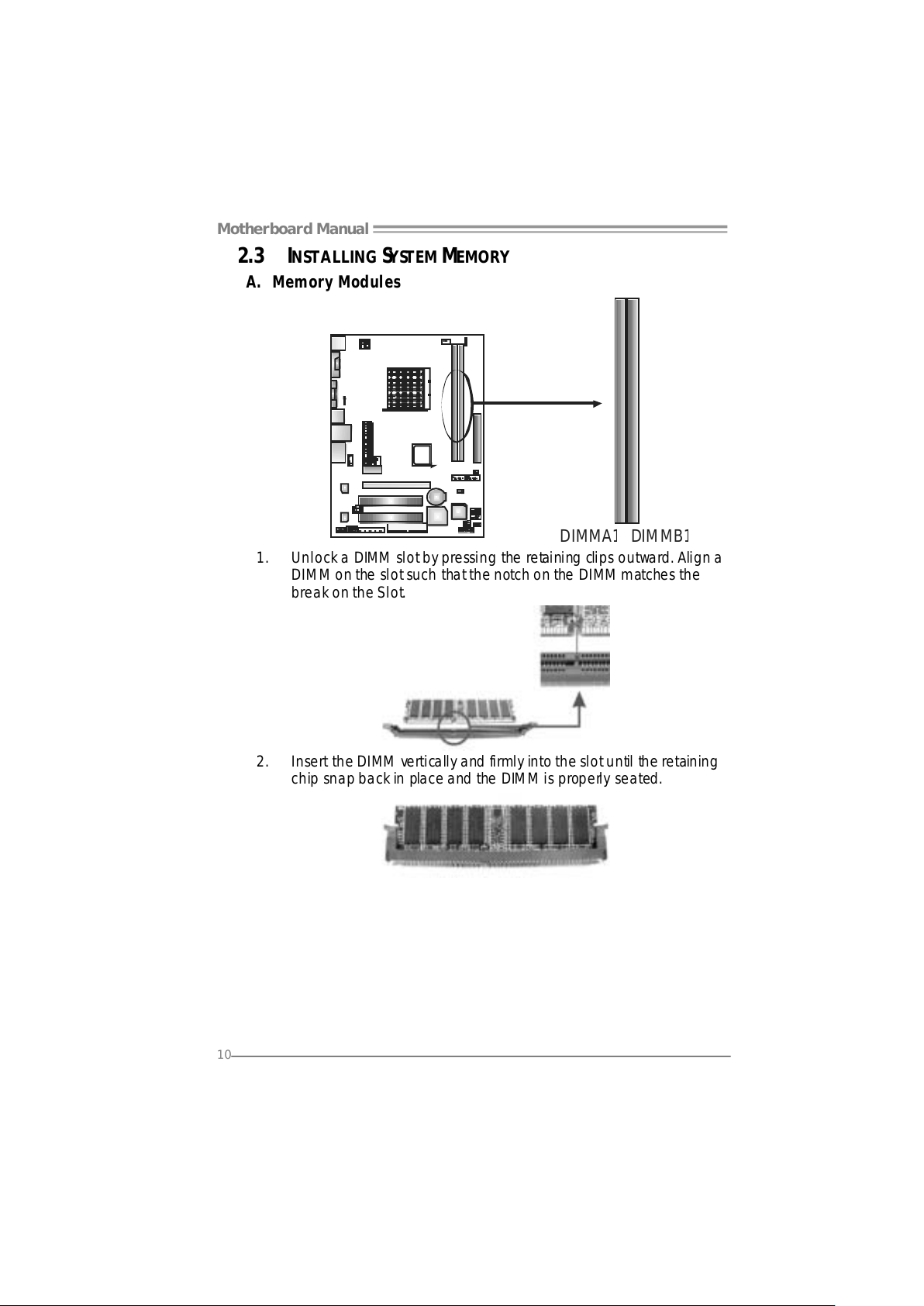

2.3 Installing System Me mory.....................................................10

2.4 Con necto rs a nd Slo ts............................................................12

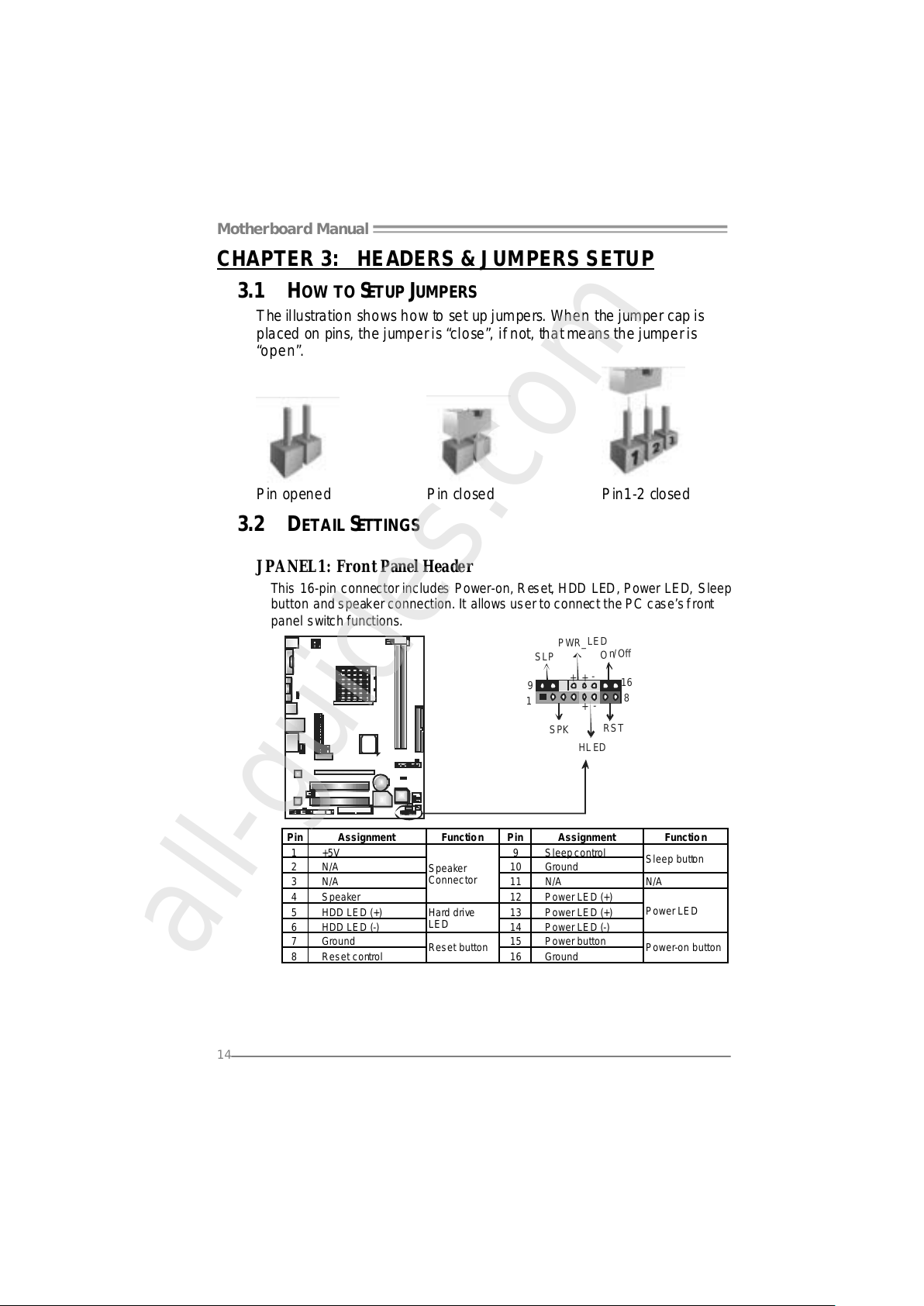

Chapter 3: Headers & Jumpers Setup......................14

3.1 Ho w to Set up Ju mper s..........................................................14

3.2 Det ail Settin gs.....................................................................14

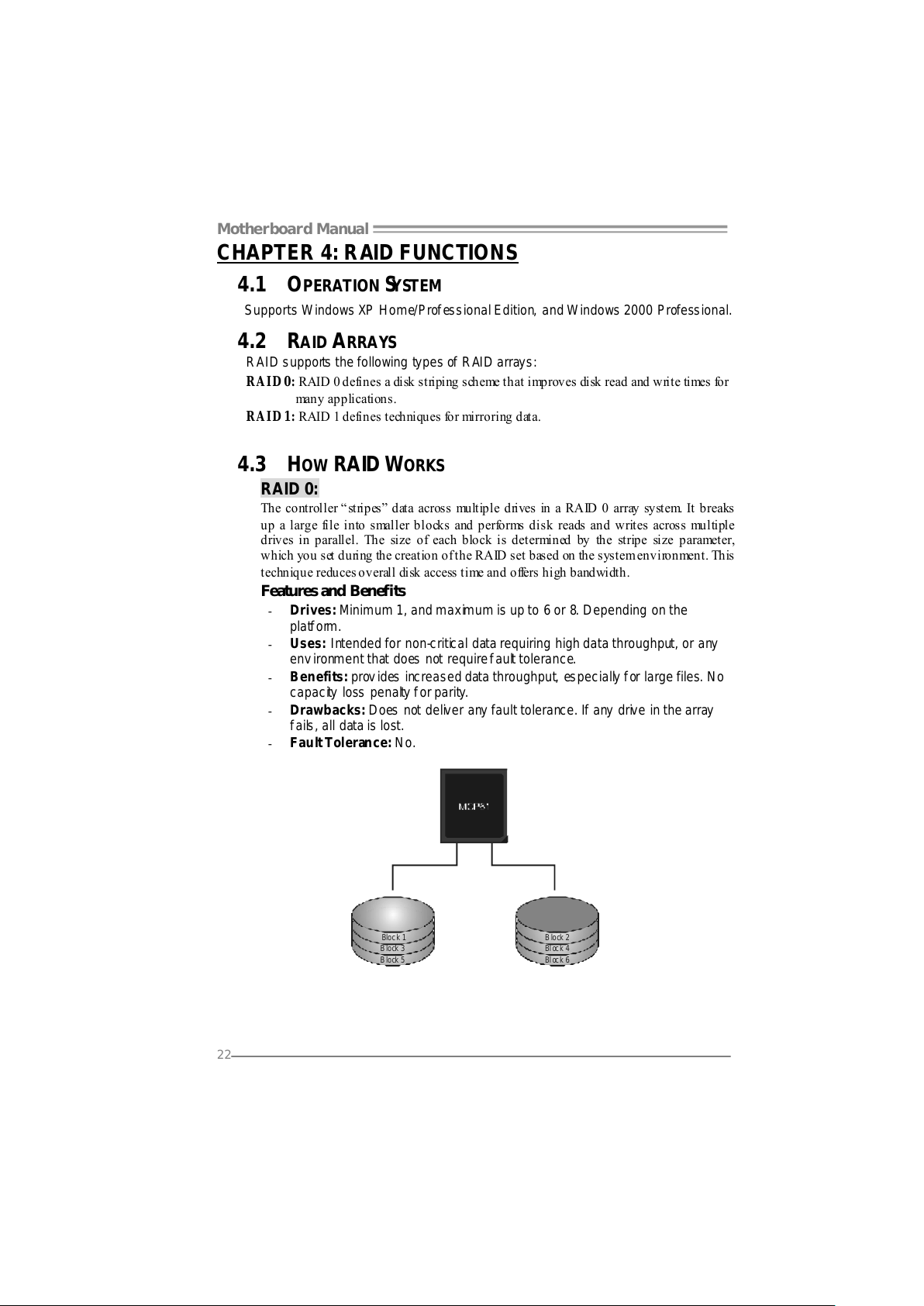

Chapter 4: RAID Functions.......................................22

4.1 Operation Syste m................................................................22

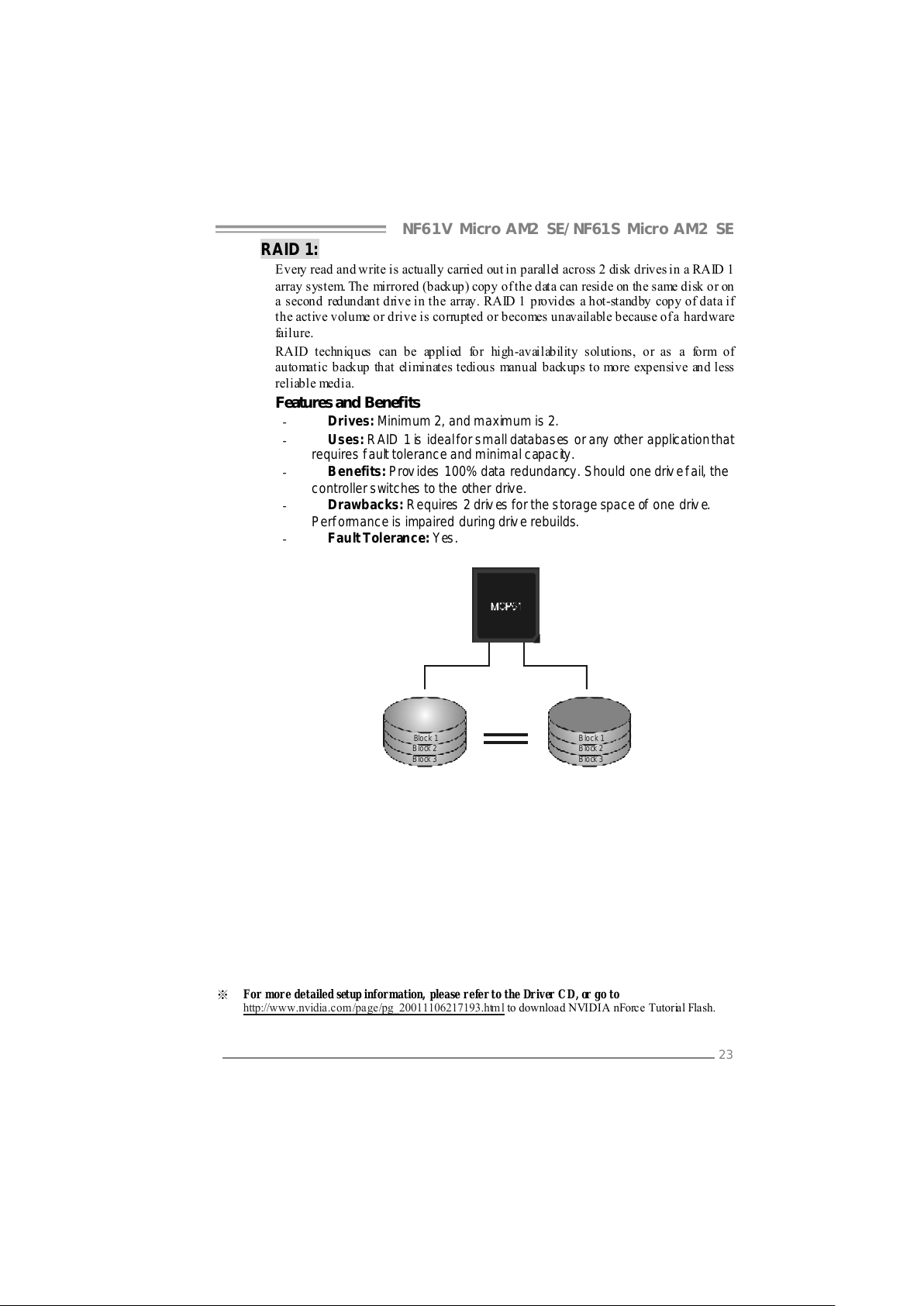

4.2 Raid Arrays.........................................................................22

4.3 How RAI D Wor k s.................................................................22

Chapter 5: Useful Help ..............................................24

5.1 Driver Instal lation Note .......................................................24

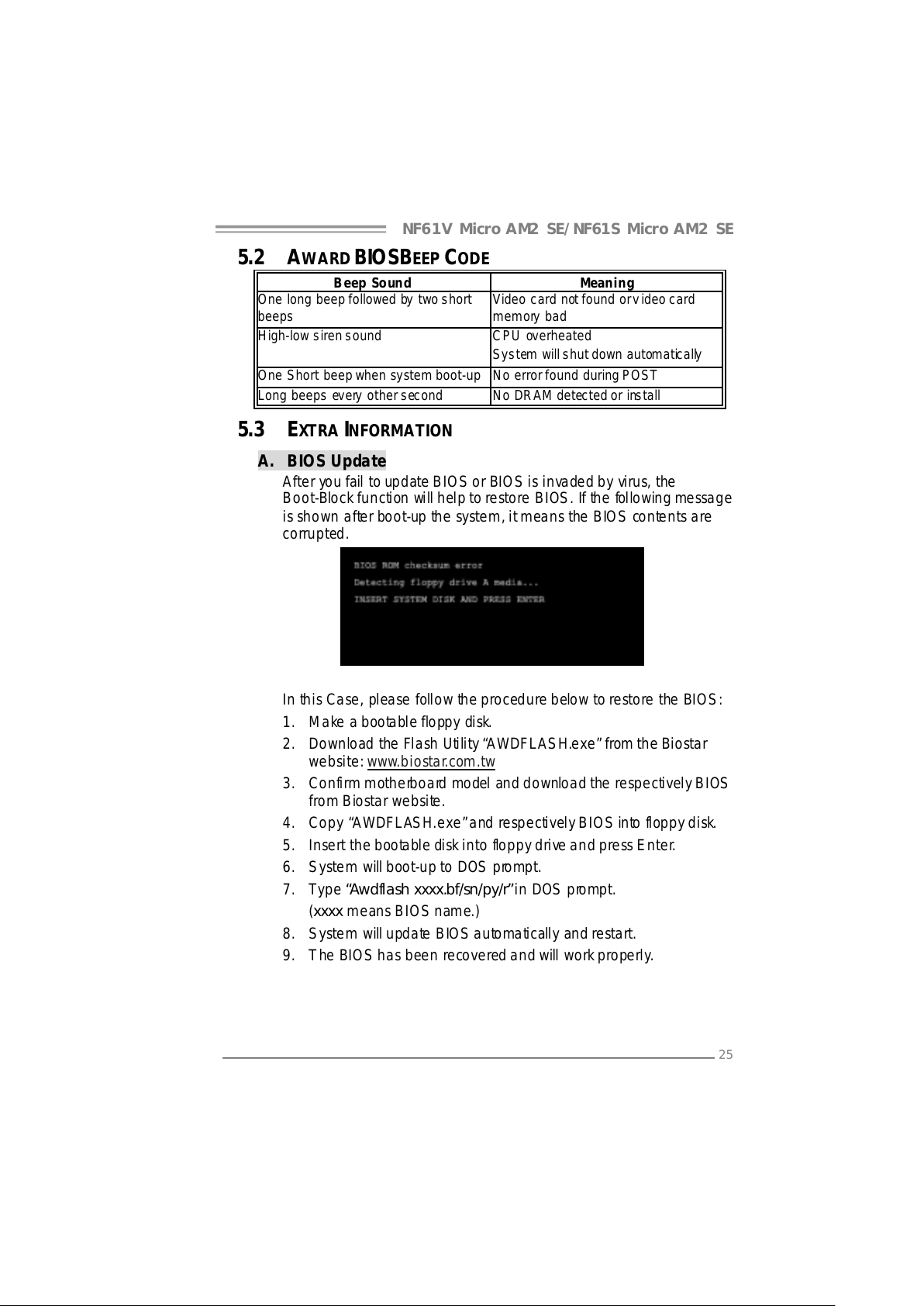

5.2 Award BIOS Bee p Code........................................................25

5.3 Extra Informati on ................................................................25

5.4 Troubleshooting...................................................................27

Chapter 6: WarpSpeeder™ .......................................28

6.1 Introduction........................................................................28

6.2 System Requirement............................................................28

6.3 Installation.........................................................................29

6.4 WarpSpeeder™....................................................................30

Appendencies: SPEC In Other Language ................36

German................................................................................................36

France..................................................................................................38

Italian..................................................................................................40

Spanish................................................................................................42

Portuguese...........................................................................................44

Polish...................................................................................................46

Russian ................................................................................................48

Arabic..................................................................................................50

Japanese ..............................................................................................52

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

1

CHAPTER 1: INTRODUCTION

1.1 BEFORE YOU START

Tha nk you for choo sing our produ ct. Be fo re you s tart ins talling the
mo the rboa rd , plea se make su re you follow the i ns tructions be lo w:

 Prepa re a dry and stable working environment with

s uf fi cie nt ligh ting .

 Always disconnect the computer from power outlet

be fore ope ra tion .

 Befo re you tak e the mo the rboa rd ou t from a n ti-s ta tic

bag, ground yourself properly by touching any safely
grounde d ap pliance, o r use grounded wris t strap to
remove the static charge.

 Avo id tou ch ing the com pone nts o n mo the rboa rd o r the

rea r side of the boa rd unless ne cessary. Hold the board
on the edge , do no t try to be nd or flex the board.

 Do no t leave an y unfastene d sma ll parts inside the

case after installation. Loose parts will cause short
circu its which ma y damage the equipmen t.

 Keep the computer from dangerous area, such as heat

so u rce, humid a ir and wa te r.

1.2 PACKAGE CHECKLIST

FDD Cable X 1
HDD Cable X 1
Use r’s Ma nual X 1
Fully Setup Driver CD X 1
Rear I/O Panel for ATX Case X 1
Se ria l AT A Cab le X 1 (op tio na l)
USB 2.0 Cable X1 (optional)
S/PDIF Cable X 1 (optional)
Se ria l ATA Po we r Switch Ca b le X 1 (op t io na l)
Printer Port Cable X 1 (op tiona l)

All manuals and user guides at all-guides.com

Motherboard Manual

2

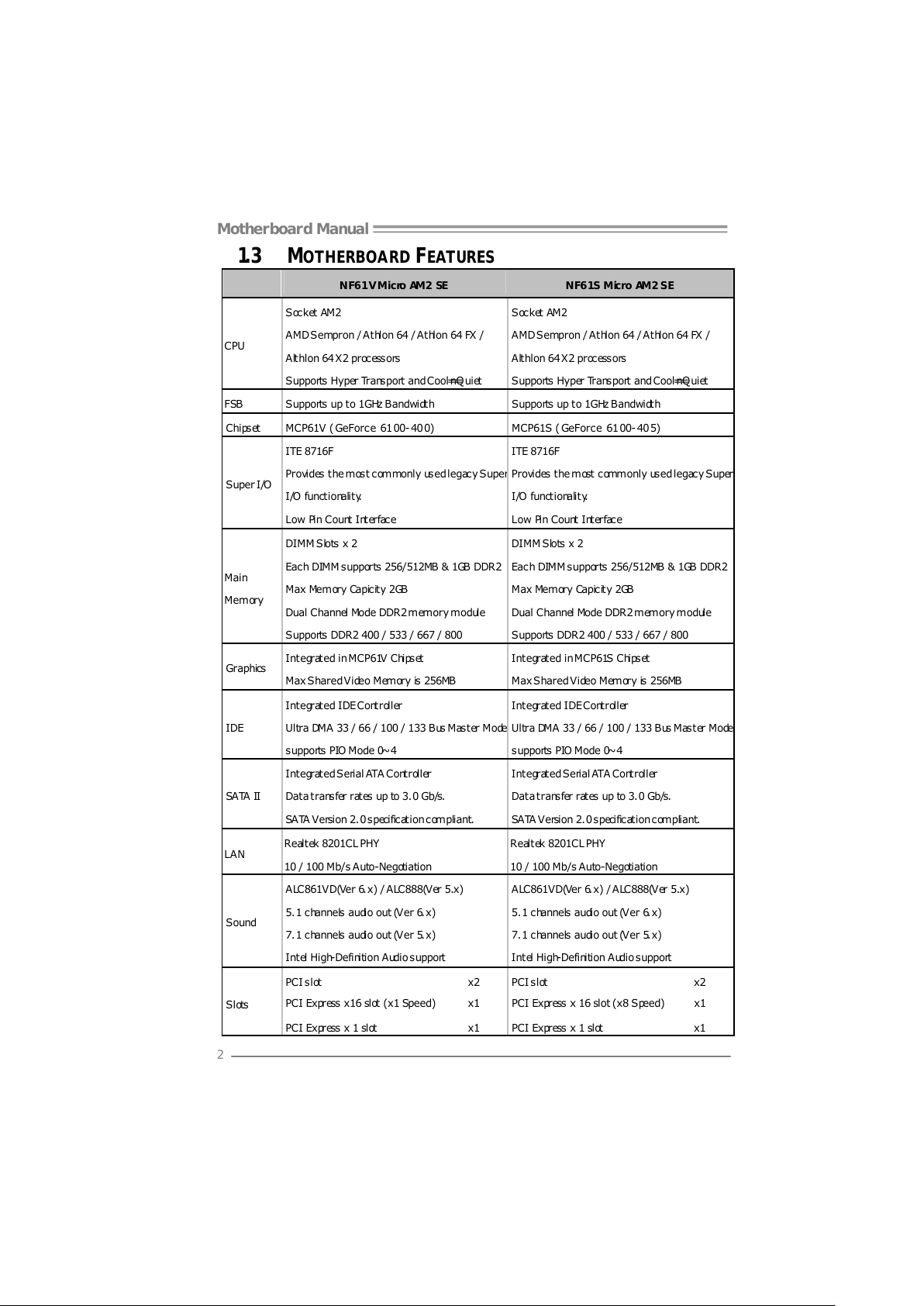

1.3 MOTHERBOARD FEATURES

NF61V Micro AM2 SE NF61S Micro AM2 SE

CPU

Socket AM2

AMD Sempron / Athlon 64 / Athlon 64 FX /

Althlon 64 X2 processors
Supports Hyper Transport and Cool=n=Quiet

Socket AM2

AMD Sempron / Athlon 64 / Athlon 64 FX /

Althlon 64 X2 processors
Supports Hyper Transport and Cool=n=Quiet

FSB Supports up to 1GHz Bandwidth Supports up to 1GHz Bandwidth

Chi ps et MCP61V ( GeF orce 61 00- 400) MC P61S ( GeForce 61 00- 405)

Super I/O

ITE 8716F

Provides the most commonly us e d l egacy Supe

r

I/O funct ionality.

Low Pin Count I nterface

ITE 8716F

Provides the most commonly used legac y Super

I/O funct ionality.

Low Pin Count I nterface

Main

Memory

DIMM Slots x 2

Eac h DIMM supports 256/512MB & 1GB DDR 2

Max Memory Capicity 2GB

Dual Channel Mode DDR2 memory module

Supports DDR2 400 / 533 / 667 / 800

DIMM Slots x 2

Eac h DIMM supports 256/512MB & 1GB DDR 2

Max Memory Capicity 2GB

Dual Channel Mode DDR2 memory module

Supports DDR2 400 / 533 / 667 / 800

Graphics

Integrated in MCP61V Chipset

Max Shared Vi deo M emory is 256MB

Integrated in MCP61S Chipset

Max Shared Vi deo M emory is 256MB

IDE

Integrated IDE Controller

Ultra DMA 33 / 66 / 100 / 133 B us Mast er Mode

supports PIO Mode 0~4

Integrated IDE Controller

Ultra DMA 33 / 66 / 100 / 133 B us Mast er Mode

supports PIO Mode 0~4

SA TA II

Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specification compliant.

Integrated Serial ATA Controller

Data transfer rates up to 3.0 Gb/s.

SATA Version 2.0 specification compliant.

LAN

Realt ek 8201CL PHY

10 / 100 Mb/s Auto-Negotiation

Realt ek 8201CL PHY

10 / 100 Mb/s Auto-Negotiation

Sound

ALC861VD(Ver 6. x) / ALC888(Ver 5.x)

5. 1 channels audio out (Ver 6. x)

7. 1 channels audio out (Ver 5. x)

Intel High-Definition Audio support

ALC861VD(Ver 6. x) / ALC888(Ver 5.x)

5. 1 channels audio out (Ver 6. x)

7. 1 channels audio out (Ver 5. x)

Intel High-Definition Audio support

PCI s lot x2 PCI s lot x2

PCI Express x16 slot (x1 Speed) x1 PCI Express x 16 sl ot (x8 S peed) x1

Slots

PCI Express x 1 slot x1 PCI Express x 1 slot x1

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

3

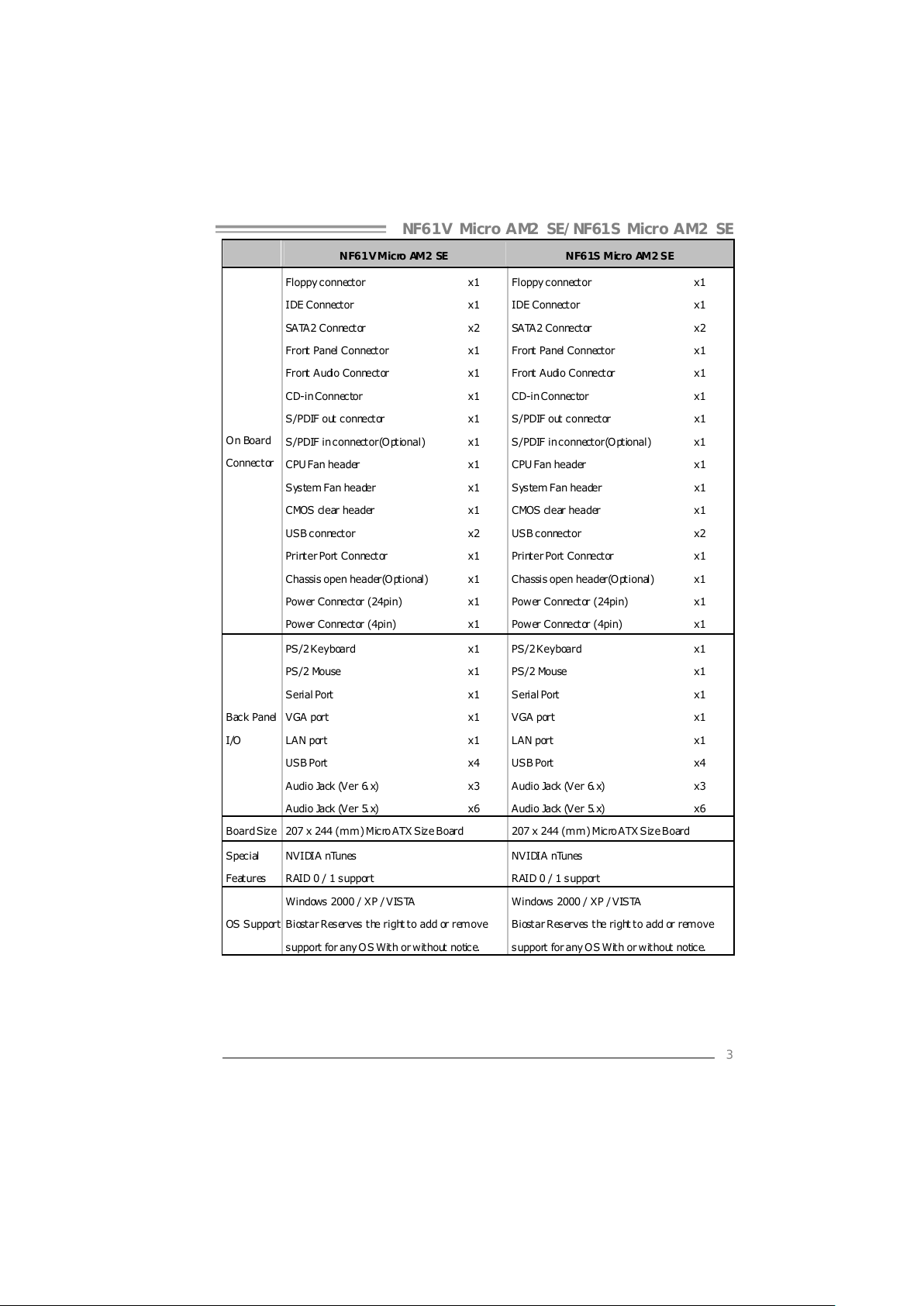

NF61V Micro AM2 SE NF61S Micro AM2 SE

Fl oppy c onnector x1 Fl oppy c onnector x1

IDE C onnector x1 IDE C onnector x1

SA TA2 Connect or x2 SA TA2 C onnect or x2

Front Panel Connector x1 F ront Panel C onnector x1

Front A udio Connector x1 Front Audio Connector x1

CD- in C onnec tor x1 C D-i n Connector x1

S/PDIF out connector x1 S/PDIF out connector x1

S/ PDIF in connector (Optional) x1 S /PDIF in c onnector(Optional ) x1

CP U Fa n header x1 C PU F an header x1

Sys tem Fa n header x1 S ystem Fan hea der x1

CMOS clear header x1 CMOS clear header x1

USB connector x2 USB c onnector x2

Printer Port Connector x1 Printer Port Connector x1

Cha ssis o pen hea der(Opti onal) x1 C hassis ope n header(O pt ional) x 1

Power Connector (24pin) x1 Power Connector (24pin) x1

On Board

Connector

Power Connector (4pin) x1 Power Connector (4pin) x1

Back Panel

I/O

PS/2 Keyboard x1

PS/2 Mouse x1

S e ri a l P ort x 1

VGA port x1

LAN port x1

USB Port x4

Audio Jack (Ver 6.x) x3

Audio Jack (Ver 5.x) x6

PS/2 Keyboard x1

PS/2 Mouse x1

S e ri a l P ort x 1

VGA port x1

LAN port x1

USB Port x4

Audio Jack (Ver 6.x) x3

Audio Jack (Ver 5.x) x6

Bo ard S ize 207 x 244 ( mm ) M icro AT X S ize Board 207 x 244 (m m ) Mic ro ATX S iz e B oard

Special

Feat ures

NVIDIA nTunes

RAID 0 / 1 s upport

NVIDIA nTunes

RAID 0 / 1 s upport

OS S upport

Wi ndows 2000 / XP / VISTA

Biostar Reserves the right to add or remove

support for any OS With or without notice.

Wi ndows 2000 / XP / VISTA

Biostar Reserves the right to add or remove

support for any OS With or without notice.

All manuals and user guides at all-guides.com

Motherboard Manual

4

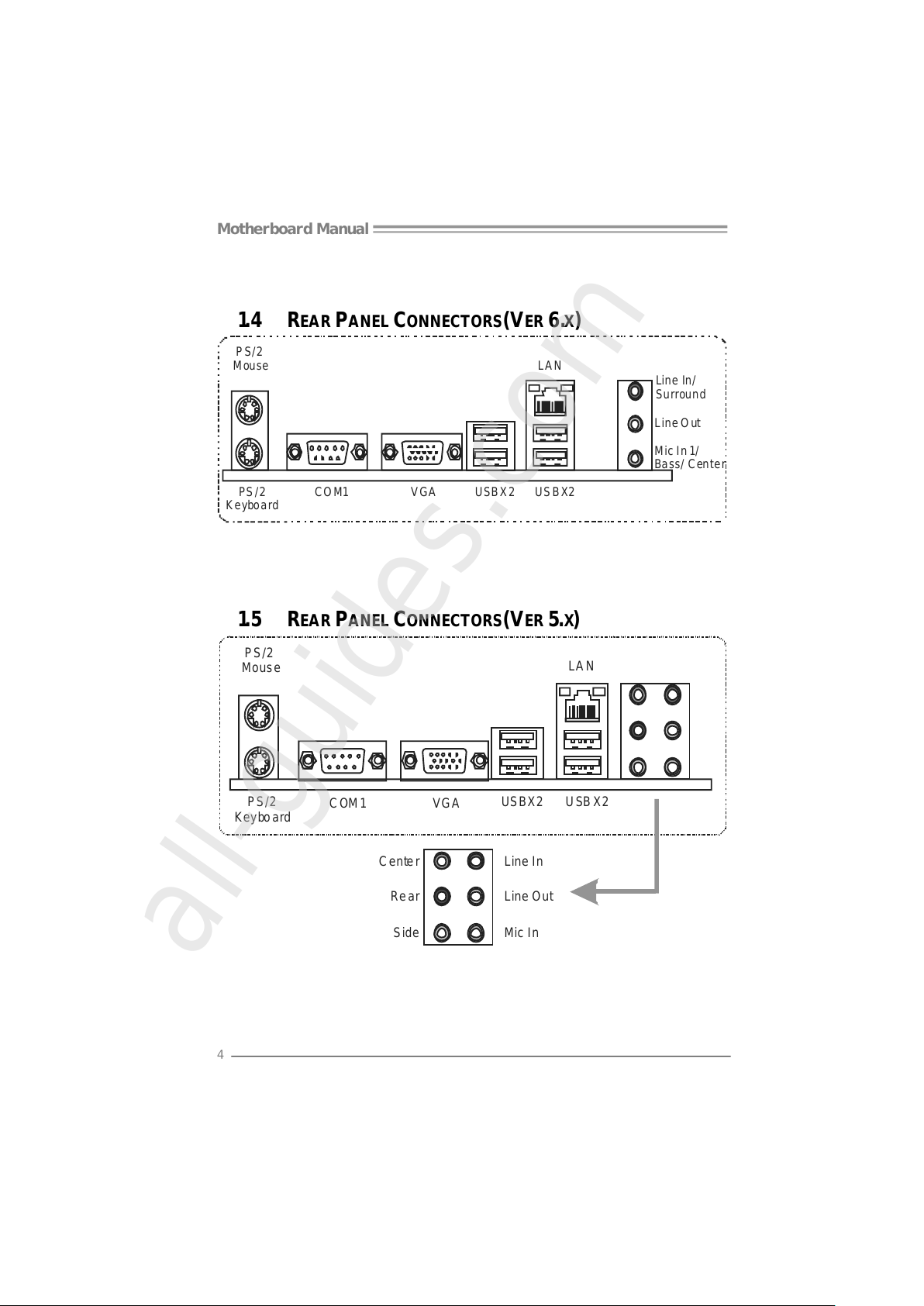

1.4 REAR PANEL CONNECTORS (VER 6.X)

PS/2
Mouse

PS/2
Keyboard

USBX2USBX2

LAN

COM1 VGA

Li n e In/

Surround
Line Out
Mic In 1/

B ass / Center

1.5 REAR PANEL CONNECTORS (VER 5.X)

PS/2
Mouse

PS/2
Keyboard

USB X2USBX2

LAN

COM1 VGA

Line In

Line Out

Mic I n

Center

Rear

Side

All manuals and user guides at all-guides.com

all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

5

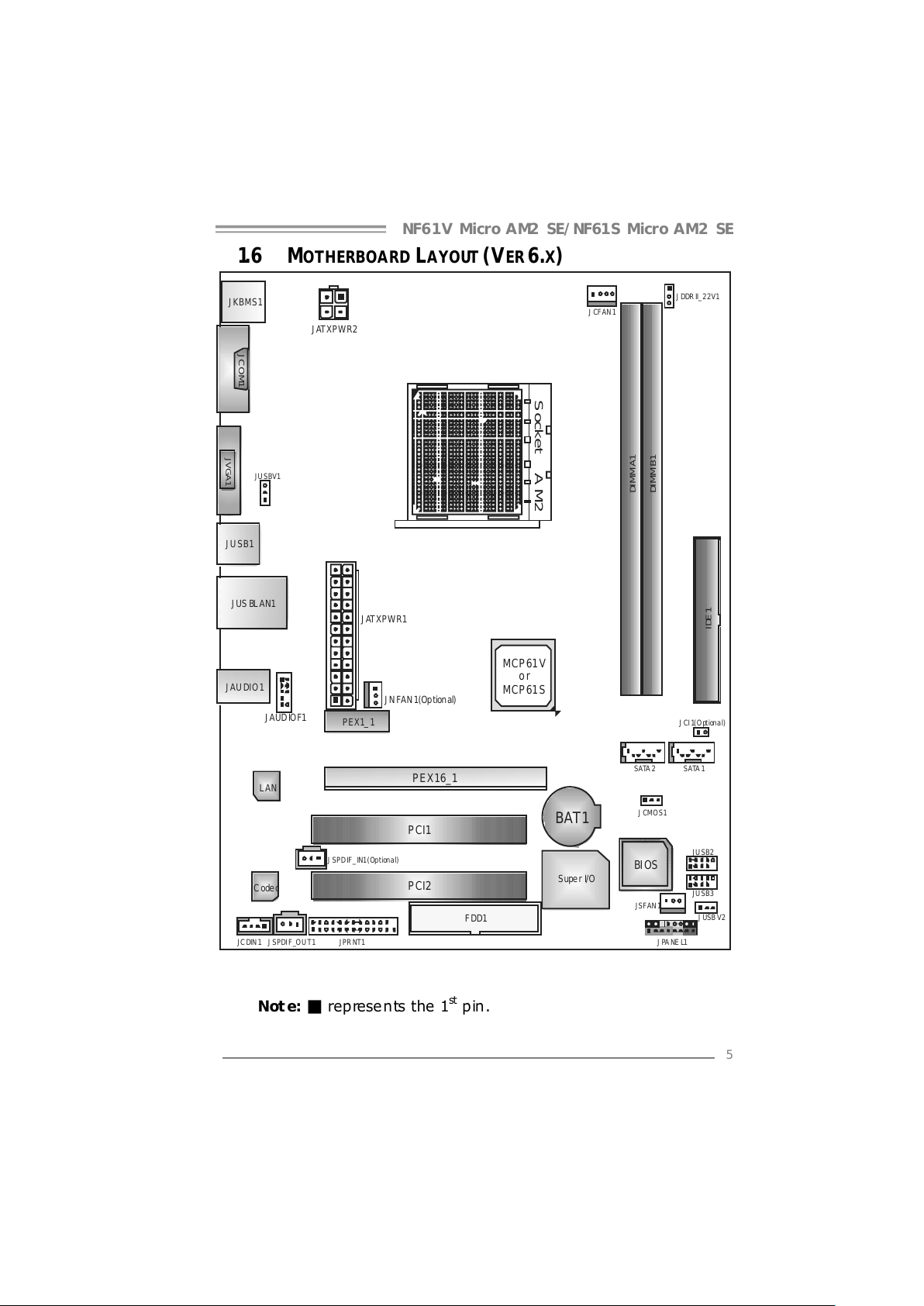

1.6 MOTHERBOARD LAYOUT (VER 6.X)

JKBMS1

JCOM1

JVG A1

JUSB1

JUSBLAN1

JAUDIO1

LAN

Codec

JCDIN1 JSPDIF_OUT1 JPRNT1

FDD1

Super I/O

BI OS

JPANEL1

JSFAN1

JUSB3

JUSB2

JCMOS1

JUSBV2

SAT A2 SATA1

IDE1

DIMMA1

DIMMB1

JDDR II_22V1

Socket A M2

JA TXPWR2

JUSBV1

JA TXPWR1

JNFAN1(Optional)

PEX1_1

PCI1

PCI2

BAT1

JAUDIOF1

JCI1(Optional)

JCFAN1

PEX16_1

MCP61V

or

MCP61S

JSPDIF_IN1(Optional)

Note: represents the 1■

st

pin.

All manuals and user guides at all-guides.com

Motherboard Manual

6

1.7 MOTHERBOARD LAYOUT (VER 5.X)

JKBMS1

JCOM1

JVG A1

JUSB1

JUSBLAN1

JAUDIO1

LAN

Codec

JCDIN1 JSPDIF_OUT1 JPRNT1

FDD1

Super I/O

BI OS

JPANEL1

JSFAN1

JUSB3

JUSB2

JCMOS1

JUSBV2

SAT A2 SATA1

IDE1

DIMMA1

DIMMB1

JDDR II_22V1

Socket A M2

JA TXPWR2

JUSBV1

JA TXPWR1

JNFAN1(Optional)

PEX1_1

PCI1

PCI2

BAT1

JAUDIOF1

JCI1(Optional)

JCFAN1

PEX16_1

MCP61V

or

MCP61S

JSPDIF_IN1(Optional)

Note: represents the 1■

st

pin.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

7

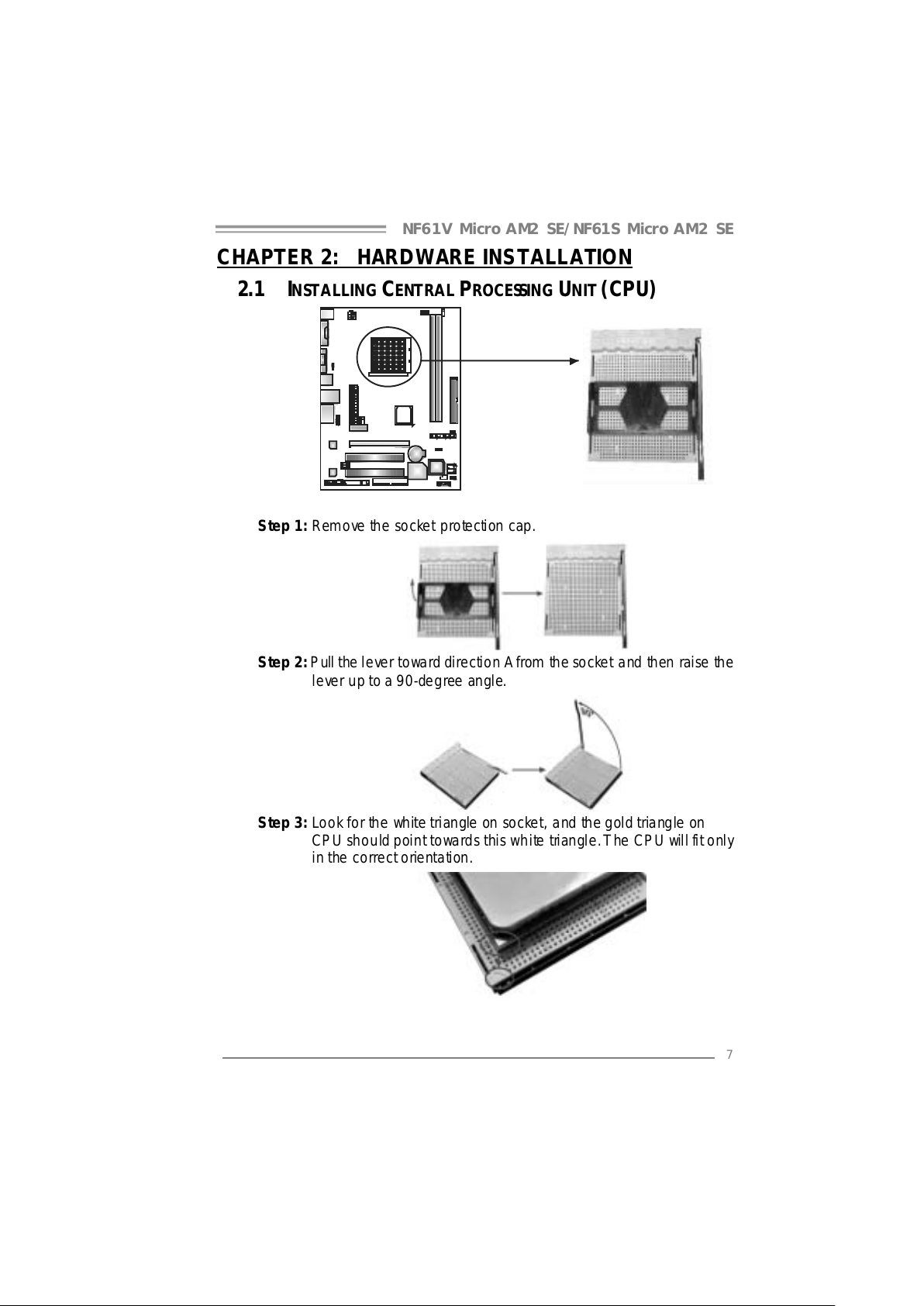

CHAPTER 2: HARDWARE INS TALLATION

2.1 INSTALLING CEN TRAL PROCESSING UNIT (CPU)

Step 1: Remove the socket protection cap.

Step 2: Pull the lever toward directi on A from the socket and then raise the

lever up to a 90-degree angle.

Step 3: Look for the white triangle on socket, and the gold triangle on

CPU should point towards this white triangle. The CPU will fit only
in th e cor r ec t or i en tation.

All manuals and user guides at all-guides.com

Motherboard Manual

8

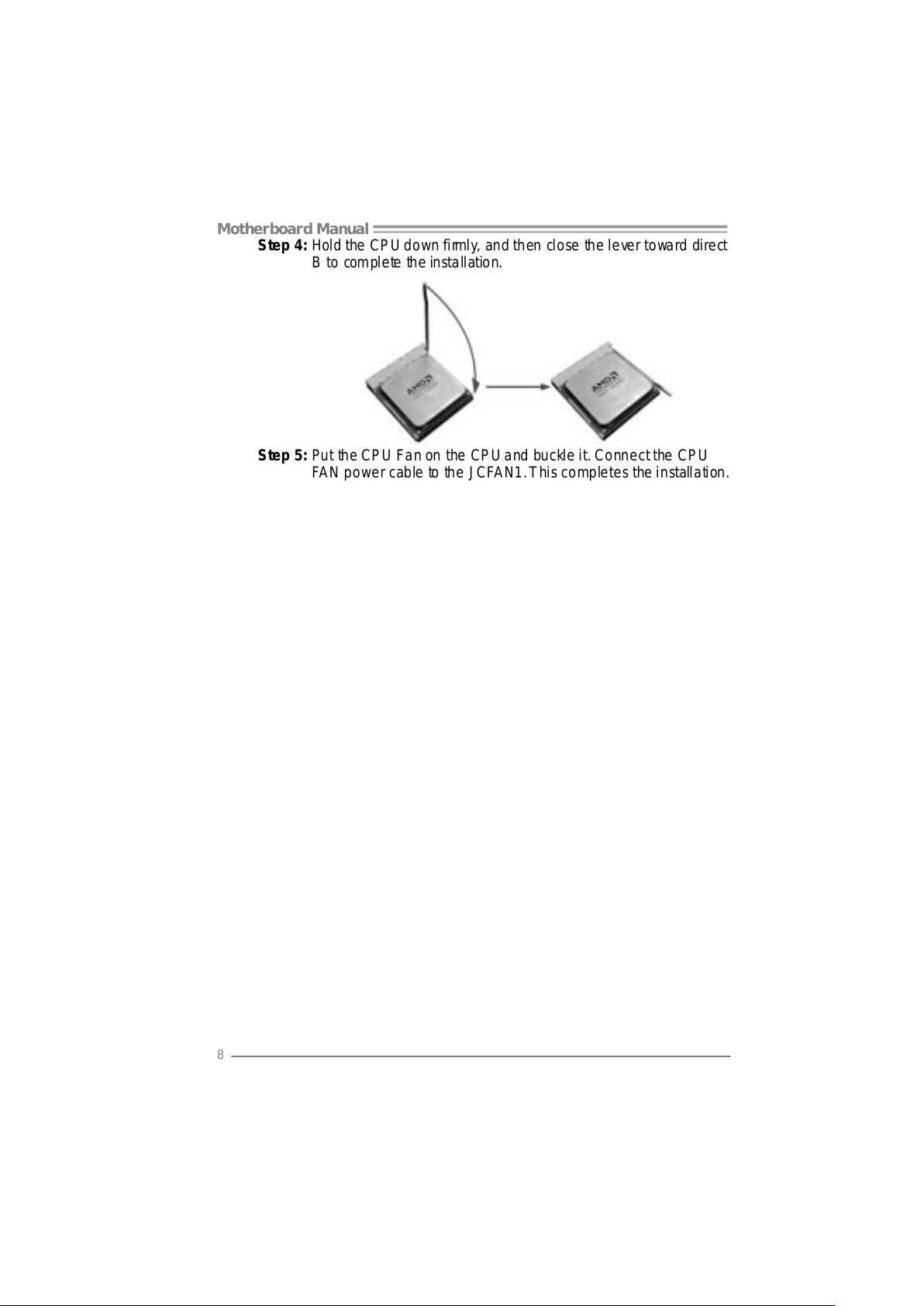

Step 4: Hold the CPU down firmly, and then close the lever toward direct

B to complete the install ation.

Step 5: Pu t the CPU Fan on t he CPU a nd buckl e it. Co nn ect the CPU

FAN power cable to the JCFAN1. This completes the installation.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

9

2.2 FAN HEADERS

These fan headers support cooling-fans built in the computer. The fan
cabl e and connector may be different according to the fan manufacturer.
Connect the fan cable to the connector while matching the black wire to
pin#1.

JCFAN1: CPU Fan Header

Pin

Assignment

1 Ground
2 +12V
3

FAN RPM rate
sens e

14

JCFAN1

4 Smart Fan

Control (By Fan)

JSFAN 1: System F an Head er
JN FAN1 : North Bri dge Fan Hea de r (Optional)

Pin Assignment

1 Ground
2 +12V

13

1
3

JNFAN1
(Optional)

JSFAN1

3

FAN RPM rate
sens e

Note:

The JCFAN1、JSFAN1 and JNFAN1 support 4-pi n and 3-pin head connector. When
connecting with wires ont o connectors, please note t hat the red wire is the positi ve and
shoul d be connected t o pin#2, and the blac k wire is Ground and should be c onnected to
GND.

All manuals and user guides at all-guides.com

all-guides.com

Motherboard Manual

10

2.3 INSTALLING SYSTEM MEMORY

A. Memor y Mo du le s

DIMMA1DIMMB

1

1. Unlock a DIMM sl ot by pressing the retaining clips outward. Align a
DIMM on the slot such that the notch on the DIMM matches the
break on the Slot.

2. Insert the DIMM vertically and fi rmly into the slot until the retaining
chip snap back in place and the DIMM is properly seated.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

11

B. Memory Capacity

DI MM Socket

Location

DDR Module Total Memory Size

DIMMA1 256MB/512MB/1024MB *1
DIMMB1 256MB/512MB/1024MB *1

Max memory 2GB.

C. Dual Channel Me mory installation

To t rigger t he Dual Channel function of t he motherboard, the memory module
must mee t the following requirement s:

Install memory module of the same density in pair, shown in the following table.

Du al Channel Statu s

DIMMA 1

DIMMB1

Disabled O X
Disabled X O

Enabled O O

(O means m emory installed, X means memory not installed.)
The DRAM bus width of the memory module must be the sam e (x8 or

x16)

All manuals and user guides at all-guides.com

Motherboard Manual

12

2.4 CONNECTORS AND SLOTS

FDD1: Flo ppy Disk Connector

The motherboard prov ides a standard floppy disk connector that supports 360K,
720K, 1. 2M, 1.44M and 2. 88M floppy disk types . This connector supports the
provided f loppy drive ribbon cables.

133

2

34

IDE1: Hard Disk C onnecto r

The motherboard has a 32-bit Enhanced IDE Controller that prov ides PIO Mode
0~4, Bus Mast er, and Ult ra DMA 33/ 66/100/133 f unctionality.

The IDE connector can connect a mas t er and a slave drive, so you c an connect
up to two hard dis k drives.

1

39

2

40

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

13

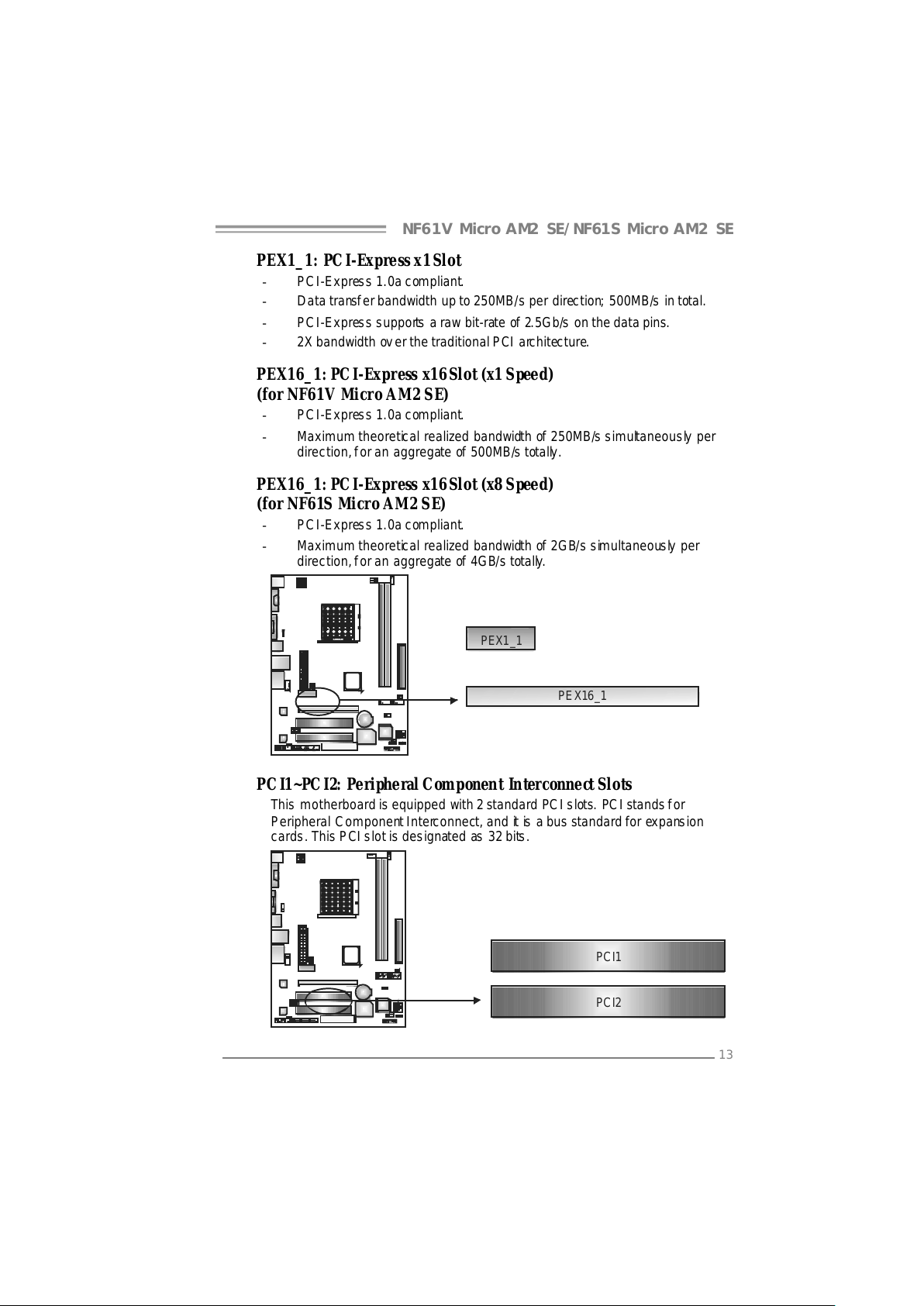

PE X1_1: P CI- Expres s x1 S lot

- PC I -Ex press 1.0a compliant.

- D at a transfer bandwidth up to 250MB/s per direc t ion; 500MB/s in total.

- PC I -Ex press supports a raw bit-rate of 2.5Gb/s on the dat a pins.

- 2X bandwidth over t he traditional PCI architecture.

PEX16_1: PCI-Express x16 Slot (x1 Spee d)
(for NF61V Micro AM2 SE)

- PC I -Ex press 1.0a compliant.

- Maxim um theoretical realized bandwidth of 250MB/s sim ultaneously per

direct ion, for an aggregat e of 500MB/s totally.

PEX16_1: PCI-Express x16 Slot (x8 Spee d)
(for NF61S Micro AM2 SE)

- PC I -Ex press 1.0a compliant.

- Maxim um theoretical realized bandwidth of 2GB/s simult aneously per

direct ion, for an aggregat e of 4GB/s totally.

PEX1_1

PEX16_1

PCI1~PCI2: Periphe ral Component Interconnect Slo ts

This mot herboard is equipped with 2 standard PCI slots. PCI stands for
Peripheral Com ponent Int erconnect, and it is a bus standard for expansion
cards . This PCI slot is designated as 32 bits.

PCI1

PCI2

All manuals and user guides at all-guides.com

Motherboard Manual

14

CHAPTER 3: HEADERS & JUMPERS SETU P

3.1 HOW TO SETUP JUMPERS

The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper i s “close”, if not, that means the jumper is
“open”.

Pin opened Pin closed Pin1-2 closed

3.2 DETAIL SETT INGS

JPANEL1: Front Panel Header

This 16-pin connector includes Power-on, Reset, H DD LED, Power LED, Sleep
butt on and speaker connection. It allows us er to connect the PC case’s front
panel switch functions.

S

L

P

P

W

R

_

L

E

D

O

n

/

O

f

f

R

S

T

H

L

E

D

S

P

K

+

+

+

-

-

1

9

16

8

Pin Assignment Function Pin Assignment Function

1 +5V 9 Sleep control
2 N/A 10 Ground

Sleep button

3 N/A 11 N/A N/A
4 Speaker

Speaker
Connector

12 Power LED (+)
5 HDD LED (+) 13 Power LED (+)
6 HDD LED (-)

Hard drive
LED

14 Power LED (-)

Powe r LED

7 Ground 15 Power button
8 Reset control

Reset button

16 Ground

Power-on button

All manuals and user guides at all-guides.com

all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

15

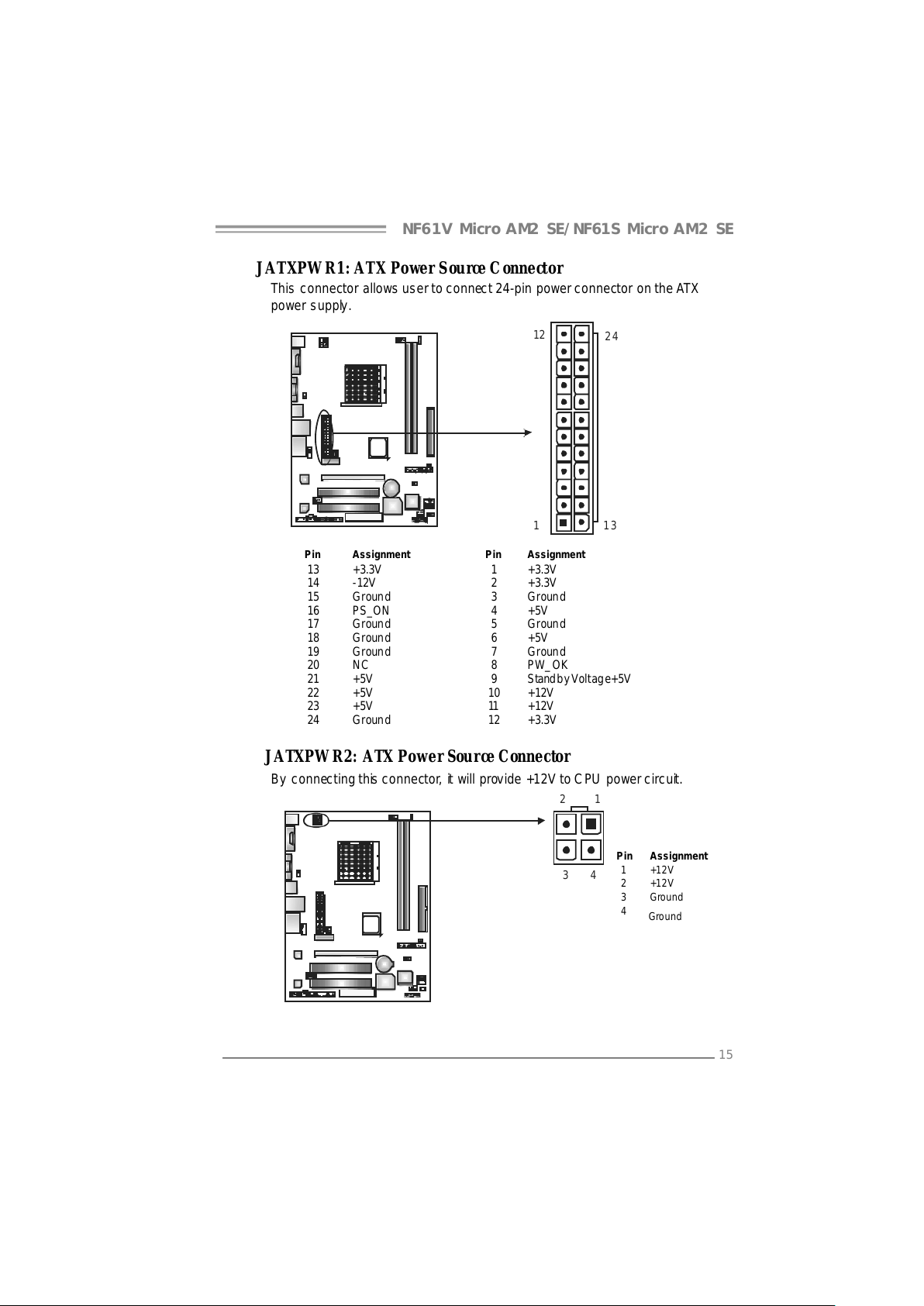

JATXPW R1: ATX Power So u rce Con ne ctor

This connector allows user to connect 24-pin power connector on the ATX
power supply.

1

12

13

24

Pin Assignment Pin Assignment

13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 PW_OK
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 Ground 12 +3.3V

JATXPWR2: ATX Power Sou rce Connec tor

By c onnecting this connector, it will provide +12V t o CPU power c irc uit.

Pin

Assignment

1 +12V
2 +12V
3 Ground

12

34

4

Ground

All manuals and user guides at all-guides.com

Motherboard Manual

16

JUSB2/JUSB3: Headers for USB 2.0 Ports at Front Panel

This header allows user to connect additional USB cable on the PC f ront panel,
and also can be connected with internal USB devic es, like USB card reader.

Pin

Assignment

1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 Ground
8 Ground
9 Key

1

9

210

JUSB 2
JUSB 3

10 NC

JUSB V1/JUSB V2: Powe r Source H eaders f or US B Port s

Pin 1-2 C lose:

JU SBV1: +5V for USB ports at JUSBLAN1.
JU SBV2: +5V for USB ports at front panel (JUSB2/JU SB3).

Pin 2-3 C lose:

JU SBV1: USB ports at JU SBLAN1 are powered by +5V st andby volt age.
JU SBV2: USB ports at front panel (JU SB2/JUSB3) are powered by +5V

standb y voltage.

13

1

3

Pin 1-2 close

13

1

3

JUSBV2

JUSBV1

13

1

3

Pin 2-3 close

Note:

In order to support this function “Power-On system via USB dev ice,” “JUSBV1/ JUSBV2”
jumper cap should be placed on Pin 2-3 indi v idually .

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

17

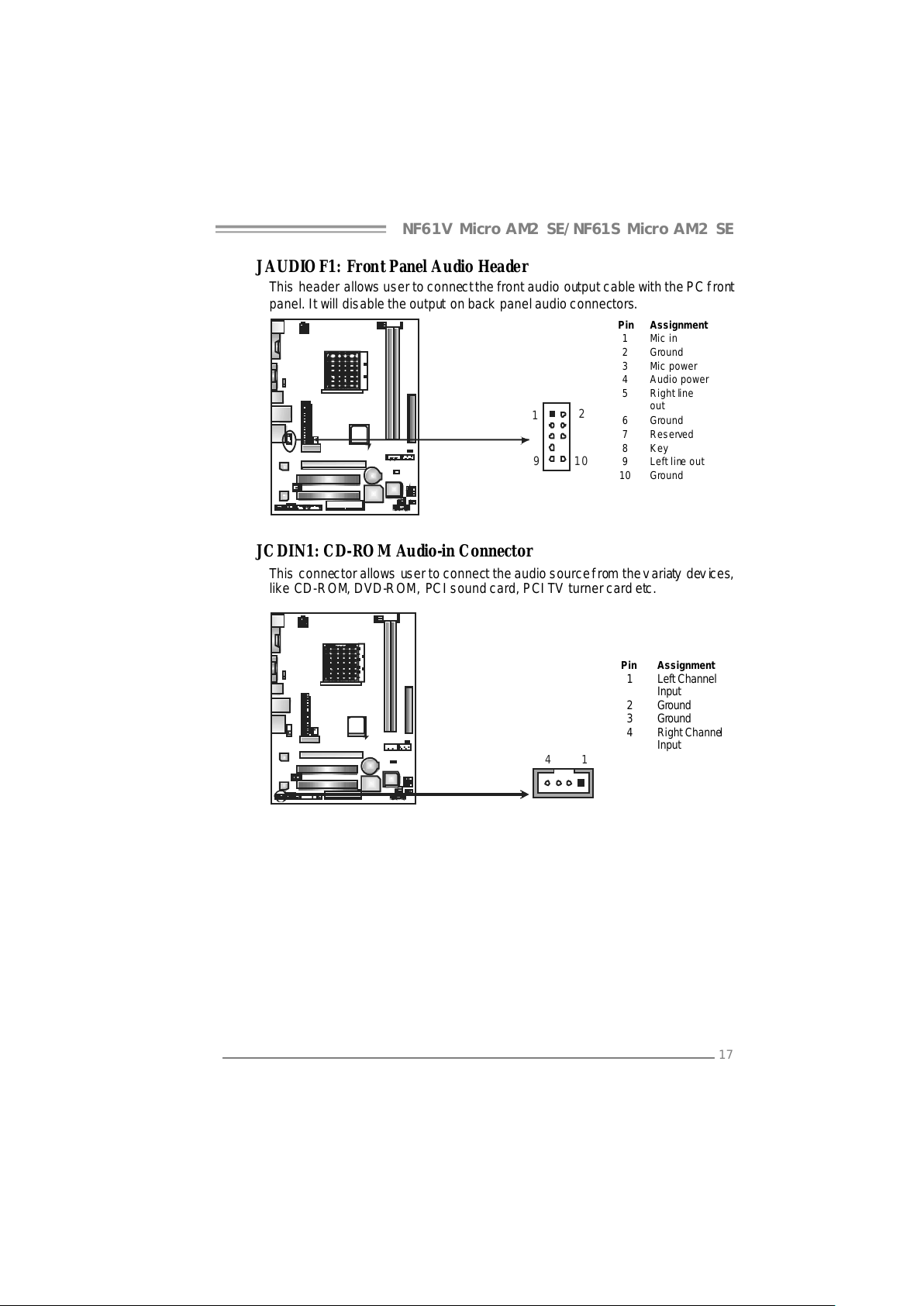

JAUDIOF1: Fron t Panel Audio Heade r

This header allows user to connect the front audio out put cable with the PC front
panel. It will disable the output on back panel audio c onnectors.

Pin Assignment

1 Mic in
2 Ground
3 Mic power
4 Audio power
5 Right line

out
6 Ground
7 Reserved
8 Key
9 Left line out

10 Ground

1

9

2

10

JCDIN1: CD-R OM A udio- in Connector

This connector allows user to connect the audio sourc e f rom the v ariaty dev ices,
like CD-R OM, DVD-ROM, PCI sound c ard, PCI TV turner card etc.

Pin

Assignment

1 Left Channel

Input
2 Ground
3 Ground

14

4 Right Channel

Input

All manuals and user guides at all-guides.com

Motherboard Manual

18

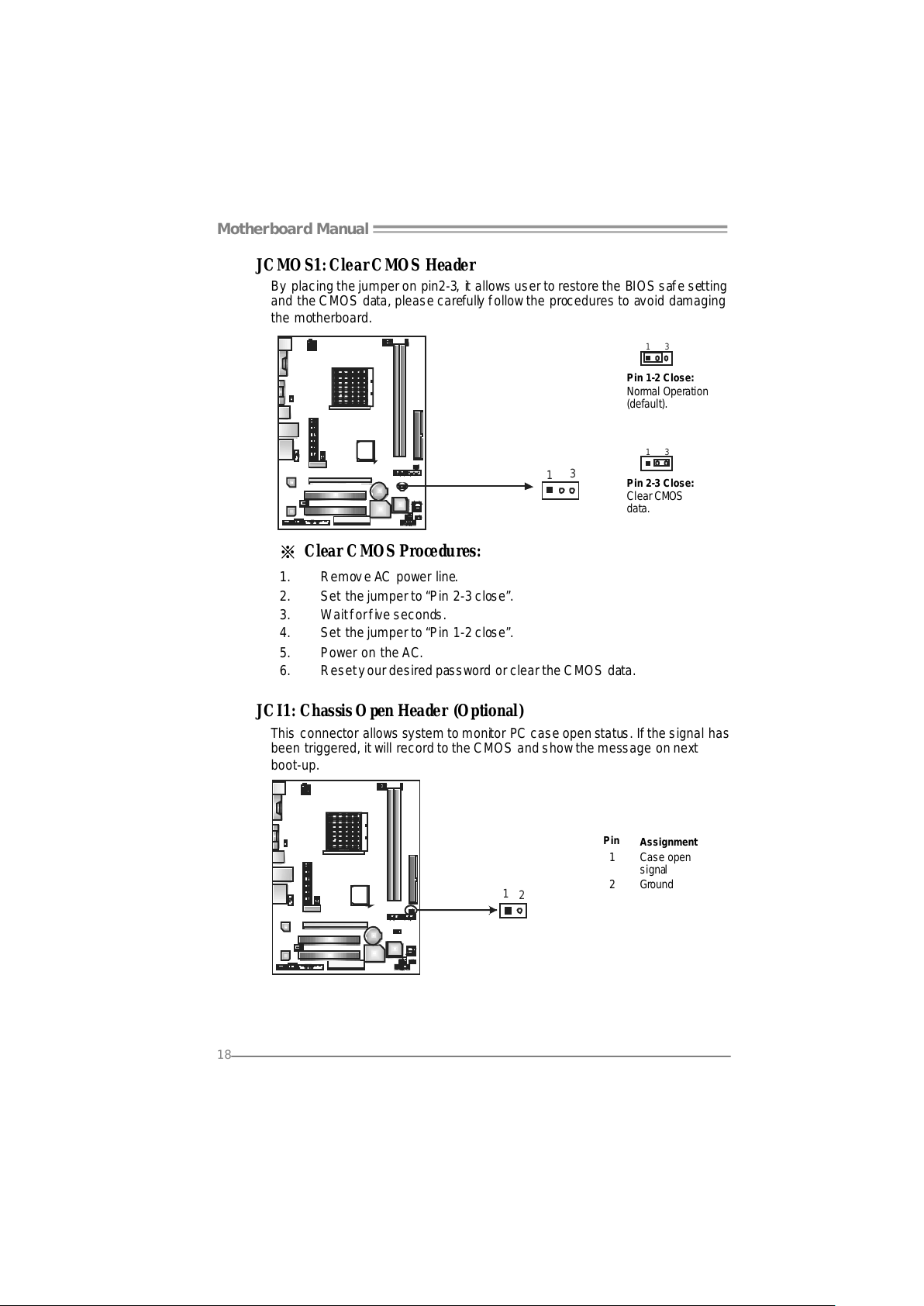

JCMOS 1 : C lear CMOS He ader

By plac ing the jumper on pin2-3, it allows user to restore the BIOS safe sett ing
and the CMOS dat a, please carefully follow the procedures to avoid damaging
the m otherboard.

13

Pin 1-2 Close:

Norm al O peration
(default).

1

3

13

Pin 2-3 Close:

Clear CMOS
data.

※ Clear CMOS Procedures:

1. Rem ov e AC power line.

2. Set the jumper to “Pin 2-3 close”.

3. Wai t for fi ve se co n ds.

4. Set the jumper to “Pin 1-2 close”.

5. Power on the AC.

6. Res et your desired password or clear the CMOS data.

JCI1: Chassis O pen Header (Optional)

This connector allows system to monitor PC cas e open stat us. If the signal has
been triggered, it will record to the CMOS and show the message on next
boot-up.

Pin

Assignment

1 Case open

signa l

1

2

2 Ground

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

19

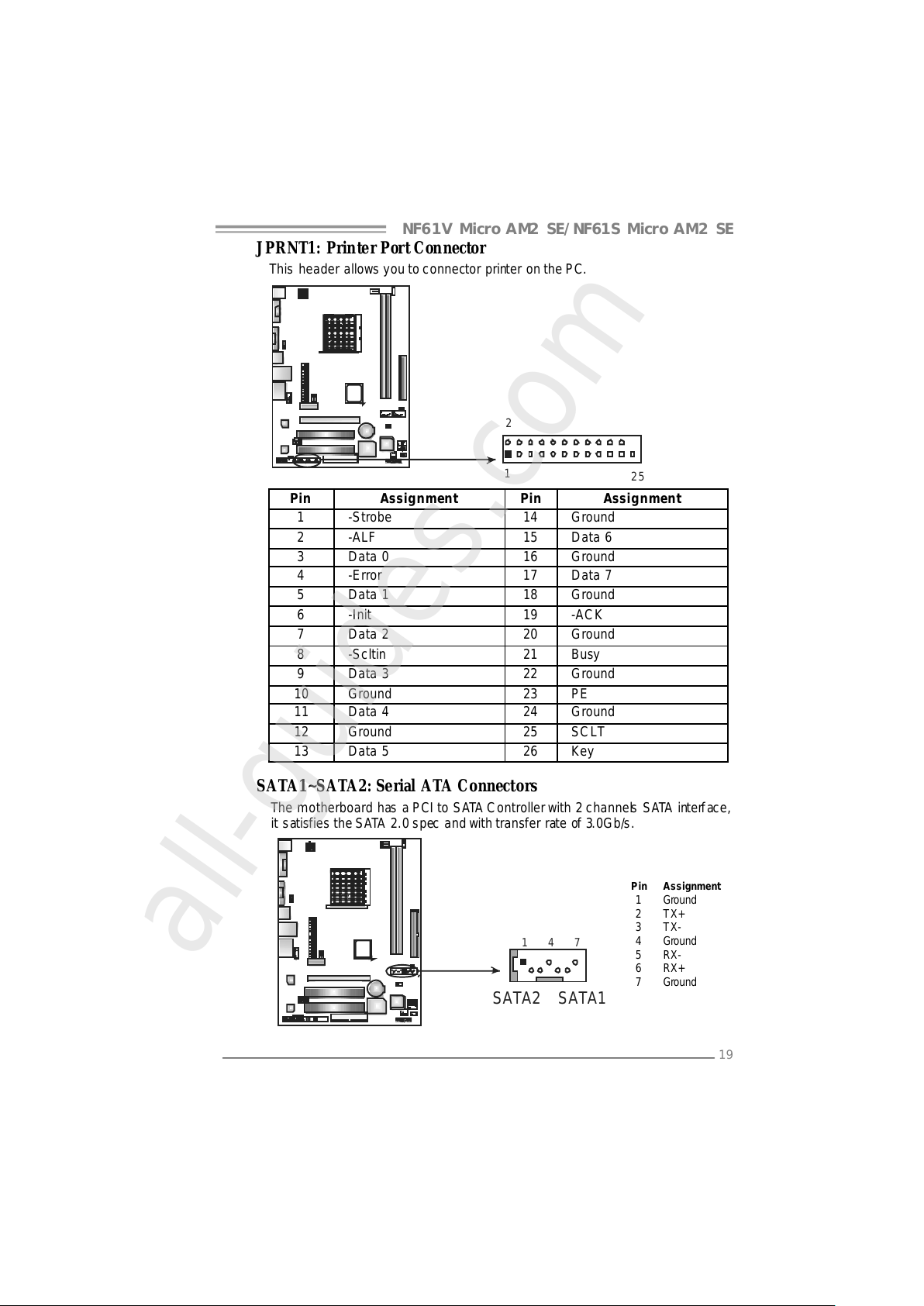

JPRNT1: Printer Port Con nector

This header allows you to connector printer on the PC.

1

25

2

Pin Assignment Pin Assignment

1 -Strobe 14 Ground
2 -ALF 15 Data 6
3 Data 0 16 Ground
4 -Error 17 Data 7
5 Data 1 18 Ground
6 -Init 19 -ACK
7 Data 2 20 Ground
8 -Scltin 21 Busy

9 Data 3 22 Ground
10 Ground 23 PE
11 Data 4 24 Ground
12 Ground 25 SCLT
13 Data 5 26 Key

S ATA1~ SATA2: Serial ATA Connectors

The motherboard has a PCI to SATA Controller with 2 channels SATA interfac e,
it satisfies the SATA 2.0 spec and with transfer rate of 3.0Gb/s.

Pin

Assignment

1 Ground
2 TX+
3 TX-
4 Ground
5 RX-
6 RX+

147

SATA2 SATA1

7 Ground

All manuals and user guides at all-guides.com

all-guides.com

Motherboard Manual

20

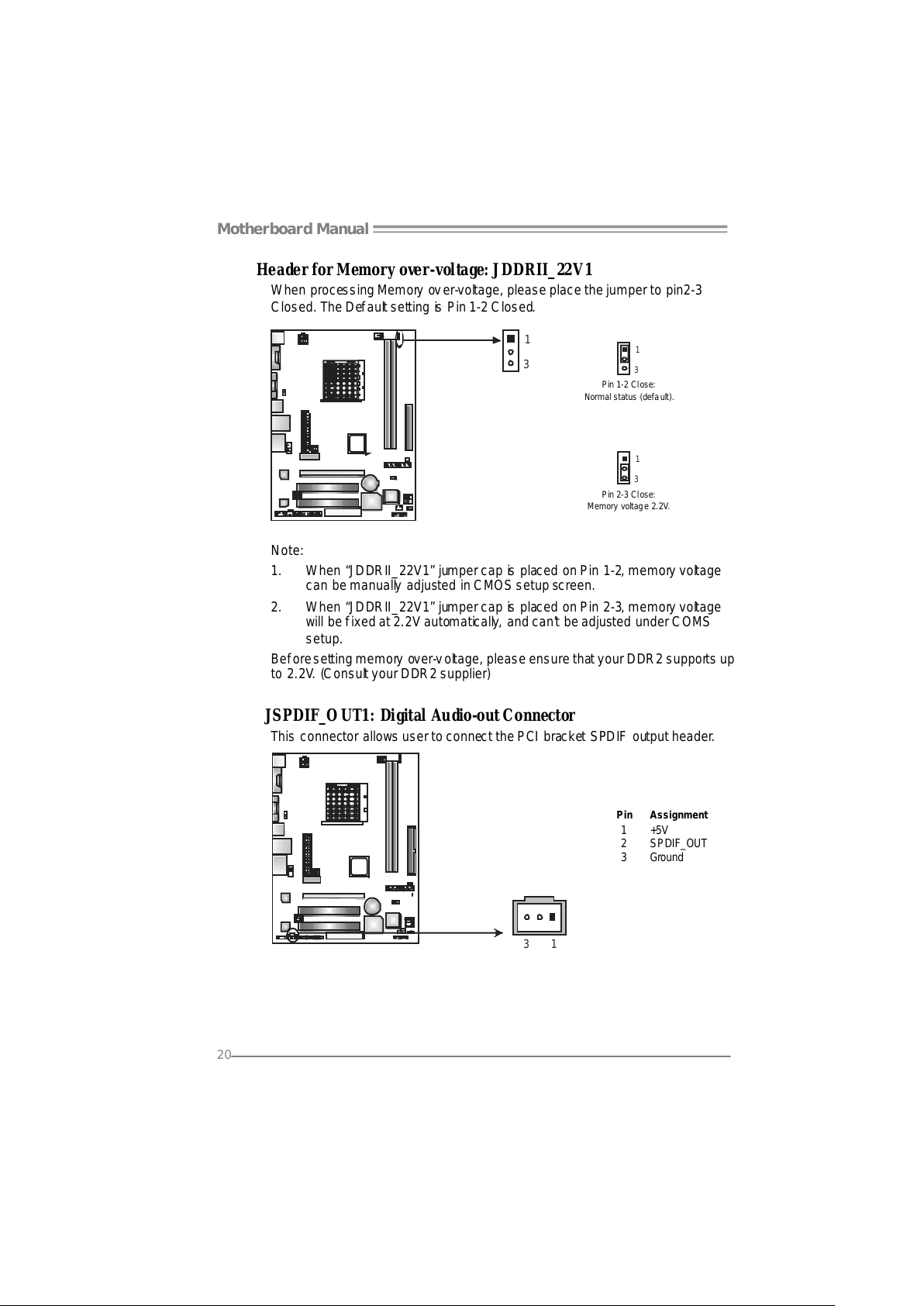

Header f or Me m ory over -voltage: JDDR I I _22V1

When proc essing Memory over-voltage, please plac e the jumper to pin2-3
Clos ed. The D ef ault setting is Pin 1-2 Clos ed.

1

3

Pin 1-2 Cl ose:

Normal s t atus ( default ) .

1

3

1

3

Pin 2-3 Cl ose:

Memory v oltage 2. 2V.

Note:

1. When “JDDRII_22V1” jumper cap is placed on Pin 1-2, mem ory voltage
can be manually adjusted in CMOS s et up screen.

2. When “JDDRII_22V1” jumper cap is placed on Pin 2-3, mem ory voltage
will be f ixed at 2.2V automatically, and can’t be adjusted under COMS
setup.

Before setting memor y o ver- voltage, please ensure tha t your DDR2 supports up
to 2.2V. (Consult your DDR2 supplier)

JSPDIF_OUT1: Digital Audio-ou t Conn ec tor

This connector allows user to connect the PCI brack et SPDIF output header.

Pin

Assignment

1 +5V
2 SPDIF_OUT

13

3 Ground

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

21

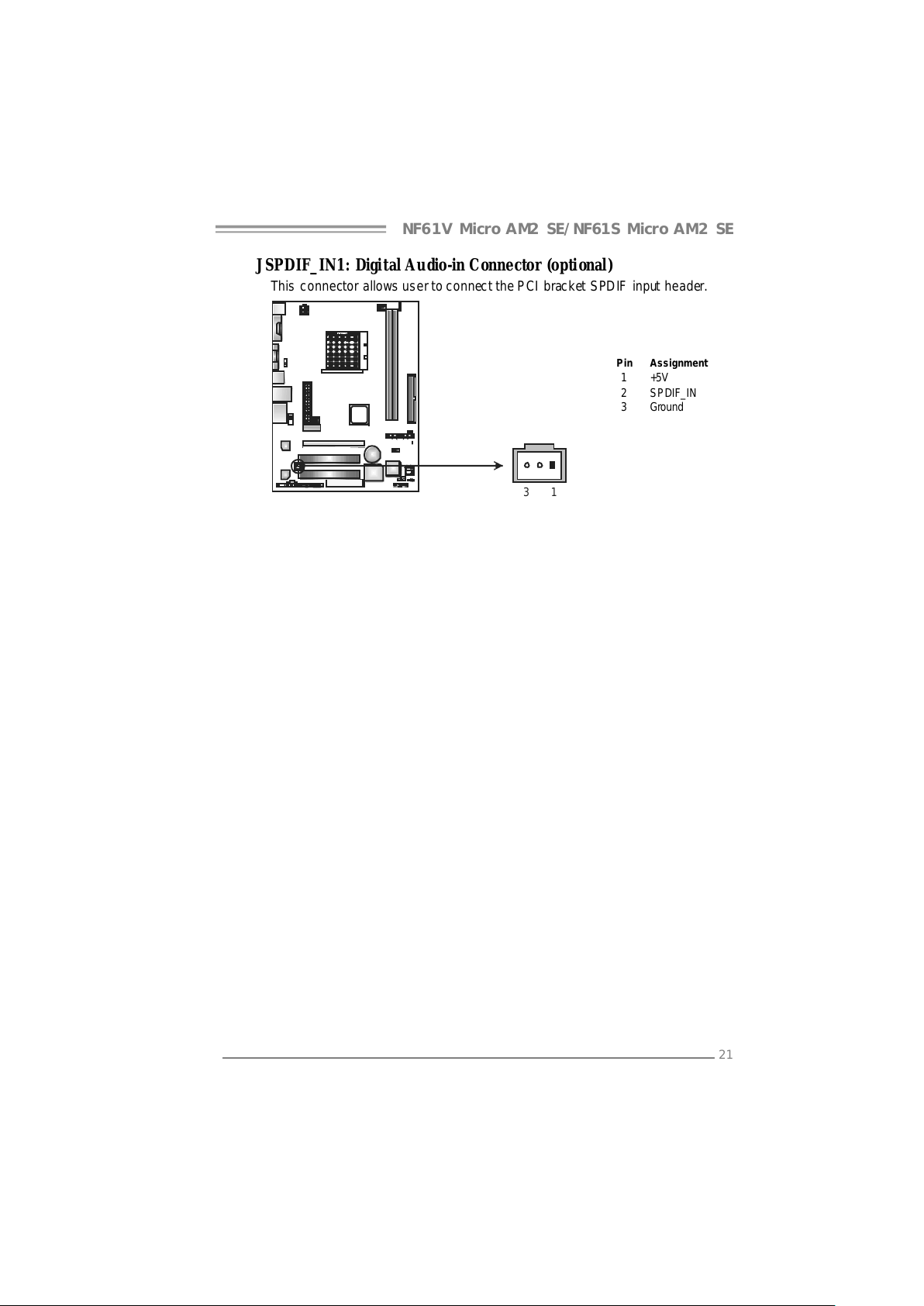

JSPDIF_IN1: Digital Audio-in Connector (optional )

This connector allows user to connect the PCI brack et SPDIF input header.

Pin

Assignment

1 +5V
2 SPDIF_IN

13

3 Ground

All manuals and user guides at all-guides.com

Motherboard Manual

22

CHAPTER 4: RAID FUNCTIONS

4.1 OPERATION SYSTEM

Supports Windows XP H om e/Professional Edition, and Windows 2000 Professional.

4.2 RAID ARRAYS

RAI D supports the following ty pes of R AID array s :

RAID 0: RAID 0 defines a disk striping scheme that improves disk read and write times for

many applications.

RAID 1: RAID 1 defin es t echniques for mirrori ng data.

4.3 HOW RA ID WORKS

RAID 0:

The controller “stripes” data across multiple drives in a RA ID 0 array system. It b reaks
up a large file into smaller blocks and performs disk reads and writes across multiple
drives in parallel. The size o f each block is determined by the stripe size parameter,
which you set during the creation of the RAID set based on the system environment. This
technique reduces overall disk access time and o ffers high bandwidth.

Fea tures and Be nefits

 Drives: Minimum 1, and max imum is up to 6 or 8. Depending on the

platform.

 Uses: Intended for non-critical data requiring high dat a throughput, or any

environment that does not require fault tolerance.

 Benefits: provides increas ed dat a throughput, espec ially f or large f iles. No

capac ity loss penalty for parity.

 Drawbacks: Does not deliver any fault tolerance. If any drive in the array

fails, all dat a is lost.

 Faul t Tolerance: No.

Blo c k 1
Bl o ck 3
Bl o ck 5

Bl o ck 2
B lock 4
B lock 6

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

23

RAID 1:

Every read and write is actually carried out in parallel across 2 disk drives in a RAID 1
array system. The mirrored (backup) copy of the data can reside on the same disk or on
a second redundant drive in the array. RAID 1 provides a hot-standby copy of data if
the active v olume or dri ve i s corrupted or becomes unavailable b ecause of a h ardware
failure.
RAID techniques can be applied for high-availability solutions, or as a form of
automatic backup that eliminates tedious manual backups to more expensive and less
reliable media.

Fea tures and Be nefits

 Drives: Minimum 2, and max imum is 2.
 Uses: RAID 1 is ideal f or small dat abas es or any ot her applicat ion t hat

requires f aul t tolerance and minimal ca paci t y.

 Benefits: Provides 100% data redundancy. Should one driv e fail, the

controller switche s to the other dri ve.

 Drawbacks: Requires 2 drives for the st orage space of one driv e.

Performance is impaired during driv e rebuilds.

 Fa ult To le rance : Yes.

Blo c k 1
Bl o ck 2
Bl o ck 3

Block 1
Bl o ck 2
Bl o ck 3

※ For more detailed setup information, please refer to the Driver CD, or go to

http://www.nvidia.com/page/pg_20011106217193.html to download NVIDI A nForce Tutorial Flash.

All manuals and user guides at all-guides.com

Motherboard Manual

24

CHAPTER 5: USEFUL HELP

5.1 DRIVER INSTALLATION NOTE

After you installed your operating system, please insert the Fully Setup
Dri ver CD into your optical drive and install the driver for better system
performance.

You will see the following window after you insert the CD

The set up guide will au to detect yo ur motherboard and o pe rating syste m.

Note:

If this window didn’t show up after you insert the Driver CD, please use file browser to
loc ate and execu t e th e fil e SETU P.EXE under yo ur o pti c al dr i ve.

A. Driver Install ation

To install the driver, please click on the Driver i con. The setup guide wi ll
list the compatible driver for your m otherboard and operating system.
Click on each device driver to launch the installation program.

B. Software Installation

To install the software, please click on the Software icon. T he setup guide
will list the software available for your system, click on each software titl e
to la unch th e ins ta l lat io n pr ogr am.

C. Ma nual

Asi de from the paperback manual, we also provi de manual in the Driver
CD. Click on the Manual icon to browse for available manual.

Note:

You will need A c roba t Reade r to open t he m anual f ile. Plea se dow nloa d the la tes t version
of Acrobat Reader software from

http://www.adobe.com/products /a crobat/readstep2.html

All manuals and user guides at all-guides.com

all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

25

5.2 AWARD BIOS BEEP CODE

Beep Sound Meanin g

One long beep followed by t wo short
beeps

Video card not found or video card
mem ory bad

High-low siren sound CPU overheated

Sys t em will s hut down automat ically
One Short beep when system boot-up N o error found during POST
Long beeps every ot her second N o DRAM detected or ins t all

5.3 EXT RA INFORMATION

A. BIOS Update

After yo u fail to update BIOS or BIOS is invaded by virus, the
Boot-Block function will help to restore BIOS. If the following message
is shown after boot-up the system, i t means the BIOS contents are
corrupted.

In thi s Case, please follow the procedure below to restore the BIOS:

1. Mak e a bootab le floppy d is k.

2. Download the Flash Utility “AWDFLASH.exe” from the Biostar
website: www.bi o star.com.tw

3. Confirm motherboard model and download the respecti vely BIOS
fr om Bi os t ar websit e.

4. Copy “AWDFLASH.exe” and respectivel y BIOS into floppy disk.

5. Insert the bootable disk into floppy drive and press Enter.

6. System will boot-u p to DOS prompt.

7. Type “Awdflash xxxx.bf/ sn/p y/ r” in DOS prompt.
(xxxx means BIOS name.)

8. System will update BIOS au to matic ally and restart .

9. The BIOS has been re cov ered an d will work p roperly.

All manuals and user guides at all-guides.com

Motherboard Manual

26

B. CPU Overheated

If the system shutdown automatically after power on system for
seconds, that means the CPU protection function has been activated.

When the CPU is over heated, the motherboard will shutdown
automati cally to avoid a damage of the CPU, and the system may not
power on again.

In thi s case, please double check:

1. The CPU cooler surface is placed evenly with the CPU surface.

2. CPU fan is rotated no rmally.

3. CPU fan speed is fulfilling with the CPU speed.

After confirmed, please follow steps below to relief the CPU protecti on
function.

1. Remove the power cord from power supply for seconds.

2. Wait for sec onds.

3. Plug in the power cord and boot up the system.

Or you can:

1. Clear the CMOS data.
(See “Close CMOS Header: JCMOS1” section)

2. Wait for sec onds.

3. Power on th e syst em agai n.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

27

5.4 TROUBLESHOOTING

Probable Solution

1. No power to the system at all
Power light don’t illuminate, fan
inside power supply does not turn
on.

2. Indic at or light on k ey board does
not t urn on.

1. Make s ure power cable is
sec urely plugged in.

2. Replace cable.

3. Contact techni cal support .

Sys t em inoperativ e. Keyboard lights
are on, power indicat or lights are lit,
and hard drive is spinning.

Us ing even press ure on bot h ends of
the DIMM, press down f irm ly until the
module s naps into place.

Sys t em does not boot from hard disk
drive, can be booted from optic al driv e.

1. Chec k cable running from disk to
disk controller board. Make sure
both ends are sec urely plugged
i n; chec k t h e driv e ty p e in t h e
standard CMOS setup.

2. Back ing up the hard driv e is
ext rem ely import ant. All hard
disk s are capable of breaking
down at any t ime.

Sys t em only boots from optic al driv e.
Hard disk can be read and applications
can be used but booting from hard disk
is imposs ible.

1. Back up data and applic at ions
files.

2. Reform at the hard driv e.
Re-ins t all applications and data
using backup disks.

Screen m essage says “Invalid
Conf igurat ion” or “C MOS Failure.”

Rev iew syst em’s equipment. Mak e sur

e

correc t information is in set up.

Cannot boot syst em aft er installing
sec ond hard driv e.

1. Set m ast er/slave jumpers
correctly.

2. Run SETUP program and select
correc t drive types. Call the drive
manufacturers for co mpatibili t y
with other drives.

All manuals and user guides at all-guides.com

Motherboard Manual

28

CHAPTER 6: WARPSPEED ER™

6.1 INTRODUCTION

[WarpSpeeder™], a new powerful control utility, features three
user-friendly functions including Overclock Manager, Overvoltage
Manager, and Hardware Monitor.

With the Overcl ock Manager, users can easily adjust the frequency they
prefer or they can get the best CPU performance with just one click. The
Overvoltage Manager, on the other hand, helps to power up CPU core
vol tage and Me mor y v ol tage. The co o l H ar dware Moni tor s martly indicates
the temperatures, vol tage and CPU fan speed as well as the chipset
information. Also, in the About panel, you can get detail descriptions about
BIOS model and chipsets. In addition, the frequency status of CPU,
memory, AGP and PCI along with the CPU speed are synchronically
s how n on our ma i n p an el .

Moreover, to protect users' computer systems if the setting i s not
appropriate when testing and results in system fail or hang,
[WarpSpeeder™] technology assures the system stability by automatically
rebooting the computer and then restart to a speed that is either the
original system speed or a suitable one.

6.2 SYSTEM REQUIREMENT

OS Support: Windows 98 SE, Windows M e, Wi ndows 2000, Windows XP
DirectX: DirectX 8.1 or above. (The Windows XP operati ng system

includes DirectX 8.1. If you use Windows XP, you do not need to install
Dir ec tX 8.1.)

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

29

6.3 INSTALLATION

1. Execute the setup executi on file, and then the following dialog will pop
up. Please click “Next” button and follow the default procedure to
install.

2. When you see the following dialog in setup procedure, it m eans setup
is completed. If the “Launch the WarpSpeeder Tray Utility” checkbox
is che c ked, th e Tra y Icon utili ty and [ WarpSpeed er™] utility will be
automati cally and immediately l aunched after you click “Finish”
button.

Usage:

The following figures are just only for reference, the screen printed in
this user manual will chan ge ac c ord ing to you r mothe rbo ard on hand.

All manuals and user guides at all-guides.com

all-guides.com

Motherboard Manual

30

6.4 WARPSPEEDER™

1. Tray Icon:

Whenever the Tray Icon utility is launched, it will di splay a little tra y
icon on the right side of Windows Taskbar.

This utility is responsible for convenientl y invoking [WarpSpeeder™]
Utility. You can use the mouse by clicking the left button in order to
invoke [WarpSpeeder™] di rectly from the little tray icon or you can
right-click the little tray icon to pop up a popup menu as following
figure. The “Launch Utility” item in the popup menu has the same
fun c tio n a s mouse left-click on tray icon and “Exi t” i te m will close
Tray Icon utili ty i f selected.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

31

2. Main Panel

If y ou click the tray icon, [WarpSpeeder™] utility will be invoked.
Please refer to the follo wing figure; th e utility’s first window you will
see is Main Panel.

Main Panel contains features as follo ws:

a. Di spl ay the CPU S peed, CPU e xt ern al clock, Memor y clock, AGP cl ock,

and PCI clock information.

b. Contains About, Voltage, Overclock, and Hardware Monitor Buttons for

invoking respective panel s.

c. With a user- fr ie nd ly St at us A n imation, it c an r epr esent 3 ov er c l ock

percentage stages:

Man walking→overclock percentage from 100% ~ 110 %
Panther running→overclock percentage from 110% ~ 120%
Ca r rac ing→overclock percentage from 120% ~ above

All manuals and user guides at all-guides.com

Motherboard Manual

32

3. Vol tage Panel

Click the Volta ge bu tton in Main Pa nel, the b ut ton will be hig hlighte d
and the Vol ta ge Pa ne l will slide out to up as the foll owing fig ure .

In thi s panel, you can decide to increase CPU core vol tage and
Memory voltage or not. The default se tting is “No”. If you want to get
the best performance of overcl ocking, we recommend you click the
option “Yes”.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

33

4. Over clock Panel

Click the O verclock button in Main Panel, the b utton will be
highlighted and the Overclock Panel will slide out to left as the
fol l owi ng f igur e.

Over clock Panel contains the these featu res:

a. “–3MHz button”, “-1MHz button”, “+1MHz button”, and “+3MHz button”:

provide user the ability to do real-time overclock adjustment.

Warning:

Manually overclock is potentially dangerous, es pec ially when the
overclocking percentage is over 110 %. We strongly recommend you
verify ev ery s peed you overclock by c lick the Verify button. Or, you can
just click Auto overclock butt on and let [WarpSpeeder™] autom atic ally
gets the best result for you.

b. “Recovery Dialog button”: Pop up the following dialog. Let user select

a restoring way if system need to do a fail-safe reboot.

All manuals and user guides at all-guides.com

Motherboard Manual

34

c. “Auto-overclock button”: User can click this button and

[Wa rpS peeder™] will set the best an d sta ble pe rfo rman ce an d
frequency automati cally. [WarpSpeeder™] utility will execute a
se ries of te stin g un til system fail . Th en system will do fail-saf e
reboot by using Watchdog function. After reboot, the
[WarpSpeeder™] utility will restore to the hardware default
setting or load the verified best and stable frequency according
to the Recovery Dialog’s se tting.

d. “Verify button”: User can click this button and [WarpSpeeder™]

will proceed a testing for current frequency. If the testing is ok,
then the current freq uency will be saved into system registry. If
the testing fail, system will do a fail-safe rebooti ng. After reboot,
the [WarpSpeeder™] uti lity will re store to the hardware de fault
setting or load the verified best and stable frequency according
to the Recovery Dialog’s se tting.

Note:

Becaus e the testing programs, invok ed in Auto-overclock and Verify,
include D irectDraw, Direct3D and DirectShow tests, the Direct X 8.1 or
newer runtime library is required. And please mak e sure your display
card’s color depth is High color (16 bit) or True color( 24/32 bit ) that is
required for Direct3D rendering.

5. Hardware Monitor Panel

Click the Hardware Moni to r bu tton in Ma in Pane l, the butto n will be
highlighted and the Hardware Monitor panel will slide out to left as
the fo l lowing f igur e.

In thi s panel, you can get the real-time status information of your
syste m. The informa tion will be refreshed every 1 second.

All manuals and user guides at all-guides.com

all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

35

6. About Panel

Click the “about” button in Main Panel, the button will be highlighted
and th e A b out Pa nel will slid e out to up as the fo l lowing f igur e.

In thi s panel, you can get model name and detail information i n hi nts
of all the chipset that are related to overclocking. You can al so get
the mainboard’s BIOS model and the Version num ber of
[WarpSpeeder™] utility.

Note:

Because the overclock, overvoltage, and hardware moni tor features
are controlled by several separate chipset, [WarpSpeeder™] divide
these features to separate panel s. If one chipset is not on board, the
cor r el ative butto n in Main panel wil l be disabled, but will not inter fere
other panels’ functions. T his property can make [WarpSpeeder™]
utility more robust.

All manuals and user guides at all-guides.com

Motherboard Manual

36

APPENDENCIES: SPEC IN OTHER LA NGUAGE

GERMAN

NF61V Micro AM2 SE NF61S Micro AM2 SE

CPU

Sockel AM2

AM D Athlon 64 / At hlon 64 FX / Athlon 64 x2/

Sempron Prozessoren

Unterstützt Hyper Transport und Cool’n’Quiet

Sockel AM2

AM D Athlon 64 / At hlon 64 FX / Athlon 64 x2/

Sempron Prozessoren

Unterstützt Hyper Transport und Cool’n’Quiet

FSB

Unterstützt HyperTransport mit einer Bandbreite

von bis zu 1 GHz

Unterstützt HyperTransport mit einer Bandbreite

von bis zu 1 GHz

Chi ps atz MC P61V ( GeForce 61 00- 400) MC P61S ( GeForce 61 00- 405)

Super E/A

ITE 8716F

Bi etet die häufig verwendeten alten Super

E/A-Funktionen.

Low Pin Count-Schnittstelle

ITE 8716F

Bi etet die häufig verwendeten alten Super

E/A-Funktionen.

Low Pin Count-Schnittstelle

Ar beitsspeic

her

DDR2 DIMM-Steckpl ätze x 2

Jede r DIMM unterst ützt 256/512MB & 1GB

DDR2.

M ax. 2G B Ar beit ss peic he r

Dual-Kanal DDR2 Speichermodul

Unt erstützt DDR 2 400 / 533 / 667 / 800

registrierte

DDR2 DIMM-Steckpl ätze x 2

Jede r DIMM unterst ützt 256/512MB & 1GB

DDR2.

M ax. 2G B Ar beit ss peic he r

Dual-Kanal DDR2 Speichermodul

Unt erstützt DDR 2 400 / 533 / 667 / 800

registrierte

Grafi k

Integrierter MCP61V Chipsatz

Max. 256MB gemei nsam benutzt er

Videospeicher

Integrierter MCP61S Chipsatz

Max. 256MB gemei nsam benutzt er

Videospeicher

IDE

Integriert er IDE-Controller

Ultra DMA 33 / 66 / 100 / 133 Bus Master-Modus

Unterstützt PIO-Modus 0~4,

Integriert er IDE-Controller

Ultra DMA 33 / 66 / 100 / 133 Bus Master-Modus

Unterstützt PIO-Modus 0~4,

SA TA II

I nt egr i ert e r S e ri al ATA - Con tr o ll e r

Datentransferrate bis zu 3Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

I nt egr i ert e r S e ri al ATA - Con tr o ll e r

Datentransferrate bis zu 3Gb/s

Konform mit der SATA-Spezifikation Version 2.0.

LAN

Realt ek 8201CL PHY

10 / 100 Mb/s Auto-Negotiation

Realt ek 8201CL PHY

10 / 100 Mb/s Auto-Negotiation

Audi o-Code

c

ALC861VD(VER 6.X) / ALC888(VER 5.X)

5. 1-Kanal-Audioausgabe (V ER 6.X)

7. 1-Kanal-Audioausgabe (V ER 5.X)

Unterstützt Intel High-Definition Audio

ALC861VD(VER 6.X) / ALC888(VER 5.X)

5. 1-Kanal-Audioausgabe (V ER 6.X)

7. 1-Kanal-Audioausgabe (V ER 5.X)

Unterstützt Intel High-Definition Audio

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

37

NF61V Micro AM2 SE NF61S Micro AM2 SE

PCI-St eckplatz x2 PCI-St eckplatz x2

PCI Express x16 Steckplatz (x1) x1 PCI Express x16 Steckplatz (x8) x1

Steckplätze

PCI Express x 1-Steckplatz x1 PCI Express x 1-Steckplat z x1

Di ske tt enlaufwerkansc hl uss x1 Diskettenlaufw er kansc hluss x 1

IDE-Anschl uss x1 IDE-Anschl uss x1

SATA2-Anschluss x2 SATA2-Anschluss x2

Fronttafelanschluss x1 Fronttafelanschluss x1

Fr ont-Audioansc hluss x1 Fr ont-Audioansc hluss x1

CD-I N-A nschl uss x1 CD-I N-A nschl uss x1

S/PDIF- Ausgangsansc hluss x1 S/PDIF- Ausgangsansc hluss x1

S/PDIF Eingangsanschluss (opt ional) x1 S /PDIF Eingangs anschluss (optional) x1

CPU-Lüfter-Sockel x1 CPU-Lüfter-Sockel x1

System-Lüfter-Sockel x1 System-Lüfter-Sockel x1

"CMOS löschen"-Sockel x1 "CMOS l ösche n"-Soc kel x1

US B-Ansc hl uss x2 US B-Ansc hl uss x2

Druckeranschluss-Anschluss x1 Druckeranschluss-Anschluss x1

"Gehäuse offen"-Sockel(optional ) x1 "Gehäuse offen"-Sockel(opt ional) x1

Stromanschluss (24-polig) x1 Stromanschluss (24-polig) x1

Onboard-A

nschluss

Stromanschluss (4-polig) x1 Stromanschluss (4-polig) x1

Rückseiten-

E/A

PS/2-Tastatur x1

PS/2-Maus x1

Serieller Ansc hl uss x1

VGA-Anschluss x1

LAN-A nschluss x1

US B-Ansc hl uss x4

Audioanschluss (Ver 6.x) x3

Audioanschluss (Ver 5.x) x6

PS/2-Tastatur x1

PS/2-Maus x1

Serieller Ansc hl uss x1

VGA-Anschluss x1

LAN-A nschluss x1

US B-Ansc hl uss x4

Audioanschluss (Ver 6.x) x3

Audioanschluss (Ver 5.x) x6

Platinengrö

ße.

207 mm (B) X 244 mm (L) 207 m m (B) X 244 mm (L )

Sonderfunk

tionen

NVIDIA nTunes

Unterstützt RAID 0 / 1

NVIDIA nTunes

Unterstützt RAID 0 / 1

OS-Unterst

ütz ung

Wi ndows 2000 / XP / VISTA

Biostar behält sich das Recht vor, ohne

Ank ündigung die U nterstützung für ein

Be triebssystem hinzuz ufügen oder zu entfer nen.

Wi ndows 2000 / XP / VISTA

Biostar behält sich das Recht vor, ohne

Ank ündigung die U nterstützung für ein

Be triebssystem hinzuz ufügen oder zu entfer nen.

All manuals and user guides at all-guides.com

Motherboard Manual

38

FRANCE

NF61V Micro AM2 SE NF61S Micro AM2 SE

UC

Socket AM2

Pr ocess eurs AM D At hlon 64 / At hl o n 64 FX /

Athlon 64 x2/ Sempron

Prend en c harge Hyper Trans port et Cool’n’Q uiet

Socket AM2

Pr ocess eurs AM D At hlon 64 / At hl o n 64 FX /

Athlon 64 x2/ Sempron

Prend en c harge Hyper Trans port et Cool’n’Q uiet

Bus frontal

Prend en charge Hyper Transport jusqu'à une

bande passante de1 GHz

Prend en charge Hyper Transport jusqu'à une

bande passante de1 GHz

Chi ps et M CP61V ( GeForc e 61 00- 40 0) M CP61S ( GeForc e 61 00- 40 5)

Super E/S

ITE 8716F

Four nit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à faible compte de broches

ITE 8716F

Four nit la fonctionnalité de Super E/S

patrimoniales la plus utilisée.

Interface à faible compte de broches

Mémoire

principale

Fentes DDR2 DIMM x 2

Chaque DIMM prend en char ge des DDR2 de

256/512 Mo et 1Go

Capacité mémoire maximale de 2 Go

Modul e de mémoire DDR2 à mode à double voie

Prend en char ge la DDR2 400 / 533 / 667 / 800

Fentes DDR2 DIMM x 2

Chaque DIMM prend en char ge des DDR2 de

256/512 Mo et 1Go

Capacité mémoire maximale de 2 Go

Modul e de mémoire DDR2 à mode à double voie

Prend en char ge la DDR2 400 / 533 / 667 / 800

Graphiques

Integré dans la chipset MCP61V

Mémoire vi déo partagée maximale de 256 Mo

Integré dans la chipset MCP61S

Mémoire vi déo partagée maximale de 256 Mo

IDE

Contrôleur IDE intégré

Mode pri nc ipale de Bus Ultra DMA 33 / 66 / 100 /

133

Prend en c harge le mode PIO 0~4,

Contrôleur IDE intégré

Mode pri nc ipale de Bus Ultra DMA 33 / 66 / 100 /

133

Prend en c harge le mode PIO 0~4,

SA TA II

Cont r ôl eur Se rial ATA intégré :

Taux de transfert jusqu'à 3 Go/s.

Conforme à la spécification SATA Version 2.0

Cont r ôl eur Se rial ATA intégré :

Taux de transfert jusqu'à 3 Go/s.

Conforme à la spécification SATA Version 2.0

LAN

Realt ek 8201CL PHY

10 / 100 Mb/s négociation automatique

Realt ek 8201CL PHY

10 / 100 Mb/s négociation automatique

Codec audio

ALC861VD(VER 6.X) / ALC888(VER 5.X)

Sortie audio à 5.1 voies (VER 6.X)

Sortie audio à 7.1 voies (VER 5.X)

Prise en charge de l'audio haute définition Int el

ALC861VD(VER 6.X) / ALC888(VER 5.X)

Sortie audio à 5.1 voies (VER 6.X)

Sortie audio à 7.1 voies (VER 5.X)

Prise en charge de l'audio haute définition Int el

Fente PCI x2 Fente PCI x2

Sl ot PCI Express x16 (x 1) x1 S lot PCI Express x16 (x8) x1

Fentes

Slot PCI Express x 1 x1 Slot PCI Express x 1 x1

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

39

NF61V Micro AM2 SE NF61S Micro AM2 SE

Connecteur de disquette x1 C onnect eur de disquette x1

Connecteur IDE x1 Connecteur IDE x1

Connecteur SATA 2 x2 C onnect eur SATA2 x2

Connecteur du panneau avant x1 C onnect eur du panneau avant x1

Connecteur Audio du panneau avant x1 Connect eur Audio du panneau ava nt x1

Connec teur d'entrée CD x1 Connec teur d'entrée CD x1

Connecteur de sortie S/PDIF x1 Connecteur de sortie S/PDIF x1

Connec teur d'entrée S/PDIF(en option) x1 Connecteur d'entrée S/PDIF(en option) x1

Embase de ventilateur UC x1 Em base de ventil ateur UC x1

Embase de ventilateur système x1 Embase de ventilateur système x1

Embase d'effacem ent CMO S x1 Embase d'effacem ent CMO S x1

Connecteur USB x2 Connect eur USB x2

Connec teur de Port d'imprimante x1 Connecteur de Port d'imprimante x1

Embase d' ouverture de châssis(en option) x1 Embase d'ouverture de châssis(en opti on) x1

Connec teur d'alimentation x1

(24 broc hes)

Connec teur d'alimentation x1

(24 broc hes)

Connecteur

embarqué

Connec teur d'alimentation x1

(4 broches)

Connec teur d'alimentation x1

(4 broches)

E/S du

panneau

arrière

Clavier PS/2 x1

Souris PS/2 x1

Port s érie x1

Port VGA x1

Port LAN x1

Port USB x4

Fiche audio (Ver 6.x) x3

Fiche audio (Ver 5.x) x6

Clavier PS/2 x1

Souris PS/2 x1

Port s érie x1

Port VGA x1

Port LAN x1

Port USB x4

Fiche audio (Ver 6.x) x3

Fiche audio (Ver 5.x) x6

Dim ensions

de la carte

207 mm (l) X 244 mm (H) 207 m m (l) X 244 mm ( H)

Fonctionnali

tés

spéciales

NVIDIA nTunes

Prise en c harge RAID 0 / 1

NVIDIA nTunes

Prise en c harge RAID 0 / 1

Support SE

Wi ndows 2000 / XP / VISTA

Biostar se réserve le droit d'ajouter ou de

supprimer le support de SE avec ou sans préavis.

Wi ndows 2000 / XP / VISTA

Biostar se réserve le droit d'ajouter ou de

supprimer le support de SE avec ou sans préavis.

All manuals and user guides at all-guides.com

all-guides.com

Motherboard Manual

40

ITALIAN

NF61V Micro AM2 SE NF 61S Mi cr o AM2 SE

CPU

Socket AM2

Processori AMD Athlon 64 / Athlon 64 FX

/ Athlon 6 4 x 2/ Sempron

Suppor to di Hyper Tra nsport e

Cool’n’Quiet

Socket AM2

Processori AMD Athlon 64 / Athlon 64 FX

/ Athlon 6 4 x 2/ Sempron

Suppor to di Hyper Tra nsport e

Cool’n’Quiet

FSB

Suppor to di Hyper Transp ort fi no a1 GHz

di larg hezz a di banda

Suppor to di Hyper Transp ort fi no a1 GHz

di larg hezz a di banda

Chi ps et MCP61V ( GeForc e 6100- 400) M CP61S ( GeF orce 61 00- 405)

Super I/O

ITE 871 6F

Fornisce le funzionalità le

gacy

Super I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

ITE 871 6F

Fornisce le funzionalità le

gacy

Super I/O

usate più comunemente.

Interfaccia LPC (Low Pin Count)

Memoria

princi pale

Al loggi DIMM DDR 2 x 2

Ci as cun DIMM s u pport a DDR 2

256/512MB e 1GB

Capacità massima della memoria 2GB

Modul o di m em ori a D DR2 a c anal e d oppi o

Supporto di DDR2 400 / 533 / 667 / 800

Al loggi DIMM DDR 2 x 2

Ci as cun DIMM s u pport a DDR 2

256/512MB e 1GB

Capacità massima della memoria 2GB

Modul o di m em ori a D DR2 a c anal e d oppi o

Supporto di DDR2 400 / 533 / 667 / 800

Grafica

Integrat a nel Chi pset M CP6 1V

La memoria video condivisa massima è di

256MB

Integrat a nel Chi pset M CP6 1S

La memoria video condivisa massima è di

256MB

IDE

Controller IDE integrato

Modalità Bus Master Ultra DMA 33

/

66 /

100 / 13 3

Suppor to modal it à PIO Mode 0-4

Controller IDE integrato

Modalità Bus Master Ultra DMA 33

/

66 /

100 / 13 3

Suppor to modal it à PIO Mode 0-4

SATA II

Controller Serial ATA integrato

Ve loci t à di tras ferim ent o dei dati fi no a 3

Gb/s .

Compatibile specifiche SATA Versione

2. 0.

Controller Serial ATA integrato

Ve loci t à di tras ferim ent o dei dati fi no a 3

Gb/s .

Compatibile specifiche SATA Versione

2. 0.

LAN

Realt ek 8201CL PHY

Negozi az ione autom at ica 10 / 100 M b /s

Realt ek 8201CL PHY

Negozi az ione autom at ica 10 / 100 M b /s

Codec audio

ALC861VD(VER 6.X) / ALC888(VER 5.X)

Us c it a audio 5.1 ca nali (VER 6. X)

Us c it a audio 7.1 ca nali (VER 5. X)

Suppor to audio High- Defi nition (HD )

Intel

ALC861VD(VER 6.X) / ALC888(VER 5.X)

Us c it a audio 5.1 ca nali (V ER 6.X)

Us c it a audio 7.1 ca nali (V ER 5.X)

Suppor to audio High- Defi nition (HD )

Intel

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

41

NF61V Micro AM2 SE NF 61S Mi cr o AM2 SE

Alloggio PCI x2 Alloggio PCI x2

Al loggi o PCI Expr es s x1 6 (x 1) x1 Al loggi o PCI Expr es s x1 6 (x 8) x1

Alloggi

Al loggi o PCI Expr es s x1 x1 Alloggio PC I Expres s x1 x1

Connettore flo ppy x1 C onnett or e fl o ppy x1

Connettore IDE x1 C onnet t ore IDE x 1

Connettore SATA2 x2 Connettore SATA2 x2

Connettore pannello fro nt ale x1 Connett ore pa nnell o fro ntale x1

Connettore audio frontale x1 Connettore audio frontale x1

Connettore CD-in x1 Connettore CD-in x1

Connettore output S/PDIF x1 Connettore output S/PDIF x1

Connettore input S/PDIF(optional) x1 Connettore input S/PDIF (optional) x1

Collettore ventolina CPU x1 Collettore ventolina CPU x1

Collettore ventolina sistema x1 Collettore ventolina sistema x1

Collettore cancellazione CMOS x1 Collettore cancellazione CMOS x1

Connettore USB x2 C onnet tore USB x 2

Connettore Port a s tampa nt e x1 Connettore Port a s t ampa nt e x1

Collettore apertura telaio(optional) x1 Collettore apertura telaio(optional) x1

Connettore alimentazione x1

(24 pin)

Connettore alimentazione x1

(24 pin)

Connettori su

scheda

Connettore alimentazione x1

(4 pin)

Connettore alimentazione x1

(4 pin)

I/O pannello

posteriore

Ta s t ie r a P S / 2 x 1

Mouse PS/2 x1

Porta seriale x1

Porta VGA x1

Porta LAN x1

Porta USB x4

Connettore audio (Ver 6.x) x3

Connettore audio (Ver 5.x) x6

Ta s t ie r a P S / 2 x 1

Mouse PS/2 x1

Porta seriale x1

Porta VGA x1

Porta LAN x1

Porta USB x4

Connettore audio (Ver 6.x) x3

Connettore audio (Ver 5.x) x6

Dim ens ioni

scheda

207 mm (larghezza) x 244 mm (altezza) 207 mm (larghezza) x 244 mm (altezza)

Caratteristic he

speciali

nTu nes NV I DIA

Suppor to RAID 0 / 1

nTu nes NV I DIA

Suppor to RAID 0 / 1

Sistemi

operativi

supportati

Wi ndows 2000 / XP / VISTA

Biostar si riserva il diritto di a

gg

iungere o

rimuovere il su

pp

orto di qualsiasi sistema

operativo se nza preavvis o.

Wi ndows 2000 / XP / VISTA

Biostar si riserva il diritto di aggiungere o

rimuovere il su

pp

orto di qualsiasi sistema

operativo se nza preavvis o.

All manuals and user guides at all-guides.com

Motherboard Manual

42

SPANISH

NF61V Micro AM2 SE NF61S Micro AM2 SE

CPU

Conec tor AM2

Procesadores AMD Athlon 64 / A thlon 64 FX /

Athlon 64 x2/ Sempron

Soporta las tecnologías Hyper Transport y

Cool’n’Quiet

Conec tor AM2

Procesadores AMD Athlon 64 / A thlon 64 FX /

Athlon 64 x2/ Sempron

Soporta las tecnologías Hyper Transport y

Cool’n’Quiet

FSB

Admite HyperTransport con un ancho de banda

de hasta1 GHz

Admite HyperTransport con un ancho de banda

de hasta1 GHz

Conjunto de

chips

MC P61V ( GeForce 61 00- 400) MC P61S ( GeForce 61 00- 405)

Súper E/S

ITE 8716F

Le ofrece las funcionali dades heredadas de us o

más común Súper E/S.

Interfaz de cuenta Low Pin

ITE 8716F

Le ofrece las funcionali dades heredadas de us o

más común Súper E/S.

Interfaz de cuenta Low Pin

Memoria

principal

Ranuras DIMM DDR2 x 2

Cada DIMM admit e DDR de 256/512MB y 1GB

Capaci dad máxima de memoria de 2GB

Módul o de memoria DDR2 de canal Doble

Admite DDR2 de 400 / 533 / 667 / 800

Ranuras DIMM DDR2 x 2

Cada DIMM admit e DDR de 256/512MB y 1GB

Capaci dad máxima de memoria de 2GB

Módul o de memoria DDR2 de canal Doble

Admite DDR2 de 400 / 533 / 667 / 800

Gráfic os

Int egrados en el conjunt o de chips MCP61V

Memoria máxima de vídeo compartida de

256MB

Int egrados en el conjunt o de chips MCP61S

Memoria máxima de vídeo compartida de

256MB

IDE

Controlador IDE integrado

Modo bus maestr o Ultr a DMA 33 / 66 / 100 / 133

Soporte los Modos PIO 0~4,

Controlador IDE integrado

Modo bus maestr o Ultr a DMA 33 / 66 / 100 / 133

Soporte los Modos PIO 0~4,

SA TA II

Controlador ATA S erie Integrado

Tasas de transferencia de hasta 3 Gb/s.

Compatible con la versión SATA 2.0.

Controlador ATA S erie Integrado

Tasas de transferencia de hasta 3 Gb/s.

Compatible con la versión SATA 2.0.

Red Local

Realt ek 8201CL PHY

Negociación de 10 / 100 M b/s

Realt ek 8201CL PHY

Negociación de 10 / 100 M b/s

Códecs de

sonido

ALC861VD(VER 6.X) / ALC888(VER 5.X)

Salida de sonido de 5. 1 canales (VER 6.X)

Salida de sonido de 7. 1 canales (VER 5.X)

Soporte de sonido Intel de Alta Definici ón

ALC861VD(VER 6.X) / ALC888(VER 5.X)

Salida de sonido de 5. 1 canales (VER 6.X)

Salida de sonido de 7. 1 canales (VER 5.X)

Soporte de sonido Intel de Alta Definici ón

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

43

NF61V Micro AM2 SE NF61S Micro AM2 SE

Ranura PCI X2 R anura PCI X2

Ranura PCI Express x16 (x1) X 1 Ranura PCI Ex press x16 (x8) X 1 Ranuras

Ranura PCI express x 1 X1 Ranura PCI express x 1 X1

Conector disco flexible X1 Conector disco flexible X1

Conec tor IDE X1 Conector IDE X1

C onector SATA2 X 2 C onec t or SATA 2 X 2

Conect or de panel frontal X1 C onector de panel frontal X 1

Conector de sonido frontal X1 Conector de sonido frontal X1

Conector de ent rada de CD X1 Conector de entrada de CD X1

Conector de salida S/PDIF X1 Conector de salida S/PDIF X1

Conect or de ent rada S/PDIF(opc ional) X1 Conector de entrada S/PDIF(opc ional) X1

Cabecera de ventilador de CPU X1 C abecera de ventilador de CPU X 1

Cabecera de ventilador de sistema X 1 Cabecera de ventilador de sistema X 1

Cabecera de borrado de CMOS X1 Cabecera de borrado de CMOS X1

Conec tor USB X2 Conector USB X2

C o n ec t or Pu er to de im pr es or a X 1 C on ec t or Pu er to de im pr es or a X 1

Cabecera de chasis abierto(opcional) X1 Cabecera de chasis abierto(opcional) X1

Conector de alimentación X1

(24 pat illas)

Conector de alimentación X1

(24 pat illas)

Conec tores

en placa

Conector de alimentación X1

(4 patillas)

Conector de alimentación X1

(4 patillas)

Panel

trasero de

E/S

Te c l ad o P S/ 2 X 1

Ratón PS/2 X1

Puerto serie X1

Puerto VGA X1

Puerto de r ed local X1

Puerto USB X 4

Conector de sonido (Ver 6.x) X3

Conector de sonido (Ver 5.x) X6

Te c l ad o P S/ 2 X 1

Ratón PS/2 X1

Puerto serie X1

Puerto VGA X1

Puerto de r ed local X1

Puerto USB X 4

Conector de sonido (Ver 6.x) X3

Conector de sonido (Ver 5.x) X6

Ta m año d e

la placa

207 mm. (A) X 244 Mm. (H) 207 mm. (A) X 244 Mm. (H)

Funciones

especiales

NVIDIA nTunes

Admite RAID 0 / 1

NVIDIA nTunes

Admite RAID 0 / 1

Soporte de

sistema

operativo

Wi ndows 2000 / XP / VISTA

Biostar se reserva el derecho de añadir o retirar

el soporte de cualquier SO con o sin aviso previo.

Wi ndows 2000 / XP / VISTA

Biostar se reserva el derecho de añadir o retirar

el soporte de cualquier SO con o sin aviso previo.

All manuals and user guides at all-guides.com

Motherboard Manual

44

PORTUGUESE

NF61V Micro AM2 SE NF61S Micro AM2 SE

CPU

Socket AM2

Processadores AMD Athlon 64 / Athlon 64 FX /

Athlon 64 x2/ Sempron

Suporta as tecnologias Hyper Transport e

Cool’n’Quiet

Socket AM2

Processadores AMD Athlon 64 / Athlon 64 FX /

Athlon 64 x2/ Sempron

Suporta as tecnologias Hyper Transport e

Cool’n’Quiet

FSB

Suporta a tecnologia HyperTransport com uma

largura de banda até1 GHz

Suporta a tecnologia HyperTransport com uma

largura de banda até1 GHz

Chi ps et M CP61V ( GeForc e 61 00- 40 0) M CP61S ( GeForc e 61 00- 40 5)

Es pec ificaçã

o Super I/O

ITE 8716F

Proporciona as funcionalidades mais utilizadas

em termos da especificação Super I/O.

Int erface LPC (Low Pin Count).

ITE 8716F

Proporciona as funcionalidades mais utilizadas

em termos da especificação Super I/O.

Int erface LPC (Low Pin Count).

Memória

principal

Ranhuras DIMM DDR2 x 2

Cada módulo DIMM suporta uma memória

DDR2 de 256/512 MB & 1 GB

Capaci dade máxima de memória: 2 GB

Módul o de memória DDR2 de canal duplo

Suporta módul os DDR2 400 / 533 / 667 / 800

Ranhuras DIMM DDR2 x 2

Cada módulo DIMM suporta uma memória

DDR2 de 256/512 MB & 1 GB

Capaci dade máxima de memória: 2 GB

Módul o de memória DDR2 de canal duplo

Suporta módul os DDR2 400 / 533 / 667 / 800

Placa

gráfica

Integrada no c hi pset M CP61V

Memória de vídeo máxima partil hada: 256 MB

Integrada no c hi pset M CP61S

Memória de vídeo máxima partil hada: 256 MB

IDE

Controlador IDE integrado

Modo Bus mast er Ultra DMA 33 / 66 / 100 / 133

Suporta o modo PIO 0~4,

Controlador IDE integrado

Modo Bus mast er Ultra DMA 33 / 66 / 100 / 133

Suporta o modo PIO 0~4,

SA TA II

Controlador Serial ATA integrado

Veloc idades de t ransmissão de dados até 3 Gb/s.

Compatibilidade com a especificação SATA

v e rs ã o 2. 0.

Controlador Serial ATA integrado

Veloc idades de t ransmissão de dados até 3 Gb/s.

Compatibilidade com a especificação SATA

v e rs ã o 2. 0.

LAN

Realt ek 8201CL PHY

Auto negociaçã o de 10 / 100 Mb/s

Realt ek 8201CL PHY

Auto negociaçã o de 10 / 100 Mb/s

Codec de

som

ALC861VD(VER 6.X) / ALC888(VER 5.X)

Saída de áudio de 5. 1 canais (VER 6.X)

Saída de áudio de 7. 1 canais (VER 5.X)

Suporta a especificação Intel High-Definition

Audio

ALC861VD(VER 6.X) / ALC888(VER 5.X)

Saída de áudio de 5. 1 canais (VER 6.X)

Saída de áudio de 7. 1 canais (VER 5.X)

Suporta a especificação Intel High-Definition

Audio

All manuals and user guides at all-guides.com

all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

45

NF61V Micro AM2 SE NF61S Micro AM2 SE

Ranhura PCI x2 Ranhura PCI x2

Ranhura PCI Express x16 (x1) x1 Ranhura PCI Express x16 (x8) x1 Ranhuras

Ranhura PCI Ex press x 1 x1 R anhura PCI Expr ess x 1 x1

Conect or da uni dade de disquetes x1 C onector da unidade de dis quetes x1

Conec tor IDE x1 Conector IDE x1

C onector SATA2 x2 C onec t or SATA 2 x2

Conect or do painel frontal x1 Conect or do painel frontal x1

Conector de áudio fr ontal x1 C onect or de áudio fr ontal x1

Conector para ent rada de CDs x1 Conec tor para ent rada de CDs x1

Conector de saída S/PDIF x1 Conector de saída S/PDIF x1

Conect or de ent rada S/PDIF (opc ional) x1 Conect or de entrada S/PDIF (opcional) x1

Conector da ventoinha da CPU x1 Conect or da ventoinha da CPU x1

Conector da ventoinha do siste ma x1 Conector da ventoinha do siste ma x1

Conec tor para limpeza do CMOS x1 Conec tor para limpeza do CMOS x1

Conec tor USB x2 Conector USB x2

Conector da para impressora x1 Conector da para impressora x1

Conect or para detecção da

abertura do chassis(opcional) x1

Conect or para detecção da

abertura do chassis(opcional) x1

Conector de alimentação x1

(24 pinos)

Conector de alimentação x1

(24 pinos)

Conec tores

na placa

Conector de alimentação x1

(4 pinos )

Conector de alimentação x1

(4 pinos )

Entradas/S

aídas no

painel

traseiro

Te c l ad o P S/ 2 x 1

Rato PS/2 x1

Port a s éri e x1

Porta VGA x1

Porta LAN x1

Porta USB x4

Tomada de áudio (Ver 6.x) x3

Tomada de áudio (Ver 5.x) x6

Te c l ad o P S/ 2 x 1

Rato PS/2 x1

Port a s éri e x1

Porta VGA x1

Porta LAN x1

Porta USB x4

Tomada de áudio (Ver 6.x) x3

Tomada de áudio (Ver 5.x) x6

Tamanho

da placa

207 mm (L) X 244 mm (A) 207 m m (L) X 244 mm (A)

Característi

cas

especiais

nTunes da NVIDIA

Suporta as funções RAID 0 / 1

nTunes da NVIDIA

Suporta as funções RAID 0 / 1

Sistemas

operativos

suportados

Wi ndows 2000 / XP / VISTA

A Biostar reserva-se o direito de adicionar ou

remover suporte para qualquer sis tema

operativo com ou sem aviso prévio.

Wi ndows 2000 / XP / VISTA

A Biostar reserva-se o direito de adicionar ou

remover suporte para qualquer sis tema

operativo com ou sem aviso prévio.

All manuals and user guides at all-guides.com

Motherboard Manual

46

POLISH

NF61V Micro AM2 S E NF 61S Micro AM2 SE

Procesor

Socket AM2

AM D Athlon 64 / At hlon 64 FX / Athlon 64 x2/

Sem pron Procesory

Obsługa Hyper Transport oraz Cool’n’Qui et

Socket AM2

AM D Athlon 64 / At hlon 64 FX / Athlon 64 x2/

Sem pron Procesory

Obsługa Hyper Transport oraz Cool’n’Qui et

FSB

Obsługa HyperTransport o szerokości pasma do1

GHz

Obsługa HyperTransport o szerokości pasma do1

GHz

Chi ps et M CP61V ( GeForc e 61 00- 40 0) M CP61S ( GeForc e 61 00- 40 5)

Pamięć

główna

Gniaz da DDR 2 DIMM x 2

Każ de gniazdo DIMM obsługuje m oduły

256/512MB oraz 1GB DDR2

Maks. wielkość pa mi ęci 2GB

Moduł pam ięci DDR 2 z trybem podwójnego

kanału

Obsługa DDR2 400 / 533 / 667 / 800

Gniaz da DDR 2 DIMM x 2

Każ de gniazdo DIMM obsługuje m oduły

256/512MB oraz 1GB DDR2

Maks. wielkość pa mi ęci 2GB

Moduł pam ięci DDR 2 z trybem podwójnego

kanału

Obsługa DDR2 400 / 533 / 667 / 800

Super I/O

ITE 8716F

Zapewnia najbardziej powszechne funkcje Super

I/O.

Int erfejs Low Pi n Count

ITE 8716F

Zapewnia najbardziej powszechne funkcje Super

I/O.

Int erfejs Low Pi n Count

Grafika

Z i nt e g ro w a na w c hi ps ec ie MC P6 1V

Maks. wielkość ws pó łdzielonej pamięci video

wynos i 256MB

Z i nt e g ro w a na w c hi ps ec ie MC P6 1S

Maks. wielkość ws pó łdzielonej pamięci video

wynos i 256MB

IDE

Z i nt e g ro w an y ko nt r ol e r I D E

Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master

obsłu ga P IO t ry b 0~ 4,

Z i nt e g ro w an y ko nt r ol e r I D E

Ultra DMA 33 / 66 / 100 / 133 Tryb Bus Master

obsłu ga P IO t ry b 0~ 4,

SA TA II

Zintegrowany kont roler Serial ATA

Transfer danych do 3 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0.

Zintegrowany kont roler Serial ATA

Transfer danych do 3 Gb/s.

Zgodność ze specyfikacją SATA w wersji 2.0.

LAN

Realt ek 8201CL PHY

10 / 100 Mb/s z automatyczną negocjacją

szybkości

Realt ek 8201CL PHY

10 / 100 Mb/s z automatyczną negocjacją

szybkości

Kodek

dźwiękow y

ALC861VD(VER 6.X) / ALC888(VER 5.X)

5.1 kanałow e wy j ście a udio (V ER 6.X )

7.1 kanałow e wy j ście a udio (V ER 5.X )

Obsługa Intel High-Definition Audio

ALC861VD(VER 6.X) / ALC888(VER 5.X)

5.1 kanałow e wy j ście a udio (V ER 6.X )

7.1 kanałow e wy j ście a udio (V ER 5.X )

Obsługa Intel High-Definition Audio

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

47

NF61V Micro AM2 S E NF 61S Micro AM2 SE

Gniazdo PCI x2 Gni az do PCI x 2

Gniazdo PCI Expr ess x16 (x1) x1 Gni az do PCI Express x16 (x8) x1 Gni az da

Gniazdo PCI Express x 1 x1 Gniazdo PCI Express x 1 x1

Złącze na pędu dyskietek x1 Z łącze na pędu dyskietek x1

Złącze I DE x1 Złącz e I DE x1

Złącz e SA TA2 x2 Z łącz e SA TA2 x2

Złącze panela przedniego x1 Z łącze panela przedniego x1

Przednie złą cz e audio x1 Pr zedni e złą cz e audio x1

Złącz e w e jści a C D x 1 Z łącz e w e jści a CD x1

Złącz e w y jści a S / PDIF x1 Z łącz e w yjści a S /P DIF x1

Złącz e w e jści a S/PDIF (opc ja) x 1 Z łącz e w e jści a S/ PDIF (o pcja ) x1

Złącze głów ko we w e nt yl ator a

proces ora x1

Złącze głów ko we w e nt yl ator a

proces ora x1

Złącze głów ko we w e nt yl ator a

systemowego x1

Złącze głów ko we w e nt yl ator a

systemowego x1

Złącze głów ko we k as ow an ia

CMOS x1

Złącze głów ko we k as ow an ia

CMOS x1

Złącze USB x2 Z łącze USB x2

Złącze Port drukarki x1 Złącze Port drukarki x1

Złącze głów ko we o tw arc i a

obudowy(opcja) x1

Złącze głów ko we o tw arc i a

obudowy(opcja) x1

Złącze zasila nia ( 24 pinowe) x1 Złącze z asila nia ( 24 pinowe) x1

Złącza

wbudowane

Złącze zasila nia ( 4 pinowe) x1 Złącze zasil ania ( 4 pinowe) x1

Back Panel

I/O

Klawiatura PS/2 x1

Mysz PS/2 x1

Port szeregowy x1

Port VGA x1

Port LAN x1

Port USB x4

Gniazdo audio (Ver 6.x) x3

Gniazdo audio (Ver 5.x) x6

Klawiatura PS/2 x1

Mysz PS/2 x1

Port szeregowy x1

Port VGA x1

Port LAN x1

Port USB x4

Gniazdo audio (Ver 6.x) x3

Gniazdo audio (Ver 5.x) x6

Wymiary

płyty

207 mm (S) X 244 mm (W) 207 mm (S) X 244 mm (W)

Funkcje

specjalne

NVIDIA nTunes.

Obsługa RAID 0 / 1

NVIDIA nTunes.

Obsługa RAID 0 / 1

Obsluga

systemu

operacyjne

go

Wi ndows 2000 / XP / VISTA

Bi ostar zastrzega s obie prawo dodawania l ub

odwoływania obsługi dowolnego systemu

o p e rac y j n e go be z pow i adom i e ni a.

Wi ndows 2000 / XP / VISTA

Bi ostar zastrzega s obie prawo dodawania l ub

odwoływania obsługi dowolnego systemu

o p e rac y j n e go be z pow i adom i e ni a.

All manuals and user guides at all-guides.com

Motherboard Manual

48

RUSSIAN

. NF61V Micro AM2 S E NF61S Micro AM2 SE

CPU

(центральный

проц ессор)

Гнездо AM2

Процессоры AM D At hlon 64 / At hlo n 64 F X /

Althlon 64 X2

Поддержка Hyper Transport и Cool’n’Quiet

Гнездо AM2

Процессоры AM D At hlon 64 / At hlo n 64 F X /

Althlon 64 X2

Поддержка Hyper Transport и Cool’n’Quiet

FSB

Поддержка HyperTransport с пропус кной

способностью до1GГц

Поддержка HyperTransport с пропус кной

способностью до1GГц

Набор

микрос хем

MC P61V ( GeForce 61 00- 400) MCP61S ( GeForc e 6100- 405)

Основная память

Слоты DDR2 DIMM x 2

Каждый модуль DIMM поддерж ивает

256/512МБ & 1ГБ DDR2

Максимальная ём к ос ть памяти 2 ГБ

Модуль памяти с двухканальным режимом

DDR2

Поддержка DDR2 400 / 533 / 667 / 800

Слоты DDR2 DIMM x 2

Каждый модуль DIMM поддерж ивает

256/512МБ & 1ГБ DDR2

Максимальная ём к ос ть памяти 2 ГБ

Модуль памяти с двухканальным режимом

DDR2

Поддержка DDR2 400 / 533 / 667 / 800

Super I/O

ITE 8716F

Обеспечивает наиболее ис по ль з у е мы е

действующие функциональные

возмож ности Super I/O.

Интерфейс с низ ким количеством вы в о д о в

ITE 8716F

Обеспечивает наиболее ис по ль з у е мы е

действующие функциональные

возмож ности Super I/O.

Интерфейс с низ ким количеством вы в о д о в

Графика

Вс троенная в набор микросхем MC P61V

Максимальная совместно ис п оль з у е м ая

видео память составляет 256 МБ

Вс троенная в набор микросхем MC P61S

Максимальная совместно ис п оль з у е м ая

видео память составляет 256 МБ

IDE

Вс троенное ус т р о й с тв о управления

встроенными интерфейсам и устройств

Режим "хозяина" шины Ultra DMA 33 / 66 /

100 / 133

Поддержка реж има PIO 0~4,

Вс троенное ус т р о й с тв о управления

встроенными интерфейсам и устройств

Режим "хозяина" шины Ultra DMA 33 / 66 /

100 / 133

Поддержка реж има PIO 0~4,

SA TA II

Вс троенное последовательное устройство

управления ATA

скорость передачи данных до 3 гигабит/с.

Соответствие специф икац ии SA TA версия

2. 0

Вс троенное последовательное устройство

управления ATA

скорость передачи данных до 3 гигабит/с.

Соответствие специф икац ии SA TA версия

2. 0

Локальная сеть

Realt ek 8201CL PHY

Автоматическое согласование 10 / 100

Мб/с

Realt ek 8201CL PHY

Автоматическое согласование 10 / 100

Мб/с

Звуковой код е к

ALC861VD(VER 6.X) / ALC888(VER 5.X)

5. 1канальный звуковой выход (V ER 6. X)

7. 1канальный звуковой выход (V ER 5. X)

Звуковая поддержка Intel High-Definition

ALC861VD(VER 6.X) / ALC888(VER 5.X)

5. 1канальный звуковой выход (V ER 6. X)

7. 1канальный звуковой выход (V ER 5. X)

Звуковая поддержка Intel High-Definition

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

49

. NF61V Micro AM2 S E NF61S Micro AM2 SE

Слот PCI x2 Слот PCI x2

Слот PCI Ex press x16 (x1) x1 Слот PCI Express x16 (x8) x 1

Слоты

Слот PCI Express x 1 x1 Слот PCI Express x 1 x1

Разъём НГМД x1 Разъём НГМД x1
Разъём IDE x1 Разъём IDE x1
Разъём SATA 2 x2 Разъём SATA2 x 2

Разъём на лицевой панели x1 Раз ъём на лиц евой панели x1
Входной звуковой разъём x1 Входной з вуковой разъём x1

Разъём ввода для CD x1 Разъём ввода для CD x1
Разъём вы во д а для S/PDIF x1 Разъём вы в о д а для S/PDIF x1

Разъём ввода для S/PDIF
(дополнительно) x 1

Разъём ввода для S/PDIF
(дополнительно) x 1

Контактирующее приспособление
вентилятора центрального процессора x1

Контактирующее приспособление
вентилятора центрального процесс ора x1

Контактирующее приспособление
вентилятора системы x1

Контактирующее приспособление
вентилятора системы x1

Открытое ко нта к т и рую щ е е
приспособление CMO S x1

Открытое ко нта к т и рую щ е е
приспособление CMO S x1

USB-разъём x2 USB-разъём x2
Разъём Порт подключения

принтера x1

Разъём Порт подключения

принтера x1
Шасси открытого контактирующего

приспособления (дополнительно) x 1

Шасси открытого контактирующего

приспособления (дополнительно) x 1
Разъем питания ( 24 вы в од ) x 1 Разъем питания (24 вы вод) x1

Вс троенны й
разъём

Разъем питания (4 вы вод) x1 Разъем питания (4 вы вод) x1

Задняя панель

средств
ввода-вы во д а

Клавиатура PS/2 x1

Мышь PS /2 x 1
Последовательный порт x1

Порт VGA x1
Порт LAN x1

USB-порт x4
Гнездо для подключения

науш ников (Ver 6.x) x3
Гнездо для подключения

науш ников (Ver 5.x) x6

Клавиатура PS/2 x1

Мышь PS /2 x 1

Последовательный порт x1

Порт VGA x1

Порт LAN x1

USB-порт x4

Гнездо для подключения

науш ников (Ver 6.x) x3

Гнездо для подключения

науш ников (Ver 5.x) x6

Размер панели 207 мм (Ш) X 244 мм (В) 207 мм (Ш) X 244 мм (В)

Специальные

технические

характерис тики

NVIDIA nTunes

Поддержка RAID 0 / 1

NVIDIA nTunes

Поддержка RAID 0 / 1

Поддержка OS

Wi ndows 2000 / XP / VISTA

Biostar сохраняет за собой право добавлять

или удалять средства об е с печ е ни я для OS с

или без предваритель ного уведомления.

Wi ndows 2000 / XP / VISTA

Biostar сохраняет за собой право добавлять

или удалять средства об е с печ е ни я для OS с

или без предваритель ного уведомления.

All manuals and user guides at all-guides.com

all-guides.com

Motherboard Manual

50

ARABIC

NF61V Micro AM2 SE NF61S Micro AM2 SE

ةﺪﺣو ﺔﺠﻟﺎﻌﻤﻟا ﺔﻳ ﺰآ ﺮﻤ ﻟ ا

ﺲﺒﻘﻡ AM 2

تﺎ ﺠﻟﺎﻌﻡ A MD Athlon 64 / Athl on 64 FX / A t hlon 64

x2

/

Sempron

ﺔ ﻴﻨﻘﺗ ﻢﻋ ﺪ ﺗ Hyper Transport و Cool’n’Quiet

ﺲﺒﻘﻡ AM 2

تﺎ ﺠﻟﺎﻌﻡ A MD Athlon 64 / Athl on 64 FX / A thlon 64

x2

/

Sempron

ﺔ ﻴﻨﻘﺗ ﻢﻋ ﺪ ﺗ Hyper Transport و Cool’n’Quiet

اﻞﻗﺎﻨﻟ ﻲﻡﺎﻡﻷا ﻲﺒﻥ ﺎ ﺠﻟ ا ﻢﻋﺪﺗ ﺔ ﻴﻨﻘ ﺗ HyperTransport ددﺮﺘﺏ ﻞﺼﻳ ﻰﻟإ 1000 ددﺮﺗ

ﻢﻋﺪﺗ ﺔ ﻴﻨﻘ ﺗ HyperTransport ددﺮﺘﺏ ﻞﺼﻳ ﻰﻟإ 1000 ددﺮﺗ

ﺔﻋﻮﻤﺠﻡ ﺢﺋاﺮﺸ ﻟا MC P61V ( GeForce 61 00- 400) MC P61S ( GeForce 61 00- 405)

ةﺮآاﺬﻟا ﺔ ﻴﺴﻴﺋﺮﻟا

ﺔﺤﺘ ﻓDDR2 DIMM دﺪﻋ2

ﻢﻋﺪﺗ ﻞآ ﺔﺤﺘﻓ DIMM ﻢﻋﺪﺗ ﺮآاذة ﻦﻡ عﻮﻥ DDR 2 ﺔﻌﺱ 256/512

ﺎﺠﻴﻡ ﺖﻳﺎﺏ و1 ﺎﺠﻴﺝ ﺖﻳ ﺎﺏ

ﺔﻌﺱ ةﺮآاذ ىﻮﺼﻗ 2 ﺎﺠﻴﺝ ﺖﻳﺎ ﺏ

ةﺪﺣو ةﺮآاذ DDR 2 ﺔﺝودﺰﻡ ﻘﻟاةﺎﻨ

ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻡ عﻮﻥ DDR 2 تﺎﻌﺱ400/ 533 / 667 / 800

ﺎﺠﻴﻡ ﺖﻳ ﺎﺏ

ﺔﺤﺘ ﻓDDR2 DIMM دﺪﻋ2

ﻢﻋﺪﺗ ﻞآ ﺔﺤﺘﻓ DIMM ﻢﻋﺪﺗ ةﺮآاذ ﻦﻡ عﻮﻥ DDR 2 ﺔﻌﺱ 256/512

ﺎﺠﻴﻡ ﺖﻳﺎﺏ و1 ﺎﺠﻴﺝ ﺖﻳ ﺎﺏ

ﺔﻌﺱ ةﺮآاذ ىﻮﺼﻗ 2 ﺎﺠﻴﺝ ﺖﻳﺎ ﺏ

ةﺪﺣو ةﺮآاذ DDR 2 ﺔﺝودﺰﻡ ﻘﻟاةﺎﻨ

ﻢﻋﺪﺗ ةﺮآاﺬﻟا ﻦﻡ عﻮﻥ DDR 2 تﺎﻌﺱ400/ 533 / 667 / 800

ﺎﺠﻴﻡ ﺖﻳ ﺎﺏ

Super I/O

ITE 8716F

ﺮﻓﻮﺗ ﺔﻔﻴﻇو Super I/O ﺮﺜآﻷا ًﺎ ﻡ اﺪﺨ ﺘ ﺱ ا.

ﺗﻢﻋ ﺪ ﺔﻴﻨﻘﺗ Low Pin Count Interface

ITE 8716F

ﺮﻓﻮﺗ ﺔﻔﻴﻇو Super I/O ﺜآﻷاﺮ ًﺎ ﻡ اﺪﺨ ﺘ ﺱ ا.

ﺗﻢﻋ ﺪ ﺔﻴﻨﻘﺗ Low Pin Count Interface

ﺔﻗﺎﻄﺏ تﺎﻡ ﻮﺱﺮﻟا

ﻰﺼﻗأ ﺔﻌﺱ ةﺮآاﺬﻟ ﻮﻳﺪﻴﻔﻟا ﺔآﺮﺘﺸﻤﻟا 256 ﺎﺠﻴﻡ ﺖﻳﺎ ﺏ

ﺔﺠﻡﺪﻡ ﻲﻓ ﻖﺋﺎ ﻗر MCP61V

ﻰﺼﻗأ ﺔﻌﺱ ةﺮآاﺬﻟ ﻮﻳﺪﻴﻔﻟا ﺔآﺮﺘﺸﻤﻟا 256 ﺎﺠﻴﻡ ﺖﻳﺎ ﺏ

ﺔﺠﻡﺪﻡ ﻲﻓ ﻖﺋﺎ ﻗر MCP61S

ﺬﻔﻨﻡ IDE

ﻢﻜﺤﺘﻡ IDE ﻞﻡﺎ ﻜﺘﻡ

ﺔ ﻴﻨﻘﺘ ﺏ ﻞﻗﺎﻥ Ultr a DMA 33 / 66 / 100 / 133

ﻊﺿو ﻲﺴ ﻴﺋ ر

ﻊﺿو ﻢﻋدPIO Mode 0~4

ﻢﻜﺤﺘﻡ IDE ﻞﻡﺎ ﻜﺘﻡ

ﺔ ﻴﻨﻘﺘ ﺏ ﻞﻗﺎﻥ Ultr a DMA 33 / 66 / 100 / 133

ﻊﺿو ﻲﺴ ﻴﺋ ر

ﻊﺿو ﻢﻋدPIO Mode 0~4

SATA II

ﻢﻜﺤﺘﻡ Serial ATA ﻞﻡﺎﻜﺘﻡ

ﻞﻘﻥ ت ﺎ ﻥﺎﻴﺒ ﻟا تﺎﻋﺮﺴﺏ ﻞﺼﺗ ﻰﻟإ 3 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎ ﺙ.

ﺔﻘﺏﺎﻄﻡ تﺎﻔ ﺹاﻮﻤﻟ SA TA راﺪﺹﻹا 2.0.

ﻢﻜﺤﺘﻡ Serial ATA ﻞﻡﺎﻜﺘﻡ

ﻞﻘﻥ ت ﺎ ﻥﺎﻴﺒ ﻟا تﺎﻋﺮﺴﺏ ﻞﺼﺗ ﻰﻟإ 3 ﺖﺏﺎﺠﻴﺝ/ﺔﻴﻥﺎ ﺙ.

ﺔﻘﺏﺎﻄﻡ تﺎﻔ ﺹاﻮﻤﻟ SA TA راﺪﺹﻹا 2.0.

ﺔﻜﺒﺵ ﺔﻴﻠﺥاد

Realt ek 8201CL PHY

ضوﺎﻔﺗ ﻲﺋﺎﻘﻠﺗ 10/100 ﺎﺠﻴﻡ ﺖﻳﺎﺏ /ﺎﺠﻴﺝﻮﻴﻥﺎﺙ ﺖﺏ/ﻲﻥ ﺎ ﺙ

Realt ek 8201CL PHY

ضوﺎﻔﺗ ﻲﺋﺎﻘﻠﺗ 10/100 ﺎﺠﻴﻡ ﺖﻳﺎﺏ /ﺎﺠﻴﺝﻮﻴﻥﺎﺙ ﺖﺏ/ﻲﻥ ﺎ ﺙ

ﻚﻳدﻮآ ﺼﻟاتﻮ

ALC861VD(VER 6.X) / ALC888(VER 5.X)

5. 1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼ ﻟ ا (VER 6.X)

7. 1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼ ﻟ ا (VER 5.X)

ﻢﻋﺪﺗ ﺔ ﻴﻨﻘ ﺗ تﻮﺼﻟا ﻲﻟﺎﻋ ﻒﻳﺮﻌﺘﻟا ﻦﻡ Intel

ALC861VD(VER 6.X) / ALC888(VER 5.X)

5. 1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼ ﻟ ا (VER 6.X)

7. 1 تاﻮﻨﻗ جﺮﺨﻟ تﻮﺼ ﻟ ا (VER 5.X)

ﻢﻋﺪﺗ ﺔ ﻴﻨﻘ ﺗ تﻮﺼﻟا ﻟﺎ ﻋﻲ ﻒﻳﺮﻌﺘﻟا ﻦﻡ Intel

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

51

NF61V Micro AM2 SE NF61S Micro AM2 SE

ﺔﺤﺘ ﻓPCI دﺪﻋ2 ﺔﺤﺘﻓPCI دﺪﻋ2

(x1) ﺔﺤﺘﻓx16 P CI Express دﺪﻋ1 (x8) ﺔﺤﺘﻓx16 P CI Expre ss دﺪﻋ1

تﺎ ﺤﺘﻔ ﻟا

ﺔﺤﺘ ﻓPCI Express x 1 دﺪﻋ1 ﺔﺤﺘ ﻓPCI Express x 1 دﺪﻋ1

ﺔﻥﺮ ﻡ صاﺮﻗأ كﺮﺤﻡ ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻥﺮ ﻡ صاﺮﻗأ كﺮﺤﻡ ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻔﻨﻡIDE دﺪﻋ1 ﺬﻔﻨﻡIDE دﺪﻋ1
ﺬﻔﻨﻡSATA دﺪﻋ2 ﺬﻔﻨﻡSATA دﺪﻋ2

ﺔﻴ ﻡﺎ ﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻴ ﻡﺎ ﻡﻷا ﺔﺣﻮﻠﻟا ﺬﻔﻨﻡ دﺪﻋ1

ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1 ﻲﻡﺎﻡﻷا تﻮﺼﻟا ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻔﻨﻡCD-IN دﺪﻋ1 ﺬﻔﻨﻡCD-IN دﺪﻋ1

جﺮﺥ ﺬﻔﻨﻡS/PD IF دﺪﻋ1 جﺮﺥ ﺬﻔﻨﻡS/PDIF دﺪﻋ1

ﻞﺥد ﺬﻔﻨﻡS/PDIF) ير ﺎ ﻴﺘﺥا( دﺪﻋ1 ﻞﺥد ﺬﻔﻨﻡS/P DI F) ير ﺎ ﻴﺘﺥا( دﺪﻋ1

ﺔﻳﺰآﺮ ﻤﻟ ا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1 ﺔﻳﺰآﺮ ﻤﻟ ا ﺔﺠﻟﺎﻌﻤﻟا ةﺪﺣو ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1

مﺎﻈﻨﻟا ﺔﺣو ﺮ ﻡ ﺔﻠﺹو دﺪﻋ1 مﺎﻈﻨ ﻟا ﺔﺣوﺮﻡ ﺔﻠﺹو دﺪﻋ1

ﺢﺴﻡ ﺔﻠﺹوCMO S دﺪﻋ1 ﺢﺴﻡ ﺔﻠﺹوCMO S دﺪﻋ1

ﺬﻔﻨﻡUSB دﺪﻋ 2 ﺬﻔﻨﻡUSB دﺪﻋ2

ﺔﻌﺏﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1 ﺔﻌﺏﺎﻃ ﺬﻔﻨﻡ دﺪﻋ1

ﻞﻜﻴﻬﻟ ا ﺢﺘﻓ ﺔﻠﺹو)ير ﺎﻴﺘﺥا( دﺪﻋ1 ﻞﻜﻴ ﻬﻟ ا ﺢﺘﻓ ﺔﻠﺹو)ير ﺎﻴﺘﺥا( دﺪﻋ1

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)24سﻮﺏد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)24سﻮﺏد( دﺪﻋ1

ﺬﻓﺎﻨﻤﻟا ﻰﻠﻋ ﺢﻄﺱ

ﺔﺣﻮﻠﻟا

ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)4ﺲﻴﺏﺎ ﺏد( دﺪﻋ1 ﺔﻗﺎﻄﻟا ﻞﻴﺹﻮﺗ ﺬﻔﻨﻡ)4ﺲ ﻴﺏﺎﺏد( ﺪﻋ د1

ﺬﻓﺎﻨﻡ ﻞﺥد/جﺮﺥ ﺔ ﺣﻮﻠﻟا

ﺔﻴﻔﻠﺨﻟا

ﺢﻴﺗﺎﻔﻡ ﺔﺣﻮ ﻟPS/2 دﺪﻋ1

سوﺎﻡ PS/2 دﺪﻋ1

ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻔﻨﻡV GA دﺪﻋ1

ﺔﻴﻠ ﺤﻡ لﺎ ﺼ ﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻓﺎﻨ ﻡUSB دﺪﻋ4
تﻮﺹ ﺲﺒﻘﻡ(Ve r 6. x) دﺪﻋ3
تﻮﺹ ﺲﺒﻘﻡ(Ve r 5. x) دﺪﻋ6

ﺢﻴﺗﺎﻔﻡ ﺔﺣﻮ ﻟPS/2 دﺪﻋ1

سوﺎﻡ PS/2 دﺪﻋ1

ﻲﻠﺴﻠﺴﺗ ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻔﻨﻡV GA دﺪﻋ1

ﺔﻴﻠ ﺤﻡ لﺎ ﺼ ﺗا ﺔﻜﺒﺵ ﺬﻔﻨﻡ دﺪﻋ1

ﺬﻓﺎﻨ ﻡUSB دﺪﻋ4
تﻮﺹ ﺲﺒﻘﻡ(Ve r 6. x) دﺪﻋ3
تﻮﺹ ﺲﺒﻘﻡ(Ve r 5. x) دﺪﻋ6

ﺎﻳاﺰﻡ ﺔﺹﺎﺥ

NVIDIA nTunes

ﺔ ﻴﻨﻘﺗ ﻢﻋ ﺪ ﺗ RAID 0 / 1

NVIDIA nTunes

ﺔ ﻴﻨﻘﺗ ﻢﻋ ﺪ ﺗ RAID 0 / 1

ﻢﺠﺣ ﺔﺣﻮﻠﻟا 207 ﻢﻡ)ضﺮﻋ (X 244 ﻢﻡ)عﺎ ﻔ ﺗر ا( 207 ﻢﻡ)ضﺮﻋ (X 244 ﻢﻡ)عﺎ ﻔ ﺗر ا(

ﻢﻋد ﺔﻤﻈﻥأ ﻞﻴﻐﺸﺘﻟا

Wi ndows 2000 / XP / VISTA

ﻆﻔﺘﺤﺗ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓﺎﺿإ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻥ ﻞﻴﻐﺸﺗ رﺎ ﻄﺥﺈﺏ

وأ نوﺪﺏ رﺎ ﻄﺥ إ

Wi ndows 2000 / XP / VISTA

ﻆﻔﺘﺤﺗ Biostar ﺎﻬﻘﺤﺏ ﻲﻓ ﺔﻓﺎﺿإ وأ ﺔﻟازإ ﻢﻋﺪﻟا يﻷ مﺎﻈﻥ ﻞﻴﻐﺸﺗ رﺎ ﻄﺥﺈﺏ

وأ نوﺪﺏ رﺎ ﻄﺥ إ

All manuals and user guides at all-guides.com

Motherboard Manual

52

JAPANESE

NF61V Micro AM2 S E NF 61S Micro AM2 SE

CPU

Socket AM2

AM D Athlon 64 / At hlon 64 FX / Athlon 64 x2/

Sempron プロセッ サ

ハイ パートラン スポートと クールアン ドクワイア ット

をサ ポートしま す

Socket AM2

AM D Athlon 64 / At hlon 64 FX / Athlon 64 x2/

Sempron プロセッ サ

ハイ パートラン スポートと クールアン ドクワイア ット

をサ ポートしま す

FSB

1 GHzの バンド幅ま でハイパー トランスポ ートをサポ

ート します

1 GHzの バンド幅ま でハイパー トランスポ ートをサポ

ート します

チッ プセット MC P61V ( GeForce 61 00- 400) MC P61S ( GeForce 61 00- 405)

メイ ンメモリ

DDR2 DI MMス ロット x 2

各DIMMは 256/512MB & 1GB DDR2をサポート

最大 メモリ容量 2GB

デュ アル チャンネ ルモード DDR2メモリモ ジュール

DDR2 400 / 533 / 667 / 800をサポ ート

DDR2 DI MMス ロット x 2

各DIMMは 256/512MB & 1GB DDR2をサポート

最大 メモリ容量 2GB

デュ アル チャンネ ルモード DDR2メモリモ ジュール

DDR2 400 / 533 / 667 / 800をサポ ート

Super I/O

ITE 8716F

もっ とも一般に 使用される レガシー Super I/O機能を

採用 しています 。

低ピ ンカウント インターフ ェイス

ITE 8716F

もっ とも一般に 使用される レガシー Super I/O機能を

採用 しています 。

低ピ ンカウント インターフ ェイス

グラ フィックス MCP61Vチップセット に統合

最大 の共有ビデ オメモリは 256MBです

MCP61Sチップセット に統合

最大 の共有ビデ オメモリは 256MBです

IDE

統合 IDEコン トローラ

Ultra DMA 33 / 66 / 100 / 133バスマスタモー ド

PIO Mode 0~4の サポート、

統合 IDEコン トローラ

Ultra DMA 33 / 66 / 100 / 133バスマスタモー ド

PIO Mode 0~4の サポート、

SA TA II

統合 シリアルATAコントローラ

最高 3 Gb/秒のデータ転 送速度

SA TAバージョン 2. 0 仕様に準拠 。

統合 シリアルATAコントローラ

最高 3 Gb/秒のデータ転 送速度

SA TAバージョン 2. 0 仕様に準拠 。

LAN

Realt ek 8201CL PHY

10 / 100 Mb/秒のオート ネゴシエー ション

Realt ek 8201CL PHY

10 / 100 Mb/秒のオート ネゴシエー ション

サウ ンド

Codec

ALC861VD(VER 6.X) / ALC888(VER 5.X)

5. 1チ ャンネルオ ーディオア ウト (V ER 6.X )

7. 1チ ャンネルオ ーディオア ウト (V ER 5.X )

Intelハイデフィニ ションオー ディオのサポート

ALC861VD(VER 6.X) / ALC888(VER 5.X)

5. 1チ ャンネルオ ーディオア ウト (V ER 6.X )

7. 1チ ャンネルオ ーディオア ウト (V ER 5.X )

Intelハイデフィニ ションオー ディオのサポート

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE/NF61S Micro AM2 SE

53

NF61V Micro AM2 S E NF 61S Micro AM2 SE

PCIスロット x2 PCIスロット x2

PCI Express x16スロット (x1) x1 PCI Express x16スロット (x 8 ) x 1

スロ ット

PCI Express x 1スロット x1 PCI Express x 1スロット x1

フロ ッピーコネ クタ x1 フロ ッピーコネクタ x1

IDEコネクタ x1 IDEコネクタ x1

SA TAコネクタ x2 SATAコ ネクタ x2

フロ ントパネル コネクタ x1 フロントパネル コネクタ x1

フロ ントオーデ ィオコネク タ x1 フロ ントオーデ ィオコネク タ x1

CDインコネクタ x1 CDインコネク タ x1

S/PDIFア ウトコネク タ x1 S/PDIFアウトコネク タ x1

S/PDIFイ ンコネクタ (オプシ ョン ) x 1 S / P D IFイ ンコネクタ (オプシ ョン ) x 1

CPUファ ンヘッダ x1 CPUファ ンヘッダ x1

シス テムファン ヘッダ x1 シス テムファン ヘッダ x1

CMOSクリアヘッ ダ x1 CMOSクリアヘッ ダ x1

USBコネクタ x2 USBコネクタ x2

プリ ンタポート コネクタ x1 プリンタポート コネクタ x1

シャ ーシオープ ンヘッダ (オプション ) x 1 シャ ーシオープ ンヘッダ (オプション ) x 1

電源 コネクタ (24ピン ) x1 電源 コネクタ (24ピン ) x1

オン ボードコ

ネク タ

電源 コネクタ (4ピン ) x1 電源 コネクタ (4ピン ) x1

背面 パネル

I/O

PS/2キー ボード x1

PS/2マウ ス x1

シリ アルポート x1

VGAポート x1

LANポート x1

USBポート x4

オー ディオジャ ック (V e r 6. x) x 3

オー ディオジャ ック (V e r 5. x) x 6

PS/2キー ボード x1

PS/2マウ ス x1

シリ アルポート x1

VGAポート x1

LANポート x1

USBポート x4

オー ディオジャ ック (V e r 6. x) x 3

オー ディオジャ ック (V e r 5. x) x 6

ボー ドサイズ 207 mm (幅) X 244 mm (高さ ) 207 mm (幅) X 244 mm (高さ)

特殊 機能

NVIDIA nTunes

RAID 0 / 1 の サポート

NVIDIA nTunes

RAID 0 / 1 の サポート

OSサポート

Wi ndows 2000 / XP / VISTA

Biostarは事前 のサポート なしにOSサポートを 追加ま

たは 削除する権 利を留保し ます。

Wi ndows 2000 / XP / VISTA

Biostarは事前 のサポート なしにOSサポートを 追加ま

たは 削除する権 利を留保し ます。

2006/10/30

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

1

Table of Contents

BIOS Setup.................................................................................................2

1 Main Menu...............................................................................................4

2 Standard CMOS Features......................................................................7

3 Advanced BIOS Features .......................................................................9

4 Advanced Chipset Features..................................................................15

5 Integrated Peripherals..........................................................................17

6 Power Management Setup....................................................................23

7 PnP/PCI Configurations.......................................................................27

8 PC Health Status...................................................................................29

9 Performance Booster Zone...................................................................31

All manuals and user guides at all-guides.com

all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

2

BIOS Setup

Introduction

The purpose of this manual is to describe the settings in the Award™ BIOS
Setup program on this motherboard. The Setup program allows users to modify

the basic system configuration and save these settings to CMOS RAM. The
power of CMOS RAM is supplied by a battery so that it retains the Setup

information when the power is turned off.
Basic Input-Output System (BIOS) determines what a computer can do without

accessing programs from a disk. This system controls most of the input and
output devices such as keyboard, mouse, serial ports and disk drives. BIOS

activates at the first s tage o f the boot ing process, l oading and executing t he
operating system. Some additional features, such as virus and password

protection or chipset fine-tuning options are also included in BIOS.
The rest of this manual will to guide you through the options and settings in

BIOS Setup.

Plug and Pla y Support

This AWARD BIOS supports the Plug and Play Version 1.0A specifi cation and
ESCD (Extended System Configuration Data) write.

EPA Green PC Support

This AWARD BIOS supports Version 1.03 of the EPA Green PC specification.

APM Support

This AWARD BIOS supports Version 1.1&1.2 of the Advanced Power
Management (APM) speci fi cation. Power management features are

implemented via the System Management Interrupt (SMI). Sleep and Suspend
power management modes are supported. Power to the hard disk drives and

video monitors can also be managed by this AWARD BIOS.

ACP I Support

Award ACPI BIOS support Version 1.0 of Advanced Configuration and Power
interface speci fication (ACPI). It provides ASL code for power management

and device configuration capabilities as defined in the ACPI specifi cation,
developed by Microso ft, Intel and Toshiba.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

3

PCI Bus S upp ort

This AWARD BIOS also supports Version 2.1 of the Intel PCI (Peripheral
Component Interconnect) local bus specification.

DRAM S upport

DDR SDRAM (Double Data Rate Synchronous DRAM) is supported.

Supported CPUs

This AWARD BIOS supports the AMD CPU.

Using Setup

Use the arrow keys to highlight it ems in most of the place, press <Enter> to
select, use the <PgUp> and <PgDn> keys to change entries, press <F1> for help

and press <Esc> to quit. T he following table provides more detail about how to
navigate in the Setup program by using the keyboard.

Keystroke Function

Up arr ow M ove to pre vio us it em
Down arro w M ove to next ite m
Left arr o w Move to the ite m on th e left (me nu b ar )
Rig ht arr ow Move to th e ite m on th e ri g ht ( me nu bar)
Move E nter M ove to the item you desire d
Pg Up ke y Incr eas e the nu meric val ue or m a ke c hang es
Pg Dn ke y Decrease th e num eric value or make ch ang es
+ Ke y Incr eas e t he nu mer ic val ue or m a ke c ha ng es

- Ke y Decr ease th e n umer ic value or make chang es
Esc key M ain Menu – Quit and not s ave c ha nges i nt o CMOS

Stat us P ag e S etup Menu an d Op tion Pag e Set up M en u – Exit

Current page a nd r eturn to M ain Me nu
F1 key General help on Setup navigation keys
F5 key Load pr e vious val u es fr o m CMOS
F7 ke y Loa d t he opti miz e d d efa ul ts
F10 key Sa ve all th e CM OS c hang es and e xit

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

4

1 Main Menu

Once you enter Award BIOS™ CMOS Setup Utility, the Main Menu will
appear on the screen. T he Main Menu allows you to select from several setup

fun ctions. Use the arrow keys to select among the items and press <Enter> to
accept and enter the sub-menu.

 Figu re 1: Main Menu

Standard CMOS Features

This submenu contains industry standard configurable options.

Advanced BIOS Features

This submenu allows you to configure advanced features of the BIOS.

!! WARNING !!

For better system performance, the BIOS firmware is being
continuously updated. The BIOS information described in

this manual (Fi g u re 1, 2, 3, 4, 5, 6, 7, 8, 9 ) is for your
reference only. T he actual BIOS information and settings on

board may be slightly different from this manual.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

5

Advanced Chipset Features

This submenu allows you to configure special chipset features.

Integrated Peripherals

This submenu allows you to configure certain IDE hard drive options and
Programmed Input/ Output features.

Power Management Setup

This submenu allows you to configure the power management features.

PnP/PCI Configurations

This submenu allows you to configure cert ain “ Plug and Play” and PCI options.

PC Health Status

This submenu allows you to monitor the hardware of your system.

Performance Booster Zone

This submenu allows you to change CPU Vcore Voltage and CPU/PCI clock.
(However, we suggest you to use the default setting. Changing the voltage and

clock improperly may damage the CPU or M/B!)

Load Optimized Defaults

This selection allows you to reload the BIOS when problem occurs during
system booting sequence. These configurations are factory settings optimized

for this system. A confirmation message will be displayed before defaults are
set.

Set Supervisor Password

Setting the supervisor password will prohibit everyone except the supervisor
from making changes using the CMOS Setup Utility. You will be prompted with

to enter a password.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

6

Set User Password

If the Supervisor Password is not set, then the User Password will function in
the same way as the Supervisor Password. I f the Supervisor Password is set and

the User Password is set, the “User” will only be able to view configurations but
will not be able to change them.

Save & Exit Setup

Save all configuration changes to CMOS (memory) and exit setup. Confirmation
message will be displayed before proceeding.

Exit Without Sa ving

Abandon all changes made during the current session and exit setup.
Confirmation message will be displayed before proceeding.

Upgrade BIOS

This submenu allows you to upgrade bios.

All manuals and user guides at all-guides.com

all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

7

2 Standard CMOS Features

The items in Standard CMOS Setup Menu are divided into several categories.
Each category includes no, one or more than one setup items. Use the arrow

keys to highlight the item and then use the<PgUp> or <PgDn> keys to select the
value you want in each item.

 Figure 2: Standard CMOS Setup

Main Men u Selections

This table shows the items and the available options on the Main Menu.

Item Options Description

Date mm : dd : yy

Set the system date. Note
that the ‘Day ’ automatically
changes when you set the

date.

Time hh : mm : ss

Set the system internal
clock.

IDE Channel 0 Master

Options are in its sub

menu.

Press <Enter> to enter the
sub menu of detailed

options

IDE Channel 0 Slav e

Options are in its sub

menu.

Press <Enter> to enter the
sub menu of detailed

options.

Drive A 360K, 5.25 in Select the ty pe of f loppy

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

8

Item Options Description

Drive B 1.2M, 5. 25 in

720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in

None

disk drive installed in your
sy stem.

Video

EGA/VGA

CGA 40

CGA 80

MON O

Select the default v ideo
dev ice.

Halt On

All Errors

No Errors

All, but Key board

All, but Diskette

All, but Disk/ Key

Select the situation in which
y ou want the BIOS t o stop

the POST process and
notify y ou.

Base Memory N/A

Displays the amount of
conventional memory
detected during boot up.

Extended Memory N /A

Displays the amount of
extended memory detected
during boot up.

Tot a l Mem ory N / A

Displays the total memory
av ailable in the system.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

9

3 Advanced BIOS Features

 Figure 3: Advanced BIOS Setup

Cache Setup

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

10

CPU Internal Cache

Depending on the CPU/chipset in use, you may be able to increase memory
access time with this option.

Enabl ed (default) Enable cache.

Disabled Di sable cache.

External Cache

This option enables or disables “Level 2” secondary cach e on the CPU, which
may improve performance.

Enabl ed (defau lt) Enable cache.

Disabled Di sable cache.

Boot Seq & Floppy Setup

This item allows you to setup boot sequence & Floppy.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

11

Remov able Device Priority

Select Removable Boot Device Priority.

The Choi ces: Floppy Disks, Zip100, USB-FDD0, USB-FDD1, USB-ZIP0,
USB-ZIP1, LS120.

Hard Disk Boot Priority

The BIOS will attempt to arrange the Hard Disk boot sequence
automatically.You can change the Hard Disk booting sequence here.

The Choices: Pri. Master, Pri. Slave, Sec. Master, Sec. Slave, USB HDD0,
USB HDD1, USB HDD2, and Bootable Add-in Cards.

All manuals and user guides at all-guides.com

all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

12

CD-ROM Boot Priority

TheChoi ces: Pri. Master, Pri. Slave, S ec. Mast er, Sec. S l ave, USB-CDROM0,
USB-CDROM1.

First/Second/Third Boot Dev ice

The BIOS will attempt to load the operating system in this order.

The Choices: Removable, Hard Disk, CDROM, Legacy LAN, Disabled.

Boot Other Dev ice

When enabled, BIOS will try to load the operating system from other device
when it failed to load from the three devices above.

The Choices: Enabled (default), Disabled

Swap Floppy Drive

For systems with two floppy drives, this option allows you to swap logical
drive assignments.

The Choices: Disabled (d efault), Enabled.

Boot Up Floppy Seek

When enabled, System will test the floppy drives to determine if they have 40
or 80 tracks during boot up. Disabling this option reduces the time it takes to

boot-up.

The Choices: Enabled (defau lt), Disabl ed .

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

13

Virus Warning

This option allows you to choose the VIRUS Warning feature that is used to
protect the IDE Hard Disk boot sector. If this function is enabled and an attempt

is made to write to the boot sector, BIOS will display a warning message on the
screen and sound an alarm beep.

Disabled (default) Virus protection is disabled.
Enabled Virus protecti on is activated.

Quick Power On Self Test

Enabling this option will cause an abridged version of the Power On Self-Test
(POST ) to execute after you power up the computer.

Disabled Normal POST.
Enabled (default) Enable quick P OST .

Boot Up NumLock Status

Selects the NumLock S tate after t he syst em switched on.

The Choi ces:
On (default) Numpad is number keys.

Off Numpad is arrow keys.

Gate A20 Option

Select if chipset or keyboard controlle r should control Gate A20.

The Choi ces:

Normal A pin in the keyboard controller controls GateA20.
Fast (default) Lets chipset control Gate A20.

Typematic Rate Setting

When a key is held down, the keystroke will repeat at a rate determined by the
keyboard controller. When enabled, the typematic rate and typematic delay can

be configured.
The Choi ces: Disab led (default), Enabled.

Typematic Rate (Chars/Sec)

Sets the rate at which a keystroke is repeated when you hold the key down.
The Choi ces: 6 (default ), 8, 10, 12, 15, 20, 24, 30.

Typematic Delay (Msec)

Sets the delay time after the key is held down before it begins to repeat the
keystroke.

The Choi ces: 250 (default ), 500, 750, 1000.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

14

Security Option

This option will enable only individuals with passwords to bring the system
online and/or to use the CMOS Setup Utility.

System: A password is required fo r the system to boot and is also
required to access the Setup Utility.

Setup (default): A password is requi red to access t he Setup Utility only.
This will only apply if passwords are set from the Setup main menu.

APIC MOD E

Selecting Enabled enables APIC device mode reporting from the BIOS to the
operating system.

The Choi ces: Enabled (default), Disabled.

MPS Version Control For OS

The BIOS supports version 1.1 and 1.4 of the Intel multiprocessor specification.
Select version supported by the operation system running on this computer.

The Choi ces: 1. 4 (default), 1.1.

OS Select For DRAM > 64MB

A choice other than Non-OS2 is only used fo r OS2 systems with memory
exceeding 64MB.

The Choi ces: Non-OS2 (default), OS 2.

Full Screen Logo Show

The Choi ces: Disabled, Enabled(default).

Small Logo(EPA) Show

This item allows you to select whether the “Small Logo” shows. Enabled
(default) “ Small Logo” shows when system boots up. Disabled No “Small

Logo” shows when system boots
The Choi ces: Enabled (default), Disabled

Summary Screen Show

This item allows you to enable/disable the summary screen. Summary screen
means system configuration and PCI device listing.

The Choi ces: Disab led (default), Enabled.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

15

4 Advanced Chipset Features

T his submenu al lows you to configure the speci fic fe at ures o f the chi pset
installed on your system. This chipset manage bus speeds and access to system

memory resources, such as DRAM. It also coordinates communications with the
PCI bus. The default settings that came with your system have been optimized

and therefore should not be changed unless you are suspicious that the settings
have been changed incorrectly.

 Figure 4: Advanced Chipset Setup

Frame Buffer Size

This item allows you to choose the frame buffer size of on-chip VGA.
The Choi ces: 64MB (default), 16MB, 32MB,128MB,256MB,Disabled.

GP U Bank Filp

The Choi ces: Disab led (default), Enabled.

K8<->NB HT Speed

This item allows you to select the K8<->NB HT Speed.
The Choi ces: Au to (default), 1x, 2x, 3x, 4x, 5x.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

16

K8<->NB HT Width

This item allows you to select the K8<->NB HT Width
The Choi ces:,Auto (default), [↓8 ↑8], [↓16 ↑16].

SATA /PCIE Spread Spectrum

This item allows you to enable/disable the Spread Spectrum function.
The Choi ces: Disab led (default), Enabled.

HT Spread Spectrum

This item allows you to select HT Spread Spectrum function.
The choices: Disab led (default), Center, Down.

SSE/SSE2 instruction

This item allows you to enable/disable SSE/SSE2 instruction.
The Choi ces: Enabled (default), Disabled.

System BIOS Cacheable

Selecting the “ Enabled” option allows caching of the system B IOS ROM at
F0000h-FFFFFh, which is able to improve the system perfo rmance. However,

any programs that attempts to write to this memory block will cause conflicts
and result in system errors.

The Choi ces: Disab led (default), Enabled.

All manuals and user guides at all-guides.com

all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

17

5 Integrated Peripherals

 Figu re 5. Integrated Peripherals

IDE Function Setu p

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

18

RAID Config

RAID Enable

Thi s op tion allo ws yo u to en able or d is abl e RA ID fun ct io n .

The Choices: Disabled (d efault), Enabled.

SATA 1/2 Primary/Secondary RAID

This option allows you to enable or disable SATA A Primary/Secondary RAID.

The Choices: Disabled (d efault), Enabled.

On-chip IDE Channel 0

The motherboard chipset contains a PCI IDE interface wit h support for two
IDE channels. Select “ Enabled” to activate the first and/or second IDE interface.

Select “Disabled” to deactivate an interface if you are going to install a primary
and/or secondary add-in IDE int erface.

The Choices: Enabled (defau lt), Disabl ed .

Primary Master/Slave PIO

The IDE PIO (Programmed Input / Output) fields let you set a PIO mode (0-4)
for each of the IDE devices that the onboard IDE interface supports. Modes 0

to 4 will increase performance progressively. In Auto mode, the system
automatically determines the best mode for each device.

The Choices: Auto (default), Mode0, Mode1, Mode2, Mode3, Mode4.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

19

Primary Master/Slave UDMA

Ultra DMA function can be implemented if it is supported by the IDE hard
drives in your system. As well, your operating environment requires a DMA

driver (Windows 95 or OSR2may need a third party IDE bus master driver). If
your hard drive and your system software both support Ultra DMA, select Auto
to enable BIOS support.

The Choices: Auto (defau lt), Disabl ed .

IDE DMA Transfer Access

This item allows you to enab le or disable the ID E DMA trans fer access .

The Choices: Enabled (defau lt), Disabl ed .

Serial-ATA Controller

Enables support for Serial-ATA controller.

The Choices: All Enabled (default), Disabled,SATA-1,SATA-2

IDE Prefetch Mode

The “ onboard ” IDE drive int erfaces suppo rts IDE prefetch function for faster
drive access. If the interface on your drive does not support prefetching, or i f

you install a primary and/or secondary add-in IDE interface, set this option to
“Disabled”.

The Choices: Enabled (defau lt), Disabl ed .

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

20

Onboard Device

USB M e mory Type

The item allows you select the type of USB Memory.

The Choices: SHADOW (default), Base Memory(640 K).

USB Keyboard/ Storage Support

This item allows you to support the USB legacy devices.

The Choices: Enabl ed, Di sab l ed (default).

USB Mouse Support

This item allows you to enable or disable the USB Mouse Legacy Support.

Enabled Enable USB Mouse Support.

Dis abl ed (default ) Disable USB Mouse Support.

HD Audio

This item allows you to enable or disable to support HD Audio.

The Choices: Auto (defau lt), Disabled.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

21

MAC LAN

Thi s op tion allo ws yo u to con t rol th e onbo ard MAC L AN.

The Choices: Auto (defau lt), Disabled.

MAC Media Interface

This option allows you to control the onboard MAC Med ia Interface.

The Choices: Pin Strap (d efault), MII,RGMII

Onboard LAN Boot ROM

This item allows you to enable or disable the Onboard LAN Boot ROM.

The Choices: Disabled (d efault), Enabled.

Onboard I/O Address

Onboard FDC Controller

Select enabled if your system has a floppy disk controller (FDC) installed on
the system board and you wish to use it. If you installed another FDC or the
system uses no floppy drive, select disabled in this field.

The Choices: Enabled (defau lt), Disabl ed .

Onboard Serial Port 1

Select an address and corresponding interrupt for the first and second serial
ports.

The Choices: 3F8/IRQ4 (default), Disabled, 2F8/IRQ3, 3E8/IRQ4, 2E8/IRQ3,
Auto.

All manuals and user guides at all-guides.com

all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

22

Onboard Parallel Port

This item allows you to d etermine access onboard parallel port controller wi th
which I/O Address.

The Choices: 378/IRQ7 (default), 278/IRQ5, 3BC/IRQ7, Disabled.

Parallel Port Mode

This item allows you to determine how the parallel port should function. The
default value is SPP.

The Choices:

SPP (de fault) Using Parallel port as Standard P rinter Port.

EPP Using Parallel P ort as Enhanced Parallel Port.

ECP Using Parallel port as Extended Capabilities Port.

ECP+EPP Using Parallel port as ECP & EPP mode.

ECP Mode Use DMA

Select a DMA Channel for t he port.

The Choices: 3 (default), 1.

Onboard GPU

This item allows you to control the Onboard GPU.
The Choi ces: Au to (default), Always Enabl e.

Init Display First

With systems that have multiple video cards, this item determines whether the
primary display uses a PCI Slot or an AGP Slot.

The Choi ces: PCI-E xpress (default),PCI Slot, Onboard.

OnChip USB

This option should be enabled if your system has a USB installed on the system
board. You may need to disable this feature if you add a higher performance

controller.
The Choi ces: V1.1+ V2.0 (default), Disabled, V1.1

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple
sectors read / write. If your IDE hard drive supports block mode (most new

drives do), select Enabled for automatic detection of the optimal number of
block mode (most new drives do), select Enabled for automatic detection of the

optimal number of block read / write per sector where the drive can support.
The Choi ces: Enabled (default), Disabled.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

23

6 Power Management Setup

The Power Management Setup Menu allows you to configure your system to
utilize energy conservation and power up/power down features.

 Figu re 6. Power Man agement Setup

ACP I Function

This item displays the status of the Advanced Configuration and Power
Management (ACPI).

The Choi ces: Enabled (default), Disabled.

ACP I Suspen d Type

The item allows you to select the suspend type under the ACPI operating
system.

The Choi ces: S 1 (POS ) (default) Power on Suspend
S3 (ST R) Suspend to RAM

S1 & S3 POS+STR

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

24

Power Management

This category allows you to select the power saving method and is directly
related to the following modes:

1. HDD Power Down.

2. Suspend Mode.
There are three options of Power Management, three of which have fixed mode

settings

Min. Power Saving

Minimum power management.
Suspend Mode = 1 hr.

HDD Power Down = 15 min

Max. Power Saving

Maximum power management only available fo r sl CPU’s.
Suspend Mode = 1 min.

HDD Power Down = 1 min.
User Define (default)

Allow you to set each option individual ly.
When you choose user define, you can adjust each of the item from 1 min. to 1

hr. except fo r HDD Power Down which ranges from 1 min. to 15 min.

Video Off Method

This option determines the manner when the monitor goes blank.
V/H SYNC+Blank

This selection will cause the system to turn off the vertical and horizontal
synchronization ports and write blanks to the video buffer.

Blank S creen
This option only writes blanks to the video buffer.

DPMS (default )
Initial display power management signaling.

HDD P ow e r Down

When enabled, the hard-disk drives will power down after a set time of system
inactivity. All other devices remain active.

The Choi ces: Disab led (default), 1 Min, 2 Min, 3 Min, 4 Min, 5 Min, 6 Min, 7
Min, 8 Min, 9 Min, 10 Min, 11 Min, 12 Min, 13 Min, 14 Min, 15Min.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

25

Soft-Off by PWR-BTN

This item determines the behavior of system power button. Instant off turn o ff
the power immediately, and Delay 4 Sec. will require you to press and hold the

power button for 4 seconds to cut off the system power.
The Choi ces: Delay 4 Sec, Instant-Off (default).

WOL(PM E#)/ Fr om Soft-Off

This item allows you to enable or disable Wake On LAN from Soft-Off
fun ction.

The Choi ces: Disab led (default), Enabled.

WOR(RI#) Fr om Soft-Off

This item allows you to enable or disable Wake On Ring from Soft-Off function.
The Choi ces: Disab led (default), Enabled.

USB Resume from S3/S4

This item allows you to enable or disabled the USB device wake up from S3/S4
fun ction.

The Choices: Disabled (d efault), Enabled.

Power-On by Alarm

This function is for setting date and time for your computer to boot up. When
enabled, you can choose the date and time to boot up the system.

The Choi ces: Disab led (default), Enabled.

Date (of Month) Alarm
You can choose which month the system will boot up.

Time (hh:mm:ss) Alarm
You can choose the system boot up time, input hour, minute and second to

speci fy.
Note: If you have change the setting, you must let the system boot up until it

goes to the operating system, before this function will work.

HPET Support

The Choi ces: Enabled (default), Disabled.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

26

POWER O N Functio n

This item allows you to choose the power on method.
The Choi ces: Button On ly (default), Password, Hot Key, Mouse Move/Click,

Mouse Double Click, Any Key, Keyboard 98.

KB Power ON Password

Input password and press Enter to set the Keyboard power on password.

Hot Key Power ON

Choose the Hot Key combination to boot up the system.
The Choi ces: Ctrl -F1 (default), Ctrl-F 2, C trl-F 3, Ctrl-F4, Ctrl-F5, Ct rl-F6,

Ctrl-F7, Ctrl-F8, Ctrl-F9, Ctrl-F10, Ctrl-F 11, and C trl-F 12.

POW ER After PW R- Fail

This setting specifies how your system should behave aft er a power fail or
interrupts occurs. By choosing off will leave the computer in the power off state.

Choosing On will reboot the computer. Former-Sts will restore the system to the
status before power failure or interrupt occurs.

The Choi ces: Off (defaul t), On, Former-Sts.

All manuals and user guides at all-guides.com

all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

27

7 PnP/PCI Configurations

This section describes configu ring the PCI bus system. PCI, or Personal
Computer Interconnect, is a system which allows I/O devices to operate at

speeds nearing the speed o f the C P U it self uses when communicating with its
own special components. This section covers some very technical items and it is

strongly recommended that only experienced users should make any changes to
the default settings.

 Figure 7: PnP/PCI Configurations

Reset Configuration Data

The system BIOS supports the PnP fe ature which requires the system to record
which resources are assigned and protects resources from conflict.

Every periph eral device has a node, which is called ESCD. This node records
which resources are assigned to it. The system needs to record and update ESCD

to the memory locations. These locations are reserved in the system BIOS. If the
Disabled (default) option is chosen, the system‘s ESCD will update only when

the new configuration varies from the last one. If the Enabled option is chosen,
the system is forced to update ESCDs and then is automatically set to the

“ Disabled” mode.
The above settings will be shown on the screen only if “ Manual” is chosen for

the resources controlled by function.
Legacy is the term, which signifies that a resource is assigned to the ISA Bus

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

28

and provides non-PnP ISA add-on cards. PCI / ISA PnP signify that a resource
is assigned to the PCI Bus or provides for ISA PnP add-on cards and

peripherals.
The Choi ces: Disab led (default), Enabled.

Resources Controlled By

By Choosing “Auto(ESCD)” (default), the system BIOS wil l detect the system
resources and automatically assign the relat ive IRQ and DMA channel for each

peripheral. By Choosing “Manual”, the user will need to assign IRQ & DMA for
add-on cards. Be sure that there are no IRQ/DMA and I/O port conflicts.

Th e Choices: Auto (ESCD) (default), Manual.

IRQ Resources

This submenu will allow you to assign each system int errupt a type, depending
on the type of device using the interrupt. When you press the “Press Enter” tag,

you will be directed to a submenu that will allow you to configure the system
interrupts. This is only configurable when “ Resources Controlled By” is set to

“Manual”.
IRQ-5 assigned to PCI Device

IRQ-7 assigned to PCI Device
IRQ-9 assigned to PCI Device

IRQ-10 assigned to PCI Device
IRQ-11 assigned to PCI Device

IRQ-14 assigned to PCI Device
IRQ-15 assigned to PCI Device

PCI / V GA Palette Snoop

Some old graphic controllers need to “ snoop” on the VGA palette and then map
it to their display as a way to provide boot inform ation and VGA compatibility.

This item allows such snooping to take place.
The Choi ces: Disab led (default), Enabled.

Maximum Payload Size

Set the maximum payload size for T ransaction packet s (T LP).
The Choice: 4096 (default.), 128, 256, 512, 1024, 2048.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

29

8 PC Health Status

 Figure 8: PC Health Status

Shutdown Temperature

This item allows you to set up the CPU shutdown Temperature. This item is
only effective under Windows 98 ACPI mode.

The Choi ces: Disabled, 70℃/ 158℉ (defaul t), 65℃/ 149℉, 60℃/ 140℉.

Show H/W Mo nitor in POST

If you computer contains a monitoring system, it will show PC health status
during POST stage. The item offers several different delay times.

The Choi ces: Enabled (default), Disabled.

CPU FAN Control by

Choose “ smart” to reduce the noise caused by CPU FAN.
The Choi ces: Always On (default ), S m art.

SYS FAN Control by

Choose “ smart” to reduce the noise caused by the System FAN.
The Choi ces: Always On (default ), S m art.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

30

CPU Vcore, Chipset Volt,HT/ DDR Voltage, +3.3V, +5.0V,
+12.0V, 5V (SB), Voltage Battery

Detect the system’s voltage status automatically.

CPU Temp

T his field dis plays t he current temperatur e o f CPU.

Curr e nt CP U FAN Speed

This field displays the current speed of CPU fan.

Curr e nt S YS FAN Speed

This field displays the current speed SYSTEM fan.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

31

9 Performance Booster Zone

 Figu re 9: Perf ormance Boos ter Zone

CPU Spec Voltage

This item allows you to select CPU Spec Voltage .
The Choi ces: Au to (default).

Memory Spec Voltage

This item allows you to select memory Spec Voltage .
The Choices: 1.950v (default).

NPT Vid control

This function allows you to adjust the CPU voltage.
The Choi ces: Au to (default), 0.3875V ~ 1.725V (differs from CPU)

Memory Voltage

This item allows you to select memory Voltage.
The Choices: 1.950V (default), 2.000V, 2.050V, 2.100V.

All manuals and user guides at all-guides.com

all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

32

NPT Fid control

This function allows you to adjust the frequency ratio of CPU.
The Choi ces: Au to (default), x4: 800Mhz ~ x25: 5000Mhz

(differs from C PU)

CPU Frequency

This item allows you to select the CPU Frequency.
The Choi ces: 200 (default), 201~450.

PCIE Clock

The Choices: 100MHz (default), 101MHz ~ 150MHz

K8<->NB HT Speed

This item allows you to select the K8<->NB HT Speed.
The Choi ces: Au to (default), 1x, 2x, 3x, 4x, 5x.

Onboard GPU over clock

This item allows you to select the GPU over clock.
The Choi ces: 425 (default ).

Min= 100
Max= 1000
Key in a DEC number.

DRAM Configuration

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

33

Memory Timings

tCL(CAS Latency)

The Choices: Auto (default), 3 clock ~ 6 clock.

tRCD

The Choices: Auto (default), 3 clock ~ 6 clock.

tRP

The Choices: Auto (default), 3 clock ~ 6 clock.

tRAS

The Choices: Auto (default), 5 clock ~ 18 clock.

Command Per Clock (CMD)

The Choices: Auto (default), 1 clock ~ 2 clock.

tRRD

The Choices: Auto (default), 2 clock ~ 5 clock.

AsyncLat

The Choices: Auto ( d efaul t ), 1n s ~ 15ns .

tRC

The Choices: Auto (default), 11 clock ~ 26 clo ck.

tWR

The Choices: Auto (default), 3 clock ~ 6 clock.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

34

tRWT

The Choices: Auto (default), 2 clock ~ 9 clock.

tWTR

The Choices: Auto (default), 1 clock ~ 3 clock.

tREF

The Choices: Auto (default), 7.8 us, 3.9 us.

Read DQS Skew

The Choices: Auto (default), -10/96 clock ~ +10/96 clock.

Read delay from Rx FIFO

The Choices: Auto (default), 0.5 clock ~ 4.0 clock.

Trfc0 for DIMM0

The Choices: Auto ( d efaul t ), 75 ns , 105 ns, 127 .5n s, 195n s , 32 7.5ns .

Trfc2 for DIMM2

The Choices: Auto ( d efaul t ), 75 ns , 105 ns, 127 .5n s, 195n s , 32 7.5ns .

Drive Strength setting

Dram driver weak mode

The Choices: Auto (default), Normal, Weak.

CKE drive strength

The Choices: Auto (default), 1.0x, 1.25x, 1.5x, 2.0x.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

35

CS drive strength

The Choices: Auto (default), 1.0x, 1.25x, 1.5x, 2.0x.

MA drive strength

The Choices: Auto (default), 1.0x, 1.25x, 1.5x, 2.0x.

MCLK drive strength

The Choices: Auto (default), 0.75x, 1.0x, 1.25x, 1.50x.

MD drive strength

The Choices: Auto (default), 0.75x, 1.0x, 1.25x, 1.50x.

DQS drive strength

The Choices: Auto (default), 0.75x, 1.0x, 1.25x, 1.50x.

Dram on-die Terminator

The Choices: Auto (default), Disable, 75ohm, 150ohm, 50ohm.

Read/Write Queue bypass

The Choices: Auto (default), 2 times, 4 times, 8 times, 16 times.

Bypass Maximum

The Choices: Auto (default), No bypass, 1 time ~ 15 time.

32 Byte Granularity

The Choices: Auto (default), 64-byte, 32-byte.

Timing Mode

The Choices: Auto (default), MaxMemClk.

Memory Clock value or Limit

The Choices: DDR 400 (default), DDR 533, DDR 667, DDR 800.

DQS Training Control

The Choices: Skip DQ S (default), Perform DQ S.

CKE base power dow n mode

The Choices: Disabled (d efault), Enabled.

CKE base powerdow n

The Choices: Per Channel (default), Per CS.

Memclock tri-stating

The Choices: Disabled (d efault), Enabled.

All manuals and user guides at all-guides.com

NF61V Micro AM2 SE / NF61S Micro AM2 SE

BIOS Setup

36

Memory Hole Remapping

The Choices: Enabled (defau lt), Disabl ed .

Auto Optimize Bottom I O

The Choices: Enabled (defau lt), Disabl ed .

Bottom of [31:24] IO space

The Choices: Min=0000 Max=00FF; Key in a HEX number.

Bottom of UM A DRAM [31:24]

The Choices: Min=0000 Max=00FC; Key in a HEX number.

Special Notice:

If the system’s frequency that you are selected is not functioning, there are two methods
of booting-up the system.

Method 1:
Clear the COMS data by setting the JCOMS1 ((2-3) closed)) as “ON” status. All the

CMOS data will be loaded as defaults setting.
Method 2:

Press the <Insert> key and Power button simultaneously, after that keep-on pressing the
<Insert> key until the power-on screen showed.

This action will boot-up the system according t o FSB of the processor
It’s strongly recommended to set CPU Vcore and clock in default setting. If th e CPU

Vcore and clo ck are not in default setting, it may cause CPU or M/B damage.

All manuals and user guides at all-guides.com

all-guides.com
