Bg Radia R-500 Specifications
R-500
radia
S E R I E S
A r c h i t e c t u r a l L o u d s p e a k e r
T H E R A D I A S E R I E S

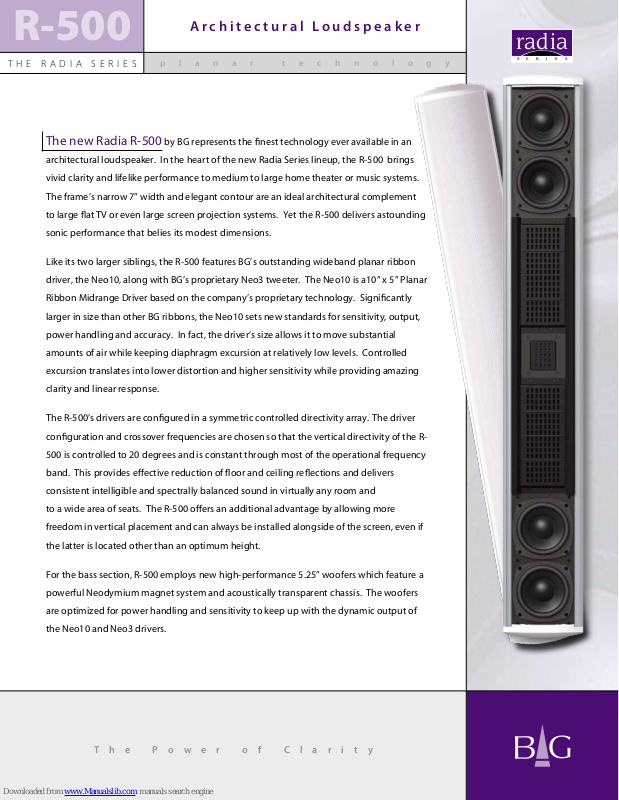

The new Radia R-500 by BG represents the finest technology ever available in an
architectural loudspeaker. In the heart of the new Radia Series lineup, the R-500 brings
vivid clarity and lifelike performance to medium to large home theater or music systems.
The frame’s narrow 7” width and elegant contour are an ideal architectural complement
to large flat TV or even large screen projection systems. Yet the R-500 delivers astounding
sonic performance that belies its modest dimensions.
Like its two larger siblings, the R-500 features BG’s outstanding wideband planar ribbon
driver, the Neo10, along with BG’s proprietary Neo3 tweeter. The Neo10 is a10” x 5” Planar
Ribbon Midrange Driver based on the company’s proprietary technology. Significantly
larger in size than other BG ribbons, the Neo10 sets new standards for sensitivity, output,
power handling and accuracy. In fact, the driver’s size allows it to move substantial
amounts of air while keeping diaphragm excursion at relatively low levels. Controlled
p l a n a r t e c h n o l o g y
excursion translates into lower distortion and higher sensitivity while providing amazing
clarity and linear response.
The R-500’s drivers are configured in a symmetric controlled directivity array. The driver
configuration and crossover frequencies are chosen so that the vertical directivity of the R-
500 is controlled to 20 degrees and is constant through most of the operational frequency
band. This provides effective reduction of floor and ceiling reflections and delivers
consistent intelligible and spectrally balanced sound in virtually any room and
to a wide area of seats. The R-500 offers an additional advantage by allowing more
freedom in vertical placement and can always be installed alongside of the screen, even if
the latter is located other than an optimum height.
For the bass section, R-500 employs new high-performance 5.25” woofers which feature a
powerful Neodymium magnet system and acoustically transparent chassis. The woofers
are optimized for power handling and sensitivity to keep up with the dynamic output of
the Neo10 and Neo3 drivers.
T h e P o w e r o f C l a r i t y
radia
S E R I E S
A r c h i t e c t u r a l L o u d s p e a k e r
R-500
R-500
p l a n a r t e c h n o l o g y
High performance Proprietary Neo10 Planar Ribbon Midrange Driver
›
Flexible placement Symmetric controlled directivity array for optimum dispersion
›
and flexibility of placement
High sensitivity and output Can be driven with moderate-sized amplifiers
›
Lifelike New high-performance woofers with Neodymium magnets and acoustically
›
transparent chassis. Optimized for use with Neo10 and Neo3 ribbons
G E N E R A L P A R A M E T E R S :
›
S y s t e m t y p e
S y s t e m d i m e n s i o n s
(H xW x In st al le d Gr il le H )
W e i g h t
W a l l c u t - o u t s i z e
Three-way, symmetrical, controlled directivity array
48 15/16” x 7 1/8” x 3/4” (124.2 x 17.8 x 1.9 cm)
29 lbs. (13 kg)
47” x 5 7/8” (119.4 x 15.2 cm)
T H E R A D I A S E R I E S
D r i v e r c o n f i g u r a t i o n
C r o s s o v e r 300 Hz, 2.2 kHz, Linkwitz-Riley second order on all low pass,
F r e q u e n c y r e s p o n s e 60 Hz – 20 kHz (-6 dB, half space)
S e n s i t i v i t y 91 dB/2.83V/1m
R a t e d i m p e d a n c e 8 ohms
P o w e r h a n d l i n g 300 W RMS
W a r r a n t y
1
4 x 5.25” long-throw Neodymium magnet woofers
2 x Neo10 Wideband Planar Drivers
1 x Neo3 Planar Ribbon Tweeter
rst order on all high pass for planar ribbon drivers
Lifetime to the original owner
The Radia R-500 is available through BG’s authorized network of specialty
custom retailers and integrators.
3535 Arrowhead Drive · Carson City, NV 89706 ·
phone:
internet:
© Copyrigh t 2006 BG Corp. All rights res erved. Products, features and spe cications sub ject to change without notice.
www.bgcorp.com ·
775-884-1900 ·
email:
sales@bgcorp.com
toll free:
888-8PLANAR (888-875-2627)
1. Please see BG warranty for complete details
01/06
