BECKHOFF C3620 User Manual

Installation- and Operating instructions for
Build-in Industrial PCs C3620, C3640
Version: 2.1 Date: 2014-11-19
Table of contents
1.
General instructions 3
Notes on the Documentation 3 Liability Conditions 3 Description of safety symbols 3 Basic safety measures 4 Operator's obligation to exercise diligence 5 Operator requirements 5
2.
Product Description 6
Appropriate Use 6 Structure of the C3620 6 Structure of the C3640 7 CD/DVD-Drive (optional) 7 Interfaces up to C3620/ C3640-0040 8
PS/2 connections 8 Parallel interface 8 Serial interfaces 8 VGA connection 8 USB interfaces 8 Network connection 8 Sound-On-Board 8 Additional plug-in cards (optional) 8
Interfaces from C3620/ C3640-0050 9
PS/2 connections 9 Serial interfaces 9 USB interfaces 9 Network connection 9 Sound-On-Board 9 DVI-I (Digital Visual Interface) 9 DVI-D (Digital Visual Interface) 9 DisplayPort 9 Additional plug-in cards (optional) 9
3.
Installation Instructions 10
Transport and Unpacking 10
Transport 10 Unpacking 10
Installation of the PC in the control cabinet 11
Earthing measures 11
Power Supply Connection 12
Power Supply Configuration 12 Pin assignment and cable requirements 13 Fitting the Power Supply Cable 14
Connecting devices 15
Connecting cables 15 Check voltage rating and connect. 15
4.
Operating Instructions 16
Switching the Industrial PC on and off 16
First switching on and driver installation 16
Maintenance 17
Cleaning the Industrial PC 17 Replacing the battery on the motherboard 17 Servicing 17 Replacing the fluorescent lamps in the display 17 Lamp sets 18
Shutting down 18
Disposal 18
C3620, C3640 1
Table of contents
5.
Troubleshooting 19
Fault correction 19 Service and Support 20
Beckhoff's branch offices and representatives 20 Beckhoff headquarters 20 Beckhoff Support 20 Beckhoff Service 20
6.
Assembly dimensions 21
Industrial PC C3620 21 Industrial PC C3640 22 Mounting Opening 23
7.
Appendix 24
Technical data 24 Approvals 24
FCC: Federal Communications Commission Radio Frequency Interference Statement 24 FCC: Canadian Notice 24
2 C3620, C3640
General instructions

General instructions

Notes on the Documentation

This description is only intended for the use of trained specialists in control and automation engineering who are familiar with the applicable national standards. It is essential that the following notes and explanations are followed when installing and commissioning these components.

Liability Conditions

The responsible staff must ensure that the application or use of the products described satisfy all the requirements for safety, including all the relevant laws, regulations, guidelines and standards.
The documentation has been prepared with care. The products described are, however, constantly under development. For that reason the documentation is not in every case checked for consistency with performance data, standards or other characteristics. None of the statements of this manual represents a guarantee (Garantie) in the meaning of § 443 BGB of the German Civil Code or a statement about the contractually expected fitness for a particular purpose in the meaning of
§ 434 par. 1 sentence 1 BGB. In the event that it contains technical or editorial errors, we retain the right to make alterations at any time and without warning. No claims for the modification of products that have already been supplied may be made on the basis of the data, diagrams and descriptions in this documentation.
© This documentation is copyrighted. Any reproduction or third party use of this publication, whether in whole or in part, without the written permission of Beckhoff Automation GmbH, is forbidden.

Description of safety symbols

i
Danger
Warning
Note
The following safety symbols are used in this operating manual. They are intended to alert the reader to the associated safety instructions.
This symbol is intended to highlight risks for the life or health of personnel.
This symbol is intended to highlight risks for equipment, materials or the environment.
This symbol indicates information that contributes to better understanding.
C3620, C3640 3
General instructions

Basic safety measures

Only switch the PC off after closing the software
Warning
Danger
Danger
Before the Industrial PC is switched off, software that is running must be properly closed.
Otherwise it is possible that data on the hard disk is lost. Please read the section Switching the Industrial PC on and off.
Switch off all parts of the equipment, then uncouple the fieldbus!
Before opening the housing of the PC, and whenever the PC is being used for purposes other than plant control, such as during functional tests following repair, all parts of the equipment must first be switched off, after which the Industrial PC can be uncoupled from the plant.
Pulling out the fieldbus connection plug uncouples the PC (optional).
Items of equipment that have been switched off must be secured against being switched on again.
Displays used for the PCs LC-display are operated with a voltage of up to 1000 V, depending on type. For that reason:
The supply voltage must be disconnected before the housing of the Control Panel is opened.
The Industrial PC’s power supply unit must be supplied with 100 V
- 240 VAC or 24VDC (optional).
AC
Do not open the power supply unit while voltage is applied!
The supply voltage must be switched off before the power supply unit housing is opened.
Do not exchange any parts when under power!
When components are being fitted or removed, the supply voltage must be switched off.
Fitting work on the Industrial PC can result in damage:
If metal objects such as screws or tools fall onto operating circuit boards.
If connecting cables internal to the PC are removed or inserted during operation.
If plug-in cards are removed or inserted when the PC is switched on.
4 C3620, C3640
General instructions

Operator's obligation to exercise diligence

National regulations depending on the machine type
Warning
Procedure in the event of a fault
The operator must ensure that
the Industrial PC is only used for its intended use (see also chapter
Product Description).
the Industrial PC is in a sound condition and in working order during operation.
the operation manual is in good condition and complete, and always available for reference at the location of the Industrial PC.
the Industrial PC is operated, maintained and repaired only by sufficiently qualified and authorized personnel.
the personnel is instructed regularly about relevant occupational safety and environmental protection aspects, and is familiar with the operating manual and in particular the safety notes contained herein.
none of the safety and warning notes attached to the Industrial PC are removed, and that all notes remain legible.
Depending on the type of machine and plant in which the Industrial PC is being used, there will be national regulations for the control of such machines and plant that the operator must observe. These regulations cover, amongst other things, the intervals between inspections of the controller.
The operator must initiate such inspections in good time.
Only trained persons may open the Industrial PC housing!
The operator is responsible for ensuring that only trained electrical staff opens the housing of the Industrial PC.
In the event of a fault in the Industrial PC, appropriate measures can be determined with the aid of the list in the Fault correction section.

Operator requirements

Read the operating instructions
Software knowledge
Every user of the Industrial PC must have read these operating instructions.
Every user must be familiar with any of the functions of the software installed on the PC that he can reach.
C3620, C3640 5
Product Description
A

Product Description

Appropriate Use

View of the open PC C3620
The C3620 and C3640 Industrial PCs are designed for mounting in control cabinets in machine and plant engineering applications.

Structure of the C3620

100-240 VAC­full range power supply
3½“ hard disk
12“ TFT-display
7-Slot-
TX motherboard
card holder
Slimline CD/ DVD­ROM-drive (optional)
Opening the housing
After loosening the two screws (see arrows) the front of the PC with TFT­display can be opened, thus providing access to the drive (optional), 3½“ hard disk, processor, memory and plug-in cards.
An ATX motherboard with seven slots for plug-in cards is located behind the removable card holder and the swivel-mounted power supply unit.
The connections of the Industrial PC to the outside are located on top of the housing.
6 C3620, C3640
Product Description
A

Structure of the C3640

View of the open PC C3640
Opening the housing
15“ TFT-display
7-Slot-
TX motherboard
card holders
Slimline CD/ DVD­ROM drive (optional)
100-240 VAC­full range power supplyl
3½“ hard disk
After loosening the two screws (see arrows) the front of the PC with TFT­display can be opened, thus providing access to the drive (optional), 3½“ hard disk, processor, memory and plug-in cards.
An ATX motherboard with seven slots for plug-in cards is located behind the removable card holder and the swivel-mounted power supply unit.
The connections of the Industrial PC to the outside are located on top of the housing.

CD/DVD-Drive (optional)

Configuration with CD/DVD-drive (optional)
Optional the Industrial PC is fitted with a CD/ DVD-drive. The drive is located at the rear side of the PC.
C3620, C3640 7
Product Description

Interfaces up to C3620/ C3640-0040

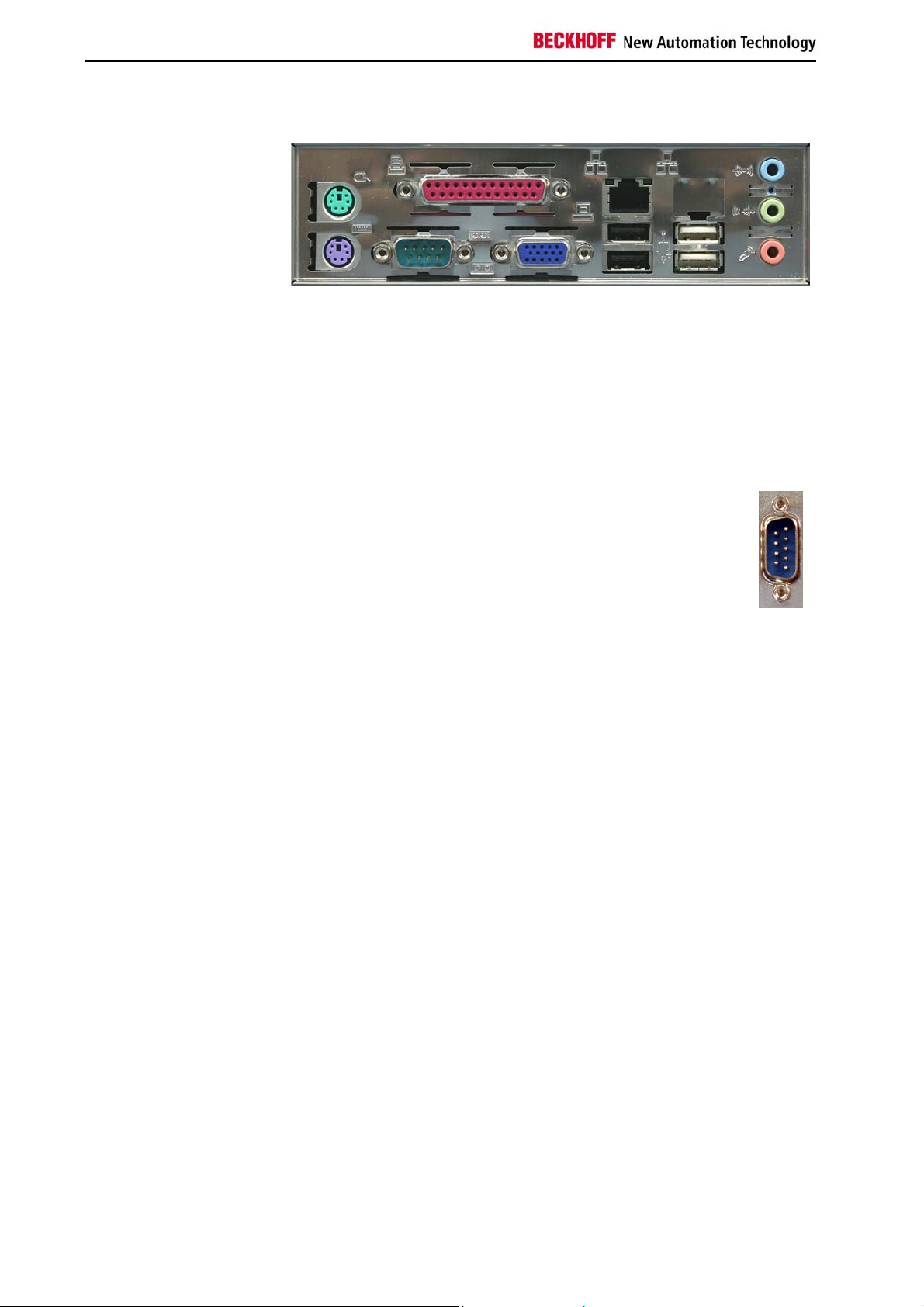

ATX motherboard interfaces
1
2

PS/2 connections

PS/2
The upper PS/2 connector (1) allows a PS/2 mouse to be used, while a PC keyboard can be connected to the lower PS/2 connector (2).

Parallel interface

Printer LPT1
The parallel interface (3) corresponds to the Centronics standard, and is addressed by the software as LPT1.

Serial interfaces

RS 232 COM1 – COM2
VGA
The basic version of the Industrial PC has two serial interfaces, COM1 (4) and COM2, using the type RS 232, which are each brought to a 9 pin SUB-D plug connector.
The interface COM2 is located in the upper part of the first slot right beside the ATX-slot.

VGA connection

A 15-pin SUB-D socket connector (5) allows a VGA monitor to be connected.

USB interfaces

USB1 – USB4
The four USB interfaces (6 - 9) are used to connect peripheral devices with USB connections. USB2.0 standard is supported.

Network connection

Network
The RJ-45 connector (10) allows the PC to be connected to a Local Area Network (LAN).

Sound-On-Board

Sound
The Industrial PC has a on-board-interface with the following connectors: Line In jack (11), Line Out jack (12) and Microphone jack (13).

Additional plug-in cards (optional)

Type plate
There is a type plate on the top of the Industrial PC which provides information about the hardware configuration of the Industrial PC at the time it was supplied.
3
4
5
10
6
79
8
11
12
13
COM2
8 C3620, C3640
Product Description

Interfaces from C3620/ C3640-0050

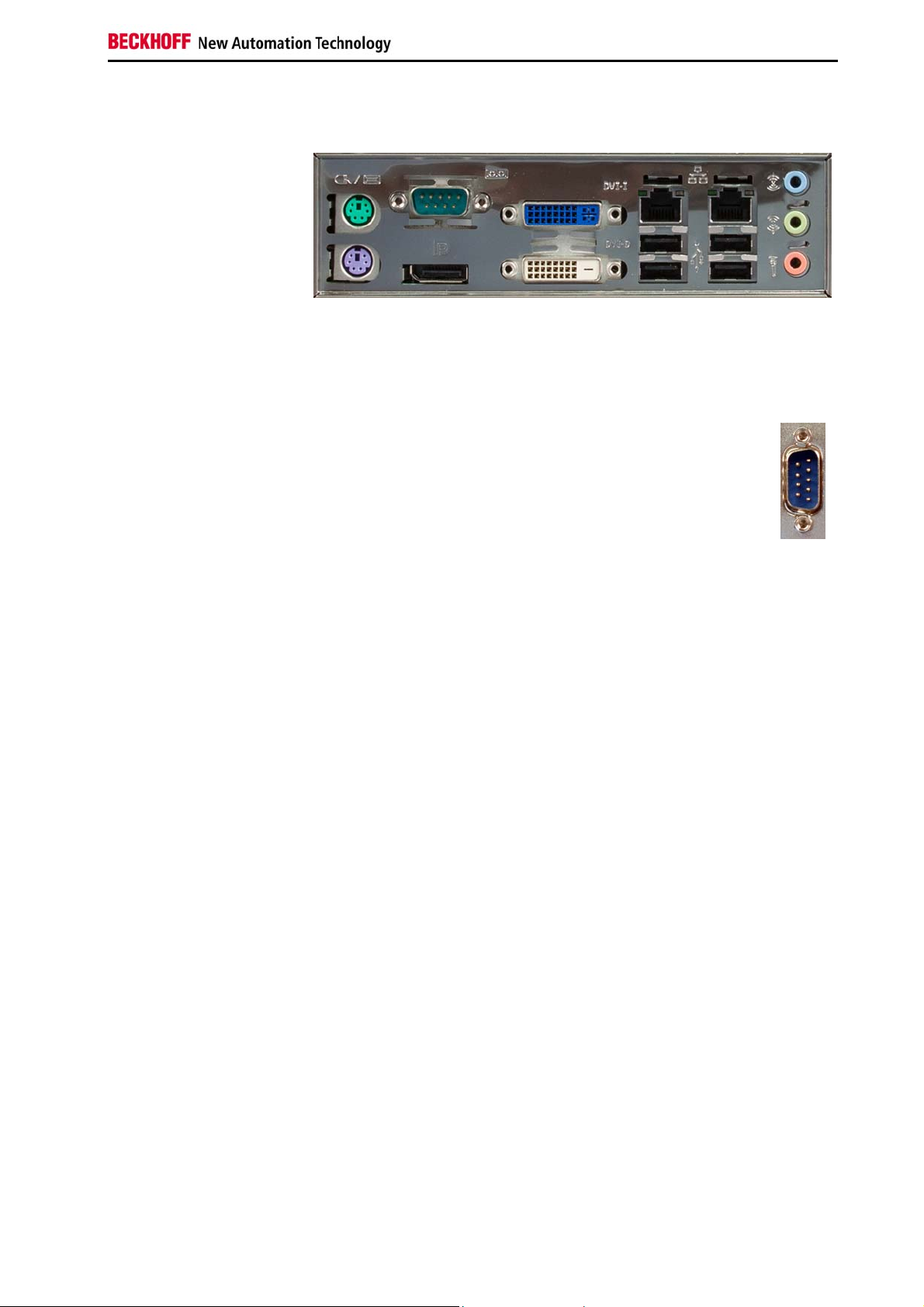

ATX motherboard interfaces
PS/2
RS 232 COM1 – COM2
USB1 – USB4
LAN1
LAN2
Sound
X116
X115
X114
X104
X103
X105
X119
X117
X112
X118 X109
X108
X113
X111
X110

PS/2 connections

The upper PS/2 connector (X104) allows a PS/2 mouse to be used, while a PC keyboard can be connected to the lower PS/2 connector (X103).

Serial interfaces

The basic version of the Industrial PC has two serial interfaces, COM1 (X105) and COM2, using the type RS 232, which are each brought to a 9 pin SUB-D plug connector.
The interface COM2 is located in the upper part of the first slot right beside the ATX-slot.
COM2

USB interfaces

The four USB interfaces (X108 – X111) are used to connect peripheral devices with USB 2.0 connections.

Network connection

The RJ-45 connector (X112) allows the PC to be connected to a 10/100/1000BASE-T Local Area Network (LAN). The RJ-45 connector (X113) allows the PC to be connected to a 10/100/1000BASE-T Local Area Network (LAN).

Sound-On-Board

The Industrial PC has a on-board-interface with the following connectors: Line In (X116), Line Out (X115) and Microphone jack (X114).

DVI-I (Digital Visual Interface)

DVI-I out
The DVI connection (X117) is used for transferring the video signal. DVI-I standard is supported.

DVI-D (Digital Visual Interface)

DVI-D out
The DVI connection (X118) is used for transferring the video signal. DVI-D standard is supported.

DisplayPort

DisplayPort
The DisplayPort (X119) is used for transferring the video signal.

Additional plug-in cards (optional)

Type plate
C3620, C3640 9
There is a type plate on the top of the Industrial PC which provides information about the hardware configuration of the Industrial PC at the time it was supplied.
Installation Instructions

Installation Instructions

Warning
Please also refer to chapter General instructions.

Transport and Unpacking

The specified storage conditions must be observed (see chapter Technical
data).

Transport

Despite the robust design of the unit, the components are sensitive to strong vibrations and impacts. During transport, your Industrial PC should therefore be protected from excessive mechanical stress. Therefore, please use the original packaging.
Danger of damage to the unit! If the device is transported in cold weather or is exposed to extreme variations in temperature, make sure that moisture (condensation) does not form on or inside the device.
Prior to operation, the unit must be allowed to slowly adjust to room temperature. Should condensation occur, a delay time of approximately 12 hours must be allowed before the unit is switched on.

Unpacking

Proceed as follows to unpack the unit:
1. Remove packaging.
2. Do not discard the original packaging. Keep it for future relocation.
3. Check the delivery for completeness by comparing it with your order.
4. Please keep the associated paperwork. It contains important information for handling the unit.
5. Check the contents for visible shipping damage.
6. If you notice any shipping damage or inconsistencies between the contents and your order, you should notify Beckhoff Service.
10 C3620, C3640
Installation Instructions

Installation of the PC in the control cabinet

Preparation of the control cabinet wall
i
Note
Warning
Installation in a control cabinet wall

Earthing measures

The C3620 and C3640 Industrial PCs are designed for rack mounting in machine and plant engineering applications.
The ambient conditions specified for operation must be observed (see the section Technical data).
The control cabinet wall must be prepared with the required mounting opening for the computer unit and the eight holes for the set screws according to the PC's dimensions (see chapter Assembly dimensions).
When the unit is installed in an enclosure, adequate space for ventilation and for opening the PC must be provided.
Please note the following points during installation of the PC:
Position the PC in such a way that reflections on the screen are avoided as far as possible.
Use the position of the screen as a guide for the correct installation height; it should be optimally visible for the user at all times.
The PC should not be exposed to direct sunlight.
When the unit is in its mounting position, the ventilation openings must
not be obstructed.
Extreme environmental conditions should be avoided as far as possible. Protect the rear of your PC from dust, humidity and heat.
The clearance above and below the housing must be at least 100 mm in order to ensure adequate ventilation of the PC.
The ventilation slots of the PC must not be covered.
Proceed as follows:
1. Insert the PC at the intended control cabinet wall position and protect it from falling out, prior to final mounting.
2. Using 8 M4 nuts, fix the PC to the control cabinet wall by screwing the nuts from the rear onto the set screws of the PC housing.
Earthing measures
Earthing connections dissipate interference from external power supply cables, signal cables or cables to peripheral equipment.
Establish a low-impedance connection from the earthing point on the PC housing to the central earthing point on the control cabinet wall, in which the computer is being installed. The earthing connection of the Industrial PC is located beside the power supply connector.
C3620, C3640 11
Installation Instructions

Power Supply Connection

Socket at the PC housing
Supplied mains power unit
Current carrying capacity of the 100-240 V power supply unit
Current carrying capacity of the 24 V power supply unit

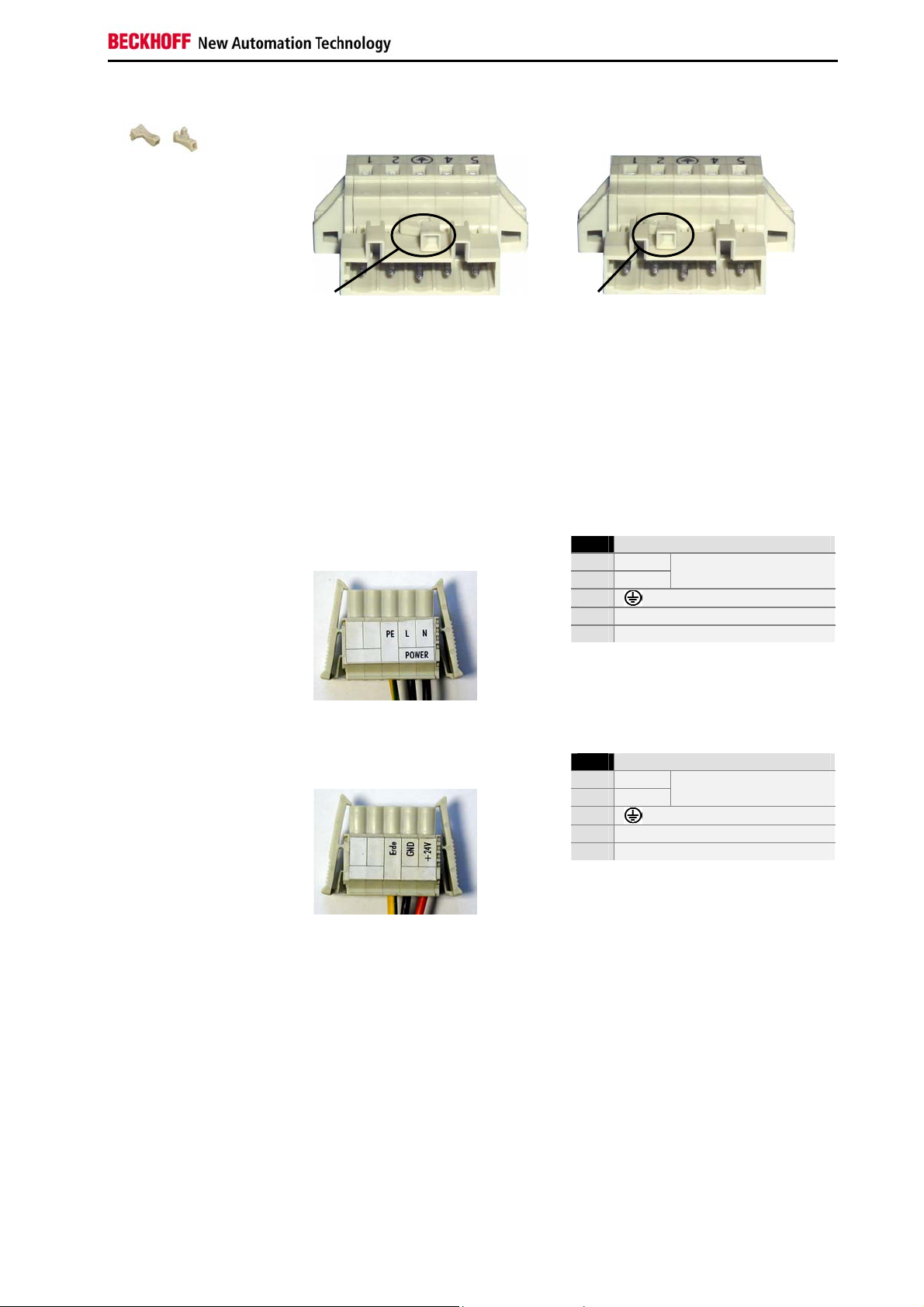

The 5-pin CAGE CLAMP plug connector and mounting flange illustrated is located on the PC housing in order to connect the power supply.
Connection socket when fitted with 100-240 V
AC
, 50-60 Hz power supply unit (standard)
Technical data Connecting socket
Number of contacts
Contact spacing Minimum conductor cross-section Minimum conductor cross-section
(AWG)
Rated voltage (EN)
Rated voltage (CSA)
Current EN [A]
Current CSA [A]
Length of stripped conductor
5 5 mm
1.5 mm² 16
250 V 300 V 12 A 15 A 8 to 9 mm

Power Supply Configuration

The Industrial PCs is either fitted with a 100-240 V supply unit (standard) or with a 24 V
power supply unit (with the option of
DC
an uninterruptible power supply, UPS).
Output voltages from
the 100-240 V power
Output voltages from
the 24 V power supply
+5 V stand by
supply unit
+3,3 V
+12 V
-12 V
+12 V
-12 V
Current loading maximum
16 A 2 A
+5 V
+5 V
25 A
-5 V
0.3 A 13 A
0.8 A
Current loading maximum
unit
25 A
-5 V
1 A 10 A
1.5 A
, 50-60 Hz power
AC
12 C3620, C3640
Installation Instructions
Coding pieces
The connectors are coded differently at the factory, using snap-on coding pieces, according to the power supply unit that has been fitted.
Differently coded plug connectors
Coding for the 100-240 V
AC
,
50-60 Hz power supply unit

Pin assignment and cable requirements

Pin assignment
Industrial PCs with 100-240 V
Pin assignment for the 100-240 V, 50-60 Hz power supply unit
Industrial PCs with 24 V
Pin assignment for the 24 V
power supply unit
DC
There is an adhesive label with the pin assignments on the top of the female plug connector. The minimum permitted conductive cross- section is 1.5 mm², fused for 10 A (AWG 16).
5
4 2
3 1
power supply unit
DC
5
4 2
3 1
Coding for the 24 V unit
, 50-60 Hz power supply unit
AC
Pin Function
1
N
2
L
3 4
not used
5
not used
Pin Function
1
+
2
-
3 4
not used
5
not used
100 – 240V Power supply
24V Power supply
DC
power supply
DC
AC
C3620, C3640 13
Installation Instructions

Fitting the Power Supply Cable

A 5-pin female plug connector with CAGE CLAMP connection and insertion
catches is supplied along with a snap-on strain relief housing in order to assemble the PC power supply cable.
Materials for assembly of the connector
Female plug connector is correspondingly coded
Fitting the connector to the cable
Applying the strain relief
A
B
Female plug connector
This female plug connector is also coded at the factory, according to the type of power supply fitted, so that the plug, when assembled, will fit the Industrial PC's connecting socket.
Technical data Female plug connector
Number of contacts
Contact spacing Minimum conductor cross-section Minimum conductor cross-section
(AWG)
Rated voltage (EN)
Rated voltage (CSA)
Current (EN)
Current (CSA)
Length of stripped conductor
The plug is fitted to the cable as follows:
1. Strip insulation from the cable ends. Follow the technical data for the female plug connector in the above table!
2. Push the conductors into their mountings, simply by pushing them in as indicated on the pin assignment label.
3. Push the lower part (part A) of the strain relief housing (see photograph on page 14) onto the top of the female plug connector until it snaps into place.
4. Relieve the strain on the supply cable by fixing it in place with the cable clamp (part C) and fixing screws (part D) (see photograph below).
Strain relief housing
5 5 mm
1.5 mm² 16
250 V 300 V 16 A 15 A 8 to 9 mm
CD
Fix the upper part (part B) of the strain relief housing by snapping it onto the lower part.
14 C3620, C3640
Installation Instructions

Connecting devices

Warning
With compact 100-240 VAC 50/60 Hz power supply:
When fitted with the (optional) 24 VDC power supply unit:
Warning
The power supply plug must be withdrawn!
Please read the documentation for the external devices prior to connecting them.
During thunderstorms, plug connector must neither be inserted nor removed.
When disconnecting a plug connector, always handle it at the plug. Do not pull the cable!

Connecting cables

The connections are located at the side of the Industrial PC and at the rear (power supply connection), and are documented in the section Product
Description.
When connecting the cables to the Industrial PC, proceed according to the following sequence:
Switch off all the devices that are to be connected.
Disconnect all the devices that are to be connected from the power
supply.
Connect all the cables between the Industrial PC and to the devices that are to be connected.
Connect all data transfer cables (if present) to the appropriate plug-in receptacles of the data/telecommunication networks.
Reconnect all devices to the power supply.

Check voltage rating and connect.

1. Check that the mains voltage is correct.
2. Insert the power supply cable that you have assembled (see the section on Fitting the Power Supply Cable) into the Industrial PC's power supply socket. Then connect it to a power socket with a grounded earth connection.
1. Check that the external power supply is providing the correct voltage.
2. Insert the power supply cable that you have assembled (see the section on Fitting the Power Supply Cable) into the Industrial PC's power supply socket. Then connect it to your external 24 V power supply.
If a 24 V UPS is installed, the correct type of rechargeable battery must be used.
C3620, C3640 15
Operating Instructions

Operating Instructions

Switching the Industrial PC on and off

Switch on
Shutting down and switching off
Warning
Warning
The Industrial PC does not have its own mains switch. The Industrial PC will start when the equipment is switched on, or when it is connected to the power supply.
When the plant is switched off, or when it is disconnected from its power supply, the Industrial PC will be switched off.
Control software such as is typically used on Industrial PCs permits various users to be given different rights. A user who may not close software may also not switch the Industrial PC off, since data can be lost from the hard disk by switching off while software is running.
First shut down, then switch off the PC!
If the Industrial PC is switched off as the software is writing a file to the hard disk, the file will be destroyed. Control software typically writes something to the hard disk every few seconds, so that the probability of causing damage by switching off while the software is running is very high.
When you have shut down the Industrial PC, you have to switch off power supply for at least 10 seconds before rebooting the system. After resetting power supply the PC will start booting automatically.

First switching on and driver installation

When you switch on the Industrial PC for the first time, the pre-installed operating system (optional) will be started. In this case, all the required drivers for any additional, optional hardware components ordered with the PC will already have been installed.
If the PC was ordered without operating system, you have to install the operating system and the driver software for any auxiliary hardware yourself. Please follow the instructions in the documentation for the operating system and the additional devices.
16 C3620, C3640
Operating Instructions

Maintenance

Danger
Danger
Please also refer to chapter General instructions.

Cleaning the Industrial PC

Switch off the Industrial PC and all connected devices, and disconnect the Industrial PC from the power supply.
The Industrial PC can be cleaned with a soft, damp cloth. Do not use any aggressive cleaning materials, thinners, scouring material or hard objects that could cause scratches.

Replacing the battery on the motherboard

A used battery on the motherboard has to be replaced according to the rules of the board manufacturer.
Danger of Explosion if battery is incorrectly replaced. Replace only with same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

Servicing

The Industrial PC requires no maintenance.

Replacing the fluorescent lamps in the display

Since fluorescent lamps represent a consumable item in a display, they must be replaced after a few years, depending on the number of operating hours.
i
Note

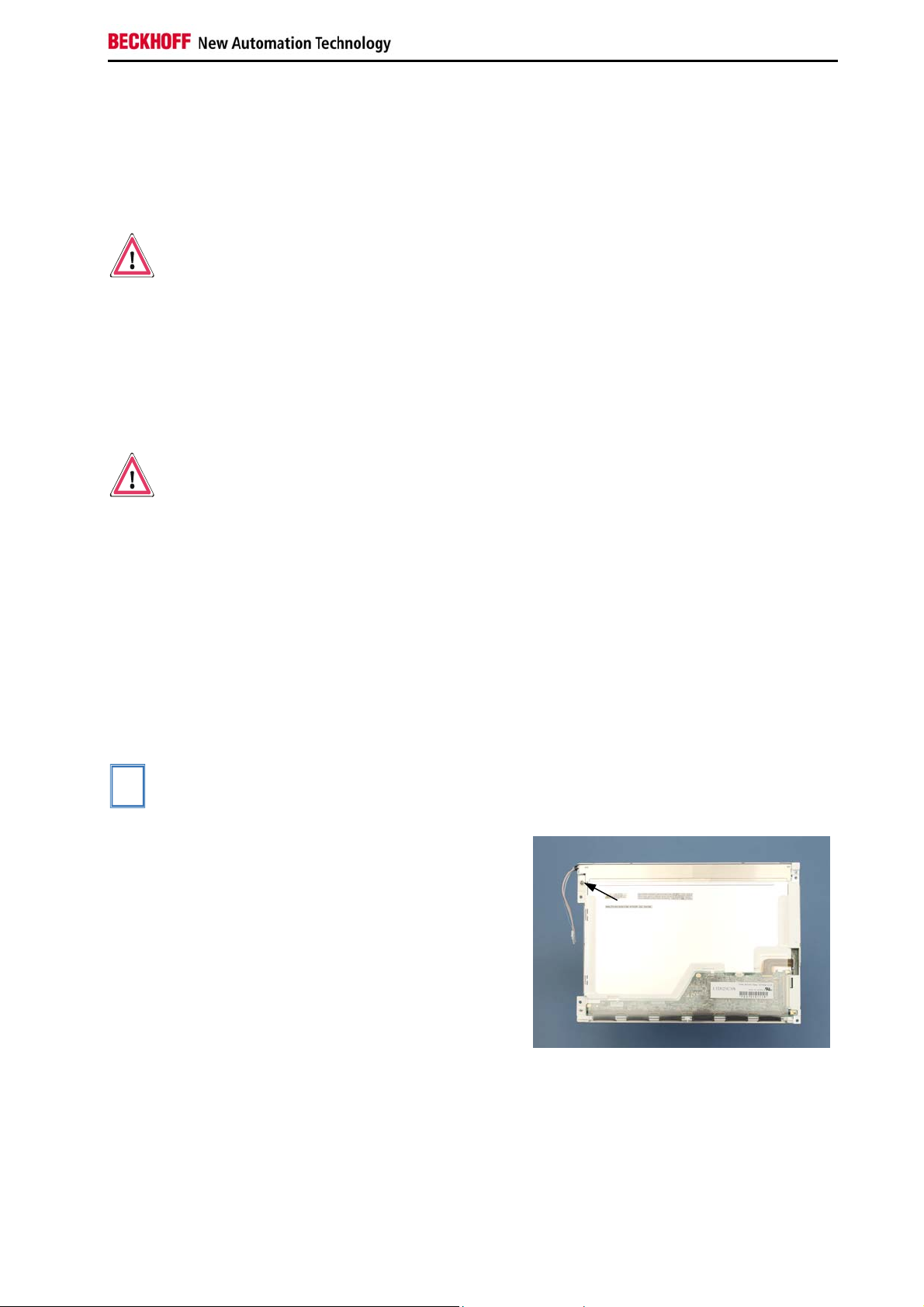

Replacement for the 12 inch display
The fluorescent lamps of the 12 inch and 15 inch displays can be replaced by a technically competent person.
Replacement of the fluorescent lamps may require partial disassembly of the display!
First release the screw (2) with a small Philips screwdriver, then tilt the fluorescent tubes with their brackets (1) carefully
2
1
outwards.
After the exchange of the fluorescent lamps the installation takes place in reverse order.
C3620, C3640 17
Operating Instructions
Replacement for the 15 inch display
First release the two screws (1) and (2) with a small Philips screwdriver, then carefully pull out the fluorescent lamps in direction of the arrows.
After the exchange of the fluorescent lamps the installation takes place in reverse order.

Lamp sets

Order number
C9900 - L364
C9900 - L366
Background illumination unit for
12 inch TFT display LTD121C30S
15 inch TFT display LQ150X1LW71N
1
2

Shutting down

Dismantling the Industrial PC
Observe national electronics scrap regulations

Disposal

The device must be fully dismantled in order to dispose of it. The housing can be sent for metal recycling.
Electronic parts such as disk drives and circuit boards must be disposed of in accordance with national electronics scrap regulations.
18 C3620, C3640
Troubleshooting

Troubleshooting

i
Note
Please also refer to chapter General instructions.
Pixel errors in the TFT display are production-caused and represent no complaint-reason!

Fault correction

Fault Cause Procedure
Nothing happens after the Industrial PC has been switched on
The Industrial PC does not boot fully
Computer boots, software starts, but control does not operate correctly
Error during CD access Faulty CD
The Industrial PC functions only partially or only part of the time, e.g. no or dark picture, but disk drive responds when switching on
No power supply to the Industrial PC
Other cause CD in drive (optional).
Setup settings are incorrect
Other cause Cause of the fault is either in the
software or in parts of the plant outside the Industrial PC
Faulty disk drive Defective components in the
Industrial PC
Check power supply cable
Call Beckhoff Service Remove CD and press any
key
Check the setup settings
Call Beckhoff Service Call the manufacturer of the
machine or the software
Check the disk in another disk drive
Call Beckhoff Service Call Beckhoff Service
C3620, C3640 19

Service and Support

Quote the project number
Beckhoff and their partners around the world offer comprehensive service and support, making available fast and competent assistance with all questions related to Beckhoff products and system solutions.

Beckhoff's branch offices and representatives

Please contact your Beckhoff branch office or representative for local
support and service on Beckhoff products!
The addresses of Beckhoff's branch offices and representatives round the world can be found on her internet pages:
http://www.beckhoff.com
You will also find further documentation
for Beckhoff components there.

Beckhoff headquarters

Beckhoff Automation GmbH Eiserstraße 5 D-33415 Verl Germany
Phone: Fax: +49(0)5246/963-198 e-mail: info@beckhoff.com
+49(0)5246/963-0

Beckhoff Support

Support offers you comprehensive technical assistance, helping you no only with the application of individual Beckhoff products, but also with other, wide-ranging services:
world-wide support
design, programming and commissioning of complex automation
systems
and extensive training program for Beckhoff system components
Hotline: Fax: +49(0)5246/963-9157 e-mail: support@beckhoff.com
+49(0)5246/963-157

Beckhoff Service

The Beckhoff Service Center supports you in all matters of after-sales service:
on-site service
repair service
spare parts service
hotline service
Hotline: Fax: +49(0)5246/963-479 e-mail: service@beckhoff.com
If servicing is required, please quote the project number of your Industrial PC.
+49(0)5246/963-460
20 C3620, C3640
Assembly dimensions

Assembly dimensions

Warning

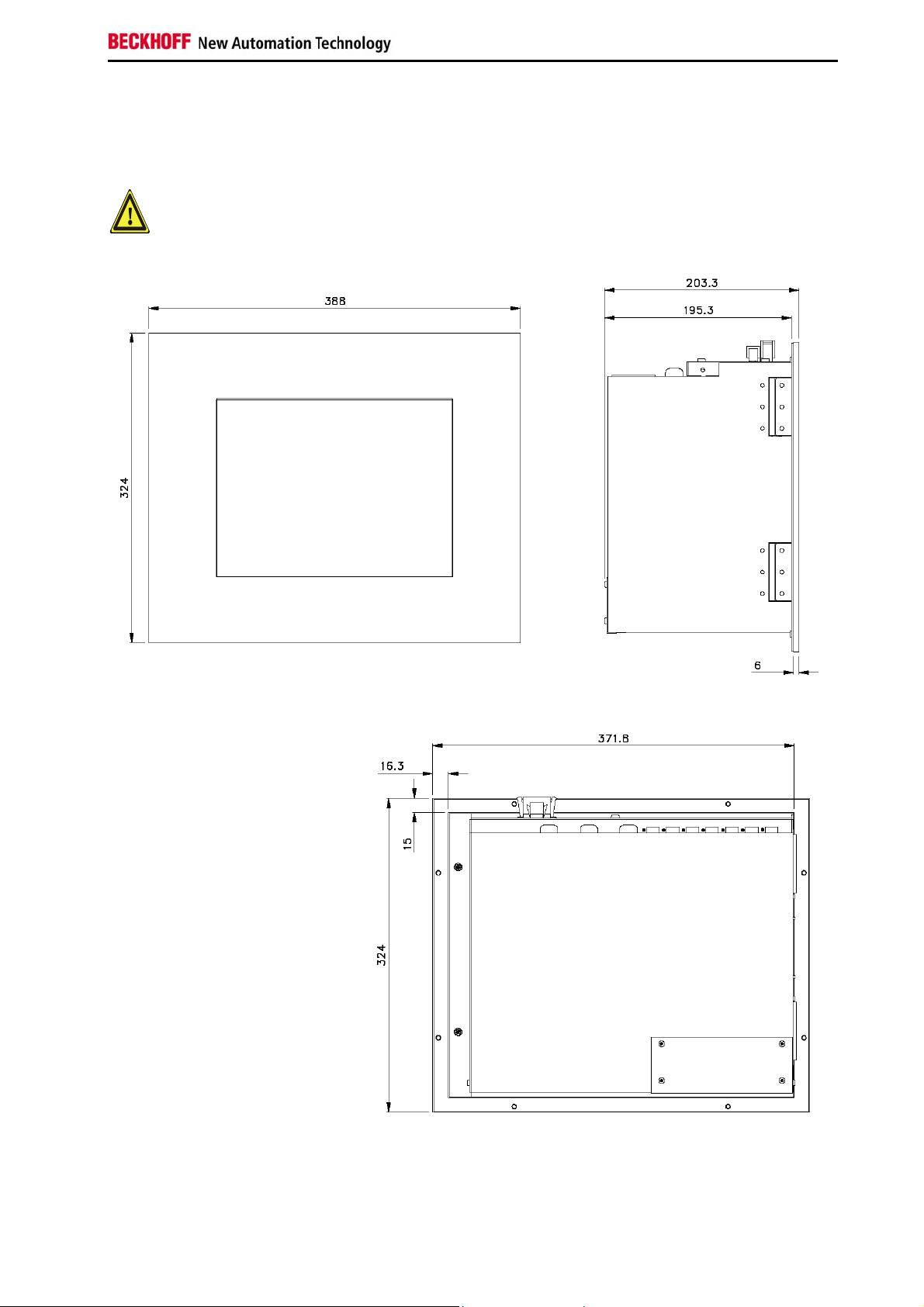

Industrial PC C3620

The assembly of the unit must take place with the orientation diagrammed here.
All dimensions in mm.
front view
left view
rear view
C3620, C3640 21
Assembly dimensions

Industrial PC C3640

The assembly of the unit must take place with the orientation diagrammed here.
Warning
All dimensions in mm.
front view left view
rear view
22 C3620, C3640
Assembly dimensions

Mounting Opening

Mounting opening for C3620
A mounting opening according to the following diagram is required:
Mounting opening for C3640
C3620, C3640 23
Appendix

Appendix

Technical data

Dimensions
Color Display
Do not use the PC in areas of explosive hazard The following conditions must be observed during operation:
Environmental conditions
Shock resistance Sinusoidal vibration:
Protection class Power supply with
100-240 VAC power supply unit or 24 V unit (optional)
Electromagnetic Compatibility (EMC)
Transport and storage
C3620
C3640
C3620 C3640
power supply
DC
Dimensions (W x H x D): 388 x 324 x 201 mm Weight: 11,5 kg (basic configuration)
Dimensions (W x H x D): 470 x 348 x 199 mm Weight: 14,1 kg (basic configuration)
Size, Resolution: 12“, 800 x 600 dpi Size, Resolution: 15“, 1024 x 768 dpi The Industrial PC may not be used in areas of explosive hazard.
Ambient temperature: 0 to 55°C Atmospheric humidity: Maximum 95%, non-condensing
(EN 60068-2-6)
58 to 500 Hz: 0.5 G (~ 5 m/ s2)
During reading of CD-ROM: 10 to 58 Hz: 0.019 mm
58 to 500 Hz: 0.25 G (~ 2.5 m/ s2)
Impact: (EN 60068-2-27/ -29) 5 G (~ 50 m/ s²), duration: 30 ms During reading of CD-ROM: 5 G (~ 50 m/ s²), duration: 11 ms
Protection class: Front side IP65, rear side IP20 Supply voltage: 100-240 V
Optional: 24 V Power consumption: C3620-0020: ca. 89 W
(for the basic version) C3620-0030: ca. 114 W C3640-0020: ca. 98 W C3640-0030: ca. 123 W If operated with UPS: additional 30 W (while charging)
Interference resistance: according to EN 61000-6-2 Emitted resistance: according to EN 61000-6-4
The same values for atmospheric humidity and shock resistance are to be observed during transport and storage as in operation. The shock resistance during transport can be improved by means of suitably packing the Industrial PC. The ambient temperature during storage and transport must be between -20°C and +65°C.
10 to 58 Hz: 0.035 mm
50-60 Hz
AC
(22 – 30 VDC)
DC
Pixel errors in the TFT display are production-caused and represent
i
Note
no complaint-reason!

Approvals

FCC Approval for USA
FCC Approval for Canada
24 C3620, C3640

FCC: Federal Communications Commission Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC: Canadian Notice

This equipment does not exceed the Class A limits for radiated emissions as described in the Radio Interference Regulations of the Canadian Department of Communications.
Loading...
