Asus P5KPL/EPU User Manual

P5KPL/EPU

Motherboard

E4402

First Edition V1 March 2009

No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK Computer Inc. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2) the serial number of the

product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies, and are used only for identication or explanation and to the owners’ benet, without intent to infringe.

Contents

Notices ......................................................................................................... vi

Safety information ..................................................................................... vii

About this guide ........................................................................................ vii

P5KPL/EPU specications summary ........................................................ ix

Chapter 1: Product introduction

1.1 Welcome! ...................................................................................... 1-1

1.2 Package contents .........................................................................

1.3 Special features ............................................................................

1.3.1 Product highlights ...........................................................

1.3.2 Innovative ASUS features ...............................................

1.4 Before you proceed .....................................................................

1.5 Motherboard overview .................................................................

1.5.1 Placement direction ........................................................

1.5.2 Screw holes ....................................................................

1.5.3 Motherboard layout .........................................................

1.5.4 Layout contents ...............................................................

1.6 Central Processing Unit (CPU) ...................................................

1.6.1 Installing the CPU ...........................................................

1.6.2 Installing the CPU heatsink and fan ..............................

1.6.3 Uninstalling the CPU heatsink and fan ..........................

1.7 System memory .........................................................................

1.7.1 Overview .......................................................................

1.7.2 Memory congurations ..................................................

1.7.3 Installing a DIMM ..........................................................

1.7.4 Removing a DIMM ........................................................

1.8 Expansion slots ..........................................................................

1.8.1 Installing an expansion card .........................................

1.8.2 Conguring an expansion card .....................................

1.8.3 PCI slots ........................................................................

1.8.4 PCI Express x1 slot .......................................................

1.8.5 PCI Express x16 slot .....................................................

1.9 Jumpers ......................................................................................

1-1

1-2

1-4

1-5

1-6

1-7

1-10

1-11

1-12

1-13

1-16

1-17

1-18

iii

Contents

1.10 Connectors ................................................................................. 1-20

1.10.1 Rear panel connectors ..................................................

1.10.2 Internal connectors .......................................................

1.11 Software support ........................................................................

1.11.1 Installing an operating system ......................................

1.11.2 Support DVD information ..............................................

Chapter 2: BIOS information

2.1 Managing and updating your BIOS ............................................ 2-1

2.1.1 ASUS Update utility ........................................................

2.1.2 ASUS EZ Flash 2 utility ...................................................

2.1.3 ASUS CrashFree BIOS 3 utility ......................................

2.2 BIOS setup program ....................................................................

2.2.1 BIOS menu screen ..........................................................

2.2.2 Menu bar .........................................................................

2.2.3 Navigation keys ...............................................................

2.2.4 Menu items .....................................................................

2.2.5 Submenu items ...............................................................

2.2.6 Conguration elds .........................................................

2.2.7 Pop-up window ...............................................................

2.2.8 Scroll bar .........................................................................

2.2.9 General help ...................................................................

2.3 Main menu ....................................................................................

2.3.1 System Time ...................................................................

2.3.2 System Date ...................................................................

2.3.3 Primary IDE Master/

2.3.4 IDE Conguration ............................................................

2.3.5 System Information .........................................................

2.4 Advanced menu ...........................................................................

2.4.1 JumperFree Conguration ..............................................

2.4.2 USB Conguration .........................................................

2.4.3 CPU Conguration ........................................................

SATA 1-4 ....................................................2-7

1-20

1-21

1-29

2-1

2-2

2-3

2-4

2-5

2-6

2-7

2-8

2-9

2-11

2-12

Contents

2.4.4 Chipset .......................................................................... 2-13

2.4.5 Onboard Devices Conguration ....................................

2.4.6 PCI PnP ........................................................................

2.5 Power menu ................................................................................

2.5.1 Suspend Mode ..............................................................

2.5.2 ACPI 2.0 Support ..........................................................

2.5.3 ACPI APIC Support .......................................................

2.5.4 APM Conguration ........................................................

2.5.5 Hardware Monitor .........................................................

2.6 Boot menu ..................................................................................

2.6.1 Boot Device Priority ......................................................

2.6.2 Boot Settings Conguration ..........................................

2.6.3 Security .........................................................................

2.7 Tools menu .................................................................................

2.7.1 AI NET 2

2.7.2 ASUS EZ Flash 2 ..........................................................

2.7.3 Express Gate ................................................................

2.8 Exit menu ....................................................................................

........................................................................ 2-20

2-13

2-14

2-15

2-16

2-17

2-18

2-20

2-21

Notices

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

•

This device may not cause harmful interference, and

•

This device must accept any interference received including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

The use of shielded cables for connection of the monitor to the graphics card is required

to assure compliance with FCC regulations. Changes or modications to this unit not

expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

Canadian Department of Communications Statement

This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications.

This class B digital apparatus complies with Canadian ICES-003.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://green.asus.com/english/REACH.htm

DO NOT throw the motherboard in municipal waste. This product has been designed to enable proper reuse of parts and recycling. This symbol of the crossed out wheeled bin indicates that the product (electrical and electronic equipment) should not be placed in municipal waste. Check local regulations for disposal of electronic products.

DO NOT throw the mercury-containing button cell battery in municipal waste. This symbol of the crossed out wheeled bin indicates that the battery should not be placed in municipal waste.

Safety information

Electrical safety

•

To prevent electrical shock hazard, disconnect the power cable from the electrical outlet

before relocating the system.

•

When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.

•

Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.

•

Seek professional assistance before using an adpater or extension cord. These devices could interrupt the grounding circuit.

• Make sure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.

•

If the power supply is broken, do not try to x it by yourself. Contact a qualied service

technician or your retailer.

Operation safety

•

Before installing the motherboard and adding devices on it, carefully read all the manuals that came with the package.

•

Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.

•

To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.

•

Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may become wet.

•

Place the product on a stable surface.

•

If you encounter technical problems with the product, contact a qualied service

technician or your retailer.

About this guide

This user guide contains the information you need when installing and conguring the

motherboard.

How this guide is organized

This guide contains the following parts:

• Chapter 1: Product introduction

This chapter describes the features of the motherboard and the new technology it supports.

• Chapter 2: BIOS information

This chapter tells how to change system settings through the BIOS Setup menus. Detailed descriptions of the BIOS parameters are also provided.

vii

Where to nd more information

Refer to the following sources for additional information and for product and software updates.

1. ASUS websites

The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information.

2. Optional documentation

Your product package may include optional documentation, such as warranty yers,

that may have been added by your dealer. These documents are not part of the standard package.

Conventions used in this guide

To make sure that you perform certain tasks properly, take note of the following symbols used throughout this manual.

DANGER/WARNING: Information to prevent injury to yourself when trying to

complete a task.

CAUTION: Information to prevent damage to the components when trying to

complete a task.

IMPORTANT: Instructions that you MUST follow to complete a task.

NOTE: Tips and additional information to help you complete a task.

Typography

Bold text Indicates a menu or an item to select.

Italics

Used to emphasize a word or a phrase.

<Key> Keys enclosed in the less-than and greater-than sign means that you must press the enclosed key. Example: <Enter> means that you must press the Enter or Return key.

<Key1>+<Key2>+<Key3> If you must press two or more keys simultaneously, the key names are linked with a plus sign (+). Example: <Ctrl>+<Alt>+<D>

viii

P5KPL/EPU specications summary

CPU LGA775 Socket for Intel® Core™2 Extreme / Core™2 Quad /

Core™2 Duo / Celeron

E1000 and 400 Series processors Supports Intel® 45nm multi-core CPU Intel® Hyper-Threading Technology ready Support Enhanced Intel SpeedStep Technology (EIST)

(Refer to www.asus.com for Intel® CPU support list)

Chipset Northbridge: Intel® G31

Southbridge: Intel® ICH7

System bus 1600(O.C.)/1333/1066/800MHz

Memory Dual-channel memory architecture

- 4 x 240-pin DIMM sockets support unbuffered

non-ECC DDR2 1066 (O.C.)*/800/667MHz memory

modules

- Supports up to 4GB system memory *Support a maximum of two DIMM modules (only for yellow DIMM slots) when overclocking DDR2 1066. ** When installing four DDR2 DIMM modules, install only single-sided memory modules. *** When you install a total memory of 4GB capacity or more, Windows® 32-bit operating system may only recognize less than 3GB. We recommend a maximum of 3GB system memory if you are using a Windows® 32-bit OS.

Expansion slots 1 x PCIe x16 slot

3 x PCIe x1 slots 3 x PCI slots

Storage Southbridge Intel® ICH7 supports:

1 x Ultra DMA 100/66 4 x Serial ATA 3Gb/s

LAN Realtek 8111C-VCP-GR Gb LAN controller

Audio ALC887 High Denition Audio 8-channel CODEC

- Supports Jack-detect and Multi-streaming

- Optical S/PDIF output

USB 8 x USB 2.0/1.1 ports (4 ports at mid-board, 4-ports at back

panel)

ASUS exclusive overclocking features

SFS (Stepless Frequency Selection):

- FSB tuning from 133MHz to 600MHz at 1MHz

increment Overclocking protection:

- ASUS C.P.R. (CPU Parameter Recall)

(continued on the next page)

P5KPL/EPU specications summary

Rear panel ports 1 x PS/2 mouse port

Internal connectors 1 x Azalia High Denition analog front panel audio connector

ASUS Special features ASUS CrashFree BIOS 3

BIOS features 8 Mb Flash ROM, AMI BIOS, Special H/W write protection,

Manageability WOL by PME,WOR by PME, WOR by Ring

Accessories 1 x UltraDMA 100/66 cable

Support OS Windows® Vista/XP, LINUX: RedHat, SuSe, Fedora

Support DVD Drivers

Form factor ATX form factor: 12 in x 8.2 in (30.5cm x 20.8cm)

1 x PS/2 keyboard port 1 x Optical S/PDIF Out port 1 x LAN (RJ-45) port 4 x USB 2.0/1.1 ports 8-channel audio I/O ports 1 x COM port 1 x LPT port

1 x S/PDIF output connector 1 x Chassis Intrusion connector 1 x System panel connector 2 x USB 2.0 connectors support additional 4 USB 2.0 ports 1 x CPU / 1 x Chassis / 1 x Power fan connectors 1 x CD audio-in connector 1 x IDE connector 1 x 24-pin EPS Power connector 1 x 4-pin ATX 12V Power connector

ASUS EZ Flash2 ASUS Express Gate ASUS EPU ASUS Q-Fan ASUS MyLogo 2

PnP, DMI v2.0, WfM2.0, SMBIOS v2.5, ACPI v2 0a

1 x Serial ATA cable 1 x I/O shield User Manual

ASUS PC Probe II ASUS LiveUpdate utility

*Specications are subject to change without notice.

Chapter 1 Product introduction

1.1 Welcome!

Thank you for buying an ASUS® P5KPL/EPU motherboard! The motherboard delivers a host of new features and latest technologies, making it another

standout in the long line of ASUS quality motherboards! Before you start installing the motherboard, and hardware devices on it, check the items in

your package with the list below.

1.2 Package contents

Check your motherboard package for the following items.

Motherboard ASUS P5KPL/EPU motherboard

Cables 1 x Serial ATA cable

1 x Ultra DMA 100/66 cable

Accessories 1 x I/O shield

Application DVD ASUS motherboard support DVD

Documentation User Manual

If any of the above items is damaged or missing, contact your retailer.

1.3 Special features

1.3.1 Product highlights

Intel® Core™2 Core™2 Quad / Core™2 Duo CPU support

ASUS P5KPL/EPU 1-1

This motherboard supports Intel® LGA775 Core™ 2 Core™ 2 Quad/ Core™ 2 Duo processors, which are excellent for multitasking, multimedia, and enthusiastic gamers with 1600 (O.C.) / 1333/ 1066/

800 MHz FSB. This motherboard also supports Intel® CPUs in the 45nm

manufacturing process.

Intel® 45nm Processor Ready

This motherboard supports the latest Intel 45nm CPU which introduces new micro-architecture features for greater performance at a given frequency, up to 50% larger L2 caches, and expanded power

management capabilities for new levels of energy efciency.

Dual channel DDR2 1066 (O.C.)/800/667 support

This motherboard supports DDR2 memory that features data transfer

rates of 1066 (O.C.)/ 800/ 667 MHz providing great performance for 3D

graphics and other memory-demanding applications.

PCI Express architecture

PCI Express is the latest I/O interconnect technology that replaces the existing PCI. With a bus bandwidth two times higher than that of AGP 8X interface, PCI Express x16 bus performs much better in applications such as 3D gaming.

Serial ATA 3Gb/s technology

This motherboard supports hard drives based on the Serial ATA (SATA)

3Gb/s storage specications, delivering enhanced scalability and

doubling the bus bandwidth for high-speed data saving and retrieval.

High Denition Audio

Enjoy high-quality sound system on your PC! The onboard 8-channel

HD audio (High Denition Audio, previously codenamed Azalia) CODEC

enables high-quality audio output, jack-detect feature automatically.

S/PDIF digital sound ready

This motherboard provides convenient connectivity to external home theater audio systems via the S/PDIF-out (SONY-PHILIPS Digital Interface) jack. It allows digital audio transfer and keeps the best signal quality.

Gigabit LAN solution

The onboard LAN controller is a highly integrated Gb LAN controller. It is

enhanced with an ACPI management function to provide efcient power

management for advanced operating systems.

1.3.2 Innovative ASUS features

ASUS EPU

ASUS EPU detects the current computer loading and intelligently adjusts the appropriate power usage in real-time.

ASUS MyLogo2™

This feature allows you to convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.

1-2 Chapter 1: Product introduction

ASUS CrashFree BIOS 3

ASUS CrashFree BIOS 3 is an auto-recovery tool that allows you to

restore a corrupted BIOS le using the bundled support DVD or USB disk that contains the latest BIOS le.

ASUS EZ Flash 2

ASUS EZ Flash 2 is a utility that allows you to update the BIOS without using an OS-based utility.

Express Gate

Express Gate is an ASUS exclusive OS that provides you with quick access to the Internet and key applications before entering the Windows OS.

• The actual boot time depends on the system conguration.

• ASUS Express Gate supports le uploading from SATA HDDs, ODDs and USB drives

and downloading to USB drives only.

C.P.R. (CPU Parameter Recall)

The BIOS C.P.R. feature automatically restores the CPU default settings when the system hangs due to overclocking failure. C.P.R. eliminates the need to open the system chassis and clear the RTC data. Simply shut down and reboot the system, and the BIOS automatically restores the CPU parameters to their default settings.

Green ASUS

This motherboard and its packaging comply with the European Union’s

Restriction on the use of Hazardous Substances (RoHS). This is in line

with the ASUS vision of creating environment-friendly and recyclable

products/packaging to safeguard consumers’ health while minimizing the

impact on the environment.

ASUS AI NET2

ASUS AI NET2 remotely detects the cable connection immediately after turning on the system, and any faulty cable connections are reported back up to 100 meters at 1 meter accuracy.

ASUS P5KPL/EPU 1-3

1.4 Before you proceed

Take note of the following precautions before you install motherboard components or change any motherboard settings.

• Unplug the power cord from the wall socket before touching any component.

• Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity.

• Hold components by the edges to avoid touching the ICs on them.

• Whenever you uninstall any component, place it on a grounded antistatic pad or in the bag that came with the component.

• Before you install or remove any component, ensure that the ATX power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.

Onboard LED

The motherboard comes with a standby power LED that lights up to indicate that the system is ON, in sleep mode, or in soft-off mode. This is a reminder that you must shut down the system and unplug the power cable before removing or plugging in any motherboard component. The illustration below shows the location of the onboard LED.

1-4 Chapter 1: Product introduction

1.5 Motherboard overview

Before you install the motherboard, study the conguration of your chassis to ensure that the motherboard ts into it.

Ensure that you unplug the power cord before installing or removing the motherboard. Failure to do so can cause you physical injury and damage motherboard components.

1.5.1 Placement direction

When installing the motherboard, ensure that you place it into the chassis in the correct orientation. The edge with external ports goes to the rear part of the chassis as indicated in the image below.

1.5.2 Screw holes

Place six screws into the holes indicated by circles to secure the motherboard to the chassis.

Do not overtighten the screws! Doing so can damage the motherboard.

Place this side towards the rear of the chassis

ASUS P5KPL/EPU 1-5

1.5.3 Motherboard layout

20.8cm(8.2in)

1.5.4 Layout contents

Connectors/Jumpers/Slots Page Connectors/Jumpers/Slots Page

1. Keyboard/mouse power (3-pin PS2 USBPW1-4) 1-21 9. Clear RTC RAM (3-pin CLRTC) 1-20

2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

3. CPU, chassis, and power fan connectors (4-pin CPU_FAN, 3-pin CHA_FAN, 3-pin PWR_FAN)

4. LGA775 CPU socket 1-7 12. USB connectors (10-1 pin USB56 and

5. DDR2 DIMM slots 1-12 13. Digital audio connector (4-1 pin

6. Serial ATA connectors (7-pin SATA1-4) 1-25 14. Optical drive audio connector (4-pin CD) 1-29

7. IDE connector (40-pin PRI-EIDE) 1-26 15. Front panel audio connector (10-1 pin

8. Onboard LED 1-4 16. USB device wake-up (3-pin USBPW5-8) 1-21

1-6 Chapter 1: Product introduction

1-24 10. System panel connector (20-8 pin PANEL) 1-27

1-23 11. Chassis intrusion connector (4-1 pin

CHASSIS)

USB78)

SPDIF_OUT)

AAFP)

1-25

1-28

1-29

1-30

1.6 Central Processing Unit (CPU)

The motherboard comes with a surface mount LGA775 socket designed for the Intel® Core™2 Extreme / Core™2 Quad / Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4 / Celeron® E1000 Series and 400 Series processors.

• Unplug all power cables before installing the CPU.

• Connect the chassis fan cable to the CHA_FAN connector to ensure system stability.

• Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/transit-related.

• Keep the cap after installing the motherboard. ASUS will process Return Merchandise

Authorization (RMA) requests only if the motherboard comes with the cap on the

LGA775 socket.

• The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

The motherboard supports Intel® LGA775 processors with the Intel® Enhanced Intel SpeedStep® Technology (EIST) and Hyper-Threading Technology.

1.6.1 Installing the CPU

To install a CPU:

1. Locate the CPU socket on the motherboard.

Before installing the CPU, ensure that the cam box is facing towards you and the load lever is on your left.

ASUS P5KPL/EPU 1-7

2. Press the load lever with your thumb (A), then move it to the left (B) until it is released from the retention tab.

To prevent damage to the socket pins, do not remove the PnP cap unless you are installing a CPU.

Retention tab

Load lever

3. Lift the load lever in the direction of the

arrow to a 135º angle.

4. Lift the load plate with your thumb and

forenger to a 100º angle (4A), then

push the PnP cap from the load plate window to remove (4B).

5. Position the CPU over the socket, ensuring that the gold triangle is on the

bottom-left corner of the socket then t

the socket alignment key into the CPU notch.

PnP cap

Load plate

CPU notch

Gold triangle mark

Alignment key

1-8 Chapter 1: Product introduction

6. Apply some Thermal Interface Material to the exposed area of the CPU that the heatsink will be in contact with, ensuring that it is spread in an even thin layer.

Some heatsinks come with pre-applied thermal paste. If so, skip this step.

DO NOT eat the Thermal Interface Material. If it gets into your eyes or touches your skin, ensure that you wash it off immediately, and seek professional medical help.

To prevent contaminating the paste, DO NOT spread the paste with your nger directly.

7. Close the load plate (A), then push the load lever (B) until it snaps into the retention tab.

ASUS P5KPL/EPU 1-9

1.6.2 Installing the CPU heatsink and fan

The Intel® LGA775 processor requires a specially designed heatsink and fan assembly to ensure optimum thermal condition and performance.

•

When you buy a boxed Intel® processor, the package includes the CPU fan and heatsink assembly. If you buy a CPU separately, ensure that you use only Intel®-certied multi-directional heatsink and fan.

• Your Intel

• If you purchased a separate CPU heatsink and fan assembly, ensure that you have

Ensure that you have installed the motherboard to the chassis before you install the CPU fan and heatsink assembly.

LGA775 heatsink and fan assembly comes in a push-pin design and requires

no tool to install.

properly applied Thermal Interface Material to the CPU heatsink or CPU before you install the heatsink and fan assembly.

To install the CPU heatsink and fan:

1. Place the heatsink on top of the installed CPU, ensuring that the four fasteners match the holes on the motherboard.

Orient the heatsink and fan assembly such that the CPU fan cable is closest to the CPU fan connector.

2. Push down two fasteners at a time in a diagonal sequence to secure the heatsink and fan assembly in place.

The type of CPU heatsink and fan assembly may differ, but the installation steps and functions should remain the same. The illustration above is for reference only.

1-10 Chapter 1: Product introduction

3. Connect the CPU fan cable to the connector on the motherboard labeled CPU_FAN.

Do not forget to connect the CPU fan connector! Hardware monitoring errors can occur if you fail to plug this connector.

1.6.3 Uninstalling the CPU heatsink and fan

To uninstall the CPU heatsink and fan:

1. Disconnect the CPU fan cable from the connector on the motherboard.

2. Rotate each fastener counterclockwise.

3. Pull up two fasteners at a time in a diagonal sequence to disengage the heatsink and fan assembly from the motherboard.

ASUS P5KPL/EPU 1-11

4. Carefully remove the heatsink and fan assembly from the motherboard.

5. Rotate each fastener clockwise to ensure correct orientation when reinstalling.

1.7 System memory

1.7.1 Overview

The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline Memory Modules

(DIMM) sockets. The gure illustrates the location of the DDR2 DIMM sockets:

Channel Sockets

Channel A DIMM_A1 and DIMM_A2

Channel B DIMM_B1 and DIMM_B2

1-12 Chapter 1: Product introduction

1.7.2 Memory congurations

You may install 512MB, and 1GB unbuffered non-ECC DDR2 DIMMs into the DIMM sockets.

• When using only one DDR2 DIMM, start installing it from DIMM_A1 or DIMM_B1 for better overclocking capability.

• For dual-channel conguration (1), install two identical DIMMs in DIMM_A1 and

DIMM_B1.

• For dual-channel conguration (2), you can:

- install four identical DIMMs in all four slots; or

- install one identical DIMM pair in DIMM_A1 and DIMM_B1 (yellow slots) and another identical DIMM pair in DIMM_A2 and DIMM_B2 (black slots).

• Always install DIMMs with the same CAS latency. For optimum compatibility, it is recommended that you obtain memory modules from the same vendor.

• Due to the memory address limitation on 32-bit Windows

OS, when you install 4GB or more memory on the motherboard, the actual usable memory for the OS can be about 3GB or less. For effective use of memory, we recommend that you do any of the following:

- Use a maximum of 3GB system memory if you are using a 32-bit Windows

- Install a 64-bit Windows

OS when you want to install 4GB or more memory on

the motherboard.

• This motherboard does not support DIMMs made up of 256 megabits (Mb) or less.

• This motherboard supports up to 4GB on Windows® XP Professional x64 and Windows® Vista x64 editions.

• The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value. To operate at the vendor-marked or at a higher frequency.

• For system stability, use a more efcient cooling system to support a full memory load (4

DIMMs) or overclocking conditions.

• Some old-version DDR2-800 DIMMs may not match Intel

’s On-Die-Termination (ODT) requirement and will automatically downgrade to run at DDR2-667. If this happens, contact your memory vendor to check the ODT value.

• Due to chipset limitation, DDR2-800 with CL=4 will be downgraded to run at DDR2-667 by default setting. If you want to operate with lower latency, adjust the memory timing manually.

OS.

ASUS P5KPL/EPU 1-13

P5KPL/EPU Motherboard Qualied Vendors Lists (QVL)

DDR2-667 MHz capability

Vendor Part No. Size

A-Data M2OAD5G314170Q1C58 1024MB DS ADATA AD29608A8A-3EG80814 • •

A-Data M2OAD5H3J4170I1C53 2048MB DS ADATA AD20908A8A-3EG 30724 • •

Apacer AM4B5808CQJS7E0749B 2048MB DS Apacer 78.A1G9O.9K4 5 • •

Corsair XMS2-5400 1024MB DS Corsair Heat-Sink Package 4 • •

Kingmax KLCC28F-A8KB5 512MB SS Kingmax KKEA88B4LAUG-29DX • • •

Kingston KVR667D2N5/2G 2048MB DS ELPIDA E1108ACBG-8E-E 0813A90CC 5 • •

PSC AL6E8E63J-6E1 1024MB DS PSC A3R12E3JFF717B9A01 5 • •

Samsung M378T5263AZ3-CE6 4096MB DS Samsung K4T2G084QA-HCE6 • •

Super Talent T667UB1GV 1024MB DS Super Talent PG 64M8-800 0750 5 • •

SS/

Chip Brand Chip NO. “Timing

DIMM support

A* B* C*

DDR2-800 MHz capability

Vendor Part No. Size

A-Data AD2800E002GOU 4GB(2 x 2GB) DS N/A Heat-Sink Package 4-4-4-12 • •

Corsair CM2X2048-6400C5 4GB(2 x 2GB) DS N/A Heat-Sink Package 5 • •

Crucial BL12864AA804.8FE5(EPP) 2GB(2 x 1GB) SS N/A Heat-Sink Package • • •

G.SKILL F2-6400CL5D-2GBNQ 1024MB DS G.SKILL Heat-Sink Package 5 • •

G.SKILL F2-6400CL6Q-16GMQ 4096MB DS N/A Heat-Sink Package 5 • •

GEIL GE24GB800C5QC 1024MB DS GEIL Heat-Sink Package 5 • •

GEIL GE24GB800C5DC 2048MB DS GEIL Heat-Sink Package 5 • •

Kingston 461625.010819 PTGC 2048MB DS Kingston KVR800D2N6/2G 6 • •

Kingston KVR800D2N6/4G 4096MB DS Elpida E2108ABSE-8G-E 6 • •

OCZ OCZ2G800R22GK 1024MB DS OCZ Heat-Sink Package 5 • •

OCZ OCZ2F8004GK 2048MB DS N/A Heat-Sink Package 5 • •

PSC SHG772-AA3G 2048MB DS PSC PL8E8F73C-8E1 • •

Qimonda HYS64T256020EU-2.5-C2 2048MB DS Qimonda HY818T1G800C2F-2.5 5 • •

Samsung K4T1G084QQ-HCF7 2048MB DS Samsung M37875663QZ3-CF7 6 • •

Transcend TS256MLQ64V8U 2048MB DS Elpida E1108ACBG-8E-E 5 • •

SS/DSChip

Brand

Chip NO. “Timing

DIMM support

A* B* C*

1-14 Chapter 1: Product introduction

DDR2-1066 MHz capability

Vendor Part No. Size

Crucial BL12864AA1065.8FE5(epp) 2GB(2 x 1GB) SS N/A Heat-Sink Package •

GEIL GB22GB8500C5DC 1024MB SS GEIL GL2L128M88BA25AB 5 •

GEIL GB24GB8500C5QC 1024MB SS GEIL GL2L128M88BA25AB 5 •

GEIL GB24GB8500C5DC 2048MB DS GEIL GL2L128M88BA25AB 5 •

Kingston KHX8500D2/ 512 512MB SS Kingston Heat-Sink Package 5-5-5-18 •

Kingston KHX8500D2K2/2G 2GB(2 x 1GB) DS N/A Heat-Sink Package 5-5-5-15 •

OCZ OCZ2N1066SR2DK(EPP) 2GB(2 x 1GB) DS OCZ Heat-Sink Package

SS - Single-sided / DS - Double - sided DIMM support:

• A*: Supports one module inserted into any slot as Single-channel memory conguration.

• B*: Supports one pair of modules inserted into either the yellow or black slots as one

pair of Dual-channel memory conguration.

• C*: Supports four modules inserted into both the yellow and black slots as two pairs of

Dual-channel memory conguration.

Visit the ASUS website at www.asus.com for the latest QVL.

SS/DSChip

Brand

Chip NO. “Timing

004820806001601-2

DIMM support

A* B* C*

•

ASUS P5KPL/EPU 1-15

1.7.3 Installing a DIMM

Unplug the power supply before adding or removing DIMMs or other system components. Failure to do so can cause severe damage to both the motherboard and the components.

To install a DIMM:

1. Press the retaining clips outward to unlock a DDR2 DIMM socket.

2. Align a DIMM on the socket such that the notch on the DIMM matches the break on the socket.

Unlocked retaining clip

A DDR2 DIMM is keyed with a notch so that it ts in only one direction. DO NOT force a

DIMM into a socket to avoid damaging the DIMM.

DDR2 DIMM notch

3. Firmly insert the DIMM into the socket until the retaining clips snap back in place

and the DIMM is properly seated.

Locked Retaining Clip

1.7.4 Removing a DIMM

To remove a DIMM:

1. Simultaneously press the retaining clips outward to unlock the DIMM.

Support the DIMM lightly with

your ngers when pressing the

retaining clips. The DIMM might

get damaged when it ips out with

extra force.

2. Remove the DIMM from the socket.

1-16 Chapter 1: Product introduction

DDR2 DIMM notch

1.8 Expansion slots

In the future, you may need to install expansion cards. The following sub-sections describe the slots and the expansion cards that they support.

Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

1.8.1 Installing an expansion card

To install an expansion card:

1. Before installing the expansion card, read the documentation that came with it and make the necessary hardware settings for the card.

2. Remove the system unit cover (if your motherboard is already installed in a chassis).

3. Remove the bracket opposite the slot that you intend to use. Keep the screw for later use.

4. Align the card connector with the slot and press rmly until the card is completely

seated on the slot.

5. Secure the card to the chassis with the screw you removed earlier.

6. Replace the system cover.

1.8.2 Conguring an expansion card

After installing the expansion card, congure it by adjusting the software settings.

1. Turn on the system and change the necessary BIOS settings, if any. See Chapter 2 for information on BIOS setup.

2. Assign an IRQ to the card.

3. Install the software drivers for the expansion card.

When using PCI cards on shared slots, ensure that the drivers support “Share IRQ” or that

the cards do not need IRQ assignments. Otherwise, conicts will arise between the two PCI

groups, making the system unstable and the card inoperable.

1.8.3 PCI slots

The PCI slots support cards such as a LAN card, SCSI card, USB card, and other cards that

comply with PCI specications.

1.8.4 PCI Express x1 slot

This motherboard supports PCI Express x1 network cards, SCSI cards, and other cards that

comply with the PCI Express specications.

1.8.5 PCI Express x16 slot

This motherboard supports a PCI Express x16 graphics card that complies with the PCI

Express specications.

ASUS P5KPL/EPU 1-17

1.9 Jumpers

1. Clear RTC RAM (3-pin CLRTC)

This jumper allows you to clear the Real Time Clock (RTC) RAM in CMOS. You can clear the CMOS memory of date, time, and system setup parameters by erasing the CMOS RTC RAM data. The onboard button cell battery powers the RAM data in CMOS, which include system setup information such as system passwords.

To erase the RTC RAM:

1. Turn OFF the computer and unplug the power cord.

2. Move the jumper cap from pins 1-2 (default) to pins 2-3. Keep the cap on pins 2-3 for about 5-10 seconds, then move the cap back to pins 1-2.

3. Plug the power cord and turn ON the computer.

4. Hold down the data.

<Del> key during the boot process and enter BIOS setup to re-enter

Except when clearing the RTC RAM, never remove the cap on CLRTC jumper default position. Removing the cap will cause system boot failure!

• If the steps above do not help, remove the onboard battery and move the jumper again to clear the CMOS RTC RAM data. After the CMOS clearance, reinstall the battery.

• You do not need to clear the RTC when the system hangs due to overclocking. For system failure due to overclocking, use the CPU Parameter Recall (C.P.R.) feature. Shut down and reboot the system, then the BIOS automatically resets parameter settings to default values.

• Due to the chipset limitation, AC power off is required before you use the C.P.R. function. You must turn off and on the power supply or unplug and plug the power cord before rebooting the system.

1-18 Chapter 1: Product introduction

2. Keyboard/mouse power (3-pin PS2_USBPW1-4)

This jumper allows you to enable or disable the keyboard/mouse and USB port 1-4 wake-up feature. When you set this jumper to pins 2-3 (+5VSB), you can wake up the computer by pressing a key on the keyboard (the default is the Space Bar), clicking the mouse, or using a USB device. This feature requires an ATX power supply that can supply at least 1A on the +5VSB lead, and a corresponding setting in the BIOS. This jumper is for the rear USB ports.

3. USB device wake-up (3-pin USBPW5-8)

Set this jumper to +5V to wake up the computer from S1 sleep mode (CPU stopped, DRAM refreshed, system running in low power mode) using the connected USB devices. Set to +5VSB to wake up from S3 and S4 sleep modes (no power to CPU, DRAM in slow refresh, power supply in reduced power mode). This jumper is for the internal USB connectors that you can connect to additional USB ports.

ASUS P5KPL/EPU 1-19

1.10 Connectors

11 10

13 12

4 5 6 7

1.10.1 Rear panel connectors

1. PS/2 mouse port (green). This port is for a PS/2 mouse.

2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other devices.

3. LAN (RJ-45) port.

through a network hub. Refer to the table below for the LAN port LED indications.

LAN port LED indications

ACT/LINK LED SPEED LED

Status Description Status Description

OFF No link OFF 10 Mbps connection

YELLOW Linked ORANGE 100 Mbps connection

BLINKING Data activity GREEN 1 Gbps connection

This port allows Gigabit connection to a Local Area Network (LAN)

LED

LAN port

SPEED

LED

ACT/LINK

4. Center/Subwoofer port (orange).

This port connects the center/subwoofer speakers.

5. Rear Speaker Out port (black). This port connects the rear speakers in a 4-channel,

6-channel, or 8-channel audio conguration.

6. Line In port (light blue).

This port connects the tape, CD, DVD player, or other audio

sources.

7. Line Out port (lime).

This port connects a headphone or a speaker. In 4-channel, 6-

channel, and 8-channel conguration, the function of this port becomes Front Speaker

Out.

8. Microphone port (pink).

9. Side Speaker Out port (gray).

This port connects a microphone.

This port connects the side speakers in an 8-channel

audio conguration.

Refer to the audio conguration table on the next page for the function of the audio ports in 2, 4, 6, or 8-channel conguration.

1-20 Chapter 1: Product introduction

Audio 2, 4, 6, or 8-channel conguration

Port

Light Blue Line In Line In Line In Line In

Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink Mic In Mic In Mic In Mic In

Orange – – Center/Subwoofer Center/Subwoofer

Black – Rear Speaker Out Rear Speaker Ou Rear Speaker Out

Gray – – – Side Speaker Out

10. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB) ports are

available for connecting USB 2.0 devices.

11. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB) ports are

available for connecting USB 2.0 devices.

12. COM port. This port is for pointing devices or other serial devices.

13. Optical S/PDIF Out port. This port connects an external audio output device via an

optical S/PDIF cable.

14.

PS/2 keyboard port (purple). This port is for a PS/2 keyboard.

Headset

2-channel

4-channel 6-channel 8-channel

1.10.2 Internal connectors

1. CPU, Chassis, and PowerFan connectors (4 pin CPU_FAN, 3-pin CHA_FAN, and 3-pin PWR_FAN)

The fan connectors support cooling fans of 350mA~740mA (8.88W max.) or a total of 1A~2.22A (26.64W max.) at +12V. Connect the fan cables to the fan connectors on the motherboard, ensuring that the black wire of each cable matches the ground pin of the connector.

Do not forget to connect the fan cables to the fan connectors. Insufcient air ow inside the

system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan connectors!

Only the CPU fan supports the ASUS Q-FAN feature.

ASUS P5KPL/EPU 1-21

2. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)

These connectors are for ATX power supply plugs. The power supply plugs are

designed to t these connectors in only one orientation. Find the proper orientation and push down rmly until the connectors completely t.

•

For a fully congured system, we recommend that you use a power supply unit (PSU)

that complies with ATX 12 V Specication 2.0 (or later version) and provides a minimum

power of 400 W.

• Do not forget to connect the 4-pin ATX12V power plug. Otherwise, the system will not boot.

• We recommend that you use a PSU with a higher power output when conguring a

system with more power-consuming devices or when you intend to install additional devices. The system may become unstable or may not boot up if the power is inadequate.

1-22 Chapter 1: Product introduction

3. Serial ATA connectors (7-pin SATA1-4)

These connectors are for the Serial ATA signal cables for Serial ATA hard disk drives.

4. Chassis intrusion connector (4-1 pin CHASSIS)

This connector is for a chassis-mounted intrusion detection sensor or switch. Connect one end of the chassis intrusion sensor or switch cable to this connector. The chassis intrusion sensor or switch sends a high-level signal to this connector when a chassis component is removed or replaced. The signal is then generated as a chassis intrusion event.

By default, the pin labeled “Chassis Signal” and “Ground” are shorted with a jumper cap. Remove the jumper caps only when you intend to use the chassis intrusion detection feature.

ASUS P5KPL/EPU 1-23

5. IDE connector (40-1 pin PRI_EIDE)

The onboard IDE connector is for the Ultra DMA 100/66 signal cable. There are three connectors on each Ultra DMA 100/66 signal cable: blue, black, and gray. Connect the blue connector to the motherboard’s IDE connector, then select one of the following

modes to congure your device.

Drive jumper setting Mode of device(s) Cable connector

Single device Cable-Select or Master - Black

Cable-Select

Two devices

Master Master

Slave Slave

• Pin 20 on the IDE connector is removed to match the covered hole on the Ultra DMA cable connector. This prevents incorrect insertion when you connect the IDE cable.

• Use the 80-conductor IDE cable for Ultra DMA 100/66 IDE devices.

Master Black

Slave Gray

Black or gray

If any device jumper is set as “Cable-Select,” ensure that all other device jumpers have the same setting.

1-24 Chapter 1: Product introduction

6. System panel connector (20-8 pin PANEL)

This connector supports several chassis-mounted functions.

• System power LED (2-pin PLED)

This 2-pin connector is for the system power LED. Connect the chassis power LED cable to this connector. The system power LED lights up when you turn on the system power, and blinks when the system is in sleep mode.

•

Hard disk drive activity LED (2-pin IDE_LED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable

to this connector. The IDE LED lights up or ashes when data is read from or written to

the HDD.

•

System warning speaker (4-pin SPEAKER)

This 4-pin connector is for the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.

•

ATX power button/soft-off button (2-pin PWRSW)

This connector is for the system power button. Pressing the power button turns the system on or puts the system in sleep or soft-off mode depending on the BIOS settings. Pressing the power switch for more than four seconds while the system is ON turns the system OFF.

•

Reset button (2-pin RESET)

This 2-pin connector is for the chassis-mounted reset button for system reboot without turning off the system power.

ASUS P5KPL/EPU 1-25

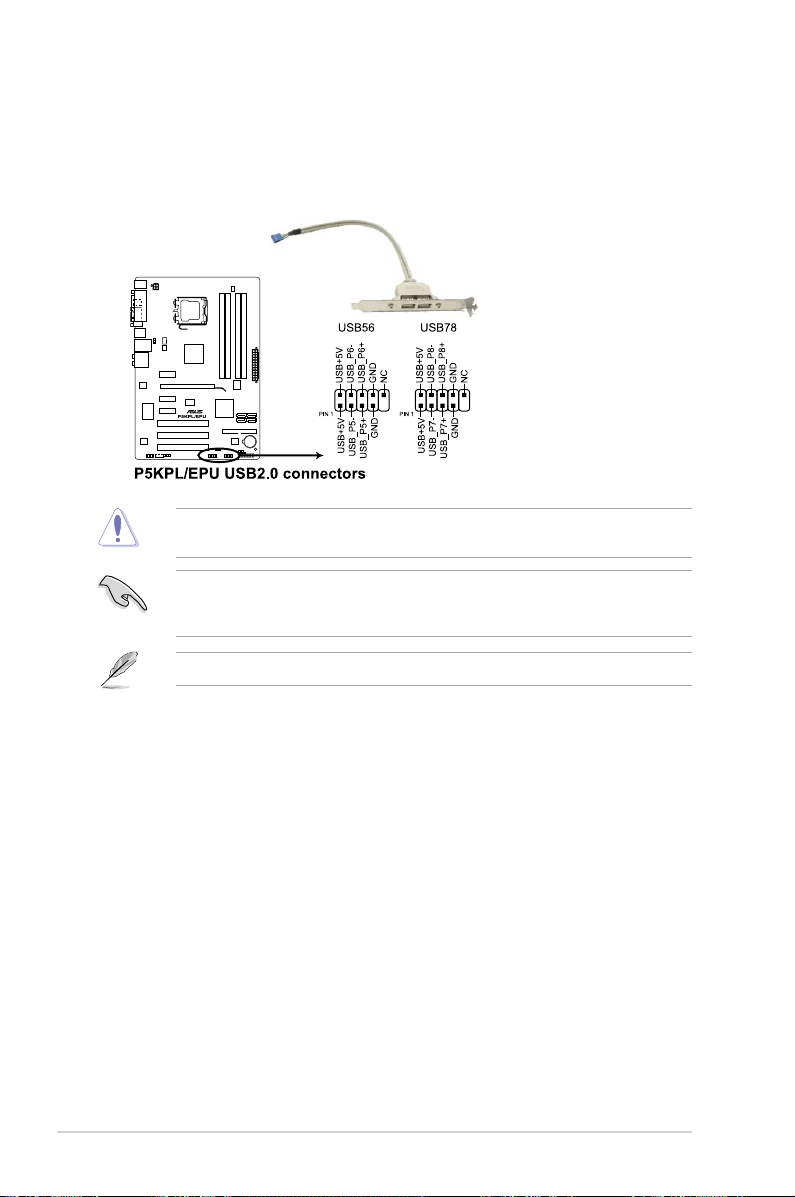

7. USB connectors (10-1 pin USB56, USB78)

These connectors are for USB 2.0 ports. Connect the USB module cable to any of these connectors, then install the module to a slot opening at the back of the system

chassis. These USB connectors comply with USB 2.0 specication that supports up to

480 Mbps connection speed.

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

You can connect the front panel USB cable to the ASUS Q-Connector (USB, blue) rst, and

then install the Q-Connector (USB) to the USB connector onboard if your chassis supports front panel USB ports.

The USB module cable is purchased separately.

1-26 Chapter 1: Product introduction

8. Digital audio connector (4-1 pin SPDIF_OUT)

This connector is for an additional Sony/Philips Digital Interface (S/PDIF) port. Connect the S/PDIF Out module cable to this connector, then install the module to a slot opening at the back of the system chassis.

The S/PDIF module is purchased separately.

9. Optical drive audio connector (4-pin CD)

These connectors allow you to receive stereo audio input from sound sources such as a CD-ROM, TV tuner, or MPEG card.

ASUS P5KPL/EPU 1-27

10. Front panel audio connector (10-1 pin AAFP)

This connector is for a chassis-mounted front panel audio I/O module that supports either HD Audio or legacy AC`97 audio standard. Connect one end of the front panel audio I/O module cable to this connector.

• We recommend that you connect a high-denition front panel audio module to this connector to avail of the motherboard’s high-denition audio capability.

•

If you want to connect a high-denition front panel audio module to this connector, set

the Front Panel Support Type item in the BIOS setup to [HD Audio]. If you want to connect an AC'97 front panel audio module to this connector, set the item to [AC97]. By default, this connector is set to [HD Audio]. See section 2.4.4 Chipset for details.

1-28 Chapter 1: Product introduction

1.11 Software support

1.11.1 Installing an operating system

This motherboard supports Windows® XP/Vista Operating Systems (OS). Always install the

latest OS version and corresponding updates to maximize the features of your hardware.

• Motherboard settings and hardware options vary. Use the setup procedures presented in this section for reference only. Refer to your OS documentation for detailed information.

• Ensure that you install Windows before installing the drivers for better compatibility and system stability.

1.11.2 Support DVD information

The Support DVD that comes with the motherboard package contains the drivers, software applications, and utilities that you can install to avail all motherboard features.

To run the Support DVD

Place the Support DVD to the optical drive. The DVD automatically displays the Drivers menu if Autorun is enabled in your computer.

The following screen is used for reference only.

XP Service Pack 3 / Windows® Vista Service Pack 1

Click an icon to display Support DVD/ motherboard information

Click an item to install

If Autorun is NOT enabled in your computer, browse the contents of the Support DVD to

locate the le ASSETUP.EXE from the BIN folder. Double-click the ASSETUP.EXE to run

the DVD.

ASUS P5KPL/EPU 1-29

1-30 Chapter 1: Product introduction

Chapter 2 BIOS information

2.1 Managing and updating your BIOS

Save a copy of the original motherboard BIOS le to a USB ash disk in case you need

to restore the BIOS in the future. Copy the original motherboard BIOS using the ASUS Update.

2.1.1 ASUS Update utility

The ASUS Update is a utility that allows you to manage, save, and update the motherboard BIOS in Windows® environment.

• ASUS Update requires an Internet connection either through a network or an Internet Service Provider (ISP).

• This utility is available in the support DVD that comes with the motherboard package.

Installing ASUS Update

To install ASUS Update:

1. Place the support DVD in the optical drive. The

2. Click the

3. Follow the onscreen instructions to complete the installation.

Utilities tab, then click Install ASUS Update.

Drivers menu appears.

Quit all Windows® applications before you update the BIOS using this utility.

Updating the BIOS

To update the BIOS:

1. From the Windows

ASUSUpdate to launch the ASUS Update utility.

2. From the dropdown list, select any of the updating process:

ASUS P5KPL/EPU 2-1

desktop, click Start > Programs > ASUS > ASUS Update >

Updating from the Internet

a. Select Update BIOS from the Internet, then click Next.

b. Select the ASUS FTP site nearest you to avoid network trafc, or click Auto

Select

then click Next.

c. From the FTP site, select the BIOS version that you wish to download then click

Next.

The ASUS Update utility is capable of updating itself through the Internet. Always update the utility to avail all its features.

Updating from a BIOS file

a. Select Update BIOS from a le, then click Next.

b. Locate the BIOS le from the

Open window, then click Open.

3. Follow the onscreen instructions to complete the updating process.

2.1.2 ASUS EZ Flash 2 utility

The ASUS EZ Flash 2 feature allows you to update the BIOS without using an OS-based utility.

Before you start using this utility, download the latest BIOS le from the ASUS website at

www.asus.com.

To update the BIOS using EZ Flash 2:

1. Insert the USB ash disk that contains the latest BIOS le to the USB port, then launch

EZ Flash 2 in any of these two ways:

• Press

<Alt> + <F2> during POST to display the following:

ASUSTek EZ Flash 2 BIOS ROM Utility V3.34

FLASH TYPE: MXIC 25L8005

Current ROM

BOARD: P5KPL EPU VER: 0203 DATE: 12/25/2008

PATH: A:\

Note

[Enter] Select or Load [Tab] Switch [V] Drive Info

[Up/Down/Home/End] Move [B] Backup [ESC] Exit

2-2 Chapter 2: BIOS information

Update ROM

BOARD: Unknown VER: Unknown DATE: Unknown

• Enter the BIOS setup program. Go to the Tools menu to select EZ Flash 2 and press <Enter> to enable it. Press <Tab> to switch between drives until the correct BIOS le is found.

4. When the correct BIOS le is found, EZ Flash 2 performs the BIOS update process

and automatically reboots the system when done.

• Only a USB ash disk with FAT 32/16 format and single partition can support the ASUS

EZ Flash 2 utility.

• Do not shut down or reset the system while updating the BIOS to prevent system boot failure!

2.1.3 ASUS CrashFree BIOS 3 utility

The ASUS CrashFree BIOS 3 is an auto recovery tool that allows you to restore the BIOS le

when it fails or gets corrupted during the updating process. You can update a corrupted BIOS

le using the motherboard support DVD or a USB ash disk that contains the updated BIOS le.

• Prepare the motherboard support DVD or the USB ash disk containing the updated

motherboard BIOS before using this utility.

• Always connect the SATA cable to the SATA1 / SATA 2 connector. Otherwise, the utility will not function.

Recovering the BIOS

To recover the BIOS:

1. Turn on the system.

2. Insert the support DVD or USB ash disk containing the BIOS le to the optical drive or

USB port.

3. The utility displays the following message and automatically checks the support DVD

or USB ash disk for the BIOS le.

Bad BIOS checksum. Starting BIOS recovery... Checking for CD-ROM... CD-ROM not found! Checking for USB Device...

When found, the utility reads the BIOS le and starts erasing the corrupted BIOS le.

Bad BIOS checksum. Starting BIOS recovery... Checking for USB Device... USB Device found.

Reading le “P5KPLEPU.ROM”. Completed.

Start Erasing...\

ASUS P5KPL/EPU 2-3

4. Restart the system after the utility completes the updating process.

• Only a USB ash disk with FAT 32/16 format and single partition can support ASUS CrashFree BIOS 3. The device size should be smaller than 8GB.

• DO NOT shut down or reset the system while updating the BIOS! Doing so can cause system boot failure!

The recovered BIOS may not be the latest BIOS version for this motherboard. Download

the latest BIOS le from the ASUS website at www.asus.com.

2.2 BIOS setup program

This motherboard supports a programmable Serial Peripheral Interface (SPI) chip that you can update using the provided utility described in section “2.1 Managing and updating your BIOS.”

Use the BIOS Setup program when you are installing a motherboard, reconguring your system, or prompted to “Run Setup.” This section explains how to congure your system

using this utility.

Even if you are not prompted to use the Setup program, you can change the conguration of

your computer in the future. For example, you can enable the security password feature or

change the power management settings. This requires you to recongure your system using the BIOS Setup program so that the computer can recognize these changes and record them

in the CMOS RAM of the SPI chip. The SPI chip on the motherboard stores the Setup utility. When you start up the computer,

the system provides you with the opportunity to run this program. Press <Del> during the Power-On Self-Test (POST) to enter the Setup utility. Otherwise, POST continues with its test routines.

If you wish to enter Setup after POST, reboot the system by doing any of the following procedures:

• Restart using the OS standard shutdown procedure.

• Press

• Press the reset button on the system chassis.

• Press the power button to turn the system off then back on.

<Ctrl>+<Alt>+<Del> simultaneously.

Using the power button, reset button, or the <Ctrl>+<Alt>+<Del> keys to force reset from a running operating system can cause damage to your data or system. We recommend to always shut down the system properly from the operating system.

The Setup program is designed to make it as easy to use as possible. Being a menu-driven program, it lets you scroll through the various submenus and make your selections from the available options using the navigation keys.

2-4 Chapter 2: BIOS information

• The default BIOS settings for this motherboard apply for most conditions to ensure optimum performance. If the system becomes unstable after changing any BIOS settings, load the default settings to ensure system compatibility and stability. Select the Load Setups Default item under the Exit Menu. See section 2.8 Exit Menu.

• The BIOS setup screens shown in this section are for reference purposes only, and may not exactly match what you see on your screen.

• Visit the ASUS website at www.asus.com to download the latest BIOS le for this

motherboard.

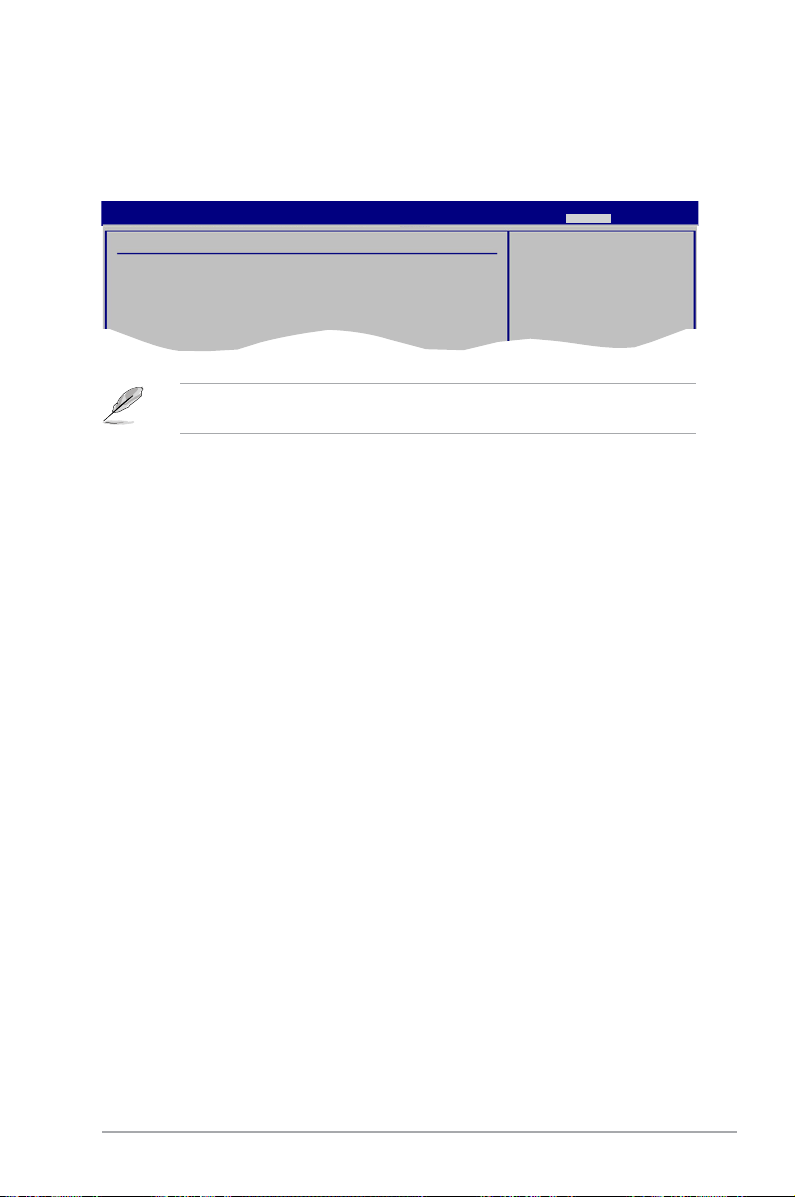

2.2.1 BIOS menu screen

Menu bar

Main Advanced Power Boot Tools Exit

System Time [00:31:48]

System Date [Tue 01/08/2002]

Primary IDE Master :[Not Detected] Primary IDE Slave :[Not Detected] SATA 1 :[Not Detected] SATA 2 :[Not Detected] SATA 3 :[Not Detected] SATA 4 :[Not Detected]

IDE Conguration

System Information

Submenu items

Conguration eldsMenu items

BIOS SETUP UTILITY

General help

Use [ENTER], [TAB] or [SHIFT-TAB] to select

a eld.

Use [+] or [-] to

congure system Time.

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

Navigation keys

2.2.2 Menu bar

The menu bar on top of the screen has the following main items:

Main For changing the basic system conguration.

Advanced For changing the advanced system settings.

Power For changing the advanced power management (APM)

Boot For changing the system boot conguration.

Tools For conguring options for special functions.

Exit For selecting the exit options and loading default settings.

To select an item on the menu bar, press the right or left arrow key on the keyboard until the desired item is highlighted.

conguration.

ASUS P5KPL/EPU 2-5

2.2.3 Navigation keys

At the bottom right corner of a menu screen are the navigation keys for that particular menu. Use the navigation keys to select items in the menu and change the settings.

Some of the navigation keys differ from one screen to another.

2.2.4 Menu items

The highlighted item on the menu bar displays the specic items for that menu. For example,

selecting Main shows the Main menu items. The other items (Advanced, Power, Boot, Tools, and Exit) on the menu bar have their

respective menu items.

2.2.5 Submenu items

A solid triangle before each item on any menu screen means that the item has a submenu. To display the submenu, select the item and press <Enter>.

2.2.6 Conguration elds

These elds show the values for the menu items. If an item is user- congurable, you can change the value of the eld opposite the item. You cannot select an item that is not usercongurable.A congurable eld is enclosed in brackets, and is highlighted when selected. To change the value of a eld, select it then press <Enter> to display a list of options. Refer to

2.2.7 Pop-up window.

2.2.7 Pop-up window

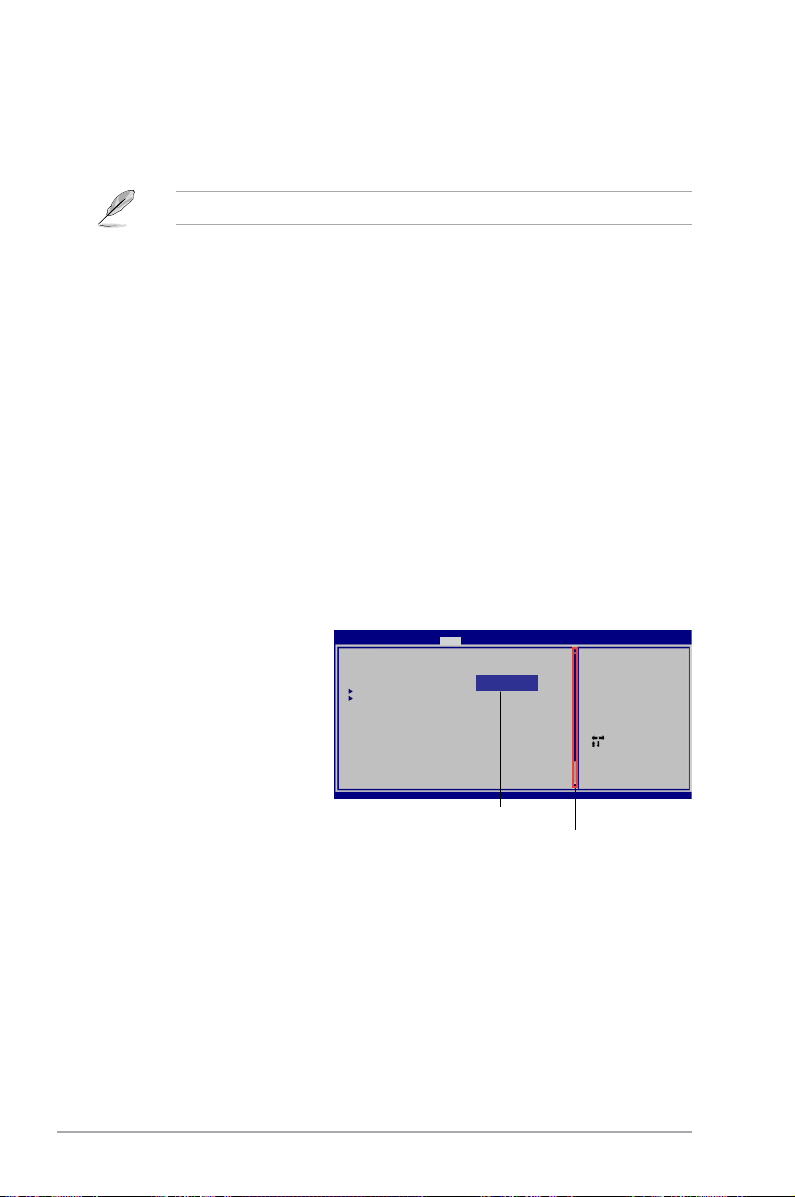

Select a menu item then press <Enter> to display a pop-up

window with the conguration

options for that item.

2.2.8 Scroll bar

A scroll bar appears on the right side of a menu screen when

there are items that do not t

on the screen. Press the <Up> / <Down> arrow keys or <Page Up> /<Page Down> keys to

display the other items on the screen.

Main Advanced Power Boot Tools Exit

Suspend Mode [Auto] ACPI 2.0 Support [Disabled] ACPI APIC support [Enabled]

APM Conguration

Hardware Monitor

BIOS SETUP UTILITY

Options

Disabled

Enabled

Pop-up window

Use [ENTER], [TAB] or [SHIFT-TAB] to select

a eld.

Use [+] or [-] to

congure system

Time.

Scroll bar

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

2.2.9 General help

At the top right corner of the menu screen is a brief description of the selected item.

2-6 Chapter 2: BIOS information

2.3 Main menu

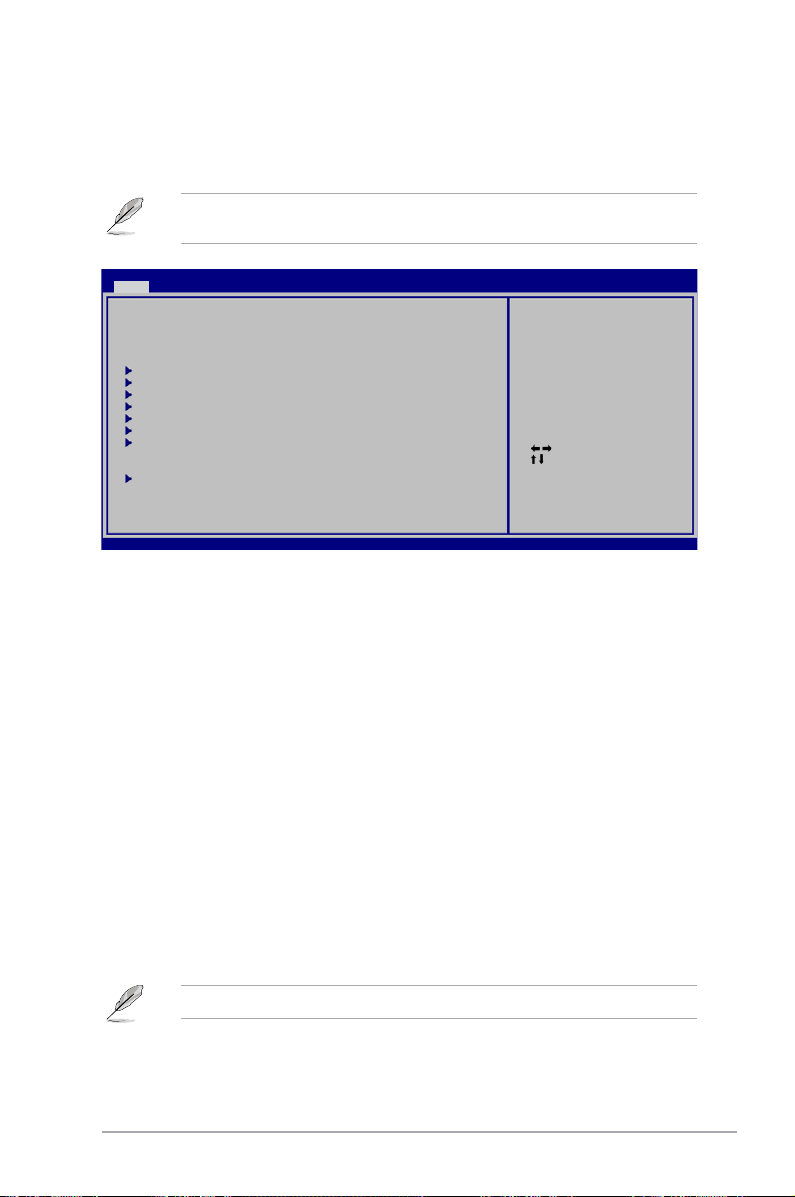

When you enter the BIOS Setup program, the Main menu screen appears, giving you an overview of the basic system information.

Refer to section 2.2.1 BIOS menu screen for information on the menu screen items and how to navigate through them.

Main Advanced Power Boot Tools Exit

System Time [00:31:48]

System Date [Tue 01/08/2002]

Primary IDE Master [Not Detected] Primary IDE Slave [Not Detected] SATA 1 [Not Detected] SATA 2 [Not Detected] SATA 3 [Not Detected] SATA 4 [Not Detected]

IDE Conguration

System Information

BIOS SETUP UTILITY

Use [ENTER], [TAB] or [SHIFT-TAB] to select

a eld.

Use [+] or [-] to

congure system time.

Select Screen

Select Item +- Change Field Tab Select Field F1 General Help F10 Save and Exit ESC Exit

2.3.1 System Time [xx:xx:xx]

Allows you to set the system time.

2.3.2 System Date [Day xx/xx/xxxx]

Allows you to set the system date.

2.3.3 Primary IDE Master/SATA 1-4

While entering Setup, the BIOS automatically detects the presence of IDE/SATA devices. There is a separate sub-menu for each IDE device. Select a device item then press <Enter> to display the IDE/SATA device information.

The BIOS automatically detects the values opposite the dimmed items (Device, Vendor, Size,

LBA Mode, Block Mode, PIO Mode, Async DMA, Ultra DMA, and SMART Monitoring). These

values are not user-congurable. These items show N/A if no Serial ATA device is installed in

the system.

Type [Auto]

Selects the type of IDE/SATA drive. Setting to [Auto] allows automatic selection of the

appropriate IDE/SATA device type. Select [CDROM] if you are specically conguring a CD-

ROM drive. Select [ARMD] (ATAPI Removable Media Device) if your device is either a ZIP,

LS-120, or MO drive. Conguration options: [Not Installed] [Auto] [CDROM] [ARMD]

This item does appear when you select the SATA 1/2/3/4 devices.

ASUS P5KPL/EPU 2-7

LBA/Large Mode [Auto]

Enables or disables the LBA mode. Setting to [Auto] enables the LBA mode if the device supports this mode, and if the device was not previously formatted with LBA mode disabled.

Conguration options: [Disabled] [Auto]

Block (Multi-sector Transfer) M [Auto]

Enables or disables data multi-sectors transfers. When set to [Auto], the data transfer from and to the device occurs multiple sectors at a time if the device supports multi-sector transfer feature. When set to [Disabled], the data transfer from and to the device occurs one sector

at a time. Conguration options: [Disabled] [Auto]

PIO Mode [Auto]

Selects the PIO mode. Conguration options: [Auto] [0] [1] [2] [3] [4]

DMA Mode [Auto]

Selects the DMA mode. Conguration options: [Auto]

SMART Monitoring [Auto]

Sets the Smart Monitoring, Analysis, and Reporting Technology.

Conguration options: [Auto] [Disabled] [Enabled]

32Bit Data Transfer [Enabled]

Enables or disables 32-bit data transfer. Conguration options: [Disabled] [Enabled]

2.3.4 IDE Conguration

The items in this menu allow you to set or change the congurations for the IDE devices installed in the system. Select an item then press <Enter> if you want to congure the item.

ATA/IDE Conguration [Enhanced]

Allows you to set the ATA/IDE conguration. Conguration options: [Disabled] [Compatible]

[Enhanced]

[Disabled] - Disables the integrated SATA and PATA controller.

[Compatible] - Sets all SATA devices to operate in PATA mode. This allows a maximum

of four (4) ATA devices to be used simultaneously: two PATA devices and two SATA devices.

[Enhanced] - Sets all SATA devices to operate in SATA mode.

Enhanced Mode Support On [S-ATA]

Set Serial ATA, Parallel ATA or both as native mode. [S-ATA] [S-ATA+P-ATA] [P-ATA].

IDE Detect Time Out (Sec) [35]

Selects the time out value for detecting ATA/ATAPI devices.

Conguration options: [0] [5] [10] [15] [20] [25] [30] [35]

2-8 Chapter 2: BIOS information

2.3.5 System Information

This menu gives you an overview of the general system specications. The BIOS

automatically detects the items in this menu.

BIOS Information

Displays the auto-detected BIOS information.

Processor

Displays the auto-detected CPU specication.

System Memory

Displays the auto-detected system memory.

2.4 Advanced menu

The Advanced menu items allow you to change the settings for the CPU and other system devices.

Take caution when changing the settings of the Advanced menu items. Incorrect eld

values can cause the system to malfunction.

Main Advanced Power Boot Tools Exit

JumperFree Conguration

USB Conguration

CPU Conguration

Chipset

Onboard Devices Conguration

PCIPnP

BIOS SETUP UTILITY

Adjust System frequency/voltage.

2.4.1 JumperFree Conguration

The items in this menu allows you to adjust the system frequency/voltage.

Ai Overclocking [Auto]

Allows selection of CPU overclocking options to achieve desired CPU internal frequency.

Select either one of the preset overclocking conguration options:

Manual

Auto

Overclock Prole

- allows you to individually set overclocking parameters.

- loads the optimal settings for the system.

- loads overclocking proles with optimal parameters for stability

when overclocking.

ASUS P5KPL/EPU 2-9

The following item appears only when you set the AI Overclocking item to [Manual].

CPU Frequency [xxx]

Displays the frequency sent by the clock generator to the system bus and PCI bus. The value of this item is auto-detected by the BIOS. Use the <+> and <-> keys to adjust the CPU frequency. You can also type the desired CPU frequency using the numeric keypad. The values range from 200 to 600. Refer to the table below for the correct Front Side Bus and CPU External Frequency settings.

FSB / CPU External Frequency Synchronization

Front Side Bus CPU External Frequency

FSB 1600 400 MHz

FSB 1333 333 MHz

FSB 1066 266 MHz

FSB 800 200 MHz

The following item appears only when you set the AI Overclocking item to [Overclock Prole].

Overclock Options [Overclock 5%]

Allows you to select the overclock options. Conguration options: [Overclock 5%]

[Overclock 10%] [Overclock 15%] [Overclock 20%] [Overclock 30%]

DRAM Frequency [Auto]

Allows you to set the DDR2 operating frequency. Conguration options: [Auto] [667 MHz] [800 MHz] [1067MHz]

The following table shows the DRAM Frequency options that appear when the FSB value is 1600, 1333, 1066, and 800.

FSB

Auto 667MHz 800MHz 960MHz 1000MHz 1067MHz 1100MHz 1200MHz

1600 v v v v

1333 v v v v v

1066 v v v v

800 v v v

Selecting a very high DRAM frequency may cause the system to become unstable! If this happens, revert to the default setting.

2-10 Chapter 2: BIOS information

DRAM Frequency

SB Over Voltage [Auto]

Allows you to manually set ICH chipset voltage or Auto for safe mode.

Conguration options: [Auto] [1.5V] [1.6V]

NB Over Voltage [Auto]

Allows you to manually set MCH chipset voltage or Auto for safe mode.

Conguration options: [Auto] [1.30V] [1.35V] [1.40] [1.45]

CPU Vcore Over Voltage [Auto]

Allows you to manually set FSB termination voltage or Auto for safe mode.

Conguration options: [Auto] [0MV] [50MV] [100MV] [150MV]

Memory Over Voltage

Allows you to set the Memory Over Voltage. Use +/- to adjust the voltage. The increment is

0.00625V. The standard value is 1.85000V.

Conguration options: [Auto] [Min = 1.850000V] [Max = 2.24375V]

2.4.2 USB Conguration

The items in this menu allows you to change the USB-related features. Select an item then press <Enter> to display the conguration options.

The Module Version and USB Devices Enabled items show the auto-detected values. If no USB device is detected, the item shows None.

USB Functions [Enabled]

Allows you to disable or enable the USB functions. Conguration options: [Disabled]

[Enabled] [8 USB Ports]

USB 2.0 Controller [Enabled]

Allows you to enable or disable USB 2.0 controller.

Conguration options: [Enabled] [Disabled]

Legacy USB Support [Auto]

Allows you to enable or disable support for Legacy USB storage devices, including USB ash drives and USB hard drives. Setting to [Auto] allows the system to detect the presence of USB devices at startup. If detected, the USB controller legacy mode is enabled. If no USB

device is detected, the legacy USB support is disabled. Conguration options: [Disabled]

[Enabled] [Auto]

USB 2.0 Controller Mode [HiSpeed]

Allows you to congure the USB 2.0 controller in HiSpeed (480Mbps) or Full Speed (12Mbps). Conguration options: [FullSpeed] [HiSpeed]

ASUS P5KPL/EPU 2-11

The following item may only appear when a USB storage device is plugged.

USB Mass Stroage Device Conguration

USB Mass Stroage Reset Delay [20 Sec]

Allows you to set the USB mass stroage reset delay. Conguration options: [10 Sec] [20 Sec]

[30 Sec] [ 40 Sec]

Emulation Type [Auto]

Allows you to set the emulation type. Conguration options: [Auto] [Floppy] [Forced FDD]

[Hard Disk] [CDROM]

2.4.3 CPU Conguration

The items in this menu show the CPU-related information that the BIOS automatically detects.

CPU Ratio Setting [Auto]

Sets the ration between CPU core clock and the FSB frequency.

If an invalid ratio is set in CMOS, then the actual and set values may differ.

Key in ratio numbers directly.

C1E Support [Enabled]

Allows you to enable or disable C1E Support. Conguration options: [Disabled] [Enabled]

Max CPUID Value Limit [Disabled]

Setting this item to [Enabled] allows legacy operating systems to boot even without support

for CPUs with extended CPUID functions. Conguration options: [Disabled] [Enabled]

Vanderpool Technology [Enabled]

Enables or disables Intel® Virtualization Technology. Virtualization enhanced by Intel®

Virtualization Technology allows a platform to run multiple operating systems and applications in independent partitions. With virtualization, one computer system can function as multiple virtual systems. Conguration options: [Enabled] [Disabled]

CPU TM function [Enabled]

Enables or disables Intel® CPU Thermal Monitor (TM) function, a CPU overheating protection function. When enabled, the CPU core frequency and voltage are reduced when the CPU

overheats. Conguration options: [Disabled] [Enabled]

Execute-Disable Bit Capability [Enabled]

Allows you to enable or disable the No-Execution Page Protection Technology. Setting this item to [Disabled] forces the XD feature ag to always return to zero (0). Conguration options: [Disabled] [Enabled]

The following item appears only when you installed an Intel® CPU that supports the Enhanced Intel® SpeedStep® Technology (EIST).

2-12 Chapter 2: BIOS information

Intel(R) SpeedStep(TM) Tech [Enabled]

Allows you to use the Enhanced Intel® SpeedStep® Technology. When set to [Enabled], you can adjust the system power settings in the operating system to use the EIST feature. Set this item to [Disabled] if you do not want to use the EIST.

Conguration options: [Enabled] [Disabled]

2.4.4 Chipset

The Chipset menu allows you to change the advanced chipset settings. Select an item then press <Enter> to display the submenu.

North Bridge Conguration

Memory Remap Feature [Enabled]

Allows you to enabled or disable the remapping of the overlapped PCI memory above the total physical memory. Enable this option only when you install 64-bit operating system.

Conguration options: [Disabled] [Enabled]

Congure DRAM Timing by SPD [Enabled]

Allows you to enable or disable conguring the DRAM Timing by SPD. Conguration options: [Enabled] [Disabled]

Initiate Graphic Adapter [PEG/PCI]

Allows you to decide which graphics controller to use as the primary boot device.

Conguration options: [PCI/PEG] [PEG/PCI]

South Bridge Conguration

Audio Controller [Azalia]

Allows you to set the audio controller. Conguration options: [Azalia] [Disabled]

Front Panel Support Type [HD Audio]

Allows you to select the front panel support type. If High Denition Audio Front Panel used, please set HD Audio mode. Conguration options: [AC97] [HD Audio]

2.4.5 Onboard Devices Conguration

Onboard LAN [Enabled]

Allows you to enable or disable the onboard LAN controller.

Conguration options: [Enabled] [Disabled]

OnBoard LAN Boot ROM [Disabled]

Allows you to enable or disable the boot ROM in the onboard LAN controller. This item

appears only when the Onboard LAN item is set to Enabled. Conguration options:

[Disabled] [Enabled]

Serial Port1 Address [3F8/IRQ4]

Allows you to select the Serial Port1 base address.

Conguration options: [Disabled] [3F8/IRQ4] [2F8/IRQ3] [3E8/IRQ4] [2E8/IRQ3]

ASUS P5KPL/EPU 2-13

Parallel Port Address [378]

Allows you to select the Parallel Port base addresses. Conguration options: [Disabled] [378]

[278] [3BC]

Parallel Port Mode [ECP]

Allows you to select the Parallel Port mode. Conguration options: [Normal] [Bi-Directional] [EPP] [ECP]

ECP Mode DMA Channel [DMA3]

Appears only when the Parallel Port Mode is set to [ECP]. This item allows you to set

the Parallel Port ECP DMA. Conguration options: [DMA0] [DMA1] [DMA3]

Parallel Port IRQ [IRQ7]

Allows you to select parallel port IRQ. Conguration options: [IRQ5] [IRQ7]

2.4.6 PCI PnP

The PCI PnP menu items allow you to change the advanced settings for PCI/PnP devices. The menu includes setting IRQ and DMA channel resources for either PCI/PnP or legacy ISA

devices, and setting the memory size block for legacy ISA devices.

Take caution when changing the settings of the PCI PnP menu items. Incorrect eld values

can cause the system to malfunction.

Plug and Play O/S [No]

When set to [No], BIOS congures all the devices in the system. When set to [Yes] and if you install a Plug and Play operating system, the operating system congures the Plug and Play devices not required for boot. Conguration options: [No] [Yes]

PCI Latency Timer [64]

Allows you to select the value in units of PCI clocks for the PCI device latency timer register.

Conguration options: [32] [64] [96] [128] [160] [192] [224] [248]

Allocate IRQ to PCI VGA [Yes]

When set to [Yes], BIOS assigns an IRQ to PCI VGA card if the card requests for an IRQ. When set to [No], BIOS does not assign an IRQ to the PCI VGA card even if requested.

Conguration options: [Yes] [No]

Palette Snooping [Disabled]

When set to [Enabled], the pallete snooping feature informs the PCI devices that an ISA graphics device is installed in the system so that the latter can function correctly.

Conguration options: [Disabled] [Enabled]

IRQ-xx assigned to [PCI Device]

When set to [PCI Device], the specic IRQ is free for use of PCI/PnP devices. When set to [Reserved], the IRQ is reserved for legacy ISA devices. Conguration options: [PCI Device]

[Reserved]

2-14 Chapter 2: BIOS information

2.5 Power menu

The Power menu items allow you to change the settings for the Advanced Power Management (APM). Select an item then press <Enter> to display the conguration options.

Main Advanced Power Boot Tools Exit

Suspend Mode [Auto]

ACPI 2.0 Support [Disabled] ACPI APIC Support [Enabled]

APM Conguration

Hardware Monitor

BIOS SETUP UTILITY

Select the ACPI state used for System Suspend.

2.5.1 Suspend Mode [Auto]

Allows you to select the Advanced Conguration and Power Interface (ACPI) state to be used for system suspend. Conguration options: [S1 (POS) Only] [S3 Only] [Auto]

[S1(POS) Only] - Enables the system to enter the ACPI S1 (Power on Suspend) sleep

state. In S1 sleep state, the system appears suspended and stays in a low power mode. The system can be resumed at any time. [S3 Only] - Enables the system to enter the ACPI S3 (Suspend to RAM) sleep state (default). In S3 sleep state, the system appears to be off and consumes less power than in the S1 state. When signaled by a wake-up device or event, the system resumes to its working state exactly where it was left off.

[Auto] - Detected by OS.

2.5.2 ACPI 2.0 Support [Disabled]

Allows you to add more tables for Advanced Conguration and Power Interface (ACPI) 2.0 specications. Conguration options: [Disabled] [Enabled]

2.5.3 ACPI APIC Support [Enabled]

Allows you to enable or disable the Advanced Conguration and Power Interface (ACPI) support in the Application-Specic Integrated Circuit (ASIC). When set to Enabled, the ACPI APIC table pointer is included in the RSDT pointer list. Conguration options: [Disabled]

[Enabled]

2.5.4 APM Conguration

Restore on AC Power Loss [Power Off]

When set to [Power Off], the system goes into off state after an AC power loss. When set to [Power On], the system goes on after an AC power loss. When set to [Last State], the system goes into either off or on state, whatever the system state was before the AC power

loss. Conguration options: [Power Off] [Power On] [Last State]

ASUS P5KPL/EPU 2-15

Resume On Ring [Disabled]

Allows you to enable or disable RI to generate a wake event.

Conguration options: [Disabled] [Enabled]

Resume On PCI Devices [Disabled]

When set to [Enabled], this parameter allows you to wake the system through a PCI LAN or modem card. This feature requires an ATX power supply that provides at least 1A on the

+5VSB lead. Conguration options: [Disabled] [Enabled]

Resume On PCIE Devices [Disabled]

When set to [Enabled], this parameter allows you to wake the system through a PCI Express card. This feature requires an ATX power supply that provides at least 1A on the +5VSB

lead. Conguration options: [Disabled] [Enabled]

Resume On RTC Alarm [Disabled]

Allows you to enable or disable RTC to generate a wake event. When this item is set to Enabled, the items RTC Alarm Date, RTC Alarm Hour, RTC Alarm Minute, and RTC Alarm

Second appear with set values. Conguration options: [Disabled] [Enabled]

Power On By PS/2 Keyboard [Disabled]

Allows you to use specic keys on the keyboard to turn on the system. This feature requires an ATX power supply that provides at least 1A on the +5VSB lead. Conguration options:

[Disabled] [Space Bar] [Ctrl-Esc] [Power Key] [Any Key]

Power On By PS/2 Mouse [Disabled]

When set to [Enabled], this parameter allows you to use the PS/2 mouse to turn on the system. This feature requires an ATX power supply that provides at least 1A on the +5VSB

lead. Conguration options: [Disabled] [Enabled]

2.5.5 Hardware Monitor

CPU Temperature [xxxºC/xxxºF] or [Ignored]

MB Temperature [xxxºC/xxxºF] or [Ignored]

The onboard hardware monitor automatically detects and displays the motherboard and CPU temperatures. Select Ignored if you do not wish to display the detected temperatures.

CPU Fan Speed (RPM) [xxxxRPM] or [Ignored]

The onboard hardware monitor automatically detects and displays the CPU fan speed in

rotations per minute (RPM). If the fan is not connected to the motherboard, the eld shows

N/A. Select Ignored if you do not wish to display the detected speed.

CPU Q-Fan Control [Disabled]

Allows you to enable or disable the Q-Fan control. Conguration options: [Disabled]

[Enabled]

Chassis Fan Speed [Ignored] or [N/A]

The onboard hardware monitor automatically detects and displays the Chassis fan speed in

rotations per minute (RPM). If the fan is not connected to the motherboard, the eld shows

N/A. Select Ignored if you do not wish to display the detected speed.

2-16 Chapter 2: BIOS information

Chassis Q-Fan Control [Disabled]

Allows you to enable or disable the Q-Fan control. Conguration options: [Disabled] [Enabled]

Power Fan Speed [Ignored] or [N/A]

The onboard hardware monitor automatically detects and displays the Power fan speed in

rotations per minute (RPM). If the fan is not connected to the motherboard, the eld shows

N/A. Select Ignored if you do not wish to display the detected speed.

VCORE Voltage, 3.3V Voltage, 5V Voltage, 12V Voltage [xxxV] or [Ignored]

The onboard hardware monitor automatically detects the voltage output through the onboard voltage regulators.

2.6 Boot menu

The Boot menu items allow you to change the system boot options. Select an item then press <Enter> to display the sub-menu.

Main Advanced Power Boot Tools Exit

Boot Settings

Boot Device Priority

Boot Settings Conguration

Security

2.6.1 Boot Device Priority

1st ~ xxth Boot Device

These items specify the boot device priority sequence from the available devices. The number of device items that appears on the screen depends on the number of devices

installed in the system. Conguration options: [Removable Dev.] [Hard Drive] [ATAPI CD-

ROM] [Disabled]

2.6.2 Boot Settings Conguration

Quick Boot [Enabled]

Enabling this item allows the BIOS to skip some power on self tests (POST) while booting to decrease the time needed to boot the system. When set to [Disabled], BIOS performs all the

POST items. Conguration options: [Disabled] [Enabled]

Full Screen Logo [Enabled]

This allows you to enable or disable the full screen logo display feature. Conguration

options: [Disabled] [Enabled]

BIOS SETUP UTILITY

Species the Boot

Device Priority sequence.

A virtual drive (Drive B:) may appear when you set the CD-ROM drive as

the rst boot device.

Set this item to [Enabled] to use the ASUS MyLogo2™ feature.

ASUS P5KPL/EPU 2-17

AddOn ROM Display Mode [Force BIOS]

Sets the display mode for option ROM. Conguration options: [Force BIOS] [Keep Current]

Bootup Num-Lock [On]

Allows you to select the power-on state for the NumLock.

Conguration options: [Off] [On]

PS/2 Mouse Support [Auto]

Allows you to enable or disable support for PS/2 mouse.

Conguration options: [Disabled] [Enabled] [Auto]

Wait For ‘F1’ If Error [Enabled]

When set to Enabled, the system waits for the F1 key to be pressed when error occurs.

Conguration options: [Disabled] [Enabled]

Hit ‘DEL’ Message Display [Enabled]

When set to [Enabled], the system displays the message Press DEL to run Setup during

POST. Conguration options: [Disabled] [Enabled]

2.6.3 Security

The Security menu items allow you to change the system security settings. Select an item then press <Enter> to display the conguration options.

Change Supervisor Password

Select this item to set or change the supervisor password. The Supervisor Password item on top of the screen shows the default Not Installed. After you set a password, this item shows Installed.

To set a Supervisor Password:

1. Select the

2. On the password box, key in a password containing up to six letters or numbers, or

both, then press <Enter>.

3. Conrm the password when prompted.

The message Password Installed appears after you successfully set your password. To change the supervisor password, follow the same steps in setting a supervisor password. To clear the supervisor password, select the Change Supervisor Password then press

<Enter> twice. The message Password uninstalled appears.

Change Supervisor Password item and press <Enter>.

If you forget your BIOS password, you can clear it by erasing the CMOS Real Time Clock (RTC) RAM. See section 1.9 Jumpers for information on how to erase the RTC RAM.

2-18 Chapter 2: BIOS information

After you have set a supervisor password, the other items appear to allow you to change other security settings.

User Access Level [Full Access]

This item allows you to select the access restriction to the Setup items.

Conguration options: [No Access] [View Only] [Limited] [Full Access]

[No Access] - prevents user access to the Setup utility. [View Only] - allows access but does not allow change to any eld. [Limited] - allows changes only to selected elds, such as Date and Time. [Full Access] - allows viewing and changing all the elds in the Setup utility.

Change User Password

Select this item to set or change the user password. The User Password item on top of the screen shows the default Not Installed. After you set a password, this item shows Installed.

To set a User Password:

1. Select the

2. On the password box, key in a password containing up to six letters or numbers, or

both, then press <Enter>.

3. Conrm the password when prompted.

The message Password Installed appears after you set your password successfully. To change the user password, follow the same steps in setting a user password.

Change User Password item and press <Enter>.

Clear User Password

Select this item to clear the user password.

Password Check [Setup]

When set to [Setup], BIOS checks for user password when accessing the Setup utility. When set to [Always], BIOS checks for user password both when accessing Setup and booting the

system. Conguration options: [Setup] [Always]

ASUS P5KPL/EPU 2-19

2.7 Tools menu

The Tools menu items allow you to congure options for special functions. Select an item then

press <Enter> to display the sub-menu.

Main Advanced Power Boot Tools Exit

AI NET 2

ASUS EZ Flash 2

Express Gate [Enabled] Enter OS Timer [10 Seconds] Reset User Data [No]

2.7.1 AI NET 2

Check Realtek LAN cable [Disabled]

Enables or disables checking of the Realtek LAN cable during the Power-On Self-Test

(POST). Conguration options: [Disabled] [Enabled]

2.7.2 ASUS EZ Flash 2

Allows you to run ASUS EZ Flash 2. When you press <Enter>, a conrmation message appears. Use the left/right arrow key to select between [Yes] or [No], then press <Enter> to

conrm your choice. Please see section 2.1.3 for details.

2.7.3 Express Gate [Enabled]

Allows you to enable or disable the ASUS Express Gate feature. The ASUS Express Gate feature is a unique instant-on environment that provides quick access to the Internet browser

and Skype. Conguration options: [Enabled] [Disabled]

Enter OS Timer [10 Seconds]

Sets countdown duration that the system waits at the Express Gate’s rst screen

before starting Windows or other installed OS. Choose [Prompt User] to stay at the

rst screen of Express Gate for user action. Conguration options: [Prompt User] [1 second] [3 seconds] [5 seconds]

[10 seconds] [15 seconds] [20 seconds] [30 seconds]

Reset User Data [No]

Allows you to clear Express Gate’s user data.

Conguration options: [No] [Reset]

When setting this item to [Reset], make sure to save the setting to the BIOS so that the user data will be cleared the next time you enter the Express Gate. User data includes the Express Gate’s settings as well as any personal information stored by the web browser (bookmarks, cookies, browsing history, etc.). This is useful in the rare case where corrupt settings prevent the Express Gate environment from launching properly.

BIOS SETUP UTILITY

LAN Cable Status

The rst time wizard will run again when you enter the Express Gate environment after

clearing its settings.

2-20 Chapter 2: BIOS information

2.8 Exit menu

Exit system setup after saving the changes.

F10 key can be used for this operation.

The Exit menu items allow you to load the optimal or failsafe default values for the BIOS items, and save or discard your changes to the BIOS items.

Main Ai Tweaker Advanced Power Boot Tools Exit

Exit Options

Exit & Save Changes

Exit & Discard Changes Discard Changes

Load Setup Defaults

Pressing <Esc> does not immediately exit this menu. Select one of the options from this menu or <F10> from the legend bar to exit.

Exit & Save Changes

Once you nished making your selections, choose this option from the Exit menu to ensure

the values you selected are saved to the CMOS RAM. An onboard backup battery sustains the CMOS RAM so it stays on even when the PC is turned off. When you select this option, a

conrmation window appears. Select OK to save changes and exit.

Exit & Discard Changes

Select this option only if you do not want to save the changes that you made to the Setup

program. If you made changes to elds other than System Date, System Time, and Password, the BIOS asks for a conrmation before exiting.

Discard Changes

This option allows you to discard the selections you made and restore the previously saved values. After selecting this option, a conrmation appears. Select OK to discard any changes and load the previously saved values.

Load Setup Defaults

This option allows you to load the default values for each of the parameters on the Setup menus. When you select this option or if you press <F5>, a conrmation window appears. Select OK to load default values. Select Exit & Save Changes or make other changes before saving the values to the non-volatile RAM.

BIOS SETUP UTILITY

ASUS P5KPL/EPU 2-21

2-22 Chapter 2: BIOS information

Asus P5KPL/EPU User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Notices

Safety information

About this guide

Chapter 1

Product introduction

1.1 Welcome!

1.2 Package contents

1.3 Special features

1.3.1 Product highlights

1.3.2 Innovative ASUS features

1.4 Before you proceed

1.5 Motherboard overview

1.5.1 Placement direction

1.5.2 Screw holes

1.5.3 Motherboard layout

1.5.4 Layout contents

1.6 Central Processing Unit (CPU)

1.6.1 Installing the CPU

1.6.2 Installing the CPU heatsink and fan

1.6.3 Uninstalling the CPU heatsink and fan

1.7 System memory

1.7.1 Overview

1.7.3 Installing a DIMM

1.7.4 Removing a DIMM

1.8 Expansion slots

1.8.1 Installing an expansion card

1.8.3 PCI slots

1.8.4 PCI Express x1 slot

1.8.5 PCI Express x16 slot

1.9 Jumpers

1.10 Connectors

1.10.1 Rear panel connectors

1.10.2 Internal connectors

1.11 Software support

1.11.1 Installing an operating system

1.11.2 Support DVD information

Chapter 2

BIOS information

2.1 Managing and updating your BIOS

2.1.1 ASUS Update utility

2.1.2 ASUS EZ Flash 2 utility

2.1.3 ASUS CrashFree BIOS 3 utility

2.2 BIOS setup program

2.2.1 BIOS menu screen

2.2.2 Menu bar

2.2.3 Navigation keys

2.2.4 Menu items

2.2.5 Submenu items

2.2.7 Pop-up window

2.2.8 Scroll bar

2.2.9 General help

2.3 Main menu

2.3.1 System Time [xx:xx:xx]

2.3.2 System Date [Day xx/xx/xxxx]

2.3.3 Primary IDE Master/SATA 1-4

2.3.5 System Information

2.4 Advanced menu

2.4.4 Chipset

2.4.6 PCI PnP

2.5 Power menu

2.5.1 Suspend Mode [Auto]

2.5.2 ACPI 2.0 Support [Disabled]

2.5.3 ACPI APIC Support [Enabled]

2.5.5 Hardware Monitor

2.6 Boot menu

2.6.1 Boot Device Priority

2.6.3 Security

2.7 Tools menu

2.7.1 AI NET 2

2.7.2 ASUS EZ Flash 2

2.7.3 Express Gate [Enabled]

2.8 Exit menu
