PRIME B560M-K
<![endif]>Motherboard
E17735
First Edition
January 2021
Copyright © 2021 ASUSTeK COMPUTER INC. All Rights Reserved.
No part of this manual, including the products and software described in it, may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means, except documentation kept by the purchaser for backup purposes, without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT.
Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners’ benefit, without intent to infringe.
ii
Contents
Safety information...................................................................................................... |
iv |
About this guide........................................................................................................... |
v |
Package contents....................................................................................................... |
vi |
PRIME B560M-K specifications summary................................................................ |
vi |
Connectors with shared bandwidth.......................................................................... |
ix |
Chapter 1 |
Product Introduction |
|
|
1.1 |
Before you proceed...................................................................................... |
1-1 |
|
1.2 |
Motherboard overview.................................................................................. |
1-1 |
|
1.3 |
Central Processing Unit (CPU).................................................................... |
1-7 |
|
1.4 |
System memory............................................................................................ |
1-8 |
|
Chapter 2 |
BIOS Information |
|
|
2.1 |
Knowing BIOS............................................................................................... |
2-1 |
|
2.2 |
BIOS Setup program..................................................................................... |
2-2 |
|
2.3 |
ASUS EZ Flash 3........................................................................................... |
2-3 |
|
2.4 |
ASUS CrashFree BIOS 3............................................................................... |
2-4 |
|
Appendix |
|
|
|
Notices...................................................................................................................... |
|
A-1 |
|
Warranty................................................................................................................... |
|
A-6 |
|
ASUS contact information...................................................................................... |
A-8 |
||
iii
Safety information
Electrical safety
•To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
•When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device.
•Before connecting or removing signal cables from the motherboard, ensure that all power cables are unplugged.
•Seek professional assistance before using an adapter or extension cord. These devices could interrupt the grounding circuit.
•Ensure that your power supply is set to the correct voltage in your area. If you are not sure about the voltage of the electrical outlet you are using, contact your local power company.
•If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
Operation safety
•Before installing the motherboard and adding components, carefully read all the manuals that came with the package.
•Before using the product, ensure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately.
•To avoid short circuits, keep paper clips, screws, and staples away from connectors, slots, sockets and circuitry.
•Avoid dust, humidity, and temperature extremes. Do not place the product in any area where it may be exposed to moisture.
•Place the product on a stable surface.
•If you encounter technical problems with the product, contact a qualified service technician or your retailer.
•Your motherboard should only be used in environments with ambient temperatures between 0°C and 40°C.
iv
About this guide
This user guide contains the information you need when installing and configuring the motherboard.
How this guide is organized
This guide contains the following parts:
•Chapter 1: Product Introduction
This chapter describes the features of the motherboard and the new technology it supports. It includes descriptions of the switches, jumpers, and connectors on the motherboard.
•Chapter 2: BIOS Information
This chapter tells how to boot into the BIOS, and upgrade BIOS using the EZ Flash Utility.
Where to find more information
Refer to the following sources for additional information and for product and software updates.
1.ASUS website
The ASUS website provides updated information on ASUS hardware and software products. Refer to the ASUS contact information.
2.Optional documentation
Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. These documents are not part of the standard package.
Conventions used in this guide
To ensure that you perform certain tasks properly, take note of the following symbols used throughout this manual.
CAUTION: Information to prevent damage to the components and injuries to yourself when trying to complete a task.
IMPORTANT: Instructions that you MUST follow to complete a task.
NOTE: Tips and additional information to help you complete a task.
v
Package contents
Check your motherboard package for the following items.
Motherboard |
1 x PRIME B560M-K motherboard |
|
Cables |
2 x SATA 6Gb/s cables |
|
|
|
|
Miscellaneous |
1 x I/O Shield |
|
2 x M.2 Anchors |
||
|
||
Application DVD |
1 x Support DVD |
|
|
|
|
Documentation |
1 x User manual |
If any of the above items is damaged or missing, contact your retailer.
PRIME B560M-K specifications summary
|
Intel® Socket LGA1200 for 11th Gen Intel® Core™ processors & 10th Gen |
|
Intel® Core™, Pentium® Gold and Celeron® Processors* |
|
Supports Intel® 14 nm CPU |
CPU |
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max |
|
Technology 3.0** |
Chipset
Memory
Graphics
Expansion Slots
*Refer to www.asus.com for CPU support list.
**Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Intel® B560 Chipset
2x DIMM, Max. 64GB, DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/
3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered
Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
*10th Gen Intel® Core™ i7/i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
*11th Gen Intel® processors support 2933 / 2800 / 2666 / 2400 / 2133 natively.
*Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
1 x D-Sub
1 x HDMI™ 1.4/2.0**
*Graphics specifications may vary between CPU types.
**Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.
Intel® 11th & 10th Gen Processors
1 x PCIe 4.0 / 3.0 x16 slot
-Intel® 11th Gen processors support PCIe 4.0 x16 mode
-Intel® 10th Gen processors support PCIe 3.0 x16 mode
Intel® B560 Chipset
2 x PCIe 3.0 x1 slots
(continued on the next page)
vi
PRIME B560M-K specifications summary
|
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports |
||
|
Intel® 11th Gen Processors |
||
|
M.2_1 slot (Key M), type 2242/2260/2280 |
||
|
- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be |
||
Storage |
|
disabled for other CPUs |
|
Intel® B560 Chipset |
|||
|
M.2_2 slot (Key M), type 2242/2260/2280 |
||
|
(supports PCIe 3.0 x4 & SATA modes)* |
||
|
6 x SATA 6Gb/s ports |
||
|
* The M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs in SATA mode, |
||
|
|
SATA6G_2 will be disabled. |
|
Ethernet |
1 x Intel® I219-V 1Gb Ethernet |
||
|
Rear USB (Total 6 ports) |
||
|
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
||
USB |
2 x USB 2.0 ports (2 x Type-A) |
||
Front USB (Total 6 ports) |
|||
|
|||
|
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
||
|
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
||
|
Realtek ALC 897 7.1 Surround Sound High Definition Audio CODEC* |
||
|
- Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking |
||
|
- |
Supports up to 24-Bit/192 kHz playback |
|
Audio |
Audio Features |
||
- |
Audio Shielding |
||
|
|||
|
- |
Premium Japanese audio capacitors |
|
|
- |
Dedicated audio PCB layers |
|
|
*A chassis with an HD audio module in the front panel is required to support 7.1 |
||
|
|
Surround Sound audio output. |
|

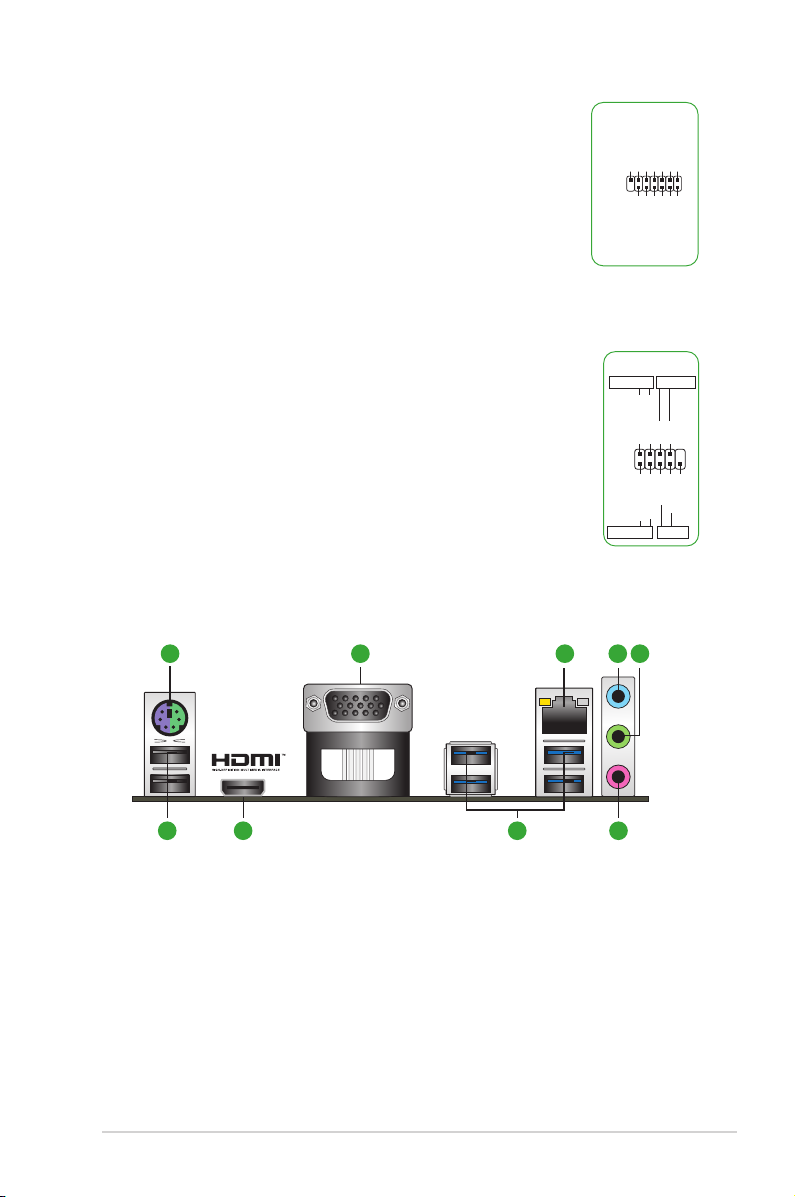

4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
Back Panel I/O Ports 1 x HDMI™ port
1 x Intel® I219-V 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
|
Fan and cooling related |
|
|
1 x 4-pin CPU Fan header |
|
|
1 x 4-pin Chassis Fan header |
|
|
Power related |
|
|
1 x 24-pin Main Power connector |
|
Internal I/O |
1 x 8-pin +12V Power connector |
|
Connectors |
Storage related |
|
|
2 x M.2 slots (Key M) |
|
|
6 x SATA 6Gb/s ports |
|
|
USB |
|
|
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
|
|
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
|
(continued on the next page) |
|
vii
PRIME B560M-K specifications summary
Internal I/O
Connectors
Special Features
Software
Features
BIOS
Manageability
Operating
System
Form Factor
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
ASUS 5X PROTECTION III
-DIGI+ VRM
-LANGuard
-Overvoltage Protection
-SafeSlot Core
-Stainless-Steel Back I/O
ASUS Q-Design
-Q-DIMM
-Q-Slot
ASUS Lighting Control
- RGB header
ASUS Exclusive Software
Armoury Crate
AI Suite 3
-Performance And Power Saving Utility
TurboV EVO EPU
DIGI+ VRM
Fan Xpert
-EZ update
ASUS CPU-Z
AI Charger DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
-ASUS CrashFree BIOS 3
-ASUS EZ Flash 3
-ASUS UEFI BIOS EZ Mode
128 Mb Flash ROM, UEFI AMI BIOS
WOL by PME, PXE
Windows® 10 64-bit
mATX Form Factor
9.6 inch x 8.3 inch (24.4 cm x 21.1 cm)
Specifications are subject to change without notice. Please refer to the ASUS website for the latest specifications.
viii
Connectors with shared bandwidth
KBMS_USB_78
ASM
HDMI 1442K
VGA |
U32G1_56
LAN_U32G1_34
<![if ! IE]><![endif]>FAN_
<![if ! IE]><![endif]>CHA
AUDIO
Ethernet
BATTERY
Audio
Codec
AAFP
|
CPU_FAN |
|
ATX_12V |
DIGI+ |
RGB_HEADER |
|
VRM |
LGA1200
|
<![if ! IE]> <![endif]>RAID ONCPU |
<![if ! IE]> <![endif]>X |
|
<![if ! IE]> <![endif]>1(SOCKET3)M.2 |
|
|
|
|
<![if ! IE]> <![endif]>1(SOCKET3)M.2 |
|
|
|
|
|
<![if ! IE]> <![endif]>PCIE |
<![if ! IE]> <![endif]>XX44.0 |
|
|
|
|
|
|
|
|
|||
|
<![if ! IE]> <![endif]>SATA |
|
|
|
|
|
|
|
|
|
2242 |
||
|
|
|
|
|
|
|
|
|
|
|
|
PCIEX16 |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
||
2280 |
2260 |
|
2242 |
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Super |
|
|
|
|
|
|
PCIEX1_1 |
|
|
|
|||||
|
|
|
|
|
|
|
I/O |
|
|||||
|
|
|
|
|
|
|
|
COM_DEBUG |
|
|
|
||
|
|
|
|
|
|
|
|
||||||
2260 2280
| <![if ! IE]> <![endif]>2(SOCKET3)M.2 |
|
|
<![if ! IE]> <![endif]>2(SOCKET3)M.2 |
|
|
|
|
<![if ! IE]> <![endif]>PCIE |
<![if ! IE]> <![endif]>XVX43.0 |
||
|
|
|
|
<![if ! IE]> <![endif]>IRST |
|
|
|
|
|
<![if ! IE]> <![endif]>SATA |
|
|
|
|
|
|
|
|
|
|
|
|
|
| <![if ! IE]> <![endif]>DIMM A1* (64bit, 288-pin module) |
<![if ! IE]> <![endif]>DIMM B1* (64bit, 288-pin module) |
<![if ! IE]> <![endif]>ATX PWR |
| <![if ! IE]> <![endif]>DDR4 |
<![if ! IE]> <![endif]>DDR4 |
|
|
|
<![if ! IE]> <![endif]>U32G1 12 |
Intel® |
<![if ! IE]> <![endif]>SATA6G 1 |
B560 |
<![if ! IE]> <![endif]>2 |
|
<![if ! IE]> <![endif]>SATA6G |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>3 |
|
|||||||||||||
|
|
|
|
PCIEX1_2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>SATA6G |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
128Mb |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
CLRTC |
|
|
|
|
|
USB_914 USB_1011 |
SATA6G_6 SATA6G_5 SATA6G_4 |
|
SPEAKER F_PANEL |
|||||||||||||||||||
|
COM |
|
|
|
|
|
BIOS |
|
TPM |
|
|||||||||||||||||||||||||||
|
|
|
|
|
SPDIF_OUT |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A
A
Configuration |
1 |
2 |
||
|
|
|
|
|
A |
M.2_2 |
x4 |
SATA |
|
|
|
|
||
SATA6G_2 |
V |
- |
||
|
||||
|
|
|
|
|
•M.2_2 shares bandwidth with SATA6G_2.
•When a device in SATA mode is installed on the M.2_2 socket, the SATA6G_2 port cannot be used.
ix
