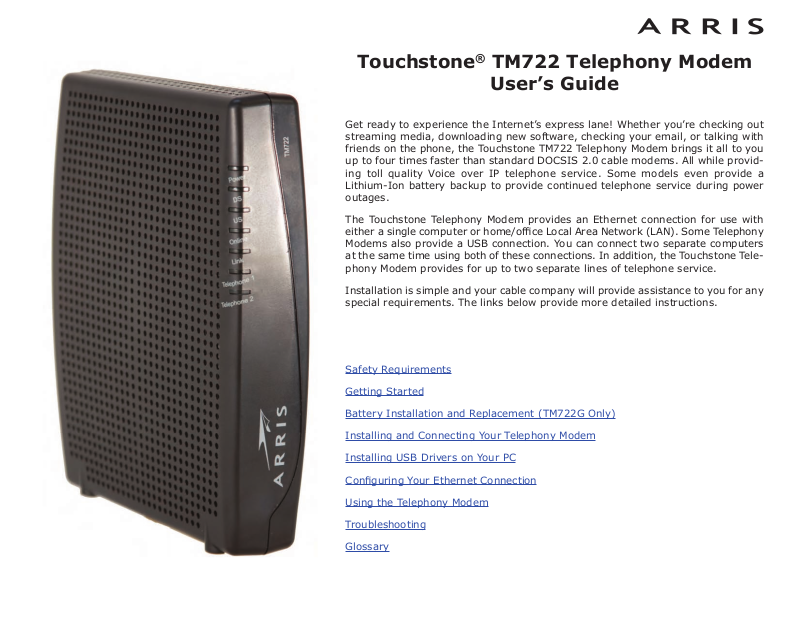

Arris TM722A User Manual

Touchstone®TM722 Telephony Modem

User’s Guide

Get ready to experience the Internet’s express lane! Whether you’re checking out streaming media, downloading new software, checking your email, or talking with friends on the phone, the Touchstone TM722 Telephony Modem brings it all to you up to four times faster than standard DOCSIS 2.0 cable modems. All while providing toll quality Voice over IP telephone service. Some models even provide a Lithium-Ion battery backup to provide continued telephone service during power outages.

The Touchstone Telephony Modem provides an Ethernet connection for use with either a single computer or home/ofﬁce Local Area Network (LAN). Some Telephony Modems also provide a USB connection. You can connect two separate computers at the same time using both of these connections. In addition, the Touchstone Telephony Modem provides for up to two separate lines of telephone service.

Installation is simple and your cable company will provide assistance to you for any special requirements. The links below provide more detailed instructions.

Safety Requirements

Getting Started

Battery Installation and Replacement (TM722G Only)

Installing and Connecting Your Telephony Modem

Installing USB Drivers on Your PC

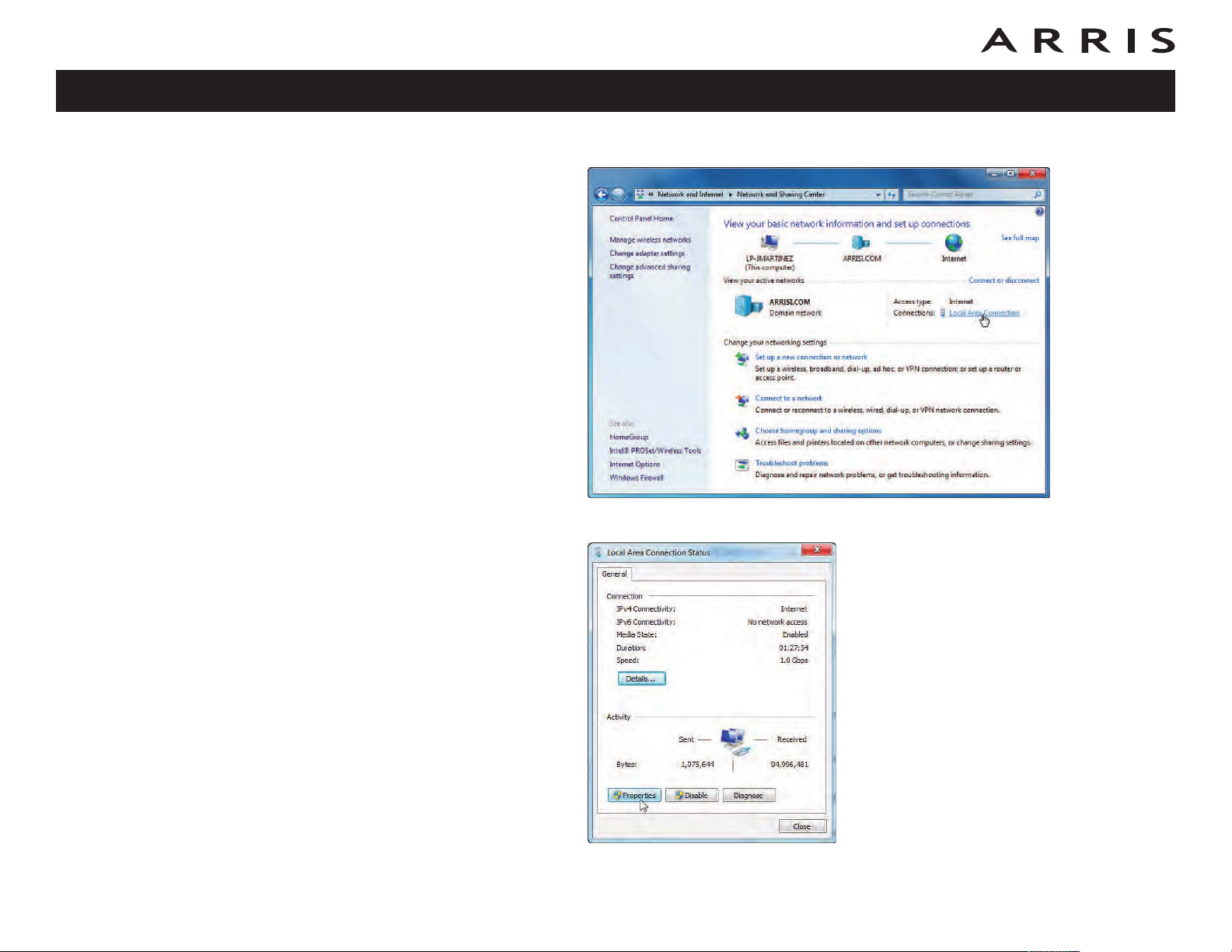

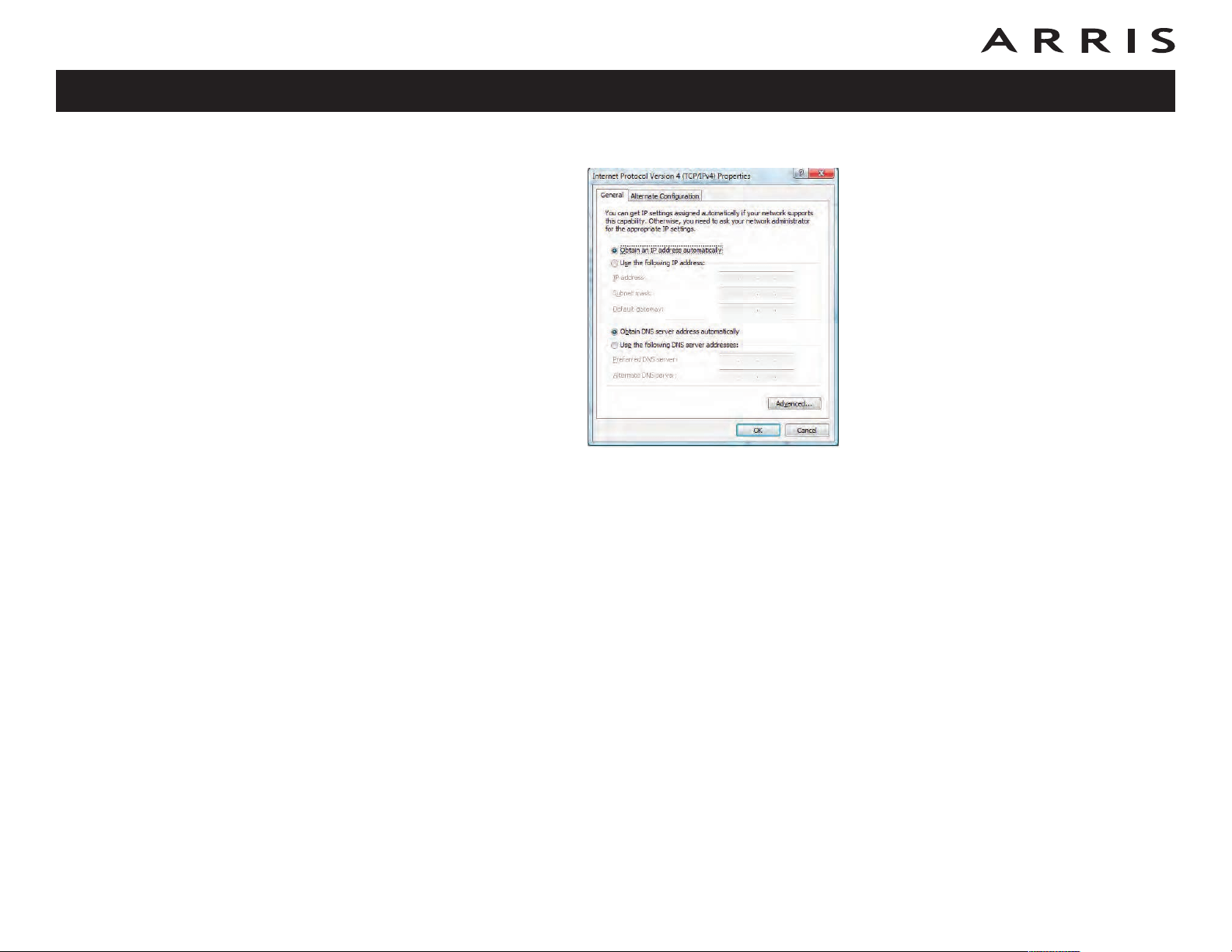

Conﬁguring Your Ethernet Connection

Using the Telephony Modem

Troubleshooting

Glossary

Touchstone® TM722 Telephony Modem User’s Guide Export Regulations Safety Requirements FCC Part 15 European Compliance Energy Consumption (TM722S Models only) Getting Started About Your New Telephony Modem What’s in the Box? What’s on the CD? Items You Need Getting Service System Requirements Recommended Hardware Windows MacOS Linux/other Unix About this Manual Ethernet or USB? Ethernet USB Both What About Security? Battery Installation and Replacement (TM722G Only) TM722G Basic Battery Installation and Replacement TM722G Extended Battery Installation and Replacement TM722G Maximum Battery Installation and Replacement Installing and Connecting Your Telephony Modem Front Panel TM722A/B/S Front Panel TM722G Front Panel Rear Panel TM722A/B/S Rear Panel TM722G Rear Panel Mounting the Telephony Modem Tools and Materials Location Instructions Wall-mounting instructions Desktop mounting instructions Connecting the Telephony Modem Making Ethernet Connections Making USB Connections Making Telephone Connections Installing USB Drivers on Your PC Requirements Installation Instructions Installing USB Drivers on Windows 2000 Installing USB Drivers on Windows XP Installing USB Drivers on Windows Vista Installing Touchstone USB Drivers on Vista in 32-bit Mode Installing Touchstone USB Drivers on Vista in 64-bit Mode Installing USB Drivers on Windows 7 Installing Touchstone USB Drivers on New Windows 7 Systems Installing Touchstone USB Drivers on Systems Upgraded to Windows 7 Removing USB Drivers Removing USB Drivers (all but 64-bit Vista) Removing USB Drivers (64-bit Vista) Conﬁguring Your Ethernet Connection Requirements How to use this chapter TCP/IP Conﬁguration for Windows 2000 TCP/IP Conﬁguration for Windows XP TCP/IP Conﬁguration for Windows Vista TCP/IP Conﬁguration for Windows 7 TCP/IP Conﬁguration for MacOS X Using the Telephony Modem Setting up Your Computer to Use the Telephony Modem Wiring Problems Indicator Lights for the TM722A/B/S Models Indicator Lights: Normal Operation Indicator Lights: Startup Sequence Cable Modem Start Up Sequence Indicator Lights for the TM722G Models Battery Mismatch Indicator Lights: Normal Operation Indicator Lights: Startup Sequence Cable Modem Start Up Sequence Using the Reset Button Booting from Battery Troubleshooting Troubleshooting USB Problems Instructions Glossary

Export Regulations

This product may not be exported outside the U.S. and Canada without U.S. Department of Commerce, Bureau of Export Administration authorization. Any export or re-export by the purchaser, directly or indirectly, in contravention of U.S. Export Administration Regulation is prohibited.

The information in this document is subject to change without notice. The statements, conﬁgurations, technical data, and recommendations in this document are believed to be accurate and reliable, but are presented without express or implied warranty. Users must take full responsibility for their applications of any products speciﬁed in this document. The information in this document is proprietary to ARRIS.

ARRIS, Touchstone, and the ARRIS logo are trademarks or registered trademarks of ARRIS. All other trademarks and registered trademarks are the property of their respective holders.

Protected under one or more of the following U.S. patents: 7,031,435. Other patents pending.

ARSVD01218 Release 7 Standard 2.1 February 2010

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

Safety Requirements

ARRIS Telephony Modems comply with the applicable requirements for performance, construction, labeling, and information when used as outlined below:

CAUTION

Risk of shock

Mains voltages inside this unit. No user serviceable parts inside. Refer service to qualiﬁed personnel only!

CAUTION

Potential equipment damage Potential loss of service

Connecting the Telephony Modem to existing telephone wiring should only be performed by a professional installer. Physical connections to the previous telephone provider must be removed and the wiring must be checked; there must not be any voltages. Cancellation of telephone service is not adequate. Failure to do so may result in loss of service and/or permanent damage to the Telephony Modem.

CAUTION

Risk of explosion

Replacing the battery with an incorrect type, heating the battery above 75°C, or incinerating the battery, can cause product failure and a risk of battery explosion. Dispose of used batteries promptly and according to the instructions.

• The Telephony Modem is designed to be connected directly to a telephone.

• Connecting the Telephony Modem to the home’s existing telephone wiring should only be performed by a professional installer.

• Do not use product near water (i.e. wet basement, bathtub, sink or near a swimming pool, etc.), to avoid risk of electrocution.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

• Avoid using and/or connecting the equipment during an electrical storm, to avoid risk of electrocution.

• Do not use the telephone to report a gas leak in the vicinity of the leak.

• Do not locate the equipment within 6 feet (1.9 m) of a ﬂame or ignition source (i.e. heat registers, space heaters, ﬁreplaces, etc.).

• Use only power supply and power cord included with the equipment.

• Equipment should be installed near the power outlet and should be easily accessible.

• The shield of the coaxial cable must be connected to earth (grounded) at the entrance to the building in accordance with applicable national electrical installation codes. In the U.S., this is required by NFPA 70 (National Electrical Code) Article 820. In the European Union and in certain other countries, CATV installation equipotential bonding requirements are speciﬁed in IEC 60728-11, Cable networks for television signals, sound signals and interac- tive services, Part 11: Safety. This equipment is intended to be installed in accordance with the requirements of IEC 60728-11 for safe operation.

If the equipment is to be installed in an area serviced by an IT power line network, as is found in many areas of Norway, special attention should be given that the installation is in accordance with IEC 60728-11, in particular Annex B and Figure B.4.

• In areas of high surge events or poor grounding situations and areas prone to lightning strikes, additional surge protection may be required (i.e. PF11VNT3 from American Power Conversion) on the AC, RF, Ethernet and Phone lines.

• When the Telephony Modem is connected to a local computer through USB or Ethernet cables, the computer must be properly grounded to the building/residence AC ground network. All plug-in cards within the computer must be properly installed and grounded to the computer frame per the manufacturer’s speciﬁcations.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

FCC Part 15

This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Changes or modiﬁcations to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

European Compliance

This product complies with the provisions of the Electromagnetic Compatibility (EMC) Directive (89/336/EEC), the Amending Directive (92/31/EEC), the Low Voltage Directive (73/23/EEC), and the CE Marking Directive (93/68/EEC). As such, this product bears the CE marking in accordance with the above applicable Directive(s).

A copy of the Declaration of Conformity may be obtained from: ARRIS International, Inc., 3871 Lakeﬁeld Drive, Suite 300, Suwanee, GA 30024.

As indicated by this symbol, disposal of this product or battery is governed by Directive 2002/96/EC of the European Parliament and of the Council on waste electrical and electronic equipment (WEEE). WEEE could potentially prove harmful to the environment; as such, upon disposal of the Telephony Modem the Directive requires that this product must not be disposed as unsorted municipal waste, but rather collected separately and disposed of in accordance with local WEEE ordinances.

This product complies with directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003 on the restriction of the use of certain hazardous substances (RoHS) in electrical and electronic equipment.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

Energy Consumption (TM722S Models only)

In accordance with Ecodesign Directive 2005/32/EC, this device is equipped with a power switch. The following energy consumption ﬁgures apply (measured with a wattmeter at the outlet):

Switch State Power Consumption

OFF 0.0 W

7.4 W (typical)

10.8 W (maximum)

Note: In most instances, ARRIS recommends that the power switch remain in

the ON position at all times. Turning the switch OFF disables the device, including both data service and telephone service. Turning the switch OFF is recommended only during vacations or similar extended absences.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

Getting Started

About Your New Telephony Modem

The Touchstone TM722 Telephony Modem is DOCSIS® 3.0 or Euro-DOCSIS™ 3.0 compliant with the following features:

• Speed: much faster than dialup or ISDN service; up to four times faster than DOCSIS 2.0 cable modems

• Convenience: supports USB (if equipped) and Ethernet; both can be used simultaneously

• Flexibility: provides two independent lines of telephone service as well as high speed data

• Compatibility:

– Data services: DOCSIS or Euro-DOCSIS 3.0 compliant and backward-

compatible with DOCSIS 2.0 or 1.1; supports tiered data services (if offered by your cable company)

– Telephony services: PacketCable™ and Euro-PacketCable 1.5 or 1.0 com-

pliant

What’s in the Box?

Make sure you have the following items before proceeding. Call your cable company for assistance if anything is missing.

• Telephony Modem

• Power Cord

• Battery (not all Telephony Modems have a battery)

• Quick Installation Guide

• Wall-Mounting Template and Instructions

• USB Cable (if the Telephony Modem has a USB port)

• Ethernet Cable

• Mini CD-ROM 80mm (if the Telephony Modem has a USB port)

Note: An adapter is required for slot-loading drives. Adapter is not included.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Coax Cable

Phone Cable

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

• End User License Agreement

What’s on the CD?

The CD provides the following items:

• Quick Install Guide

• User’s Guide

• USB Drivers (Windows 2000/XP/Vista)

• Remove USB Driver Utility

Items You Need

If you are installing the Telephony Modem yourself, make sure you have the following items on hand before continuing:

• Telephony modem package: see What’s in the Box? for a list of items in the package.

• Coaxial cable (coax): as shown in the image to the left, this is a thin cable with a connector on each end. It is the same kind of wire used to connect to your television for cable TV. You can buy coax from any electronics retailer and many discount stores; make sure it has connectors on both ends. There are two types of connectors, slip-on and screw-on; the screw-on connectors are best for use with your Telephony Modem. The coax should be long enough to reach from your Telephony Modem to the nearest cable outlet.

Note: For best performance, use high-quality RG-6 type coax cable and minimize or eliminate splitters between the cable jack and the Telephony Modem.

• Phone Cable: as shown in the image to the left, this is a standard phone cable with standard phone connectors (RJ11 type) on both ends. You can buy phone cables from any electronics retailer and many discount stores.

• Splitter (optional): provides an extra cable connection by splitting a single outlet into two. You may need a splitter if you have a TV already connected to the cable outlet that you want to use. You can buy a splitter from any electronics retailer and most discount stores; you may also need a short piece of coax cable (with connectors); use it to connect the splitter to the cable outlet and then connect the Telephony Modem and TV to the splitter.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

Note: A splitter effectively cuts the signal in half and sends each half to its

two outputs. Using several splitters in a line may deteriorate the quality of your television, telephone, and/or internet connection.

• Wall-mount hardware (optional): if you want to wall-mount your Telephony Modem, you need to obtain two drywall anchors or wood screws. See the Wall-Mount Template and Instructions for more details.

• Information packet: your cable company should furnish you with a packet containing information about your service and how to set it up. Read this information carefully and contact your cable company if you have any questions.

Getting Service

Before trying to use your new Telephony Modem, contact your local cable company to establish an Internet account and telephone service. When you call, have the following information ready:

• the Telephony Modem serial number and MAC addresses of the unit (printed on a sticker on the bottom of the Telephony Modem)

• the model number of the Telephony Modem

Save this information for future use. In addition, you should ask your cable company the following questions:

• Do you have any special system requirements or ﬁles that I need to download after I am connected?

• When can I start using my Telephony Modem?

• Do I need a user ID or password to access the Internet or my e-mail?

• Will my phone number(s) change?

• What new calling features will I have and how do I use them?

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

System Requirements

The Touchstone Telephony Modem operates with most computers. The following describes requirements for each operating system; see the documentation for your system for details on enabling and conﬁguring networking.

To use the Telephony Modem, you need DOCSIS or Euro-DOCSIS high-speed Internet service from your cable company, as appropriate. Telephone service requires that the cable company has PacketCable or Euro-PacketCable support.

Recommended Hardware

The following hardware conﬁguration is the minimum recommended. Computers not meeting this conﬁguration can still work with the TM722, but may not be able to make maximum use of TM722 throughput.

• CPU: P4, 3GHz or faster

• RAM: 1GB or greater

• Hard drive: 7200 RPM or faster

• Ethernet: Gig-E (1000BaseT)

Windows

Ethernet connection: Windows 2000, Windows XP, Windows Vista, or Windows 7

USB connection (if equipped): Windows 2000, Windows XP, Windows Vista, or Windows 7

MacOS

Ethernet connection only: System 7.5 to MacOS 9.2 (Open Transport recommended) or MacOS X

Linux/other Unix

Ethernet connection only: Hardware drivers, TCP/IP, and DHCP must be enabled in the kernel

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

About this Manual

This manual covers all of the different TM722 models. Your model may not have all of the capabilities outlined in this manual. To determine which model you have purchased, refer to the image at the left. The model number is on the label afﬁxed to the Telephony Modem.

Ethernet or USB?

Model

Number

There are two ways to connect your computer (or other equipment) to the Telephony Modem. The following will help you decide which is best for you:

Ethernet

Ethernet is a standard method of connecting two or more devices into a Local Area Network (LAN). Use the Ethernet connection if your computer has built-in Ethernet hardware, does not use Windows, or you want to share the Telephony Modem connection with several computers.

Note: To connect two or more computers to the Ethernet port, you will need a

hub or broadband router (available at computer retailers).

The Telephony Modem package comes with a 6-foot (1.9m) Ethernet cable (the connectors look like wide telephone connectors); you can purchase more cables if necessary at a computer retailer. If you are connecting the Telephony Modem directly to a computer, or to an Ethernet hub or broadband router with a cross-over switch, ask for Category 5 (CAT5) straight-through cable. If you are connecting the Telephony Modem to an Ethernet hub or broadband router without a crossover switch, ask for a Category 5 crossover cable.

USB

USB (Universal Serial Bus) is meant for connecting a variety of accessories, such as keyboards, mice, printers, and communications devices (including Telephony Modems) to a single computer. Use the USB connection if you have only one computer, and the computer is using a Windows operating system (Windows 2000 or later), and has no built-in Ethernet hardware. Telephony Modems with USB ports include a 5-foot (1.6m) USB cable.

Ethernet Cable

USB Cable

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

Both

If you have two or more computers, you can connect one computer to the Telephony Modem’s USB port and one or more other computers to the Ethernet port. To connect two or more computers to the Ethernet port, you will need a hub or broadband router (available at computer retailers).

What About Security?

Having a high-speed, always-on connection to the Internet requires a certain amount of responsibility to other Internet users—including the need to maintain a reasonably secure system. While no system is 100% secure, you can use the following tips to enhance your system’s security:

• Keep your operating system updated with the latest security patches. Run the system update utility at least weekly.

• Keep your email program updated with the latest security patches. In addition, avoid opening email containing attachments, or opening ﬁles sent through chat rooms, whenever possible.

• Install a virus checker and keep it updated.

• Avoid providing web or ﬁle-sharing services over your Telephony Modem. Besides certain vulnerability problems, most cable companies prohibit running servers on consumer-level accounts and may suspend your account for violating your terms of service.

• Use the cable company’s mail servers for sending email.

• Avoid using proxy abuse by other Internet users (some are shipped open by default). Criminals can take advantage of open proxies to hide their identity when breaking into other computers or sending spam. If you have an open proxy, your cable company may suspend your account to protect the rest of the network.

• If you connect your Telephony Modem to a wireless LAN, make sure you enable security and encryption on the wireless hub (for the same reasons that you should run only secured proxies). Consult the documentation and technical support of the wireless equipment provider for help.

software unless you are certain that it is not open for

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

Battery Installation and Replacement (TM722G Only)

The TM722G Telephony Modem may optionally include a Lithium-Ion battery to provide backup in the event of a local power loss. The battery backup is not intended to take the place of AC power.

Note: For safety and regulatory purposes, batteries are shipped outside of the

Telephony Modem and must be installed.

Basic Backup Battery

Extended Backup Battery

The TM722G supports the following battery models:

• Basic backup battery — provides up to 5 hours (black) or 8 hours (grey) of backup time, depending on your Telephony Modem model and usage. It may be light grey or black.

Basic Battery Installation and Replacement

• Extended backup battery — provides up to 12 hours of backup time, depending on model and usage. It has a strap between the battery guides.

Extended Battery Installation and Replacement

• Maximum backup battery — provides up to 24 hours of backup time, de- pending on model and usage. It replaces the battery door, and increases the height of the Telephony Modem by about 5/8 inch (16 mm).

Maximum Battery Installation and Replacement

Maximum Backup Battery

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Latch End

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

TM722G Basic Battery Installation and Replacement

This model of the Telephony Modem has the ability to provide battery backup in the event of a local power loss. The battery backup is not intended to take the place of AC power.

Use this procedure to install and to replace the backup battery.

1 Press down and pull back on the latch holding the battery door (on the bot-

tom of the Telephony Modem). Pull the door toward you. Set the door aside in a safe place.

Battery Slot

Battery Guide

2 Hold the battery pack so that the guides on the battery align with the slots

on the Telephony Modem and slide the battery into the bay. The diagram on the left shows the proper orientation.

Note: Batteries will not insert completely into the Telephony Modem if not oriented correctly. The battery should slide into the bay without signiﬁcant force. Line up the guides on the battery with the slots in the battery bay.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Hinge Tabs

Getting Started

Battery

Opening

Battery

Installation Installation

Receiver Slots

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

3 Push the battery pack into the bay until it seats into place. If you are tak-

ing the battery out of the Telephony Modem, position your ﬁnger in the battery opening area and use leverage to dislodge the battery while pulling it straight back.

Note: The Telephony Modem will not begin operating until you apply AC

power.

4 Replace the door. To do so, place the hinge tabs of the battery door into the

receiver slots inside the Telephony Modem battery compartment on the opposite end of the battery opening slot. Rotate the door toward the unit until the latch snaps back into place.

Note: Telephony Modems use a Lithium-Ion battery pack. Please recycle or dispose of the battery responsibly and in accordance with local ordinances.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Latch End

Installation Installation

Battery Slot

Battery

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

TM722G Extended Battery Installation and Replacement

Use this procedure to install or replace the backup battery.

1 Press down and pull back on the latch holding the battery door (on the bot-

tom of the Telephony Modem). Pull the door toward you. Set the door aside in a safe place.

CAUTION

Risk of equipment damage

Improperly inserting the battery may damage the battery connector in the Telephony Modem. Carefully follow the instructions in the next step to avoid damage.

2 Hold the battery pack so that the guides on the battery align with the slots

on the Telephony Modem and slide the battery into the bay. The diagram on the left shows the proper orientation.

Battery Guide

Battery

Pull Strap

Note: Batteries will not insert completely into the Telephony Modem if not

oriented correctly. The battery should slide into the bay without signiﬁcant force. Line up the slots in the battery bay with the guides on the battery and apply even pressure on both ends of the battery.

WRONG WRONG RIGHT

Touchstone TM722 Telephony Modem User’s Guide

Safety

Hinge Tabs

Getting Started

Battery

Opening

Battery

Installation Installation

Receiver Slots

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

3 Push the battery pack into the bay until it latches into place. If you are

taking the battery out of the Telephony Modem, use the battery pull strap to dislodge the battery.

Note: The Telephony Modem will not begin operating until you apply AC

power.

4 Replace the door. To do so, place the tabs of the battery door into the slot

on the Telephony Modem battery compartment. Rotate the door toward the front of the Telephony Modem until the latch snaps back into place.

Note: Telephony Modems use a Lithium-Ion battery pack. Please recycle or dispose of the battery responsibly and in accordance with local ordinances.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

TM722G Maximum Battery Installation and Replacement

Use this procedure to install or replace a maximum backup battery.

1 Press down and pull back on the latch holding the battery door (on the bot-

tom of the Telephony Modem). Pull the door toward you. Set the door aside in a safe place.

2 Place the battery on a ﬁrm horizontal surface.

3 Position the Telephony Modem over the battery, aligning the slots on the

battery bay with the tabs on the battery. Push straight down on the Telephony Modem until the battery latch clicks into place.

Note: You may need to push down gently on the front of the Telephony Modem to latch the battery into place. The Telephony Modem will not begin operating until you apply AC power.

4 To remove the battery, grasp the battery and pull back on the latch at the

front of the battery. Then gently rock the battery out of the bay.

Note: Telephony Modems use a Lithium-Ion battery pack. Please recycle or dispose of the battery responsibly and in accordance with local ordinances.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

Installing and Connecting Your Telephony Modem

Before you start, make sure that:

• You have contacted your cable company and veriﬁed that they provide data and telephone service using standard DOCSIS technology.

• You have all the Items You Need

• Cable, phone, and power outlets are available near the computer. If a cable outlet is not conveniently located, your cable company can install a new one.

If you have ordered service, your cable company should conﬁgure the Telephony Modem automatically. You need only follow the instructions in this section to install and connect the Telephony Modem.

CAUTION

Risk of equipment damage

Only qualiﬁed installation technicians should connect the Telephony Modem to house wiring. Incumbent telephone service must be physically disconnected at the outside interface box before making any connections.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

Front Panel

TM722A/B/S Front Panel

TM722A/B/S

TM722G

CDE

The front of the Telephony Modem provides the following indicators.

A Telephone 2: indicates status of line 2.

B Telephone 1: indicates status of line 1.

C Link: indicates Ethernet or USB (if equipped) connectivity between the Tele-

phony Modem and computer. It may be red or green to indicate the connection speed.

D Online: indicates internet data transmission status.

E US: indicates upstream connectivity. It may be red or green to indicate the

connection speed.

F DS: indicates downstream connectivity. It may be red or green to indicate

the connection speed.

G Power: indicates whether AC power is available to the unit.

TM722G Front Panel

The front of the Telephony Modem provides the following indicators.

A Battery: indicates battery status.

B Telephone 2: indicates status of line 2.

C Telephone 1: indicates status of line 1.

ABCDEFG

D Link: indicates Ethernet or USB (if equipped) connectivity between the Tele-

phony Modem and computer. It may be red or green to indicate the connection speed.

E Online: indicates internet data transmission status.

F US: indicates upstream connectivity. It may be red or green to indicate the

connection speed.

G DS: indicates downstream connectivity. It may be red or green to indicate

the connection speed.

H Power: indicates whether AC power is available to the unit.

Touchstone TM722 Telephony Modem User’s Guide

Safety

Getting Started

Battery

Installation Installation

USB

Drivers

Ethernet

Conﬁguration Usage Troubleshooting Glossary

TM722A/B

ACB

TM722S

ACB

Rear Panel

The rear of the Telephony Modem has the following connectors and controls:

TM722A/B/S Rear Panel

A Tel 1 (grey): connector for the ﬁrst phone line.

B Tel 2 (grey): connector for the second phone line.

C Reset button: resets the Telephony Modem as if you power cycled the unit.

TM722G Rear Panel

Use a pointed non-metallic object to press this button.

D Ethernet

connection.

E USB

F Cable: connector for the coax cable.

G Power: connector for the power cord.

H Power Switch (TM722S only): power On/Off switch.

A Tel 1/2 (grey): connector for the ﬁrst phone line (or both lines of a 2-line

phone).

B Tel 2 (grey): connector for the second phone line.

C Reset button: resets the Telephony Modem as if you power cycled the unit.

Use a pointed non-metallic object to press this button.

connector (yellow): for use with a computer or home network LAN

connector (blue, if equipped): for use with a computer USB connection.

TM722G

D Ethernet connector (yellow): for use with a computer or home network LAN

connection.

E USB connector (blue, if equipped): for use with a computer USB connection.

F Cable: connector for the coax cable.

G Power: connector for the power cord.

Touchstone TM722 Telephony Modem User’s Guide

+ 51 hidden pages
