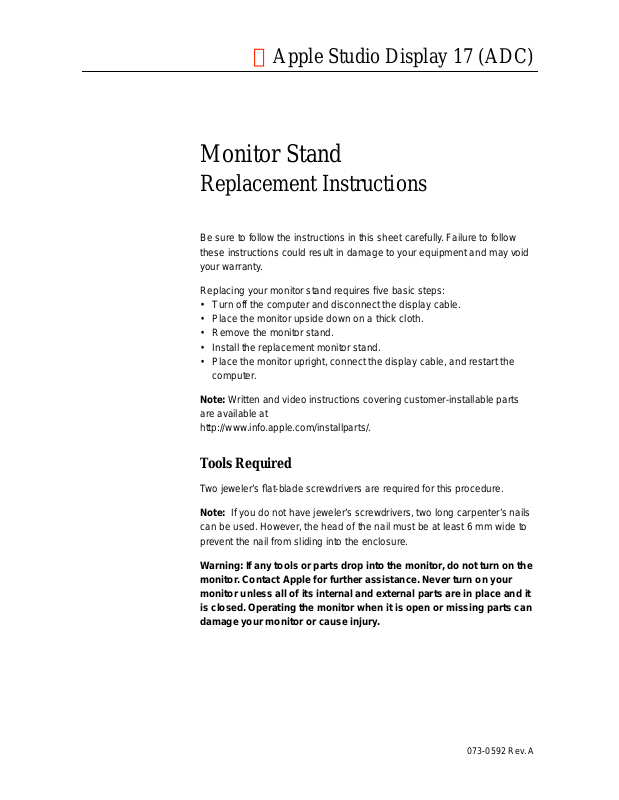

 Apple Studio Display 17 (ADC)
Monitor Stand

Replacement Instructions

Be sure to follow the instructions in this sheet carefully. Failure to follow these instructions could result in damage to your equipment and may void your warranty.
Replacing your monitor stand requires five basic steps:
• Turn off the computer and disconnect the display cable.
• Place the monitor upside down on a thick cloth.
• Remove the monitor stand.
• Install the replacement monitor stand.
• Place the monitor upright, connect the display cable, and restart the computer.
Note:
Written and video instructions covering customer-installable parts are available at http://www.info.apple.com/installparts/.

Tools Required

Two jeweler’s flat-blade screwdrivers are required for this procedure.
Note:
If you do not have jeweler’s screwdrivers, two long carpenter’s nails can be used. However, the head of the nail must be at least 6 mm wide to prevent the nail from sliding into the enclosure.
Warning: If an y tools or parts drop into the monitor, do not turn on the monitor. Contact Apple for further assistance. Never turn on your monitor unless all of its internal and external parts are in place and it is closed. Operating the monitor when it is open or missing parts can damage your monitor or cause injury.
073-0592 Rev. A

Removing the Monitor Stand

1. Warning: Turn off y our computer and disconnect the displa y cable
as follows:
• Unplug the display cable from the computer.
• Wait five minutes for the computer’s internal components to cool down.
±
2.
3. Slide the monitor stand toward the display cable.
WARNING:
when repositioning the monitor.
Use a thick, soft, clean cloth (such as a folded blanket or towel) as a cushion. Place the monitor upside down on the cloth so the screen is away from you and the monitor stand is in front of you.
The monitor weighs 20 kg (45 pounds). Be careful
Monitor Stand
Cloth
2
- Apple Studio Display 17 (ADC) Monitor Stand
Display Cable
4. In the center of the monitor stand, locate the two identical round openings in the retaining clip.
Retaining Clip
Round Openings
5. Using two jeweler’s flat-blade screwdrivers, place one in each of the round openings and gently pry up the retaining clip until it is out of the monitor stand.
Warning: If any tools or parts drop into the monitor, do not turn on the monitor. Contact Apple for further assistance. Never turn on your monitor unless all of its internal and external parts are in place and it is closed. Operating the monitor when it is open or missing parts can damage your monitor or cause injury.
Apple Studio Display 17 (ADC) Monitor Stand -
3
6. Rotate the stand clockwise (1/4 turn) so it is positioned as shown.
7. Peer into the center of the monitor stand and swivel it somewhat until you can see the locking tabs line up with the slots in the base.
Locking Tabs
4
- Apple Studio Display 17 (ADC) Monitor Stand
8. With the tabs aligned, gently pull the stand toward you. Then tilt the stand up off the base.

Positioning the Plastic Rings

After you remove the monitor stand, two plastic rings should remain on the base. These rings are fitted in a special orientation so the replacement stand will fit properly. However, if the rings are dislodged, replace them as follows:
1. Place the white plastic ring on the base so that you can still read the words "Serial Number" when the ring is slid all the way down. Turn the ring over if the words are not visible
White Ring
Correctly Installed
Apple Studio Display 17 (ADC) Monitor Stand -
5
2. Place the clear plastic ring over the white ring so that the white ring fits inside the clear ring.
3. Check that the rings are properly aligned. They should easily slide in unison, and when they are close to the serial number label, you should be able to see the serial number bar code but not be able to clearly see the words "Serial Number."
Rings
Correctly Installed
Apple Studio Display 17 (ADC) Monitor Stand -
6

Installing the Replacement Monitor Stand

1. Holding the new monitor stand, align the slots in the center of the stand with the tabs on the base of the monitor.
Locking Tabs
2. Slide the stand up to engage the locking tabs.
3. Turn the stand counterclockwise.
4. Align the retaining clip and press it down until it clicks into place. The retaining clip is keyed and only fits one way.
5. Check that the stand slides easily.
6. Turn your monitor upright and reconnect it to the computer.
Apple Studio Display 17 (ADC) Monitor Stand -
7
7. Restart your computer.
Warning: Never turn on your monitor unless all of its internal and external parts are in place and it is closed. Operating the monitor when it is open or missing parts can damage your monitor or cause injury.
