K Power Mac G4 Cube
Battery
Replacement Instructions
Be sure to follow these instructions carefully. Failure to follow these
instructions could result in damage to your equipment and may void your
warranty.
Replacing the battery requires five basic steps:
• Turn off the computer.
• Remove the computer core from the enclosure.
• Remove the installed battery.
• Install the replacement battery.
• Replace the computer core in the enclosure.
Note:
A video version of the replacement instructions is available at
http://www.info.apple.com/installparts
Tools Required
No tools are required for this procedure.
Electrostatic Discharge (ESD)
Static electricity , a normal and natural phenomenon, builds up on y our body
as you walk around. You experience an electrostatic discharge (ESD) when
you touch an object and feel a spark. ESD can cause damage to the
internal components of your computer. Avoid walking around while
performing this procedure, and follow the instructions carefully when you
are asked to discharge static electricity.
073-0542
Removing the Computer Core From the Enclosure
Warning: Always turn off your computer before opening it to avoid
damaging its internal components.
1 Place your computer on a clean, flat surface.
2 Shut down your computer by opening the Special menu and choosing
Shut Down. Then wait five minutes for the computer’s internal
components to cool down.
3 Unplug all cables from the computer except the power cord.
Note:
If you have never plugged in your computer, connect the
computer’s power cord and plug it in.
4 Turn your computer upside down on a soft, clean cloth.
5 Touch the bare metal at the port access covers on the back of the
computer.
Bare Metal
Important:
by touching the port access covers before you touch any parts or
install any components inside the computer. To avoid static electricity
building back up in your body, do not walk around the room until you
have completed the installation and closed the computer.
6 Unplug the power cord.
To avoid electrostatic discharge, always ground yourself
2
- Power Mac G4 Cube Battery

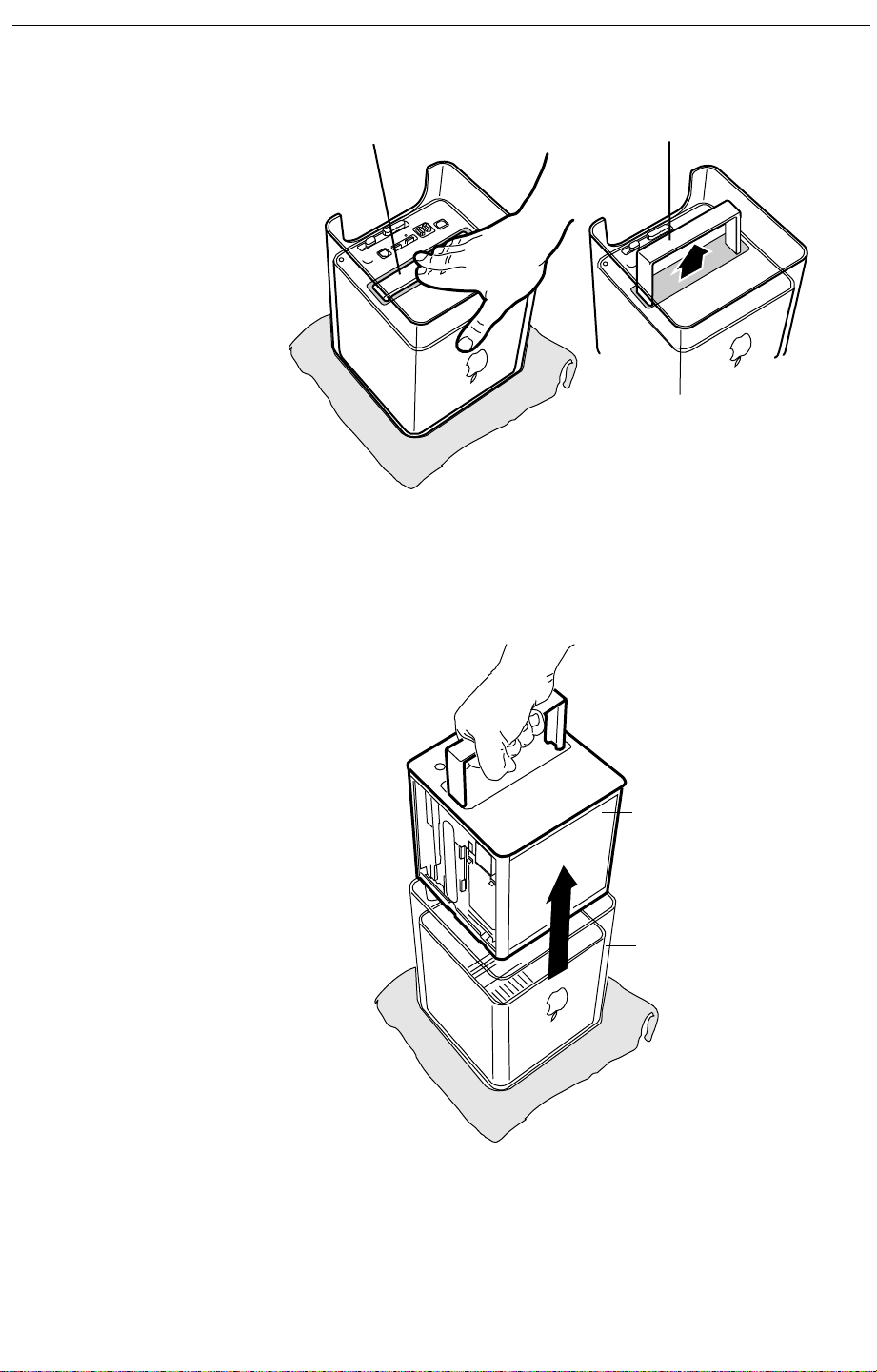

7 Push down on the latch to release it.
Latch
Extended Latch
Allow the latch to extend completely.
8 Gently pull the core from the computer enclosure and place it on a soft
cloth.
Core
Enclosure
Power Mac G4 Cube Battery -
3
Replacing the Battery

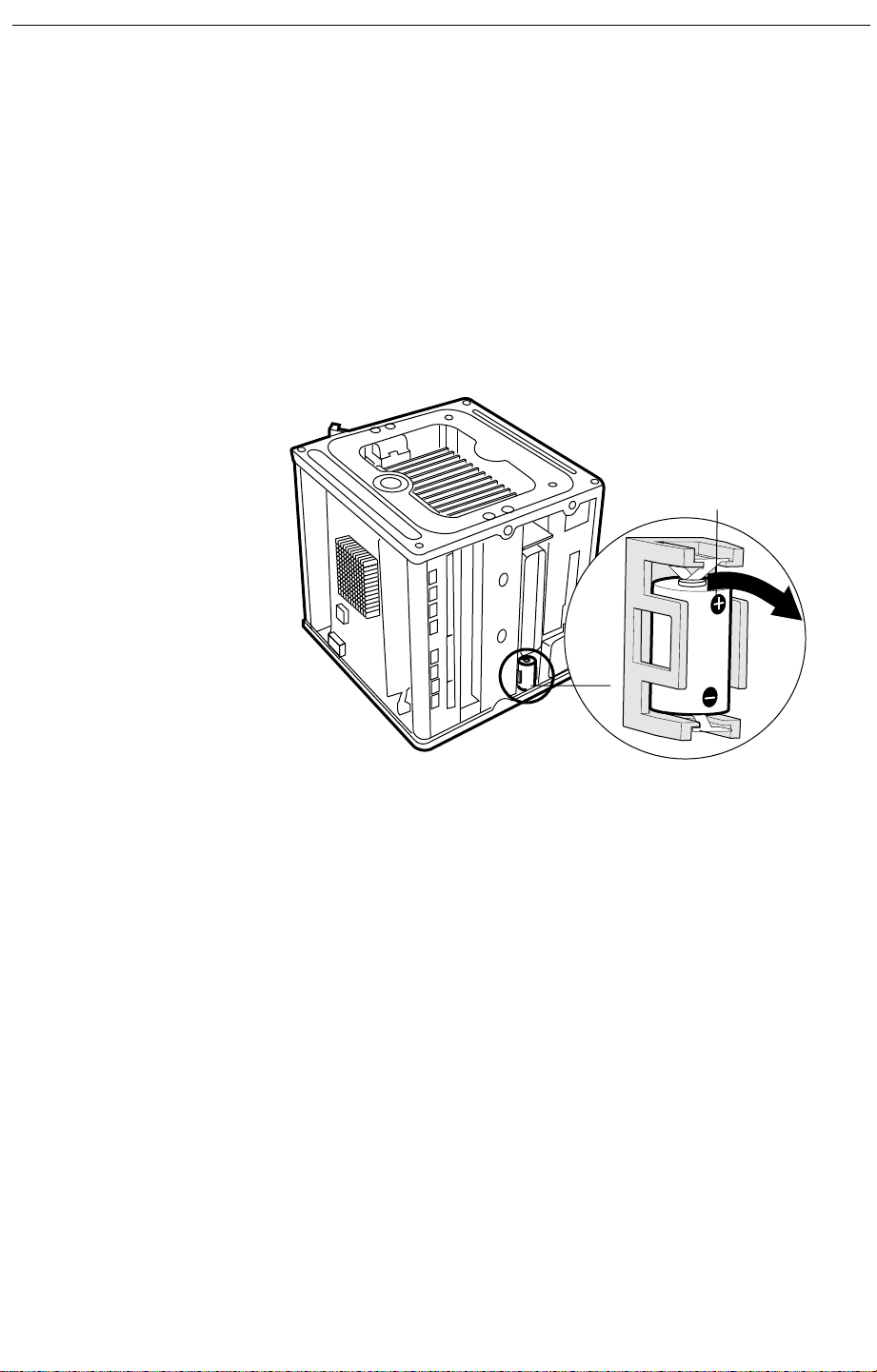

1 Note the orientation of the installed battery’s positive (+) end. (Positive
and negative signs are also marked on the battery holder.)
2 At the battery’s positive end, place your finger betw een the battery and
the holder. Gently pry the battery out of the holder and out of the
computer.
Warning: Batteries contain chemicals, some of which may be
harmful to the environment. Please dispose of used batteries
according to your local environmental laws and guidelines. Do
not return used batteries to Apple.
Positive End
Battery
3 Insert the new battery into the holder, making sure the battery’s positive
and negative signs align with those on the holder.
Warning: Installing the battery incorrectly may cause an
explosion. Be sure the battery’s positive and negative poles are
correctly oriented in the holder. Use only the battery supplied
with this kit.
4
- Power Mac G4 Cube Battery
Replacing the Computer Core in the Enclosure
1 Holding the core by the latch, insert the core into the computer.
Note:
The core fits into the enclosure only one way. Position the core
so the ports are toward the back of the enclosure.
Core
Enclosure
2 With a flat hand, press down on the latch until it locks into place. Firmly
press the core to ensure it is fully secured within the enclosure.
Important:
enclosure could fall off the core and be damaged.
Do not lift or carry your computer by the core latch. The
Latch
Power Mac G4 Cube Battery -
5
3. Turn your computer upright and reconnect all cables.
4. Restart your computer.
Warning: Never turn on your computer unless all of its internal
and external parts are in place and it is closed. Operating the
computer when it is open or missing parts can damage your
computer or cause injury.
Resetting Date and Time
Replacing the battery changes the date and time settings on your
computer. Use the Date & Time control panel to correct the date and
time.
K
Apple Computer, Inc.
© 2000 Apple Computer, Inc. All rights reserved.
Under the copyright laws, this document may not be copied, in whole or in
part, without the written consent of Apple.
The Apple logo is a trademark of Apple Computer, Inc., registered in the
U.S. and other countries. Use of the “keyboard” Apple logo (Option-Shift-K)
for commercial purposes without the prior written consent of Apple may
constitute trademark infringement and unfair competition in violation of
federal and state laws.
Every effort has been made to ensure that the information in this document
is accurate. Apple is not responsible for printing or clerical errors.
Apple Computer, Inc.
1 Infinite Loop
Cupertino, CA 95014-2084
408-996-1010
http://www.apple.com
Apple, the Apple logo, Mac , Macintosh, and the Mac logo are trademarks of
Apple Computer, Inc., registered in the U.S. and other countries.
Power Mac is a trademark of Apple Computer, Inc.
6
- Power Mac G4 Cube Battery
